Tarot 3 Axis Brushless Gimbal with Built-in 640*512 Thermal Imaging Camera 3-6S Input S-Bus PWM Receiver Radio Control TL3T20

Tarot 640 Thermal Imaging Gimbal is specially desgined for industrial drones.The professional level three-axis thermal imaging gimbal is applied to  power inspection, fire fighting and many other industry needs. The industrial design of the full CNC overall ribbed wall panel structure,built-in independent IMU precise control of the gimbal posture, specialized servo drive module, this gimbal is able to support Pan Follow (PF) mode and First Person View (FPV) mode. It can be widely applied to firefighting, forest security, public security monitoring, search and rescue, environmental law enforcement and many other industries.

Основные характеристики:
1.The gimbal supports wide voltage 3-6S input;
2.Mechanical three-axis image stabilization,±0.01°image stabilization accuracy;
3.Aluminum alloy structure design,light and strong,good heat dissipation performance;
4.Highly optimized servo motor vector control algorithm;
5.Quick AV video output mode;
6.Rotation direction controllable angle (PAN):±125°;
7.Pitch controllable angle (TILT): -120°to +80°;
8.S-Bus/PWM receiver support;
9.Movement thermal imaging output resolution 640*512;

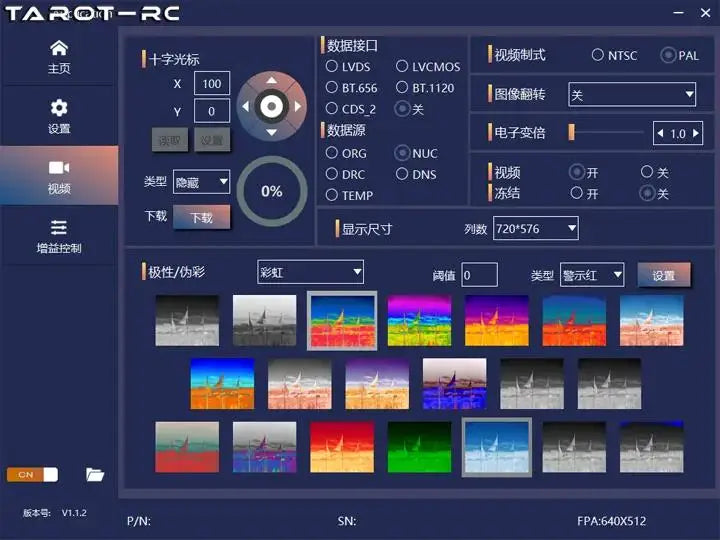

10.Movement debugging software (computer side) multi-mode optional;
11.Weight 278g

Подробности:

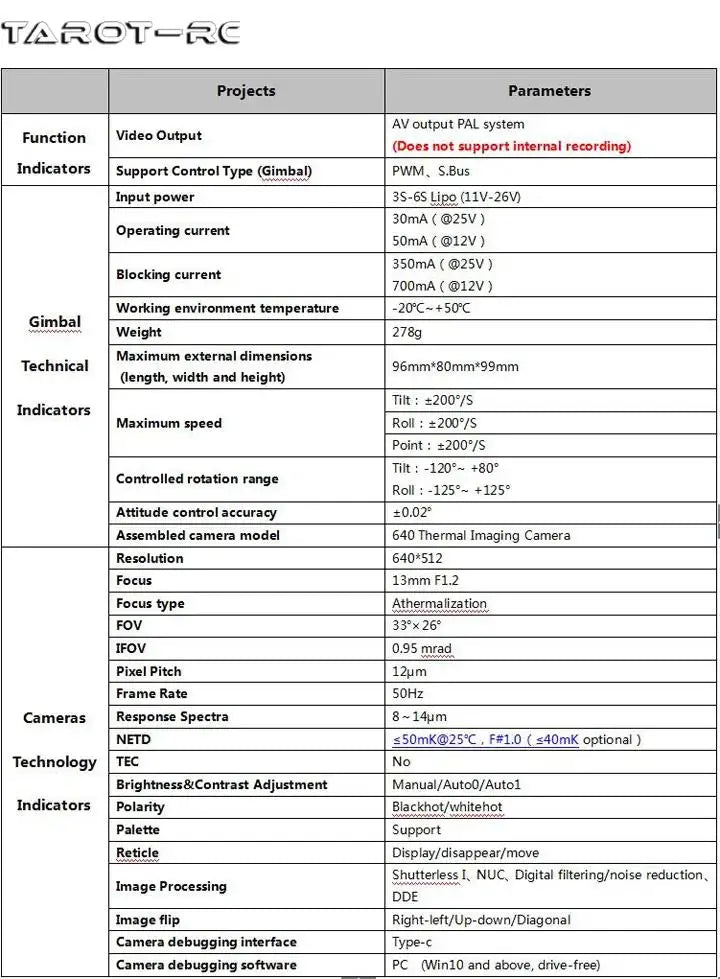

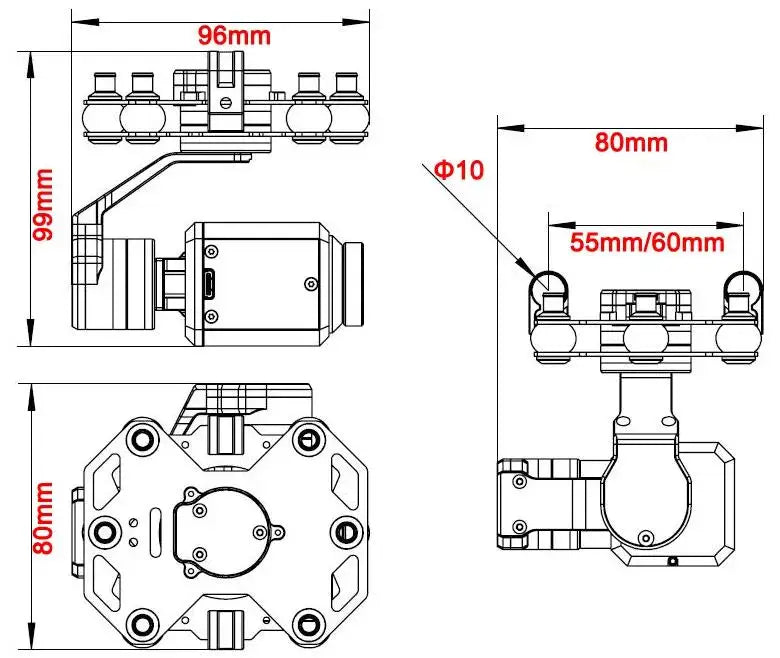

TLROTFRC Projects Parameters AV output PAL system Function Video Output (Does not support internal recording) Indicators Support Control Type (Gimbal) Working environment temperature 20C-+50C Gimbal Weight 278g Maximum external dimensions Technical 96mm*8Omm*99mm (length; width and height) 640 Thermal Imaging Camera Resolution 640*512 Focus 13mm F1.2 Focus type Atnermaliza FOV 33 * 268 IFOV 0.95 mrad Pixel

В комплект входит:
1x 640 thermal imaging three-axis gimbal(278g)
1x main control module(power)
1x cable from main control to gimbal
1x 5V output and receiver cable
1x gimbal debugging module
1x gimbal assistant module cable(Micro-USB cable)
1x thermal imaging camera cable(Type-C cable)
