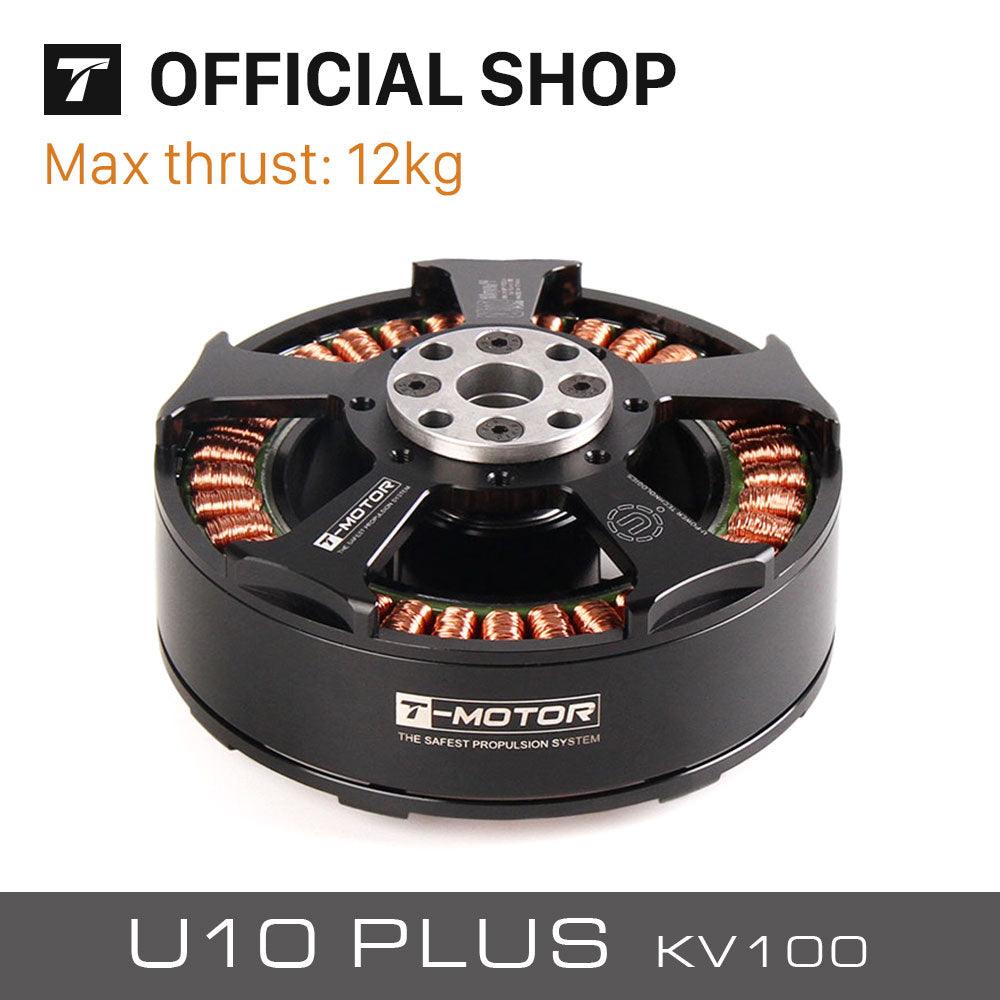

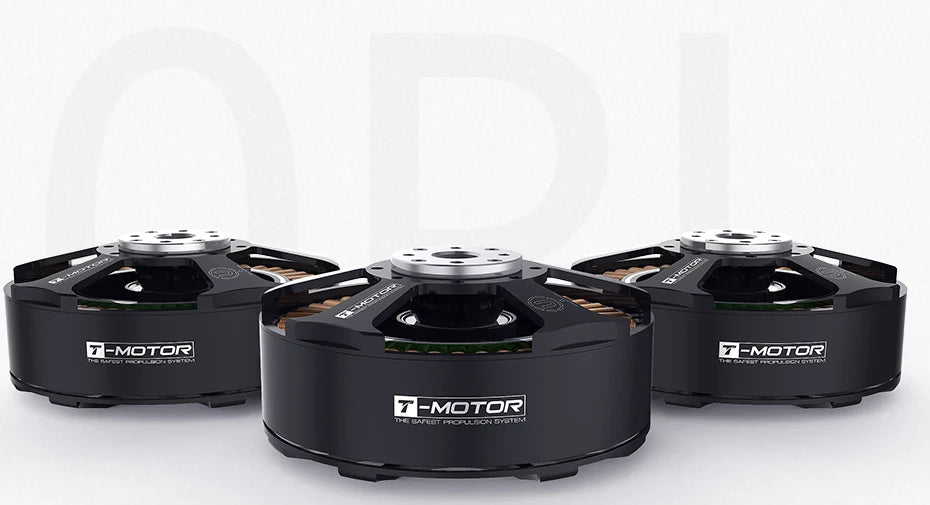

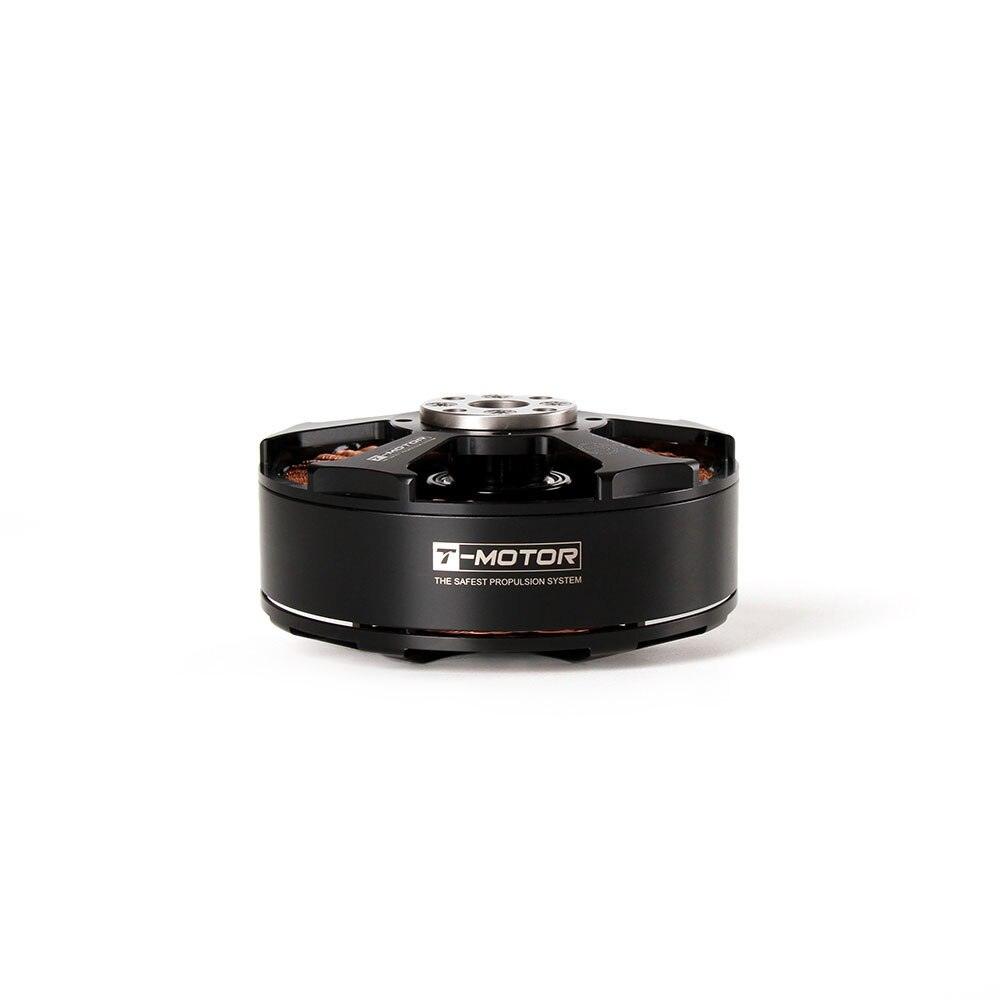

T-Motor U10 Plus KV100 Motor SPECIFICATIONS

Используйте: Транспортные средства и игрушки с дистанционным управлением

Рекомендуемый возраст: 14+y

Запчасти и принадлежности RC: Моторы

Происхождение: Материковый Китай

Номер модели: U10 plus KV100

Материал: Металл

Для типа автомобиля: Самолеты

Название бренда: T-MOTOR

U-POWER TECHNOLOGIES U1O PLUS EFFICIENCY TYPE Heavier loads and longer flight times High-end aerial photography Exploration Archaeology Remote sensing surveying and Mapping etc INDUSTRIAL GRA

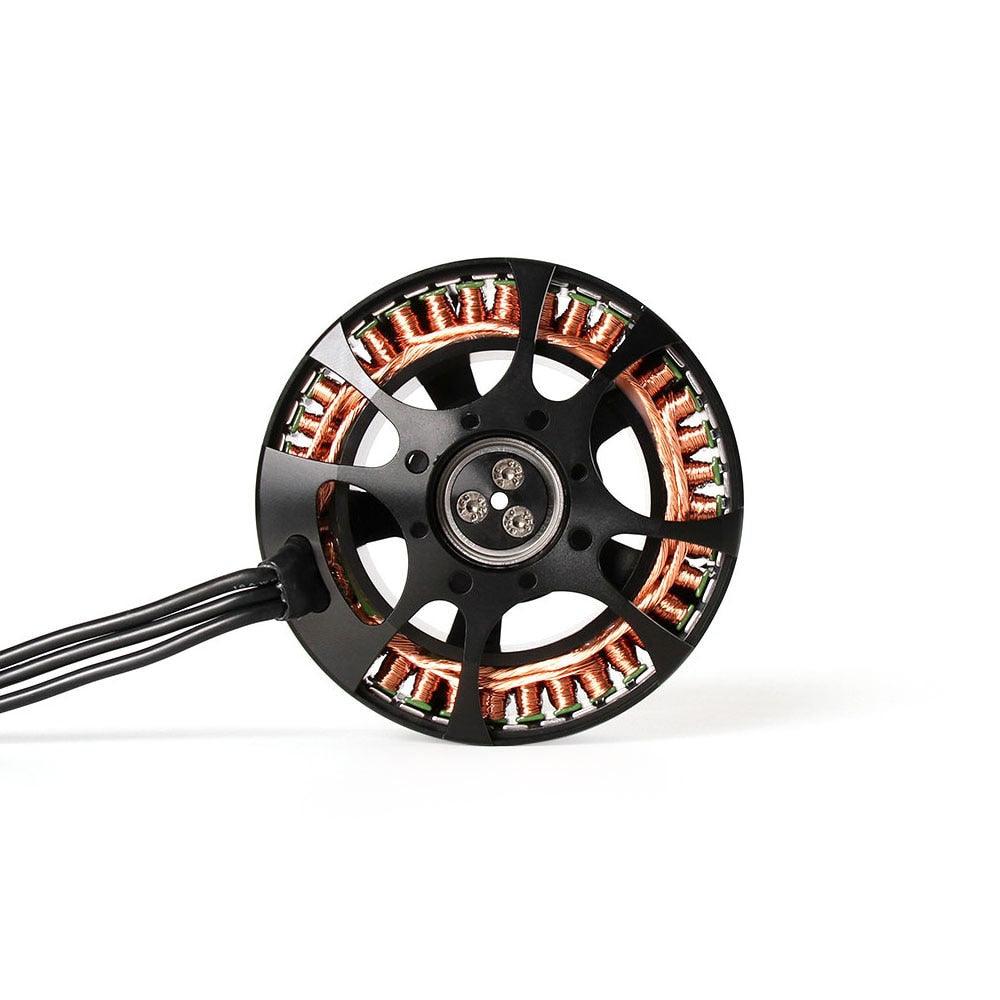

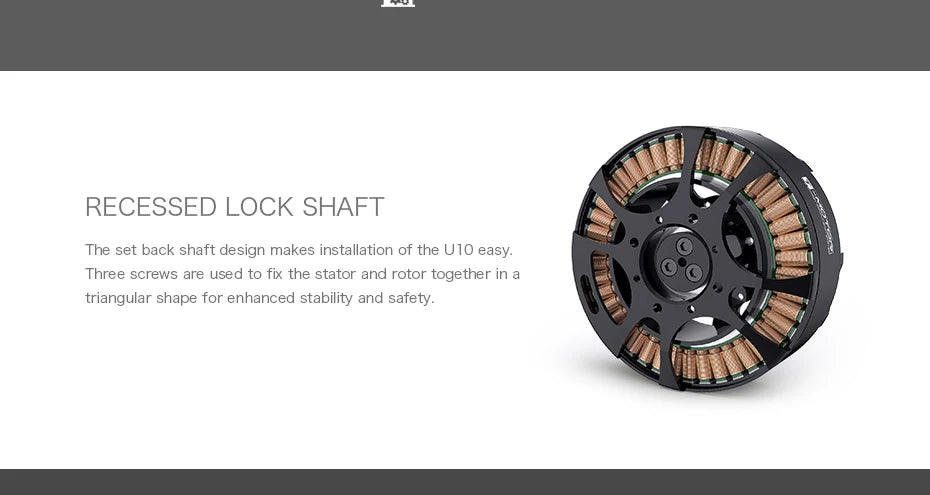

The motor features a unique design, where three screws secure the stator and rotor together in a triangular arrangement, providing enhanced stability and ensuring maximum safety.

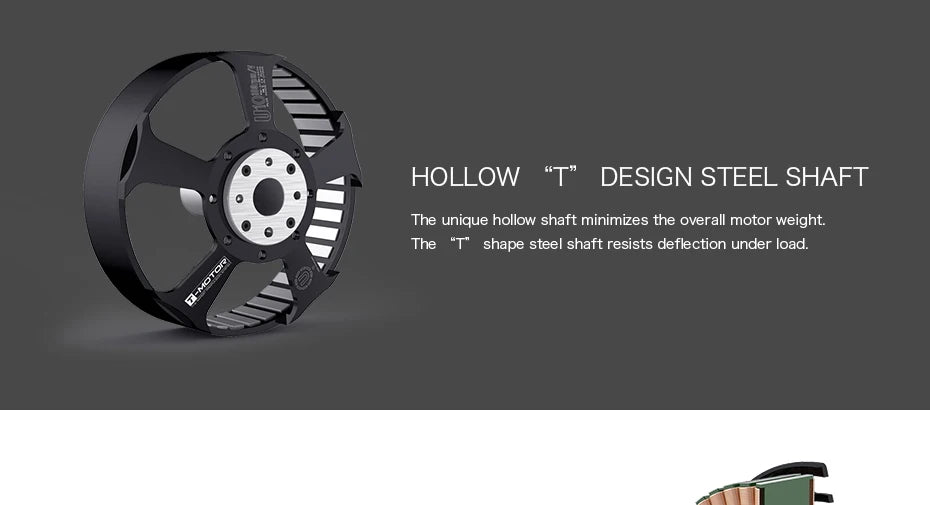

The unique hollow shaft design reduces the overall motor weight, while its steel construction provides excellent resistance to deflection under load, measuring 1 inch in diameter.

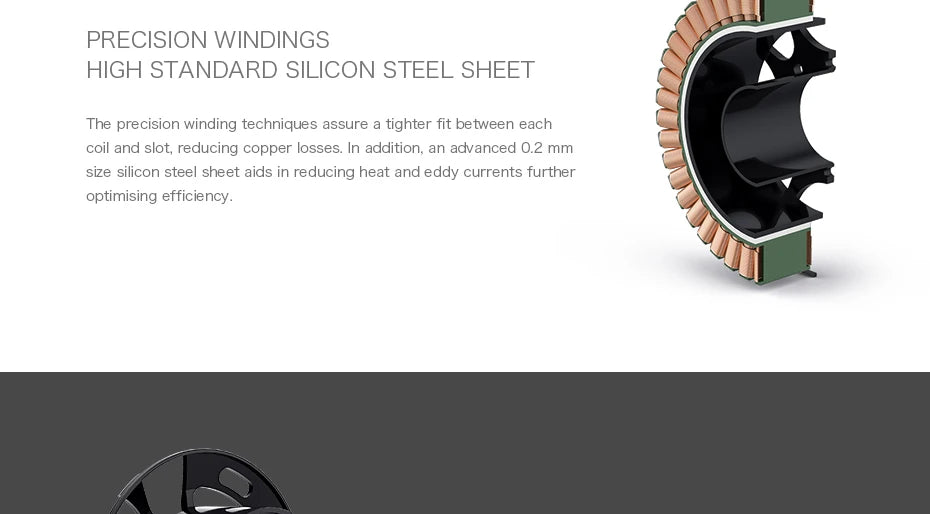

Precision winding techniques ensure a snug fit between the coil and slot, while advanced 0.2mm-thick silicon steel sheets help minimize heat generation and eddy current losses.

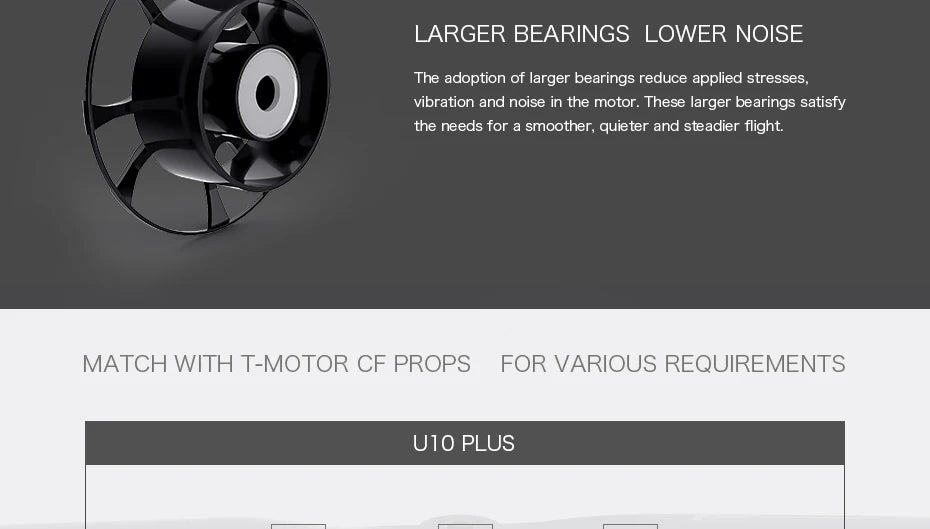

By adopting larger bearings, we have successfully reduced stress, vibration, and noise within the motor, resulting in a quieter operation.

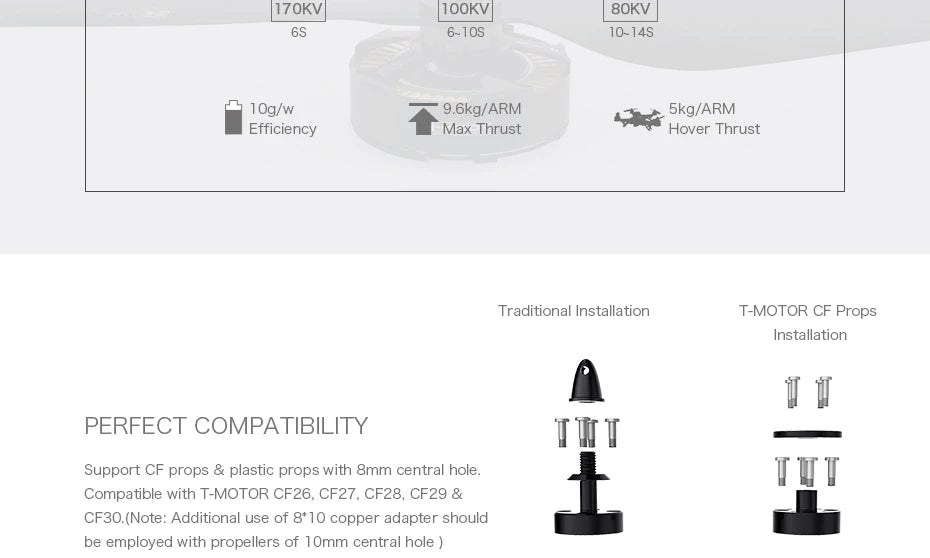

This motor is compatible with both carbon fiber (CF) and plastic propellers that feature an 8mm central hole. Additionally, it is suitable for use with T-MOTOR’s range of CF props, including the CF26, CF27, CF28, and CF30 models.

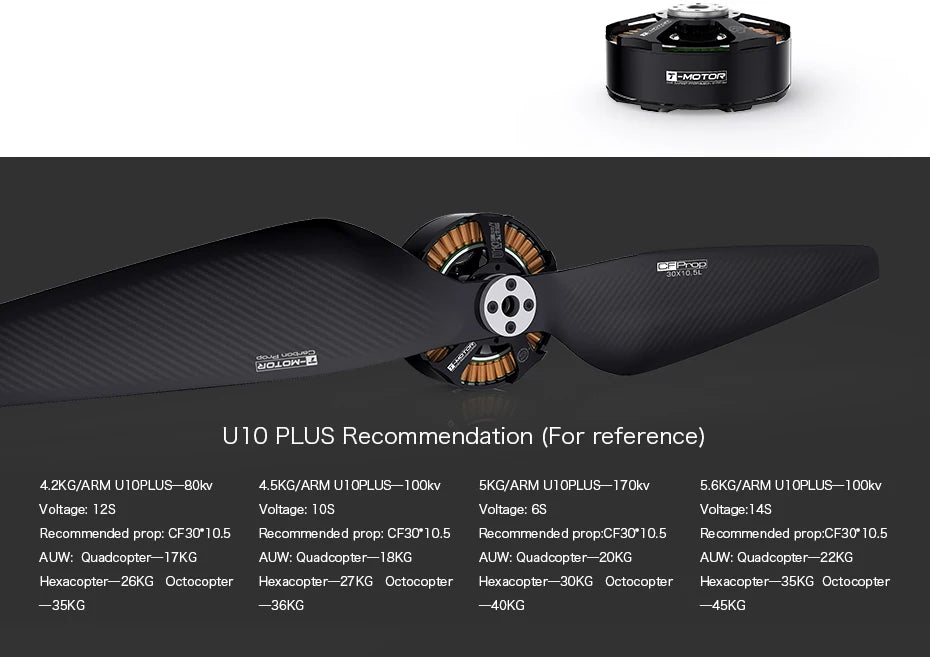

Recommendation: For reference, our customers also purchased the T-Motor U10 Plus with 4.2kG arm and KV100 motor, which has similar specifications to this product.

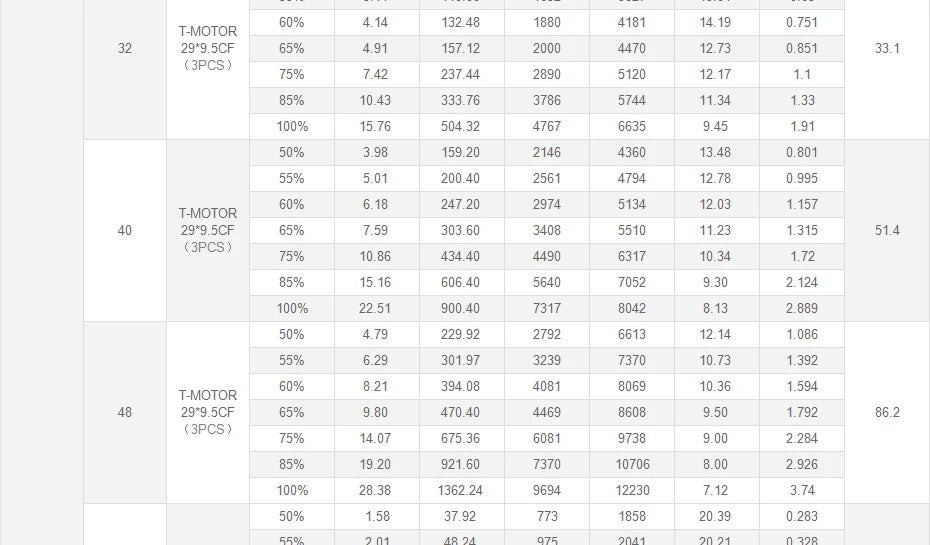

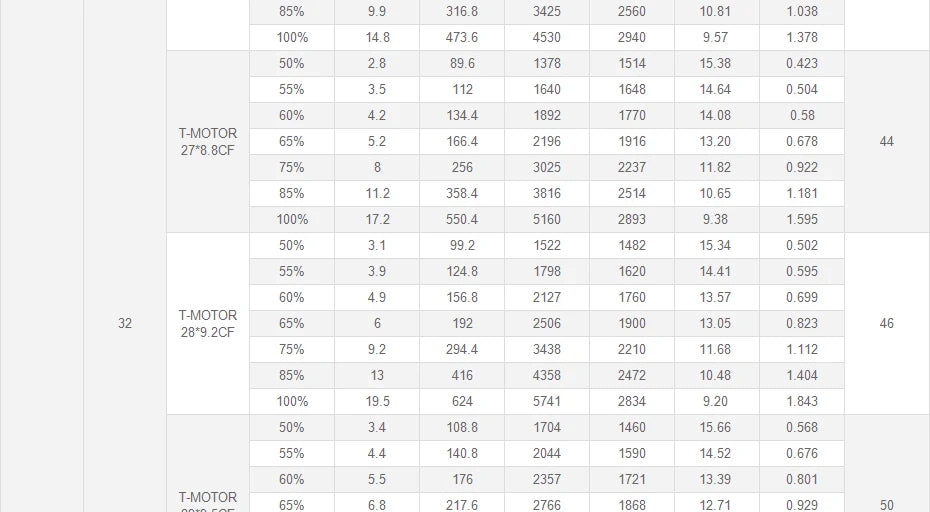

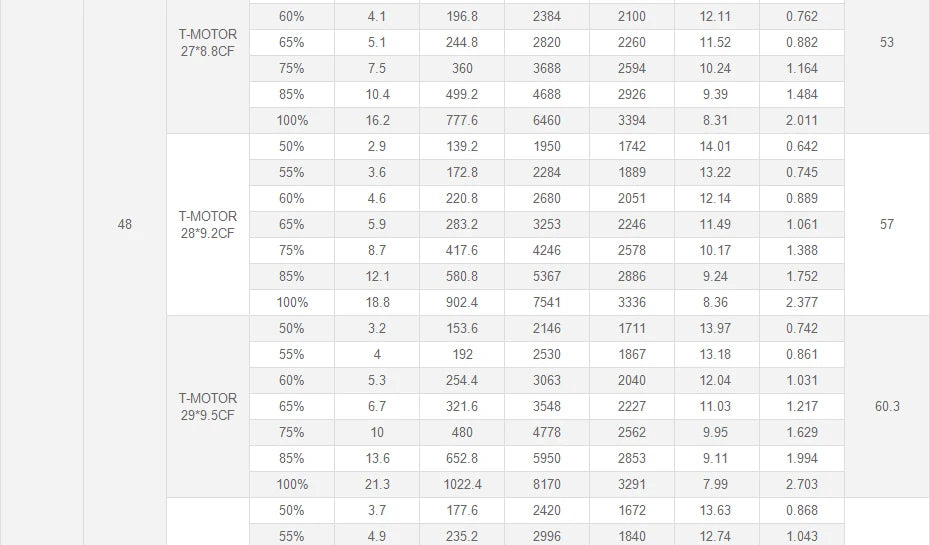

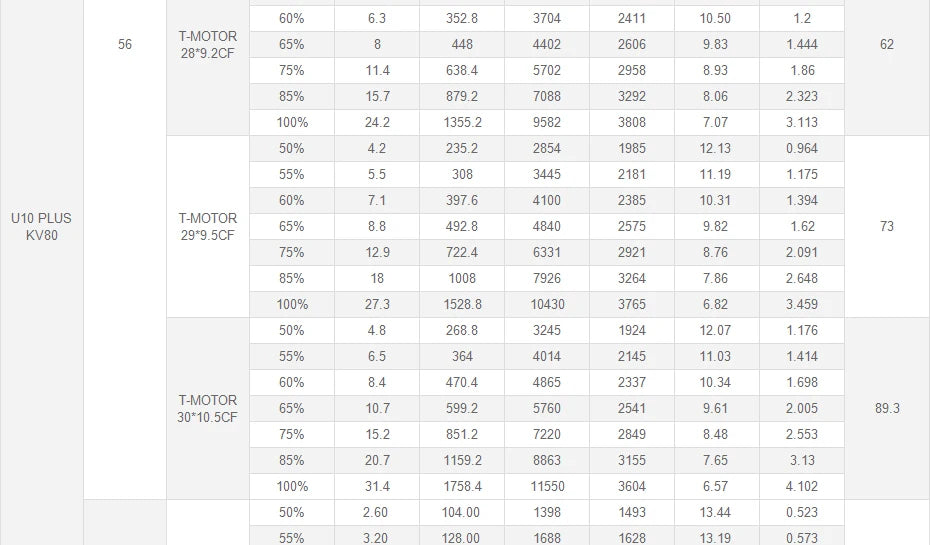

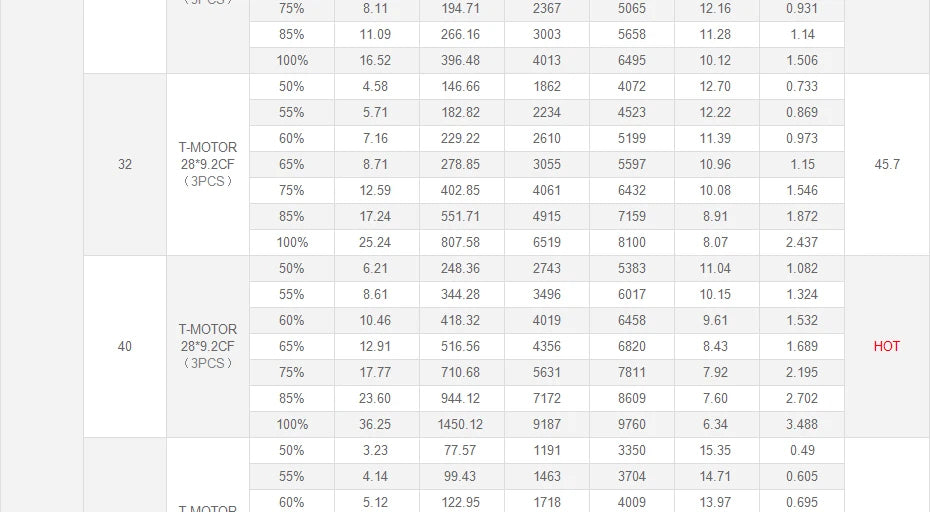

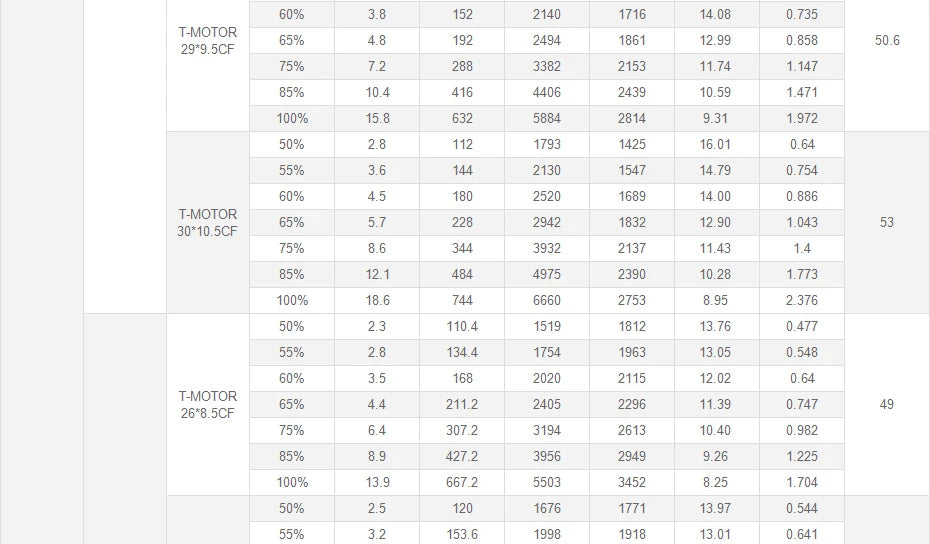

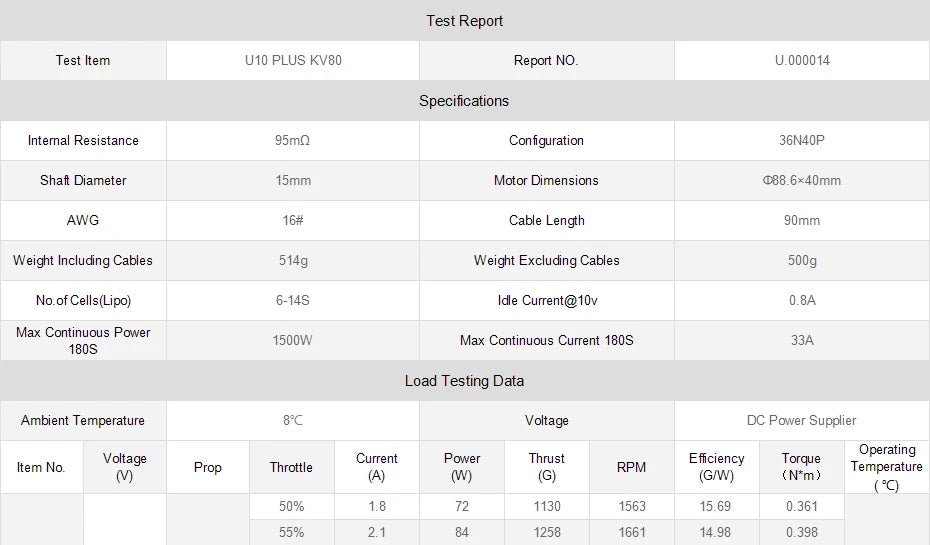

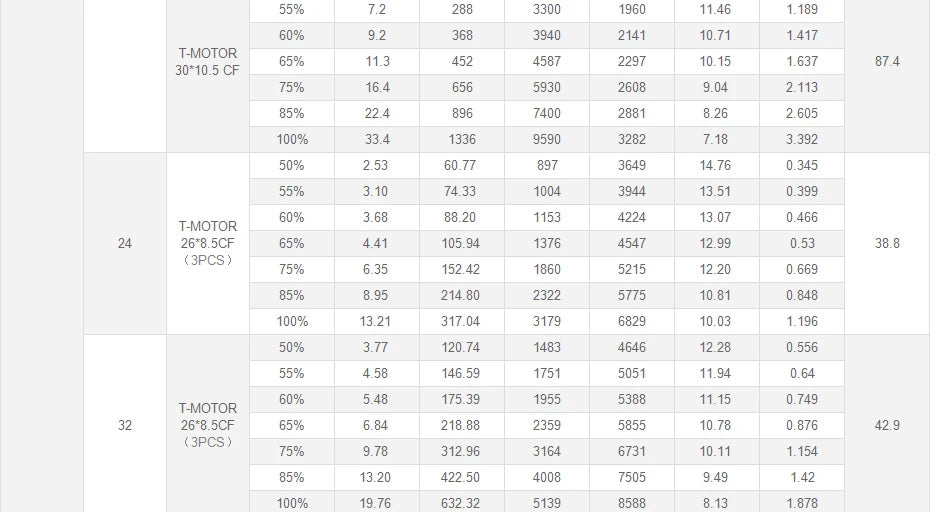

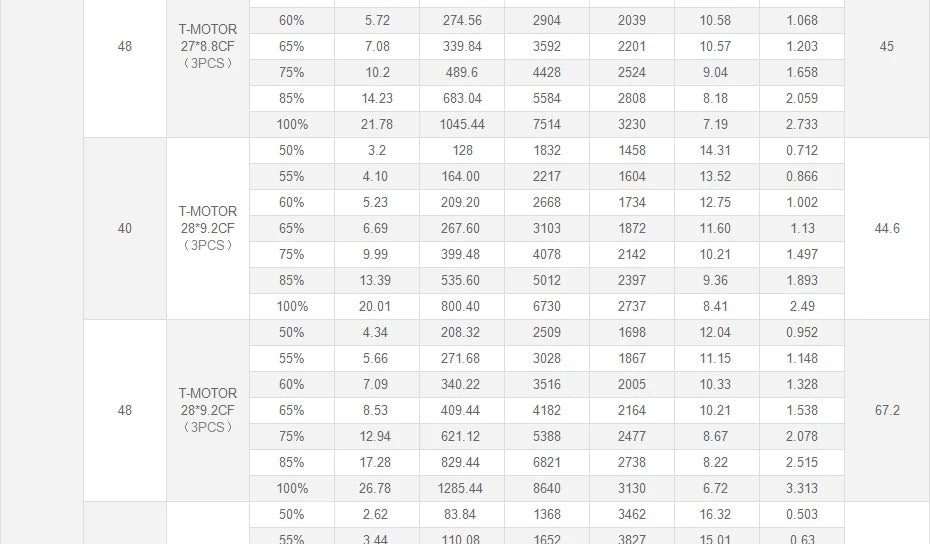

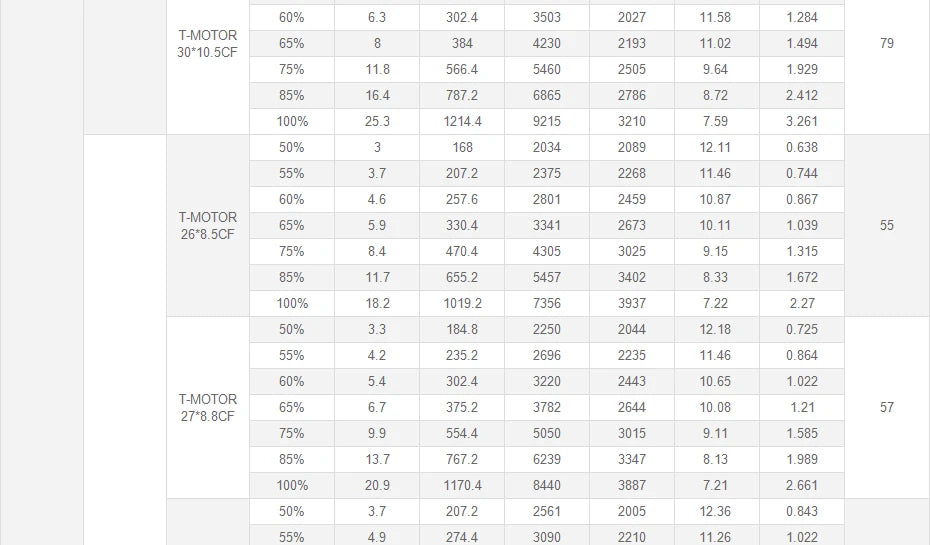

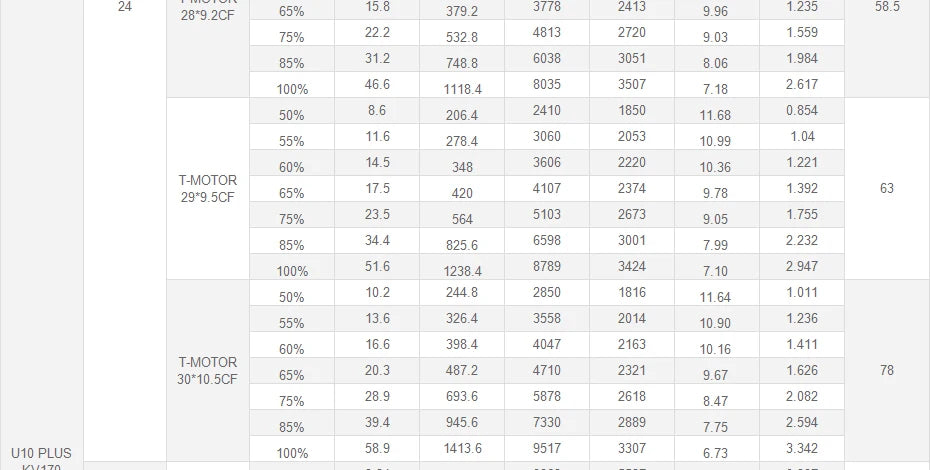

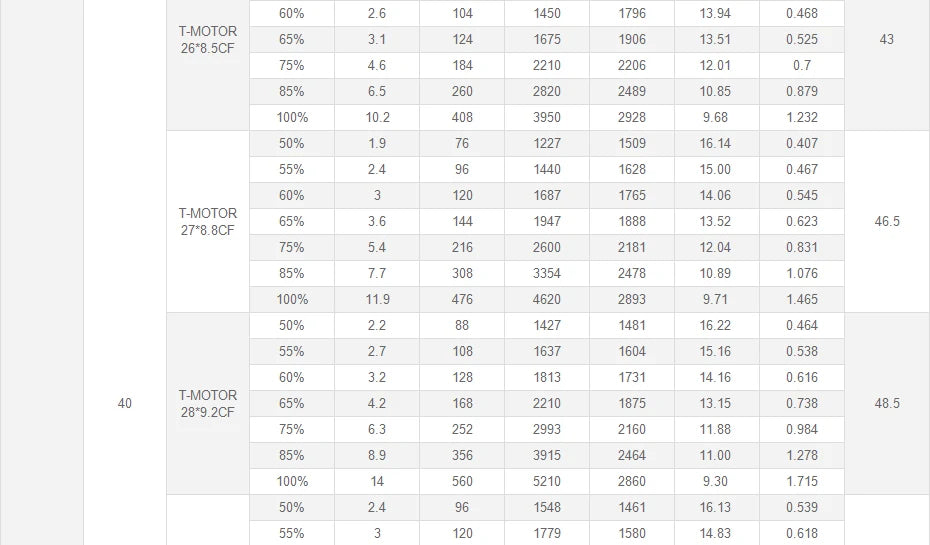

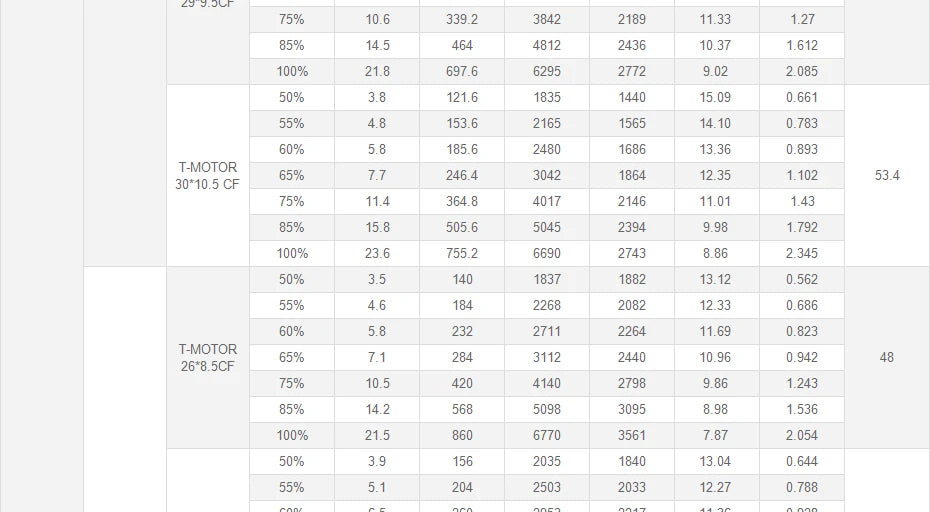

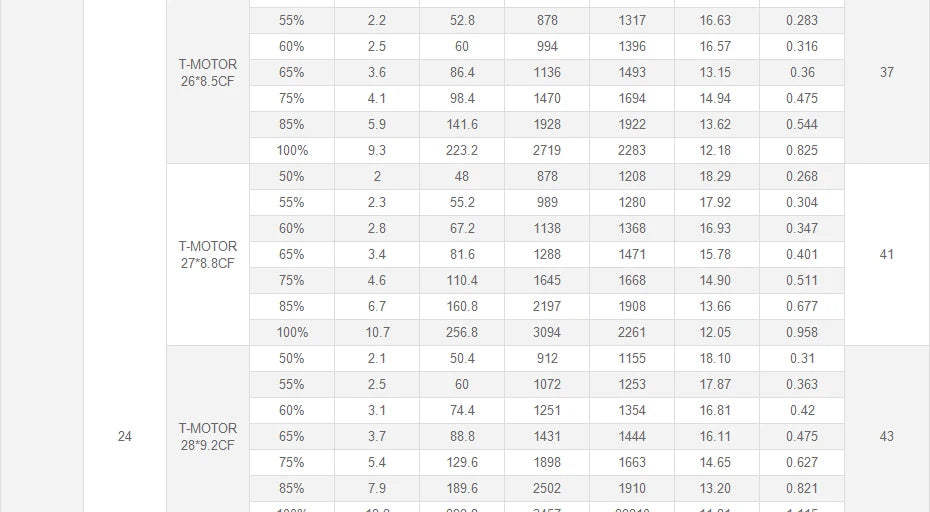

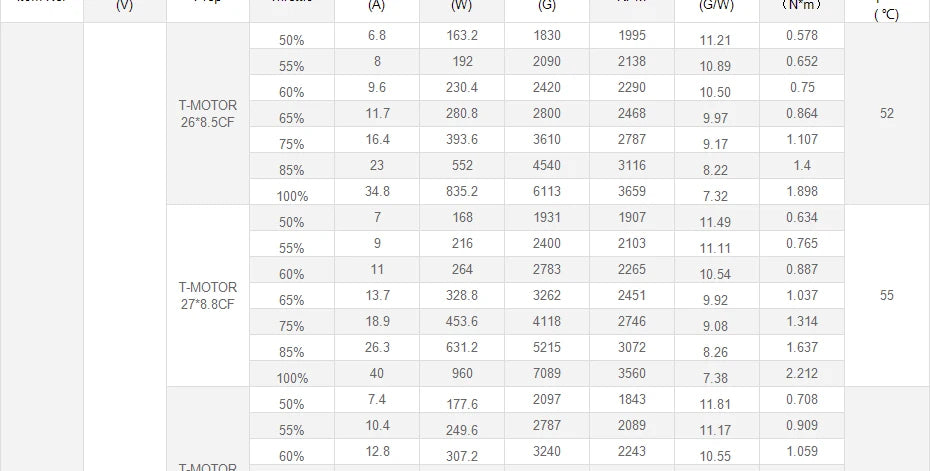

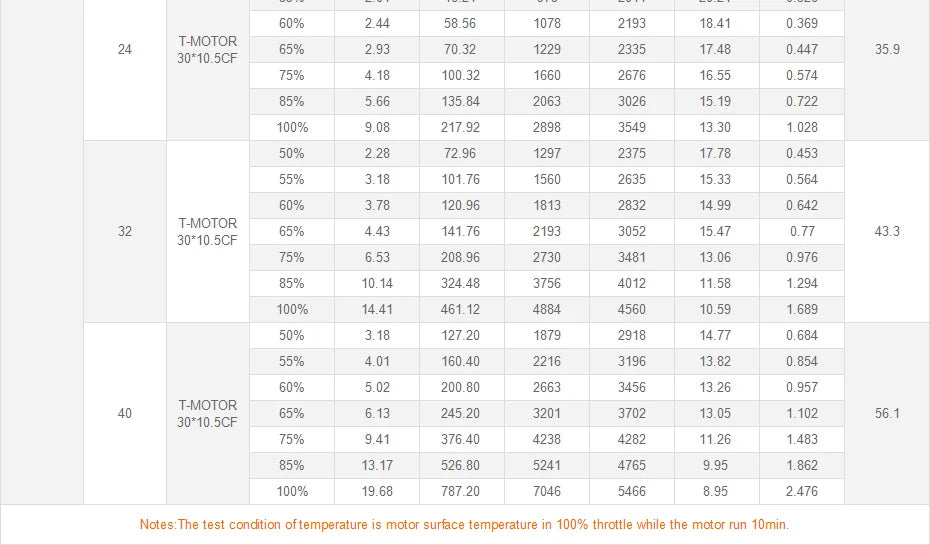

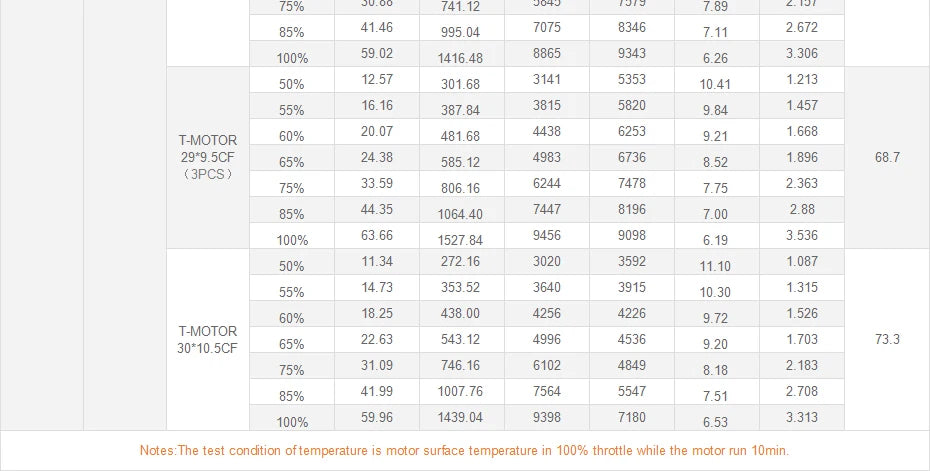

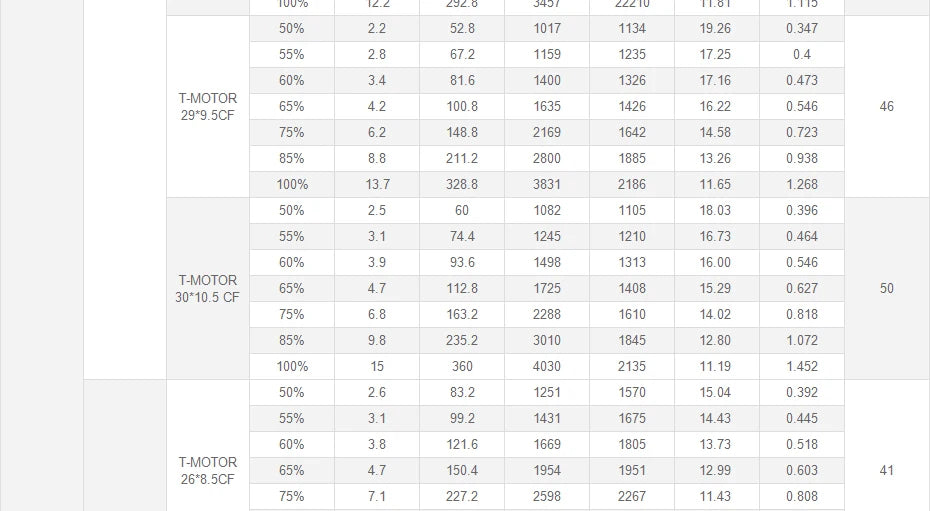

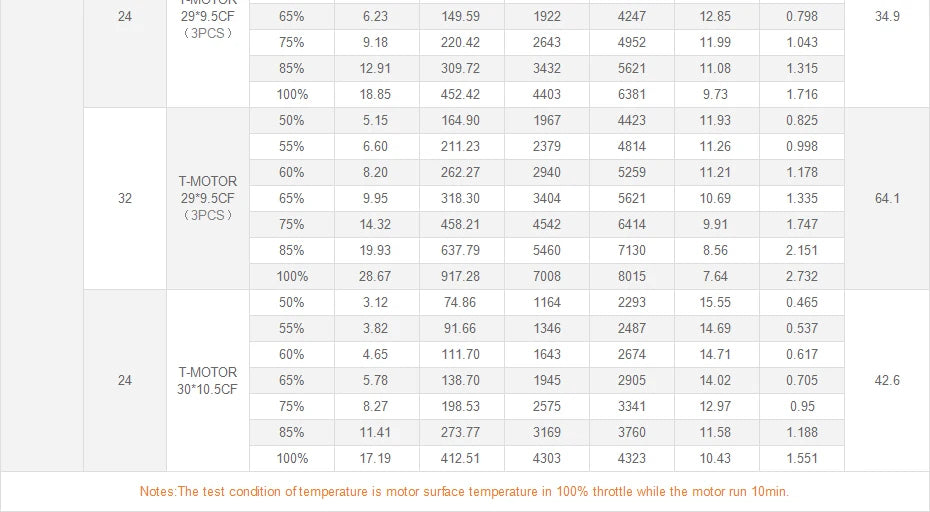

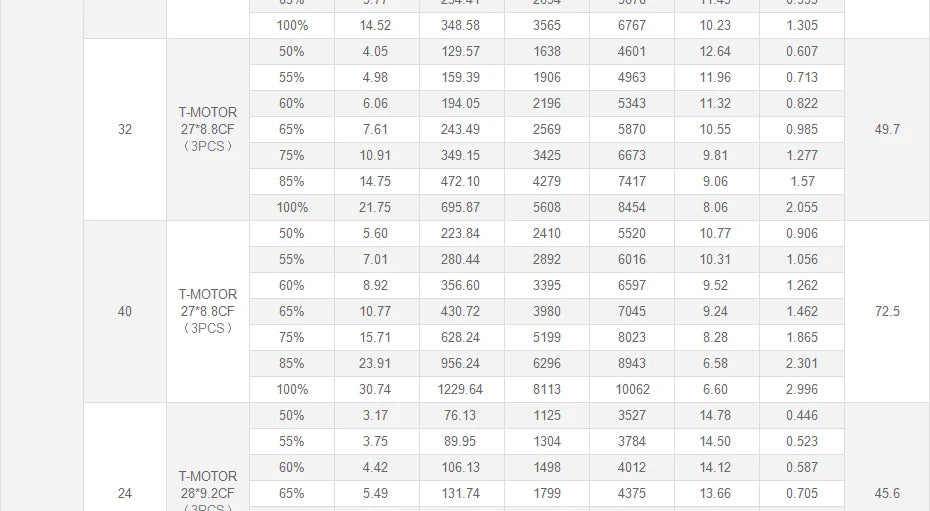

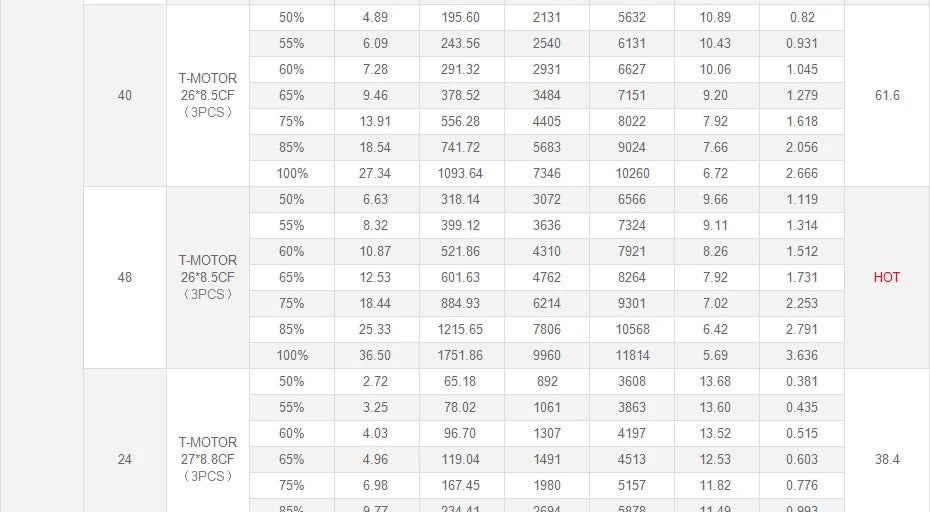

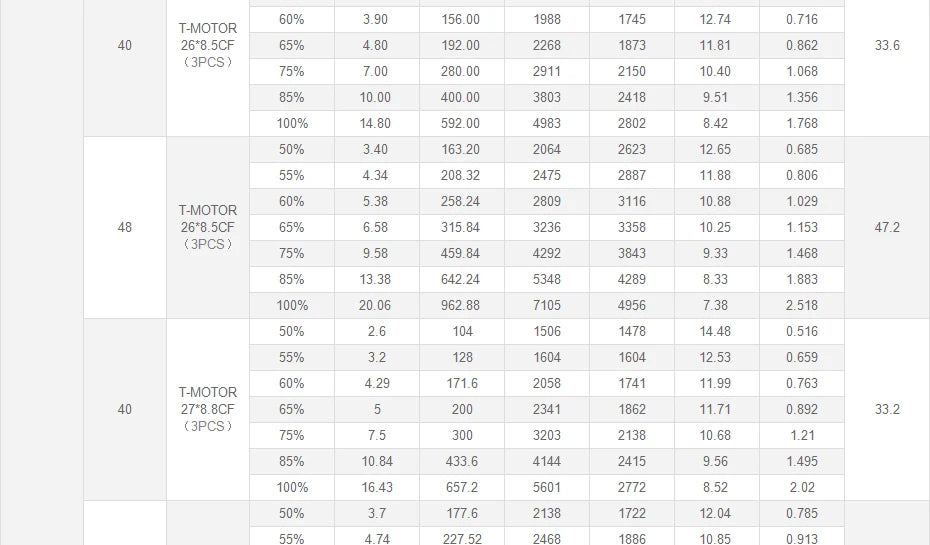

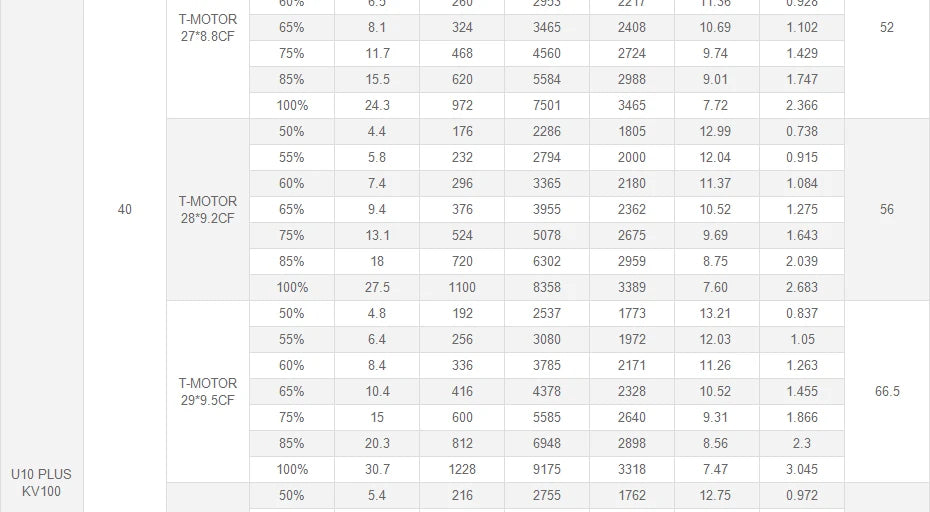

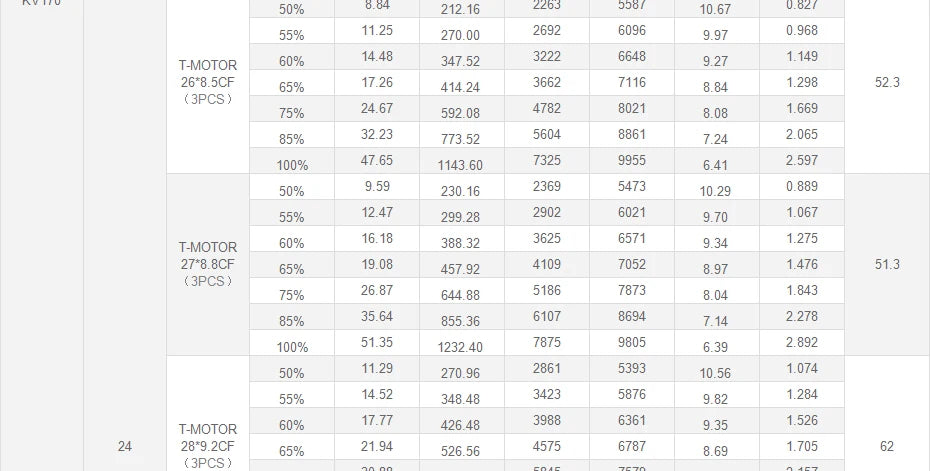

6-14S Idle Current@1Ov Max Continuous Power 1500w Max Continuous Current 180S 33A 180S Load Testing Data Ambient Temperature Voltage DC Power Supplier Operating Item No: Voltage Throttle Current Power Thrust RPM Efciency Torque Temperature (GWW) (N*m 50% 1.8 1130 1563 15.69 0.361 5590 2.1 1258 1661 14.98 0.398 Propane (Lipo)

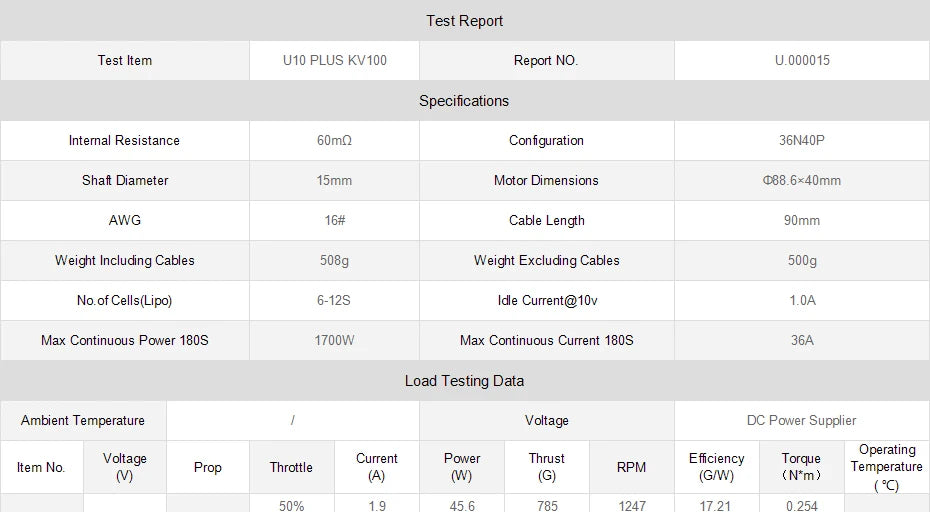

Product Specifications: U10 PLUS KV100 Motor Report No. 000015. Key Details Include: Internal Resistance: 60mΩ; Configuration: 3-phase, 4-ole (36N4OP); Shaft Diameter: 15mm; Motor Dimensions: 88.6mm x 40mm; Cable Length: 90mm; Weight (including cables): 508g; Weight (excluding cables): 500g; Number of Cells (Lipo): 6-12; Idle Current @ 10V: 1.0A; Maximum Continuous Power: 180s, 1700W; Maximum Continuous Current: 180s, 36A Load.

Product Specifications: U10 PLUS KV100 Motor Report Number: 000016. Key Features:

* Internal Resistance: 21 milliohms
* Configuration: 36-slot, 4-pole motor
* Shaft Diameter: 15mm
* Motor Dimensions (Diameter x Length): 88.6mm x 40mm
* Cable AWG: #16
* Cable Length: 90mm
* Weight with Cables: 511g
* Weight without Cables: 500g
* Number of Cells (Lipo): 6-12V
* Idle Current at 10V: 1.9A
* Maximum Continuous Power: 180S at 200W
* Maximum Continuous Current: 18A
