T-motor MN5208 KV340 Motor  SPECIFICATIONS

Используйте: Транспортные средства и игрушки с дистанционным управлением

Технические параметры: Значение 2

Периферийные устройства/устройства дистанционного управления: ESC

Рекомендуемый возраст: 14+y

Запчасти и принадлежности RC: Моторы

Происхождение: Материковый Китай

Номер модели: MN5208 KV340

Материал: Металл

Для типа автомобиля: Самолеты

Название бренда: T-MOTOR

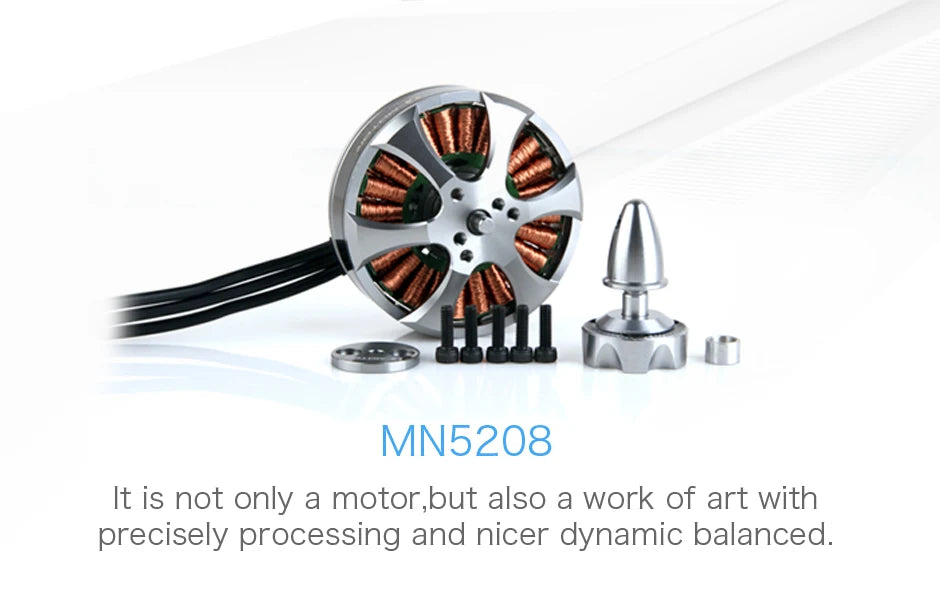

MN5208 It is not only a motor,but also a work of art with precisely processing and nicer dynamic balanced

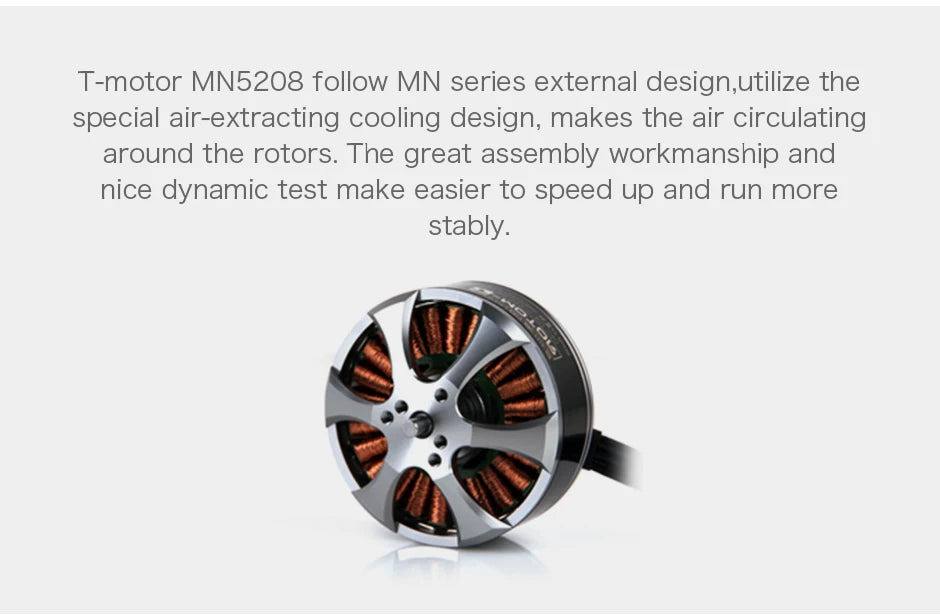

The T-motor MN5208 features an exterior design that follows the MN series aesthetic, incorporating a unique air-extracting cooling system to ensure stable airflow around the rotors.

In comparison to loose-wound motors, our motor exhibits a 15% reduction in instant current and a 5-10% decrease in load current, resulting in higher efficiency and more torque. Additionally, our standard and delicate winding process ensures a seamless connection with ESC, providing customers with both convenience and a superior experience.

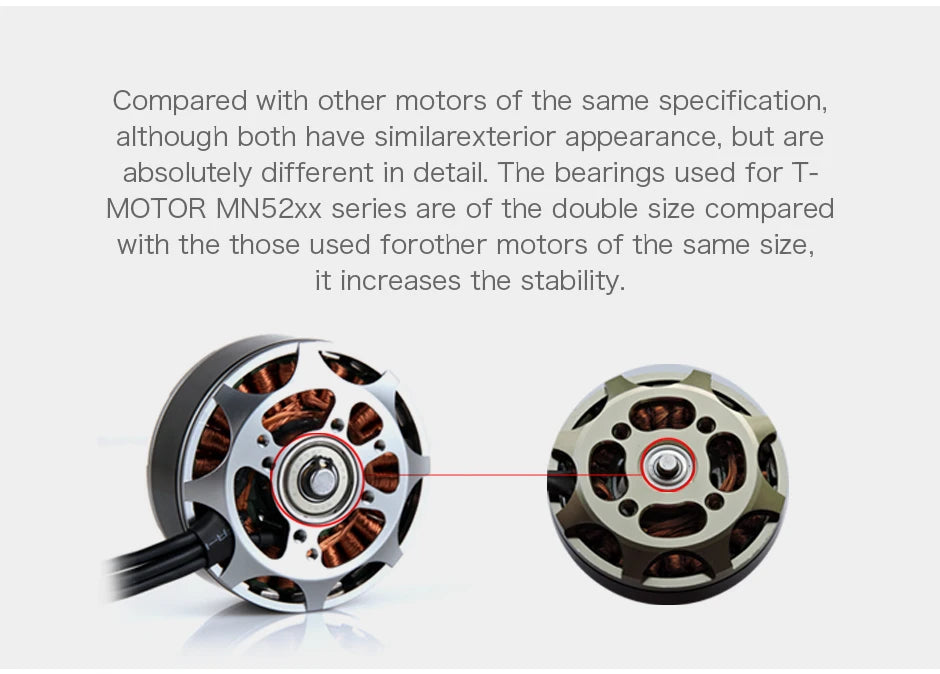

The T-MOTOR MN5208 KV340 motor features double-sized bearings compared to those found in similar-sized motors from other manufacturers.

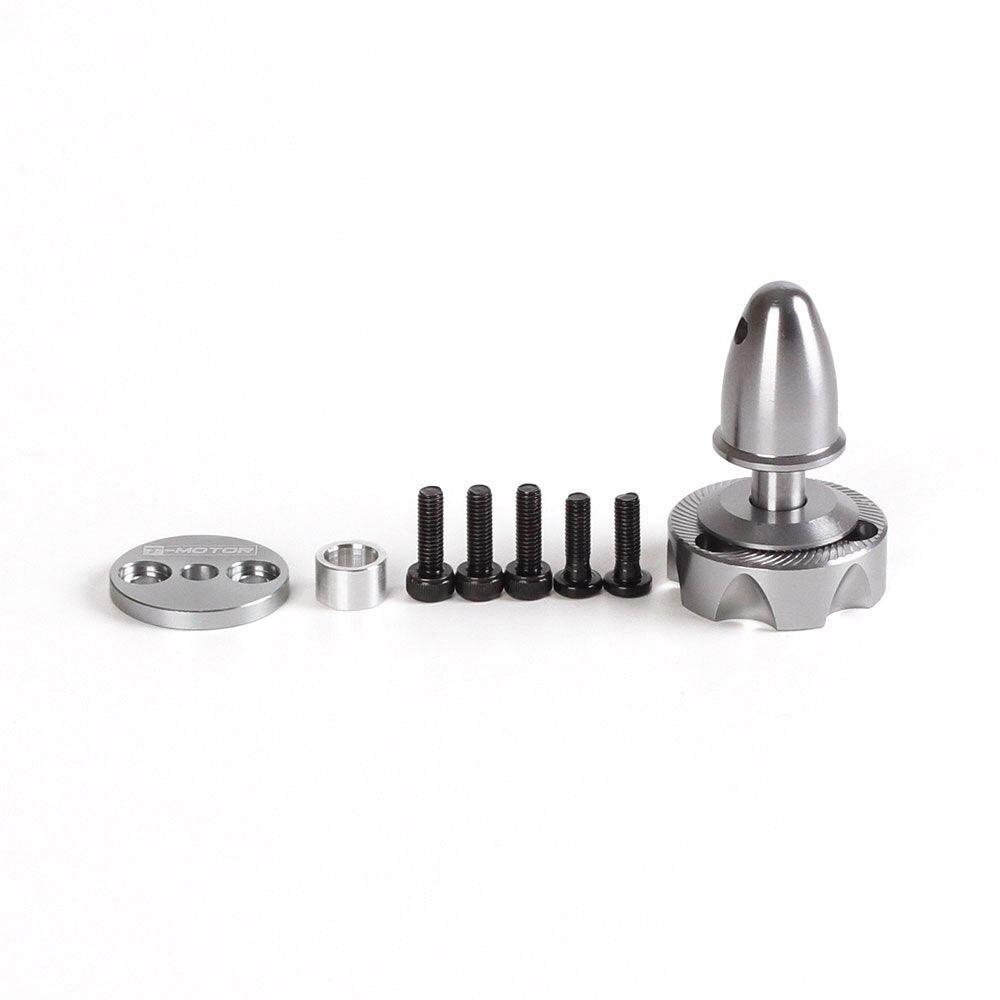

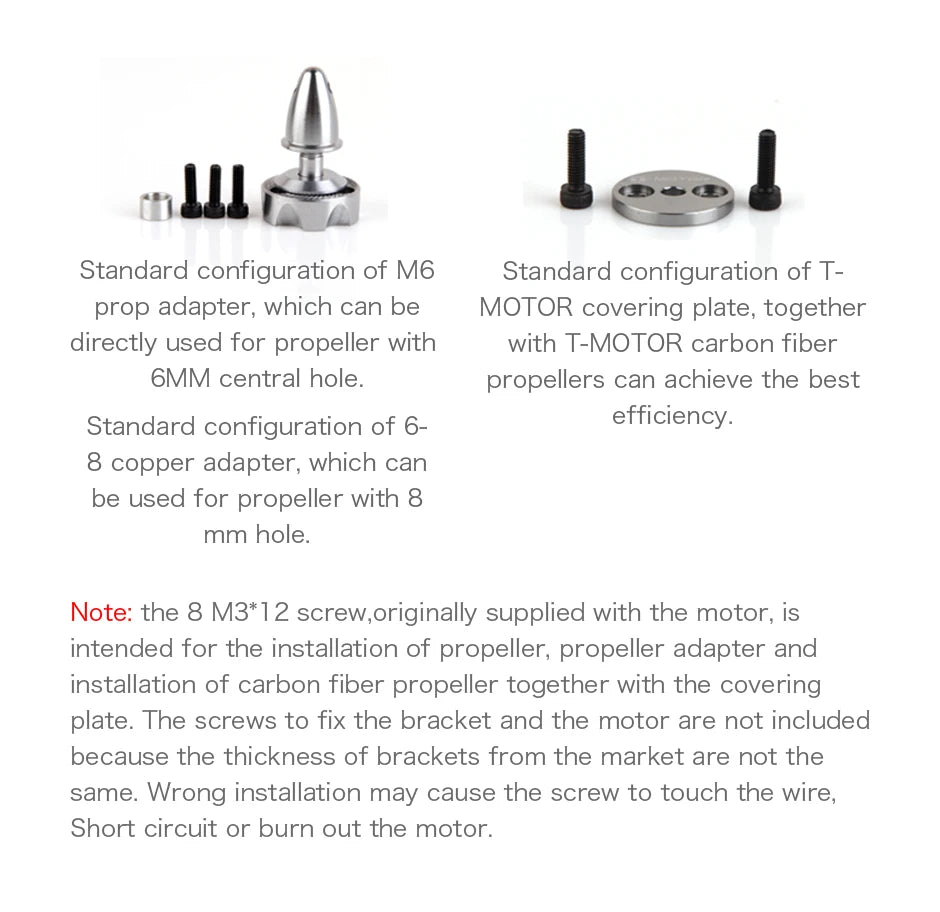

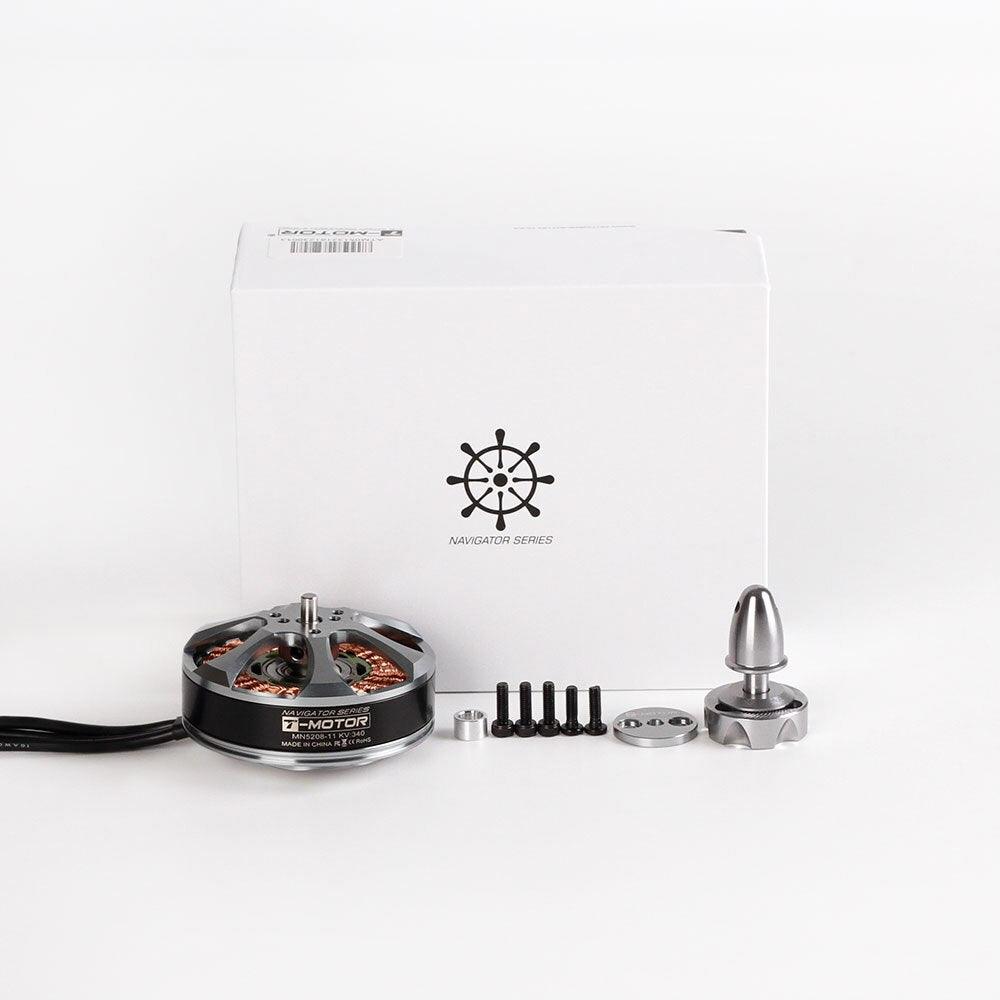

The MN5208 KV340 motor requires an M3*12 screw for installing the propeller, propeller adapter, and carbon fiber propeller in conjunction with the covering plate. Please note that screws for securing the bracket and motor are not included.

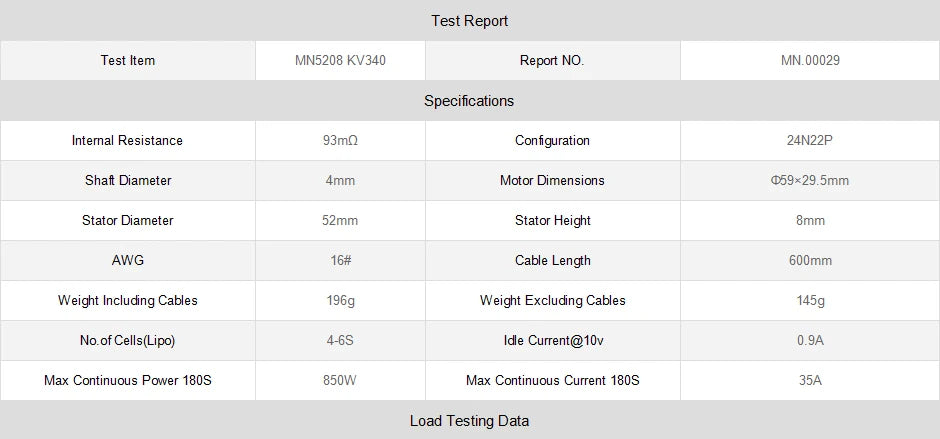

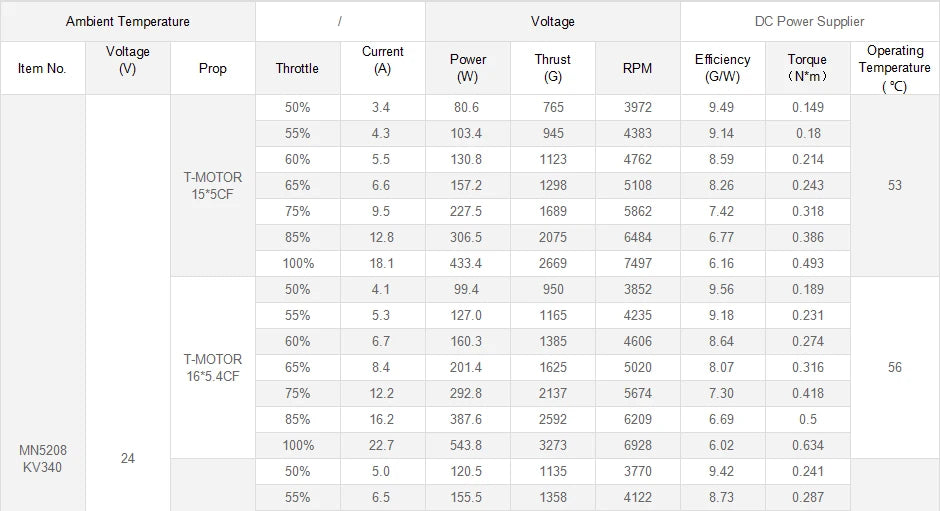

Test Report Test Item MN5208 KV340 Report NO. MN.00029 Specifications Internal Resistance 93mn Configuration 24NZZP Shat Diameter 4mm Motor Dimensions 059*29.5mm . Stator Diameter 52mm Stator Height 8mm AWG 16# Cable Length 600mm Weight Including Cables 196g Weight Excluding Cables 150g Noof Cells(Lipo) 4-6S Idle Current@1Ov
