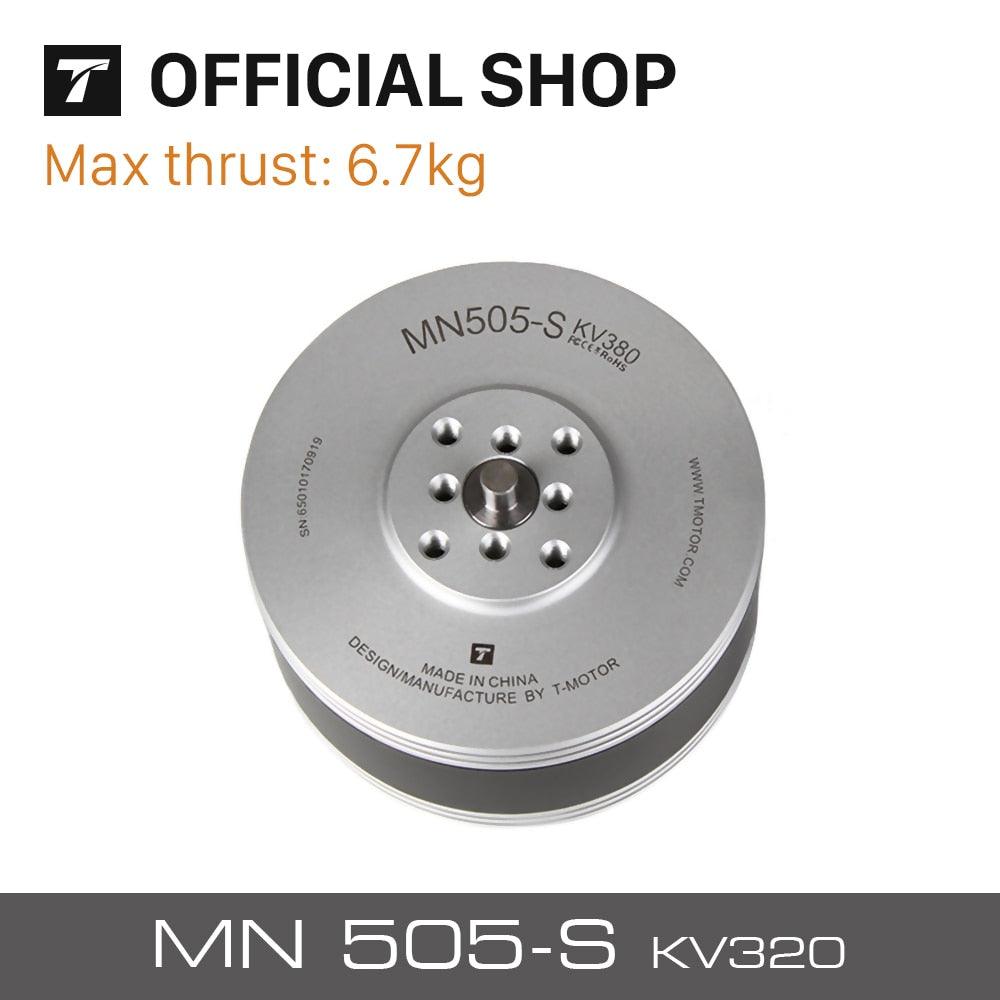

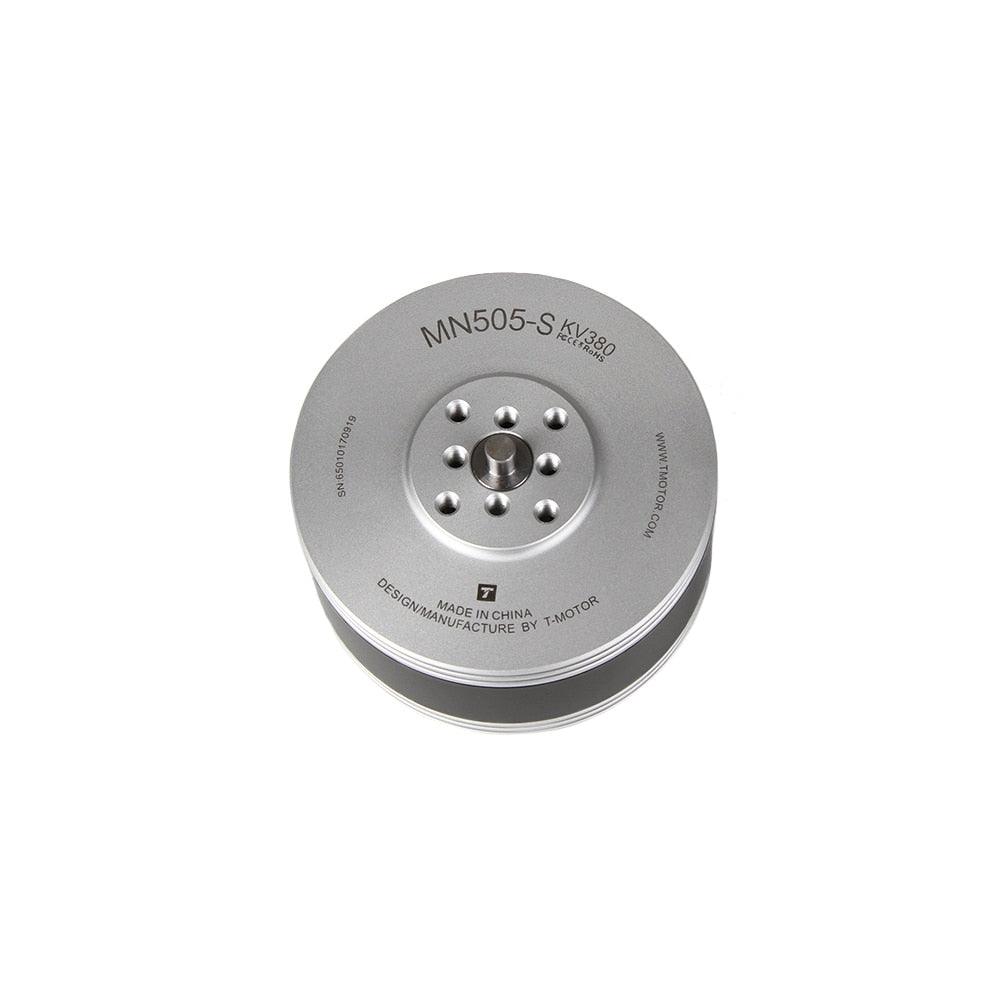

T-Motor MN505-S KV320 Max SPECIFICATIONS

Используйте: Транспортные средства и игрушки с дистанционным управлением

Рекомендуемый возраст: 14+y

Запчасти и принадлежности RC: Двигатели

Происхождение: Материковый Китай

Номер модели: 320KV

Материал: Металл

Для типа автомобиля: Вертолеты

Название бренда: T-MOTOR

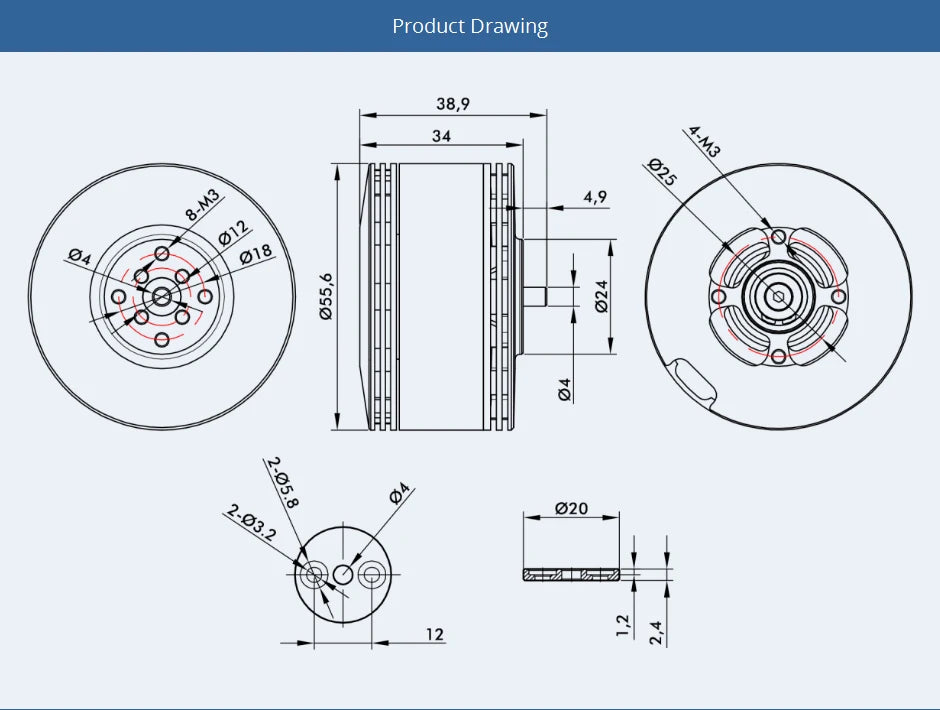

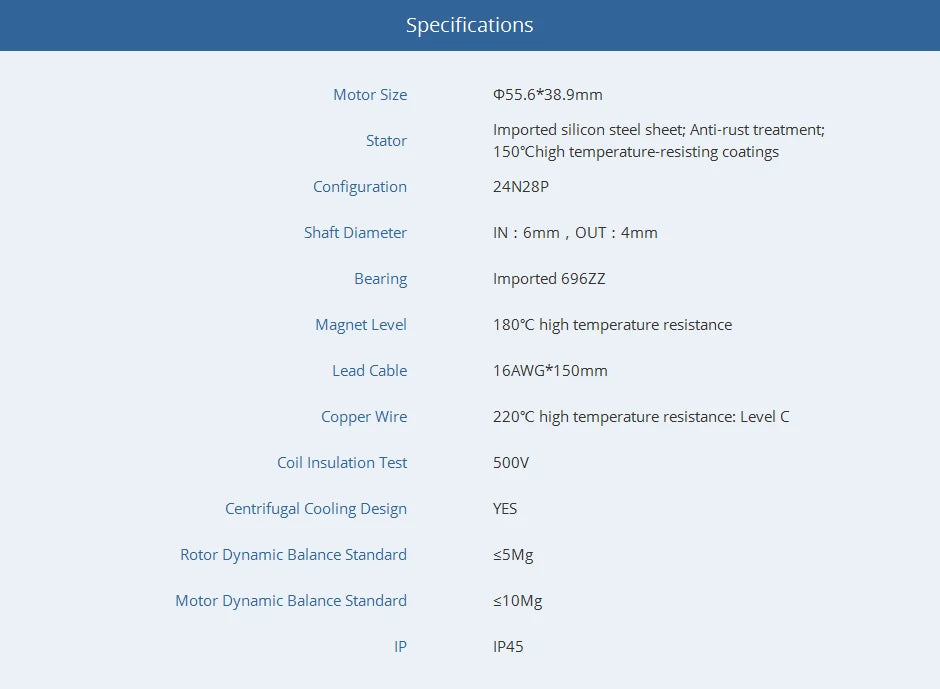

Specifications Motor Size 055.6*38.9mm Imported silicon steel sheet; Anti-rust treatment; Stator 150-Chigh temperature-resisting Configuration 24N28P Shaft Diameter 6mm OUT 4mm Bearing Imported 696ZZ Magnet evel 80*C high temperature resistance Lead Cable 16AWG*1SOmm Copper Wire 220FC high temperature: Level € Coil Insulation Test 50ov Centrifugal Cooling Design YES Rotor Dynamic Balance Standard

Характеристики товара:

* Rated voltage: 320V (LiPo)
* Idle current: 1.84A (at 1S, using an ESC recommendation of FLAME 604)
* Peak current (180 seconds): 55A
* Propeller recommendation: 20-22 inches
* Maximum power output: 1200W
* Motor weight (including cable): 2258 grams
* Internal resistance: 38mΩ
* Package weight: 400 grams

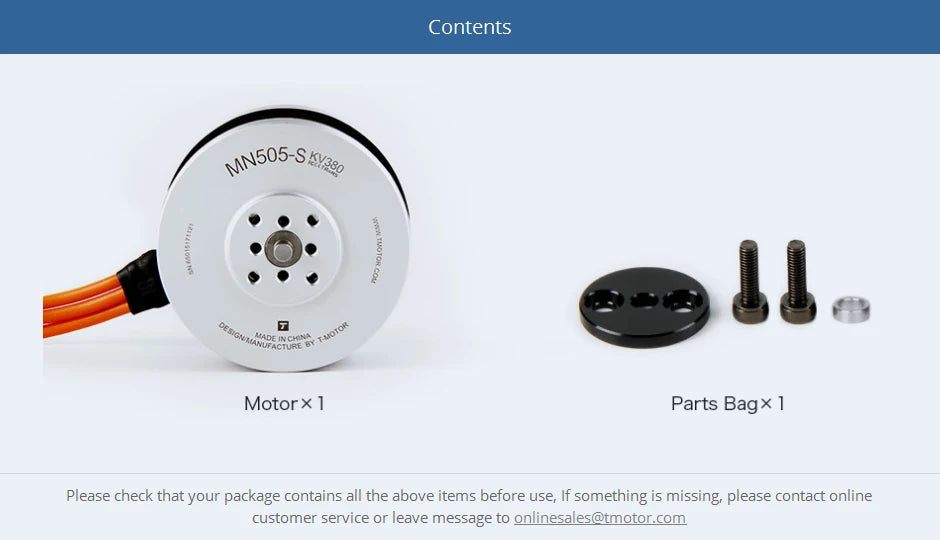

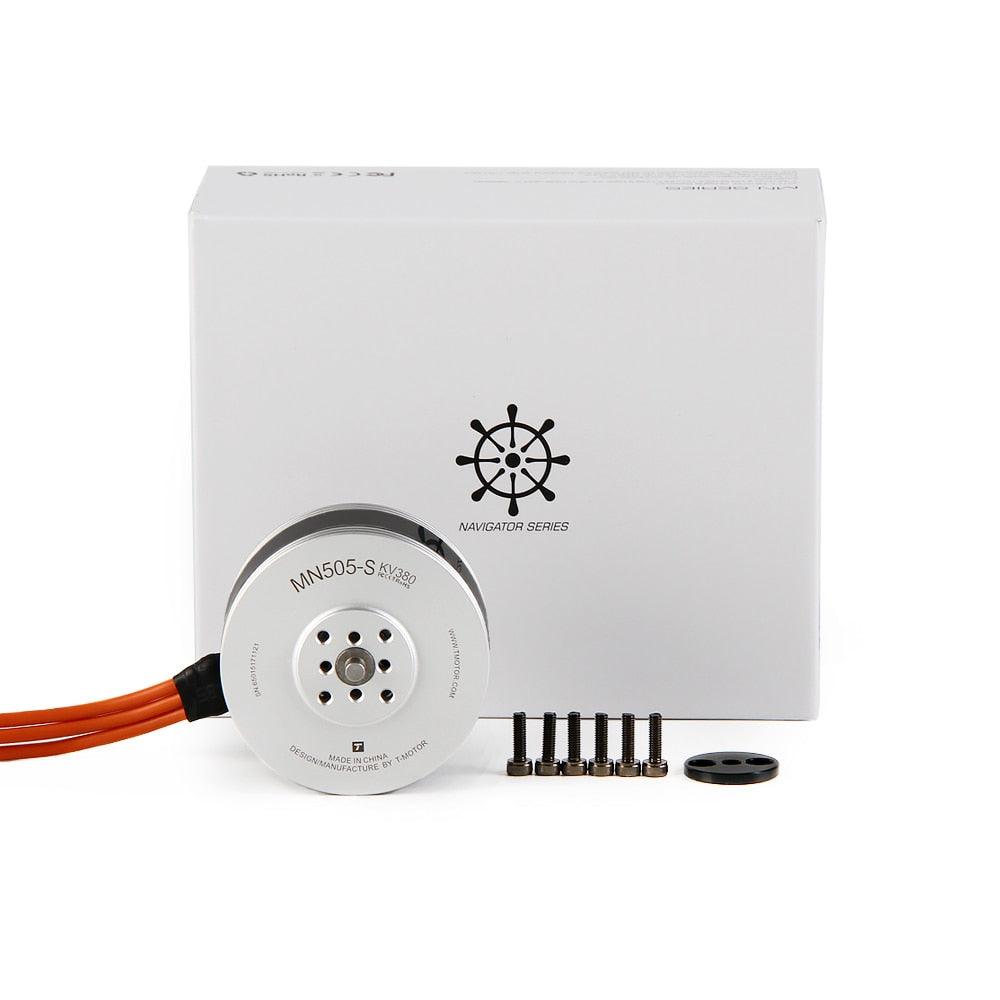

Before using this product, please verify that your package includes all the included items. If you’re missing anything, please reach out to our online customer service team at [[email protected]](mailto:[email protected]) or leave a message.

6.7 kg Max Thrust: A stable, reliable, and safe motor with IP45 protection rating, designed by T-Motor in China.

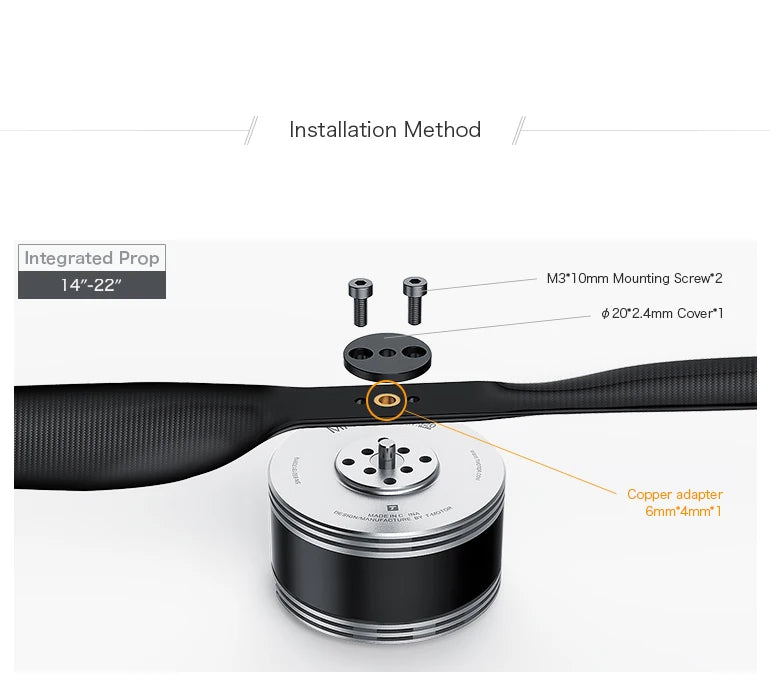

This motor comes with an integrated installation method, which includes: a mounting screw (M3 x 1mm) for 14
