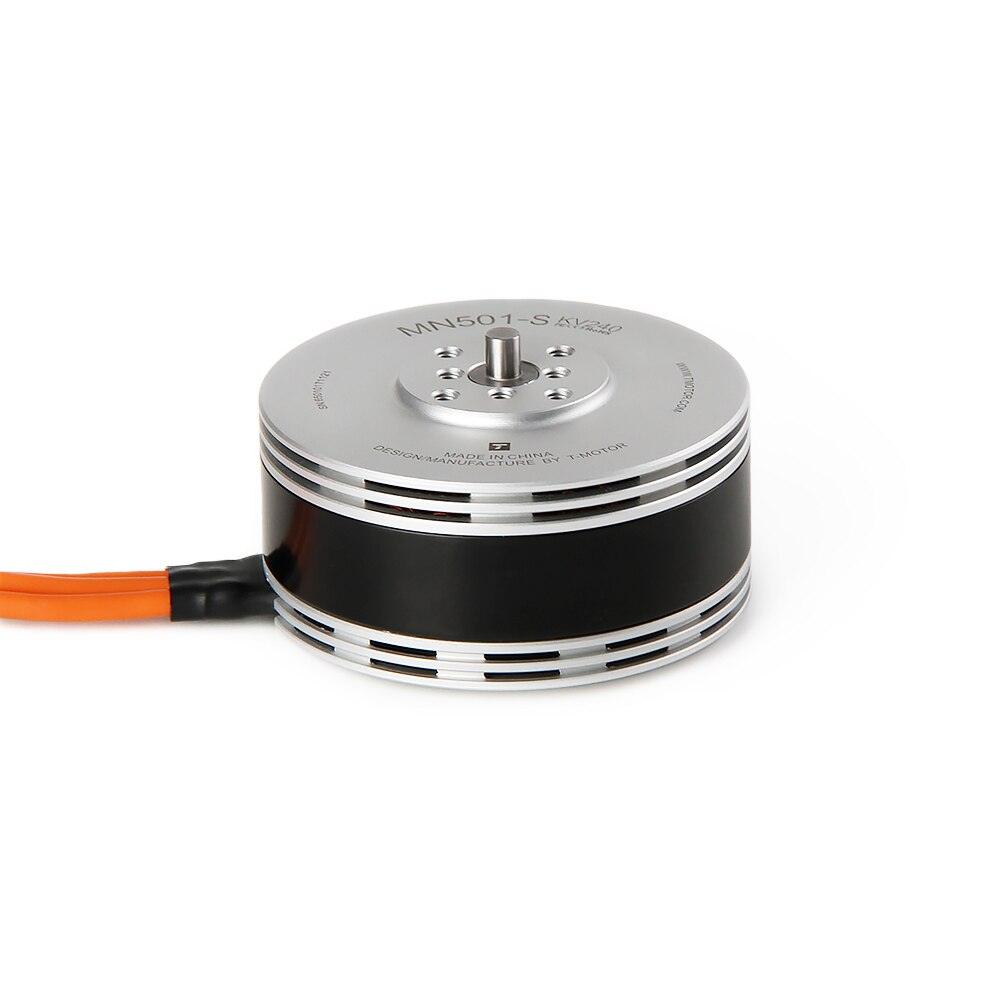

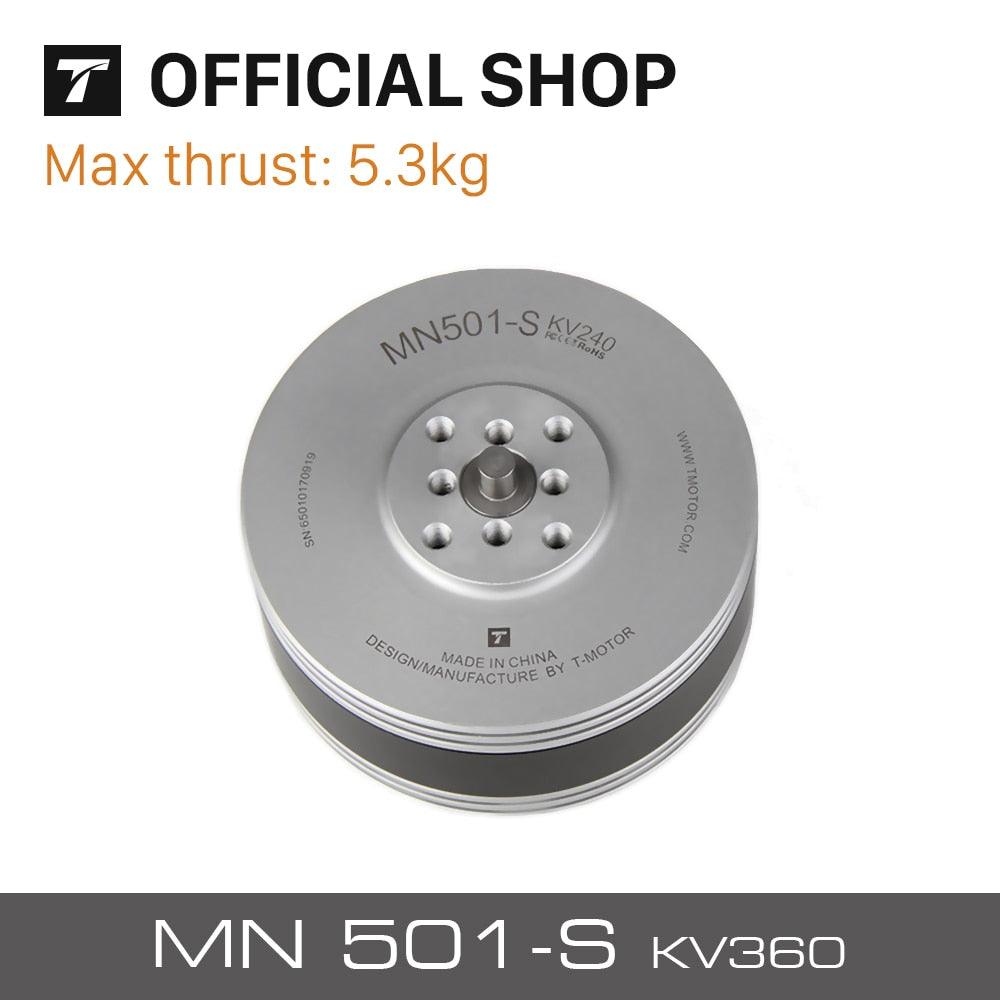

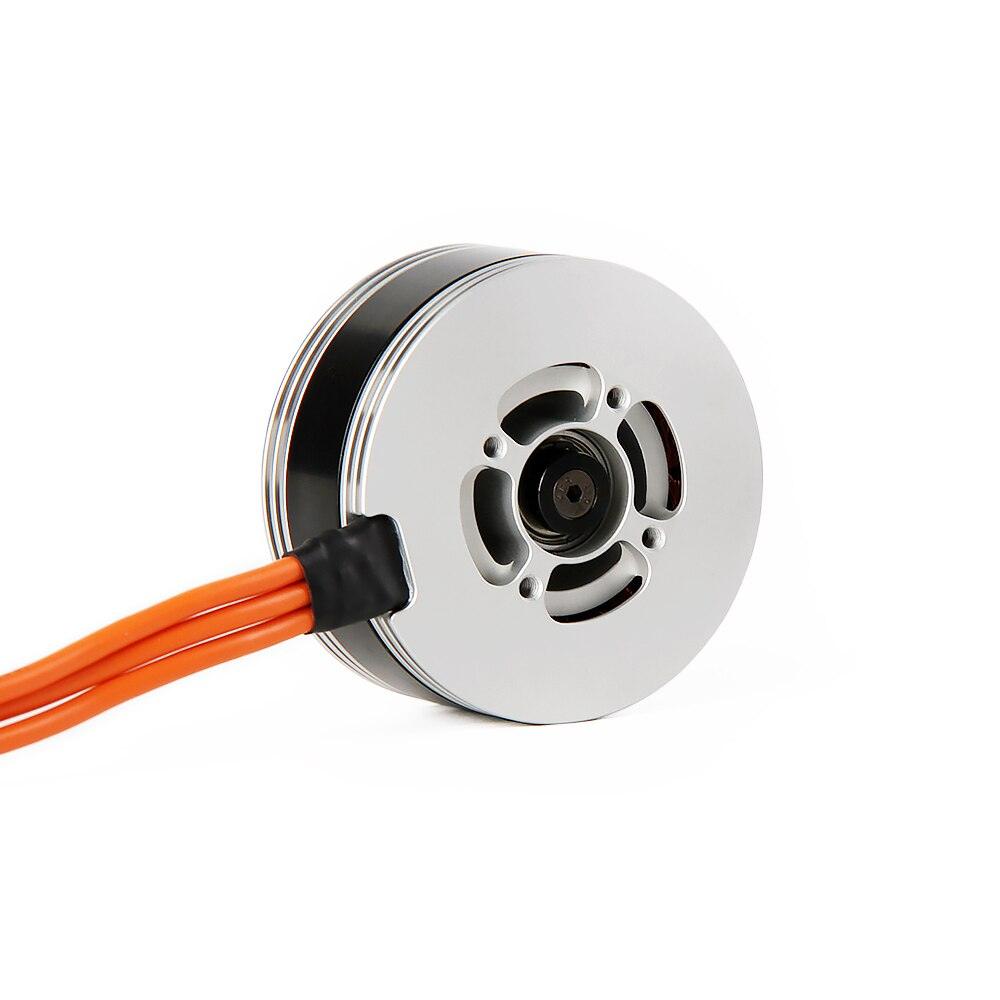

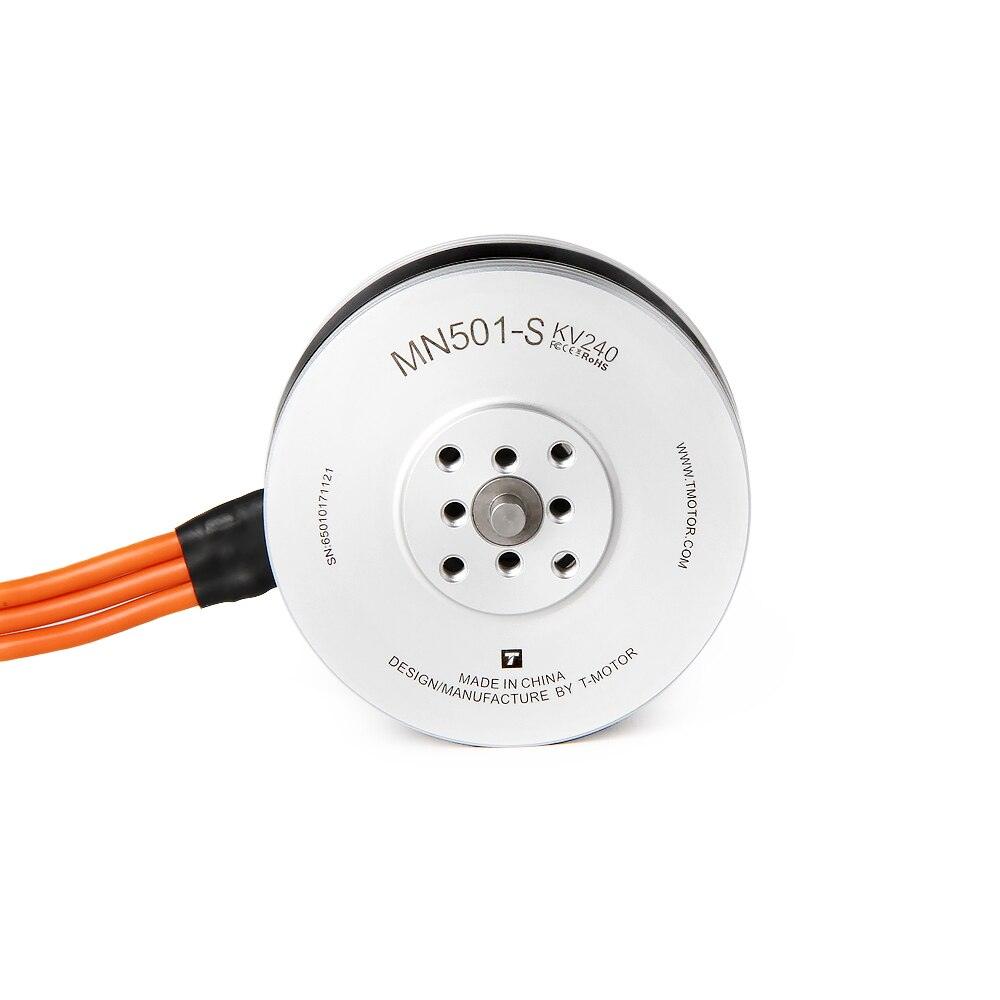

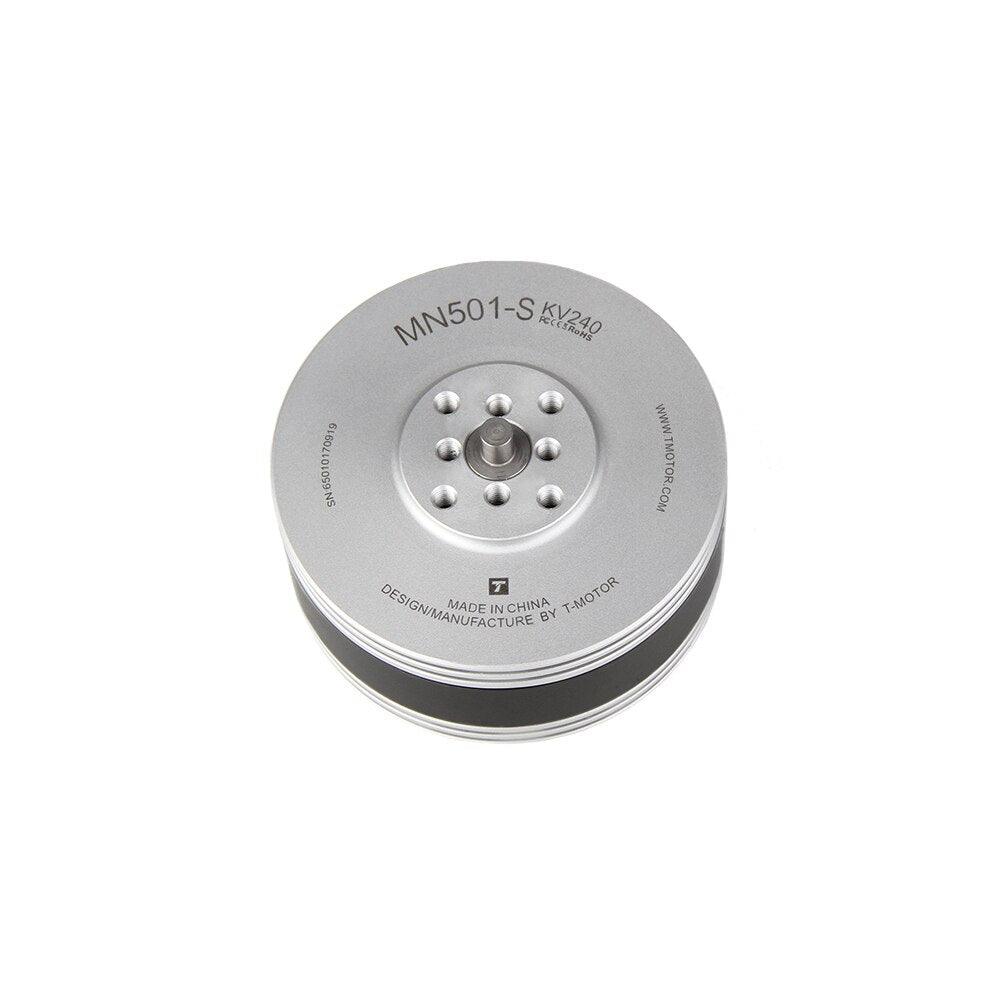

T-Motor MN501-S KV360  SPECIFICATIONS

Используйте: Транспортные средства и игрушки с дистанционным управлением

Рекомендуемый возраст: 14+y

Запчасти и принадлежности RC: Моторы

Происхождение: Материковый Китай

Номер модели: 360KV

Материал: Металл

Для типа автомобиля: Вертолеты

Название бренда: T-MOTOR

5.2 KG 5.2+ Thrust Stable & Reliable Safe Impact resistant IP45 MNSO1-S Kv36Q 1 8 T-MOTOR DESIGNIMAMDFEACture CHINA

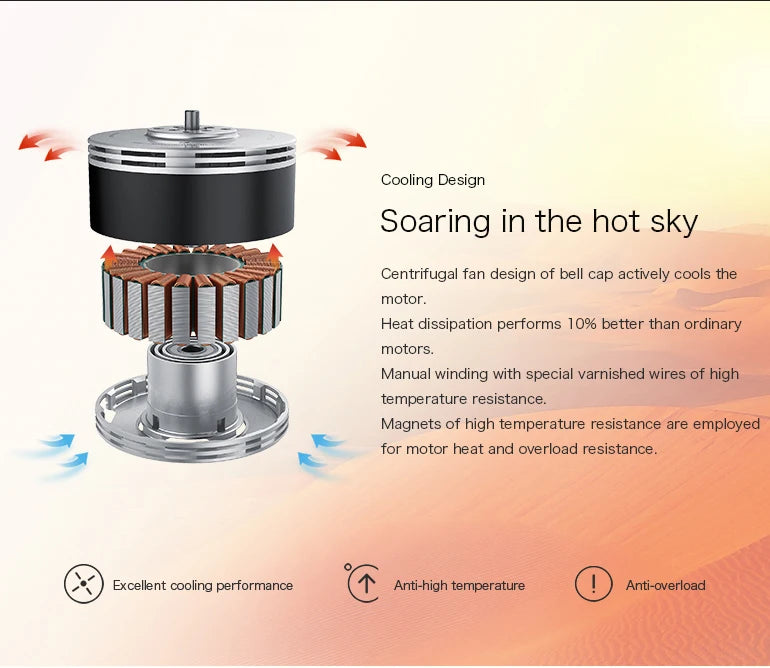

The T-Motor MN501-S KV360 features a bell cap design that enhances heat dissipation, performing 10% better than traditional motors in this regard. Additionally, high-temperature resistant magnets are utilized to provide increased resistance to motor heat and overload.

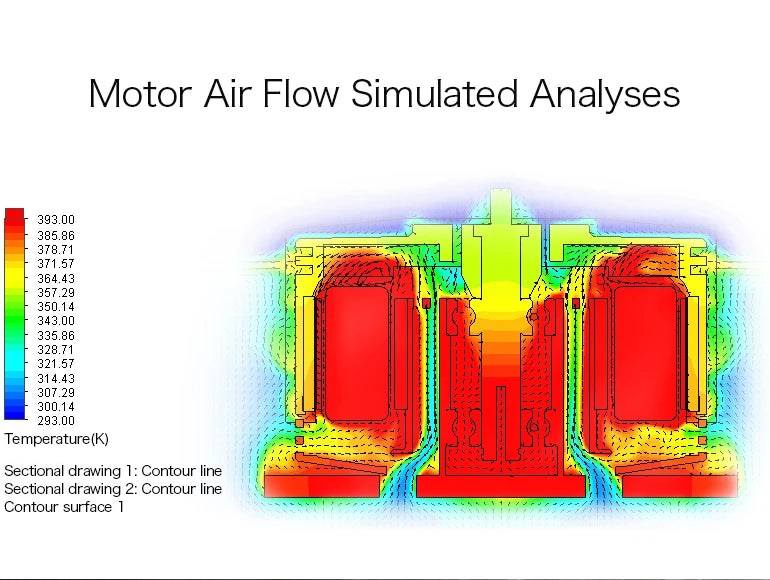

Air flow simulation analysis results show a steady decline from 393.00 K to 293.00 K, with temperatures decreasing by approximately 100 K at each increment.

Enjoy flying in any environment, thanks to the IP45 rating, which ensures efficient ventilation through the grid-shaped structure of the bell cap while protecting the motor from dust and debris. Additionally, this motor features a special alloy shaft, customized bearings, varnished wires, silicon steel sheet, and magnets that are treated with the latest anti-rust and anti-corrosion technology to prevent damage.

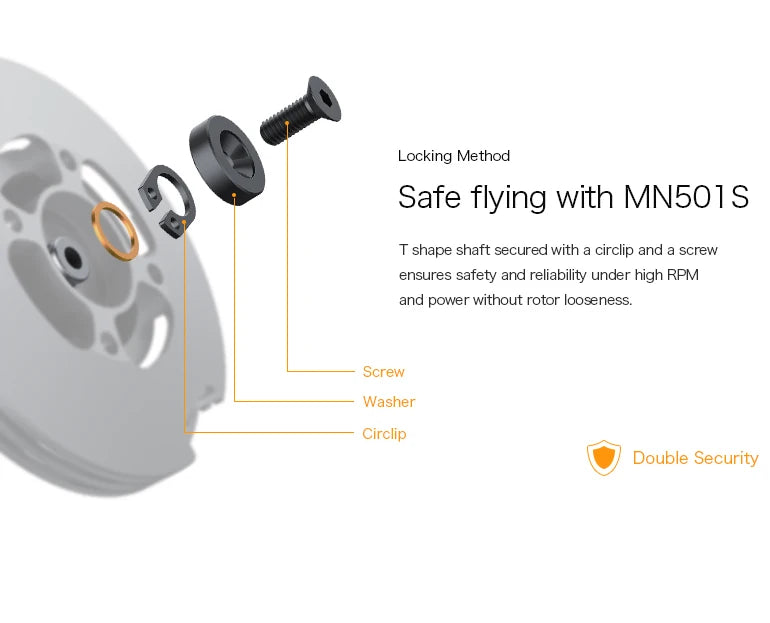

The MN501-S motor features a robust shaft design, secured by both a circlip and screw, which provides a double layer of safety and reliability under high RPM and power conditions, preventing any potential rotor looseness.

The MN501-S KV360 motor features a 6mm steel shaft and a large 11mm bearing, providing exceptional impact resistance, stability, and lifespan.

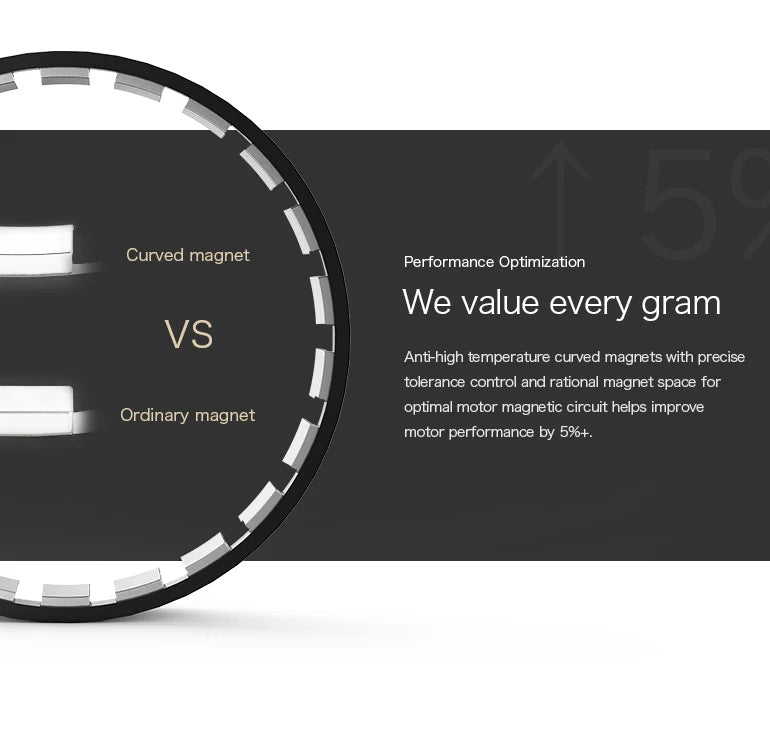

The use of VS anti-high temperature curved magnets, which are designed with precision tolerances and optimized magnet spacing, enables an optimized magnetic circuit that improves motor performance by 59% or more.

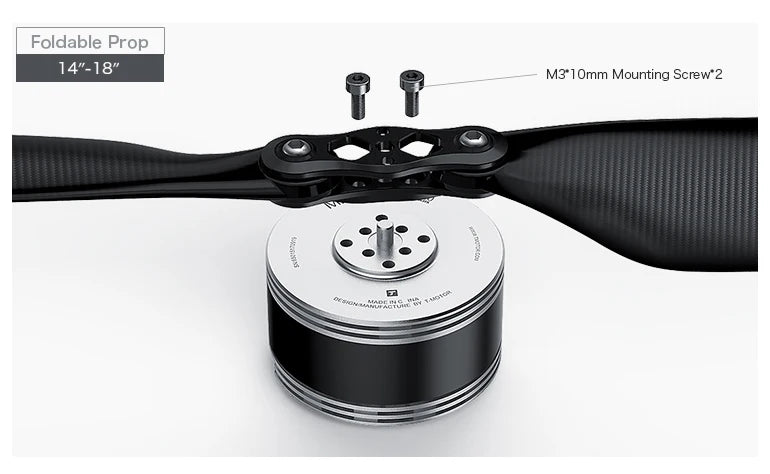

Installation method: integrated with M3 x 1mm mounting screw, suitable for 14

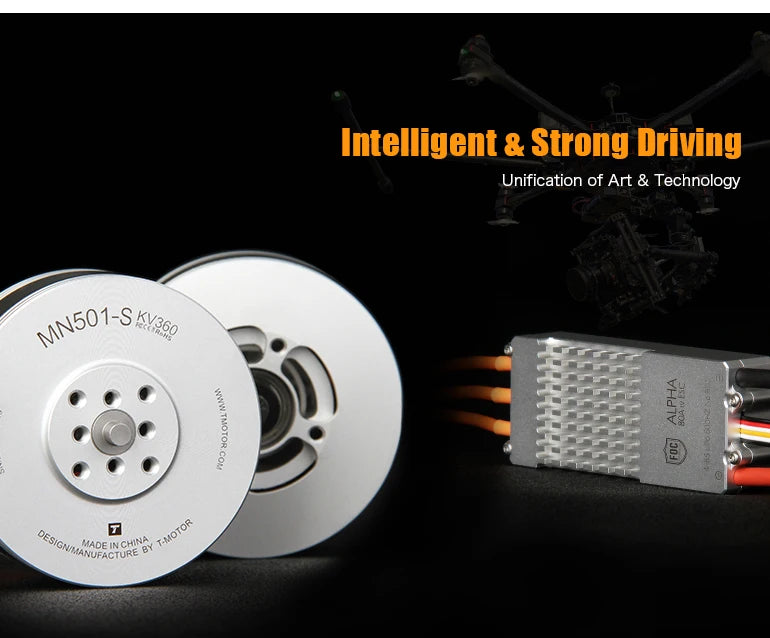

Intelligent & Strong Driving Unification of Art & Technology 0 8 Waof MNSO1-S & , Kv3GQ J Tmotor DESGNMKAMDE cture chi

Технические характеристики двигателя:

* Motor size: 55.6 mm x 33.9 mm
* Stator material: Imported silicon steel sheet with anti-rust treatment
* Configuration: 24N28P high-temperature-resisting design
* Shaft diameter:
+ Input (IN): 6 mm
+ Output (OUT): 4 mm
* Bearing: Imported 696ZZ bearing
* Magnet level: 80FC with high temperature resistance
* Lead cable: 16 AWG, 150 mm long, made of copper wire with 220FC high heat resistance
* Coil insulation test: 500V centrifugal cooling design with no rotor dynamics

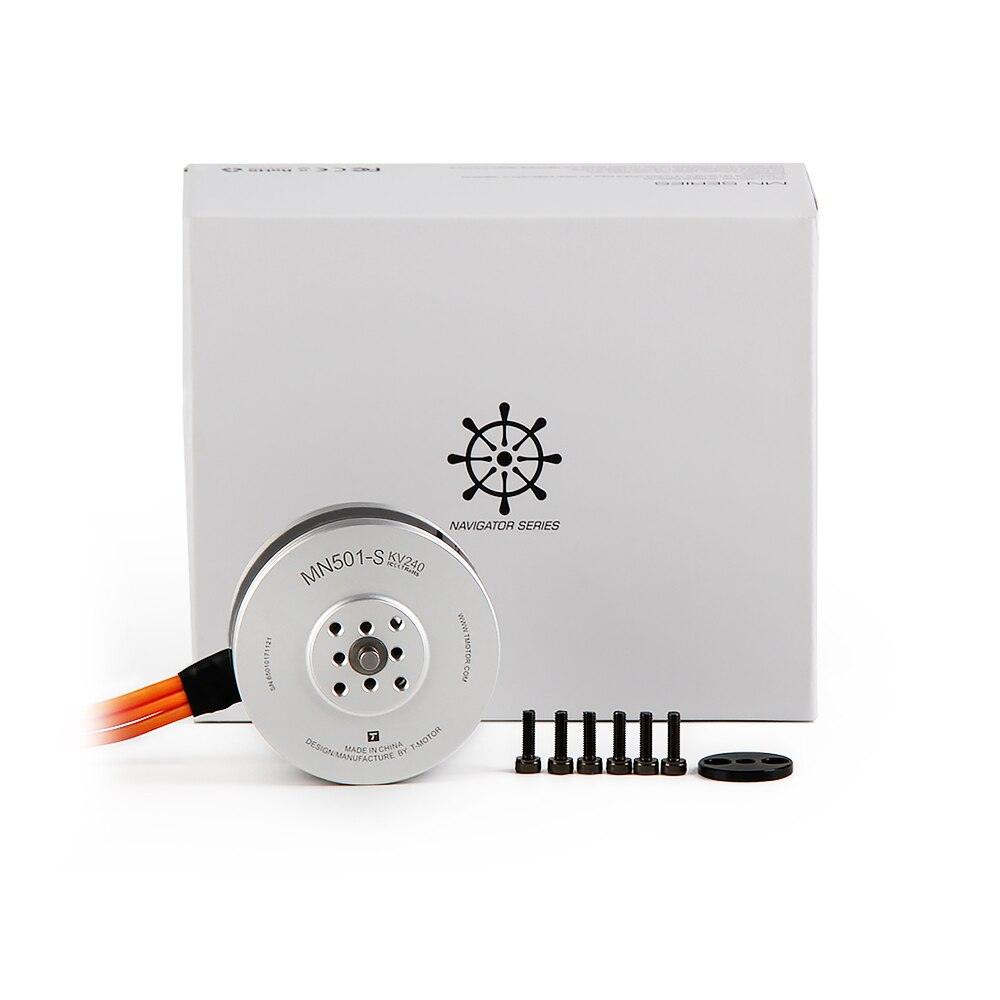

If you’re missing anything, please contact our online customer service at onlnesales@tmotorcom or leave a message. Before using the product, please verify that your package includes all the following items: T-Motor MN501-S KV360 5.3KG Thrust Navigator Series Brushless Electrical Motor for aircraft multi-rotors, copters, and RC drones.
