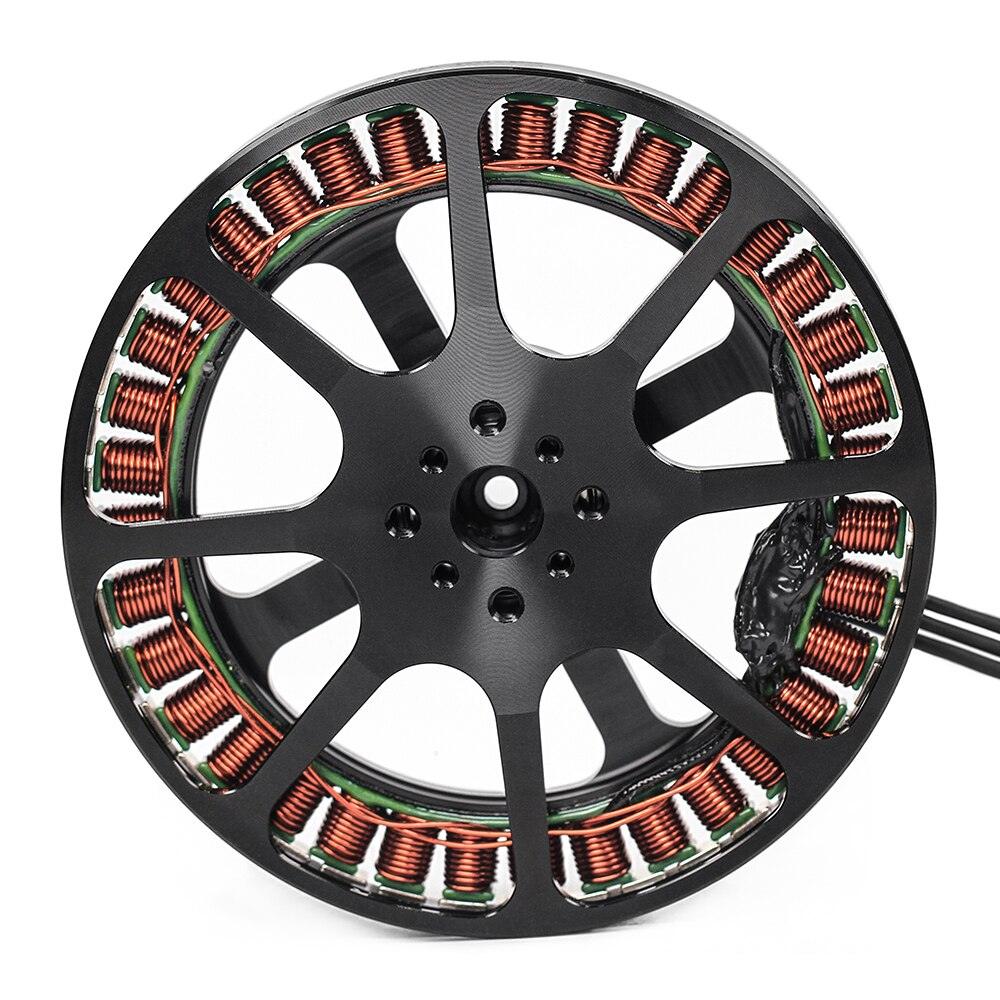

T-MOTOR MN1005 V2.0 KV90 Motor SPECIFICATIONS

Колесная база: Винты

Используйте: Транспортные средства и игрушки с дистанционным управлением

Модернизация деталей/аксессуаров: esc

Поставки инструментов: Аккумулятор

Периферийные устройства/устройства дистанционного управления: ESC

Рекомендуемый возраст: 18+

Запчасти и принадлежности RC: Моторы

Происхождение: Материковый Китай

Номер модели: MN1005 V2.0

Материал: Металл

Атрибуты полного привода: Моторы

Для типа автомобиля: Вертолеты

Название бренда: T-MOTOR

• Service life of 1000 hours

• Eifficiency up to 11.5g/W at 3kg

• Imported German 7075 aviation alumimum

• Motor weighs only 282g

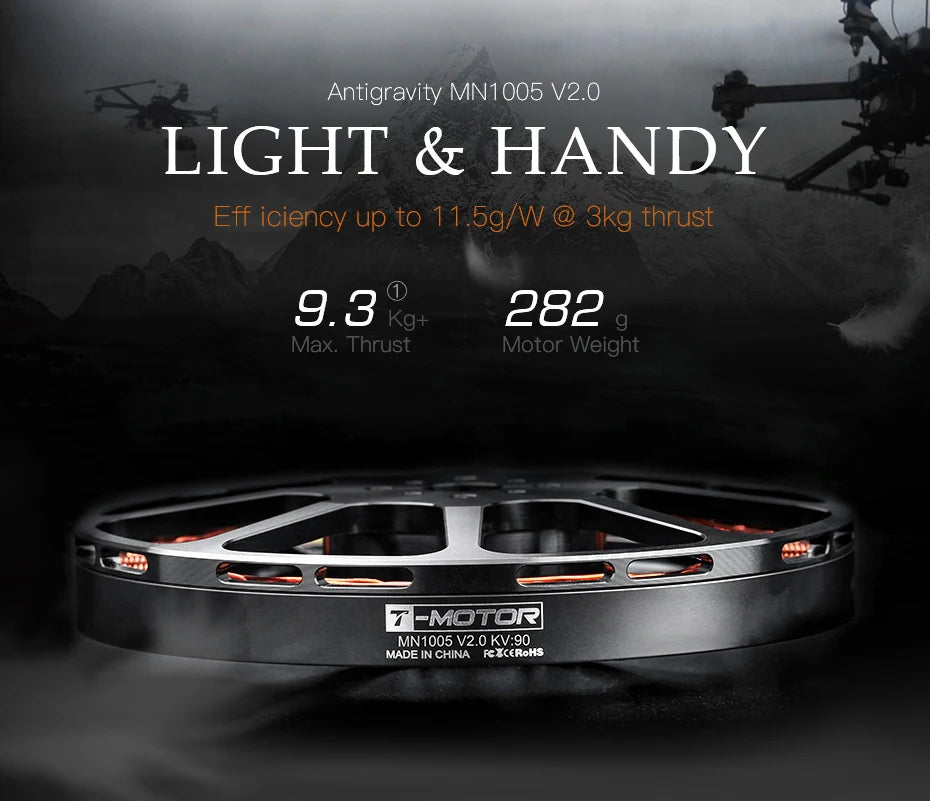

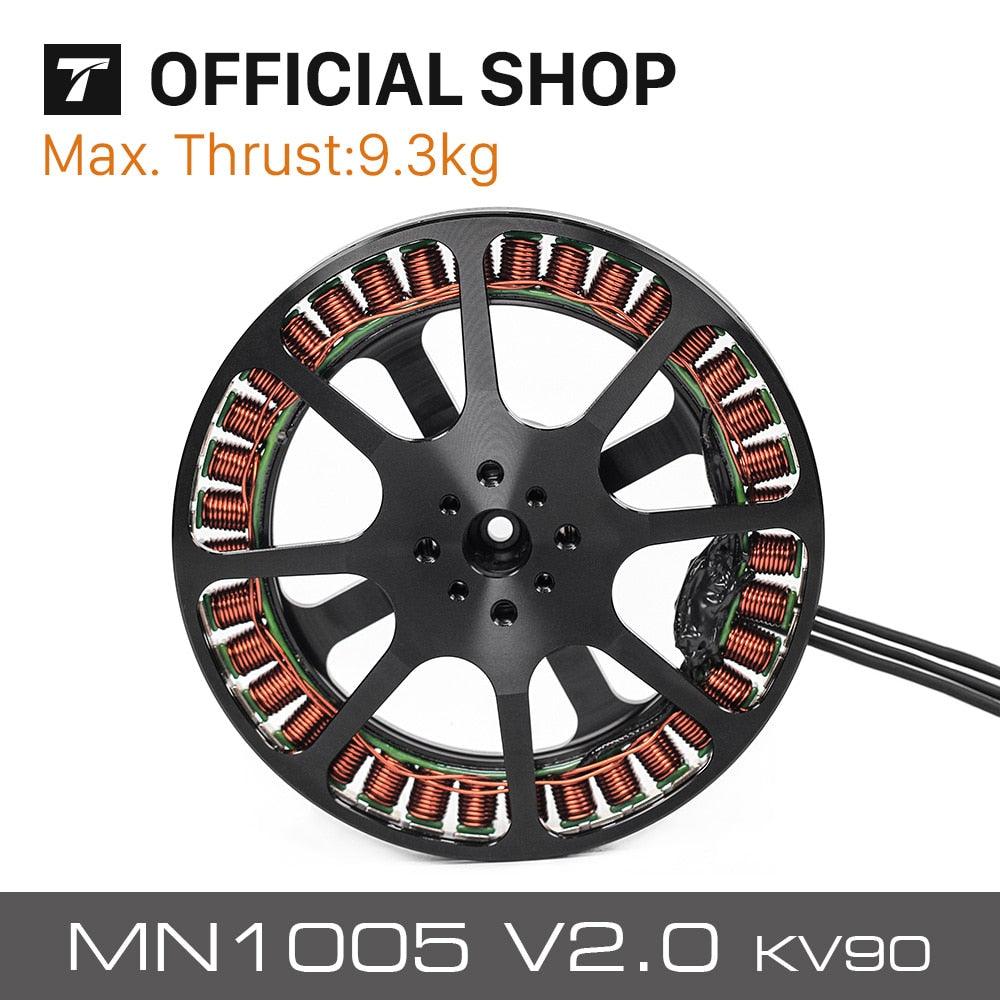

Eff iciency up to 11.5g/W @ 3kg thrust 9.3Kg+ 282 MaxThrust Motor Weight EMOTOR MN1O0S V2.0 KV:90 MADE IN CHINA FeZ((RoHs)

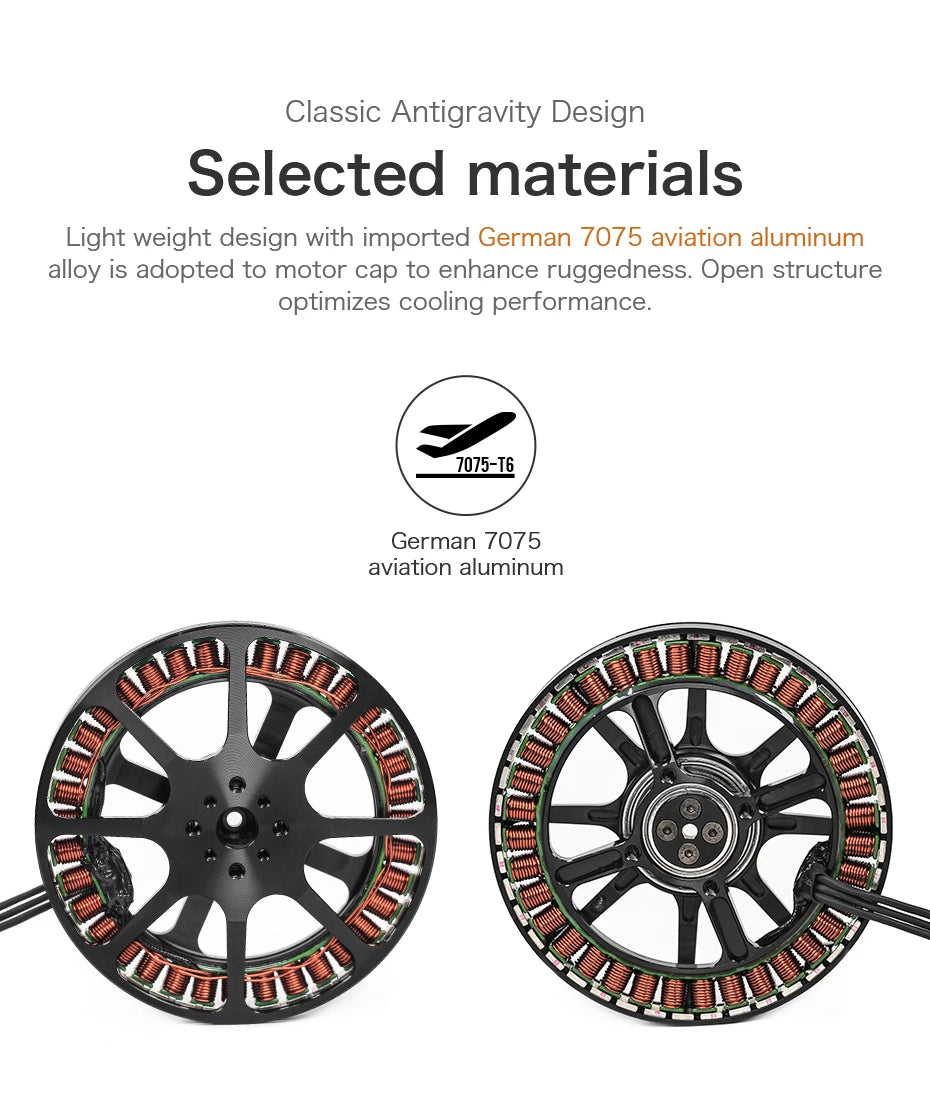

Featuring an antigravity design, this motor incorporates high-quality materials, including imported German 7075 aviation-grade aluminum alloy in its casing, which enhances durability and ruggedness. The open structure also optimizes heat dissipation for improved cooling performance.

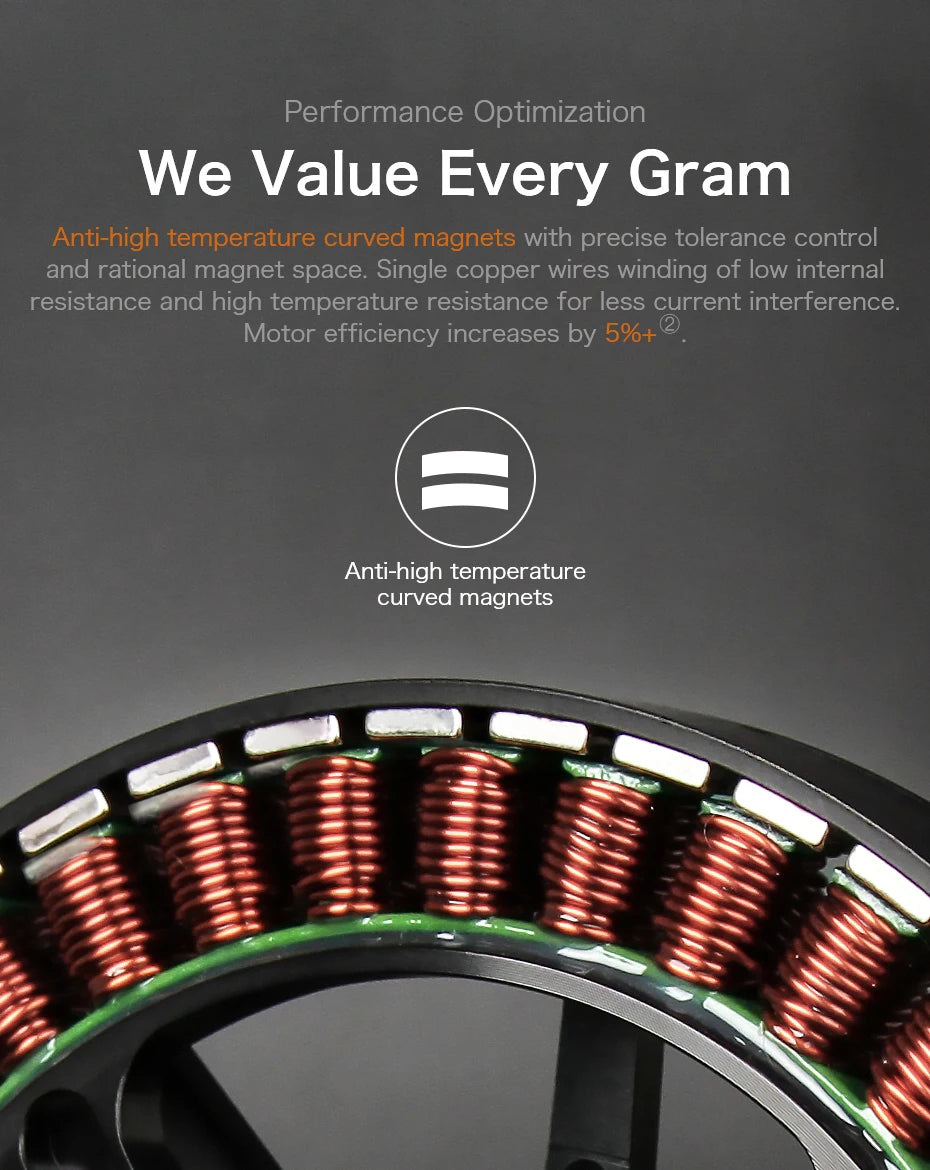

The motor features single-layer copper wire windings with low internal resistance and high temperature tolerance, designed to minimize current interference and increase efficiency by at least 5%.

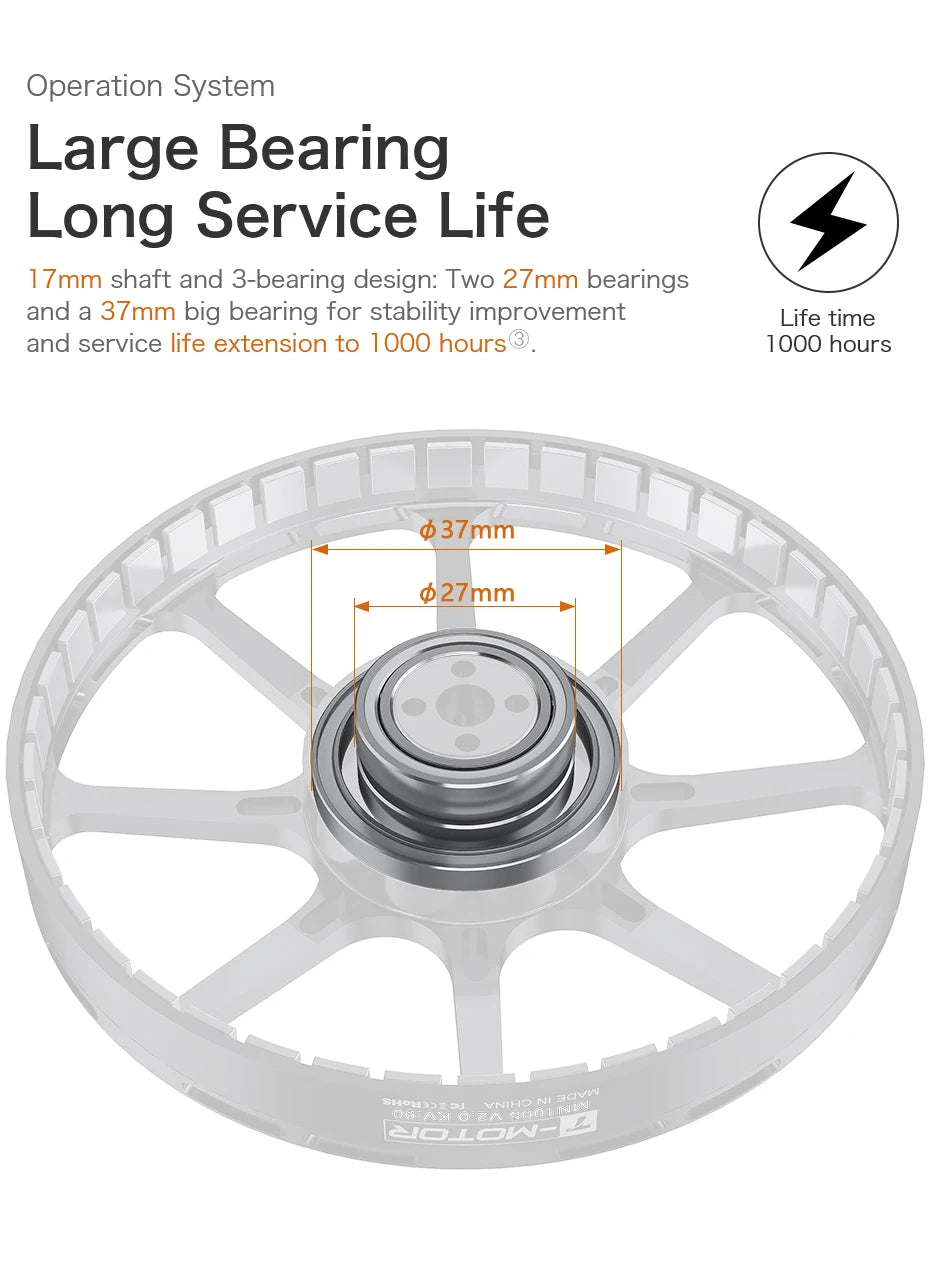

This motor features two 2mm bearings and one 37mm bearing, designed to improve stability and extend its lifespan to approximately 1000 hours.

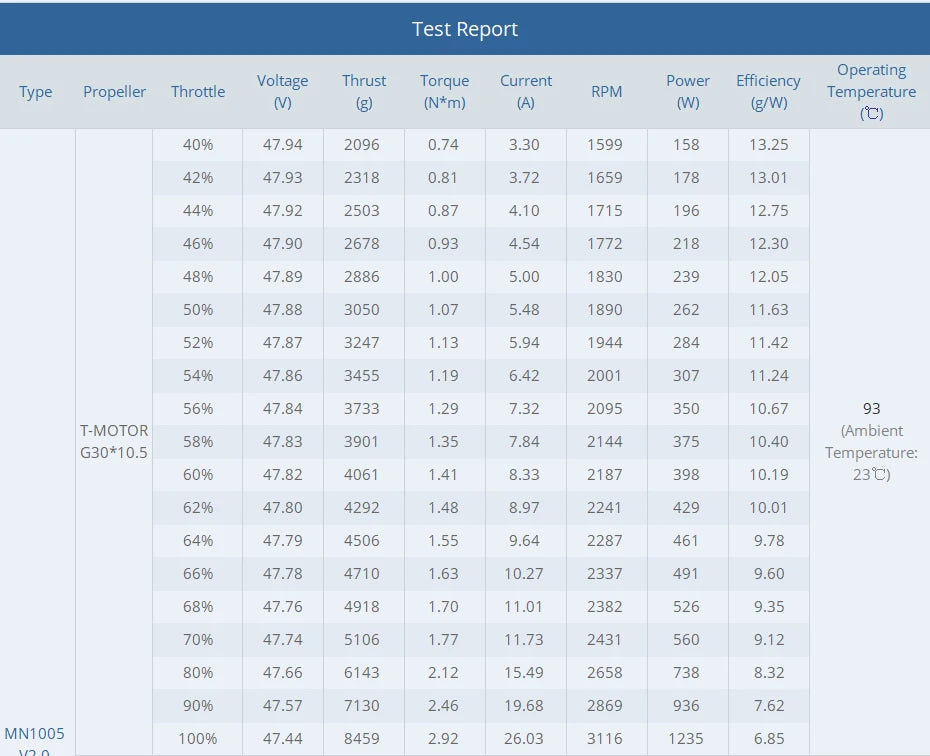

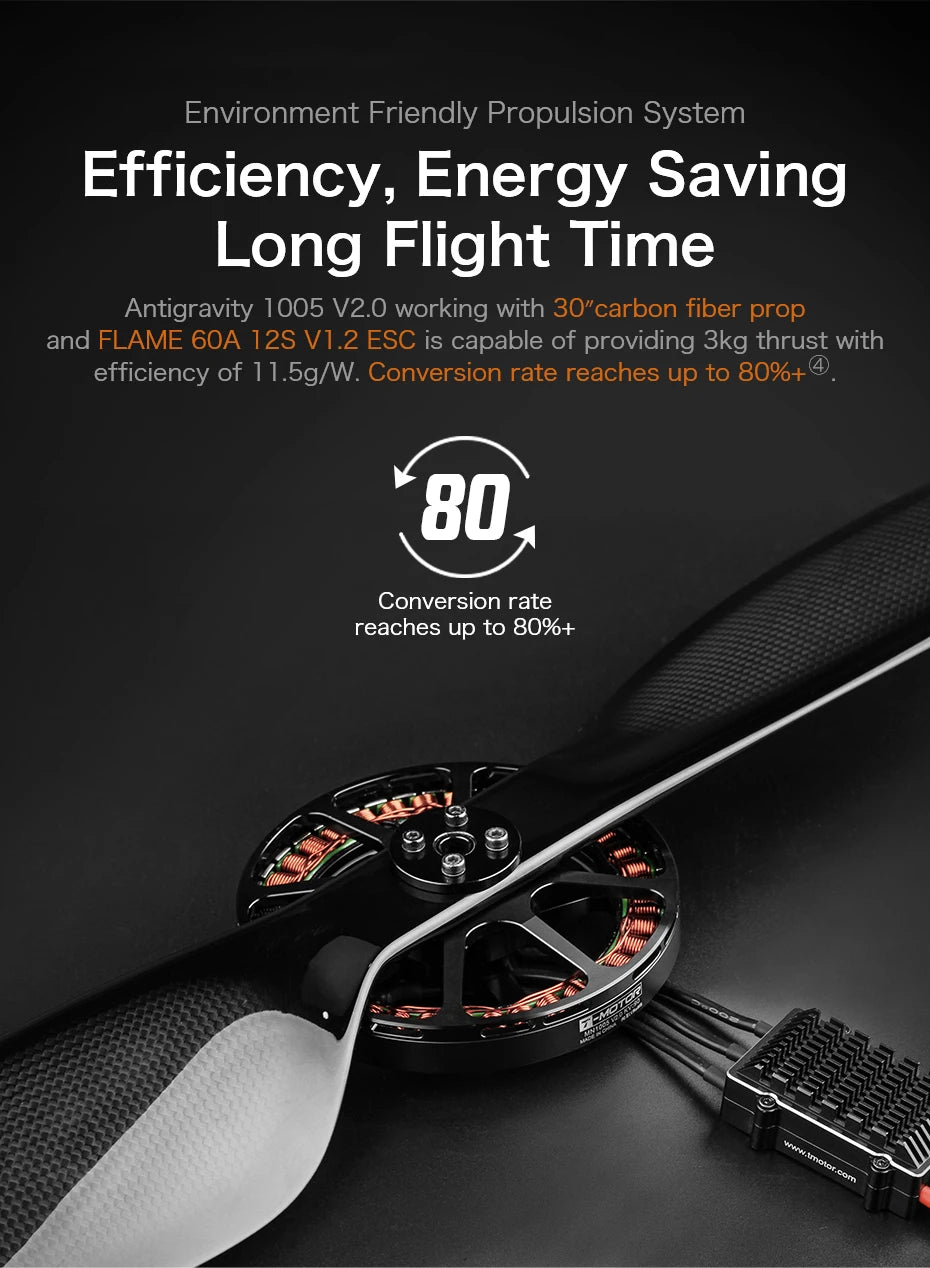

The T-MOTOR MN1005 V2.0, when paired with a 30-inch carbon fiber propeller and a FLAME 60A 12S V1.2 ESC, is capable of delivering a maximum thrust of 3kg while achieving an impressive efficiency of 11.5g/W.

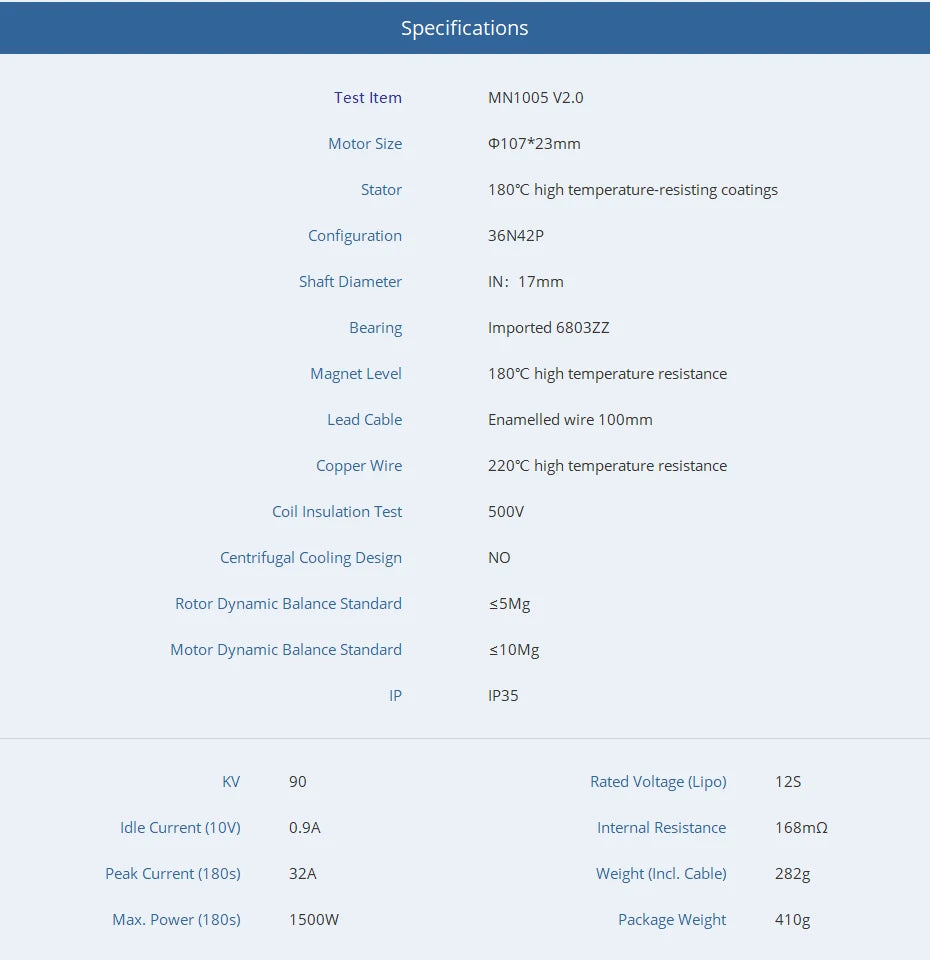

Product Specifications: MN1005 V2.0 Motor:

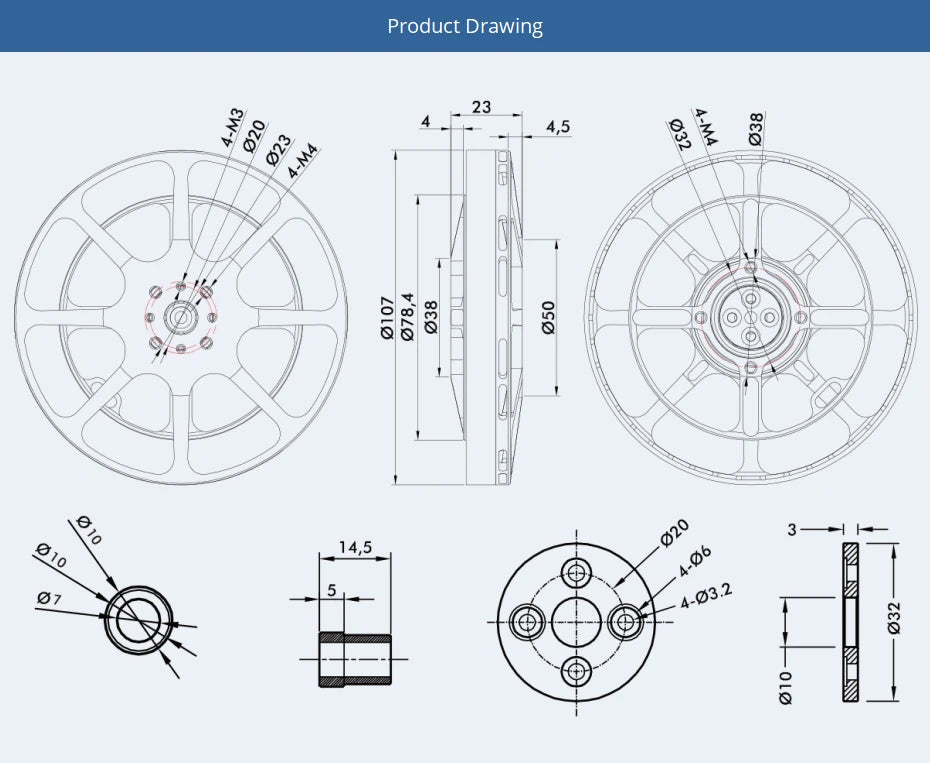

– Size: 10.07mm (length) x 23mm (diameter)
– Stator: High-temperature-resistant coating, 180°C
– Configuration: 36N42P
– Shaft Diameter: 17mm
– Bearing: Imported, part number 68032Z
– Magnet Level: 1809°C, high heat resistance
– Cable: Enamelled wire, 1.0mm Copper Wire, 220PC high temperature resistance
– Coil Insulation Test: 50ov (ovolt), centrifugal cooling design
– Rotor Dynamic Balance: Standard, not required
– Motor Dynamics: Balanced to standard SSMg specifications

If you’re missing any information, please contact our online customer service or leave a message at [email protected].
