RushFPV 1.6W 1.3G VTX Transmitter Module SPECIFICATIONS

Технические характеристики	Подробности
Video Input format	CVBS PAL/NTSC
Частотный диапазон	1060-1380MHz
Channel Frequency	CH1-1080, CH2-1120, CH3-1160, CH4-1200, CH5-1240, CH6-1258, CH7-1280, CH8-1320, CH9-1360
Transmit Power	14dB (25mW), 32dB (1600mW)
Входное напряжение	DC 7-36V (3-6S Lipo)
Потребляемая мощность	400mA (±20mA) @12V
Operating Temp.	-10°C – +60°C
Размер	36mm x 22mm x 7mm
Вес	10g (VTX)
Max Output	33.09dbm(2037mW)
AVG Output	32.4dbm(1738mW)

RushFPV 1.6W 1.3G VTX Details

RushFPV 1.6W 1.3G VTX Transmitter Module SPECIF

RushFPV 1.6W 1.3G VTX Features

1.3GHz band with excellent environmental adaptability
Reliable mechanical switch for setting power and channel
Stable 1600mW transmitting power
Wide voltage input from 7-36V
Supports IRC VTX control protocol
Equipped with a lightweight antenna

RushFPV 1.6W 1.3G VTX, 1.2GHz analog video transmitter module Features 1.3GHz band with excellent environmental adaptability Reliable

This 1.2GHz analog video transmitter module offers a range of features, including a reliable mechanical switch for setting power and channel, excellent environmental adaptability in the 1.3GHz band, stable transmitting power of 1600mW, and wide voltage input compatibility from 7-36V. It also supports the IRC VTX control protocol.

RushFPV 1.6W 1.3G VTX, Max Output 33.09dbm(2037mW) AVG Output

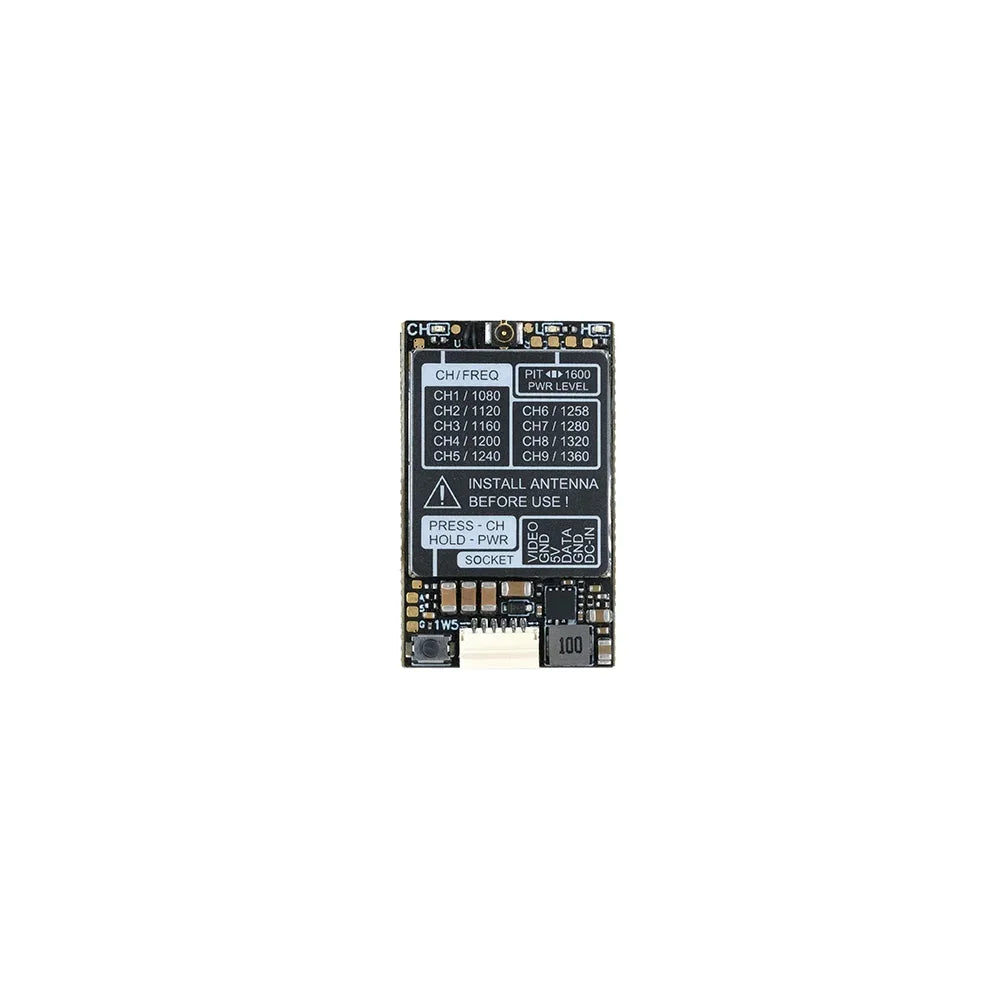

RushFPV 1.6W 1.3G VTX, CHOJ CHIFREQ PIT AW1600 PWR LeveL C

Warning: Install antenna before use. Power level: AW1600. Channel settings: Ch1: 1080, Ch2: 1120, Ch3: 1258, Ch4: 1160, Ch5: (not specified), Ch6: 1200, Ch7: 1240, Ch8: 1280, Ch9: 1320. Press and hold ‘CH’ to change frequency.

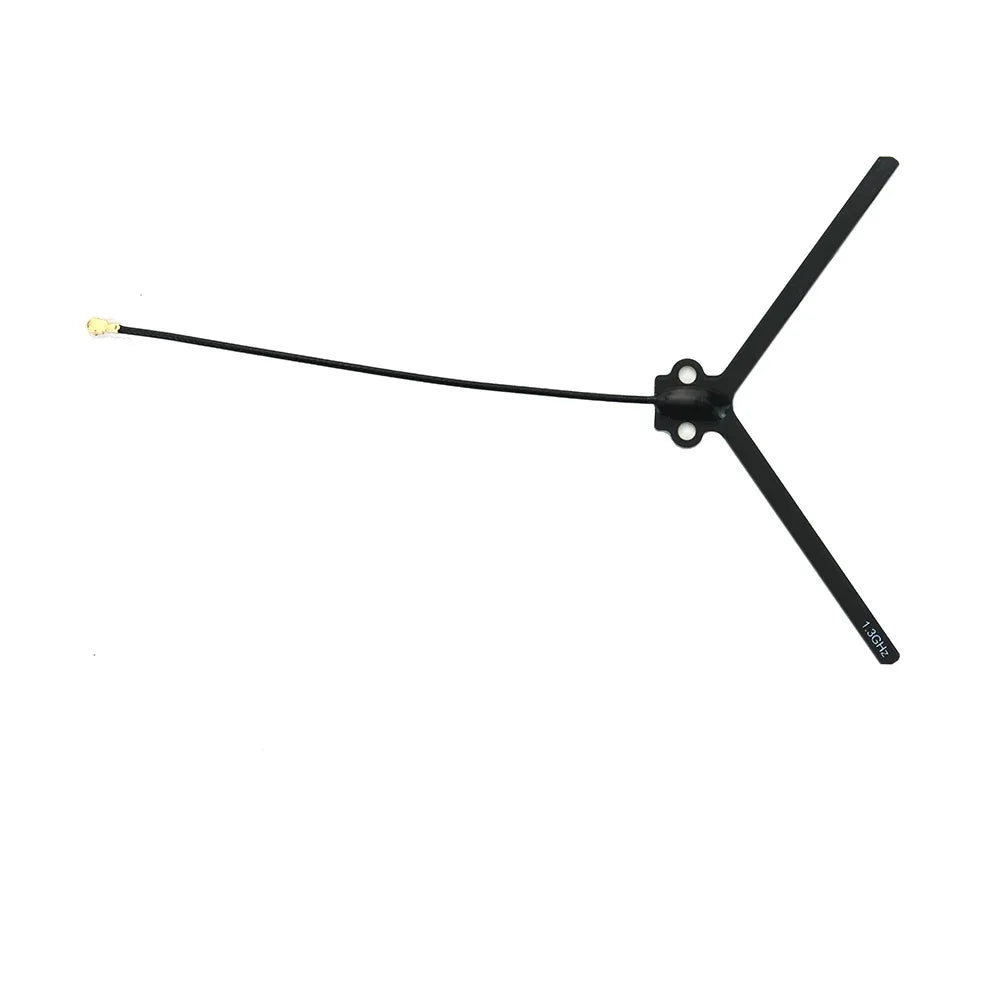

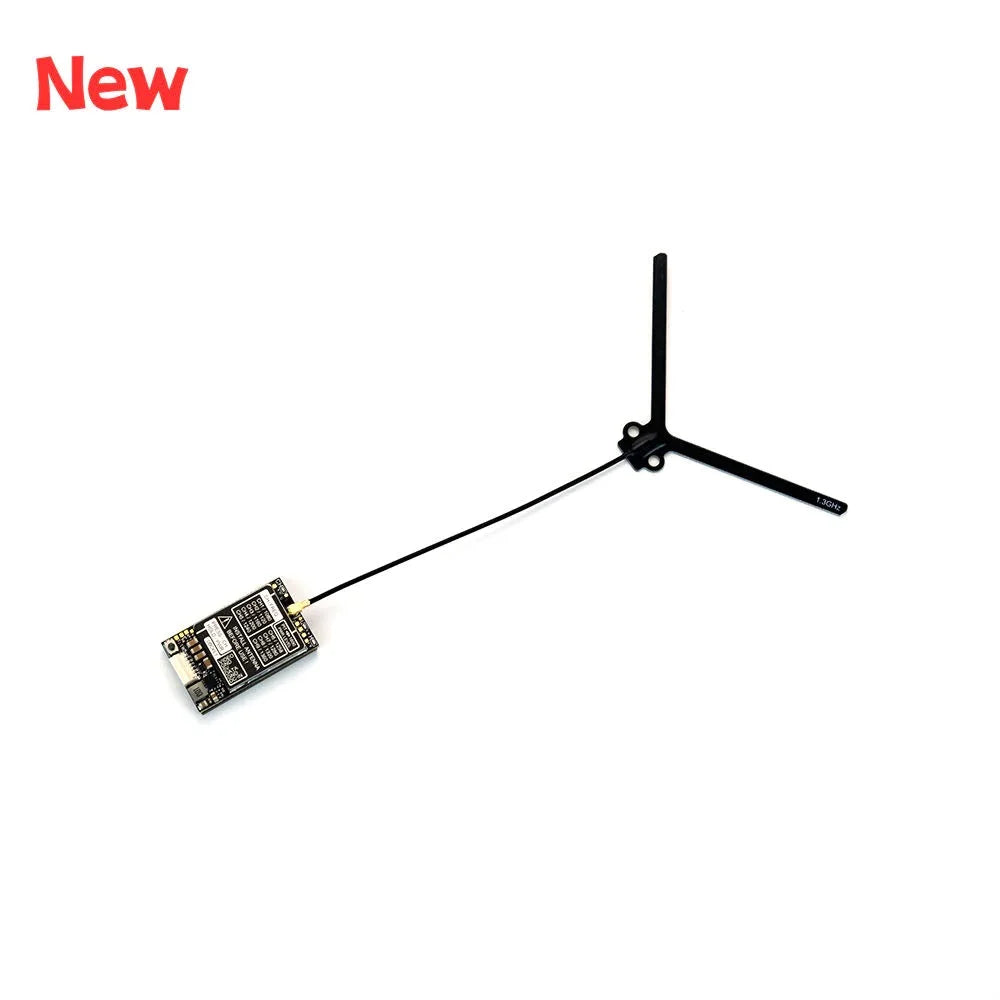

Цвет	1.6W 1.3G VTX, 1.3G LPEX antenna
