The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.

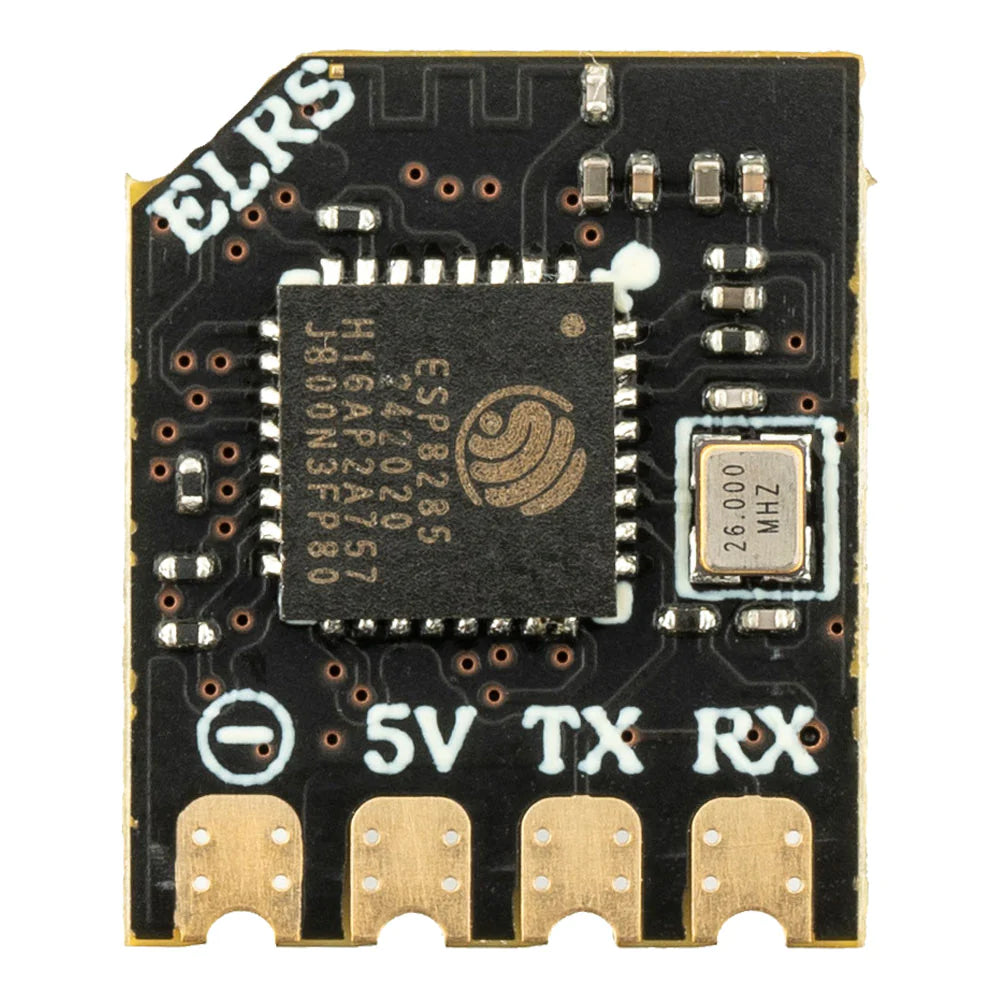

Сайт RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.
The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.
Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for many models due to the ultra-light and Nano size, these receivers can fit just about anywhere!
Visit https://www.expresslrs.org/ to learn more.
Характеристики
- Improved PCB design is better for heat dissipation.
- LED on the top side of PCB.

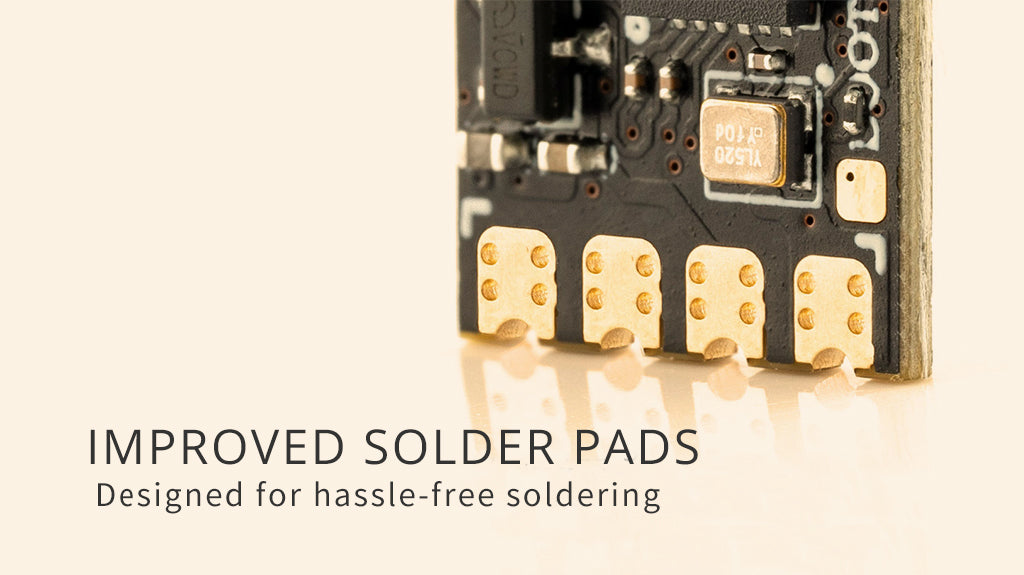

- Solder pads are improved and easier to solder to.
- Built-in a TCXO (temperature compensated crystal oscillator)
- Совместим со всеми модулями ExpressLRS 2,4 ГГц и передатчиками со встроенной системой ExpressLRS 2,4 ГГц
Технические характеристики

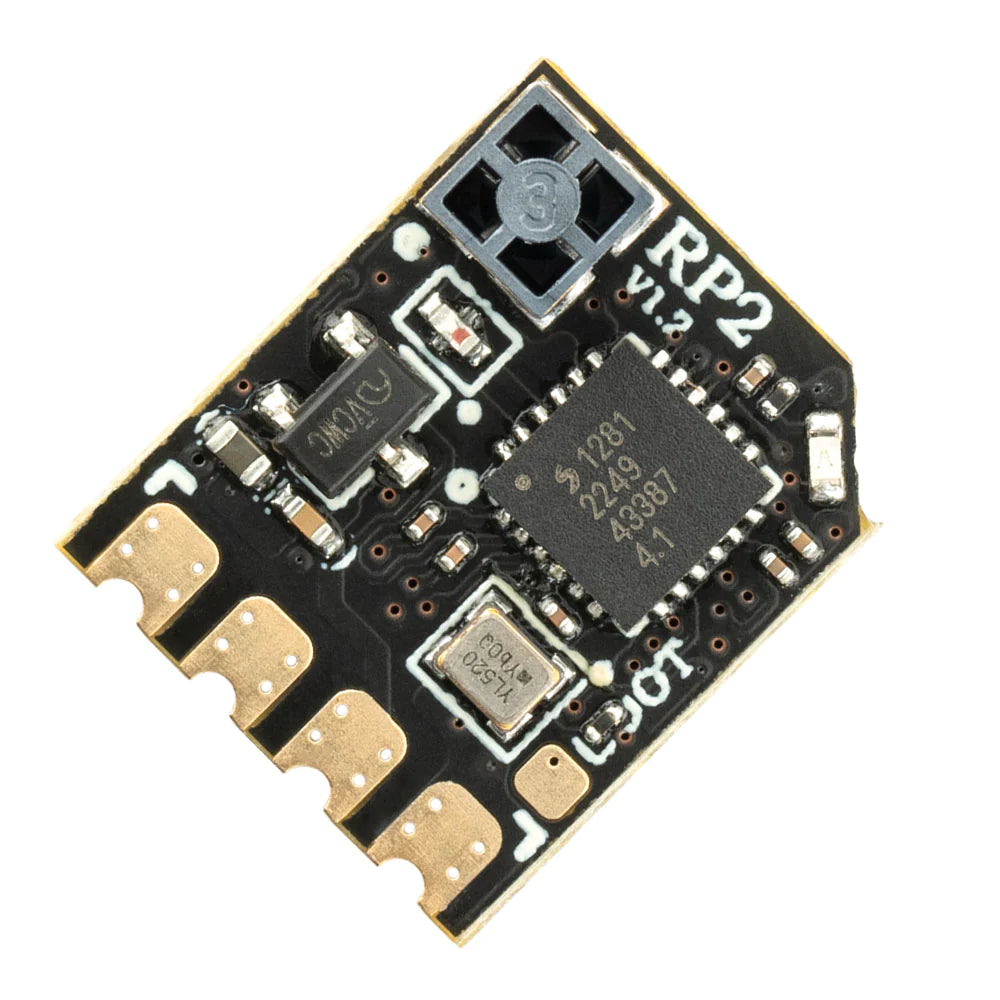

- Item: RP2 Nano ExpressLRS 2.4ghz Receiver
- Тип: ISM
- MCU: EPS8285

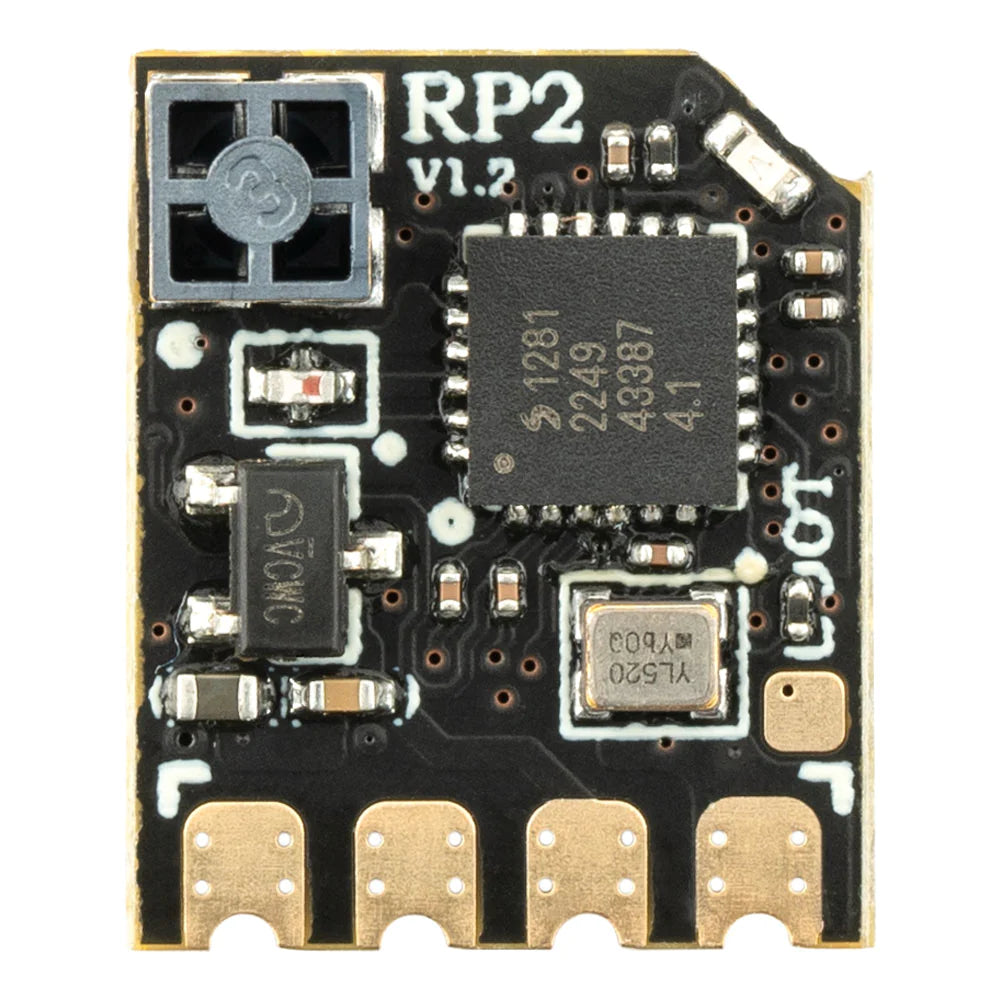

- RF Chip: SEMTECH SX1281
- Telemetry RF power: 10mW

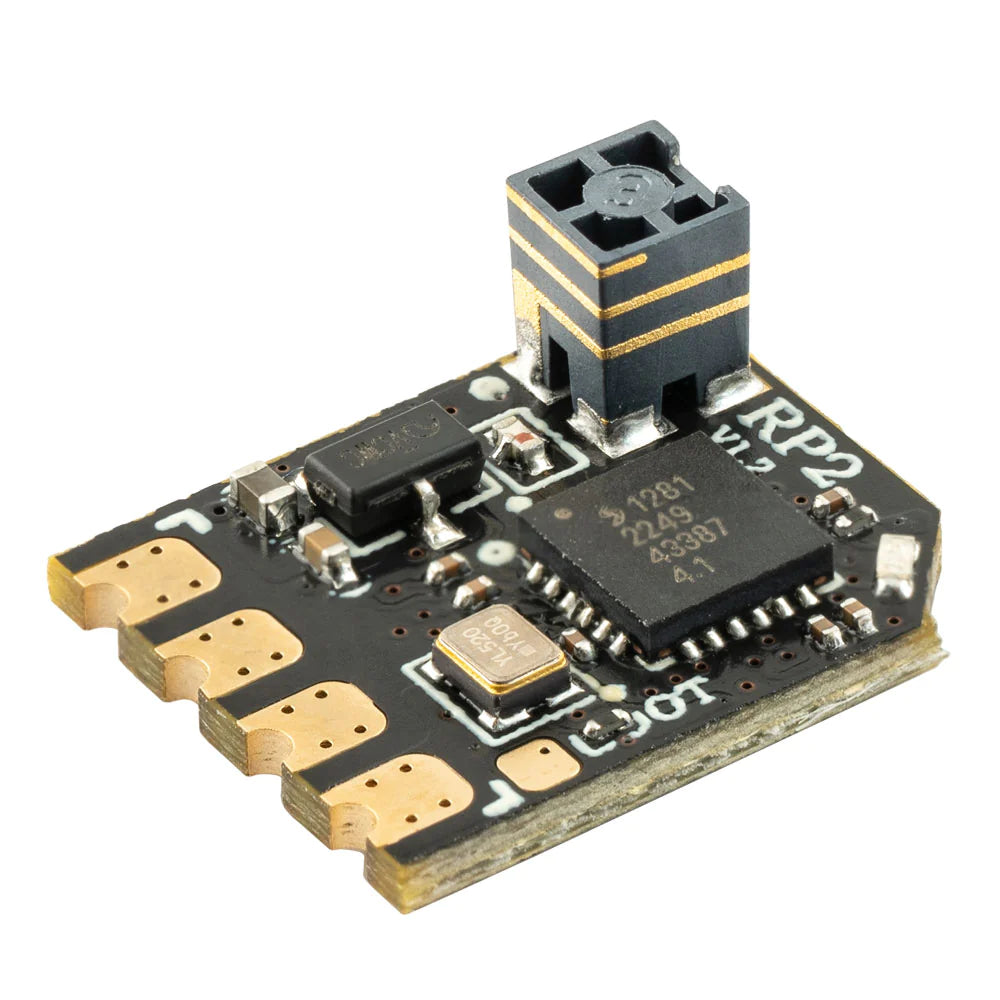

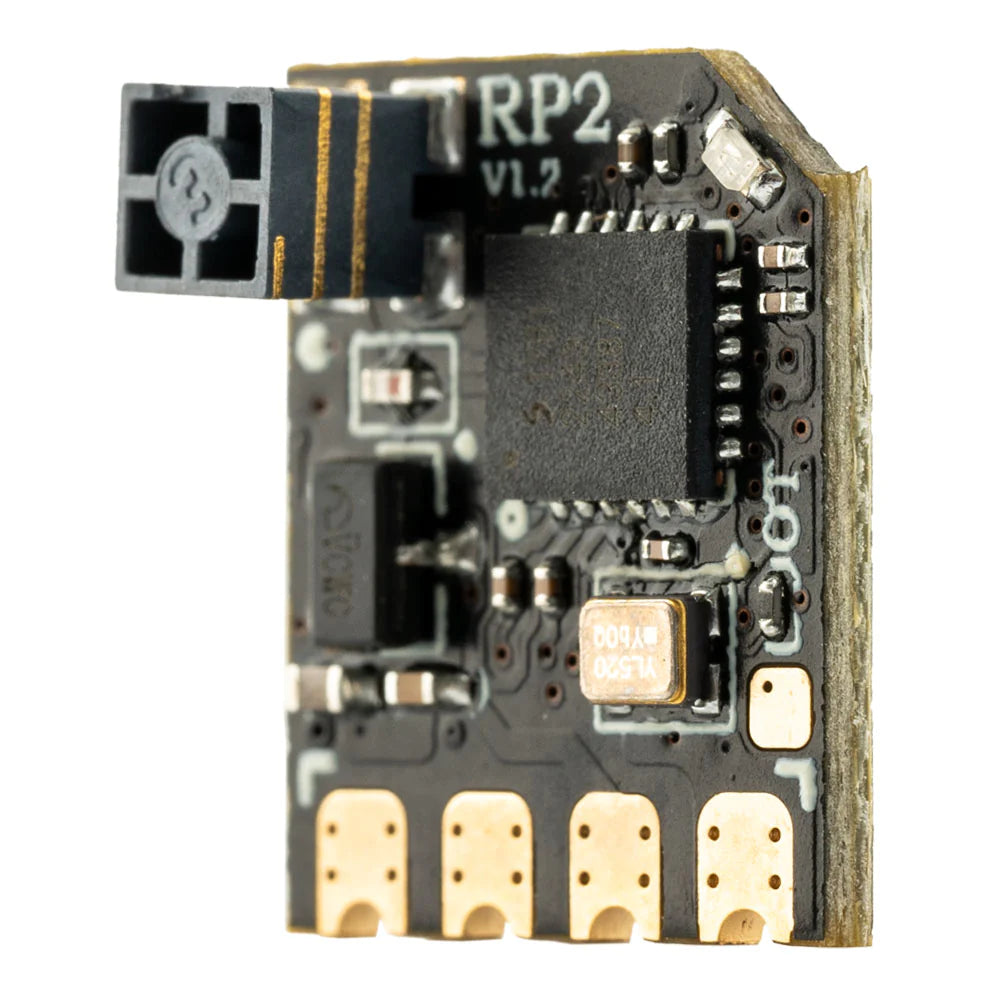

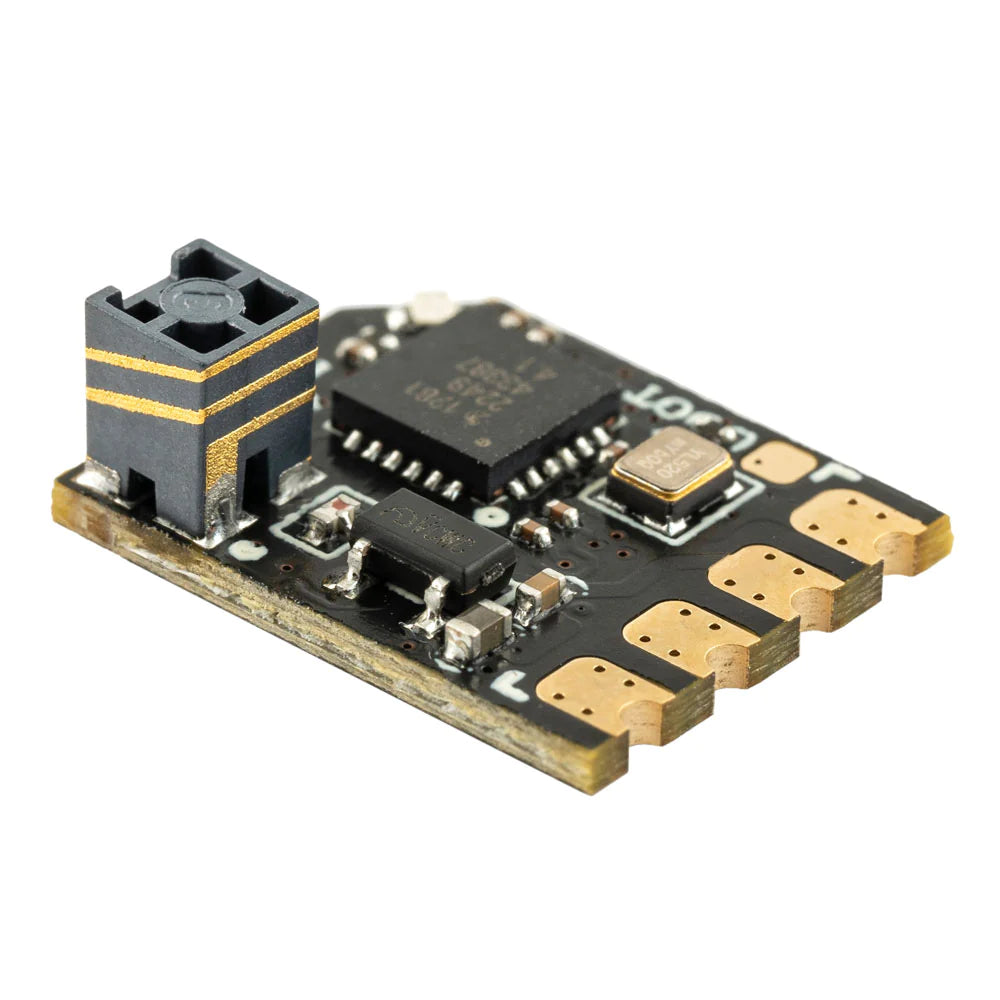

- Antenna: On Board SMT Antenna
- Antenna: 65mm 2.4ghz T Antenna
- Frequency Range: 2.404 – 2.479 Ghz
- Maximum receive refresh rate: 500Hz/F1000Hz
- Минимальная частота обновления приемника: 25 Гц
- Working voltage: 5v

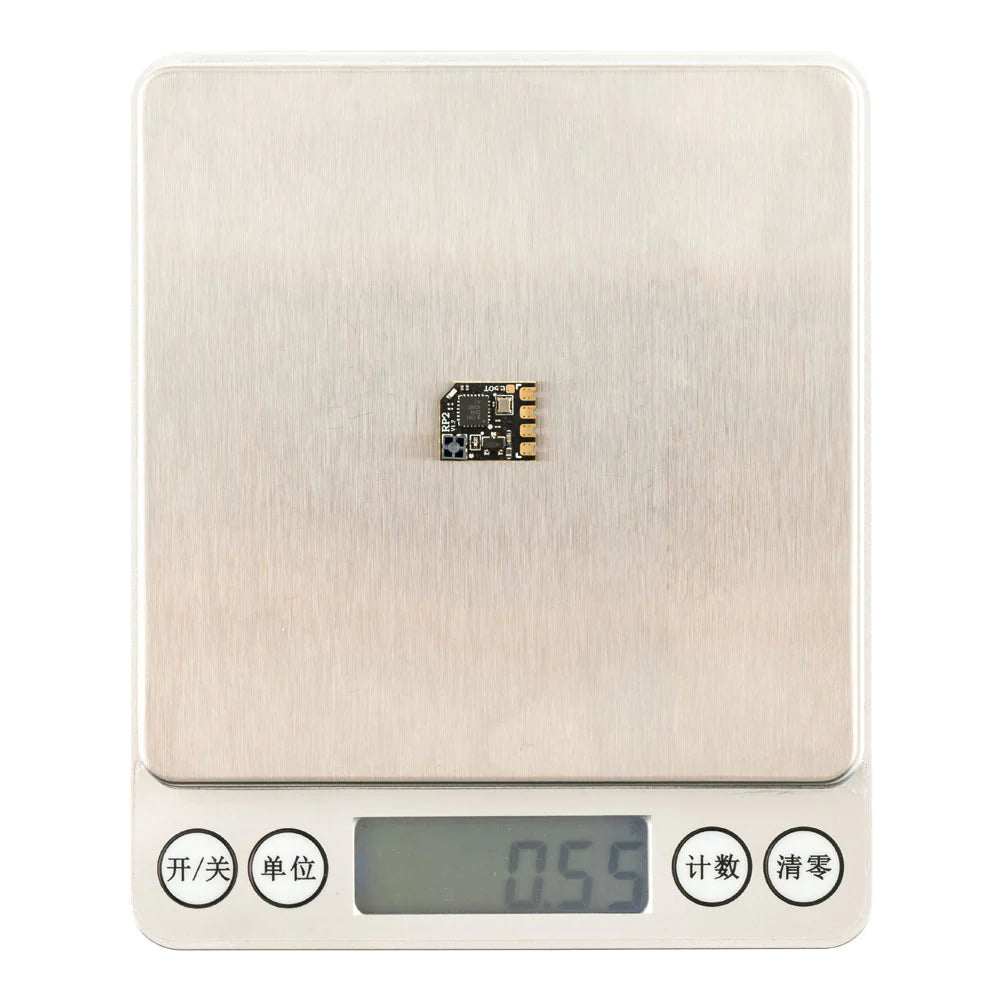

- Weight: 0.55g (On Board antenna)
- Dimension: 13mm*11mm*7mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Интерфейс шины: CRSF
TCXO (temperature compensated crystal oscillator)
The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click to learn more about the TCXO.
Размер
Related Products
- UFL 2.4Ghz T Antenna 65mm/95mm
- RP1 ExpressLRS 2.4ghz Nano Receiver
- RP2 ExpressLRS 2.4ghz Nano Receiver
- TX12 Mark II Radio
- TX16 Mark II Radio
- Радио Зорро
Скачать

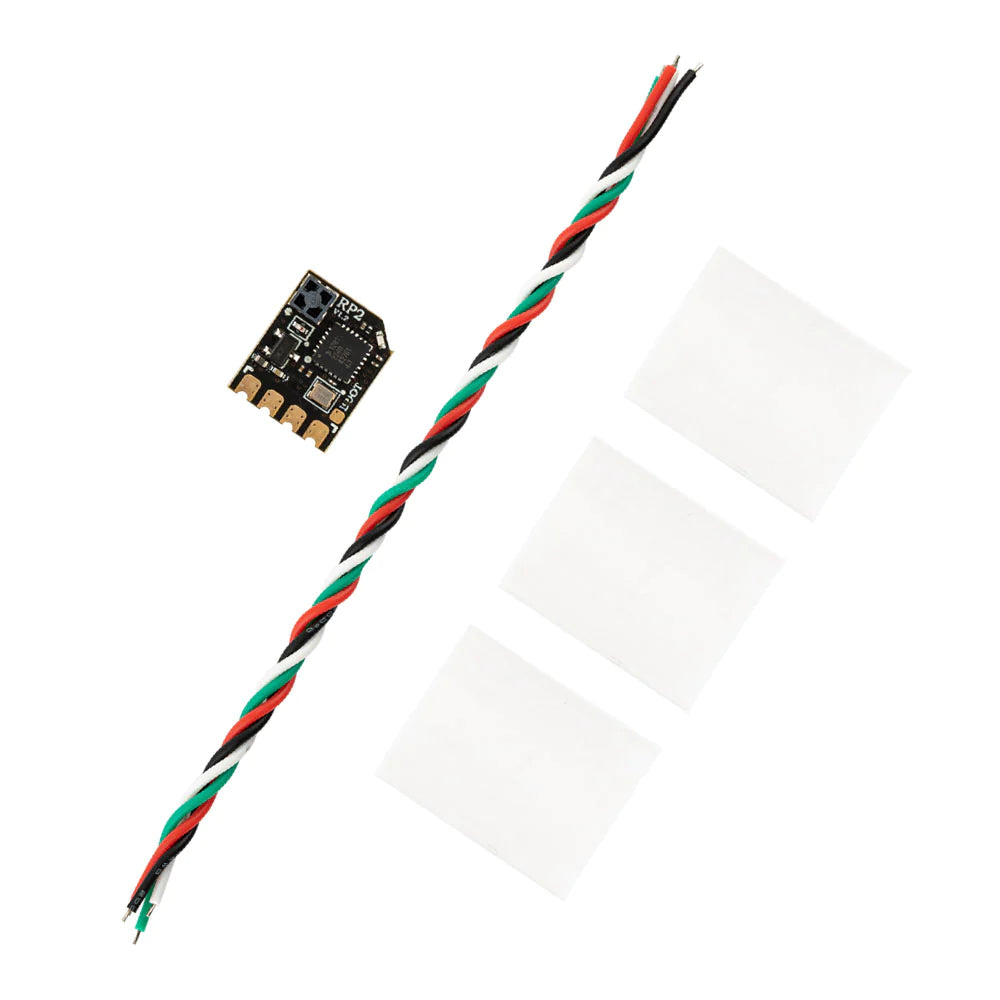

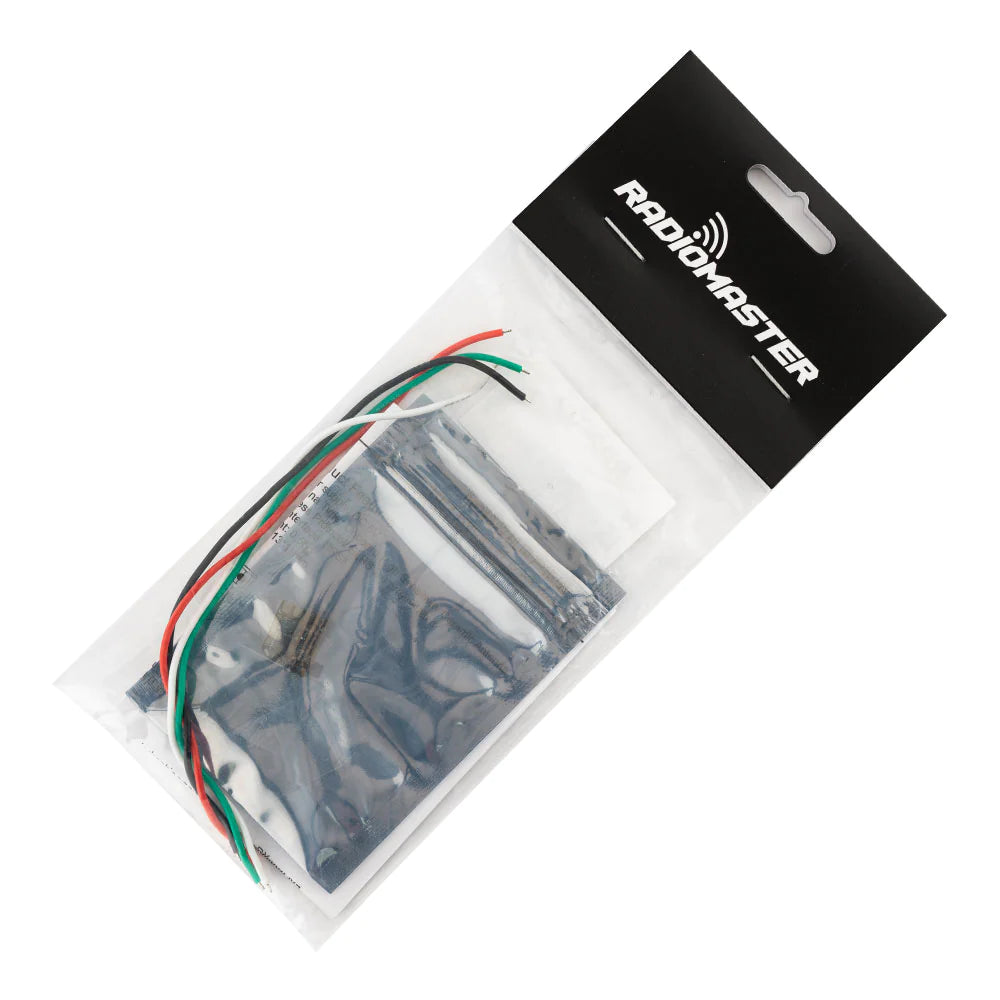

В комплект входит
- 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
- 1 * User Manual
- 1 * CRSF провод
