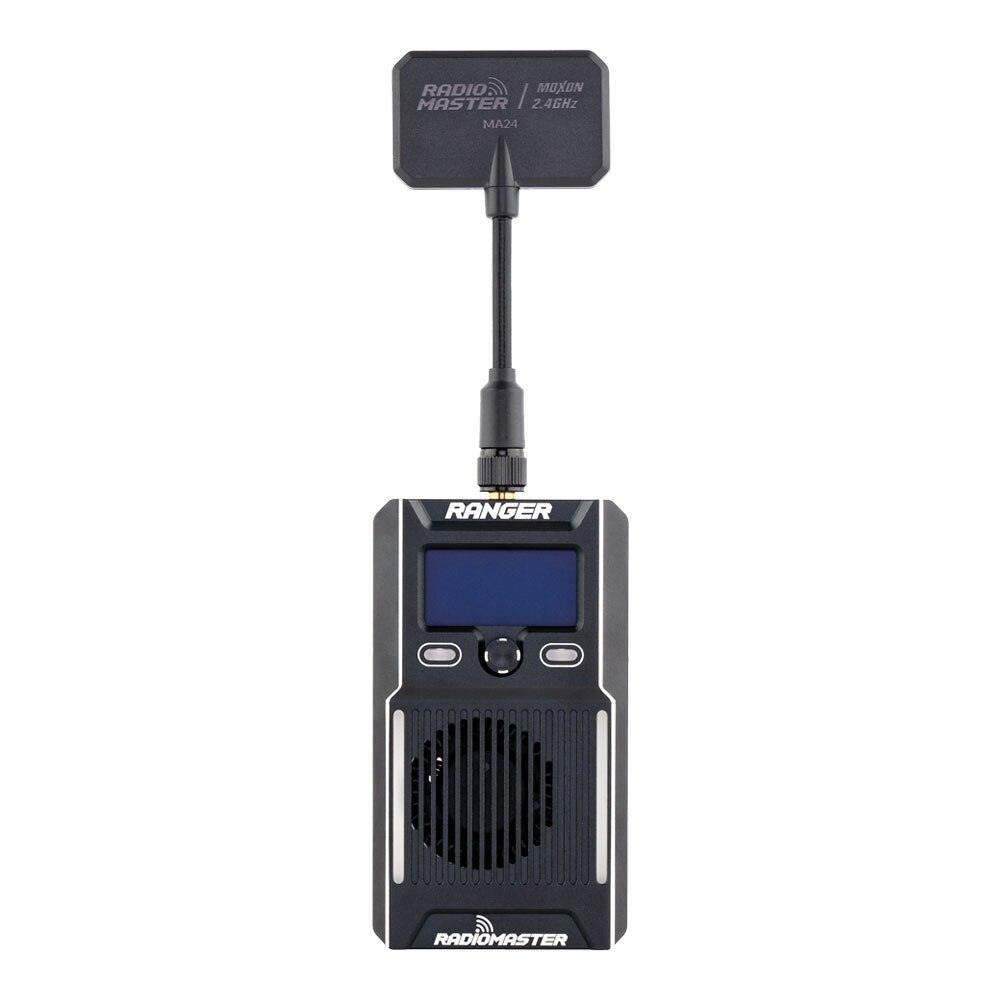

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

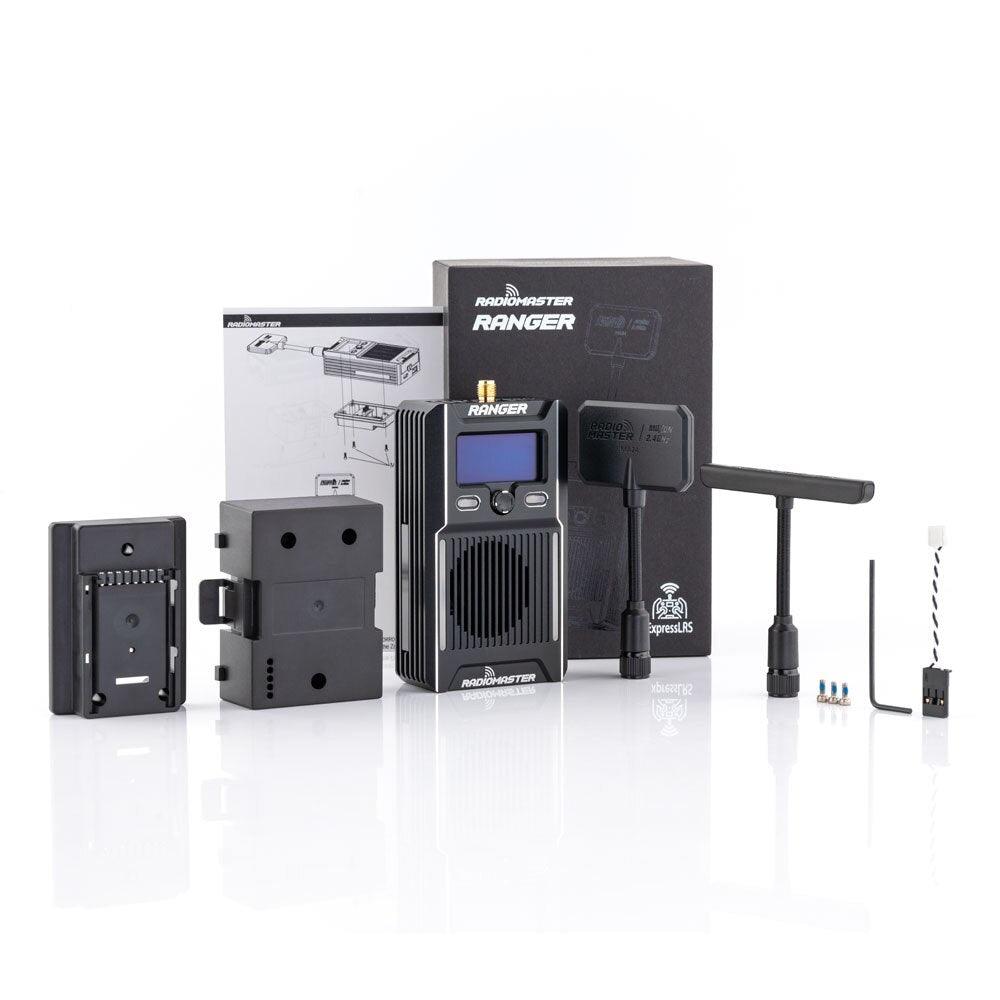

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Характеристики

  OLED Display
  Rugged CNC Case
  Built-in Accelerometer
  Packet rates up to F-1000Hz
  Up to 1 Watt Power output
  Wifi and Bluetooth support
  High-efficiency cooling system

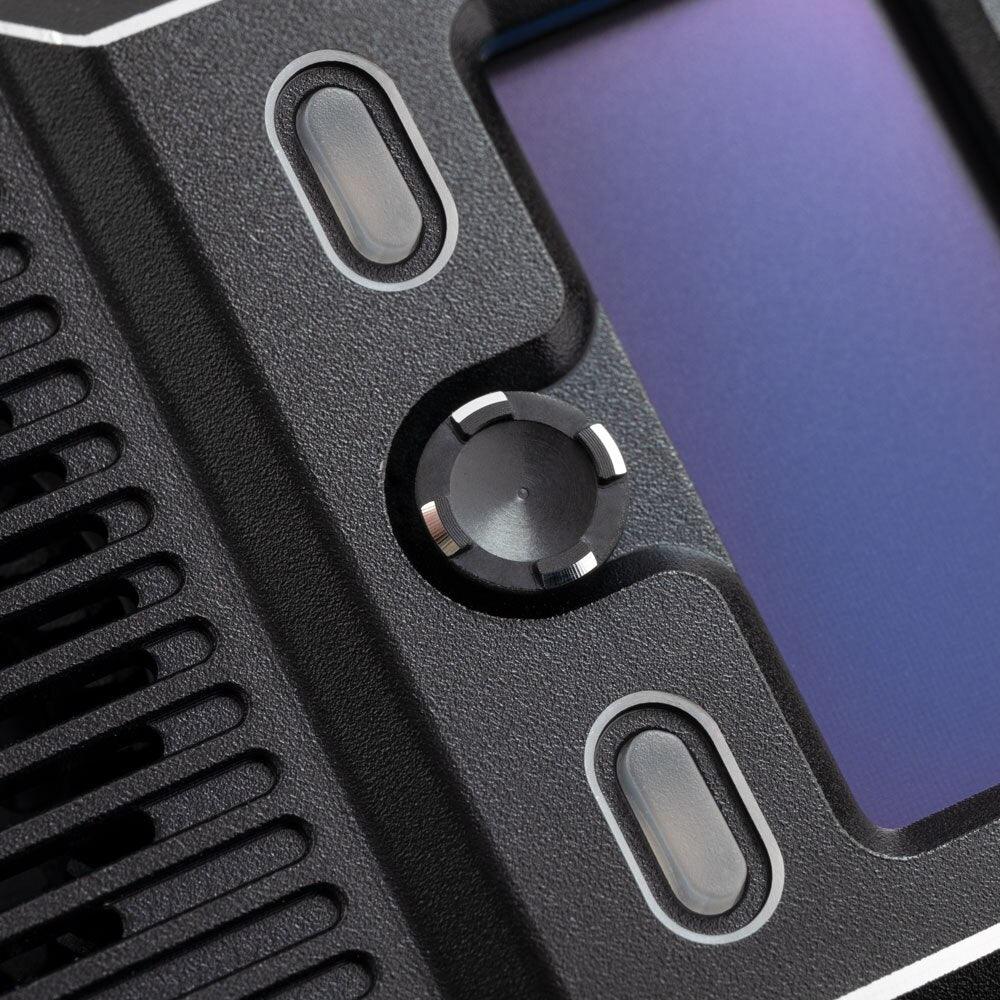

  5 Direction Nav key and customizable shortcut buttons
  Micro and Nano adapters included

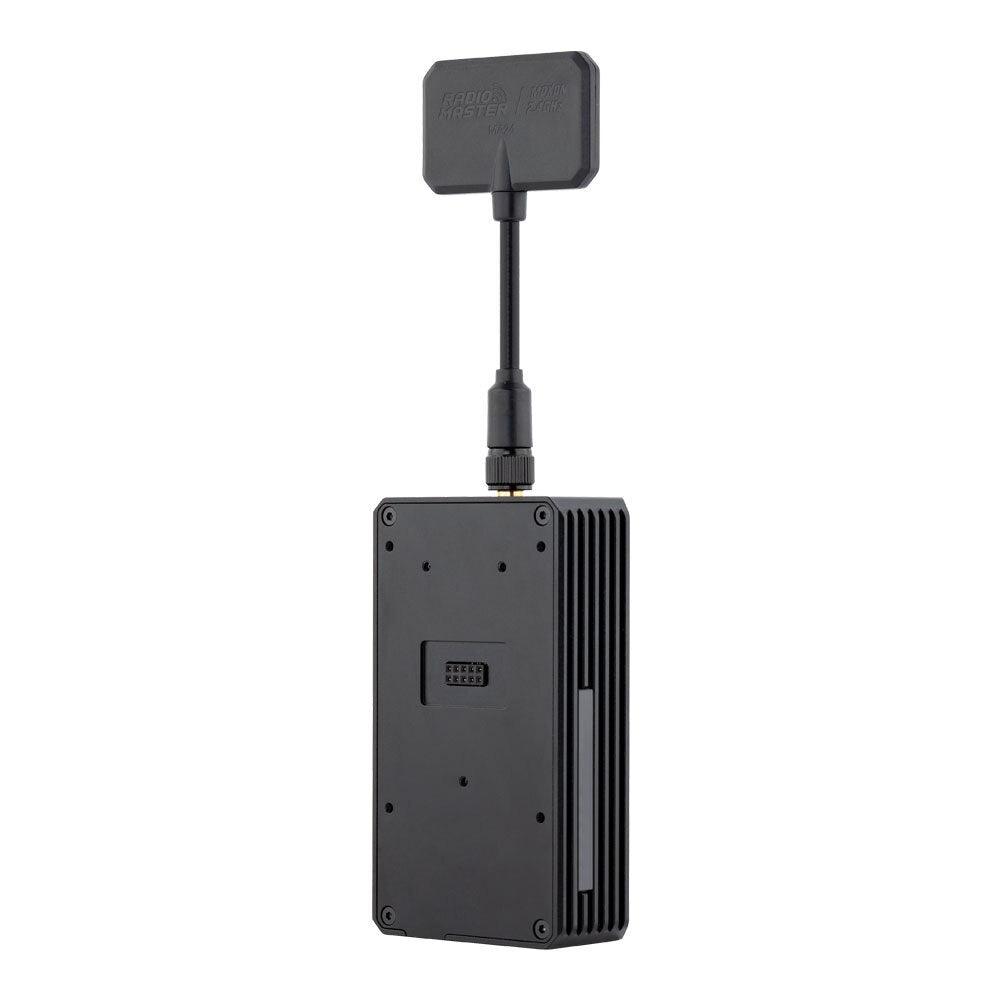

  Moxon and T-antenna included
  CRSF cable for compatible Futaba radios included

Технические характеристики

Item: Ranger 2.4GHz ELRS Module
Нормативный домен: ISM2400
MCU: ESP32(main), ESP8285(aux, as espbackpack)
Радиочастотный чип: SX1281IMLTRT
Диапазон частот: от 2400 МГц до 2480 МГц
Максимальная скорость передачи пакетов: 500 Гц/F1000 Гц (для режима F1000 требуется версия EdgeTX 2.7.1 или более поздняя)
Минимальная частота обновления приемника: 25 Гц
Выходная радиочастотная мощность: 30 дБм для FCC, 20 дБм для CE (регулируется LUA)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen:  64x128px
Поддержка Wi-Fi: Да
Поддержка Bluetooth: Да
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip
XT30 Напряжение питания: DC 6V - 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 95*51*25mm (without antenna)

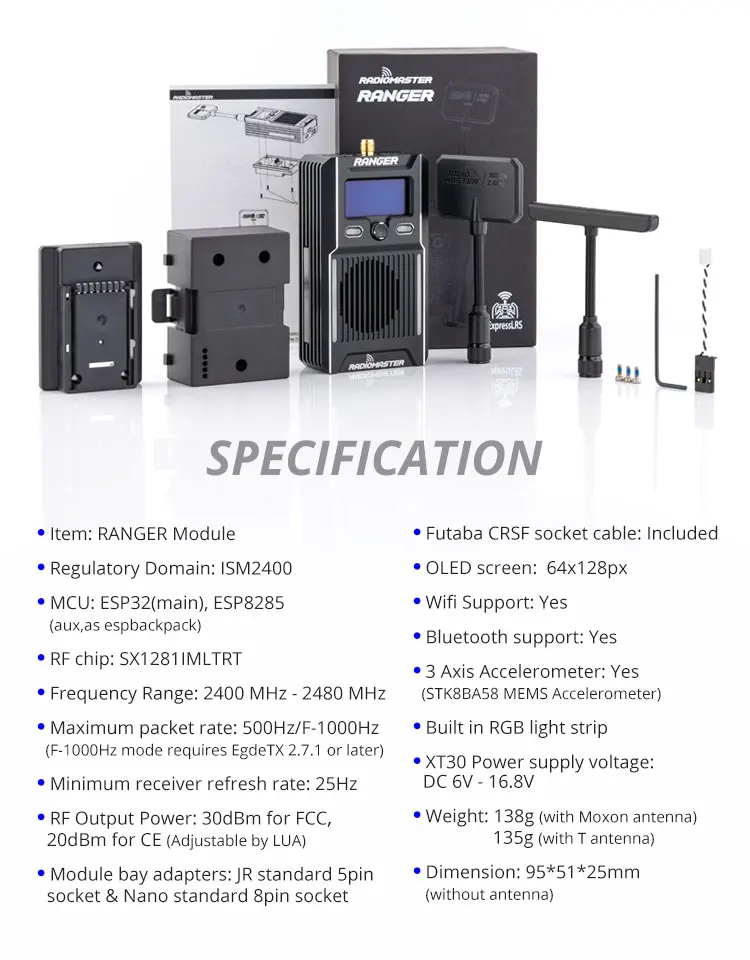

Radidhasicr RANgeR Module Futaba CRSF socket cable: Included Regulatory Domain: ISM24OO OLED screen: 64x128px RF chip: SX1281IMLTRT 3 Axis Accelerometer: Yes RF Output Power: 30dBm for FCC, Weight: 138g (with Moxon antenna)
