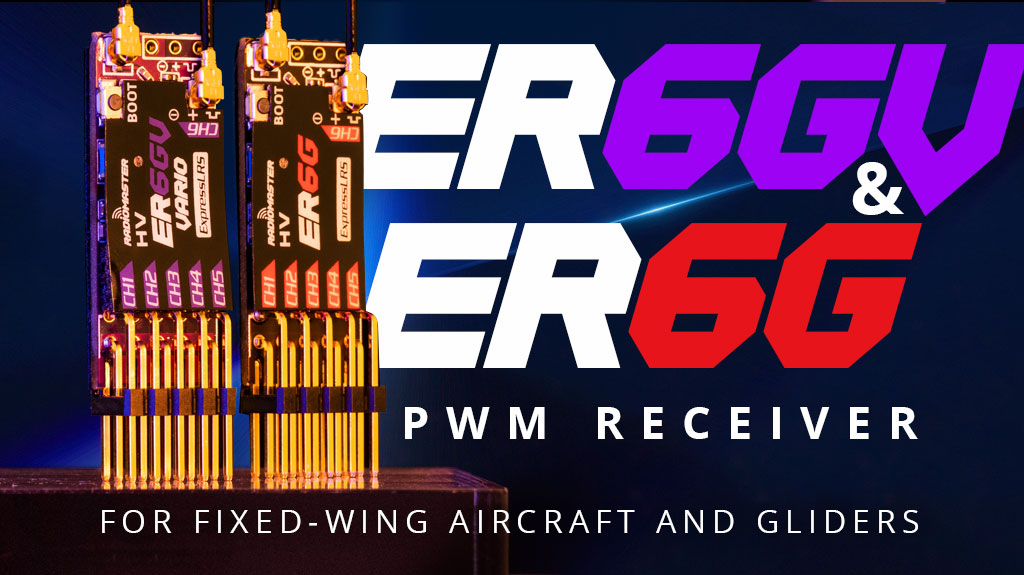

RadioMaster ER6G & ER6GV 2.4GHz ELRS PWM Receiver – Compact and Slim Receiver For Glider Airplane and Fixed-Wing Aircraft Drone

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.

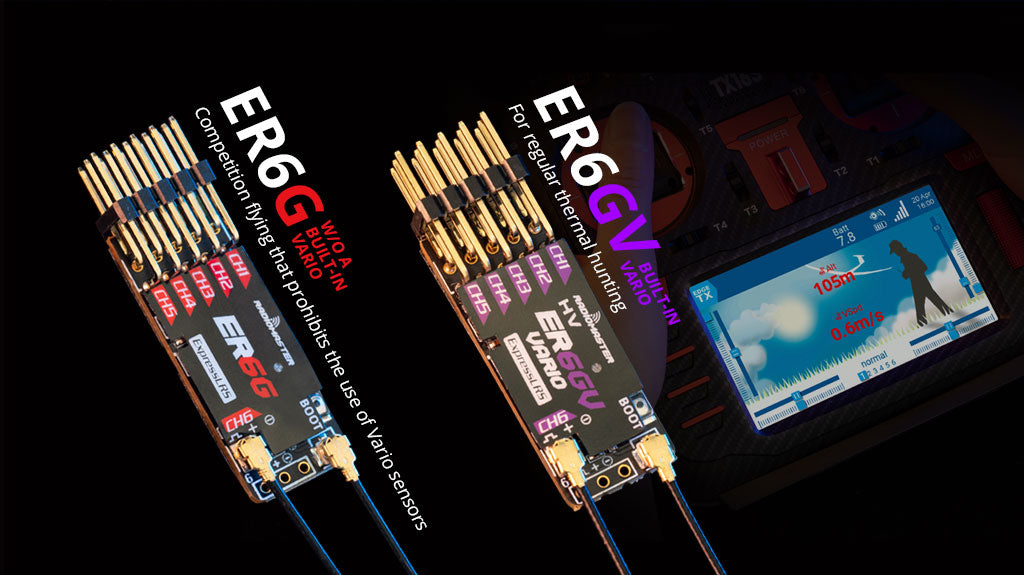

The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.

Видео запуска

Характеристики

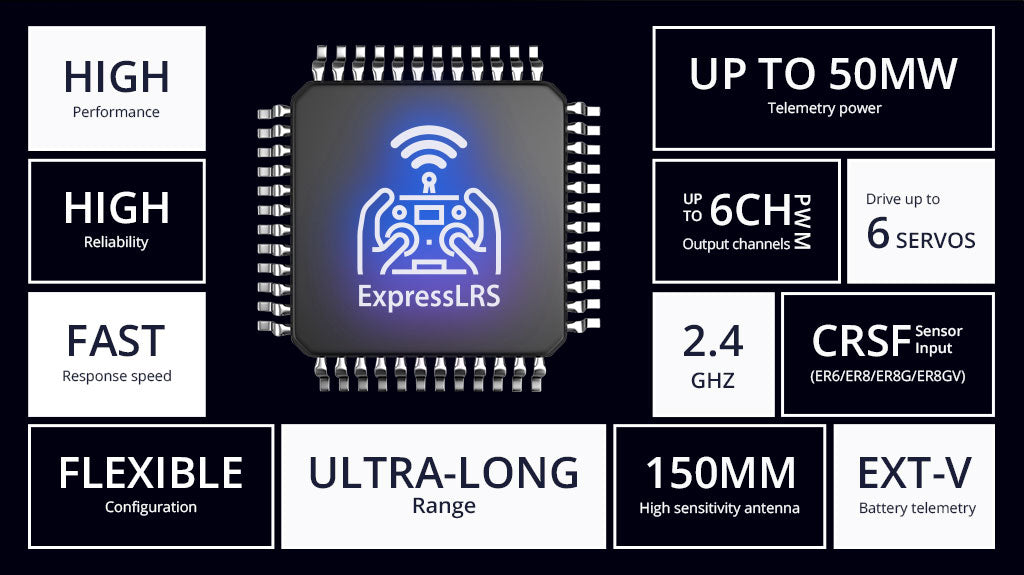

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed and ultra-long range

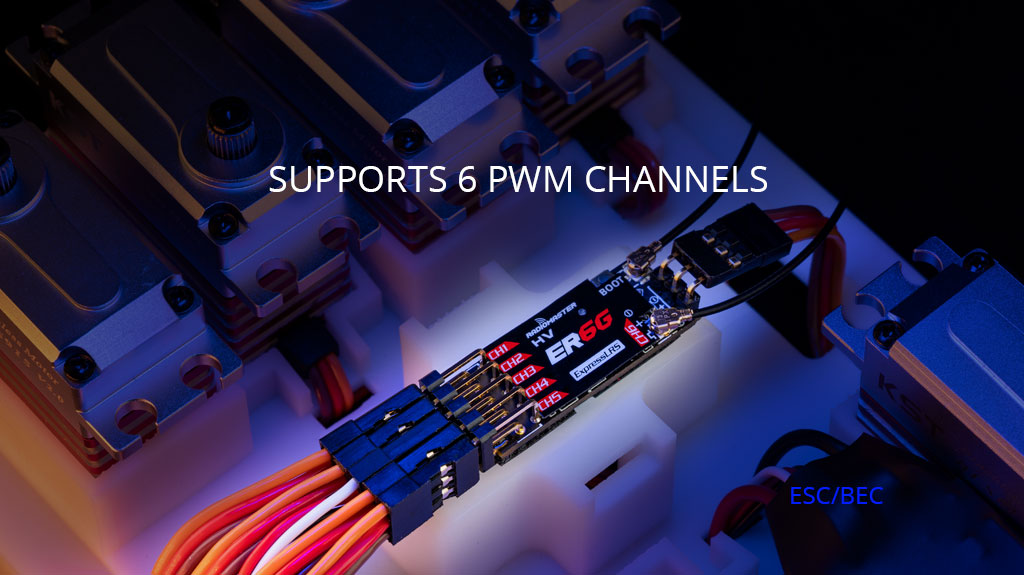

• Support 6 PWM Channels

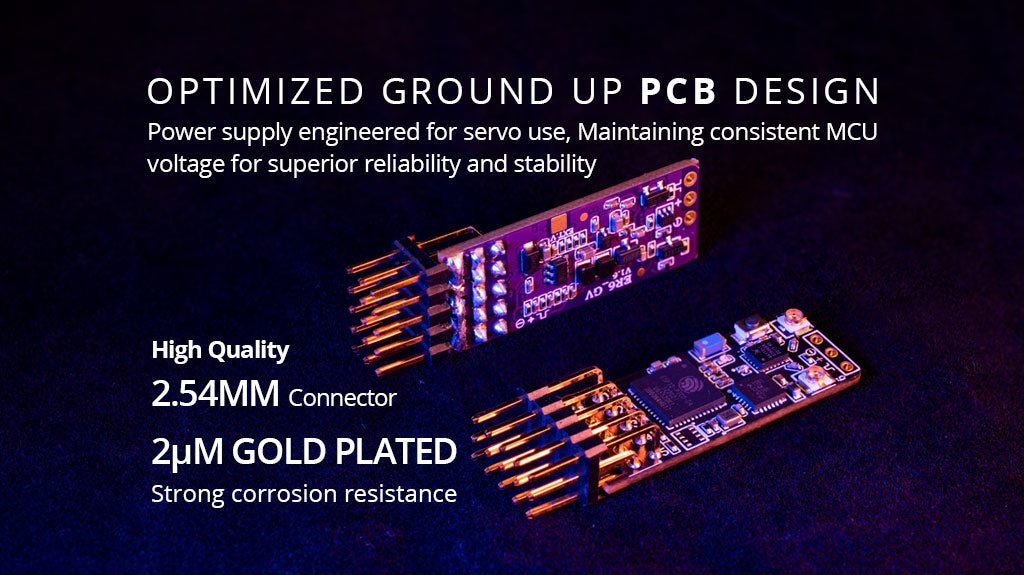

• Optimized ground up PCB design

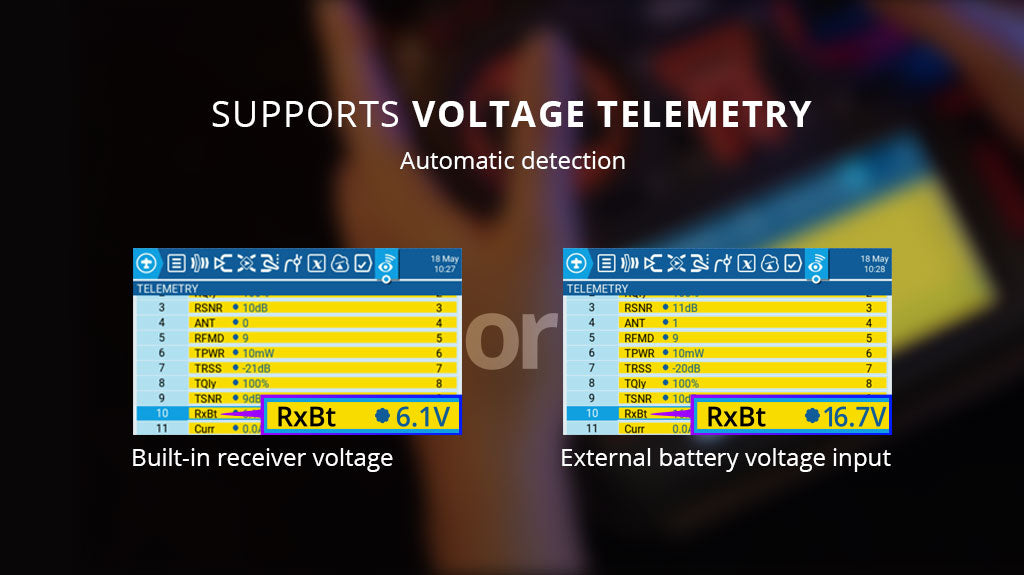

• Automatically voltage telemetry of external battery voltage or built-in receiver voltage
• ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
• Supports Wi-Fi updates and WEBUI configuration
• High quality 2.54 mm connector

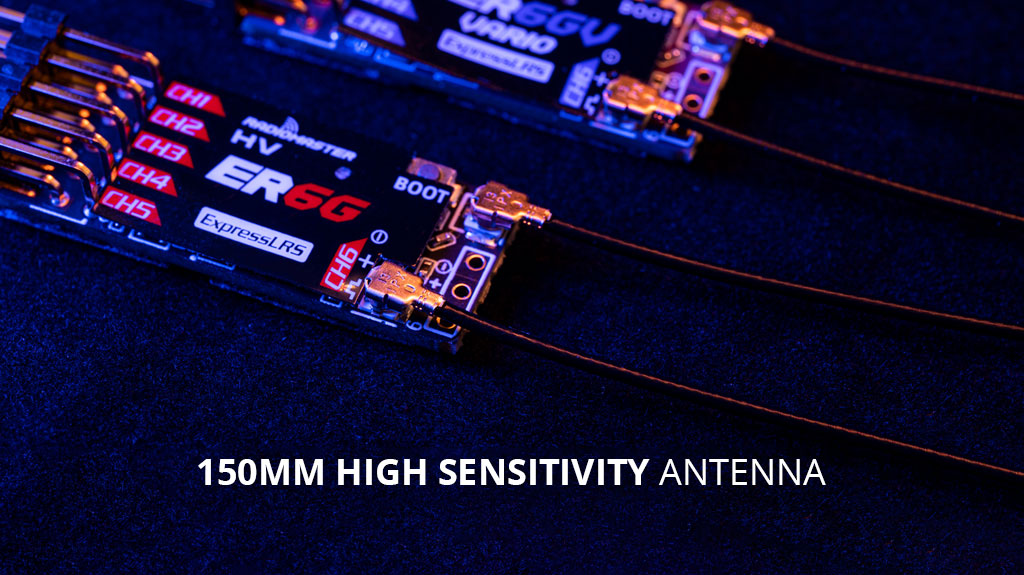

• Standard 15 cm High Sensitivity Antenna
• For fixed-wing aircraft and gliders
• Совместим со всеми модулями ExpressLRS 2,4 ГГц и передатчиками со встроенной системой ExpressLRS 2,4 ГГц

Specification (ER6G)

• Item: ER6G 2.4GHz ELRS PWM Receiver
• Power supply: DC 3.5 – 8.4V
• Antenna type: 15cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 6CH PWM
• Serial Output: CRSF / Sbus
• Телеметрия power: maximum 50mw (LUA Adjustable)
• Battery voltage detection range: DC 3.0 – 26V
• Weight: 5.0 grams
• Dimensions: 42*13*8mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-G 2.4GHz Diversity+6xPWM RX

Specification (ER6GV)

• Item: ER6GV 2.4GHz ELRS PWM Receiver
• Power supply: DC 3.5 – 8.4V
• Antenna type: 15cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.2 pre-installed
• Output channel: 6CH PWM
• Serial Output: CRSF / Sbus
• Return power: maximum 50mw (LUA Adjustable)
• Built-in high-precision air pressure sensor (Vario)
• Battery voltage detection range: DC 3.0 – 26V
• Weight: 5.0 grams
• Dimensions: 42*13*8mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-GV 2.4GHz Diversity+6xPWM+Vario RX

Размер

RadioMaster ER Series Receivers

• ER4 ELRS PWM Receiver
• ER6 ELRS PWM Receiver
• ER8 ELRS PWM Receiver
• ER6G/ER6GV ELRS PWM Receiver
• ER8G/ER8GV ELRS PWM Receiver

В комплект входит

• 1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver
• 1 * Voltage telemetry wire (Type-A)
• 2 * Heat-shrink tube
• 1 * User Card
