VT5804-BAT
Output power: 0-25-400-800-1500-2500mW
Input voltage: 6-36V
Parameter adjustment method: key/OSD
Working current: less than or equal to 450mA@12V, 800mW
Less than or equal to 850mA@12V, 2500mW

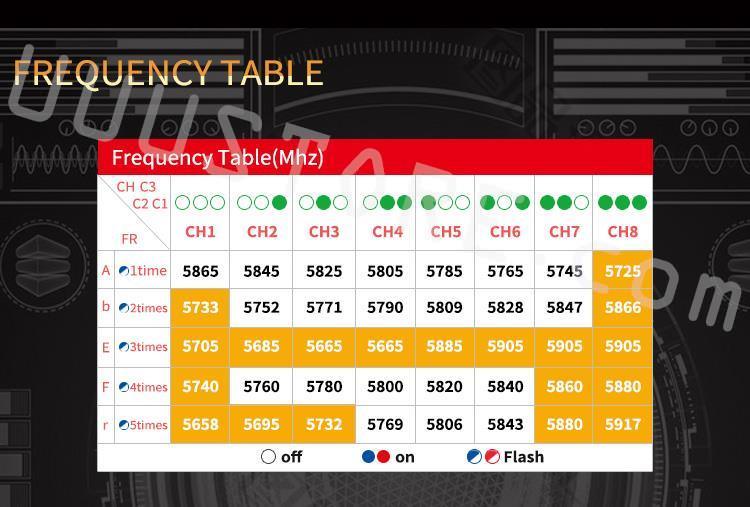

Output frequency: 40CH (A-B-E-F-R)
Antenna interface: MMCX
Installation hole: 30.5*30.5mm-20*20mm
Video format: NTSC/PAL automatic detection
Weight: 11g (without antenna and power cord)
Size: 38*36.5*7.2mm
1. With its own power self-check function, you can quickly check whether the image transmission is working normally
2. Frequency lock function, no interference with companions when power on
3. It has 30.5*30.5 and 20*20 mounting holes at the same time to improve the compatibility of rack
4.0-2.5W power adjustable, allowing you to switch seamlessly in different environments
Особенности:
1. With its own power self-check function, you can quickly check whether the image transmission is working normally
2. Frequency lock function, no interference with companions when power on
3. It has 30.5*30.5 and 20*20 mounting holes at the same time to improve the compatibility of rack
4.0-2.5W power adjustable, allowing you to switch seamlessly in different environments
Технические характеристики:
Brand: Pandarc
Model: VT5804-BAT
Output power: 0-25-400-800-1500-2500mW
Input voltage: 6-36V
Parameter adjustment method: key/OSD
Working current: Less than or equal to 450mA@12V, 800mW
Less than or equal to 850mA@12V, 2500mW
Output frequency: 40CH (A-B-E-F-R)
Antenna interface: MMCX
Installation hole: 30.5*30.5mm-20*20mm
Video format: NTSC/PAL automatic detection
Weight: 11g (without antenna and power cord)
Size: 38*36.5*7.2mm

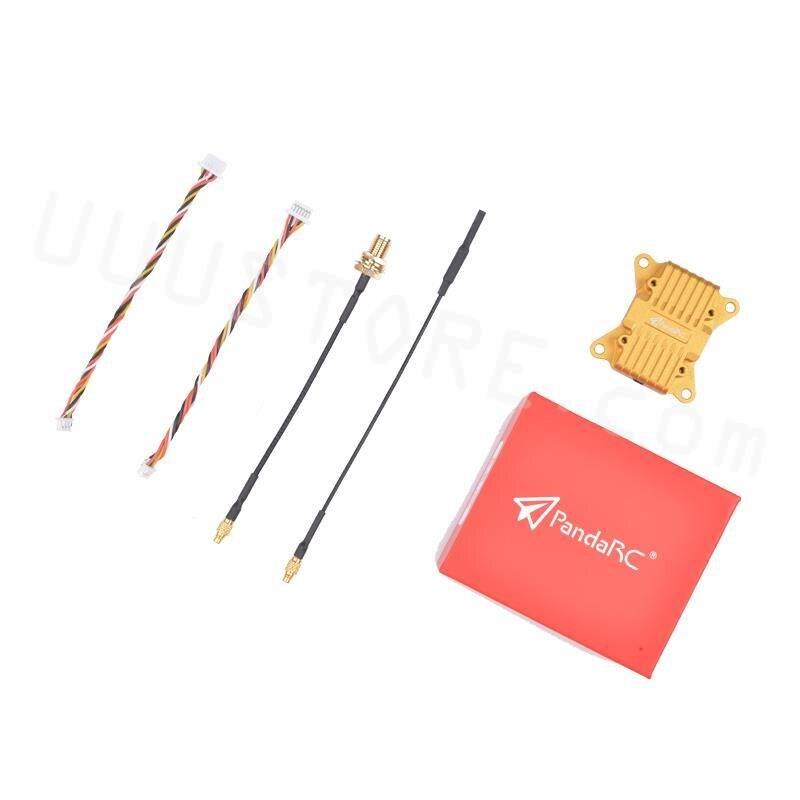

В комплект входят:
1x VT5804-BAT VTX
VT5804-BAT PARAMETER DETAILS Product Model: Output Power -400-800-1500-1500-2500mW Voltage: 6-36v Button/OSD Working current: 850mA@IZV,3g00rmW Antenna interface Mounting hole: 30.5*30.Smm–20*20mm PFRRACTERISTICS 01 With power self-test eck whether works Frequency locking fun ction, startup does not interfere with
