MicroZone MC6C V2 – 2.4G 6CH controller transmitter receiver radio system for RC airplane drone multirotor helicopter car boat

$51.64

+ Бесплатная доставка

Запросите дополнительную информацию

MicroZone MC6C V2 SPECIFICATIONS

Name: MicroZone MC6C V2 - 2.4G 6CH controller transmitter receiver radio system for RC airplane drone multirotor helicopter car boat - Drone
Price: 51.64 USD
Availability: InStock

Используйте: Транспортные средства и игрушки с дистанционным управлением

Периферийные устройства/устройства дистанционного управления: Пульт дистанционного управления

Рекомендуемый возраст: 12+y

Запчасти и принадлежности RC: Передатчики

Количество: 1 шт.

Происхождение: Материковый Китай

Номер модели: MC6C

Материал: Композитный материал

Для типа автомобиля: Самолеты

Название бренда: NoEnName_Null

MC6C V2 6 Channels 2.4G Aeromodel Remote Controller with Receiver for Fixed-wing Multicopter Car Boat Model

MicroZone MC6C V2, Mayare-, BUILT-INANTENNA Switch Switch Position MONITOR

Note the difference between the MC6C Standard and MC6C V2 is the 6th channal, standard is a two stop switch, V2 is a rotary switch. If you need to control pan-tilt, V2 is the best choice.

NOTE：At present, the new and old versions of the product are distributed randomly. Different versions have different appearance and packaging. It does not affect the use. Please refer to the physical goods received. Thank you.

MicroZone MC6C V2, 2. receiver contact frequency binding, simple and convenient

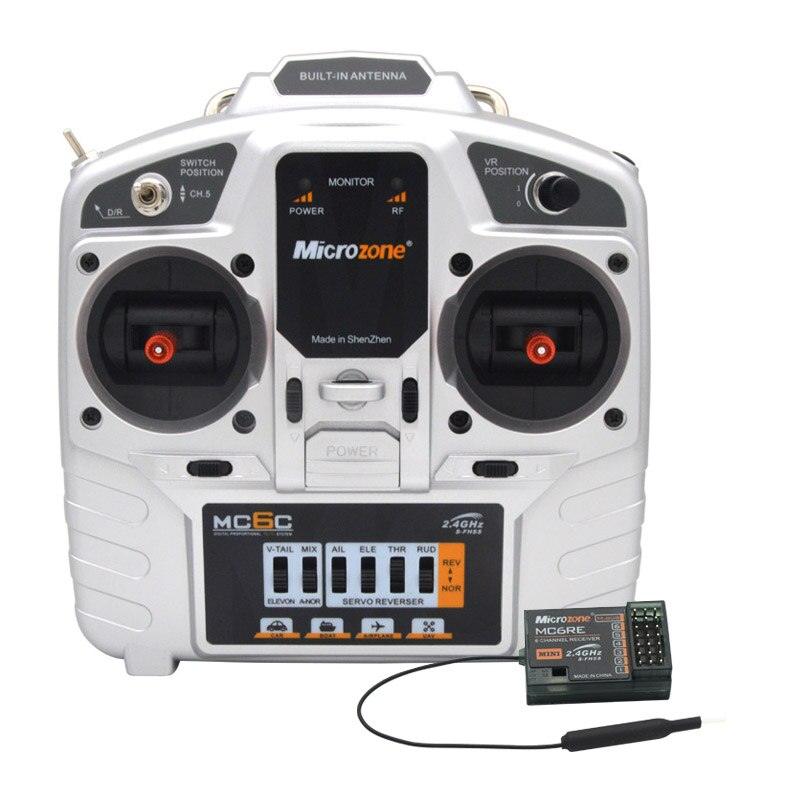

Product introduction

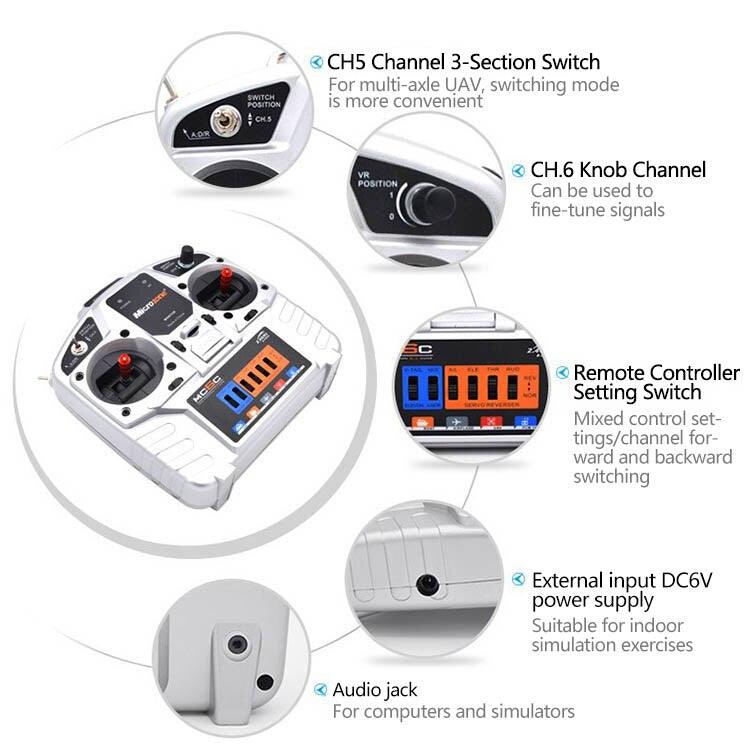

Upgraded version of MC6B, with all the original functions reserved, while the response speed is increased by 4 times. The remote control’s CH5 three-stage switch and ch6 rotary switch are convenient for multirotor flight.

1. the receiver supports PWM and SBUs dual signal output, easy to play with fixed-wing and multirotor FPV racing!

2. receiver contact frequency binding, simple and convenient.

MicroZone MC6C V2, Majeteeh built-InaNTENNA Wgr Potc5 Micro

Параметры изделия:

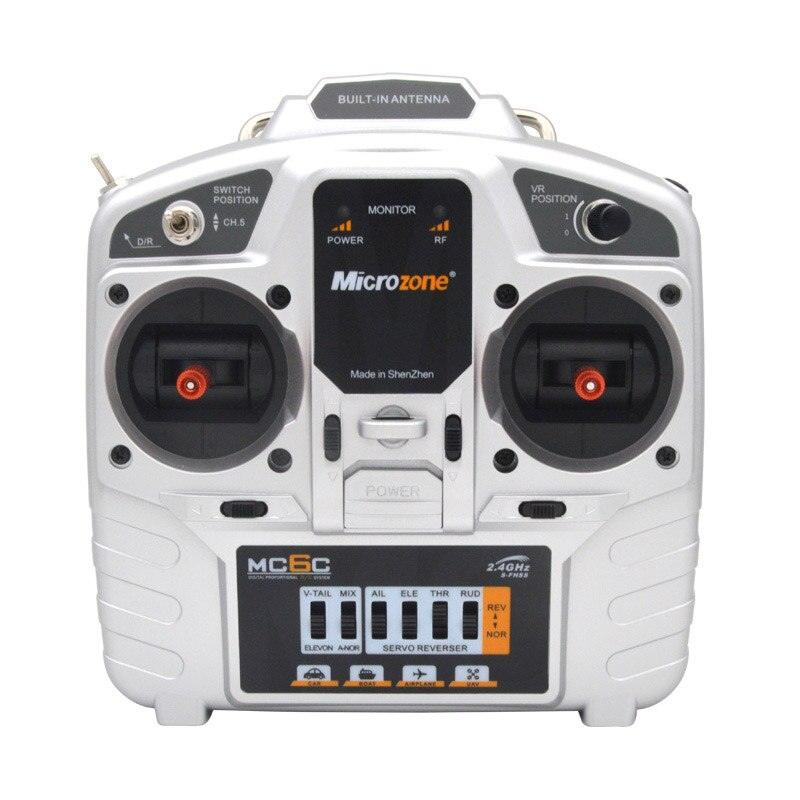

Remote control parameters

Products applicable to: fixed wing, multirotor, vehicle, etc

Frequency band: 2401MHz-2479MHz

Transmitting power: ≤ 70mW

Fine tuning mode: electronic fine tuning mode

Rocker range: 80% – 120%

Ground control range: more than 800m

Power supply requirements for transmitter: DC + 6V (4 AA batteries)

Power supply requirements of receiver: DC 4.5-6V

Total weight: 550g

Remote control weight: 443g

Dimension: 215 * 105 * 220mm

Modulation mode: adopt the latest FHSS mode in the world and in line with European standards

MicroZone MC6C V2, Mayatech 1 KKCXSlSC XS,RSS8 MJ

MicroZone MC6C V2, MCEC IU SF-400 CAPACITY ocodanontoro

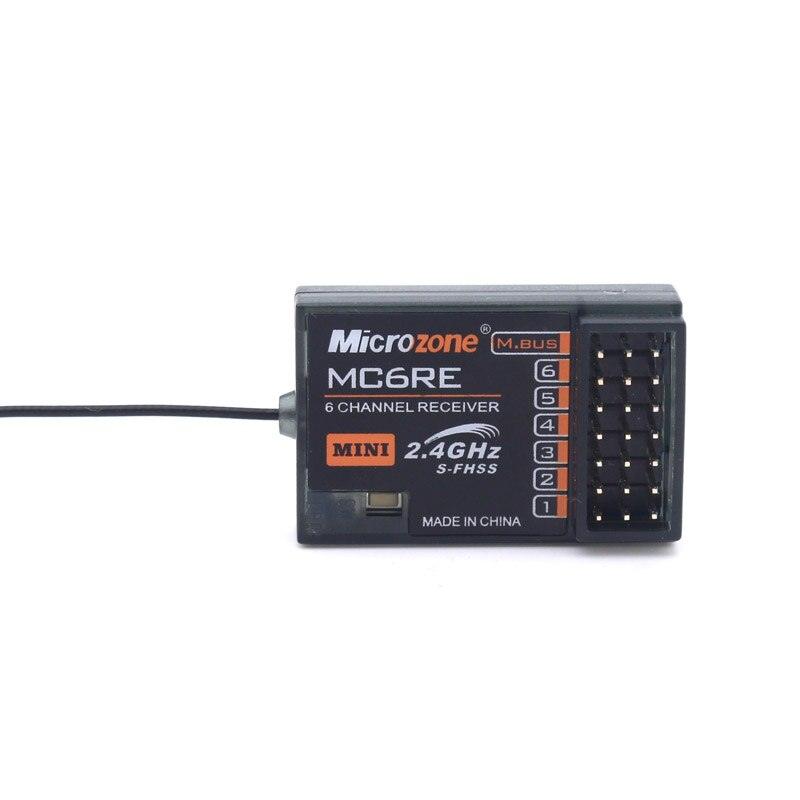

Receiver parameters

Frequency band: 2.400GHz-2.483GHz

Size: 36 * 23 * 12 (mm)

Weight: 7.5g

Ground control range: more than 800m

Power supply requirements of receiver: DC 4.5-6V

Recovery performance: fast signal recovery

Receiver signal: PWM / SBUs

Antenna type: external antenna

Frequency matching mode: contact frequency matching

MicroZone MC6C V2, Mayatech Microzone Laul MCERE 0 CHANNEL RECEI

Подробности:

MicroZone MC6C V2, mayatech DIR MONITOR SwITCH POSITION ,

MicroZone MC6C V2, Maj@_ FUWE MCEC 2.4GHz R/c S-F

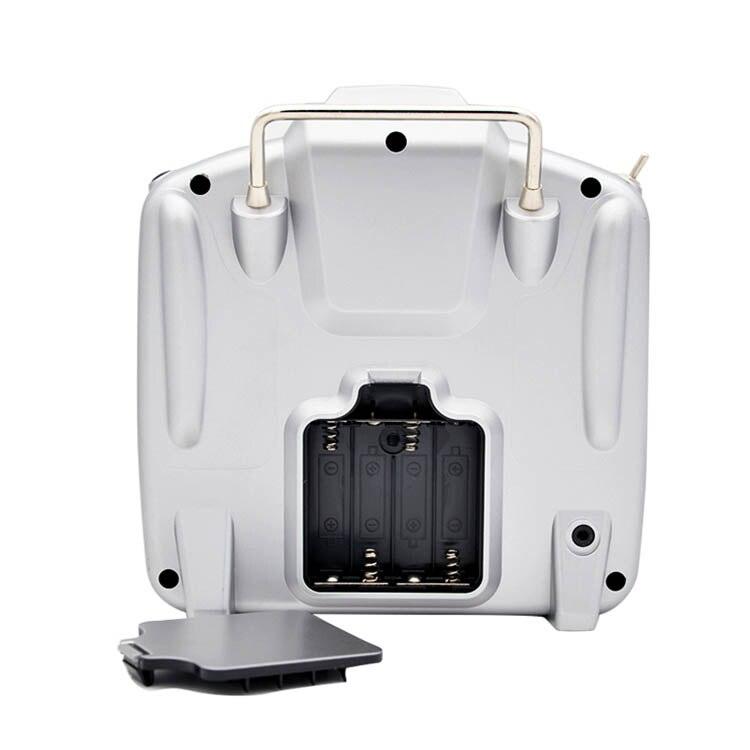

DC+6V(4 AA batteries) power supply

MicroZone MC6C V2, check if the remote controller has full control of the receiver . if test fails,

How to bind:

1. turn off the transmitter, power pu the receiver,

2. whenreceiver is powered on, the orange indicator flashes slowly

3. touch the BIND button lightly, the orange indicator changes from flashing slowly to flashing quickly

3. hit the transmitter thruttle to minimum, then turn on the transmitter. The orange indicator light on the receiver changes from fast flashing to stay on.

4. if the indicator stays on, the bind is complete. Connect servos for test

5. check if the remote controller has full control of the receiver, then check if all channals are normal

6. if test fails, Repeat the whole process.

7. after binding, connect the M.BUS channal to your flight control for parameter adjustment and calibration of multirotor using flight control parameter adjustment software

MicroZone MC6C V2, MCEC DIGITAL PROPORTIONAL R/C SYSTEM 6ij*

MCEC DIGITAL PROPORTIONAL R/C SYSTEM 6ij*# 3 C ouilt-Ii DJRHA Snitch j05 Positiom Chs Power Iaor Micr T ibi 7exia Eaiai .

MicroZone MC6C V2, buILT-INANTENNA Posttion PositioN MONITOR

buILT-INANTENNA Posttion PositioN MONITOR Cms DIR POWER Microzone Shenzhon Pvw MCEC ZJGHI Vaai BERVO REVERSER Microzonc 0 M MccRE Taoh Mndu

DIR Switch RF Indicator Channel 5 Reo Channel 6 Vln Throttle fine-tuning . Microzone Lift rudder fine tuning (left-hand throttle) Vontor Lift-rudder . fine tuning MC 2oHI Mixed control function switch .

Microzone Mum MCGRE OChknnoleccunt Linear Distance on the Ground 0 More than 800 meters 24gH Power Supply DC:4.56v MCSC Aon Complete weight : 5505 Modulation mode: the latest T FHSS mode in the wdaating conform- ing to European standards Frequency band 2.40OGHz-2.483GHz Size 45X45X1O(mm)

Suitable for fixed-wing; MCERE multi-axle; car; boat of G CHANNEL Receiver most DIY players MADE NChin 24gHz S FHSS SBUS signal For multi-axis UAV, Contact pairing .

Logistics size：22cm ×11 cm ×22 cm

Logistics weight: 0.58KG/piece

Цвет	MC6C full set right, MC6C full set left
