GEPRC’s MARK5 AVATAR version developed specifically for Freestyle is now officially released, a new HD FPV system that provides customers with diverse HD solutions.

MARK5 is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance. MARK5 is equipped with GEPRC’s latest SPAN F722-BT-HD v2 with high performance and lots of ports, supporting Bluetooth wireless connection for easy field tuning. Freshly upgraded SPAN 50A BLHeli_32 ESC with GEPRC’s latest 2107.5 motor, has great explosive power and very fast response speed. The new GEMFAN Freestyle 4S propellers provide delicate and silky smooth flight experience. The MARK5 is shipped with two different 3D printed action cam mounts that can be fitted with GoPro8/10, Naked GoPro8, Naked GoPro10, Insta 360 GO2, Caddx Peanut and DJI Action 2 cameras. After continuous testing and tuning by GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out, plug the battery and have fun!

We’ve been pursuing for lighter weight, better flying experience, and more functionality for all our products!

Характеристика

1. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.

2. Supports Bluetooth wireless connection for easy field tuning.

3. Developed specifically for freestyle with squashed X arm design.

4. HD AVATAR version uses AVATAR VTX, clear FPV image, stable signal, low latency, long distance, supports 1080p/60fps real-time FPV image.

5. Freshly upgraded GEP-50A ESC 4in1 ESC with GEPRC’s latest 2107.5 motor, has great explosive power and very fast response speed.

6. Unique shock absorbing structure design, less vibrations and resonance.

7. Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.

8. Shipped with two different 3D printed action cam mounts that can be fitted with GoPro 8/10, Naked GoPro 8, Naked GoPro 10, Insta 360 GO2, Caddx Peanut and DJI Action 2 cameras.

9. MARK5 is the most ideal for freestyle flying and bando-bashing resistant.

Технические характеристики

• Model: MARK5 HD AVATAR Quadcopter
• Бренд: GEPRC
• Frame: GEP-MK5
• Колесная база: 225 мм
• Верхняя пластина: 2,5 мм
• Нижняя пластина: 2,5 мм
• Пластина для руки: 5 мм
• FC system: SPAN F722-BT-HD v2
• MCU: STM32F722
• IMU: 42688-P (SPI)
• OSD: BetaFlight OSD w/AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: Walksnail Avatar
• Camera: Walksnail micro
• Propeller: HQ Ethix S5 5X4X3
• Antenna: Walksnail WNPJ-00001 5.8g UFL LHCP
• Motor: SPEEDX2 2107.5-1950KV (6S Version) / SPEEDX2 2107.5-2450KV(4S Version)
• Вес: 385 г
• Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
• Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S Version) / LiPo 6S 1050mAh-1550mAh(6S Version)

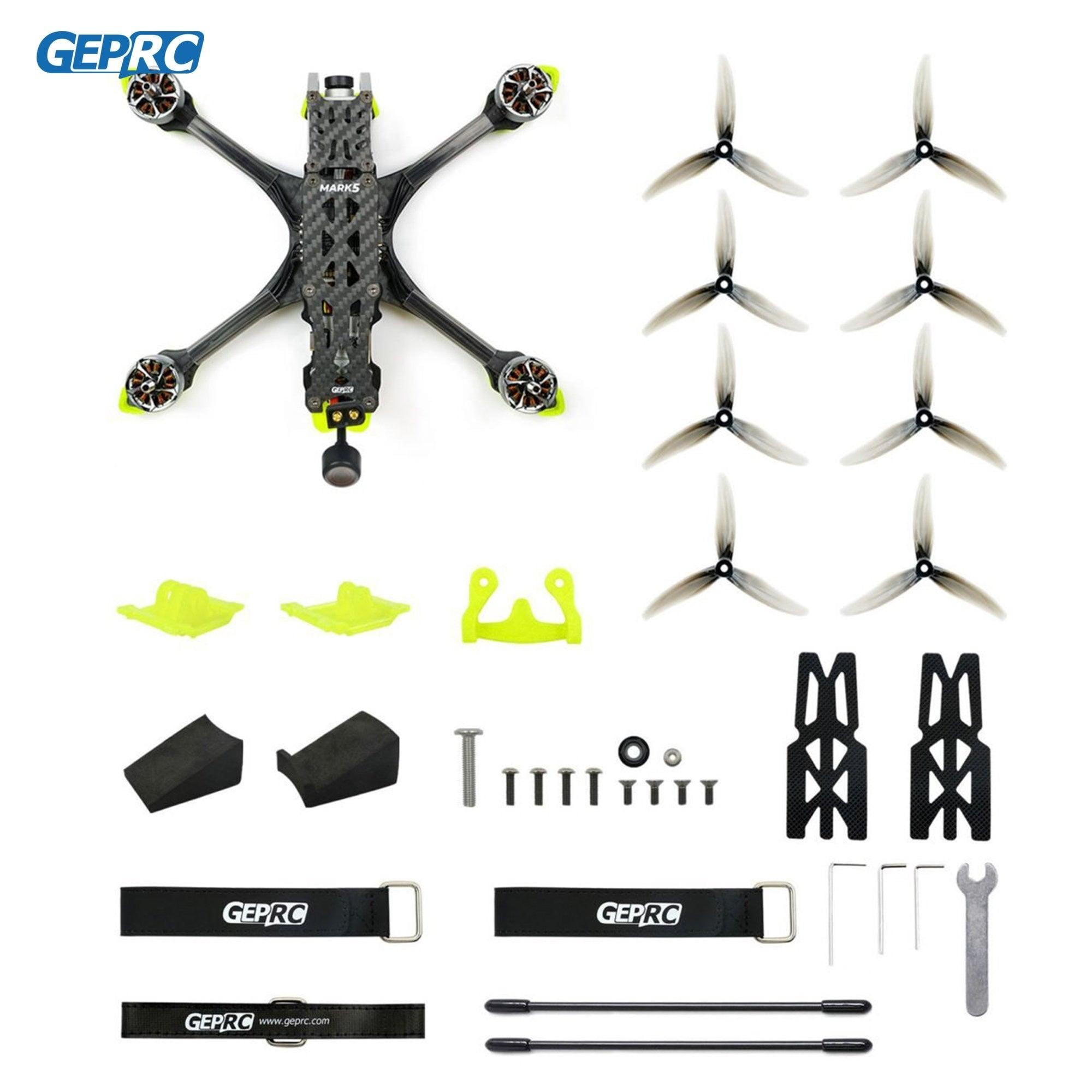

Включает

1  x  MARK5 HD Avatar Quadcopter

4  x  HQ Ethix S5 5X4X3 propeller (pair)

1  x  Battery strap M15x250mm

2  x  Battery strap M20x220mm

2  x  Battery Silicone Pads

1  x  Camera cage carbon top  plate

1  x  3D print mountings combination

2  x  Action cam mount holder

1  x  Set of screws

1  x  Set of screwdrivers

1  x  Antenna fixed tube

MARKS Brand New Freestyle FPV Drone 7 DooO Aluminum Great Mount Bluetooth AIR UNIT Module alloy side plates Compatibility wireless connection

New Aluminum Alloy Side Plates – Customized with High-Quality 7075 Material for Enhanced Strength and Durability, Providing Protection for Your Camera Against Impact.

The MARK5 HD Avatar Freestyle FPV drone features a high-definition system with DJI’s original camera, providing crystal-clear pictures, stable signals, low latency, and extended range. The HD Air Unit version supports 1080p/60fps video transmission.

The second-generation SpeedX2 2107.5 motor features a lightweight design, delivering powerful performance with good heat dissipation and a smooth flying experience.

ACTION CAMERA BY TPU OR EVA GoProlo GoPro9 GoPro8 9 8 DJI Action2 Peanut Camera Insta360 602 0 0 DJI GO2 camera and Caddx Peanut Camera .

Equipped with an F722- HD-BT flight controller and BLHeli 32 50A ESC, this drone features a SPAN FC with a 0° inclination and F22-BT-HD motor configuration.

Parameter tuning for Bluetooth wireless setup on mobile phone. Speed: 975, battery level: unknown (?).

The product features an ultra-high strength carbon plate with edge chamfering, designed to be both lighter in weight and higher in strength, measuring 27.5 cm (11 inches) in length and secured with M3 fasteners.

Quickly Assembled Design: The arms can be easily replaced by simply removing two screws (#5-20 ZN).

Air unit features: DJI antenna, wheelbase length: 225mm, motor: SPEEDX2 2107.5 with 1960KV (6S version), ESC module: SPAN GSOA BL32, 4-inch input, 50A current rating, suitable for 4-6S battery configurations, and weighs 405.7 grams (PNP assembly).

MARK5 HD Avatar Freestyle FPV Drone Specifications: Model – MARK5; Motor Type – SPEEDX2, 2107.5 motor with 1960KV (6S version); ESC – SPAN GSOA BL32, 4-6S capable; VTX – CADDX-VISTA; Weight – 385.5 grams (PnP)

The MARKS HD Avatar Freestyle FPV drone features:

* Model: Momoda
* Specifications: 17.6cm (wheelbase)
* Motor: SPEEDX2 2107.5-1960KV (6S version)
* ESC: SPAN GSOA BL32, 4-inch length, 50A, compatible with 4-6S batteries
* VTX: GEPRC RAD VTx, 5.86cm diameter, 1.6W output power
* Weight: 385g (PNP, no battery included)

The Mark’s Vista Rad air unit features a walk-sail avatar camera, powered by a 1.6W ESC (Electronic Speed Controller) and equipped with GSOA (Ground Station Orientation Assist) and BL32 components. The drone has four-inch propellers and a VTX (Video Transmission) system capable of handling up to 50A and 4-65 ESC specifications.

The air unit features Vista’s RAD camera, with a 1.6W walksnail avatar and a 1.6W ESC. It also has GSOA BL32, 4-inch propellers, and a 50A 4-65 ESC VTX.

The image provided is for demonstration purposes only and does not come with the drone or battery.

Suva 4*s, 380.6 MARKS HD AIR UNIT MARKS HD VISTA Cnn Aian 385.0 388.4 MARKETS AVATAR .
