ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

Используйте: Транспортные средства и игрушки с дистанционным управлением

Размер: 27x92mm

Рекомендуемый возраст: 12+y

Происхождение: Материковый Китай

Номер модели: 1404

Материал: Металл

Название бренда: NoEnName_Null

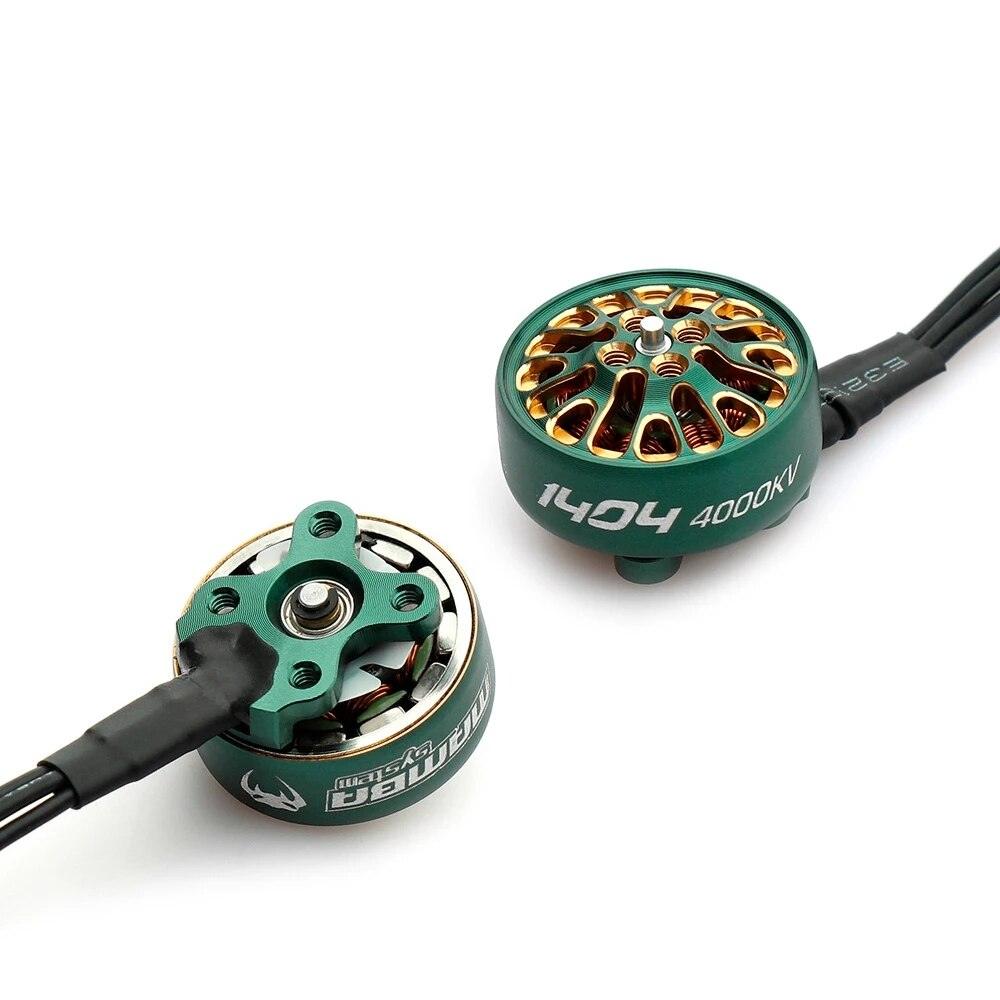

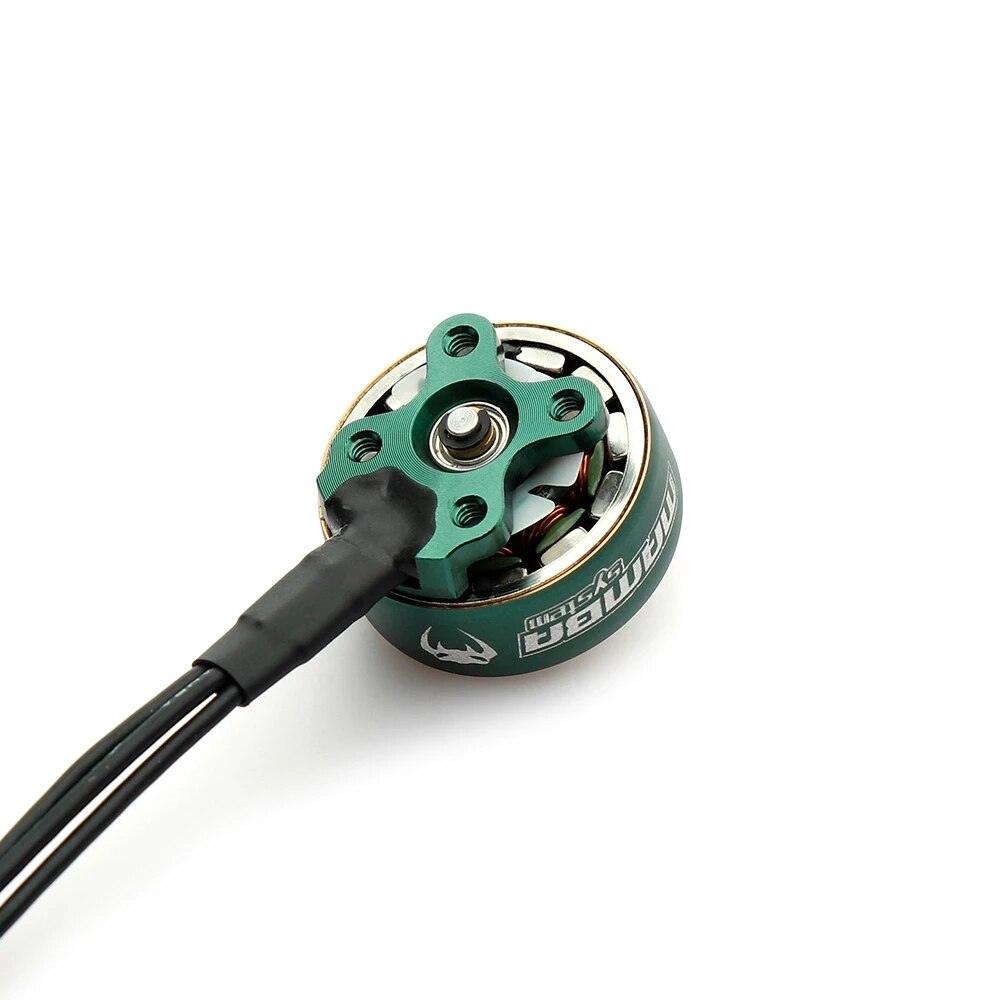

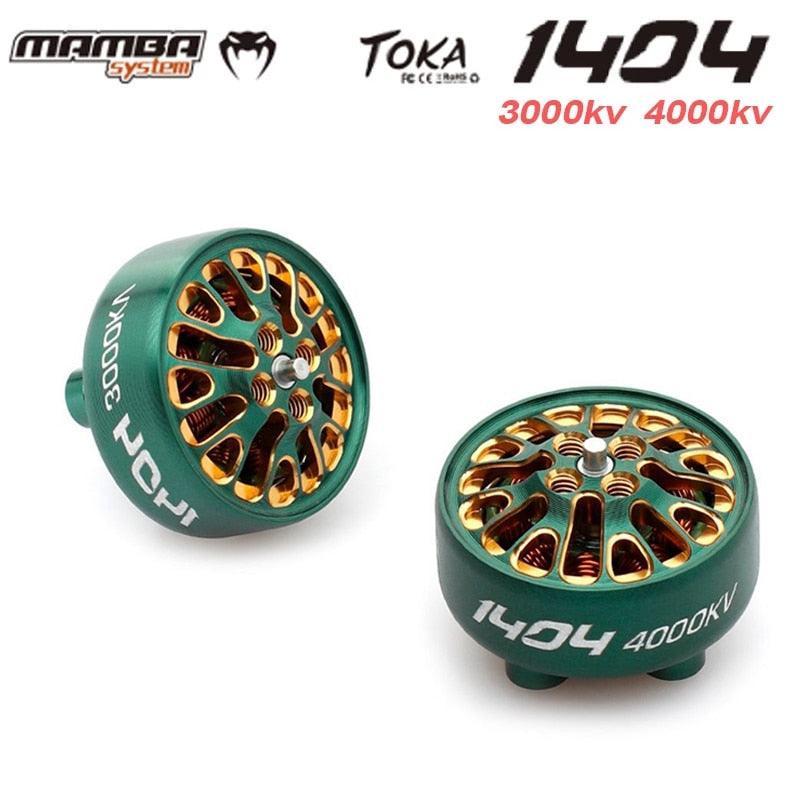

Item:MAMBA TOKA 1404 3000KV 4000KV Brushless Racing Motor Grenn
Параметры:

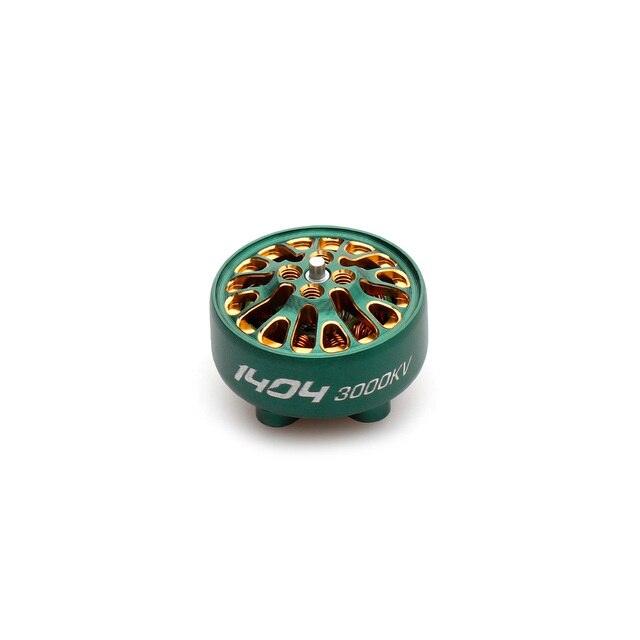

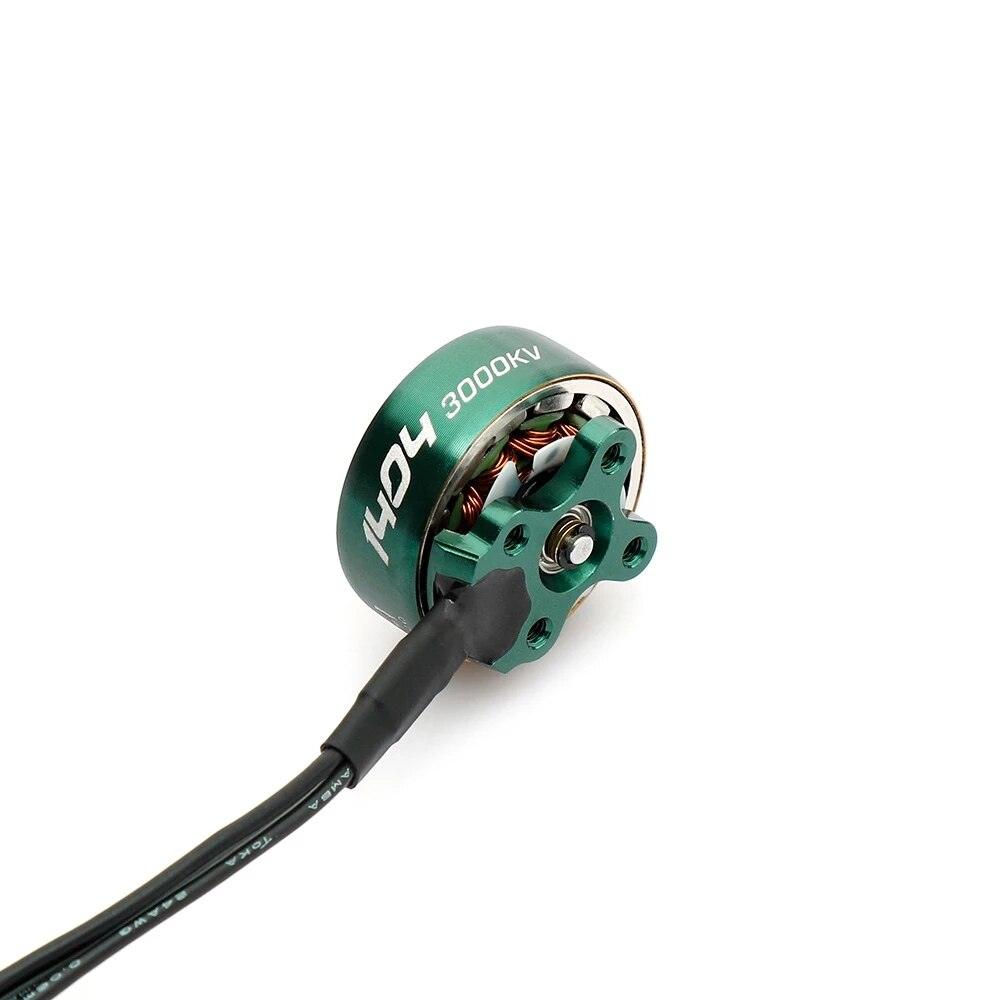

MAMBA TOKA 1404 3000KV Racing Motor Green
Overall Dimension:Φ20.5×15mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm,M2
Prop: 2.5inch~4inch(Toothpick)
Bearing:5*2*2.5
Диаметр вала: 2 мм
Lead Wire Size:24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃Enameled Wire
Stator Diamter:14mm
Stator Height:4mm
Rated Voltage:3S~6S (12.6V~25.2V)
Peak Current: 11.95A
ldle Current:10V/0.3~1.0A
Maximum Power: 286.8W
Internal Resistance:310Ω
Weight: 10.5g

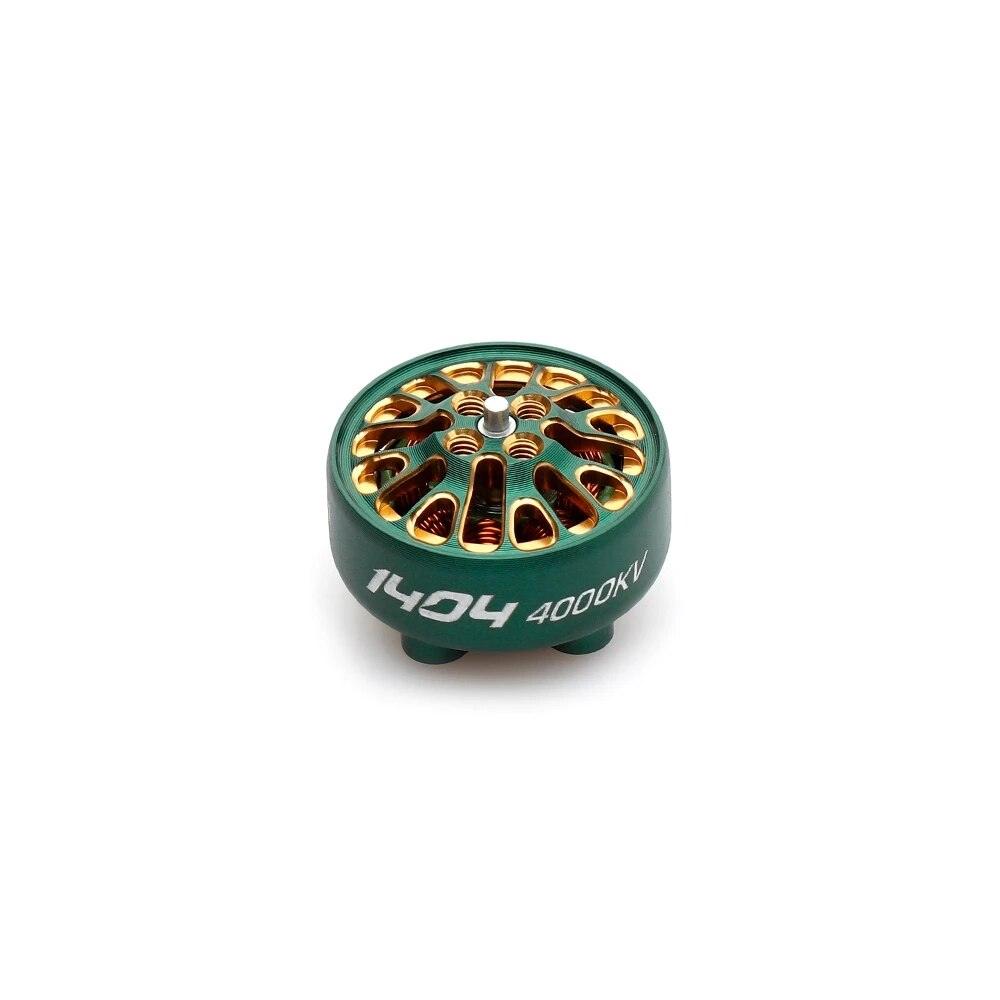

MAMBA TOKA 1404 4000KV Racing Motor Green
Overall Dimension:Φ20.5×15mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm,M2
Prop: 2.5inch~4inch(Toothpick)
Bearing: 5*2*2.5
Диаметр вала: 2 мм
Lead Wire Size:24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter:14mm
Stator Height:4mm
Rated Voltage:3S~4S (12.6V~16.8V)
Peak Current: 13.48A
ldle Current:10V/0.5~1.2A
Maximum Power: 215.6W
Internal Resistance:175Ω
Weight: 10.5g

• В комплект входят:

• 1PC 1404 3000KV

• Or 1PC 1404 4000KV

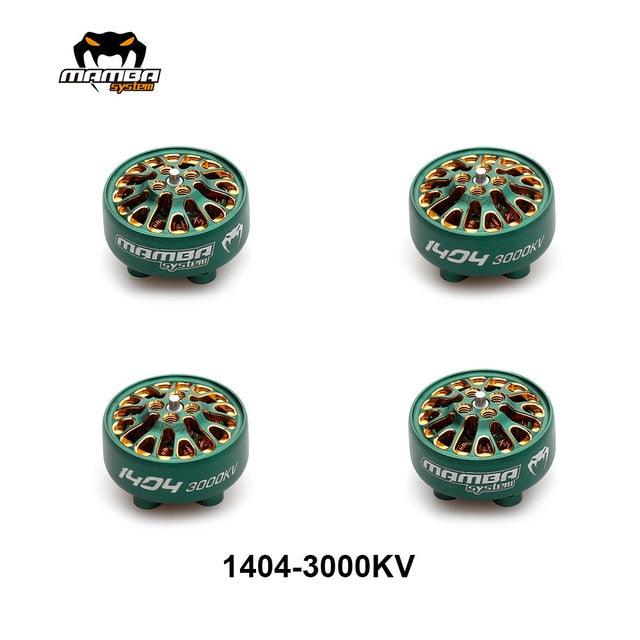

• Or 4PCS 1404 3000KV

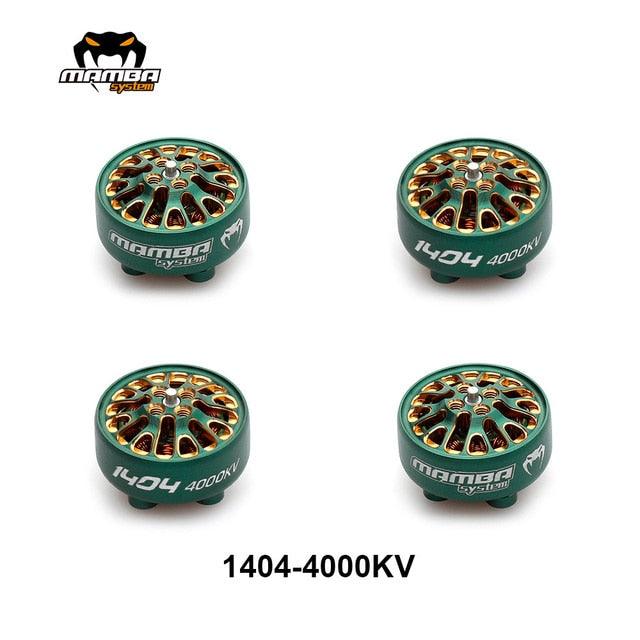

• Or 4PCS 1404 4000KV

Moxpo TokA 1404 Fe ( € RoHs & AOOOKV BOS 15 EOS 1.6 13.4 34 05 020.5 012 Fan Specification Witee TOKA 1404 – 4OOokV initt 3 -4 Model Support Battery Natx 12NIAP #biaeh 1750 Slots/Poles Internal Resistance R0ZI0EZ 1.5 Etim 13.48A Prop Mounting Shaft Maximun Curren(A) Diameter(mm) @

Mamba Toka 1404, a high-performance motor from Grenn, features 3000KV (kv rating) with 6S configuration. Key specifications include:

* Max voltage: 4-42V
* Maximum current: 15 EQS (equivalent to 34 amps)
* Battery compatibility: 12N/14AP
* Prop mounting shaft diameter: 11.95mm
* Internal resistance: R0ZI0EZ (approximately 1.5 ohms)
* Maximum current: 13 amps

This motor is designed for use in FPV racing drones with propeller sizes ranging from 2.5 to 4 inches. It supports a maximum battery voltage of 12N/14AP and has a robust construction with a high-quality shaft.
