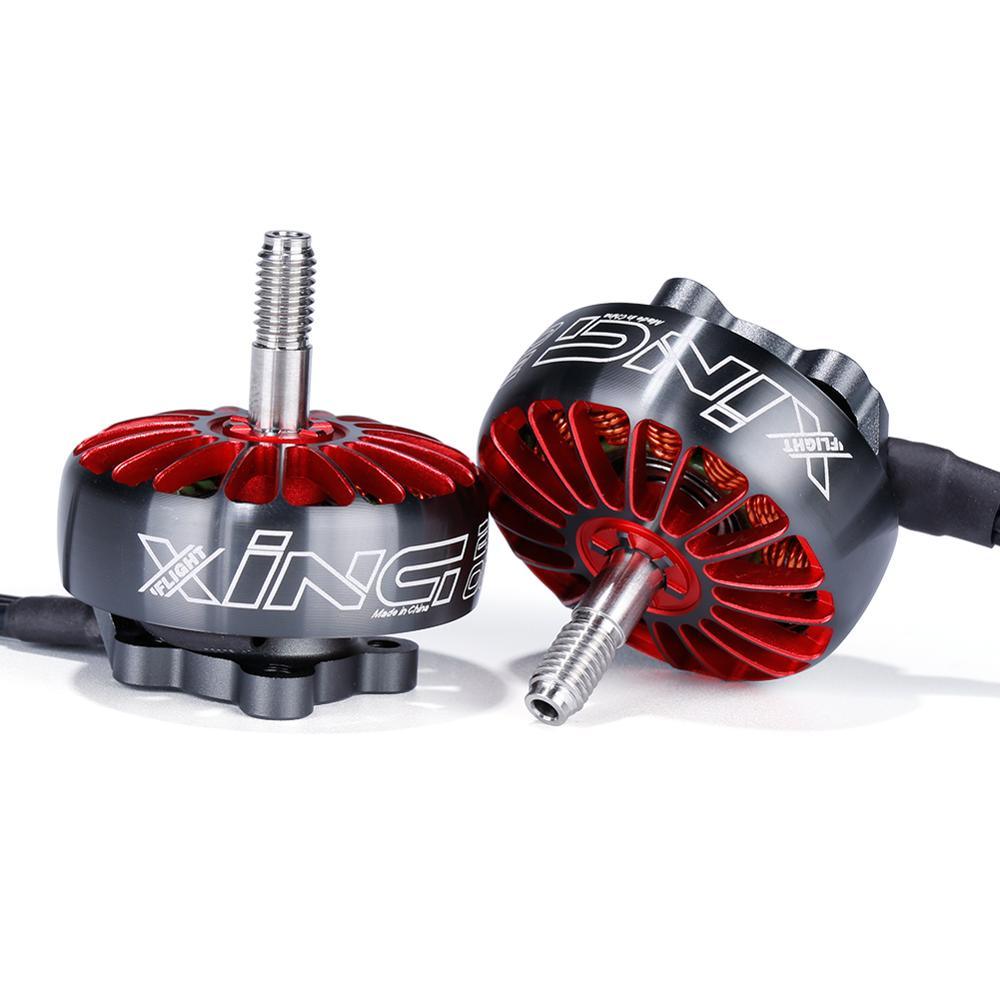

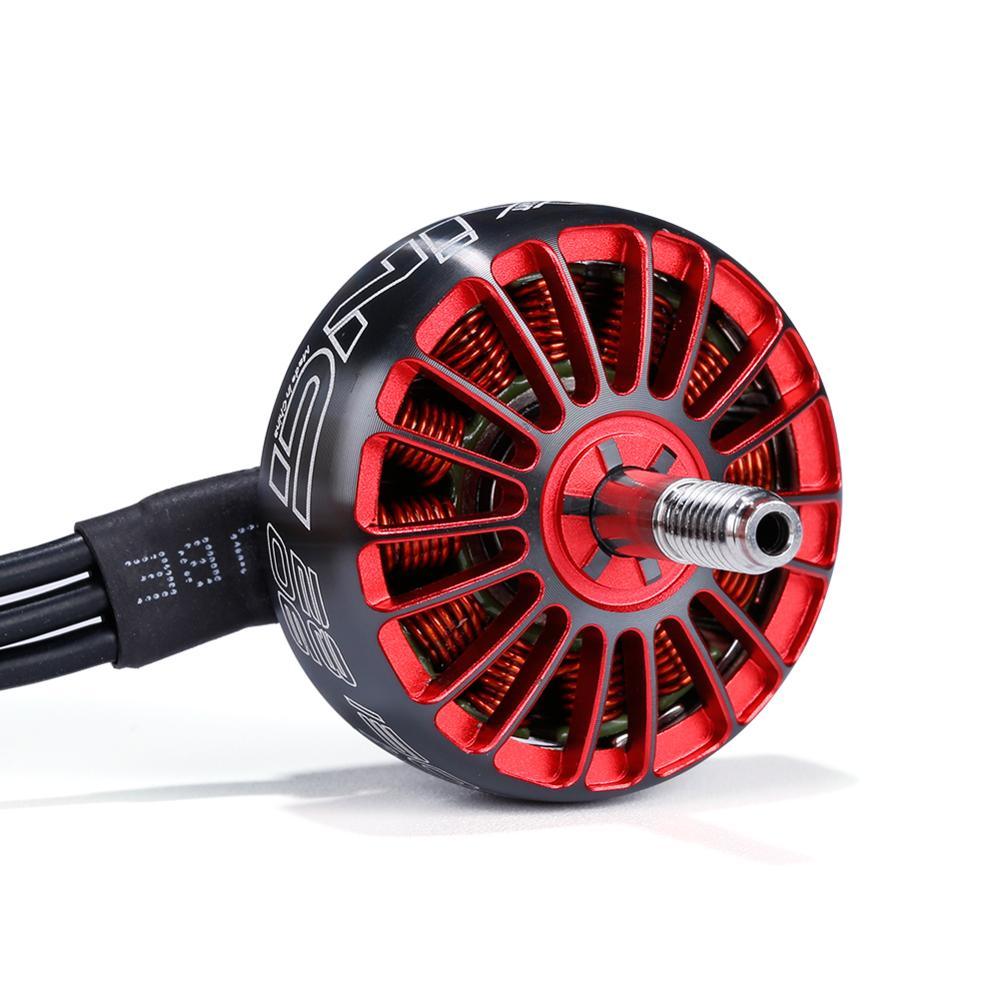

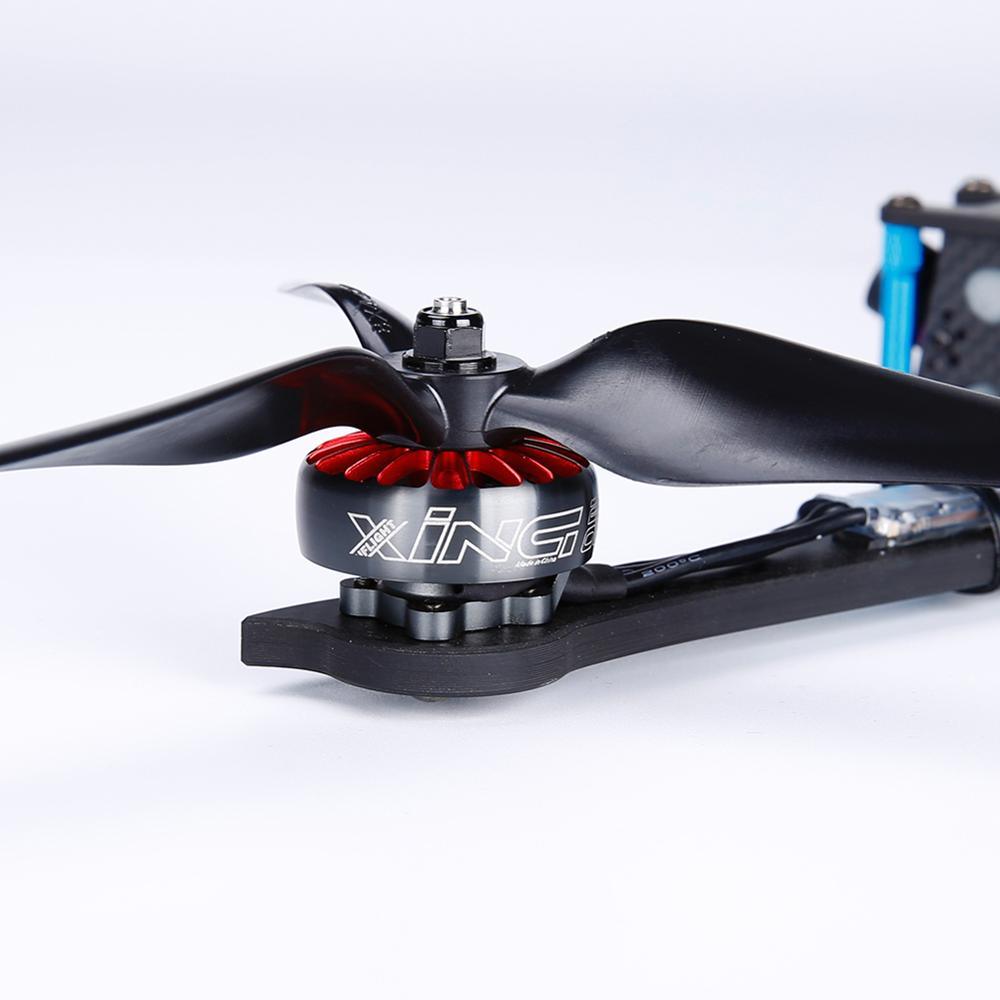

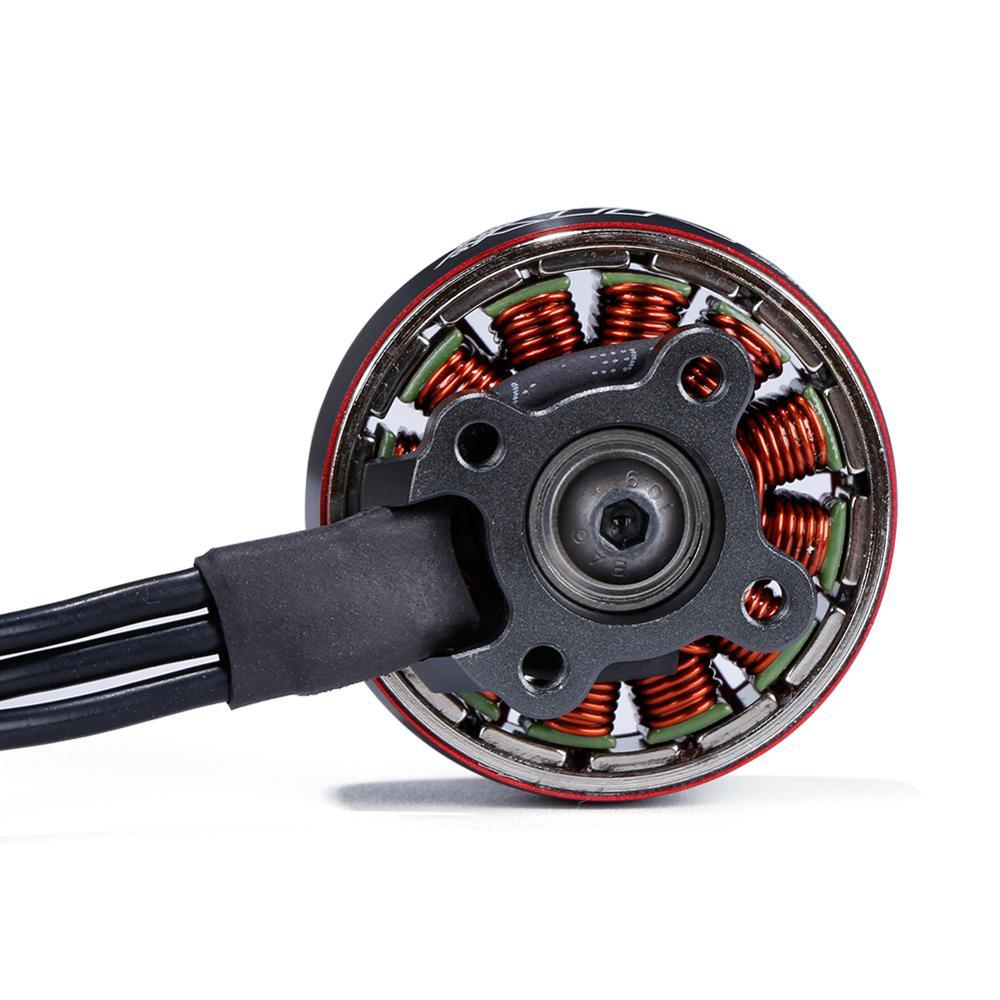

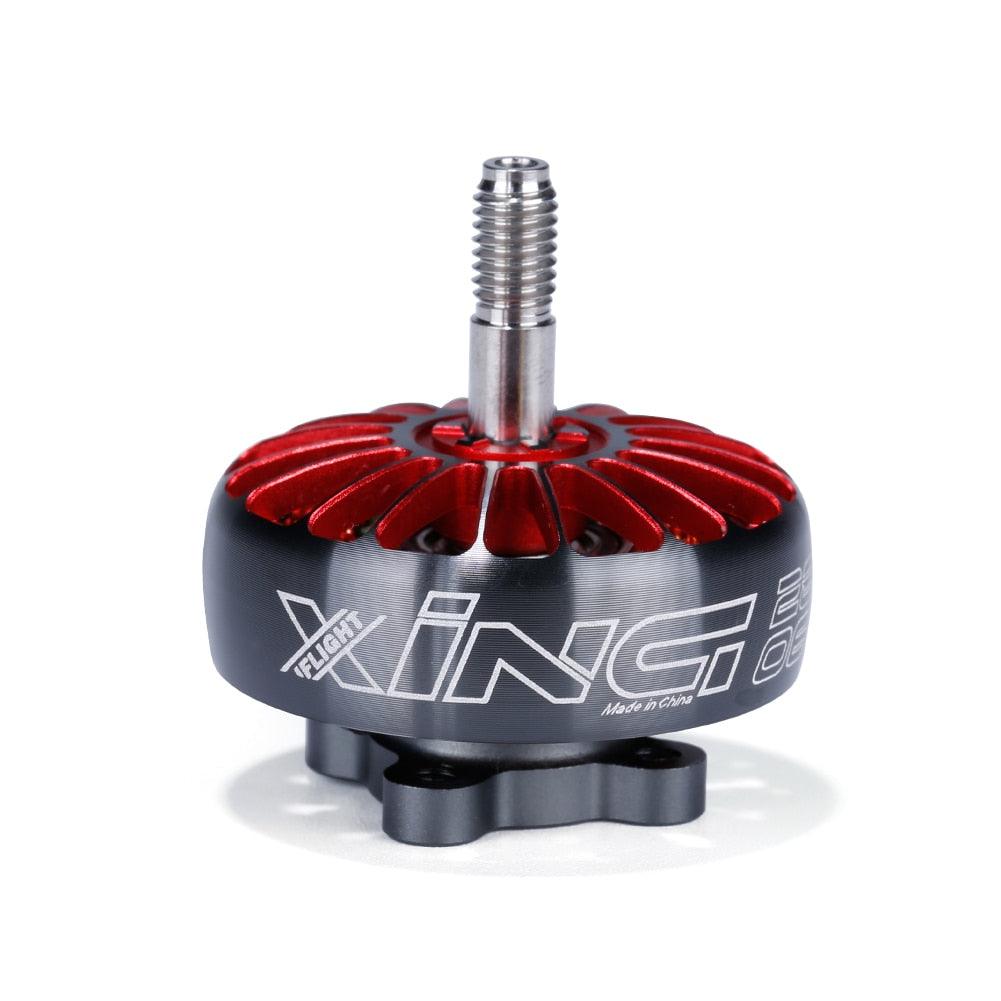

• The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It’s a great motor if you’re building bigger drones like 7 inch or 8 inch.

Особенности:

• High-strength 4mm Titanium alloy shaft

• Unibell design

• 7075 aluminum Bell and Base

• Electromagnetically matched magnets and stator

• Japanese NSK 11*5*5 bearings

• N52H Arc curve  magnets

• Motor wires protected

• Hex bolt shaft set screw

• Dynamically balanced

Технические характеристики:

• Voltage: 2-6S

• KV Option: 1300/1800

• Configuration: 12N14P

• Bearing: NSK/11*5*5

• Stator Diameter: 28

• Stator Length: 6.5mm

• Shaft Diameter: M5

• No.of Cells(Lipo): 2-6S

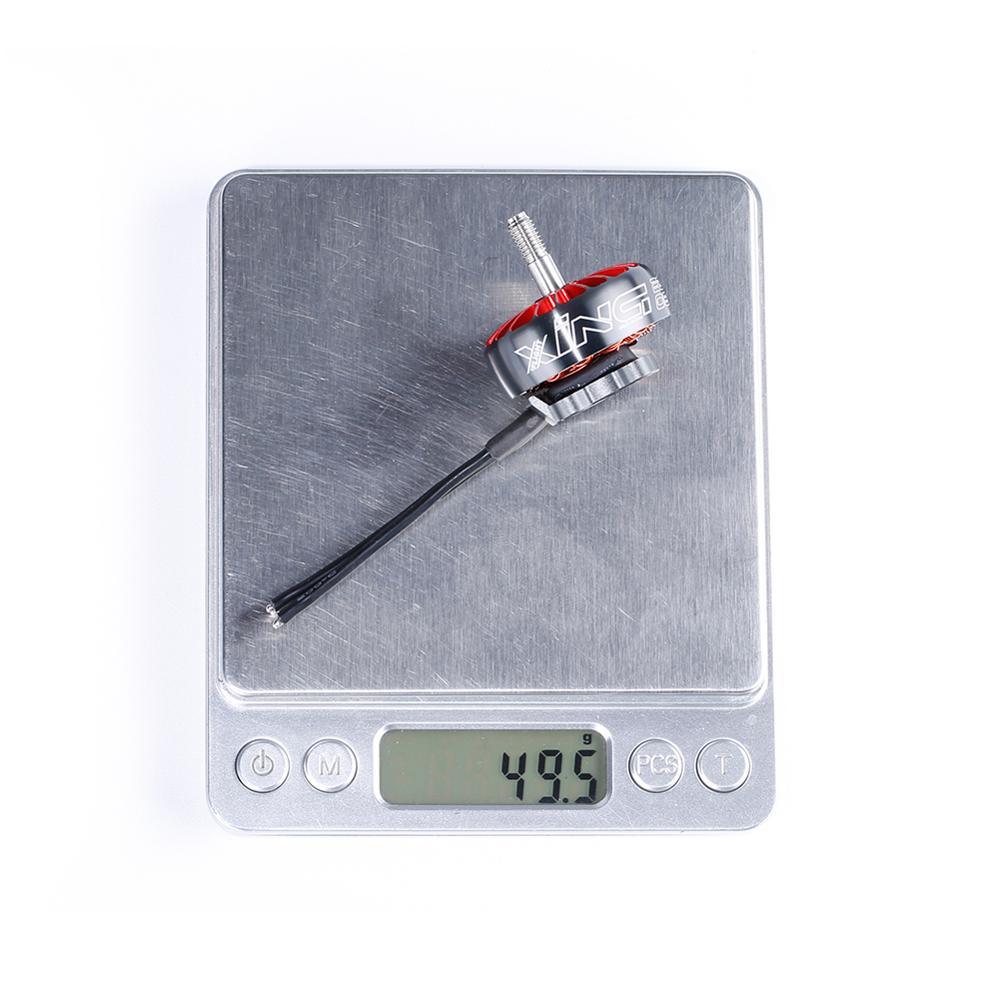

• Weight: 49.5g(with a short cable)

• Motor mount hole: 19*19 φ3mm

В комплект входят:

• 1pc x X2806.5 motor

• 1pc x M5 Screw nut

• 4pc x m3*8 screws

iFight XING 2806.5 1300KV Technical Datas KV 1300 Configu-ration 12NI4P Stator Diamter 28mm Stator Length 6.Smm Shaft Diameter Smm Motor 033.7*21.Smm Dimension(Dia:#Le Weightlg) 49 59 Idle 41.3 current(1O)@1OVA I309 No_of Cells (Lipo) 365 Max Continuous 986.64 Power(W)
