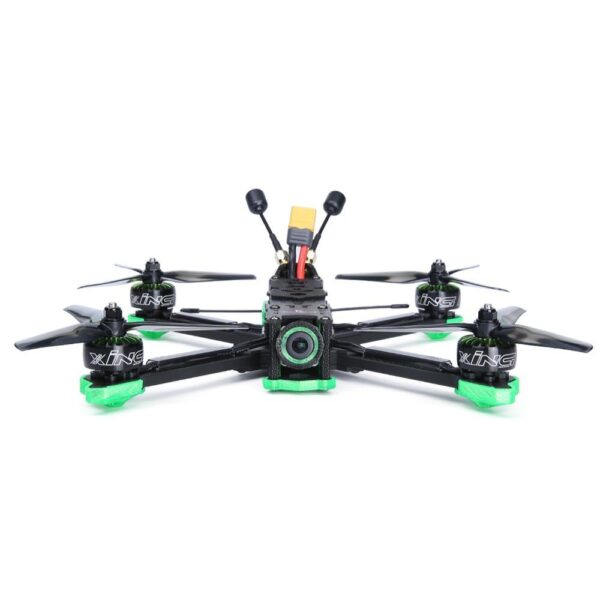

• Сайт TITAN XL5w/ DJI Air Unit Digital HD FPV system makes flying FPV truly breathtaking. Equipped with our latest BLITZ F7 (50A 4-in-1 ESC) Stack and our popular XING motors. Everything you need is just bind-and-fly!


• After our popular TITAN DC5 (DeadCat style frame) approach we decided to take a step back to the roots and create a new X-Geometry frame to get the best performance on both axis and better weight distribution for freestyle.

HIGHLIGHTS:

• 6mm arm design for more durability

• XING 2208 (4S 2450KV/ 6S 1800KV) motors for more power

• GPS pre-installed for more safety at distance

• Variable GoPro TPU mount (supports ND-Filter inserts)

• 360°TPU protection and Antenna mounts

PRE-TUNED & PRE-SETUP:

• Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

• To restore lost tunes or updates, please check our linked article on“Firmware/Factory Dumps”

• Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

• Please check our linked article on“How to disable Angle-Mode, activate Acro-Mode”

• GPS Rescue is OFF by default to prevent from unwanted or unexpected drone behaviour.

• Please check our linked article on“GPS Rescue Mode // Setup”

FRAME // TITAN XL5：

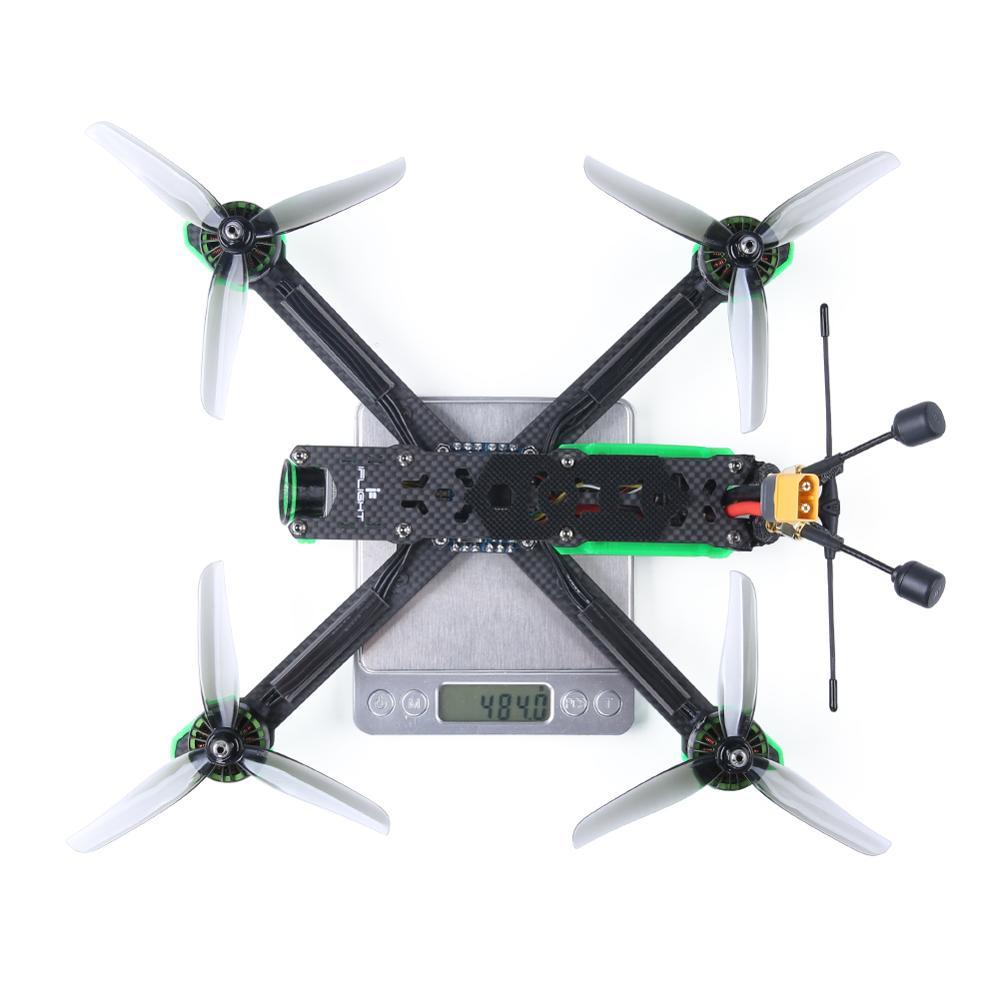

• Weight：145g

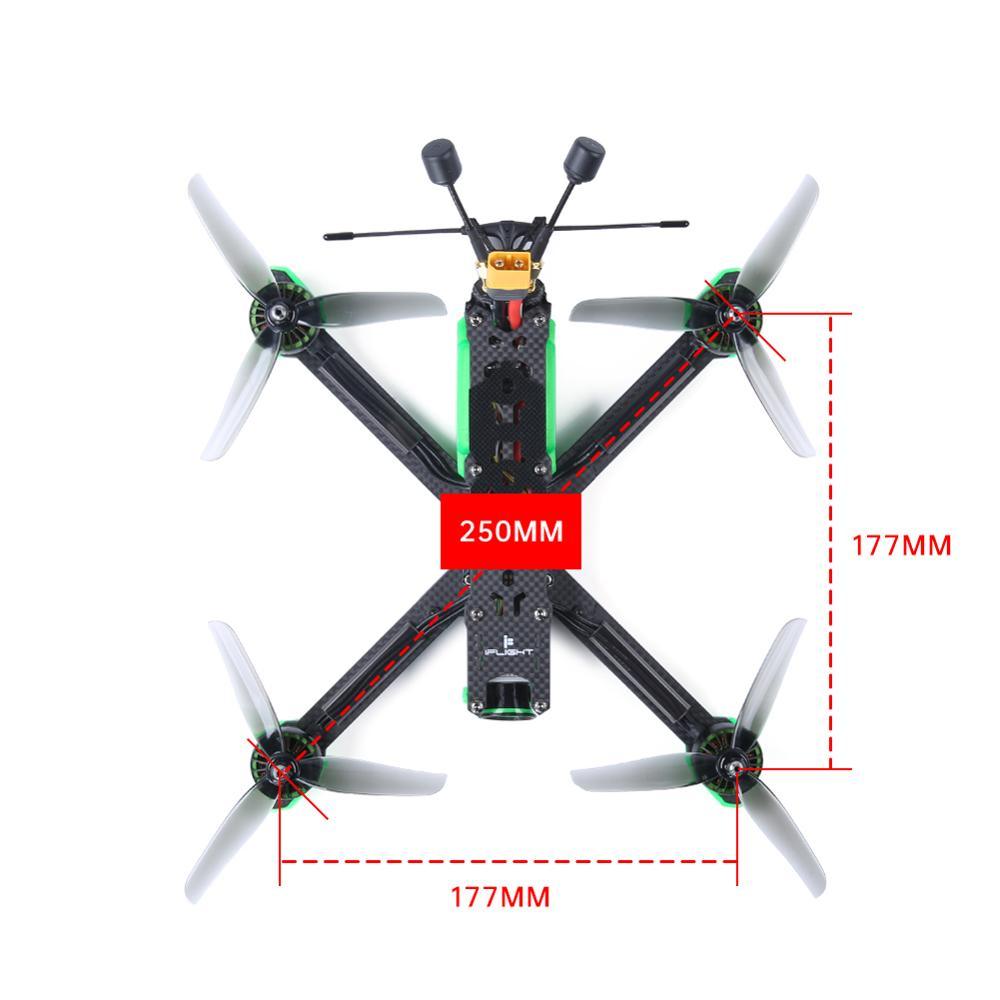

• Wheelbase: 250mm

• Main body dimension: 185*133mm

• Bottom to top distance: 30mm

• Arm thickness: 6mm

• Толщина нижней пластины: 2 мм

• Толщина верхней пластины: 2 мм

• Camera plate thickness: 2mm (2.5mm included TPU inserts)

ELECTRONICS //BLITZ F7 Stack (50A 4-in-1 ESC)：

• Universal USB Type C connector instead of micro USB

• Plug-and-Play DJI support. No need to solder tiny wires!

BLITZ F7

• with 216MHz STM32F722 with 2x MPU6000 Gyros ready for SensorFusion.

• Up to 8S,  32MB Blackbox Flash and 5V/9V to power all you might need.

SucceX 50A 4in1

• with BLHeli_32 up to 48kHz, 8 layers double-sided PCB and Top grade Mosfets.

BNF // Parts list (Build)

• 1x TITAN XL5 HD Frame

• 1x DJI Air Unit Digital HD FPV system

• 2x DJI FPV antenna

• 1x TPU Bracket for DJI Air Unit Module

• 1x TPU Antenna holder

• 2x TPU camera side plate soft mount

• 1x TPU lens cover

• 1x iFlight Lipo Strap

• 2x Nazgul F5 Propeller (Set of 4 – Color May Vary)

• 4x XING 2208 Motor Unibell（4S 2450KV，6S 1800KV）

• 1x BLITZ F7 Flight Controller

• 1x SucceX BLHeli32 50A 4-in-1 ESC 2-6S

• 2x MMCX to RP-SMA Female Adapter Cable

• 1x GPS Module

Additional Suggested Parts (optional)

• DJI HD FPV Goggles

• Пульт дистанционного управления DJI

• Battery 4S 1550mAh，6S 1300mAh

• Albatross Durable DJI Antenna Upgrade

• Albatross Durable DJI Antenna Upgrade 150mm

Important

DJI Remote Controller рекомендуется для новичков, так как вам не нужно будет настраивать другой приемник, но он также является необязательным в этом дроне BNF, потому что он НЕ требуется для использования системы FPV. Если вы не хотите использовать DJI Remote Controller, вы можете выбрать приемник для вашего передатчика. а затем привязать к своему собственному радио, как обычно.,Наши текущие frsky приемники по умолчанию версии в 2.XX, требуется использовать ту же версию frsky передатчик.,Если у вас нет frsky передатчик, пожалуйста, понизить версию ниже, чем 2.X.X, www.frsky-rc.com для более подробной информации.,6s с ELRS 2.4GHz, 6s с ELRS 915MHz, 4s с ELRS 2.4GHz, 4s с ELRS 915MHz, 6sTBS crossfire NANO, 6s с Frsky R-XSR, 6s W Frsky mini XM, 6s NO RX For DJI RC, 4sTBS crossfire NANO, 4s с Frsky R-XSR, 4s W Frsky mini XM, 4s NO RX For DJI RC,GEPRC Cinelog35 V2 Analog FPV Drone - System 2650KV VTX SPEEDX2 ICM 42688-P F722-45A AIO V2 RC Quadcopter Freestyle Drone

• Our current frsky receivers default version in 2.XX, requires to use the same version of frsky transmitter.

• If you have none frsky transmitter,please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.

Примечание:

• All iFlight BNFs are tested before shipment to guarantee highest quality.

• If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

• iFlight takes no responsibility for issues with DJI or Caddx 3rd party gear (Video transmitters, Goggles, Radios, etc) and must be directly reported to www.caddxfpv.com/pages/contact-us или www.dji.com/support.
