Iflight Protek35 Specification
item | value |
Место происхождения | Китай |
Название бренда | iFlight |
Номер модели | ProTek35 |
Материал | Пластик |
Мощность | Аккумулятор |
Функция | Headless mode, Altitude Hold Mode, 3D View Mode, With Camera, With LED lights, with G-sensor, 3D flip, One Key Takeoff / Landing, APP Control, With Remote Control, Foldable |
Уровень квалификации оператора | Эксперт |
Тип управления | Пульт дистанционного управления |
расстояние передачи изображения | 1KM |
Название продукта | FPV Racing Drone |
Колесная база | 151mm |
Bottom plate thickness | 3.5mm |
Двигатель | XING 2203.5 3600KV (4S) |
Body Size | 118*94.5mm |
Top plate thickness | 2mm |
Top and bottom plate spacing | 20mm (aluminum standoff height) |
FC pattern | 25.5*25.5mm / 20*20mm |
New iFlight Cinewhoop! The ProTek35 Analog BNF!
performance and reduce weight for an even better and longer flight experience for a wide variety of use.
Our all new 3,5 дюйма project is finally ready for all you content creators or those guys who like to wear some protection every now
and then. Prop protection is what we’re talking about here…
ProTek is not necessarily just a Cinewhoop series but far more. Equipped with our all new 2203.5 motors for more power and less
heat. We were able to increase speed and thrust by 50% compared to it’s 3inch predecessor which gives a lot more room for a lot
more fun. Our GPS measured maximum speed was above 120km/h and a maximum thrust of 750g per motor (3kg in total) would even carry
heavier cams than a Gopro but also do some loaded punch outs or light freestyle moves.
Много внимания было уделено различным вариантам сборки. Наш складской BNF будет поставляться в стандартной конфигурации, но вы можете сделать pusher mod (перевернуть сборку вверх ногами) или lite mod (удалить защитный пластик для оптимизации веса).
Durable plastic protectors with copper standoffs, portable compact design, easy accessable UBS port without disassembly, LED
battery status, lost model buzzer and a universal GoPro TPU for a full size or naked GoPro. If you wanna go extra light, get one
of our 5V balance plug GoPro power cables to get rid of the internal battery.
Check out our iFlight Protek Collection, the Protek35 Collection, all our Analog BNF/PNP/RTFs and the rest of our iFlight Products
!
Характеристики:
* No Props or frame in view!
* High performance True-AIO Board Beast Whoop F7 AIO 45A to save weight and space
* T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
* Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
* Low Resonance frame construction (Less Jello, more Cinematic footage)
* Caddx.us Turbo Eos V2 FPVCam 2.1mm 16:9 NTSC
* Butter smooth 2203.5 3600KV (4S)
* Pre-tuned with smooth freestyle settings
PRE-TUNED & PRE-SETUP: * Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a
great flight experience!
* To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
* Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end
in a mess!
* Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”
ProTek35 BNF Specs: * Board Beast Whoop F7 AIO 45A (LINK)
* Двигатель: XING 2203.5 3600KV (4S)
* Колесная база: 151mm
* Body Size: 118*94.5mmmm
* Bottom plate thickness: 3.5mm
* Top plate thickness: 2mm
* Top and bottom plate spacing: 20mm (aluminum standoff height)
* Propeller size: 3.5 inch
* FC pattern: 25.5*25.5mm / 20*20mmmm
* FPV cam spacing: 20mm
* Вес: 305g (without battery)
ProTek35 Quad BNF Included Components and Parts
pre-built and tested Quadcopter * 1 x ProTek35 Frame
* 1 x Caddx.us Turbo Eos V2 FPVCam
* 2 x TPU camera side plate soft mount
* 2 x Nazgul 3535 propeller (Set of 4 – Color May Vary)
* 1 x iFlight Lipo Strap 15*150mm (Color May Vary)
* 1 x iFlight Lipo Strap 15*250mm (Color May Vary)
* 1 x GoPro TPU bottom stand black (GoPro Protector not included)
FC // Beast F7 AIO
Технические характеристики: * MCU: BGA-STM32F745
* Гироскоп: MPU6000
* Blackbox: 8Mb Onboard Flash
* BEC output: 5V 2.5A
* Барометр: BMP280
* Разъем: Micro-USB
* OSD: AT7456E
* Встроенное программное обеспечение FC：IFLIGHT_F745_AIO
* Mounting pattern: 25.5*25.5mm φ3mm
* Размеры: 32.5*32.5mm
* Вес: 8.5g
ESC // 45A 2-6S
Технические характеристики: * Uarts: 5
* Current Sensor: Yes
* Вход: 2-6S LIPO
* Current scale: 200
* Constant: 45A / Burst: 50A
* BLHeli: BLHeli-S
* Телеметрия: no
* ESC Firmware: BlheliS G-H-30
* Mounting pattern: 25.5*25.5mm/Φ3mm
* Размеры: 32.5*32.5mm
VTX// 5.8GHz SucceX Micro 300mW VTX * Power: PIT/25/100/200mW/300mW
* Antenna interface: IPEX (UFL)
* VTX protocol : IRC Tramp
* Размер: 13.5×14.5mm
* Вес: 1.4g
Size Extender (stackable adapter): * Mini VTX size: 20x20mm, 2mm hole, total weight (incl. VTX): 3.4g
* Whoop VTX size: 16mm/25mm, 2mm hole, total weight (incl. VTX): 2.9g
PACKAGE INCLUDES:
* 1 x iFlight ProTek35 CineWhoop Analog – BNF
Iflight Protek35 Review

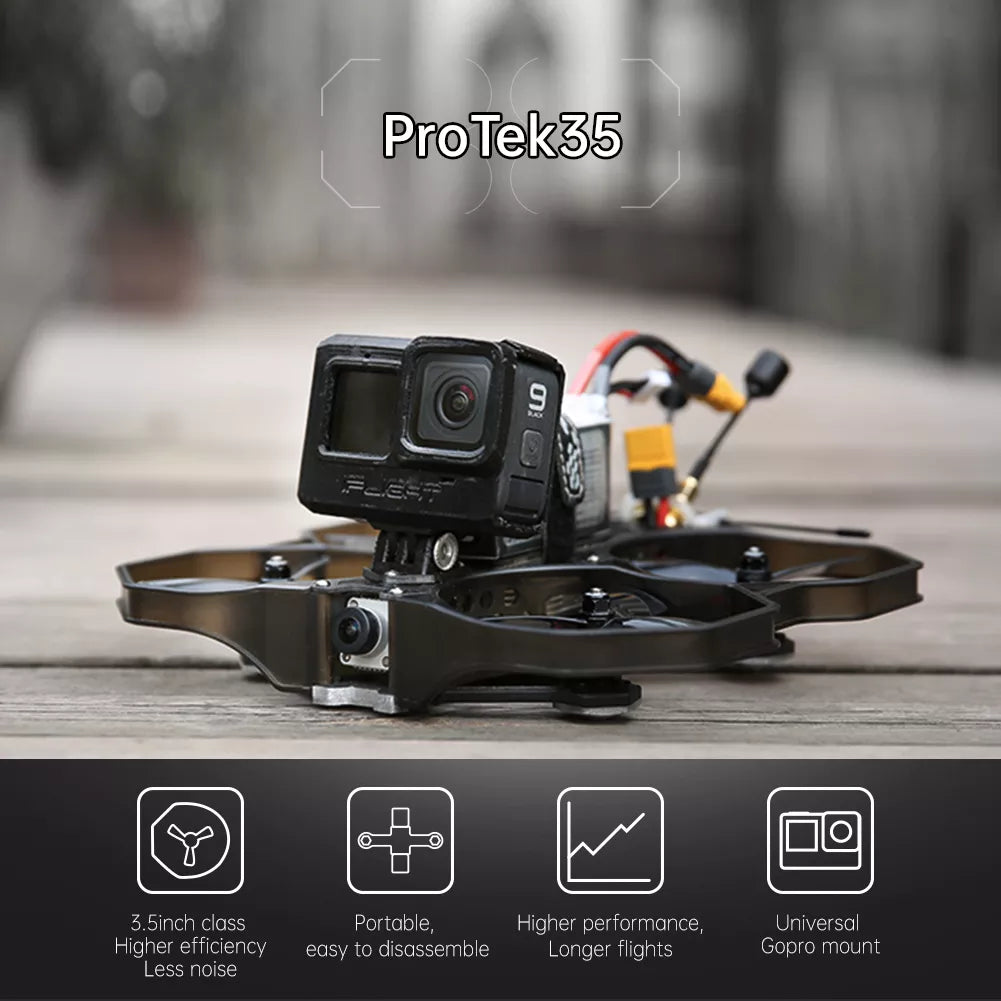

Gopro ProTek35 9 3.Sinch class Portable, Higher performance, Universal Higher efficiency easy to disassemble Longer flights mount Less

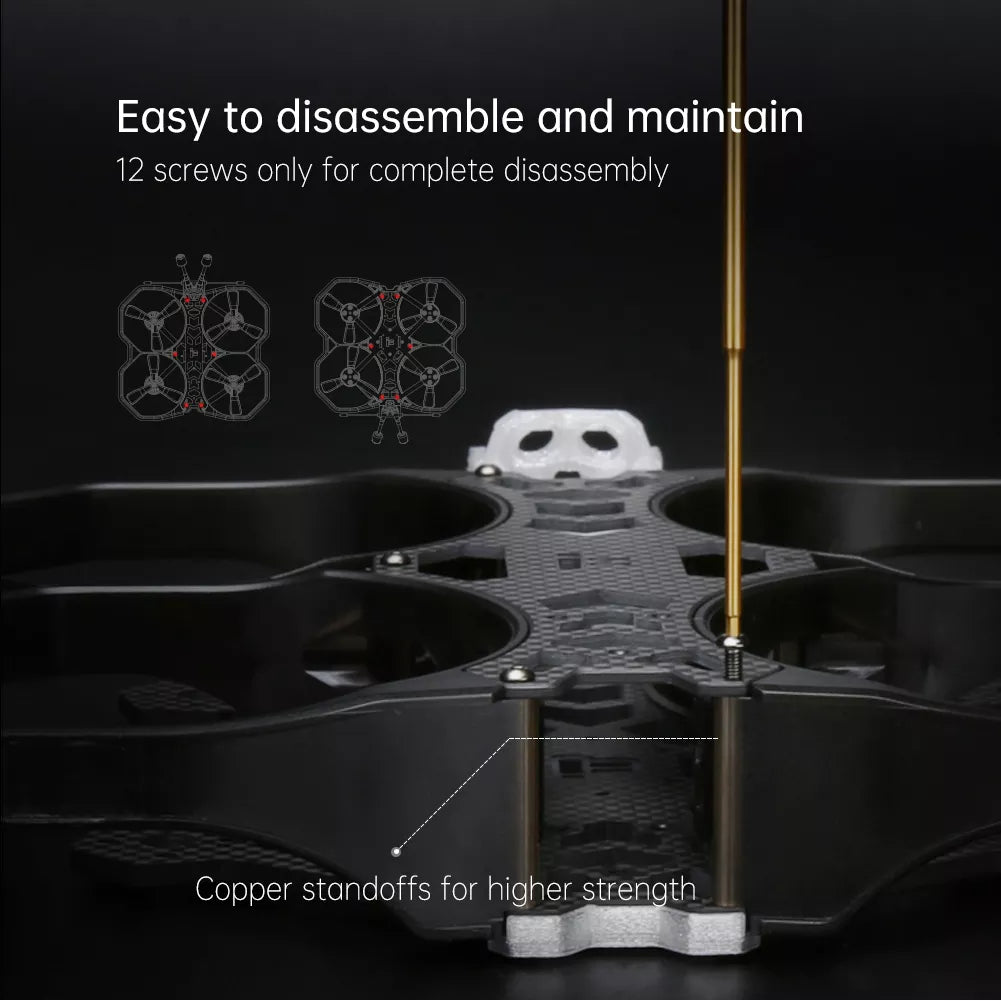

Easy to disassemble and maintain 12 screws only for complete disassembly Copper standoffs for higher
