• • A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn’t go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or 6S 2.500mAh above

Main Changelog from Chimera7 to Chimera7 Pro:

• SucceX-D F7 V2.2 Stack (F7+50A ESC) upgraded to BLITZ F722 Stack (F7 V1.1 + 55A 4in1 ESC)

• New Lightweight Side Panels Design – Keep Your Rig Clean


• XING 2806.5 upgraded to XING2 2809 1250KV

• 7-inch frame upgraded to 7.5inch

HIGHLIGHTS:

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

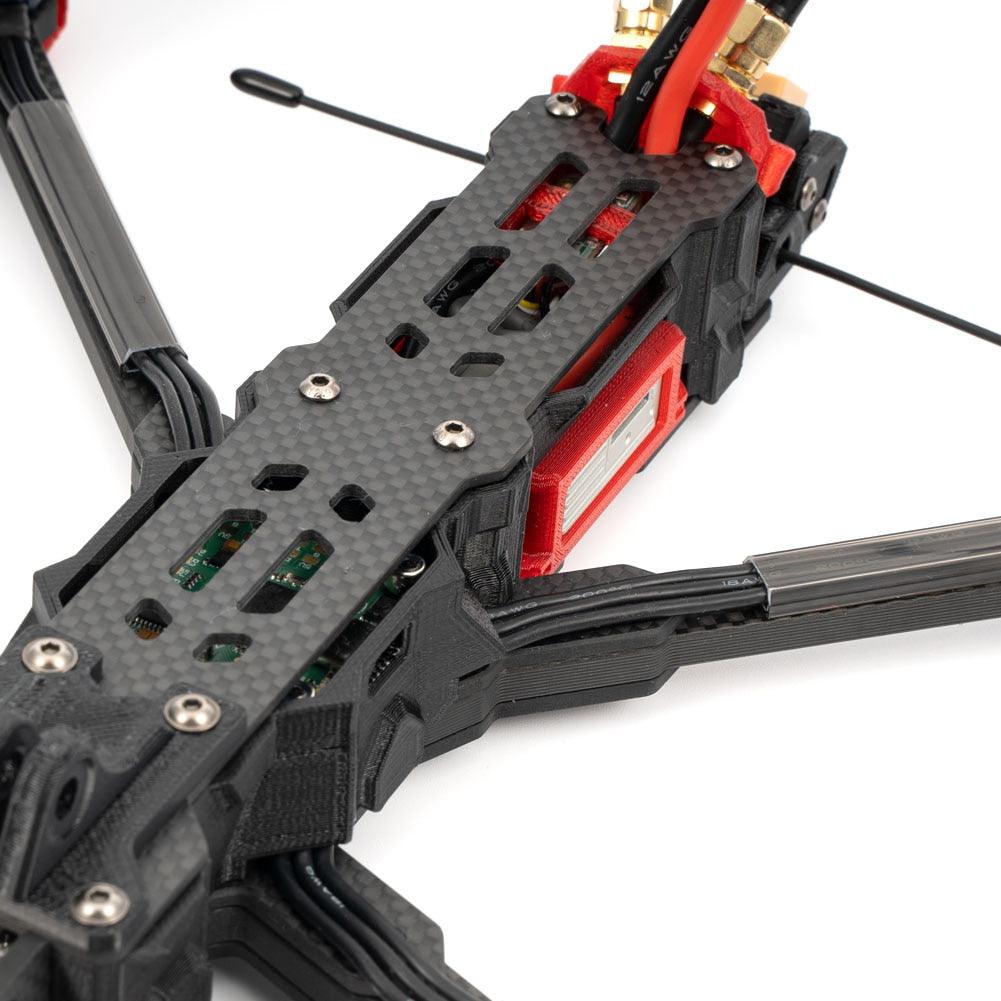

Latest Chimera7 Pro Frame for Maximum Protection

Прошли те времена, когда при каждом падении на вашу электронику попадала грязь и мокрая трава. Наша новейшая рама уменьшает загрязнение, которое может скопиться на вашем полетном контроллере или ESC, предотвращая поломку или короткое замыкание. Стратегический воздушный поток обеспечивает прохладу и чистоту ваших компонентов без ущерба для веса и производительности. Боковые панели с подсветкой и 360-градусные защитные элементы из TPU.

GPS pre-installed
For more safety at a distance.

PRE-TUNED & PRE-SETUP:

• Is this your first BNF or are you just starting through with FPV? This article might probably help: General Guide // iFlight BNF


• Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

• To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”

• Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

• Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”

• GPS Rescue is OFF by default to prevent unwanted or unexpected drone behavior.

• Please check our linked article on“GPS Rescue Mode // Setup”

Технические характеристики:

• Product Name: Chimera7 Pro 6S HD


• FC: BLITZ F722 Flight Controller

• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

• Video Transmission: RUNCAM LINK Wasp

• Frame: 345mm wheelbase

• Motor: XING2 2809 motors

• Prop:  7.5X3.7X3 propellers

• Weight：695grams

• Model：Chimera7 Pro


• Takeoff Weight：Approx.  750g

• Размеры (Д×Ш×Г)：180×180×80 мм

• Диагональное расстояние：120 мм

• Max Ascent Speed：6 m/s (Normal Mode, Sport Mode)

• Max Descent Speed：6 m/s (Normal Mode, Sport Mode)

• Максимальная скорость：27 м/с (ручной режим)

• Максимальная высота взлета：5000 м

• Max Hover Time：Approx. 18 mins

• Max Flight Distance：11.6 km

• Max Wind Speed Resistance：10.7 m/s (Level 5)

• Диапазон рабочих температур：-10° - 40° C (14° - 104° F)

• Transmission Power (EIRP)：FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

• Антенны：Двойные антенны

• GNSS：GPS + Galileo

Video Transmission

• Product Name: RUNCAM LINK Wasp

• FPV Cam :RunCam Wasp

• Runcam Link: L19mm*W19mm*H19mm

• FPV Cam: L29mm * W29mm * H13mm

• Communication Frequency: 5.725-5.85GHz

• Transmission Power (EIRP):  FCC/SRRC/MIC: <20dBm;  CE: <14dBm

• Input Volts：14-26.4 V

• Weight: 23.5 g

• Image Sensor: 1/3.2”

• Resolution: 720P@120fps

• LENS： FOV D:155° H:125° V:96°

• Coaxial Cable:  120 mm

• Audio Transmission：Yes


Примечание:

• All iFlight BNFs are tested before shipment to guarantee the highest quality.

• If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.


• iFlight takes no responsibility for issues with DJI or Caddx 3rd party gear (Video transmitters, Goggles, Radios, etc) and must be directly reported to www.caddxfpv.com/pages/contact-us или www.dji.com/support.
