Top Features:

• Improved circuit design, better components, and lower electrical noise!

• DJI HD VTX Connector (Plug-and-Play / No soldering required)

• FC indicator LEDs for visual debugging

• 512MB BlackBox


• With LC filter

Технические характеристики:

• Mount pattern: 35*35mm/ 4mm PCB hole diameter

• Smartaudio / IRC Tramp VTX protocol supported

• Firmware target: IFLIGHT_BLITZ_F7_PRO

• Input Voltage: 14.8V-34V (4S-8S LIPO)

• Motor outputs: 4x (SH1.25 connector)

• Flash: 512MB (Blackbox flash)

• I2C serial: SDA / SLA pads

• Dimensions: 41*41.5mm

• Barometer: DPS310

• OSD Chip: AT7456E

• LED controller: Yes

• MCU: STM32 F722

• Weight: 17g (±2)

• Beeper pad: Yes

• Gyro: MPU6000

• UARTS: 6


Wiring suggestion:

• UART1 for VTX HD/Analog

• UART2 for  Receiver

• UART4 for GPS

• UART5 for ESC Telemetry

• 8×Dshot/PWM outputs

• 1×I2C  for GPS Mag

Tips

• 1. F722 MCU has an inner inverter.

• 2. SBUS、CRSF、ELRS、IBUS、DSM ETC… can be connected to any unused UART_RX, we suggest you connect to Uart_RX2

• 3. Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1

• 4. F.port can be connected to any unused UART_TX, we suggest you connect to Uart_TX2

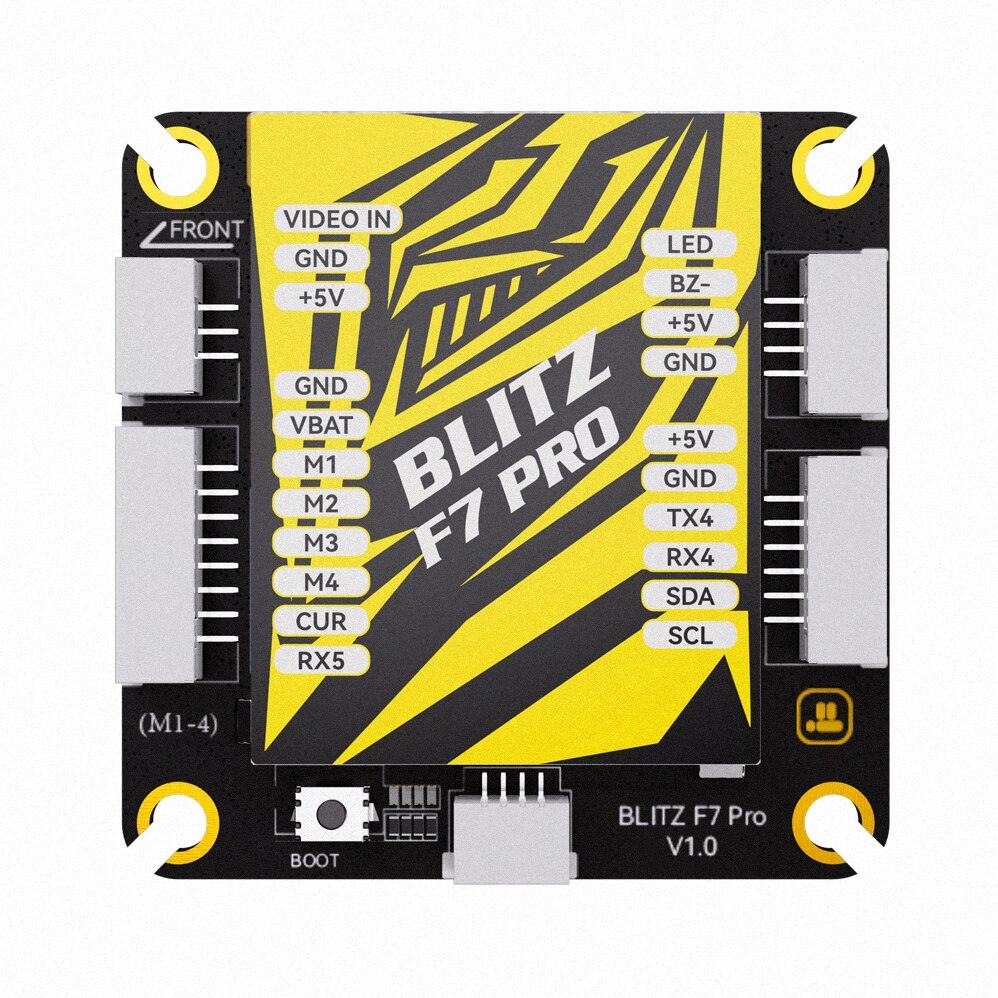

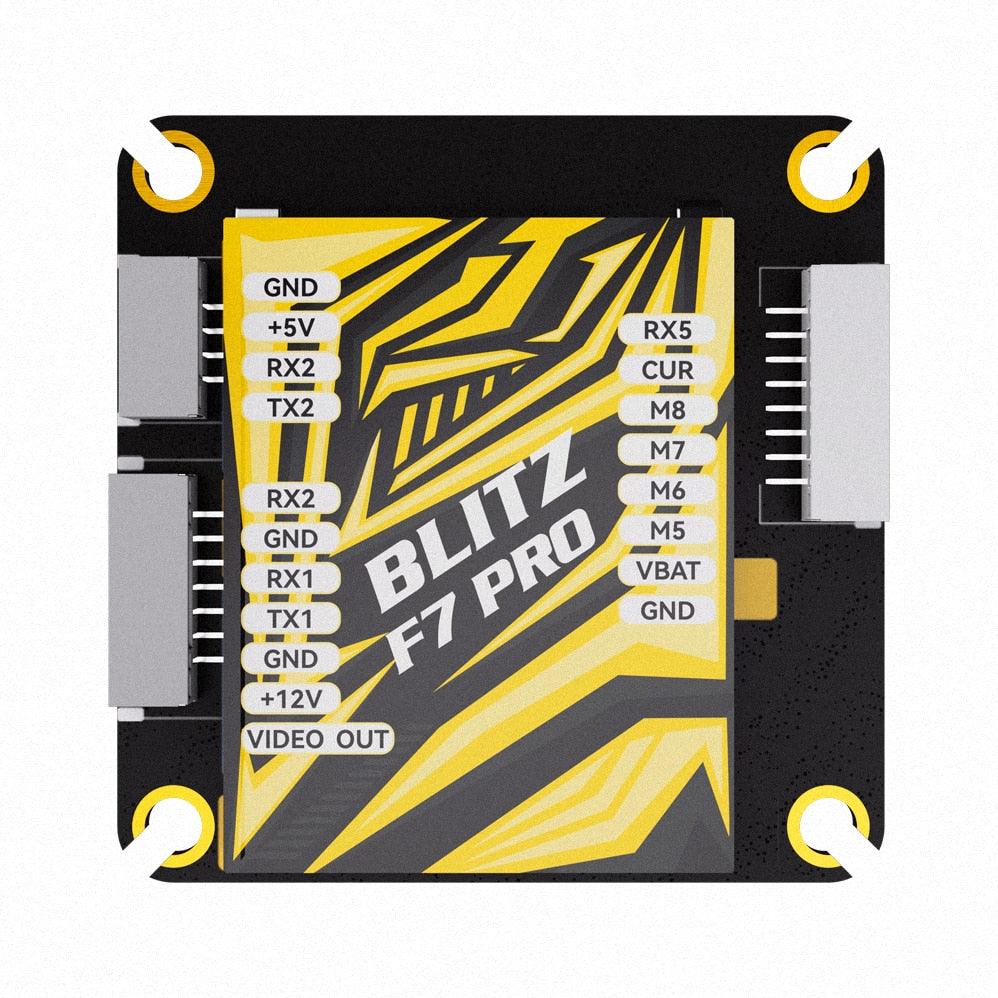

Included Connectors (Plug-and-Play wire harness):

• 1xGH1.25 7pin connector for HD VTX/Analog VTX(RX2/GND/RX1/TX1/GND/+12V/Video out)

• 1xGH1.25 8pin connector for ESC1 (GND/VBAT/M1/M2/M3/M4/CUR/RX5)

• 1xGH1.25 8pin connector for ESC2 (GND/VBAT/M5/M6/M7/M8/CUR/RX5)

• 1xGH1.25 4pin connector for GPS&Mag(+5V/GND/TX4/RX4/SDA/SCL)


• 1xGH1.25 3pin connector for Analog camera (Video in/GND/+5V)

• 1xGH1.25 4pin connector for Any Receiver(GND/+5V/RX2/TX2)

• 1xGH1.25 4pin connector for LED&Beeper(LED/BZ-/+5V/GND)

What’s in the package?

• 1 pc BLITZ F7 Pro Flight Controller

• 1 set of FC connectors (as above)

• 1 set silicone grommets
