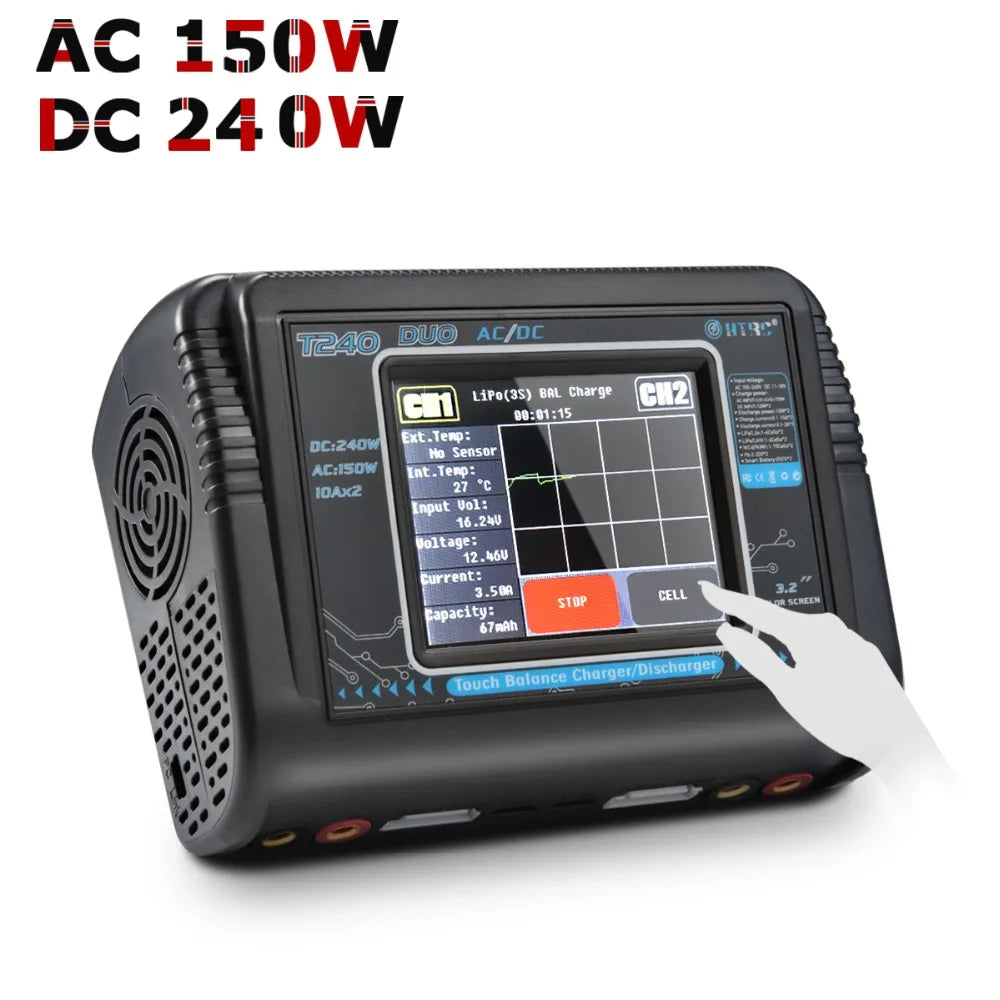

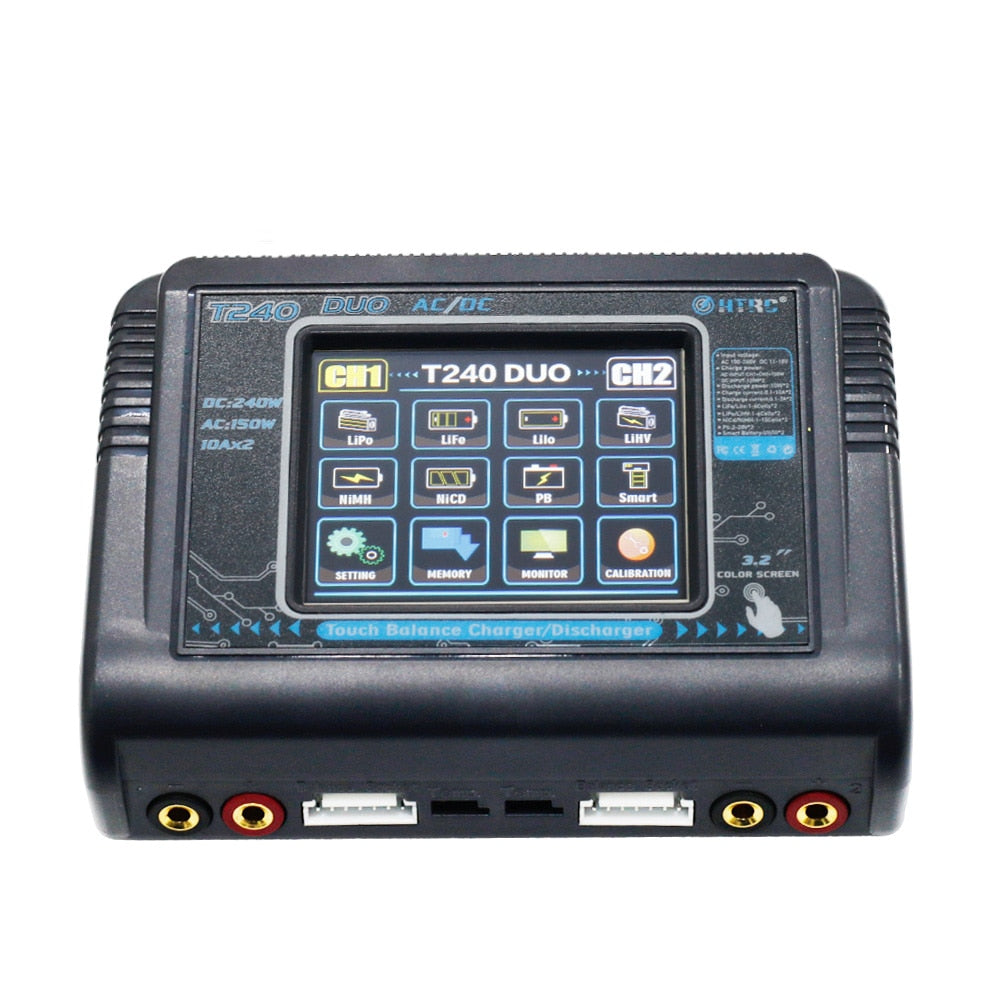

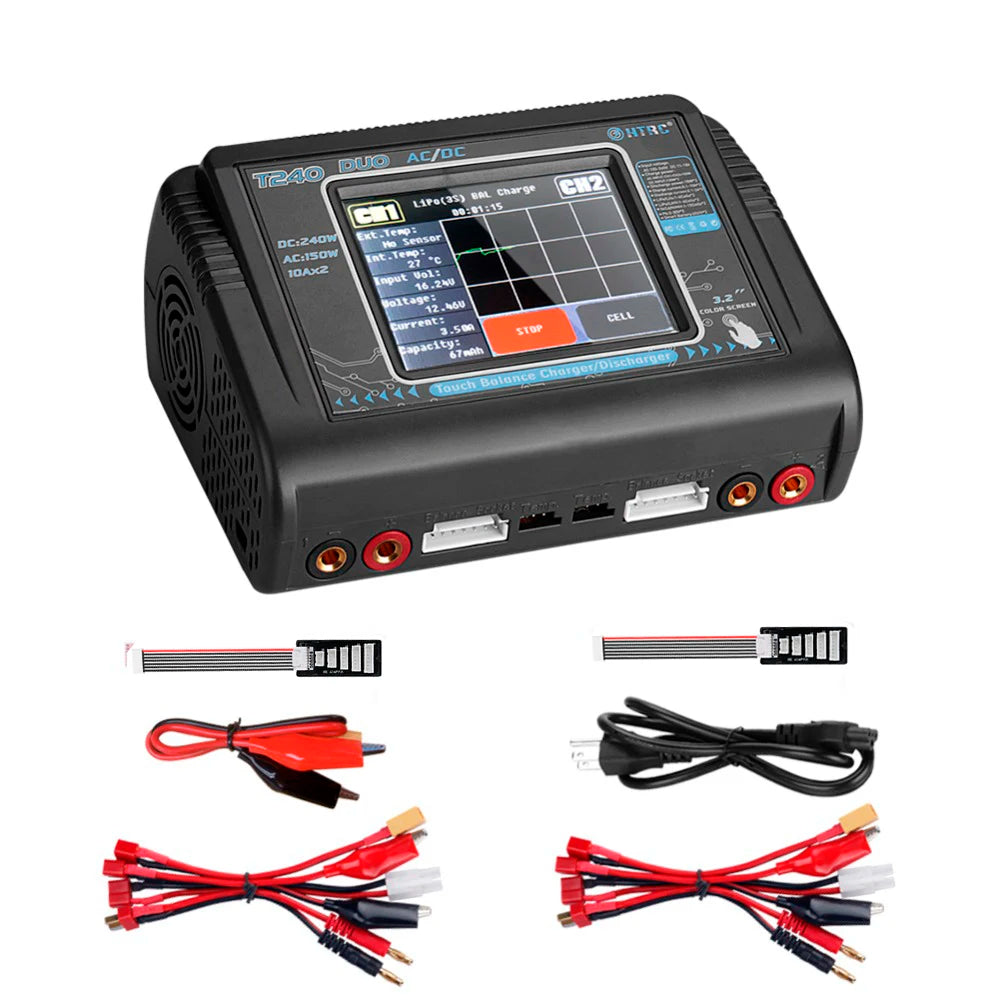

HTRC T240 DUO AC 150W /DC 240W Touch screen Dual Channel 10A RC Balance Charger discharger for LiPo LiHV LiFe Lilon NiCd NiMh Pb battery

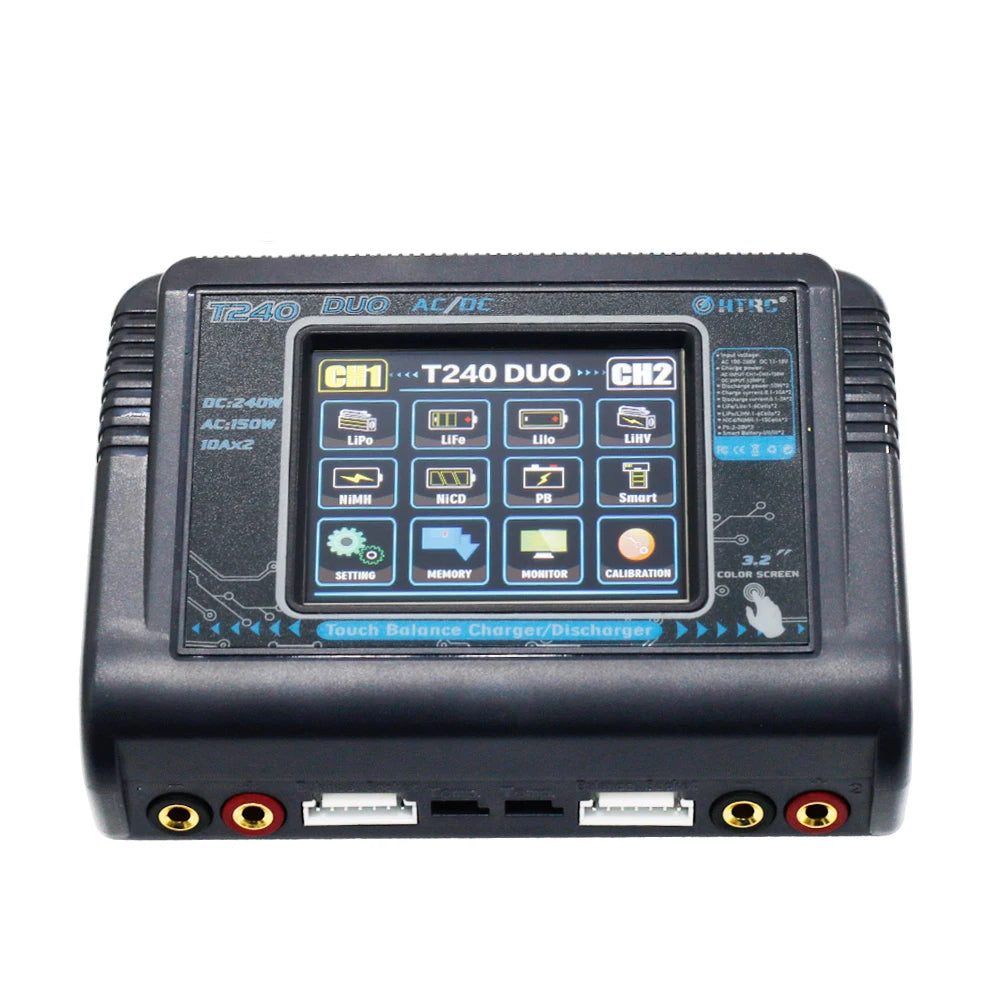

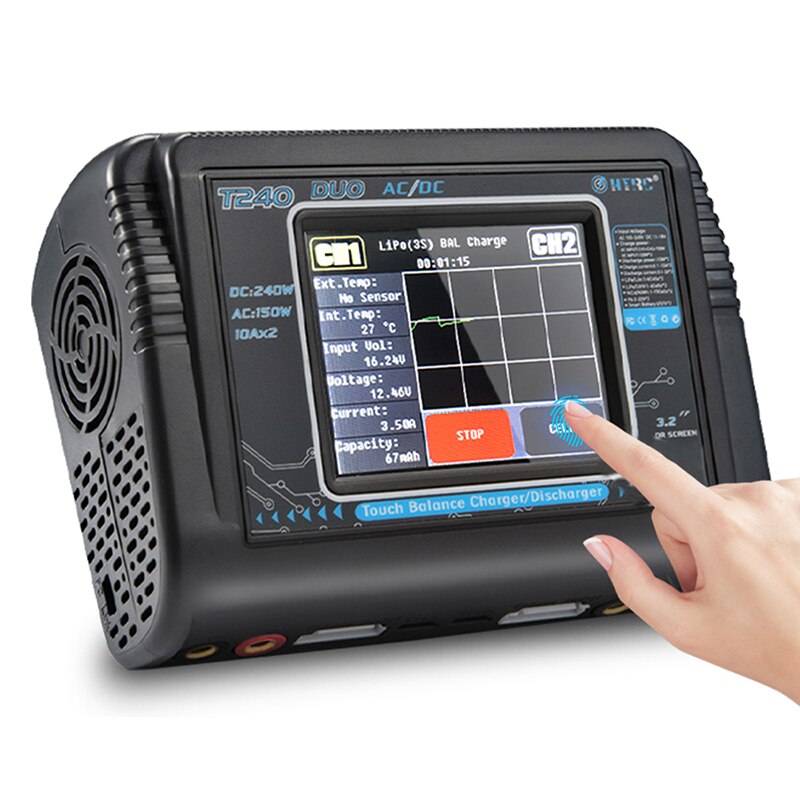

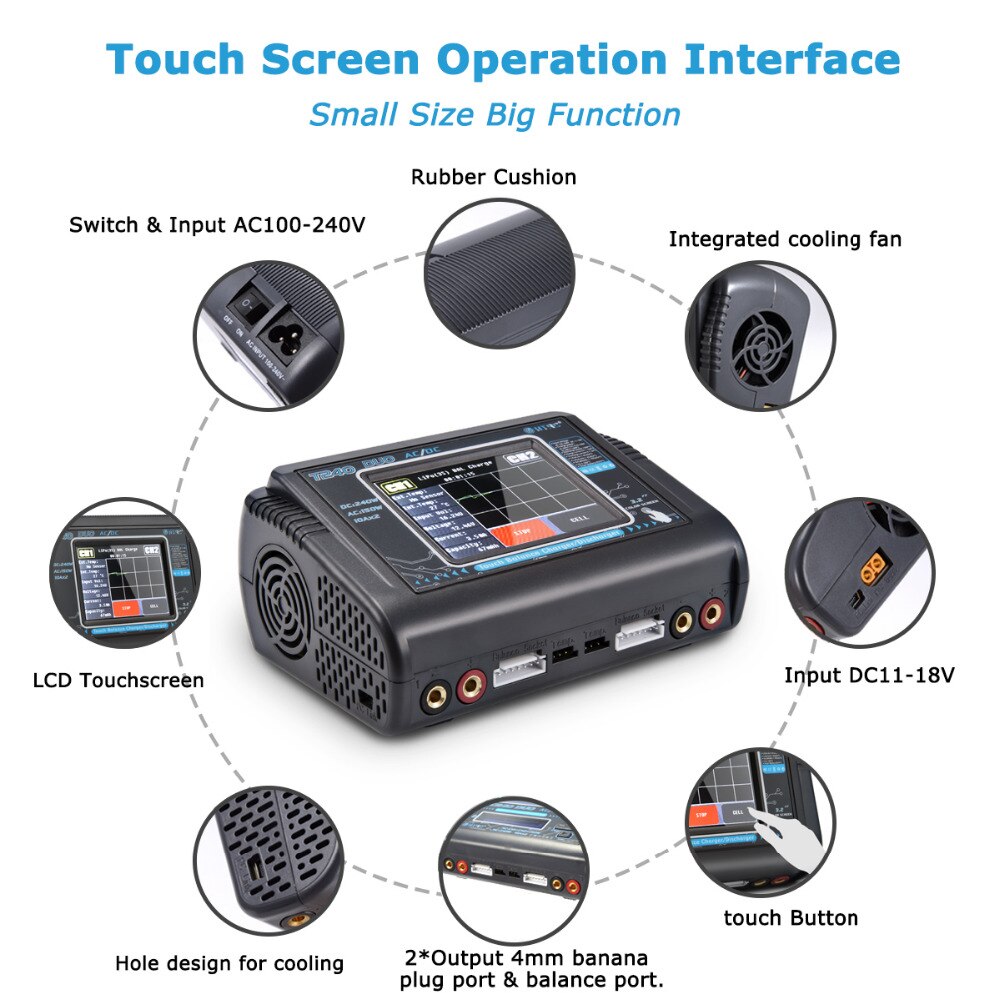

T240 is a new design dual balance charger by HTRC,which can charge two different kinds of batteries simultaneously.Multi-function,high power,Utilizing 3.2 inch color LCD Toch screen display,easy operation,built-in cooling fan,DC 11-18V or AC 100-240V dual power.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.

It can support power distribution in AC mode,total power 150W (CH1+CH2=150Watt). and in DC mode, works in 2 * 120W. Max charge current can reach 10A each port in both AC and DC mode.

Особенности:
*Compact touch screen charger, easy operation.
*Full plastic shell, safe, beautiful.
*Twin-channel,charge two different kinds of batteries simultaneously.
*high power,single port max 120W in AC mode. support power distribution in AC mode, ranges from 30-120W

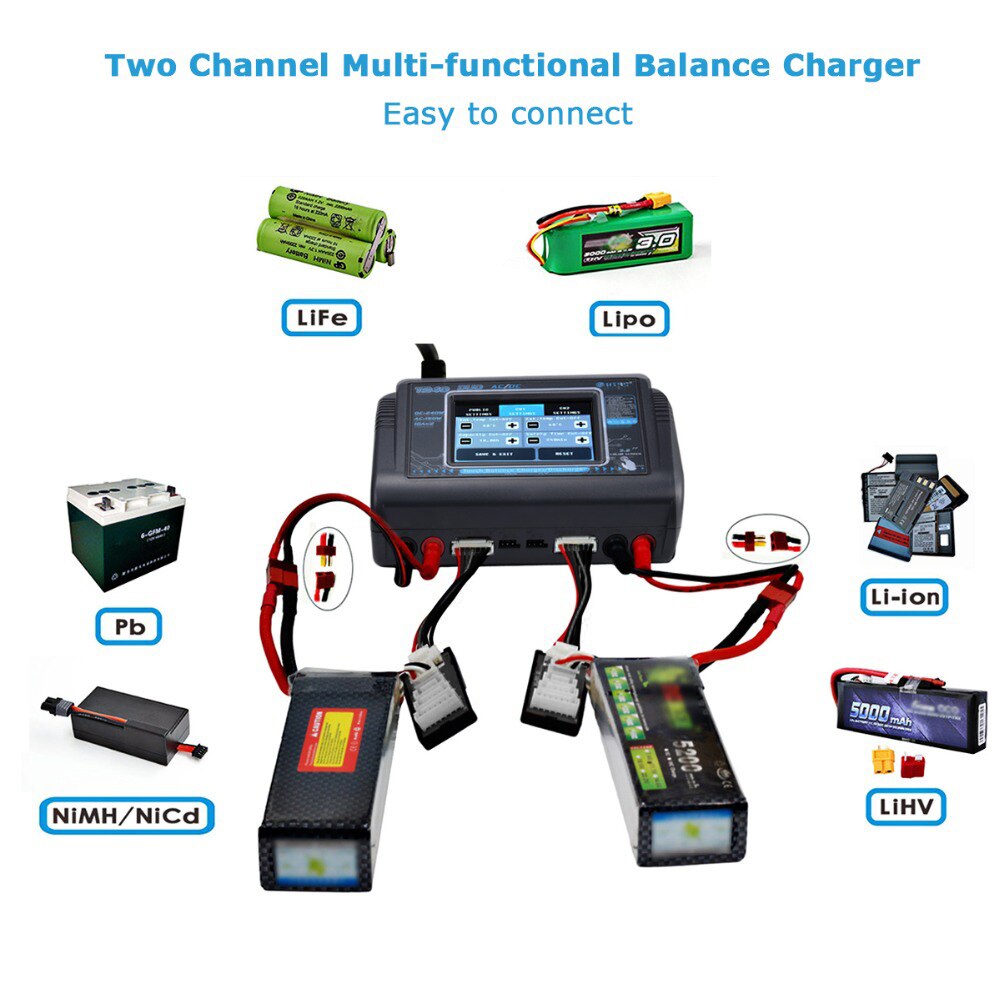

*Practical for variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
*Automatic identification of Lithuim batteries cells counts
*Adjustable digital DC Power.
*Built in smart cooling fan for easy heat dissipation.
*Built-In PFC AC adapter high efficiency.comes with power switch.
*Graph display of charging status
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-function:
-Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell’s  voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell’s resistance.(does not support 1s battery)
-Calibration: cell voltage monitoring and calibration. (calibration function for 6s lithuim battery only)
-Smart battery:Smart battery I,II,III,(Need optional DJI Charging cable)
*Data storage and loading
*Re-peak and cycling of NiMH/NiCD battery.
*Maximum Safety:Automatic charge current limit,low input voltage setting,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Firmware update.

Технические характеристики:
Model No.:RH218
Input: AC 100-240V / DC 11-18V
Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W
Discharge power:10W*2
Charge current range:0.1-10A *2
Discharge current range:0.1-2A*2
Lilon/LiPo/LiFe/LiHV cell count :1-6cells*2
NiCd/NiMH battery cell count:1-15cells*2
PB Battery voltage:2-20V*2
Smart battery:I/II/III*2
Current drain for balancing:500mA/cell
Package size:215*155*75mm

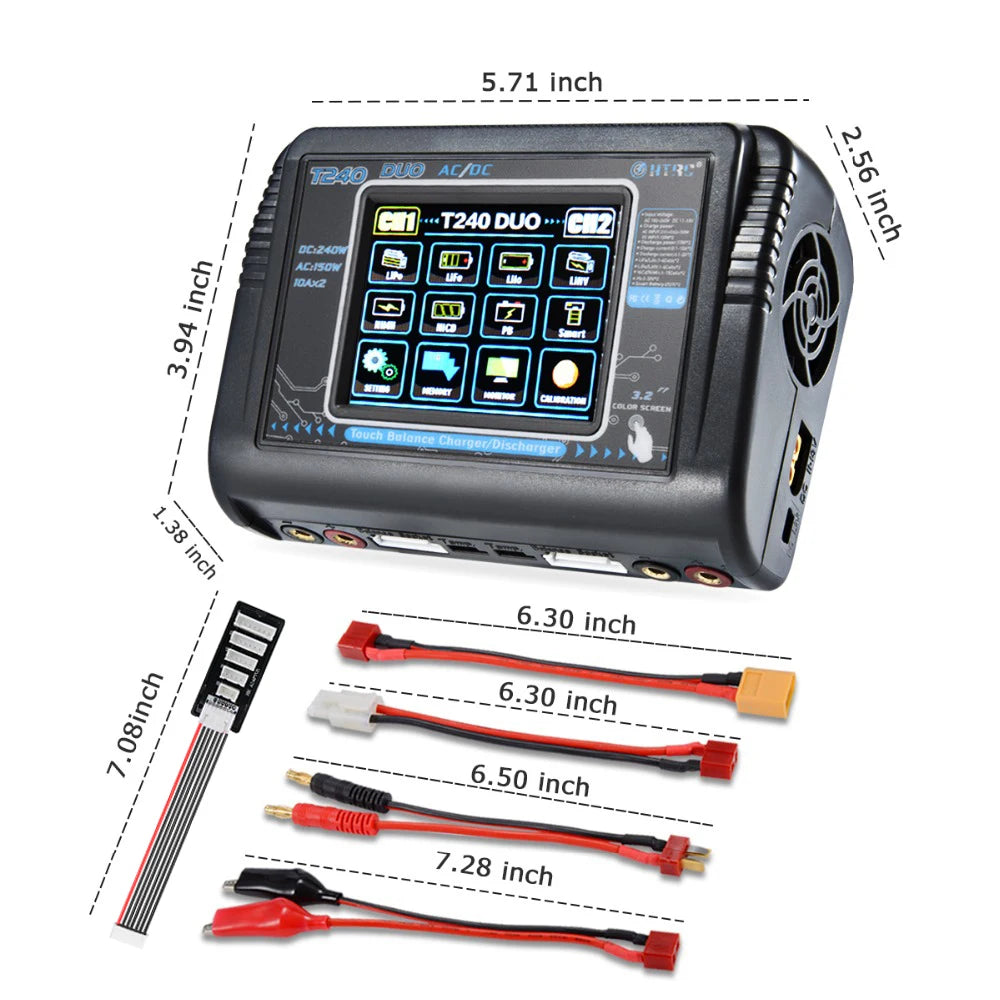

Dimension:145*105*64mm

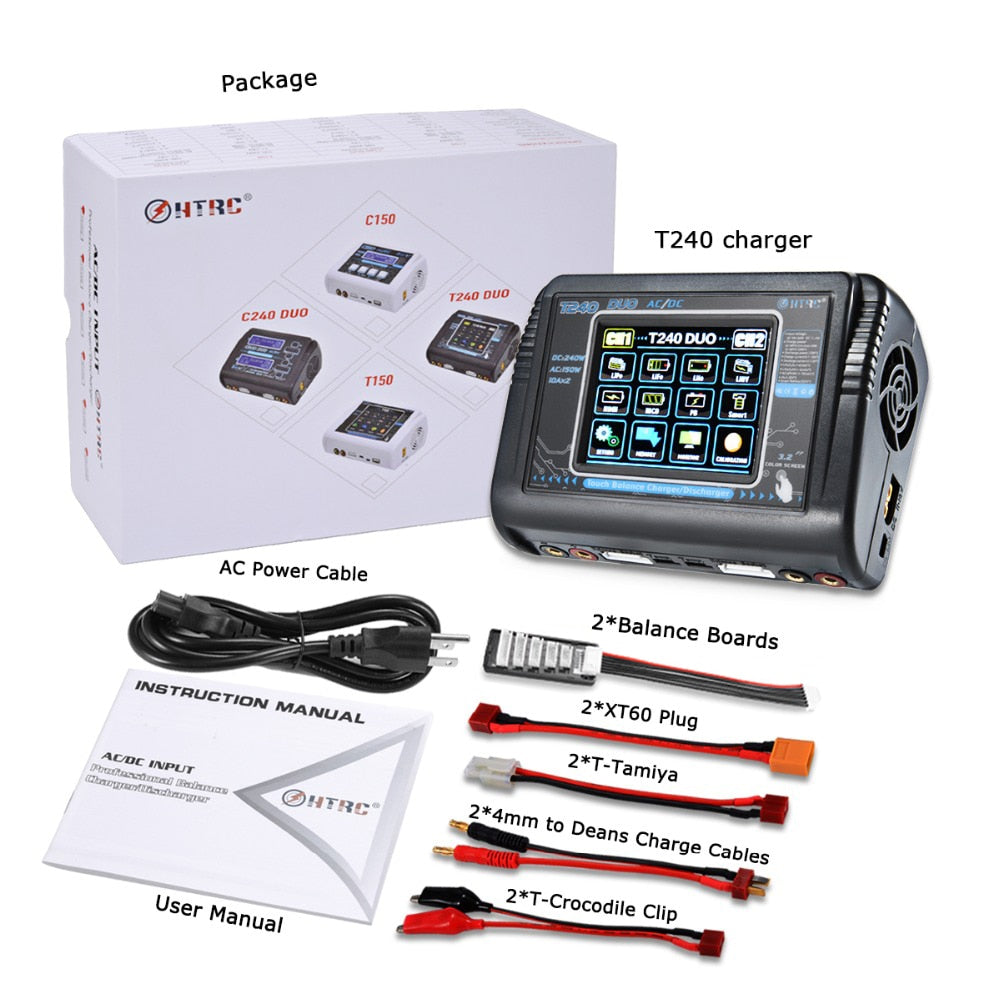

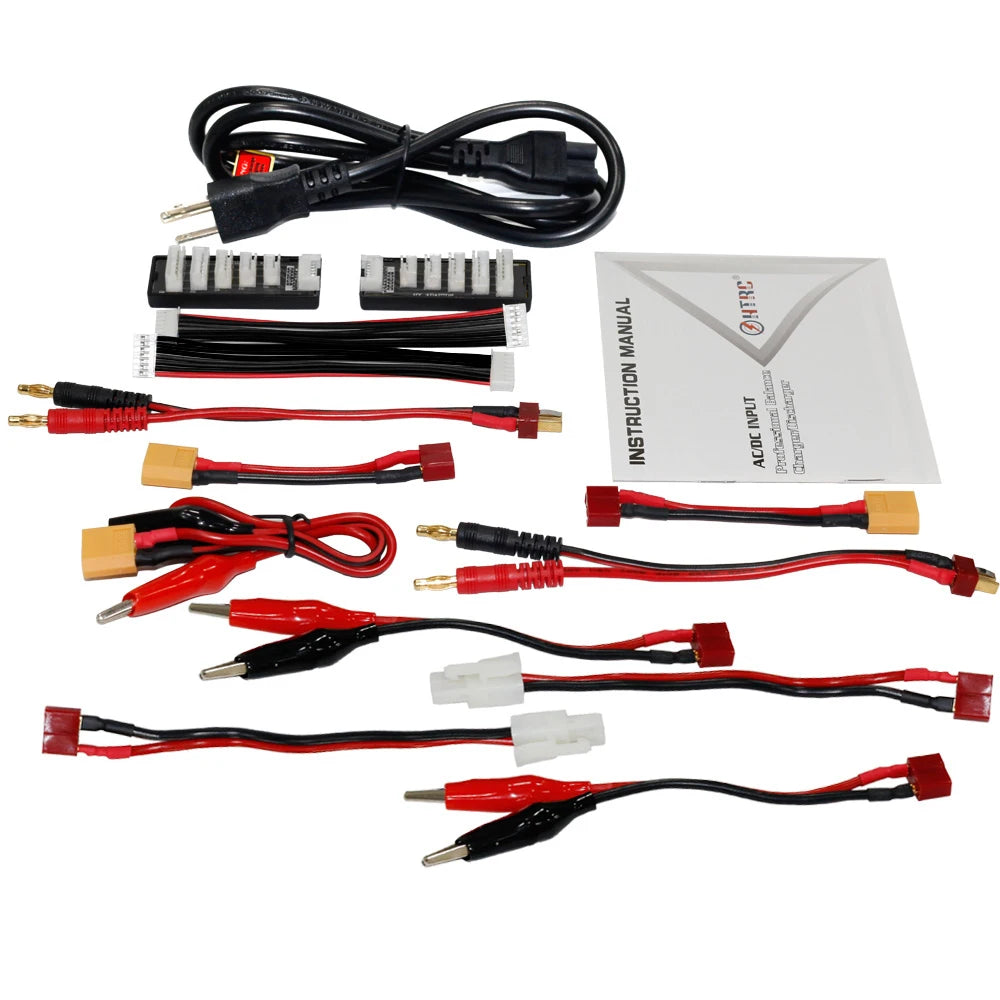

Список пакетов:

1x T240 charger
2x Charge cable banana plug to T-Plug
2x Extension charge cable T-Plug to XT60
2x balance board with pin cord
2 x Extension cable T-plug to Tamiya
2 x Extension cable T-pplug to crocodile clip
1x AC Cord (US EU UK AU optional)
1x DC Cord
1x User’s Manual

Please do not select the wrong battery type when charging

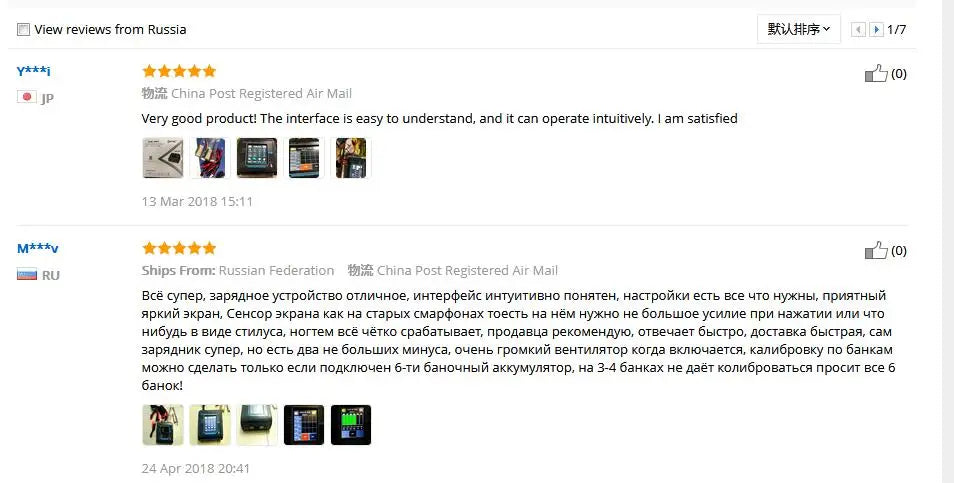

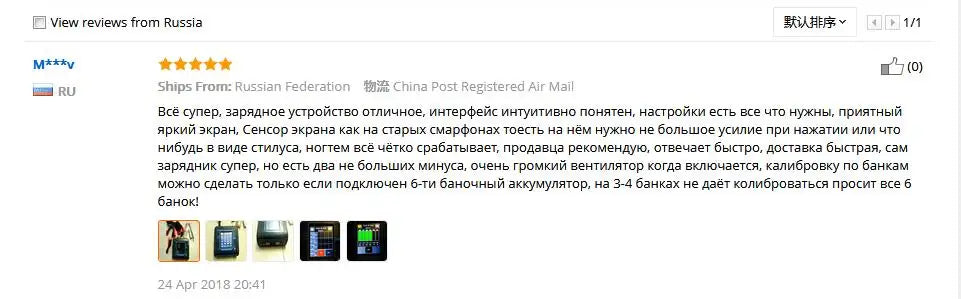

BUYER SHOWS:

Russia Milr 1/7 Vtrri BJit China Post Registered Air Mail good product! interface is easy to understand and it can operate intuitively.

Shipping from Russia via China Post Registered Air Mail, estimated delivery time is 3-4 weeks.

T240 Dual Balance Charger OutRC 32″ Color 41240 DuO Touch Screem Twfn-Bhannel @uall Pwer AC Mode: @CHi + CH23 1b0w DC Mode: I20W x2 8 2401 Weight: 0.48kg Size:145*105*64mm Iod

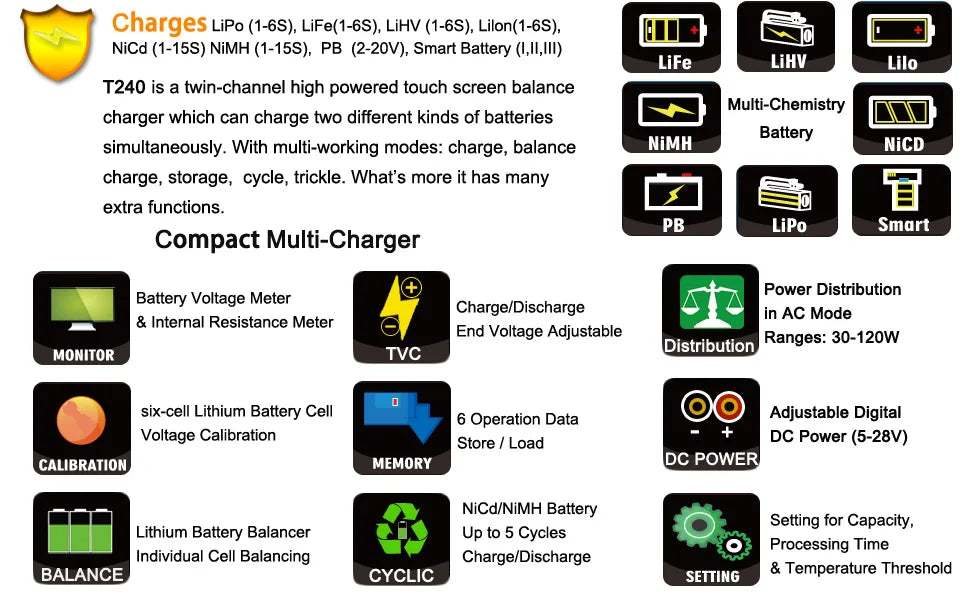

LiFe LiHV Lilo T240 is a twin-channel high powered touch screen balance charger . it can charge two different kinds of batteries simultaneously: with multi-working modes: charge, balance NiMH NicD charge, storage, cycle, trickle .

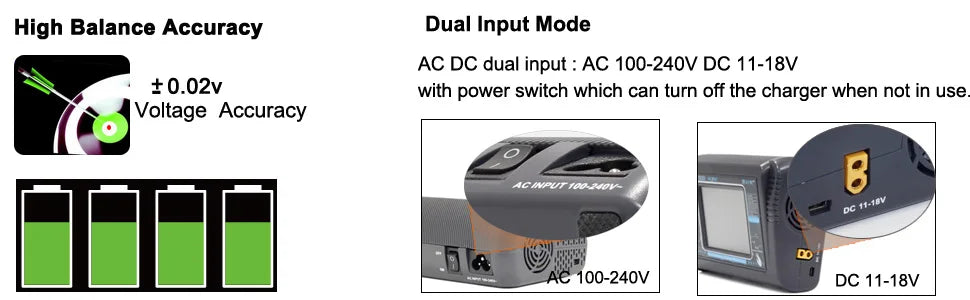

This high-accuracy balance charger features dual input modes: AC (100-240V) and DC (11-18V, +0.02v). It also includes a power switch that can be used to turn off the charger when not in use, conserving energy.

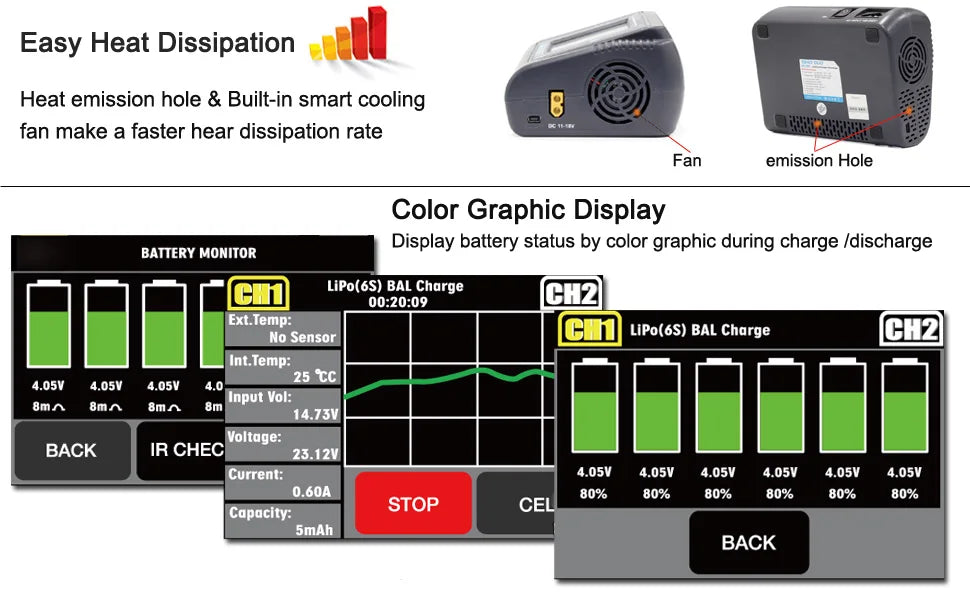

Features a fast heat dissipation rate and a battery monitor that displays the battery’s status through a color graphical display during charging.

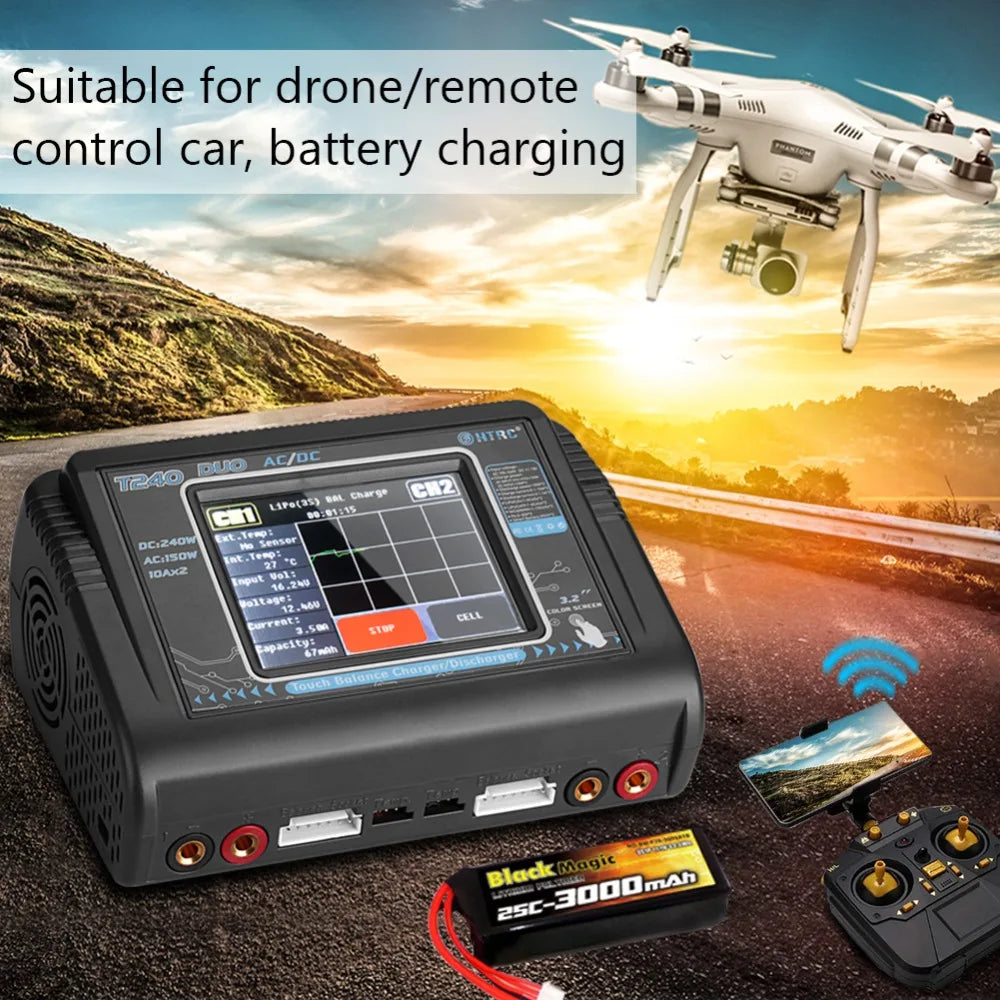

Suitable for drone/remote M control car; battery charging @htRC” Vot charor 417o(358 Acloc pua 7o4o LL dci4ow Acmsow Doatz ua Dagic Bladr Jodoman
