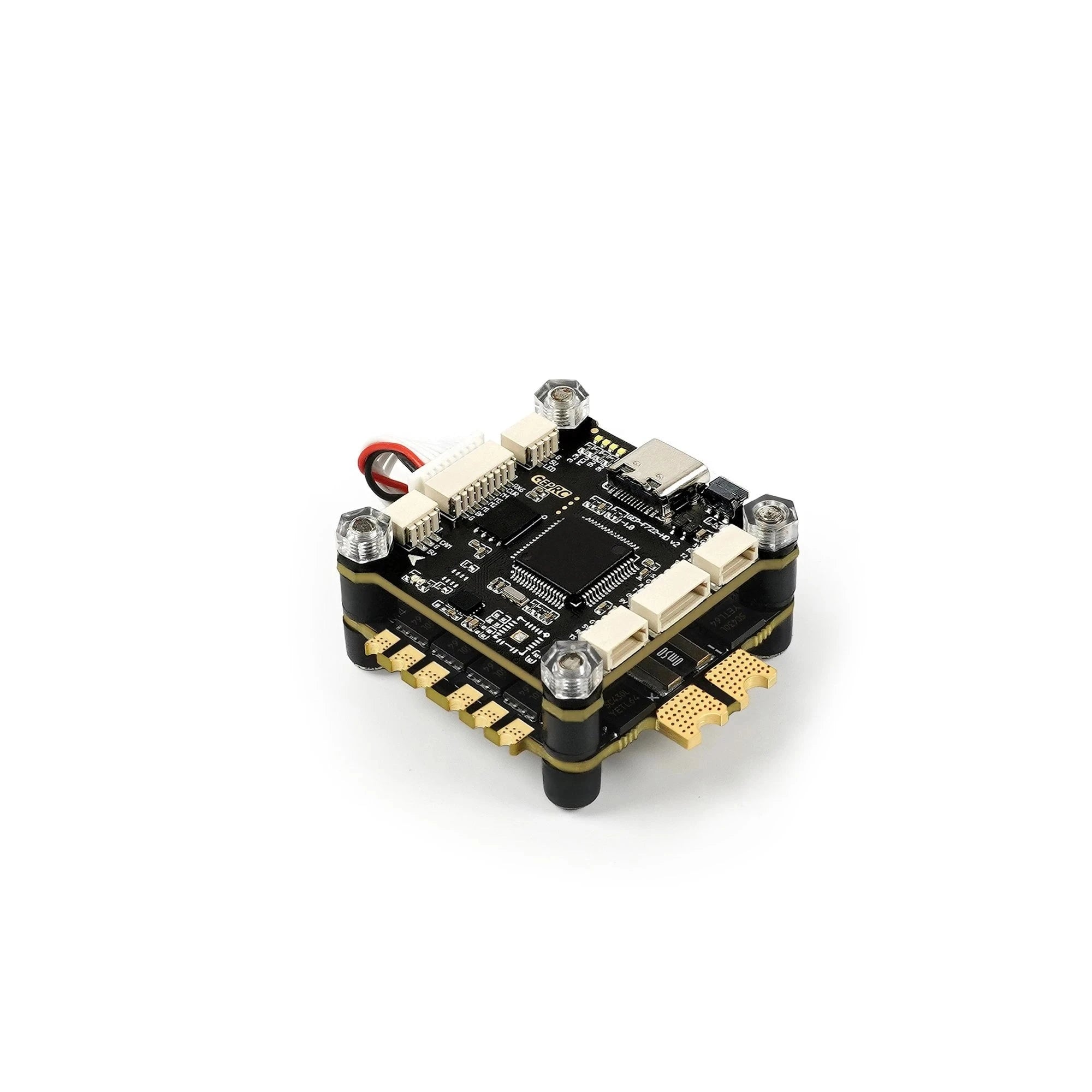

GEPRC TAKER F722 BLS 60A STACK SPECIFICATIONS
Название бренда: GEPRC
Электрический: Нет батареи
Происхождение: Материковый Китай
Материал: Металл
Рекомендуемый возраст: 14+y
Запчасти и принадлежности RC: STACK
Для типа автомобиля: Вертолеты
Используйте: Транспортные средства и игрушки с дистанционным управлением
Модернизация деталей/аксессуаров: AIO
Периферийные устройства/устройства дистанционного управления: ESC
Поставки инструментов: AIO
Количество: 1 шт.
Номер модели: GEPRC TAKER F722 BLS 60A STACK
Атрибуты полного привода: AIO
Колесная база: Винты
Резюме
GEPRC TAKER F722 BLS 60A STACK is a plug-and-play flying tower system specially designed for Air Unit.Use STM32F722 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS60A-4IN1 ESC to have a more delicate hand feeling experience.
The TAKER F722 BLS 60A STACK can be directly plugged into the Air Unit, which can save the trouble of welding. Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact. [email protected] + 5V@3A dual independent BEC, more stable power supply for external devices.
Характеристики
- Use mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the Air Unit
- With GEP-BLS60A-4IN1 ESC, the flying feel is silky
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- [email protected] + 5V@3A dual independent BEC
Технические характеристики

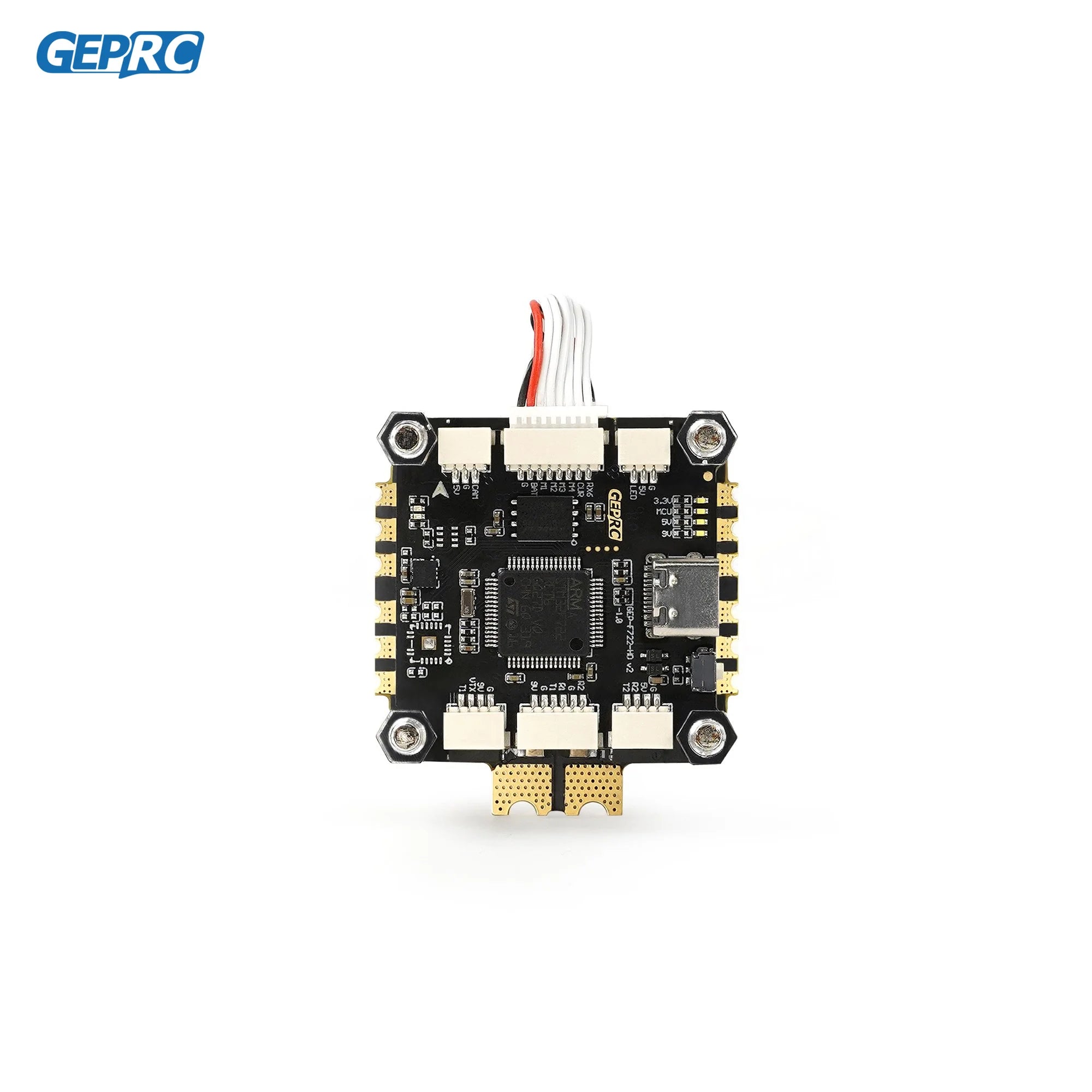

GEP-F722-HD v2 Flight Controller
- MCU：STM32F722
- IMU：ICM42688-P(SPI)
- Air Unit Connection：Direct plugging into Air Unit
- Black Box：16M onboard
- USB Interface：Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A,[email protected] dual BEC
- Firmware Target：GEPRCF722
- Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
- Input Voltage：3-6S LiPo
- UART：5
- Power Filter：Integrated LC filter
- Weight：8.1g
GEP-BLS60A-4IN1 ESC
- Input Voltage：3-6S Lipo
- Galvanometer：Support
- Continue Current：60A
- Burst Current：65A（5 seconds）
- Support Protocol：Dshot 150/300/600
- Size：42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
- Weight：13.7g
- Target：G_H_30
Включает
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
