GEPRC GEP-CT25 Frame Parts SPECIFICATIONS
Название бренда: GEPRC
Is Electric: No battery
Происхождение: Материковый Китай
Материал: Композитный материал
Рекомендуемый возраст: 14+y
Запчасти и принадлежности RC: FRAME
Размер: 2,5 дюйма
Для типа автомобиля: Вертолеты
Используйте: Транспортные средства и игрушки с дистанционным управлением
Сертификация: CE
Сертификация: FCC
Сертификация: RoHS
Сертификация: weee
Модернизация деталей/аксессуаров: Рама
Периферийные устройства/устройства дистанционного управления: FRAME
Поставки инструментов: Категория сборки
Количество: 1 шт.
Номер модели: GEP-CT25 Frame
Атрибуты полного привода: Сборка
Колесная база: Винты
Резюме

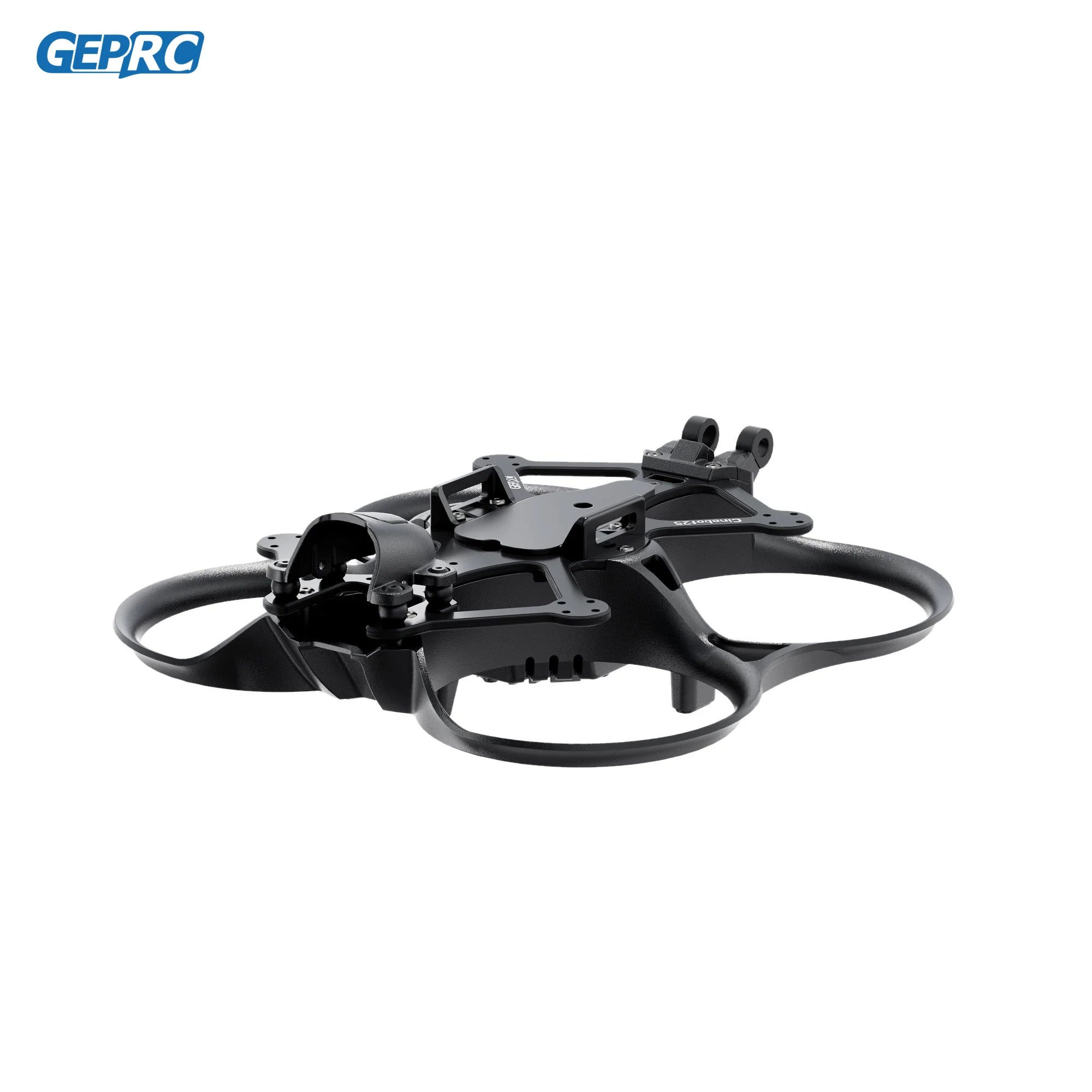

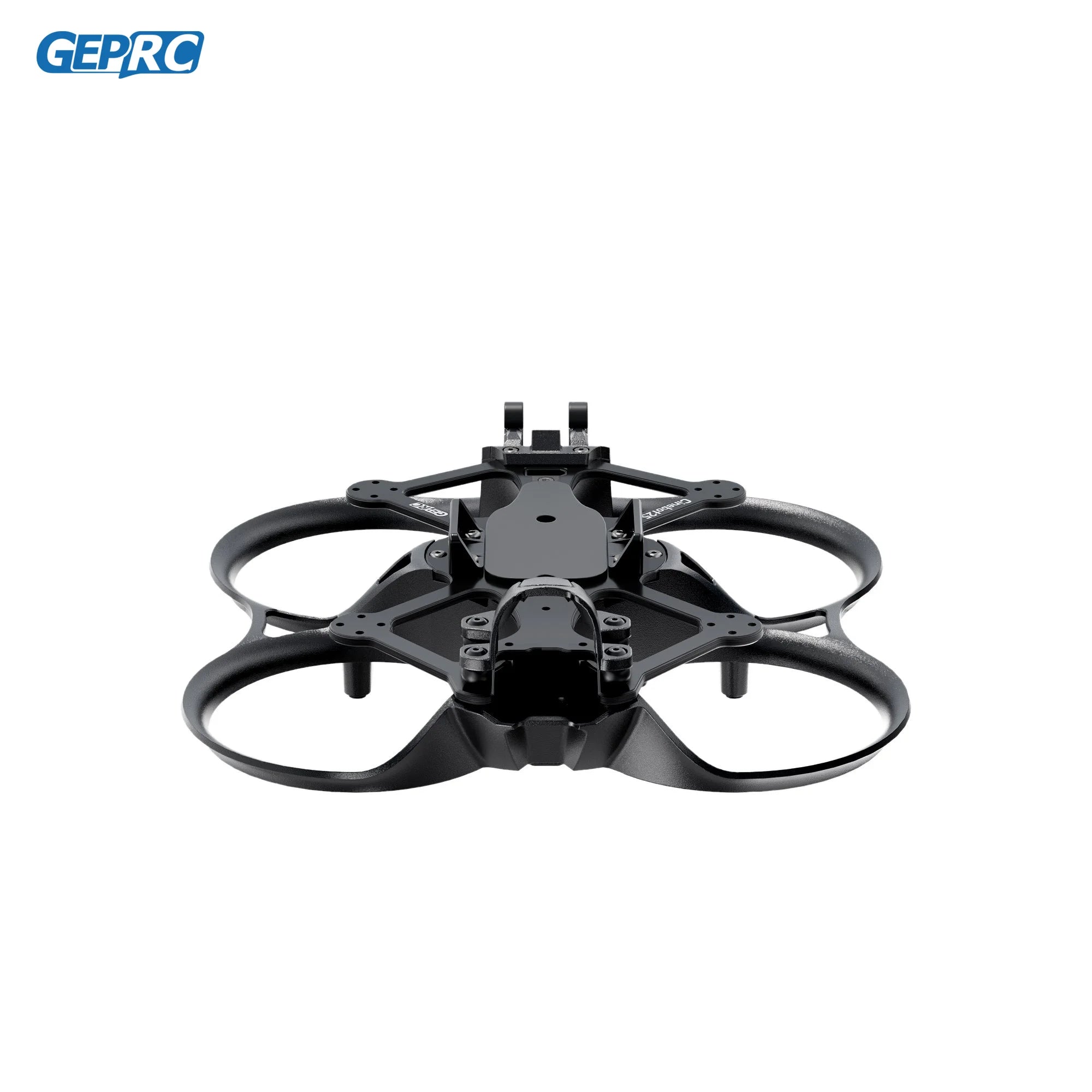

The GEP-CT25 frame adopts the avant-garde design and is injection molded with advanced material, taking into account the outstanding rigidity and flexibility.
The interior VTX design makes the O3 memory card installation and footage loading through a USB connection easier. Adopting exposed design for receiver antenna. Full-fit aluminum components and straps ensure the battery is firmly fixed. The fixed prop of the injection molding receiver is perfectly matched with the height of the fuselage, making frequency paring effective and convenient.
The outstanding design of the GEP-CT25 frame provides an excellent shooting experience for users, becoming an ideal choice for pilots.
Характеристики
-
Avant-garde exterior design, injection molded with advanced material.
-
The new camera anti-shake function, provides stabilization for footage shooting, camera is equipped with an air inlet duct to prevent overheat.
-
The BOOT button at the rear end makes parameter adjustment easier.
-
Special silicone T-shaped receiver antenna fixed component.
-
The interior VTX installation lets users set up or disassemble the O3 memory card and connect to load footage effortlessly.
-
Adopts aluminum posts and straps to fix the battery.
-
Injection molded receiver fixed rack fits with fuselage seamlessly, the frequency paring is more effective.
-
The quick-release design makes maintenance easier.
Технические характеристики
-
Frame: GEP-CT25 Frame
-
Color: grey/black
-
Wheelbase：115mm
-
Mid carbon plate thickness：2.5mm
-
FC mounting hole：25.5mm * 25.5mm
-
VTX mounting hole：20mm * 20mm / 25mm * 25mm
-
Motor mounting hole：9mm * 9mm
-
Camera size：19mm / 20mm
-
Разъем: XT30
-
Recommended propellers：2.5 inch propellers
-
Weight：87 ±5g
Включает
1 x Integrated Protective Frame
1 x Arm plate
1 x Accessory sets
2 x Camera Protective Cap
2 x battery anti-skid pads
1 x O3 Cooling fins
1 x PCB Component
1 x screw pack
1 x 15*150mm battery cable ties
1 x 15*170mm battery cable ties
1 x L-shaped screwdriver 1.5mm
Specifications Frame Color GEP_CT25 Frame grey black Connector Propellers XT30 2.5 inch propellers Arm plate Wheelbase 2.5mm 115mm VTX dimension 2Omm 25mm X 25mm 25.5mm 25.6mm Motor dimension Camera size 9mm x Imm 19mm 2OMM Weight 87 +Sg Disclaimer: Size and weight are for reference only, the actual ob_ jects may vary:
camera anti-shake function provides stabilization for foot_ age shooting . camera is equipped with an air inlet duct to prevent over_ heat .
Innovative camera vibration reduction Provide reliable anti-shake function for photo taking and smooth video effortlessly
advanced material injection molding fuselage possesses excellent toughness . fuselage is designed according to mechanics with optimized material
Quick-release design Dismantle 6 screws only to separate the carbon plate and drone . easy
