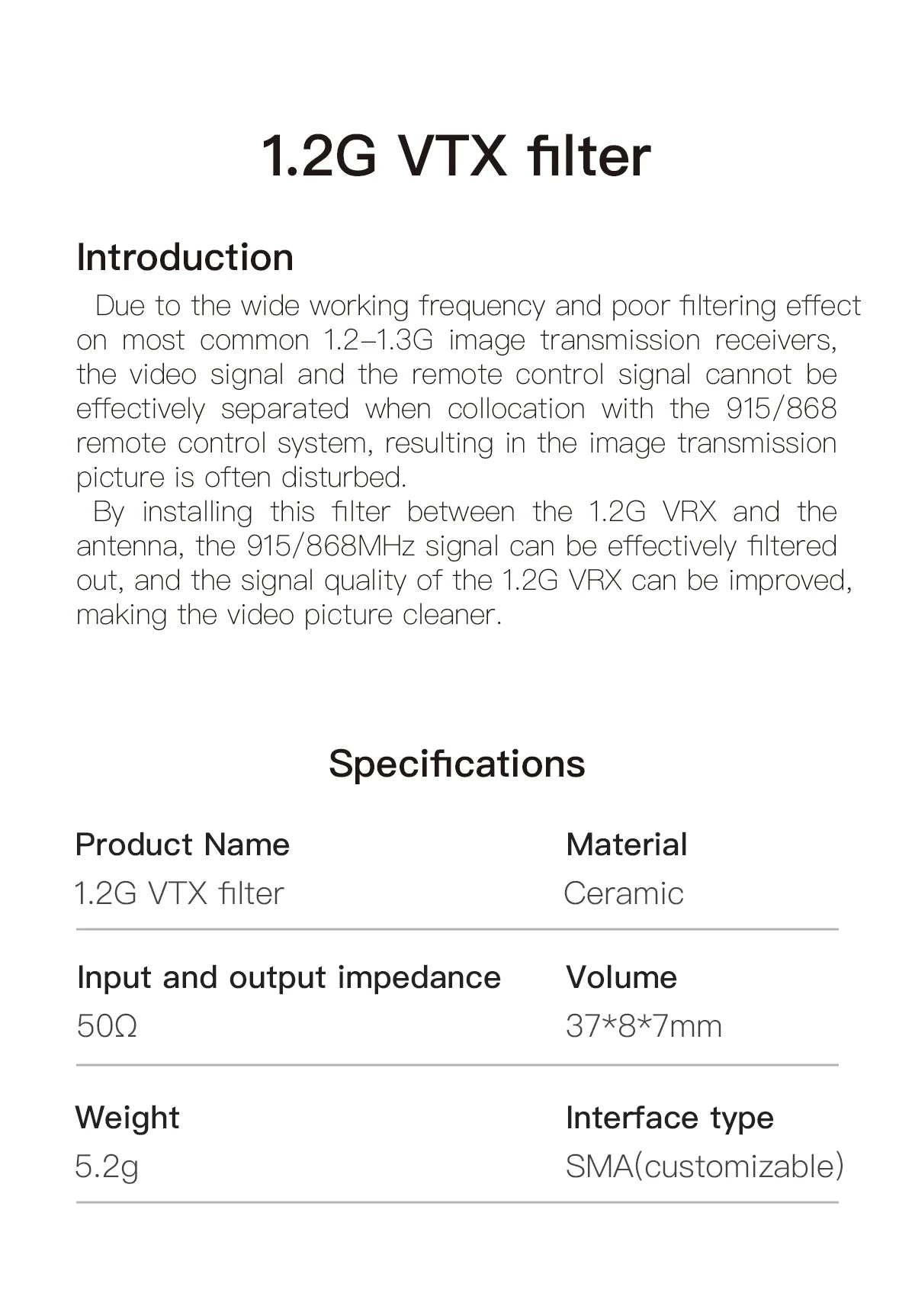

Due to the wide working frequency and poor filtering effect on most common 1.2-1.3G image transmission receivers, the video signal and the remote control signal cannot be effectively separated when collocation with the 915/868 remote control system, resulting in the image transmission picture is often disturbed.

By installing this filter between the 1.2G VRX and the antenna, the 915/868MHz signal can be effectively filtered out, and the signal quality of the 1.2G VRX can be improved, making the video picture cleaner.

Технические характеристики

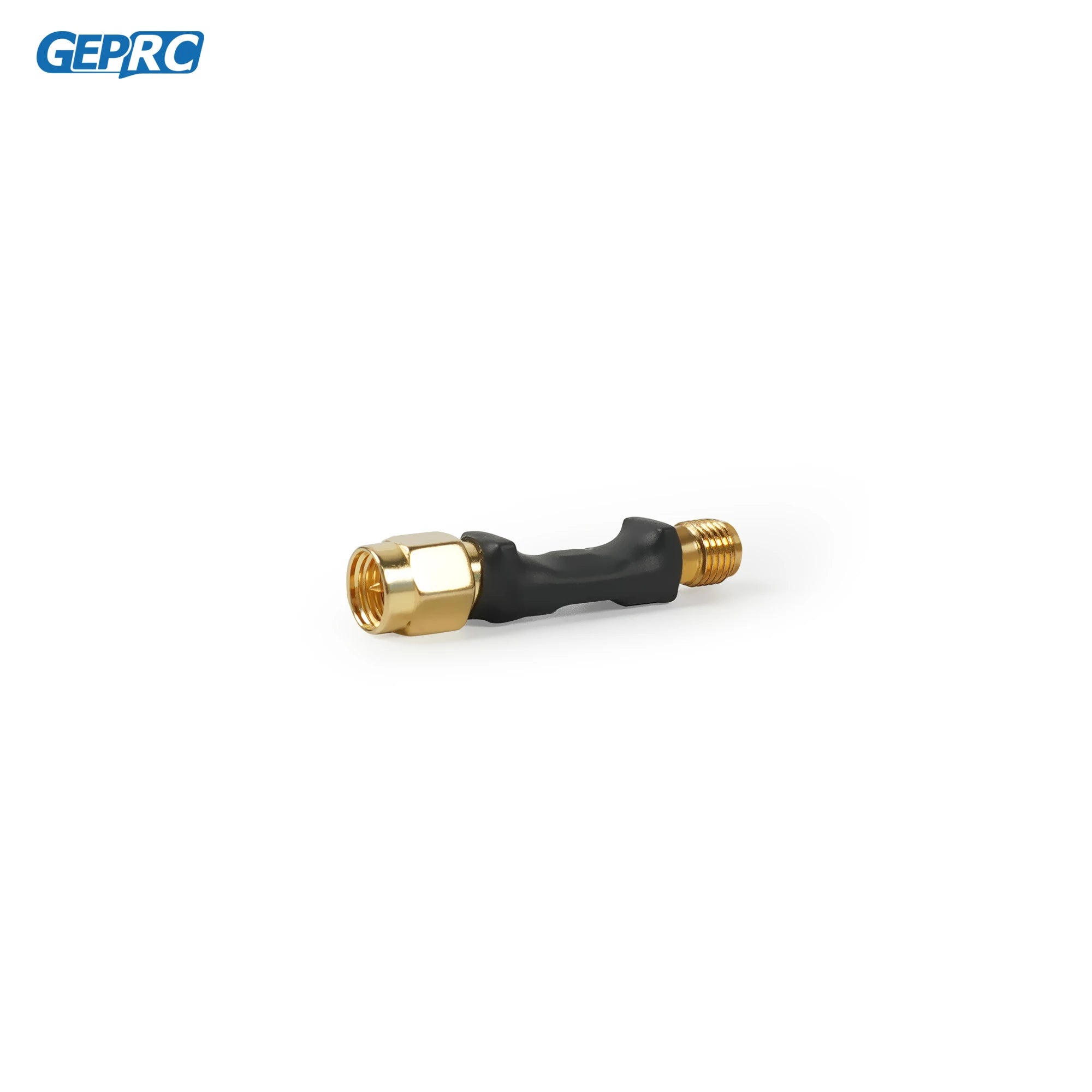

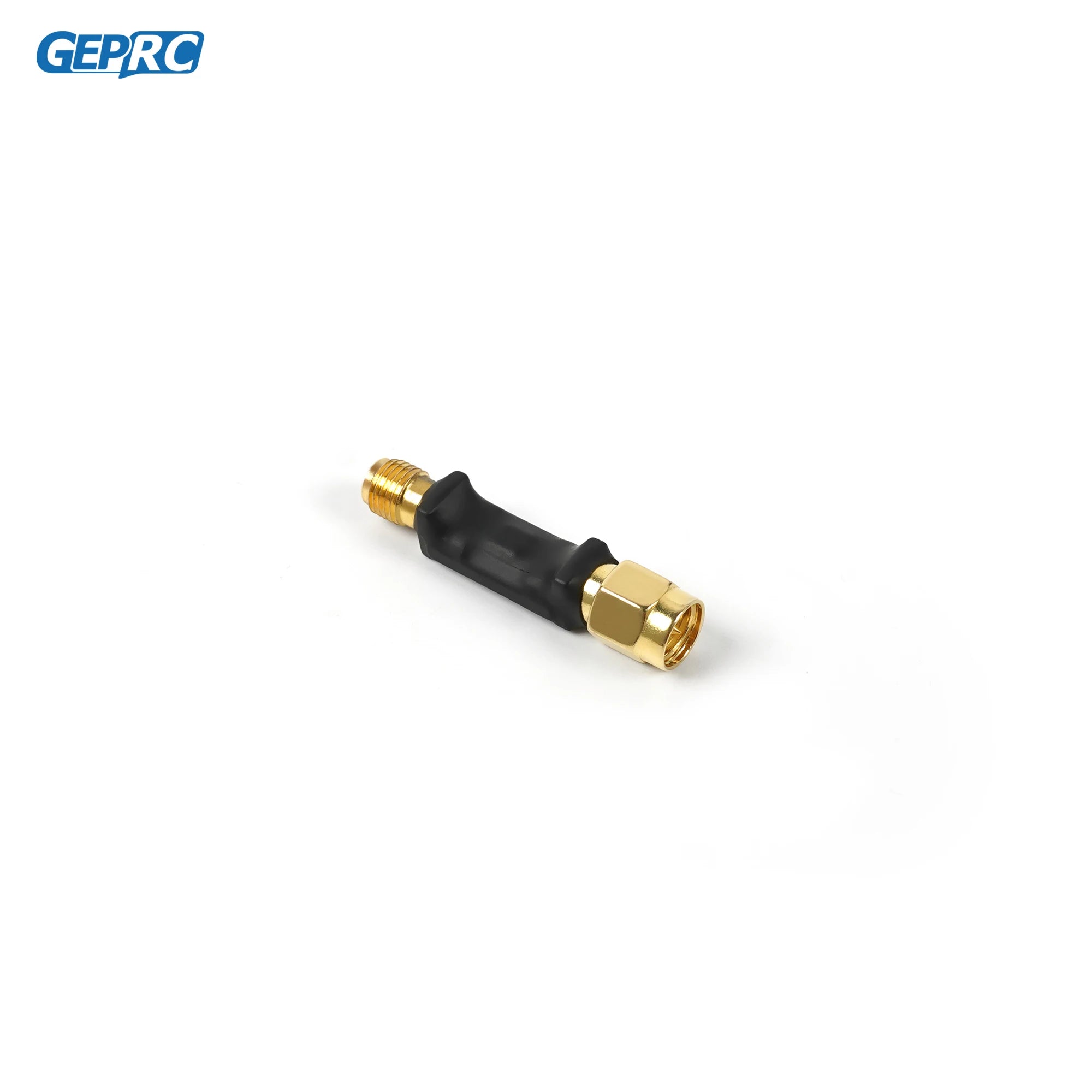

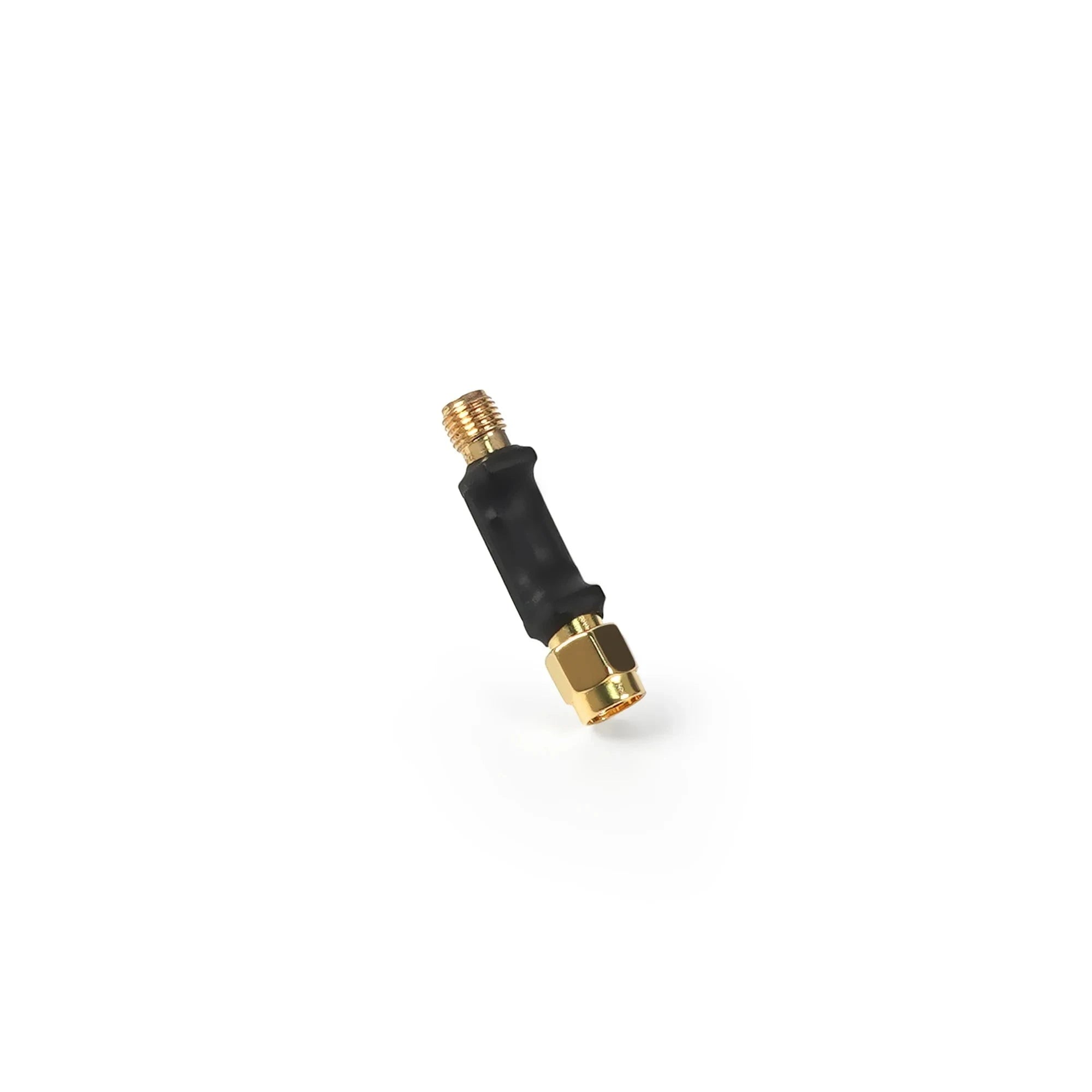

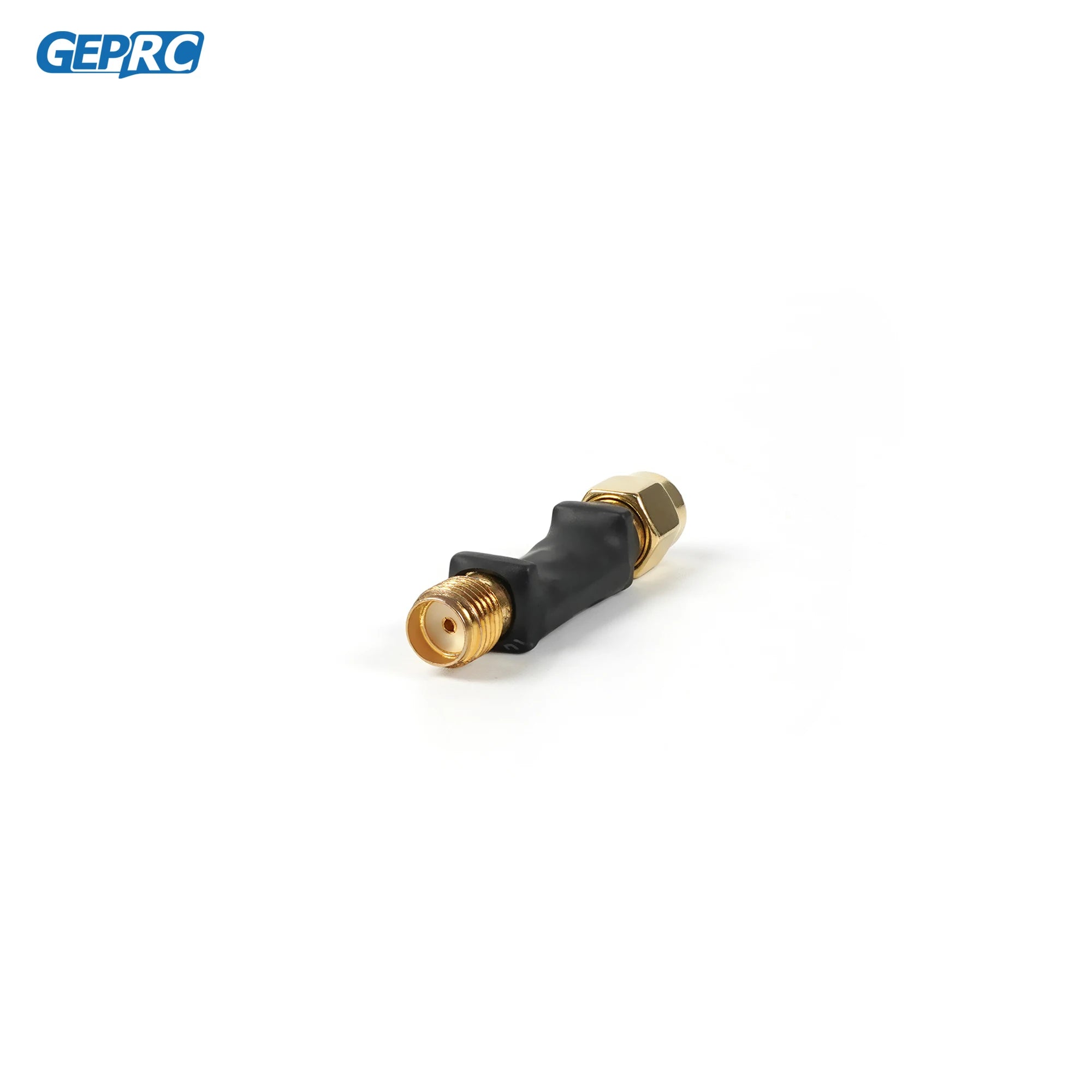

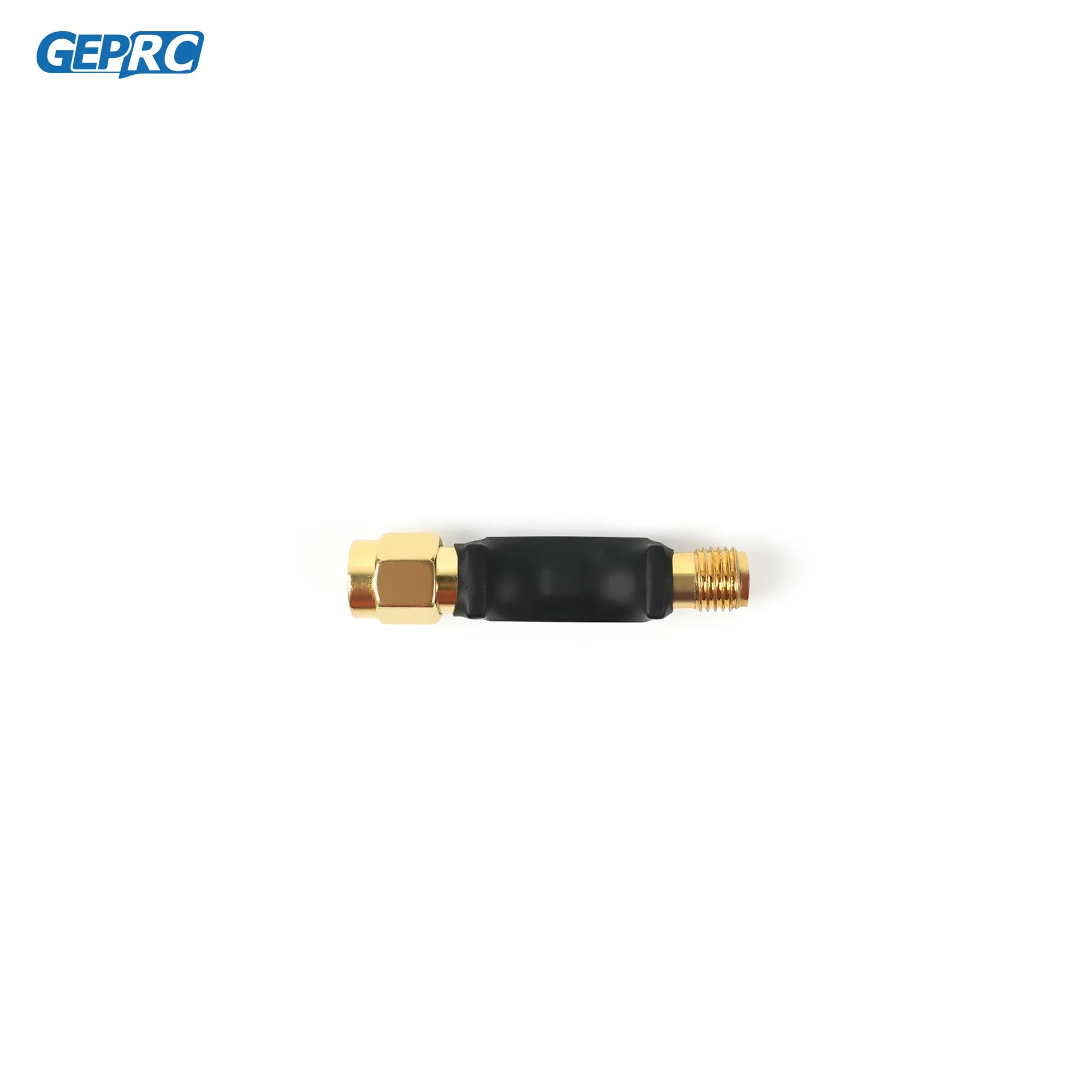

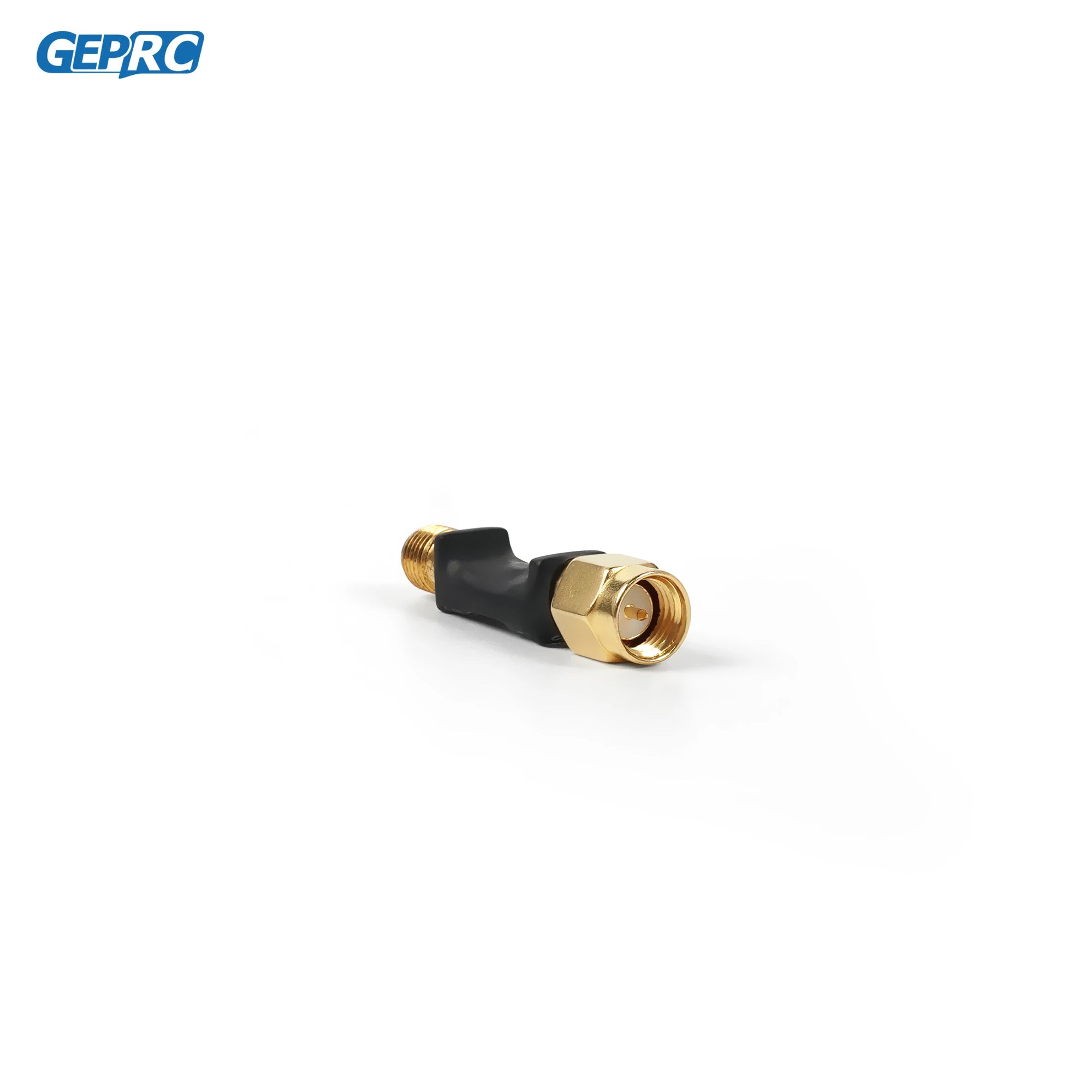

Product Name: 1.2G VTX filter

Material: Ceramic

Input and output impedance: 50Ω

Volume:37*8*7mm

Weight: 5.2g

Interface type: SMA(customizable)

The GEPRC 1.2G VTX Filter improves signal quality by separating the 915/868 MHz signals from the antenna and eliminating interference when co-located with remote control systems. By installing this filter, video signals are effectively filtered out.
