Product Details
Основные характеристики
- Delivers excellent torque and speed for its small size, light weight
- 3-pole motor
- Can be used for elevators, ailerons and rudders
- One year warranty
- Nylon gears
In The Box
- (1) S3107 Micro Servo with Futaba J male connector

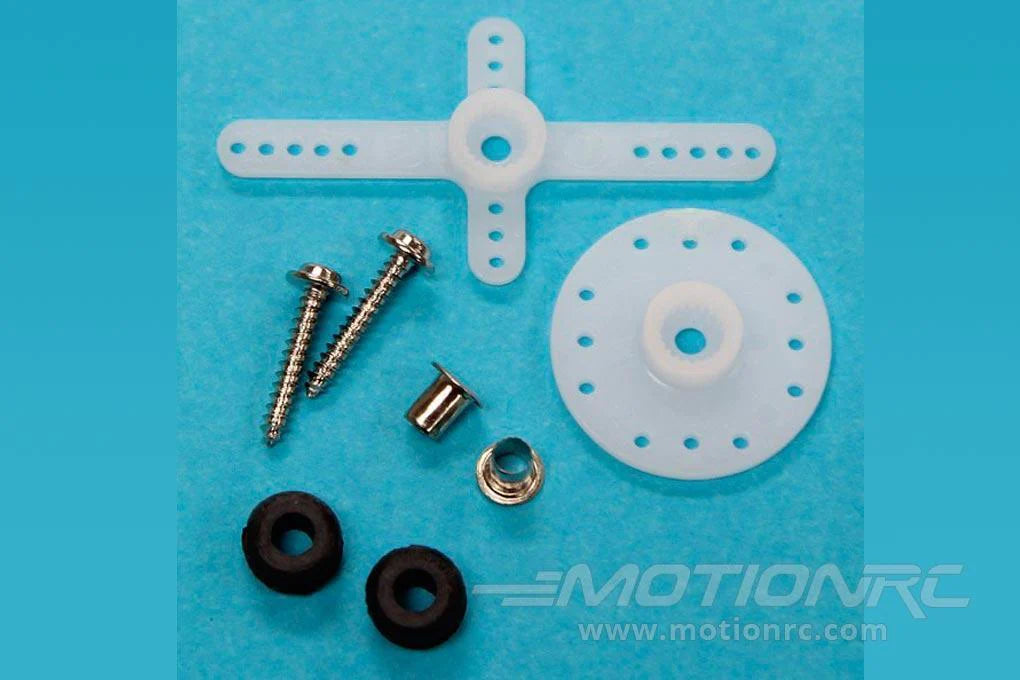

- Mounting hardware
Product Specifications
| Тип разъема | Futaba J |
| Servo Size Category | Micro |
| Размеры | 0.9 x 0.4 x 0.8″ (7/8 x 7/16 x 13/16″) (22 x 11 x 20mm) |
| Servo Type | Analog |
| Connector Wire Length | 5″ (127 mm) |
| Product Weight | 0.32 ounce (5/16oz) (9.0 grams) |

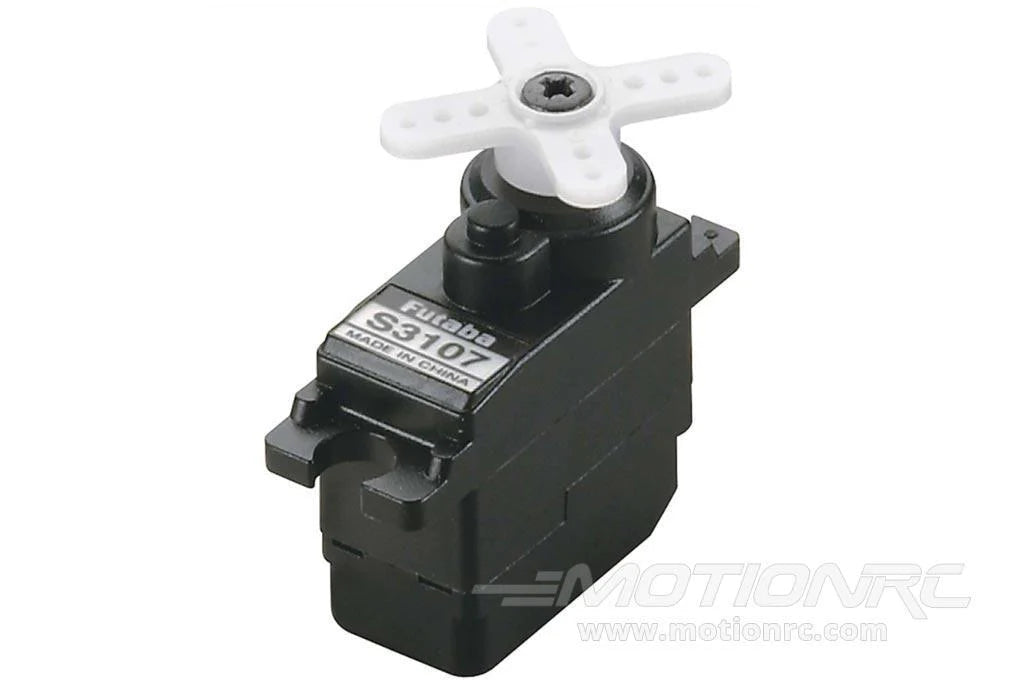

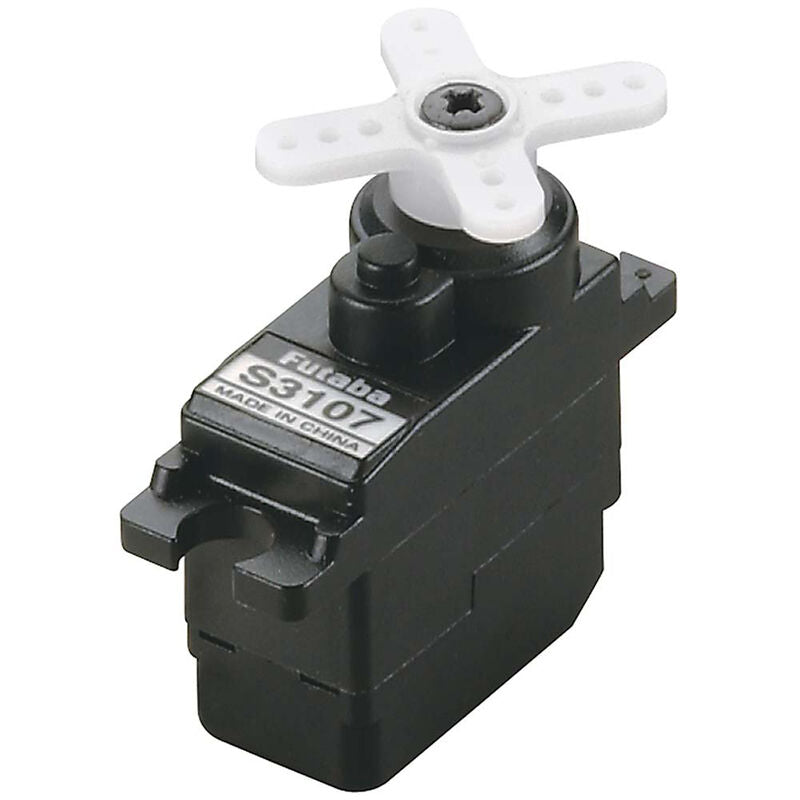

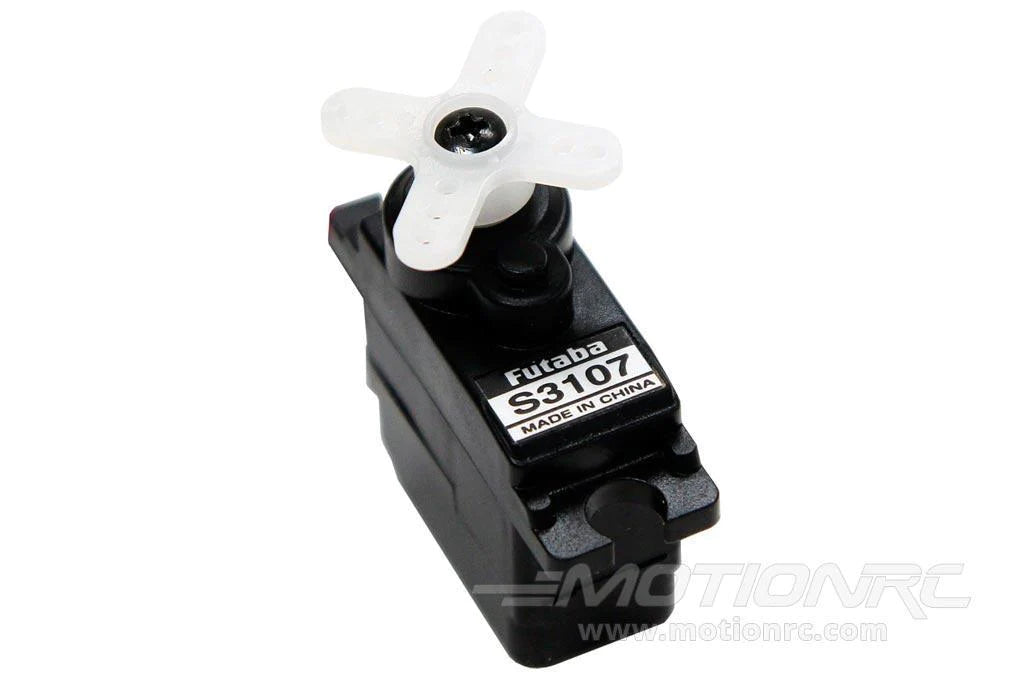

S3107 Nylon Gear Sub-Micro Servo from Futaba – FUTM0025
The S3107 sub-micro is a basic servo with excellent torque and speed that works well for 1400mm wingspan and smaller airplanes, small EDF jets, and 200 to 450 size helicopters.
Особенности:
- Quality basic servo perfect for 1400mm and smaller airplanes and small EDF jets
- Delivers excellent torque and speed for its small size, light weight 3-pole motor
- One year warranty
Includes:
- 1x S3107 nylon gear sub-micro servo
- Mounting hardware
Product Specifications:
|
Servo Class |
Sub-Micro |
|
Servo Type |
Analog |
|
Материал шестерни |
Nylon |
|
Direction |
Standard / Normal |
|
Operating Voltage Range |
4.8V |
|
Speed (4.8V) |
0.12 sec @ 60 deg |
|
Speed (6V) |
N/A |
|
Torque (4.8V) |
1.2 kg/cm (16.7 oz/in) |
|
Torque (6V) |
N/A |
|
Current Draw at Idle |
8 mA |
|
Current Draw Operating (No Load) |
N/A |
|

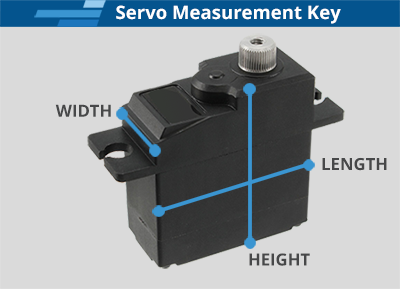

Dimensions (L x W x H) |
22 x 11 x 20mm |
|
Вес |
9g (0.32oz) |
|
Lead Length |
304.8mm / 12in |
