Характеристики
- СКОРОСТЬ: 0.14 sec/60°at 6.6V, 0.13 sec/60° at 7.4V
- КРУТЯЩИЙ МОМЕНТ: 98.6 oz/in at 6.6V, 109.7 oz/in at 7.4V
- РАЗМЕР: 1,6 дюйма x 0,8 дюйма x 1,4 дюйма
- ВЕС: 1.38 oz
- Composite Gearing
- 6mm/25T Spline
- 3Pole Cored Motor
Product Specifications
| Product Length | 0.8″ (20 mm) |
| Product Width | 1.5″ (38 mm) |
| Product Height | 1.6″ (41 mm) |
| Programmable | Да |
| Servo Size Category | Стандарт |
| Вес продукта | 1.38oz |
| Spline Count | 25 – Tooth |
| Water-Resistant | Нет |
| Gear Type | Composite |
| Servo Operating Voltage | 6.0 – 7.4V (HV) |
Описание

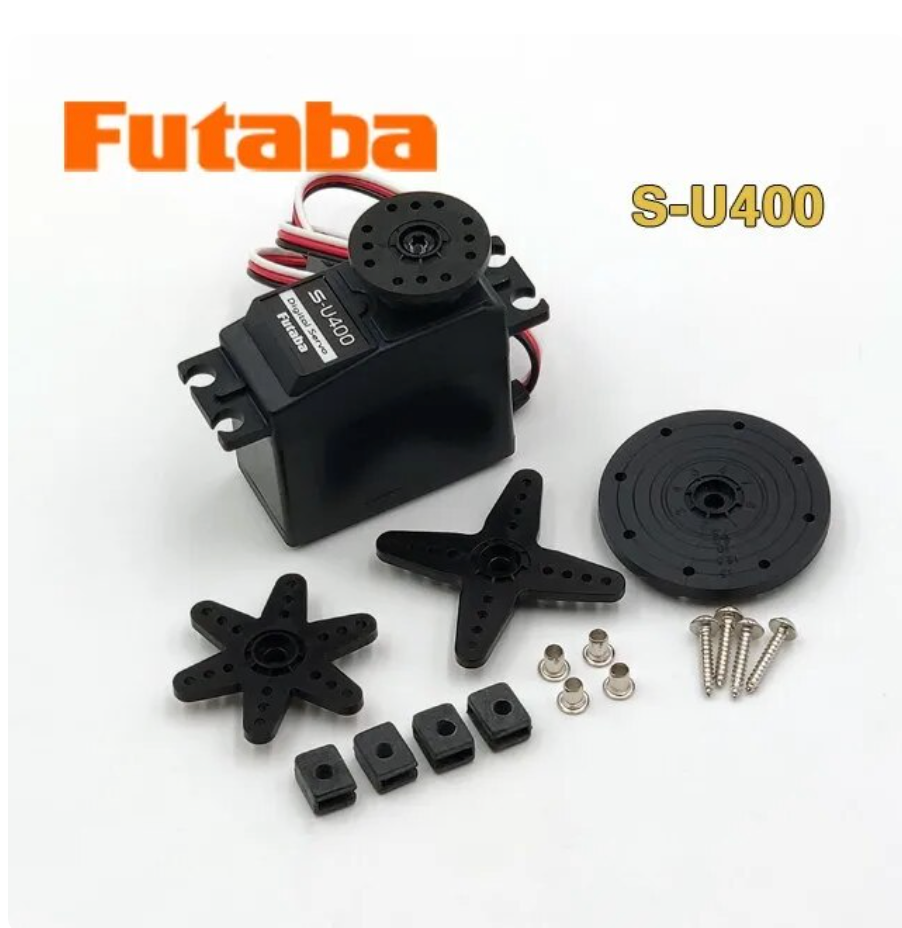

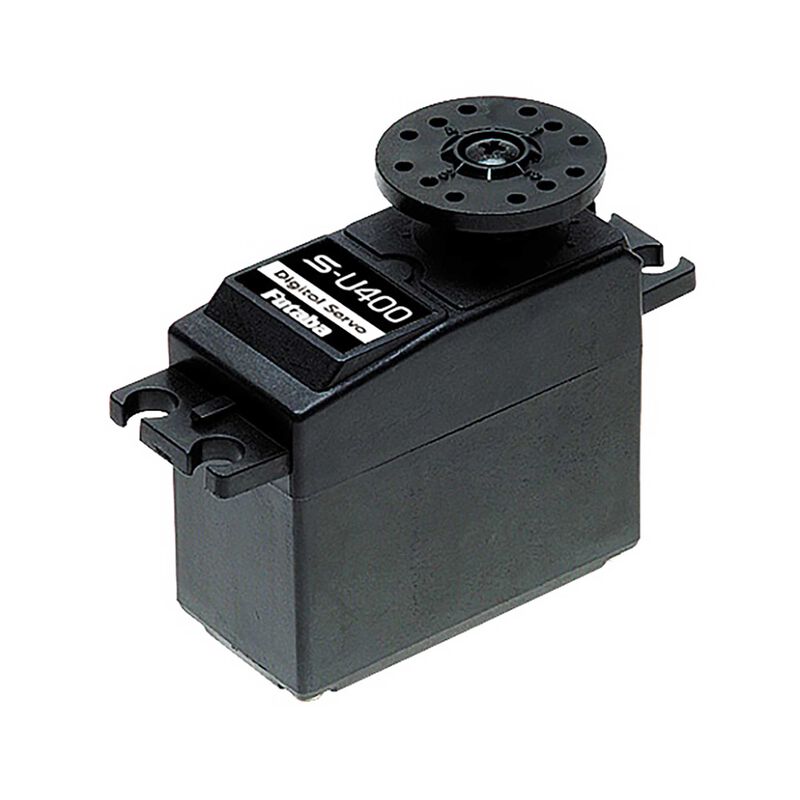

S-U400– Standard Digital and S.Bus2 Capable Airplane Servo with Accessory Pack
СКОРОСТЬ:
0.14 sec/60°at 6.6V
0.13 sec/60° at 7.4V
КРУТЯЩИЙ МОМЕНТ:
98.6 oz/in at 6.6V
109.7 oz/in at 7.4V

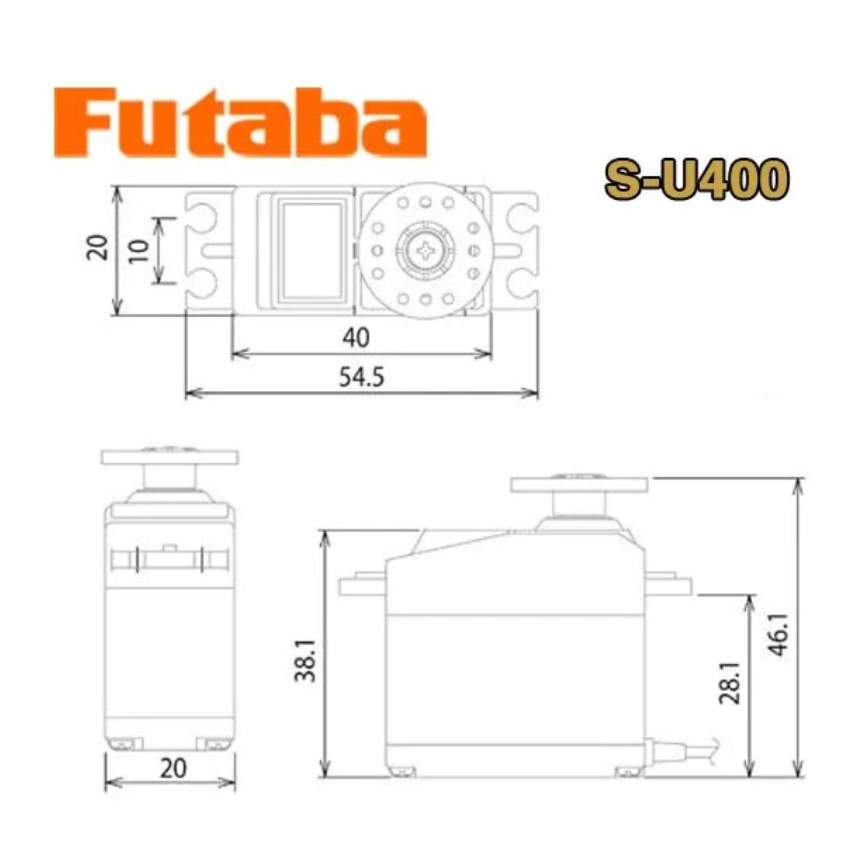

РАЗМЕР:
1.59 in x 0.79 in x 1.50 in
ВЕС:
1.38oz
Plastic Gearing
6mm/25T Spline
3Pole Cored Motor
SKU: 01102333-3
