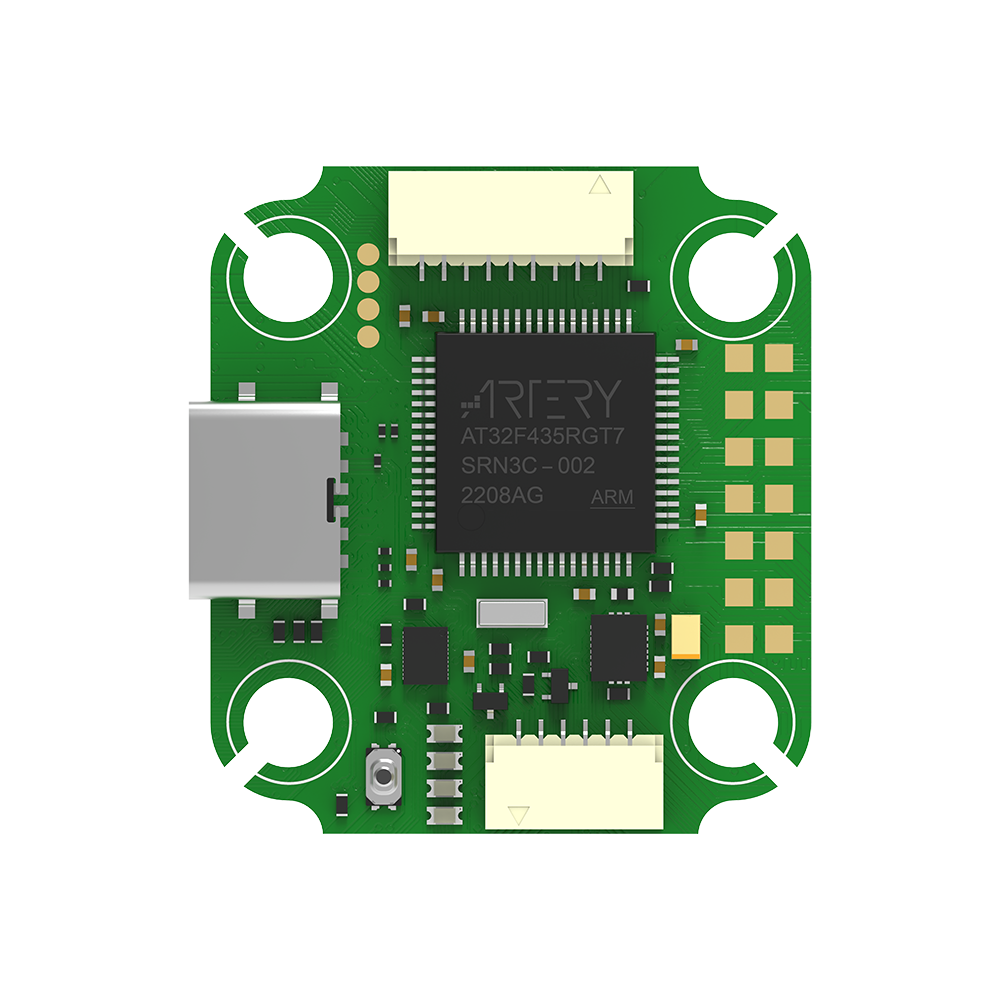

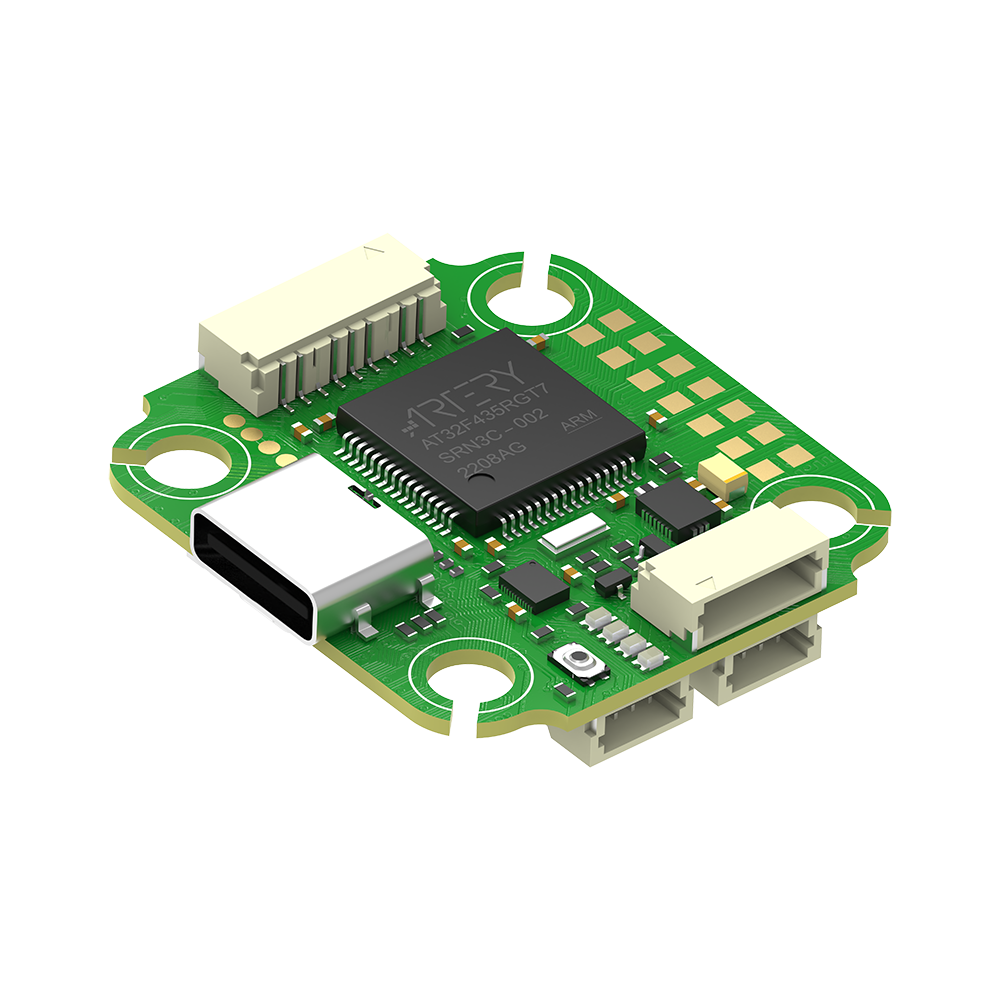

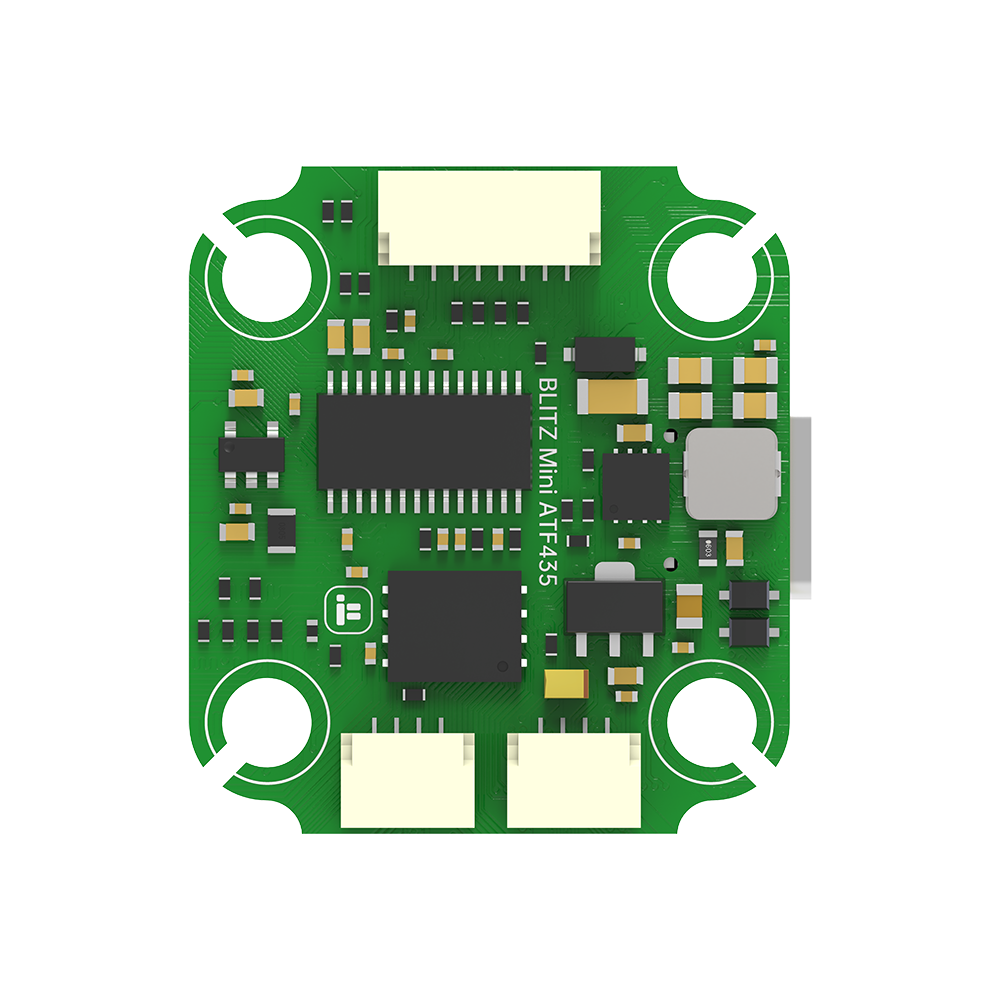

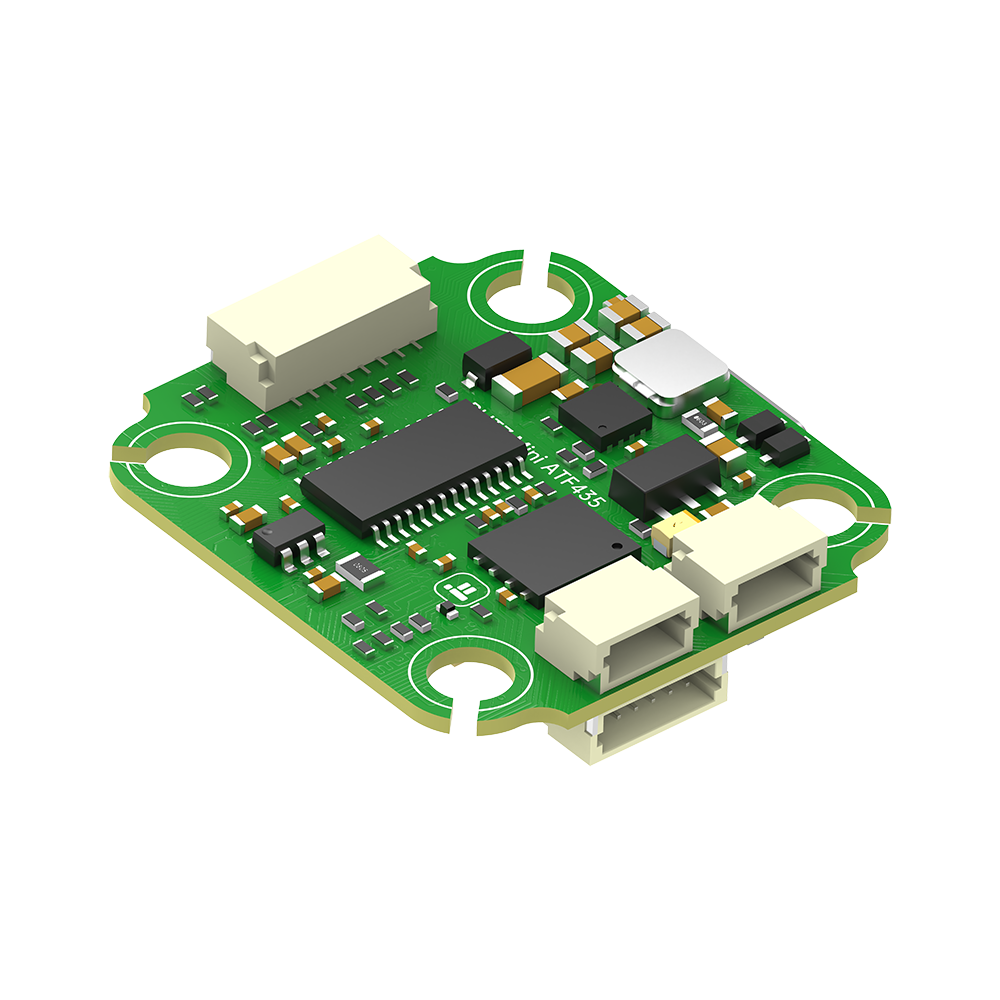

iFlight BLITZ Mini ATF435 Flight Controller

MCU: AT32F435RGT7

Gyro: BMI270

Barometer: DPS310

OSD Chip: AT7456E

Flash: 16MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFLIGHT_BLITZ_ATF435

Mount pattern: 20*20mm/φ4

Dimensions: 30.5*27mm

Weight: 5g

BEC: 5V 2.5A

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemet

1 x BLITZ Mini ATF435 Flight Controller
