iFlight BLITZ F7 Pro Combo Set (E80 Pro 4-IN-1 ESC) -BLITZ F7 Pro Flight Controller + BLITZ E80 4-IN-1 ESC with CNC Alum Cover

Improved circuit design, better components and lower electrical noise!

DJI HD VTX Connector (Plug-and-Play / No soldering required)

FC indicator LEDs for visual debugging

512MB BlackBox

With LC filter

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a

maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier

chip, supporting up to 100V.

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

Product Name: BLITZ F7 Pro Flight Controller

Mount pattern: 35*35mm/ 4mm PCB hole diameter

Smartaudio / IRC Tramp VTX protocol supported

Firmware target: IFLIGHT_BLITZ_F7_PRO

Input Voltage: 14.8V-34V (4S-8S LIPO)

Motor outputs: 4x (SH1.25 connector)

Flash: 512MB (Blackbox flash)

I2C serial: SDA / SLA pads

Dimensions: 41*41.5mm

Barometer: DPS310

OSD Chip: AT7456E

LED controller: Yes

МИКРОКОНТРОЛЛЕР: STM32 F722

Weight: 17g (±2)

Beeper pad: Yes

Gyro: BMI270

UARTS: 4

Product Name: BLITZ E80 4-IN-1 ESC

Input Voltage: 2-8S

Max. Continuous Current: 80A

Max. Burst Current: 100A

MCU: G071

BEC: No

Firmware: BLHeli32

Датчик тока: Да

Telemetry: Supported

Target: IFLIGHT_BLITZ_G2

Mounting Dimensions: 35x35mm/Φ3mm

Dimensions: 35x42mm

Weight: 65g(±10)

Protocal:Supports DShot DShot150/300/600/MultiShot/ OneShot etc

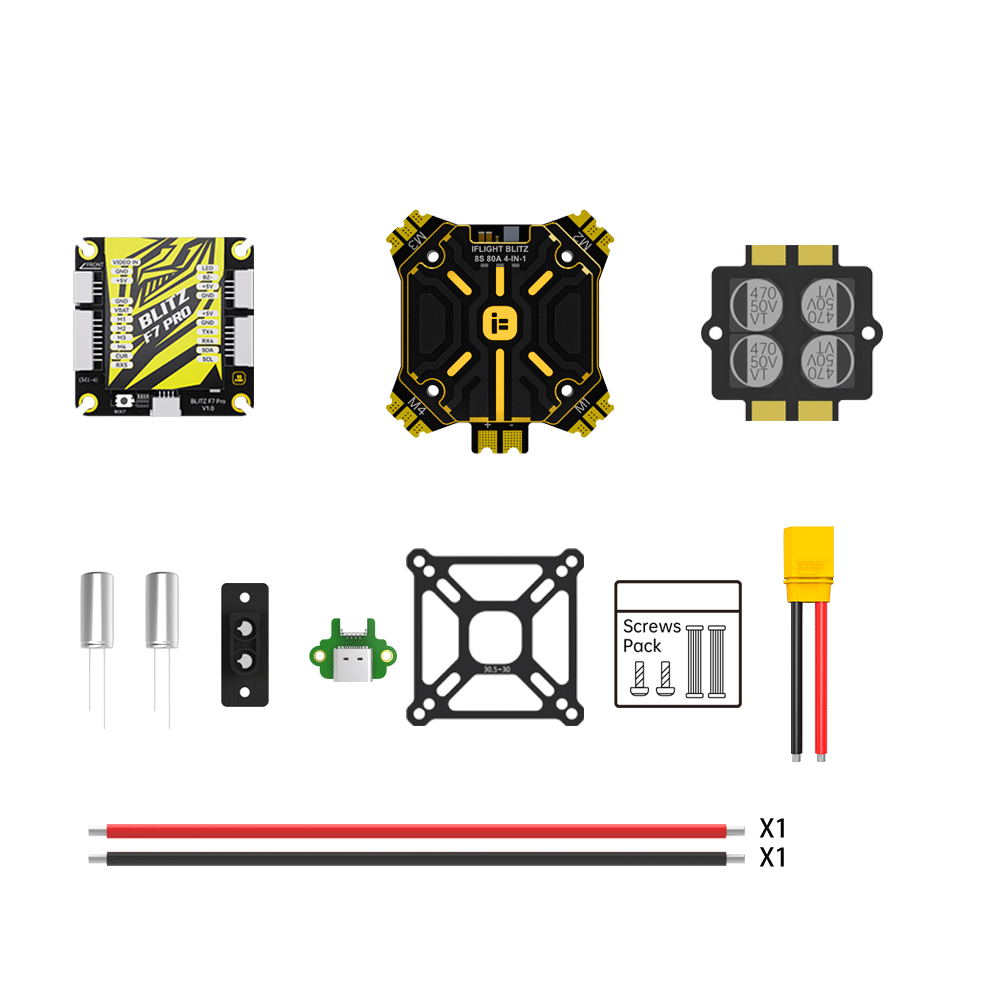

1 x BLITZ F7 Pro Flight Controller

1 x BLITZ E80 4-IN-1 ESC with CNC Alum Cover（Combo1）

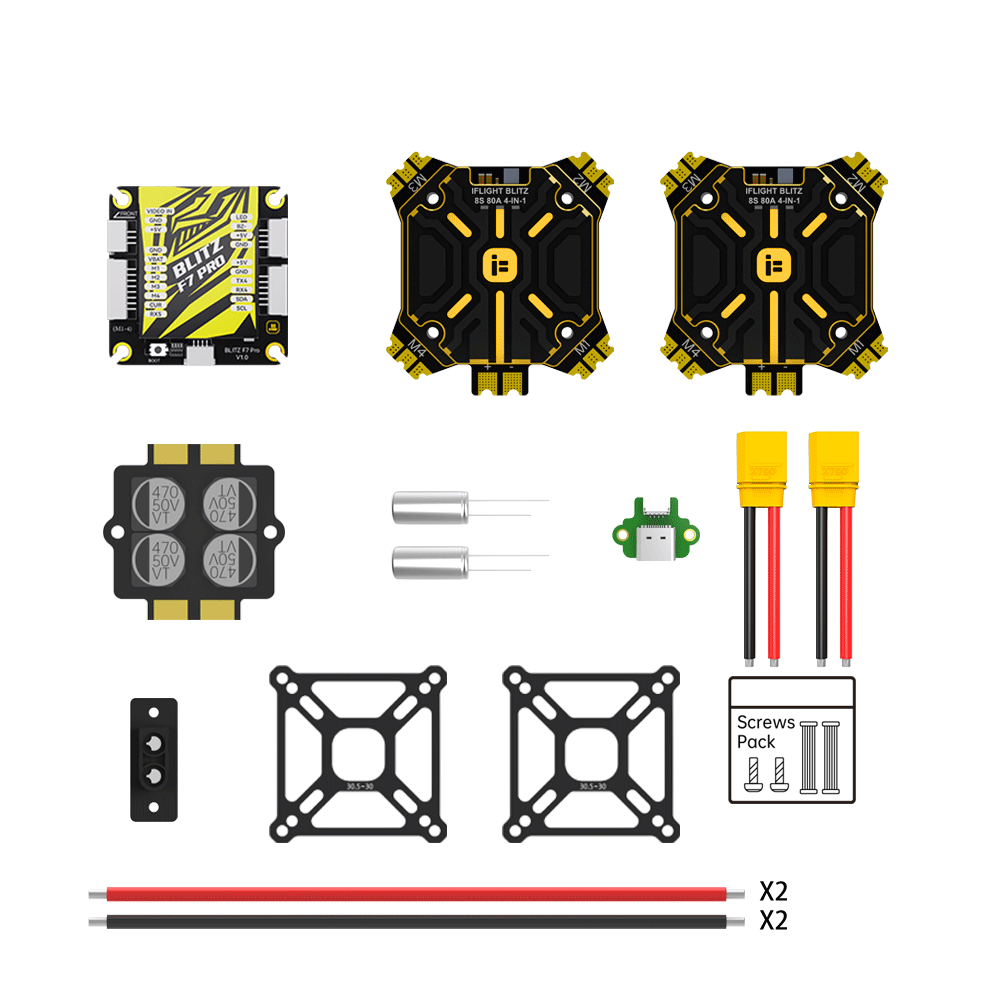

2 x BLITZ E80 4-IN-1 ESC with CNC Alum Cover（Combo2）

1 x 50V 470UF capacitor Plate

2 x 50V 470UF capacitor

1 x Wiring set

1 x USB Adapter Board
