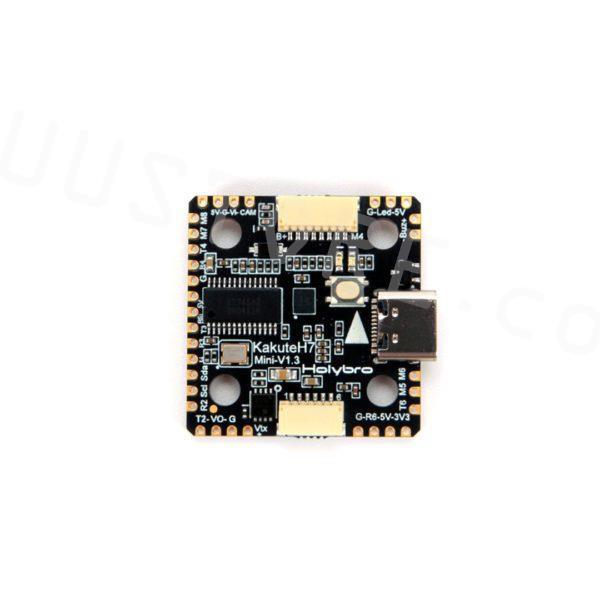

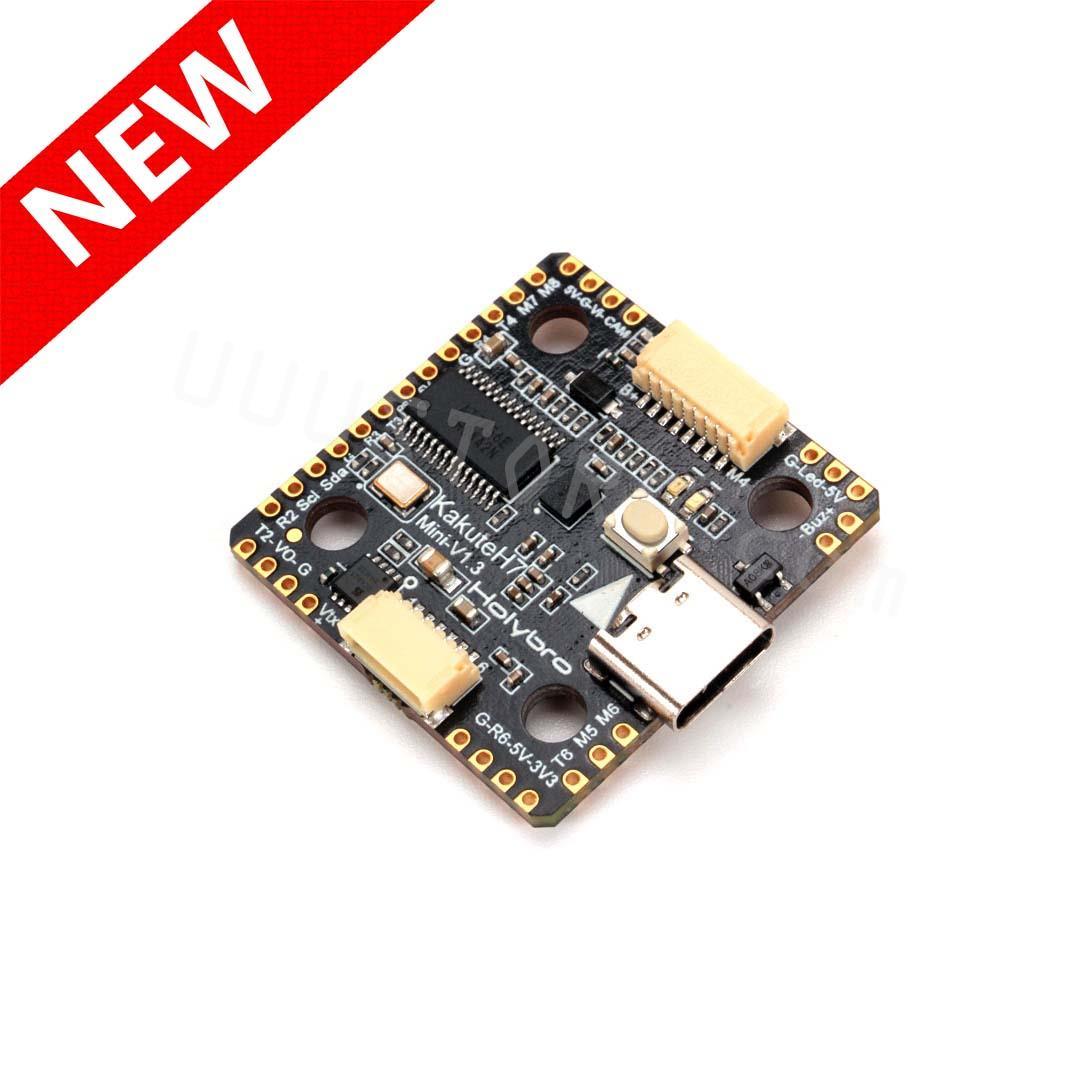

Holybro Kakute H7 Mini Flight Controller – W/ BetaFlight OSD 6x UART Port BMI270 F7 predecessor 32Bit Support Octocopter

Описание:

The Holybro Kakute H7 Mini is a Flight Controller full of features including onboard VTX ON/OFF Pit Switch with battery voltage, HD System/VTX & 4in1 ESC plugs, barometer, OSD, 6x UARTs, easy soldering layout and much more.

The Kakute H7 Mini builds upon the best features of its F7 predecessor and further improves on hardware components and layout. HD ready, it has an easy plug to power HD system like Caddx Vista while supporting analog system. It features an onboard “VTX ON/OFF Pit Switch” that allows you to completely power off the video transmitter using a switch on your RC transmitter. Great if you are working on your drone, waiting for the GPS to get a fix, getting ready for a race while preventing it from overheating or interfering with others flying.

It has 6x dedicated UART ports with built-in inversion for peripherals, 4in1 ESC plug, and x8 compatible with M5-M8 Signal Pads, allowing easy support for x8 Octocopter configuration. The integrated BetaFlight OSD makes it easy to display important information on your FPV display like battery voltage, flight time, warnings, RSSI, smart audio features and more. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers.

Update: Version 1.3 now has 1Gb Nand-Flash memory & BMI270 (instead of MPU6000).

VTX+ ONIOFF switch allows vou completelv power off the video transmitter using switch on your RC transmitte . DJI/Caddx Digital FPV System with Air Unit or Caddx Vista Note; If you are not using the DJI Remote SNB Controller; not connect the wires .
