ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Warning: Minors please use under the supervision of an adult
Разрешение видеозахвата: 720P HD
Тип: HELICOPTER
Штат Ассамблеи: Почти готово
Удаленное расстояние: 300 метров
Пульт дистанционного управления: Да
Рекомендуемый возраст: 12+y
Рекомендуемый возраст: 14+y
Источник питания: Электрический
В комплект входит: Operating Instructions
В комплект входит: Оригинальная коробка
Происхождение: Материковый Китай
Уровень квалификации оператора: Intermediate
Уровень квалификации оператора: Новичкам
Уровень квалификации оператора: Эксперт
Двигатель: Бесщеточный двигатель
Номер модели: Dolphin ToothPick Drone 4inch
Материал: Металл
Материал: Углеродное волокно
Материал: Пластик
Внутреннее/наружное использование: Крытый и открытый
Время полета: 5 minutes
Характеристики: App-Controlled
Размеры: 4 inch
Режим контроллера: MODE2
Режим контроллера: MODE1
Каналы управления: 8 каналов
Название бренда: GEPRC
Аэрофотосъемка: Да
Резюме:

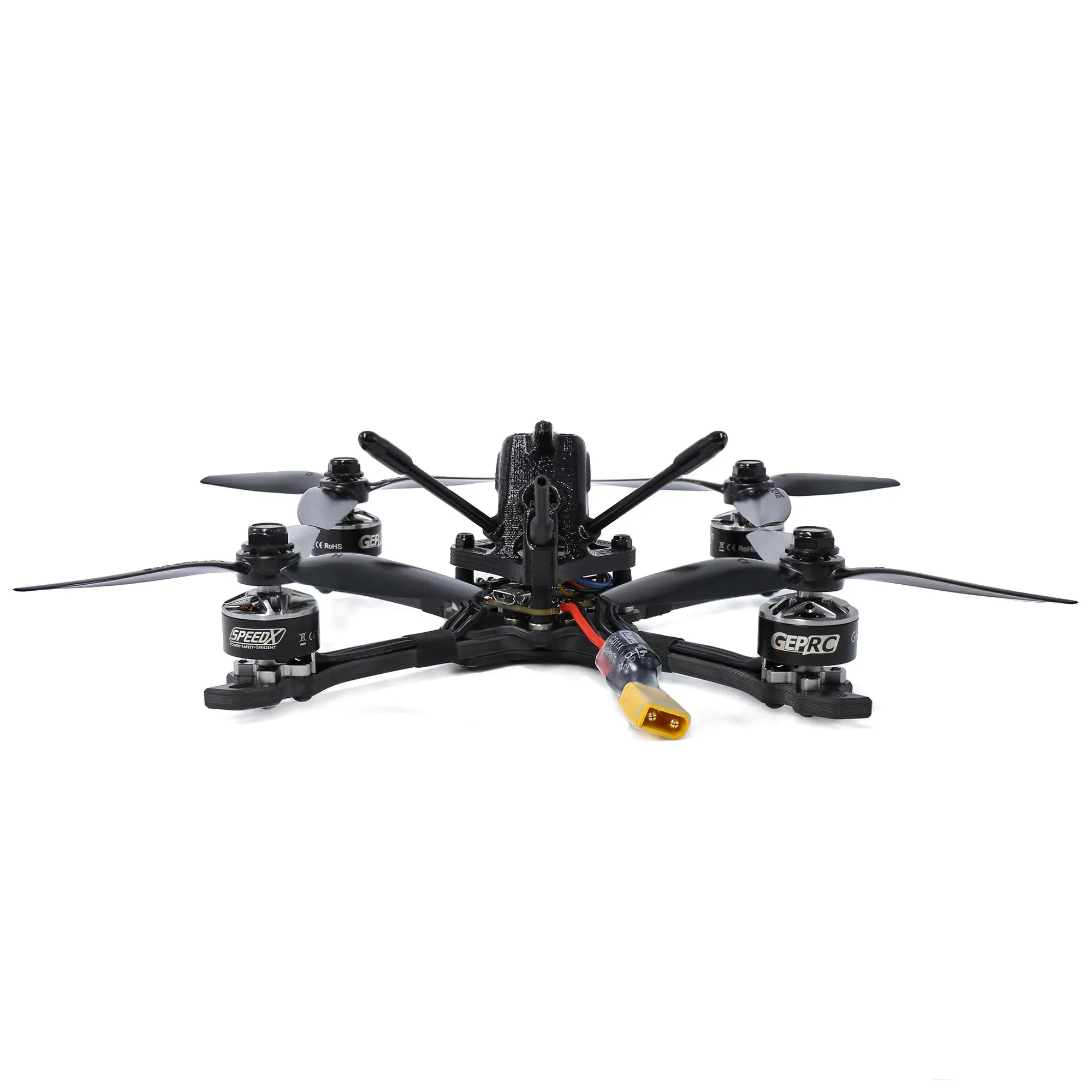

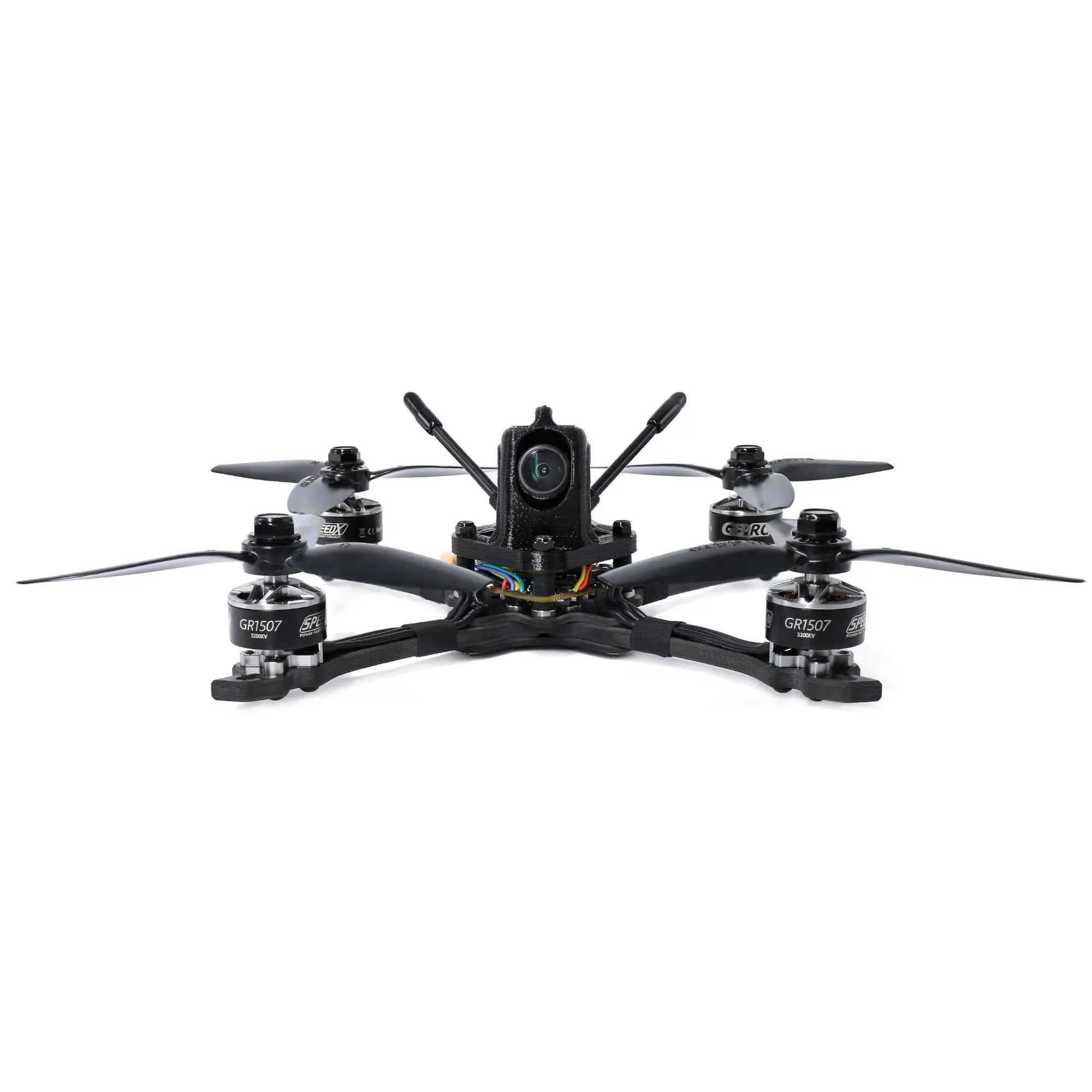

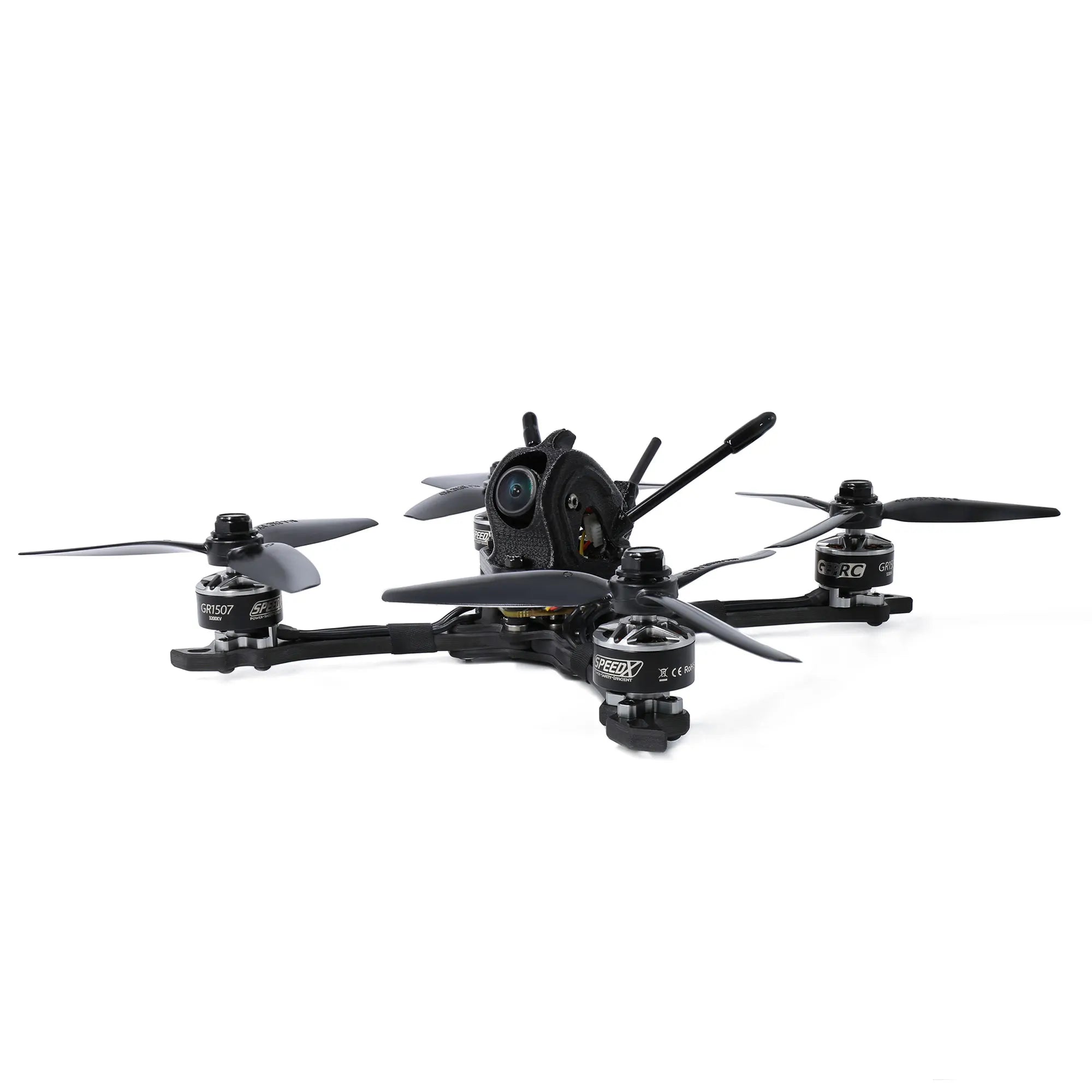

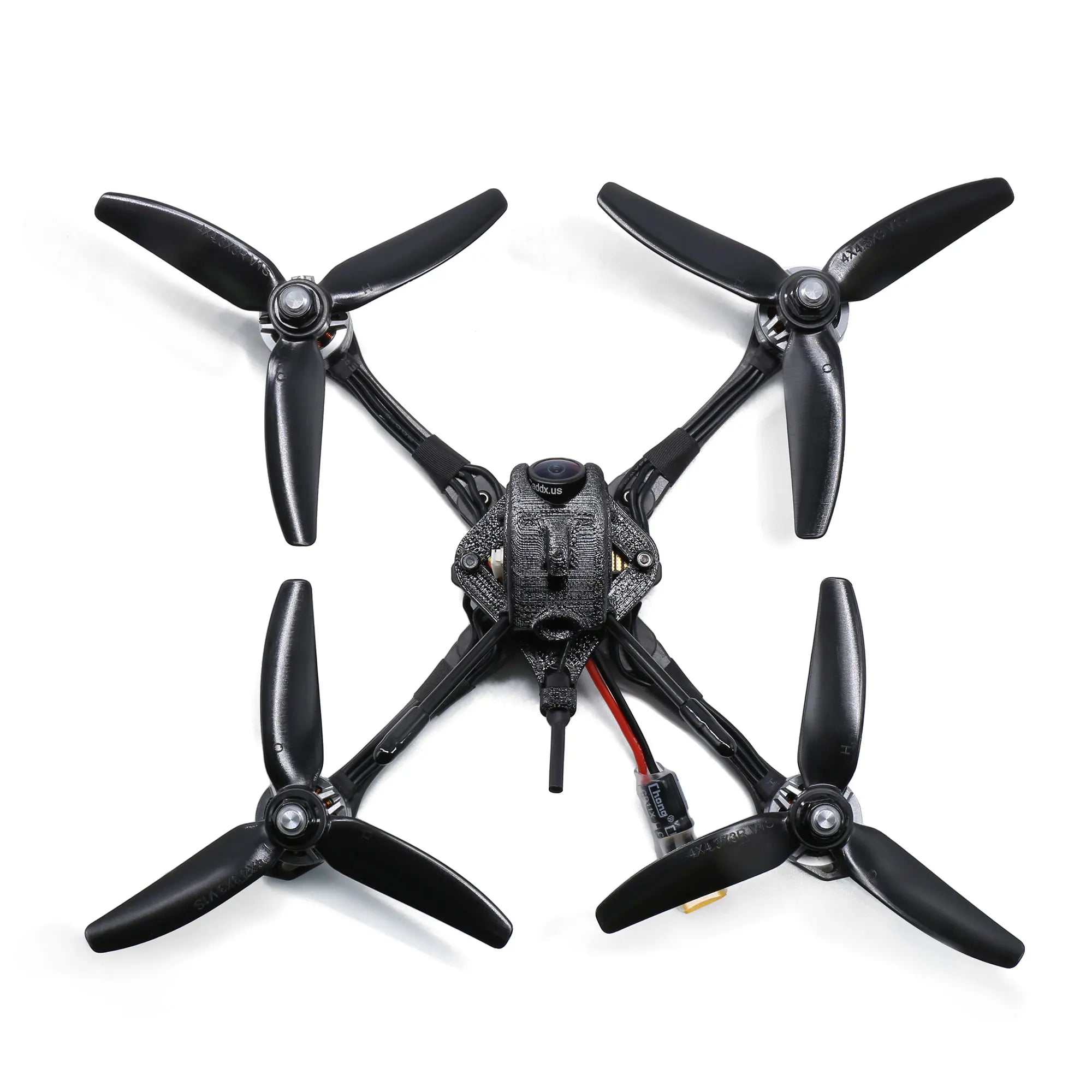

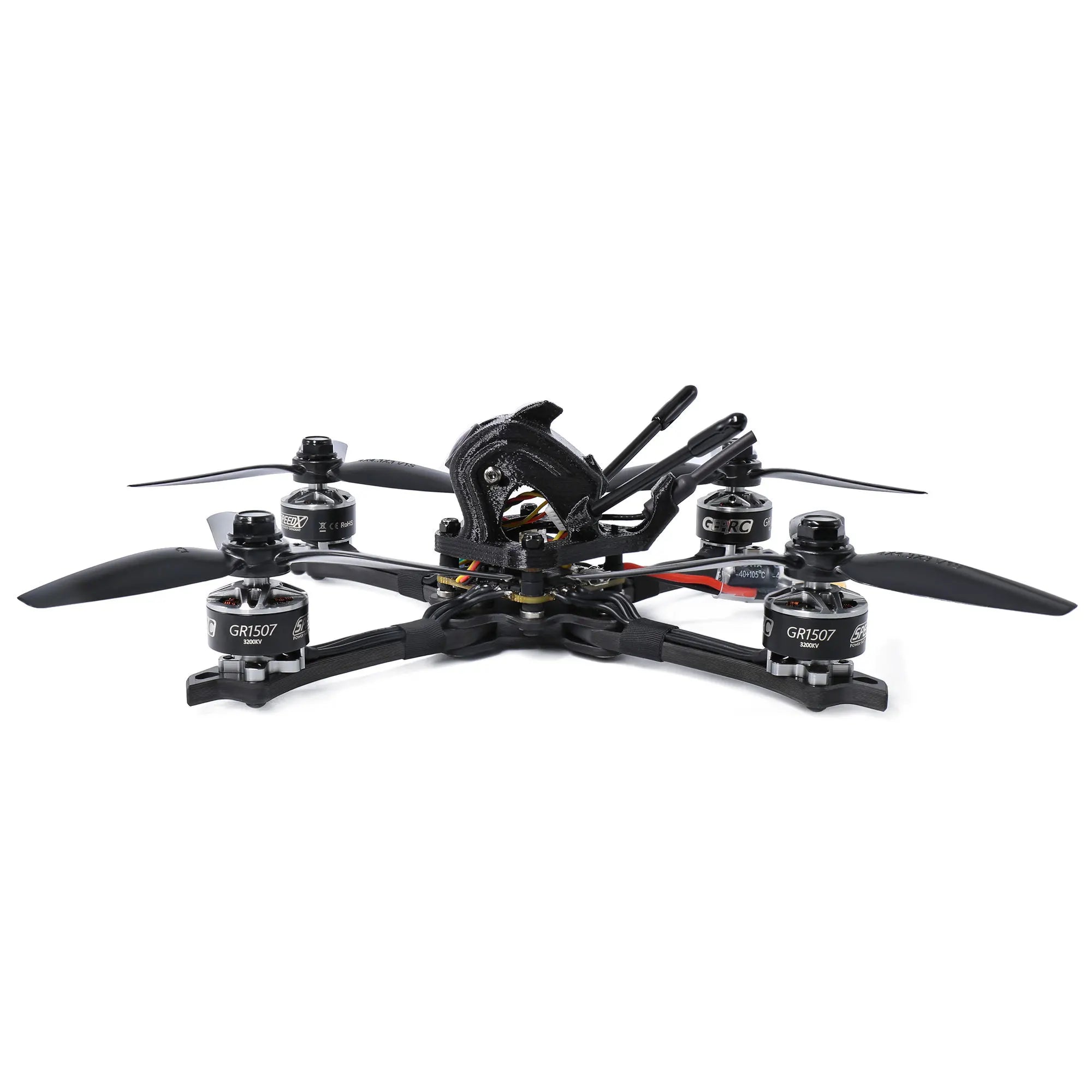

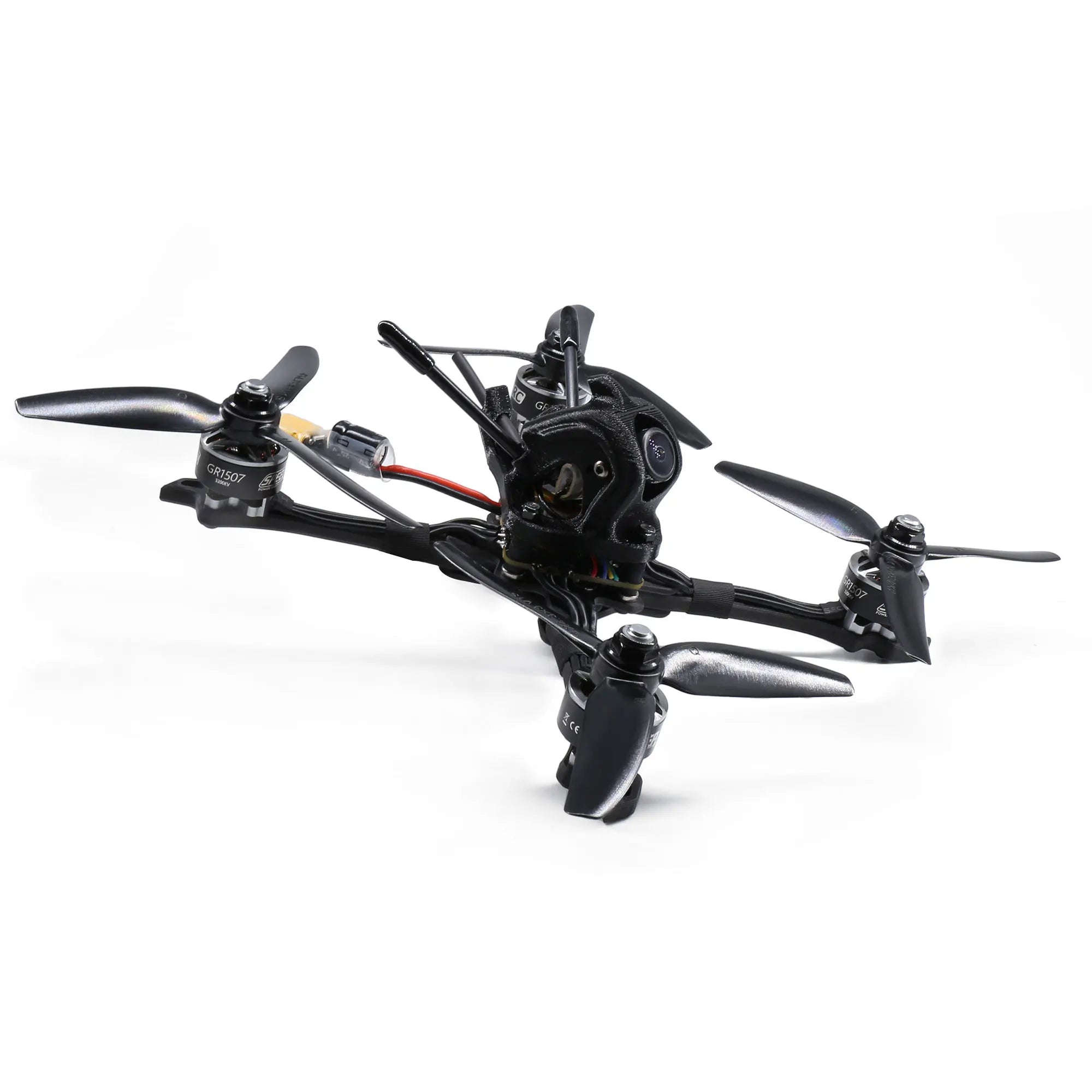

Dolphin 4 inch toothpick completely implement adds power and performance to the small and light frame, allowing you to experience the fun of great toothpick flying.
136 grams without battery weight, 153mm wheelbase, using a powerful 1507 motor with HQ 4×4.3×3 V1S propeller, sufficient power and guaranteed efficiency. (4S-650 ~ 850mAh recommended)
Flight control with powerful GEP-20A-F4 AIO, integrated board F4 flight control, ESC continuous current reaches 20A, stable and high-performance computing STM32F411 chip with MPU6000 gyroscope to ensure flight stability and very smooth feel. Firmware target MATEKF411 (MK41), built-in Betaflight OSD, integrated LC filter. The flight controller has a silicone grommet included, and the adjusted PID has a significant noise reduction effect.
The Dolphin is re-engineered by professional assembled and debugged by GEPRC team. This mini Quad has excellent flight performance. The BNF version comes with a compatible receiver, it can fly as long as press BIND button with your Radio transmitter . (PNP needs own receiver to buy separately)
Особенности:
Ultra-light 4 inch toothpick frame, 3K carbon fiber bottom structure, True X frame design, split structure
High-Quality TPU 3D printed canopy with exquisite design

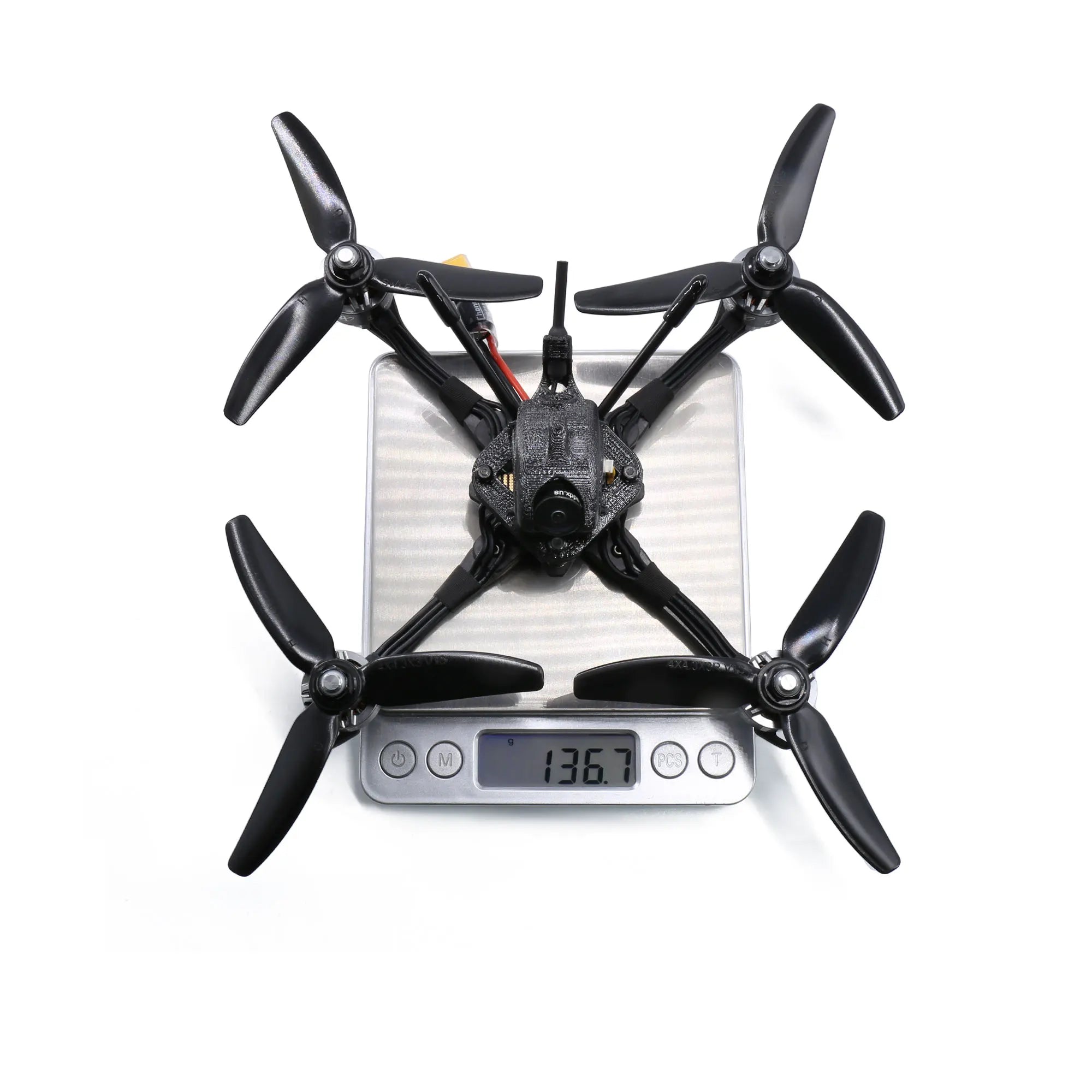

136 grams without battery weight, ultra light weight, enjoy fast and Furious flying
Equipped with Caddx Turbo EOS2, 1200TVL, the minimum latency 3ms
The flight controller uses STM32F411 with MPU6000 gyroscope to work, and BLheli_S 20A ESC, smooth and smooth flight
1507 3200KV motor with HQ4x4.3×3 V1S powerful and efficient power perfect matching
The PID is carefully tuned by the GEPRC pilot team, and The BNF version comes with a compatible receiver, it can fly as long as press BIND button with your Radio transmitter right on your hand
Технические характеристики:
Model:Dolphin 4″
Flight Controller:GEP-20A-F4 AIO
Camera:Caddx Turbo Eos2
Motor to motor:153mm
Propeller:HQ4x4.3×3 V1S(4 pairs)
Antenna:RG137 5.8g RHCP
Motor to motor:1507 3200KV
Weight:136g without battery
Receiver:Without Receiver/Frsky R-XSR / Frsky XM+ /
Frame: GEPRC GEP-DX4
Carbon:Full 3K carbon fiber
Motor to motor: 153mm
Bottom plate: 2mm
Reinforce plate: 2mm
Arms plate: 4mm
Flight Controller: GEP-20A-F4 AIO
MCU: STM32F411
Gyro:MPU6000
OSD: BetaFlight OSD с чипом AT7456E
Firmware target: MATEKF411
ESC: 20A * 4 BLHeli_S (Dshot/Multishot/OneShot) support 2~4S LiPo
VTX: 5,8 ГГц (48 каналов IRC Tramp,PIT/25/100/200мВт)
Включая:
1x Dolphin4″ FPV Drone BNF/PNP
4x HQ 4×4.3×3 V1S (pairs)
1x Battery pad
2x Ремешок для батареи 15*120
1x M8 wrench
1x 1,5 мм L-образная отвертка
2x antenna tubes
