Введение:

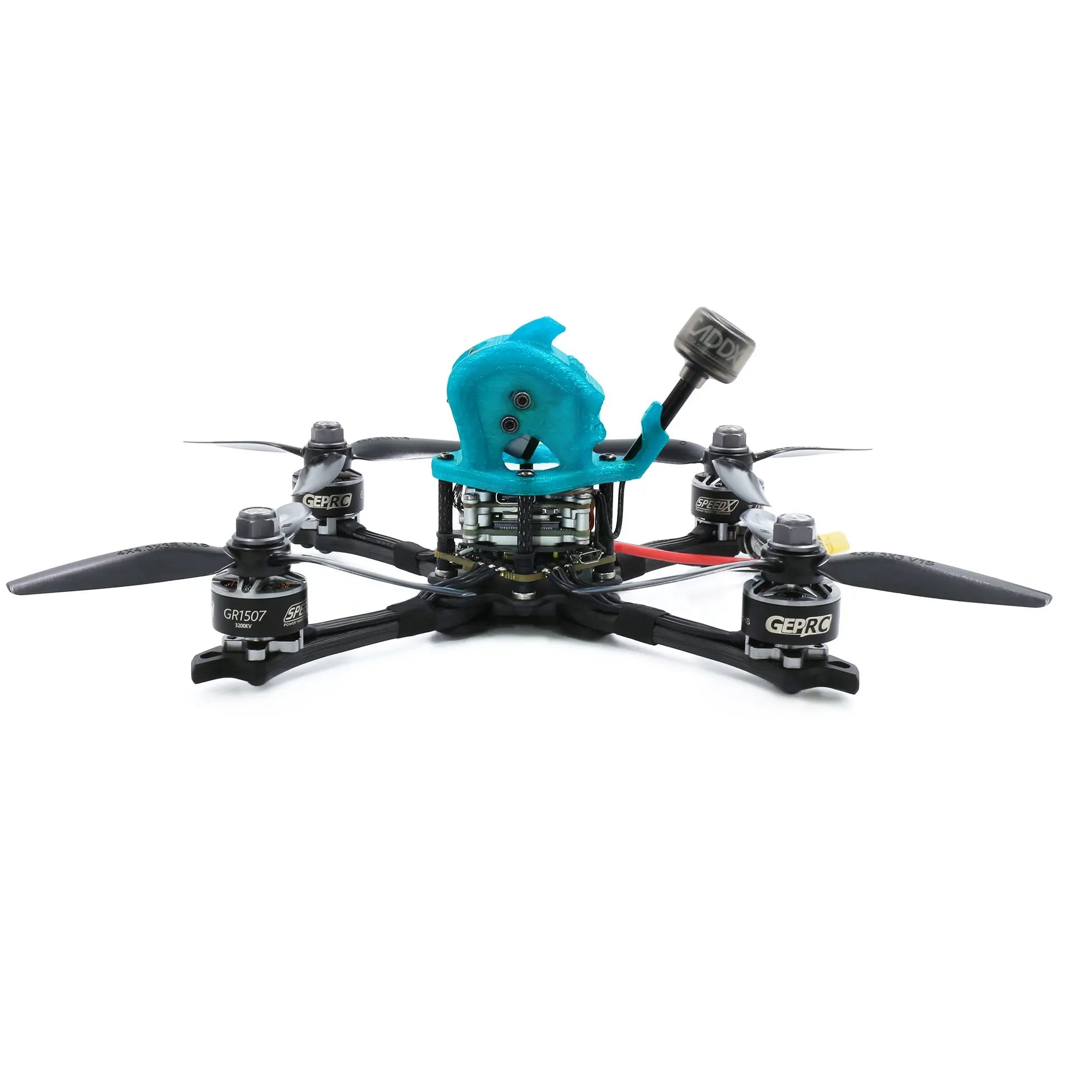

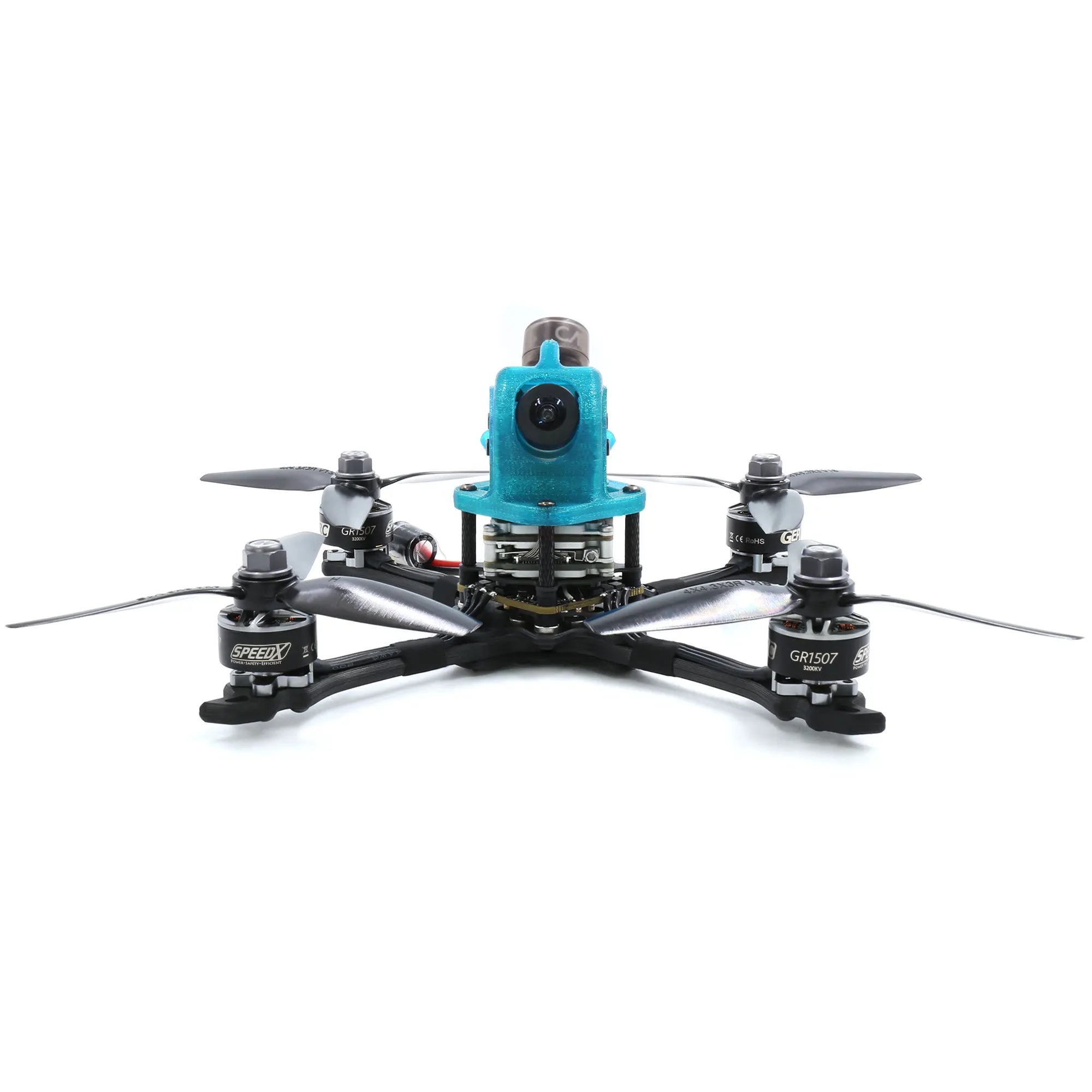

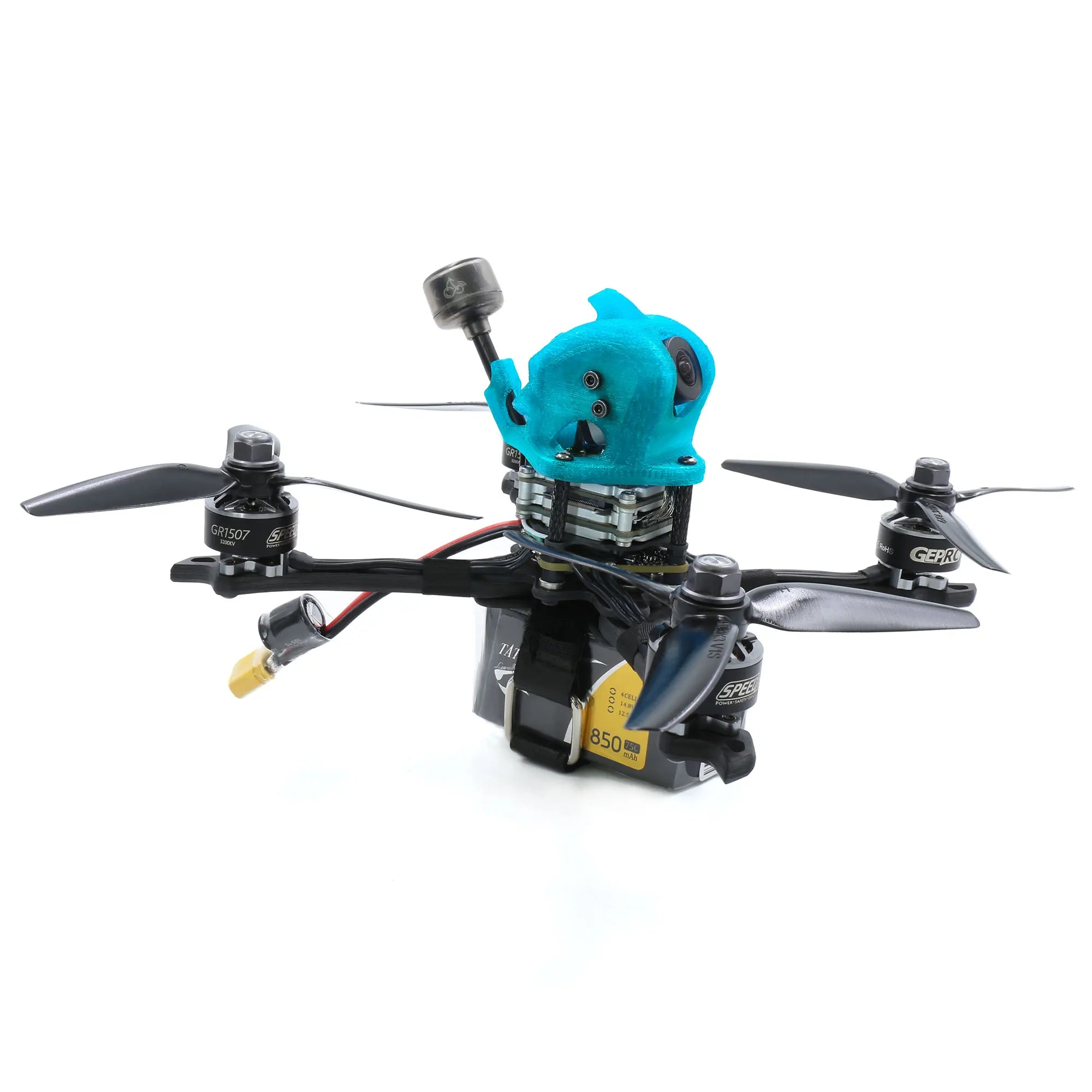

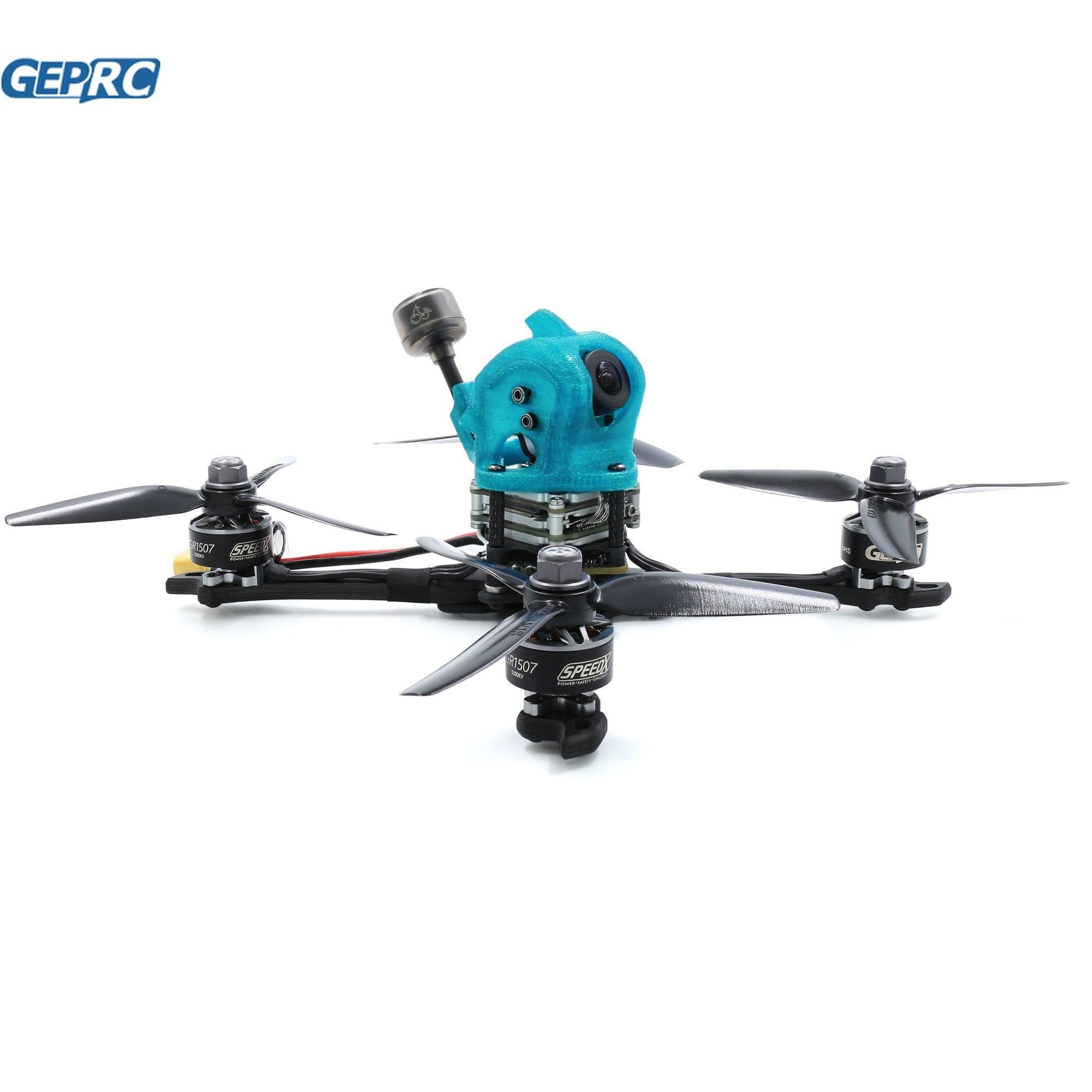

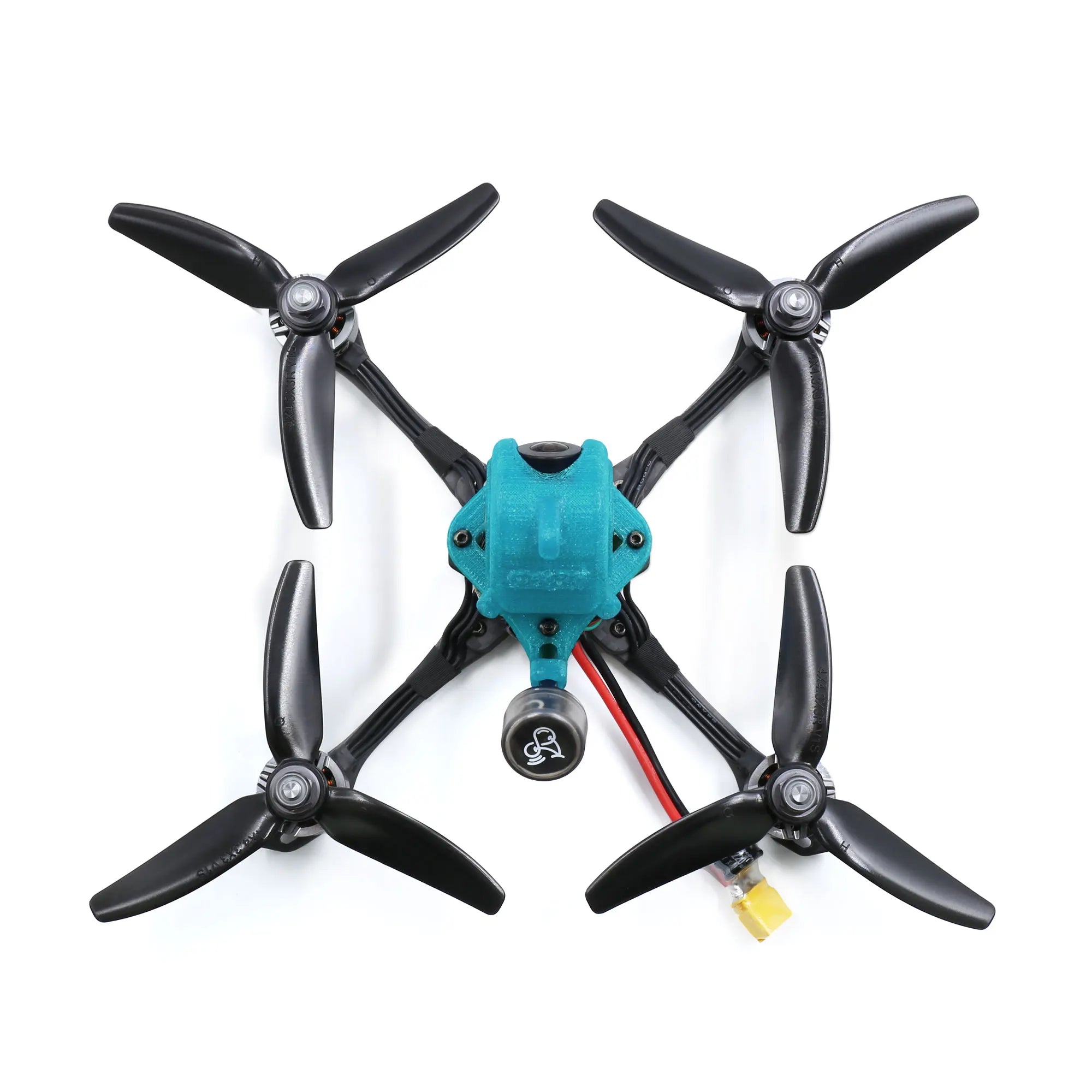

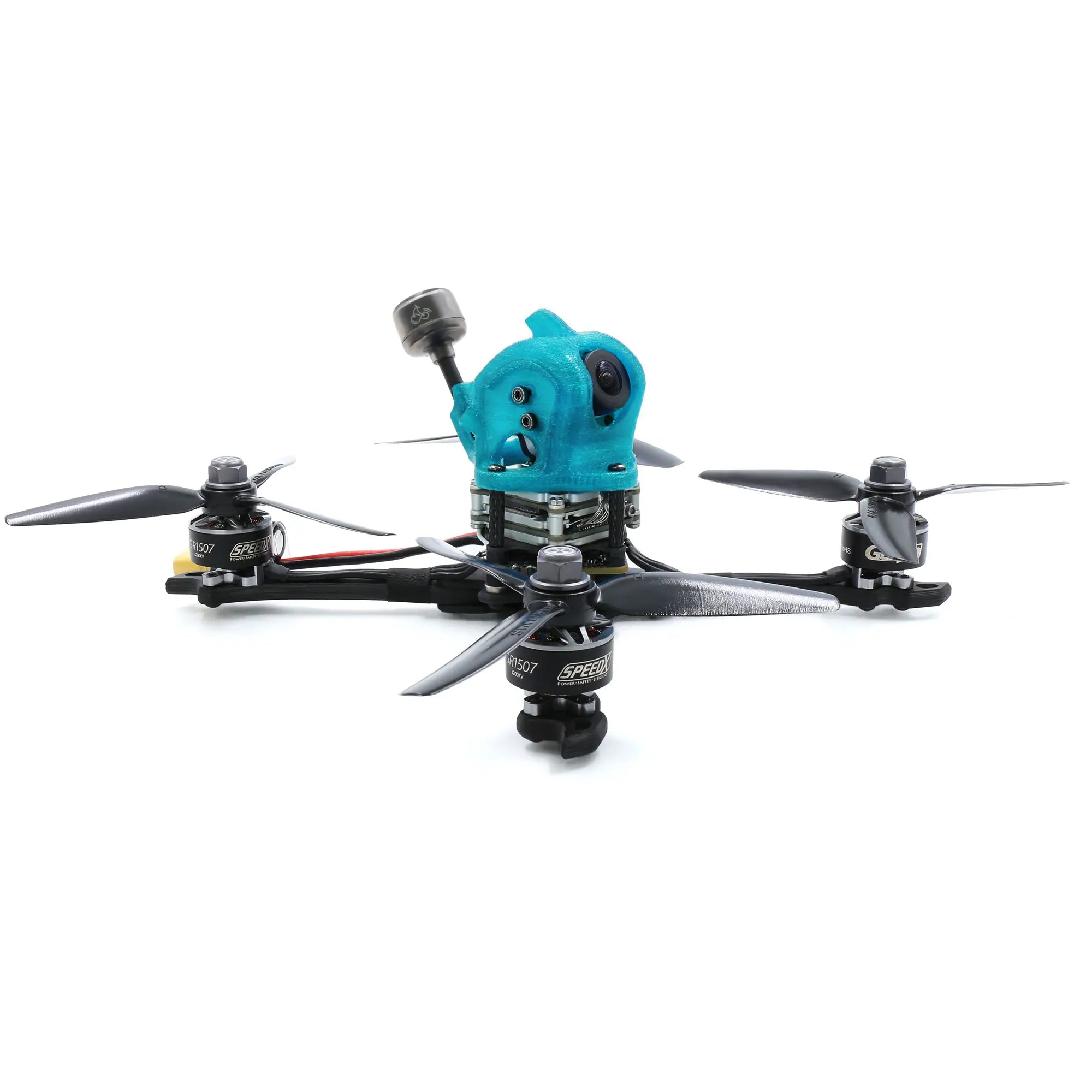

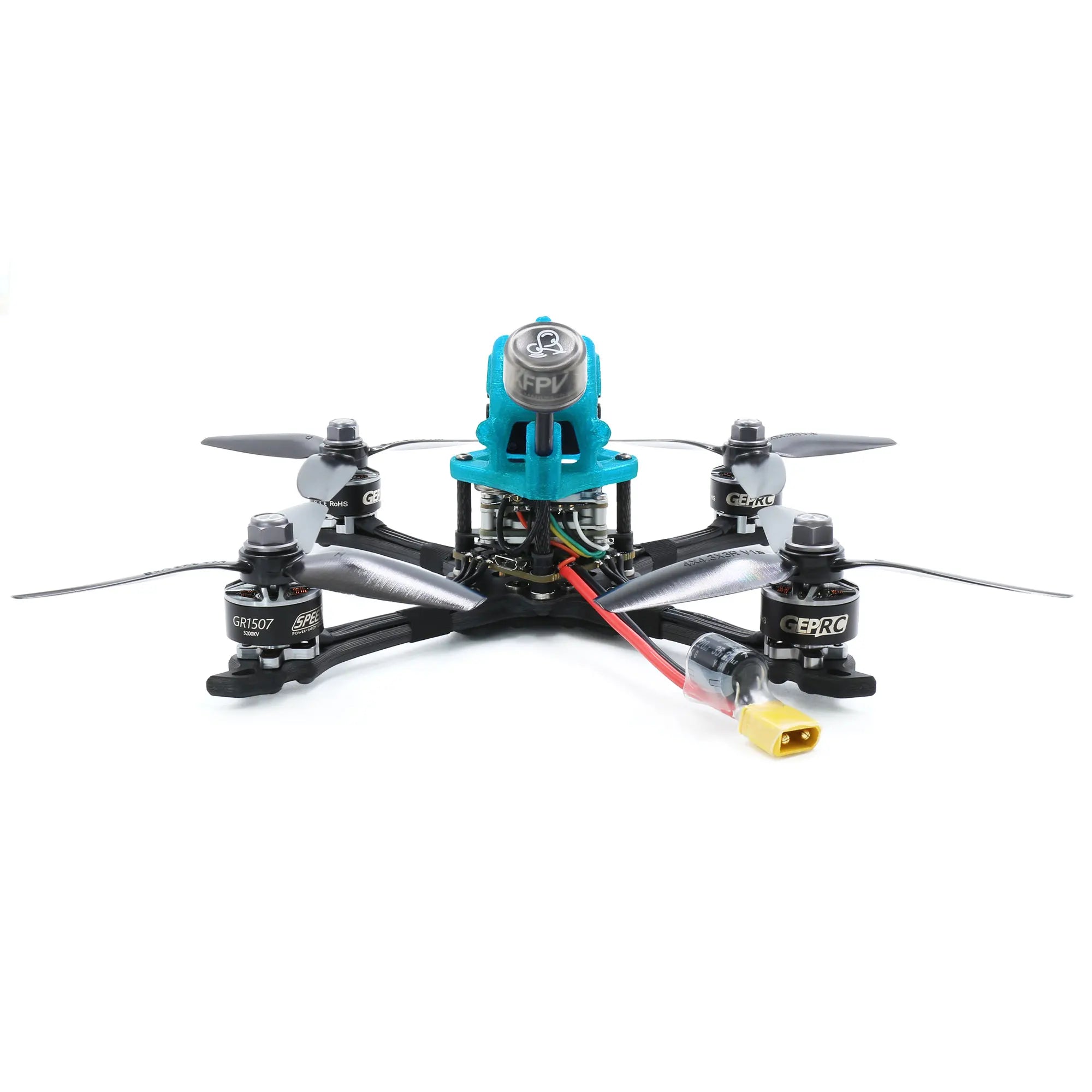

Dolphin HD is an upgraded version of dolphin 4inch, which is equipped with the latest CADDX VISTA HD Digital System.It has powerful flight performance and HD

FPV picture quality, so that you can experience the fantastic feeling of flying.

The weight is 160g (without battery), 153mm (motor to motor) , It bring powerful 1507 motor with HQ 4×4.3×3 V1S propeller, sufficient power and ensure efficiency. (4S-650 ~ 850mAh recommended)

Flight control with powerful GEP-20A-F4 AIO, integrated board F4 FC, ESC continuous current reaches 20A, stable and high-performance computing STM32F411 chip with MPU6000 gyroscope to ensure flight stability and very smooth feeling. Firmware is GEPRCF411, built-in Betaflight OSD, integrated LC filter. The flight controller has a silicone grommet,and the optimized PID has a significant noise reduction effect.

The Dolphin had been redesigned through professional assembled and debugged by GEPRC team. This mini Quad has excellent flight performance.

Особенности:

1. Ultra-light 4 inch toothpick frame, 3K carbon fiber bottom structure, True X frame design, split structure

2. High-Quality TPU 3D printed canopy with exquisite design

3. 166g weight(without battery), ultra light weight, Enjoying fast and Furious flying

4. Equipped with Caddx Vista HD Digital System, the picture quality can reach 720p

5. The flight controller uses STM32F411 with MPU6000 gyroscope to work, and BLheli_S 20A ESC, flexibleand smooth flight

6. 1507 3200KV motor with HQ4x4.3×3 V1S , Fantastic and efficient power extremely matching

7. The PID is meticulouslytestedby the GEPRC pilot team, it can fly as long as press BIND button with your Radio transmitter right on your hand

Технические характеристики:

• Бренд:GEPRC

• Item:Dolphin HD

• Flight Controller:GEP-20A-F4 AIO

• Camera: Caddx Vista HD Digital System

• Motor to motor:153mm

• Propeller:HQ4x4.3×3 V1S(4 pairs)

• Antenna:RG137 5.8g RHCP

• Motor:1507 3200KV

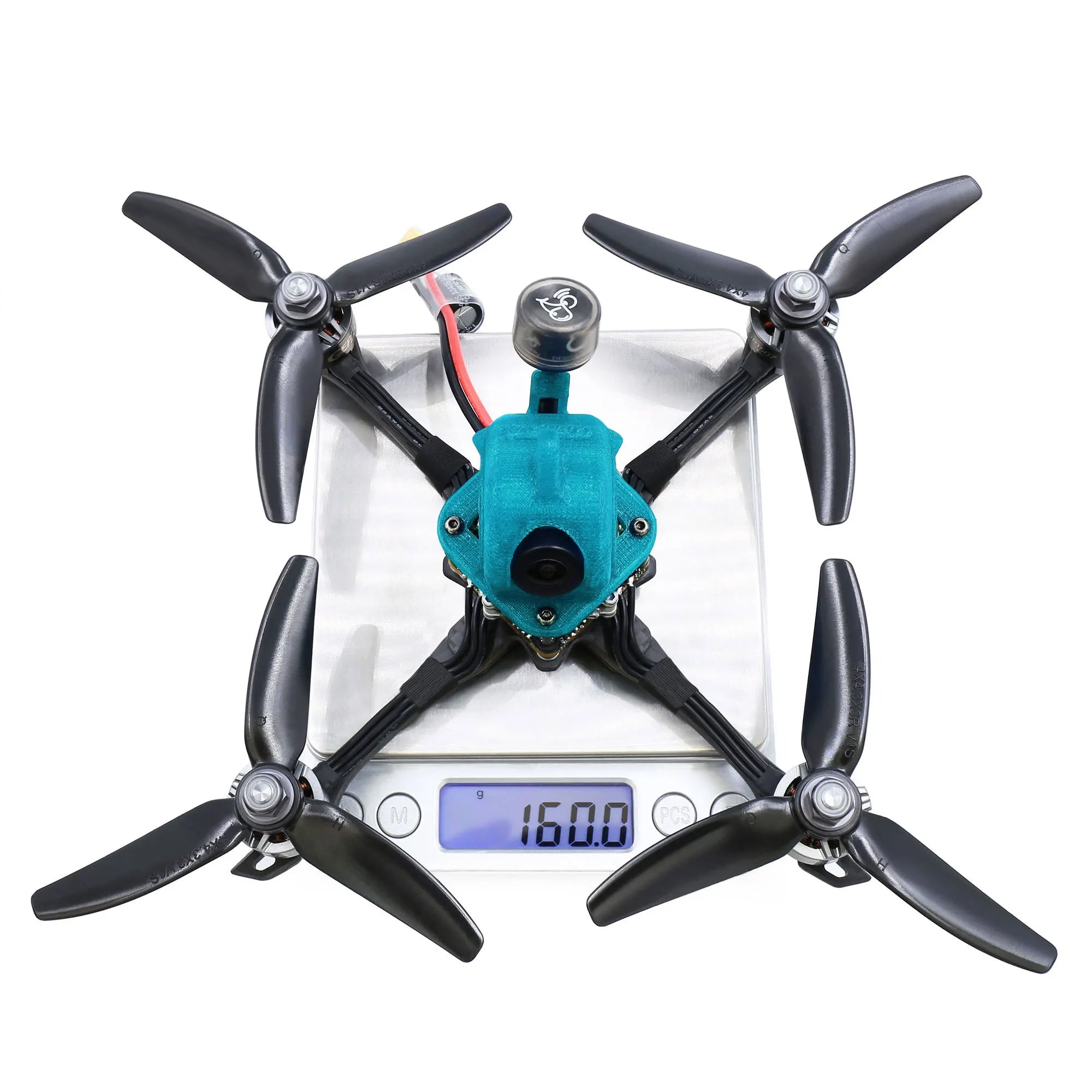

• Weight:160g without battery

• Receiver:Without Receiver(PNP)/Frsky R-XSR / Frsky XM+ / TBS NanoRX

Frame: GEPRC GEP-DX4

• Carbon:Full 3K carbon fiber

• Motor to motor: 153mm

• Bottom plate: 2mm

• Top plate: 2mm

• Arms plate: 4mm

Flight Controller: GEP-20A-F4 AIO

• MCU: STM32F411

• Gyro:MPU6000

• OSD: BetaFlight OSD с чипом AT7456E

• Целевая прошивка: GEPRCF411

• ESC: 20A * 4 BLHeli_S (Dshot/Multishot/OneShot) support 2~4S LiPo

• VTX: 5,8 ГГц (48 каналов IRC Tramp,PIT/25/100/200мВт)

Включая:

• 1x Dolphin HD FPV Drone BNF/PNP

• 4x HQ 4×4.3×3 V1S (pairs)

• 1x Battery pad

• 2x Ремешок для батареи 15*120

• 1x M8 wrench

• 1x 1,5 мм L-образная отвертка

• 2x antenna tubes
