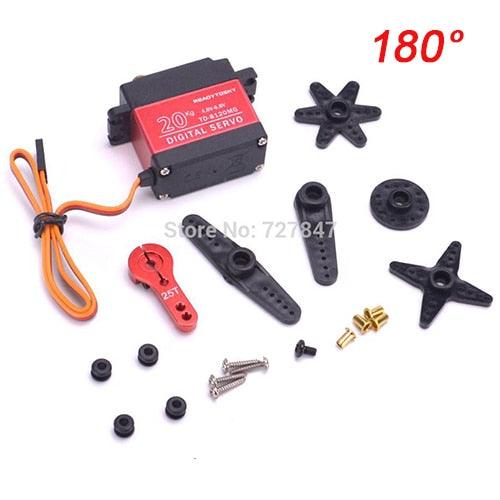

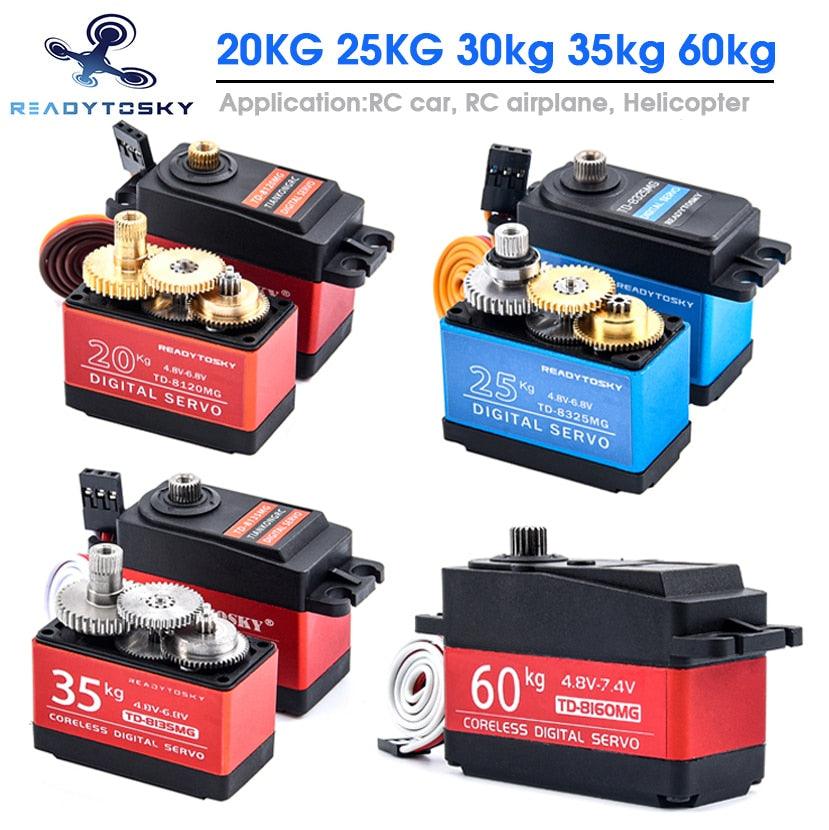

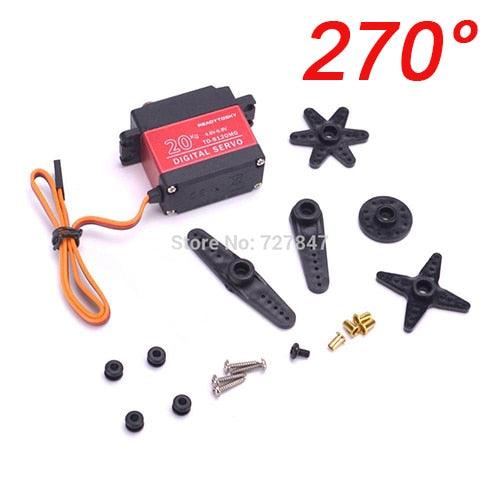

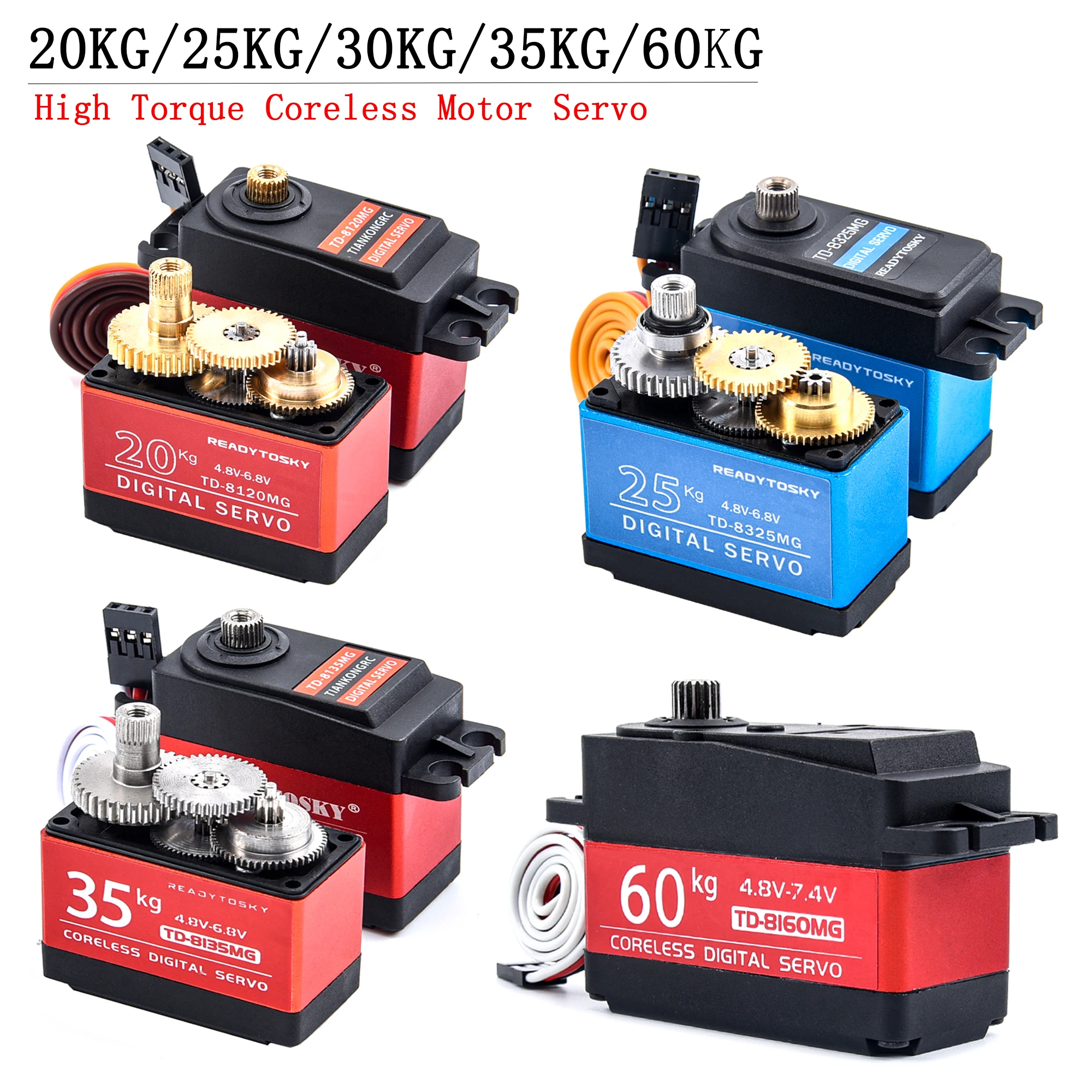

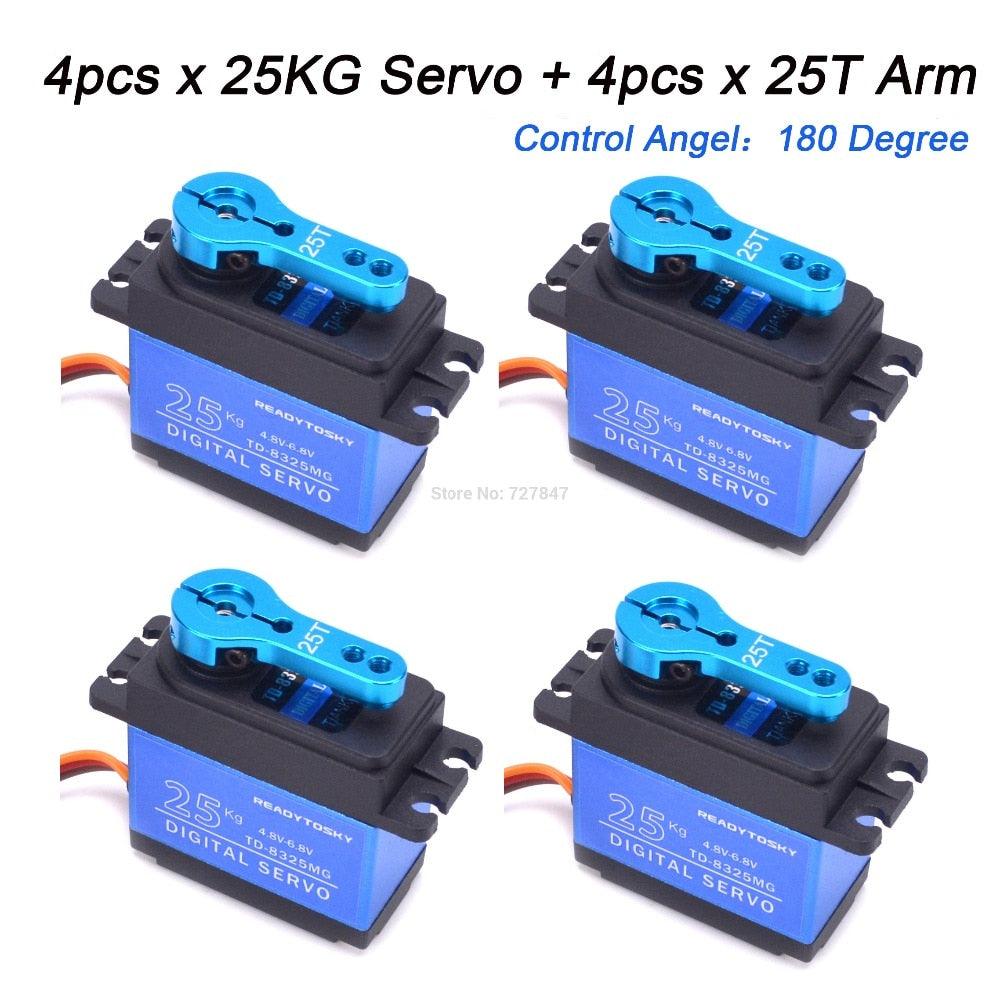

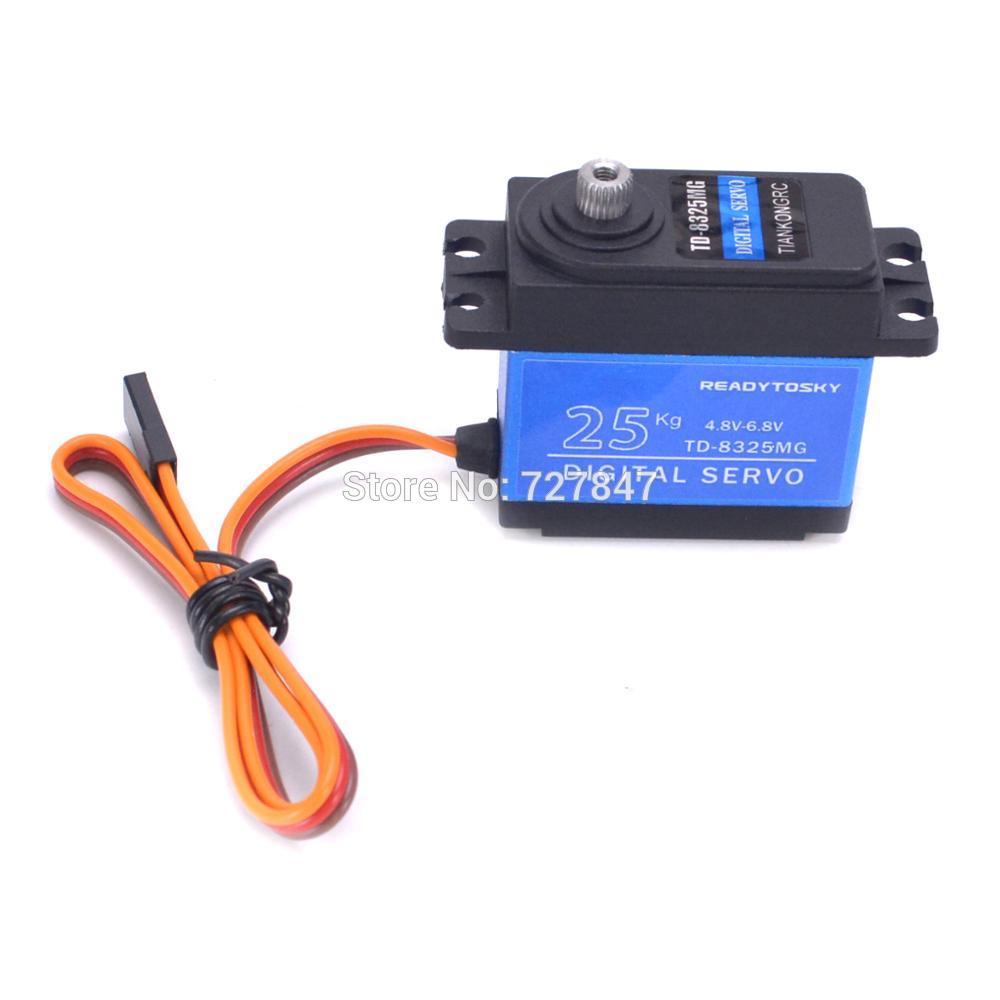

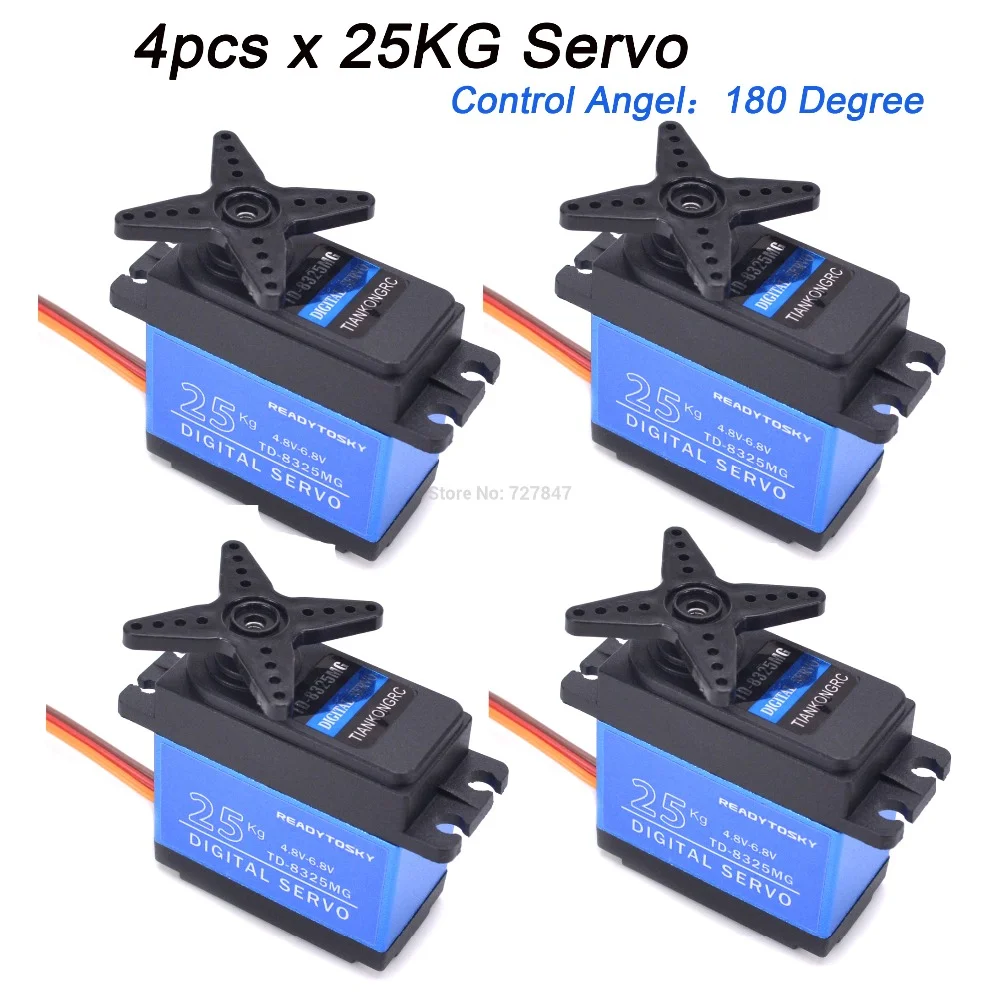

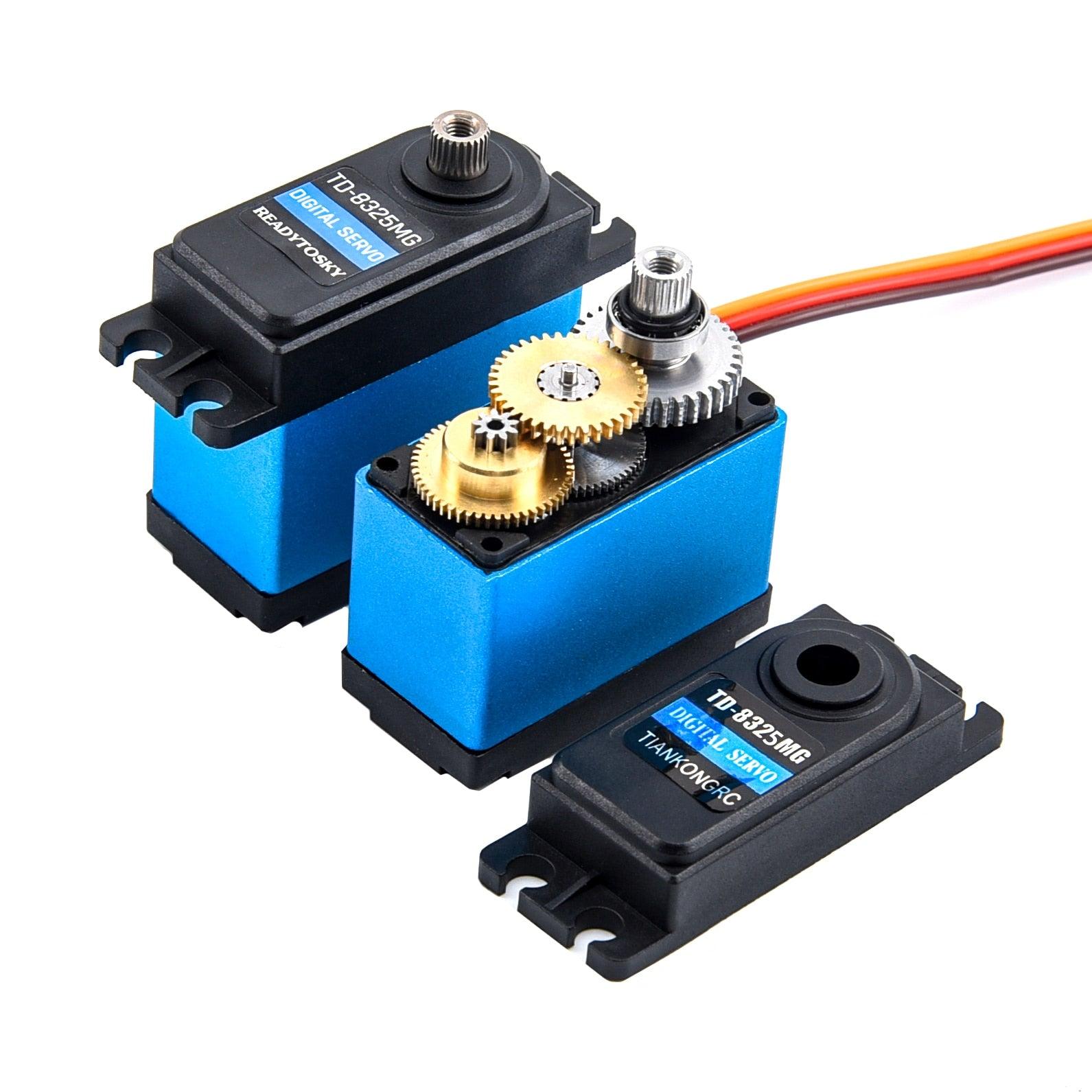

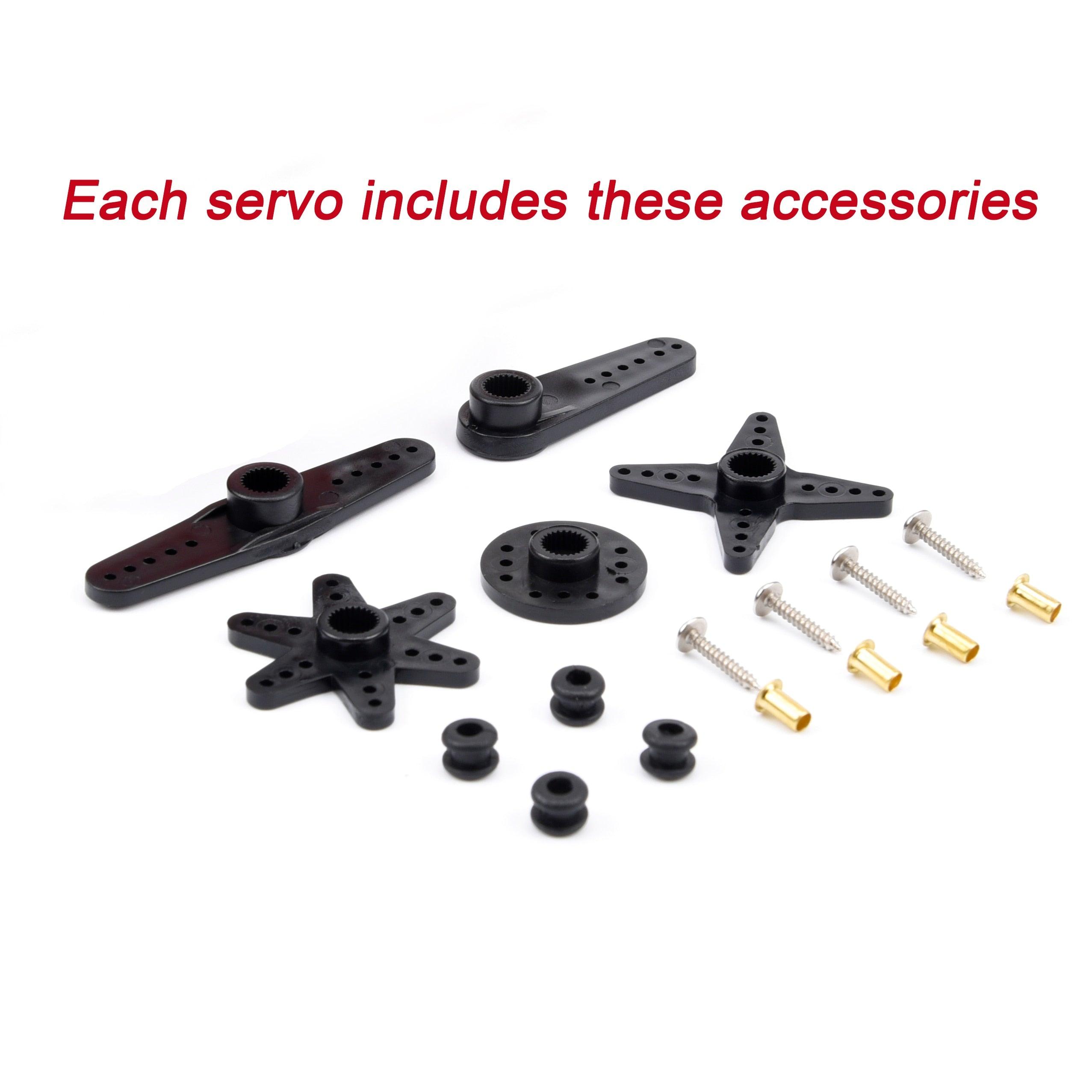

25KG Servo 180 Degree:

Apply Environmental Conditon:

1.Storage Temperature Range: -30°C～80°C

2.Operating Temperature Range: -25°C～70°C

Standard Test Environment:

1.Temperature Range: -25°C～70°C

2.Humidity Range: 65%±10%

Mechanical Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type:  5 Metal

4. Limit angle: 360°

5.Bearing: 2BB

6. Horn gear spline: 25T   Diameter:5.9mm

7. Horn type: Plastic, POM

8.Case : Engineering plastics(PBT)+Aluminum alloy

9. Connector wire: 320mm±5mm

10.Motor: Carbon brush motor

Electrical Specification:

1.Operat voltage: 4.8V – 7.2V

2.No load speed: 0.18sec/60° –  0.14sec/60°

3.Running current: 140mA – 200mA

4.Peak stall torque: 23.5kg.cm-26.8kg.cm

5.Stall current: 2600mA±10% –  3400mA±10%

6.Working voltage range:  4.8 – 7.2V

Control Specification:

1.Command signal: Pulse width modification

2.Amplifier type: Digital controller

3.Pulse width range: 500～2500usec

4.Neutral position: 1500usec

5.Running degree: 180°±3°(when 500～2500usec)

6.Dead band width: 5 usec

7.Rotating direction Counterclockwise: (when 1000～2000usec)

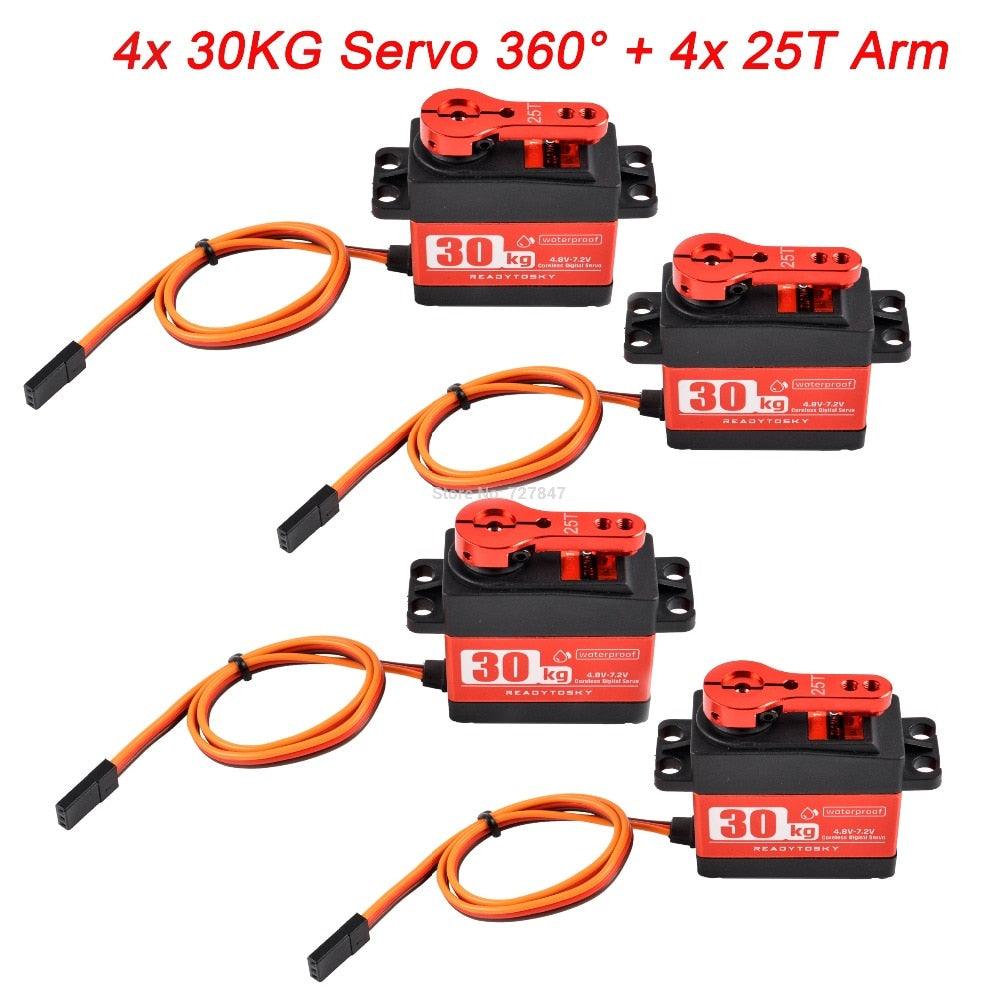

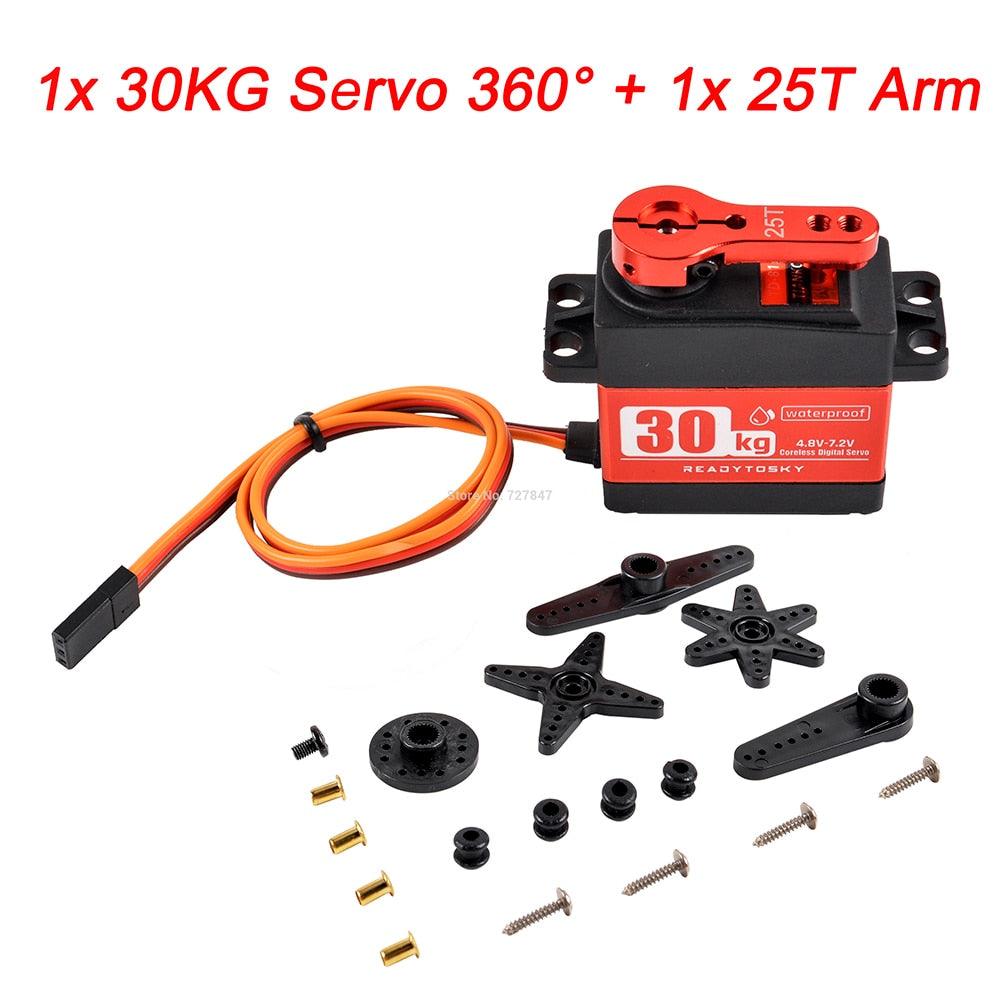

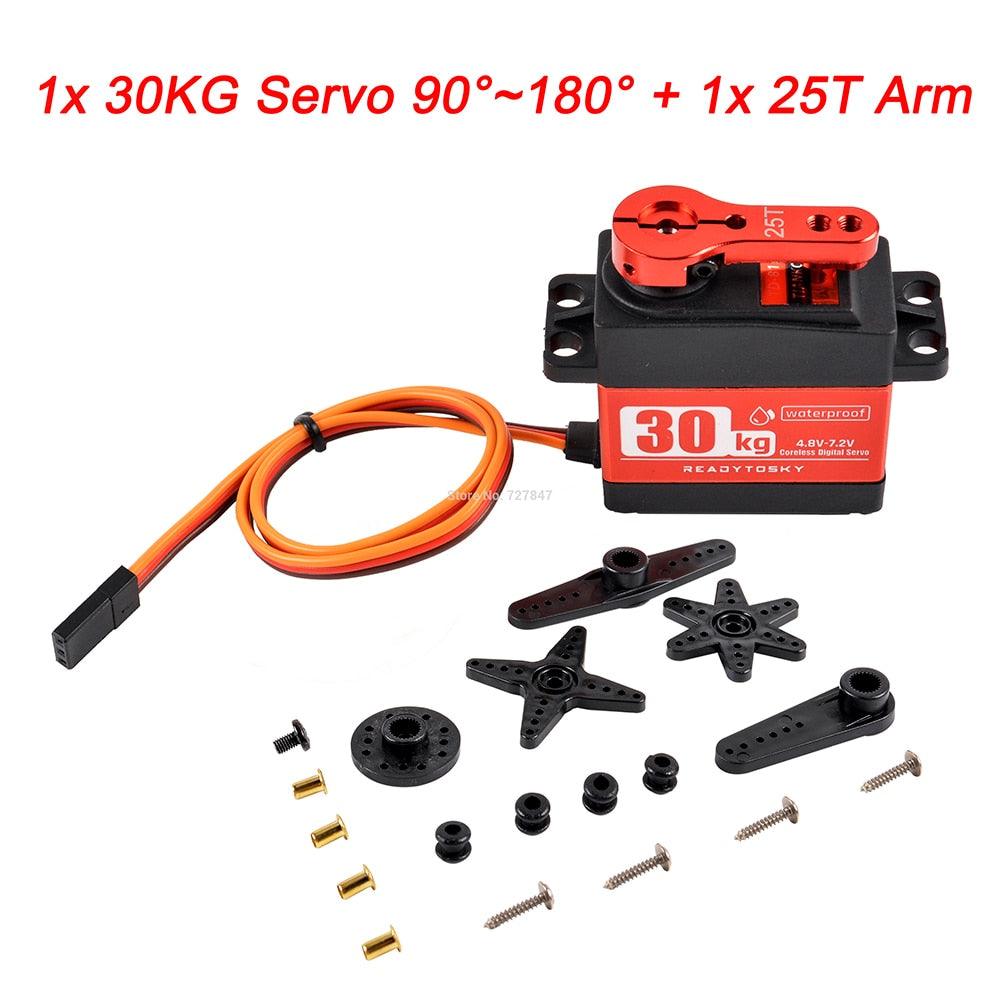

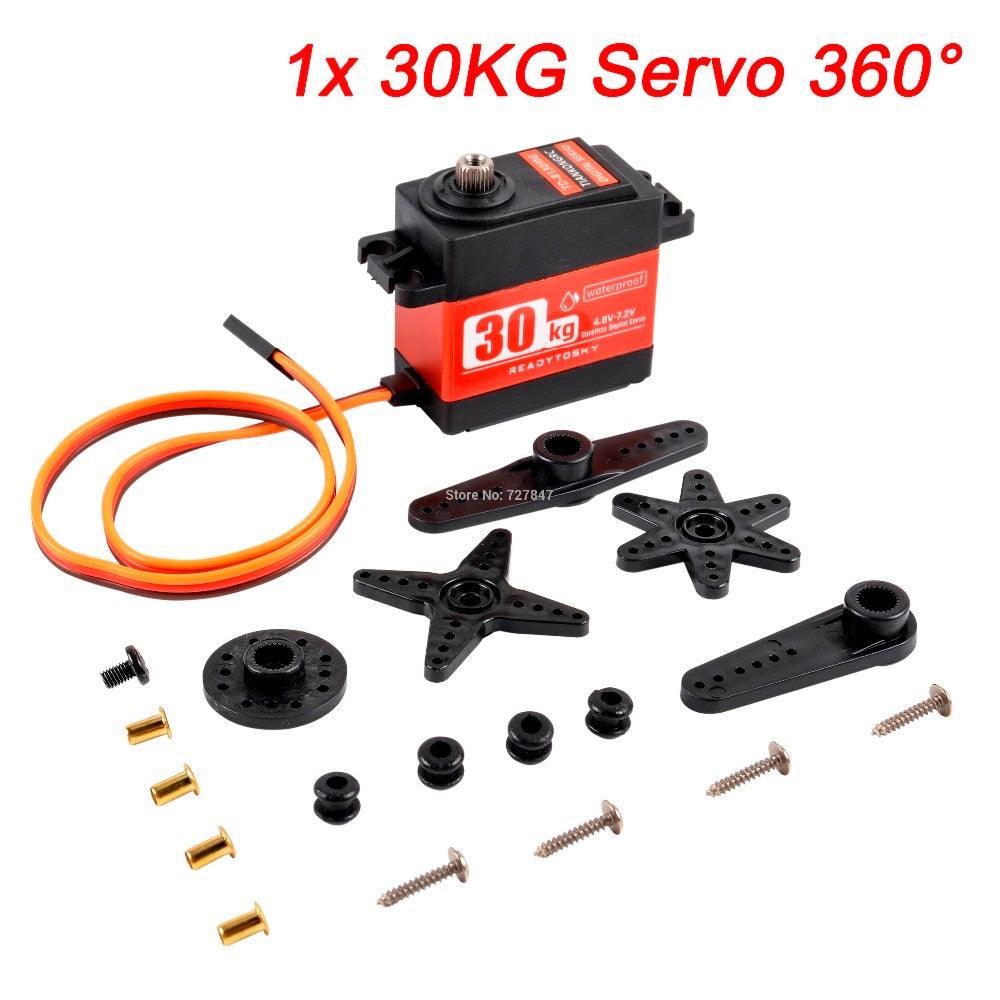

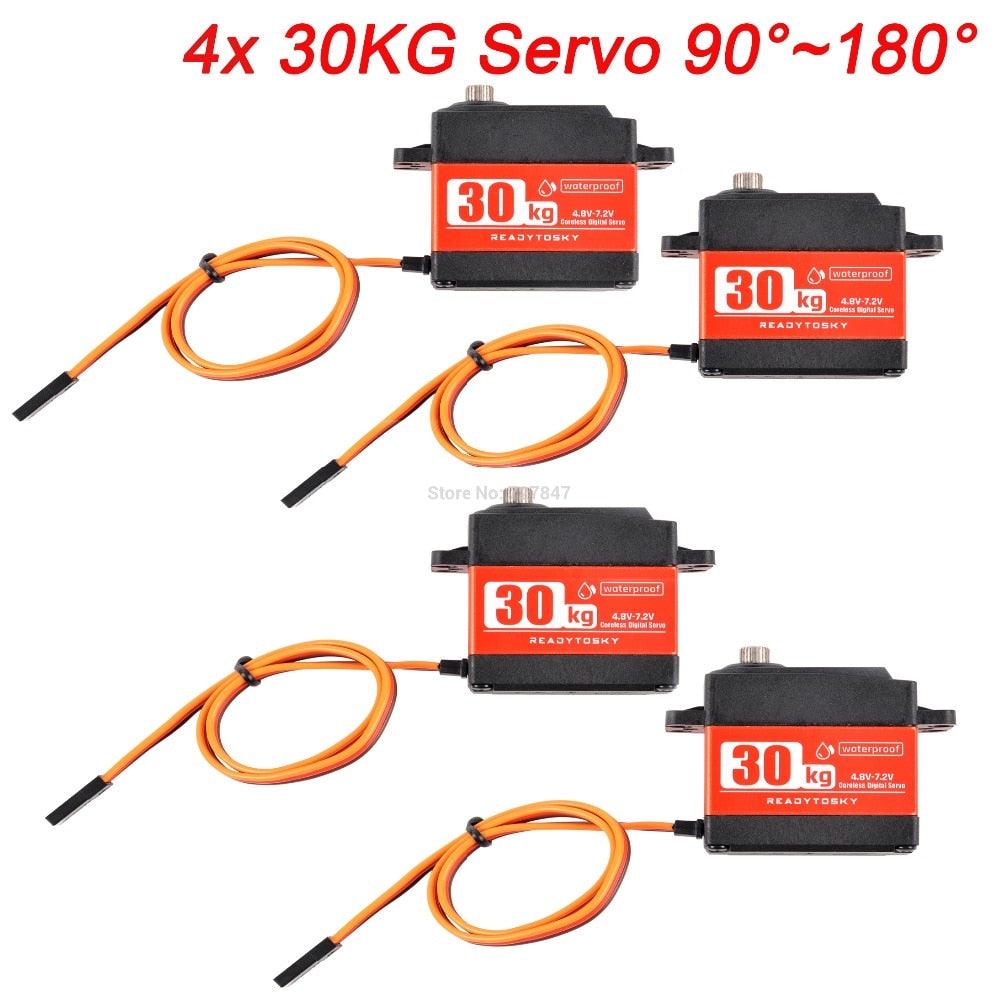

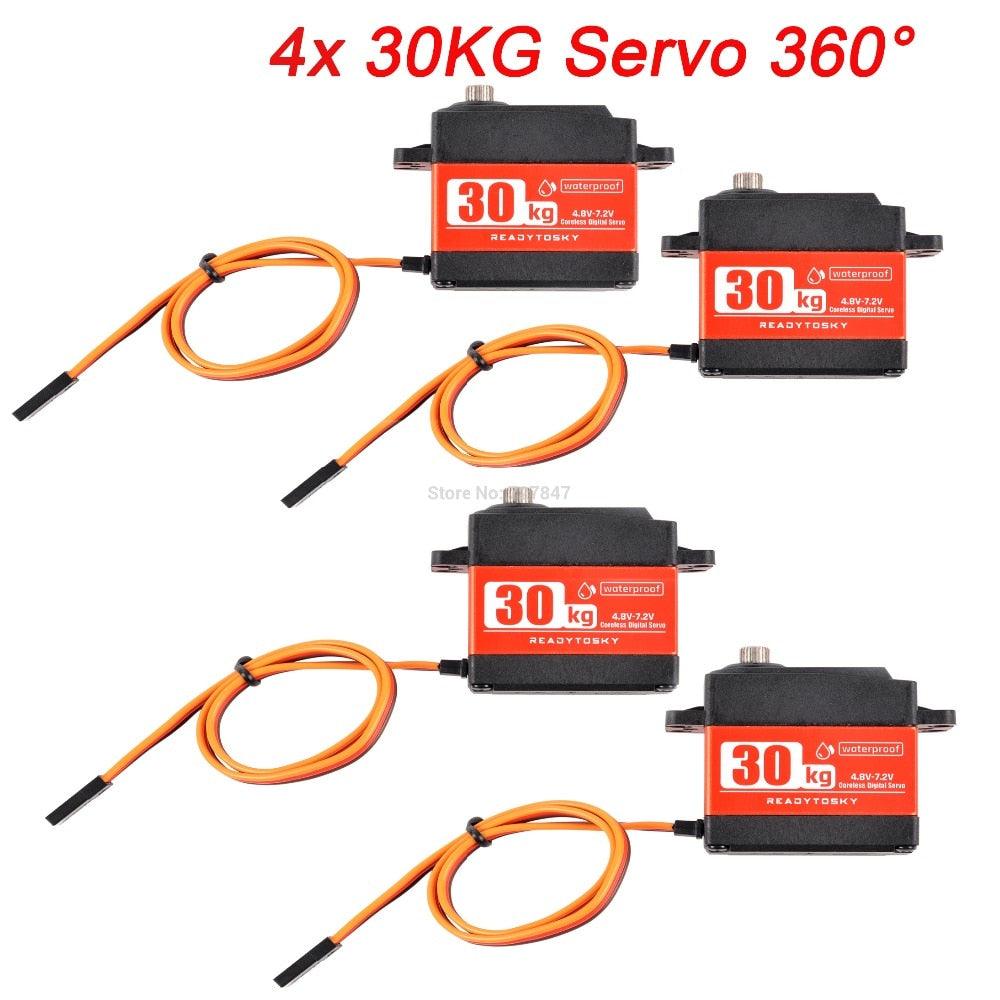

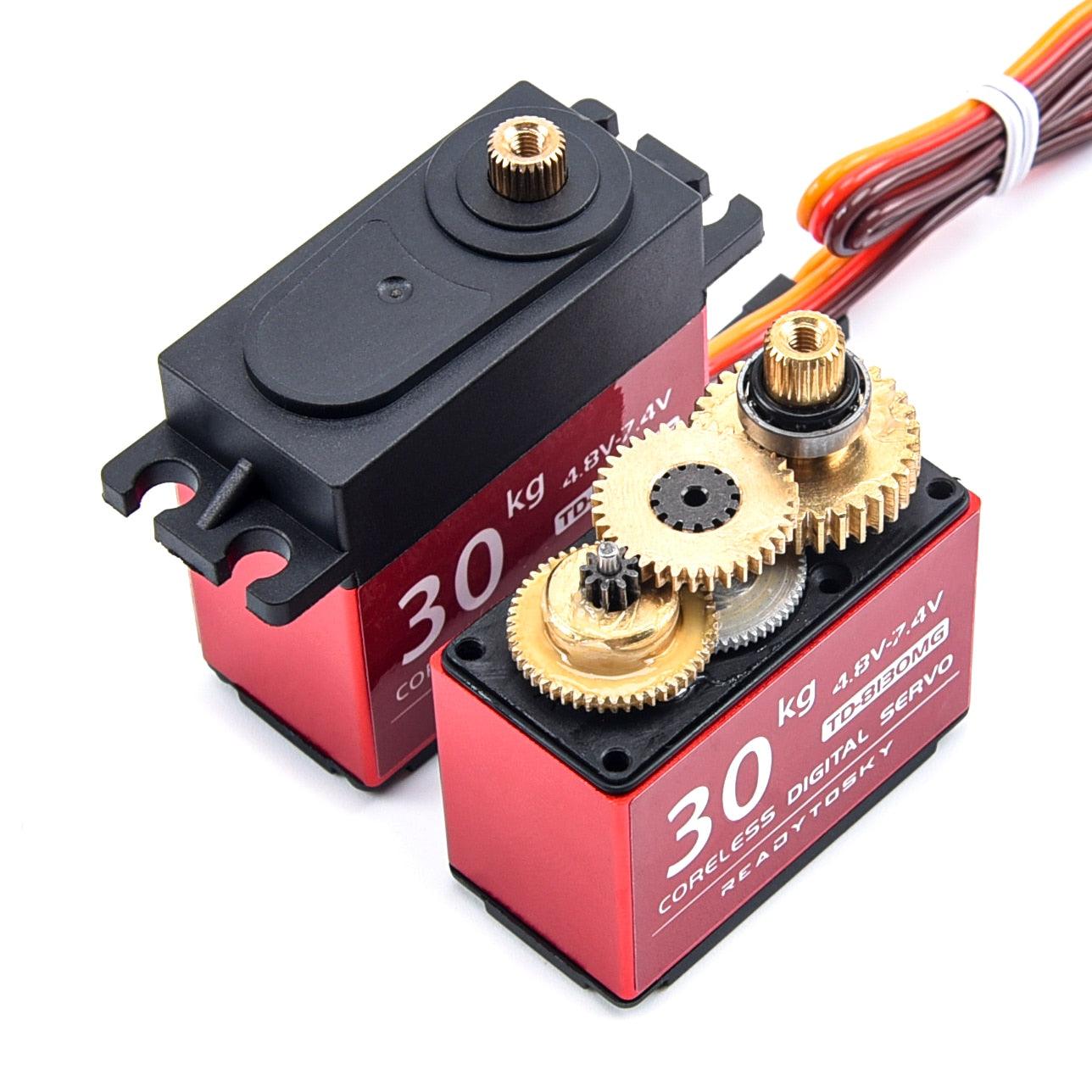

30KG Servo 180 /270 Degree:

Apply Environmental Conditon:

1. Storage Temperature Range: -30°C～80°C

2. Operating Temperature Range: -25°C～70°C

Standard Test Environment:

1.Temperature Range: 25°C～70°C

2. Humidity Range: 65%±10%

Mechanical Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type: 5 Metal

4. Limit angle:360°

5. Bearing:2BB

6. Horn gear spline: 25T     Diameter: 5.9mm

7. Horn type: Plastic, POM

8. Case: Engineering plastics(PBT)+Aluminum alloy

9. Connector wire320mm±5mm

10. MotorCarbon brush motor

Electrical Specification:

1. Operat voltage: 4.8V – 7.2V

2. No load speed: 0.24sec/60° – 0.17sec/60°

3. Runnig current: 140mA – 200mA

4. Peak stall torque:29.5kg.cm – 32kg.cm

5. Stall current: 2600mA±10% – 3400mA±10%

6. Working voltage range: 4.8 – 7.2V

Control Specification:

1. Command signal: Pulse width modification

2. Amplifier type: Digital controller

3. Pulse width range: 500～2500usec

4. Neutral position: 1500usec

5. Running degree: 180°±3°(when 500～2500usec)

6. Dead band width: 5 usec

7. Rotating direction: Counterclockwise (when 1000～2000usec)

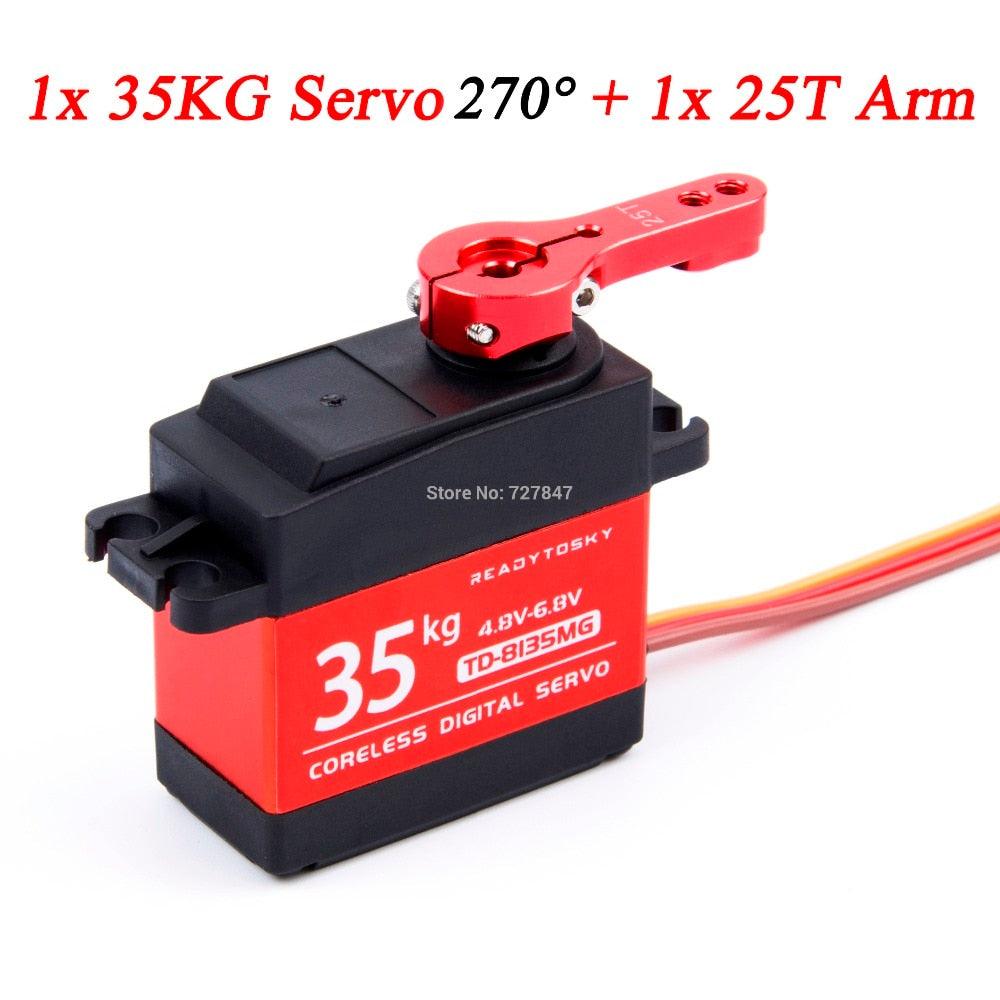

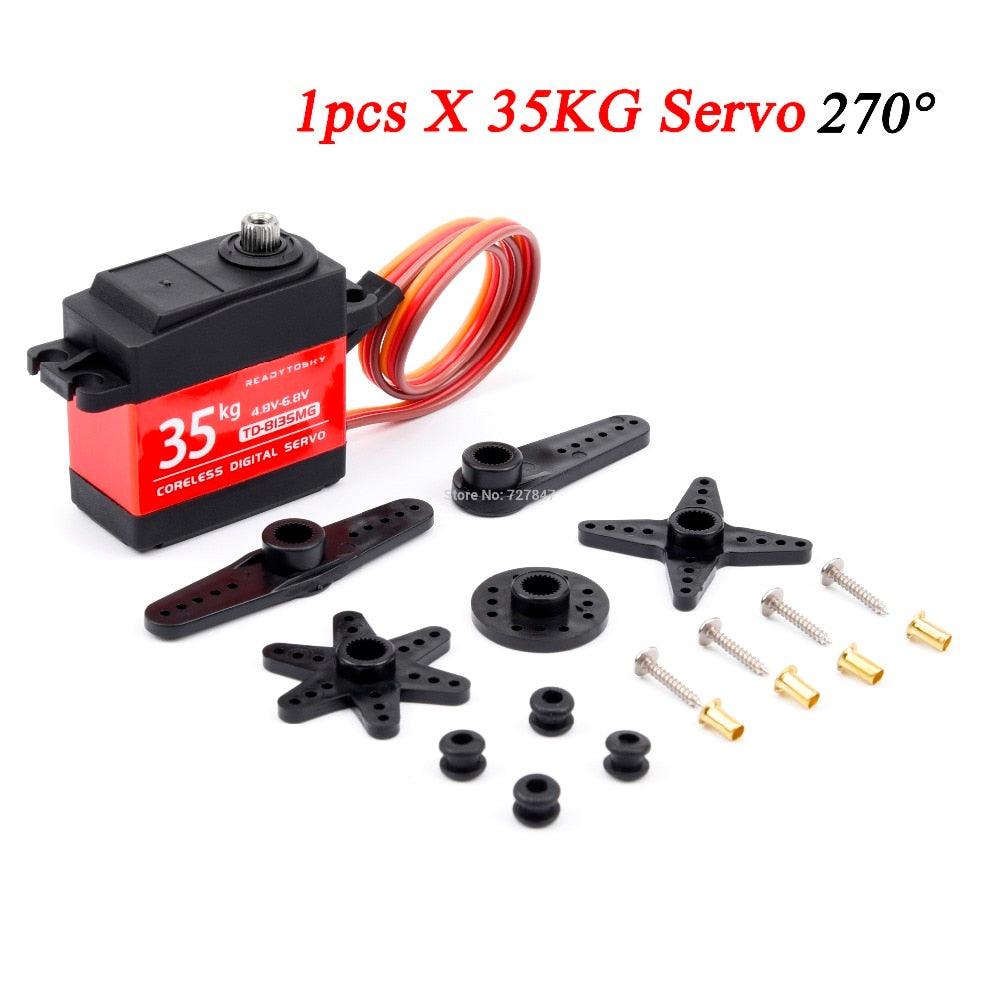

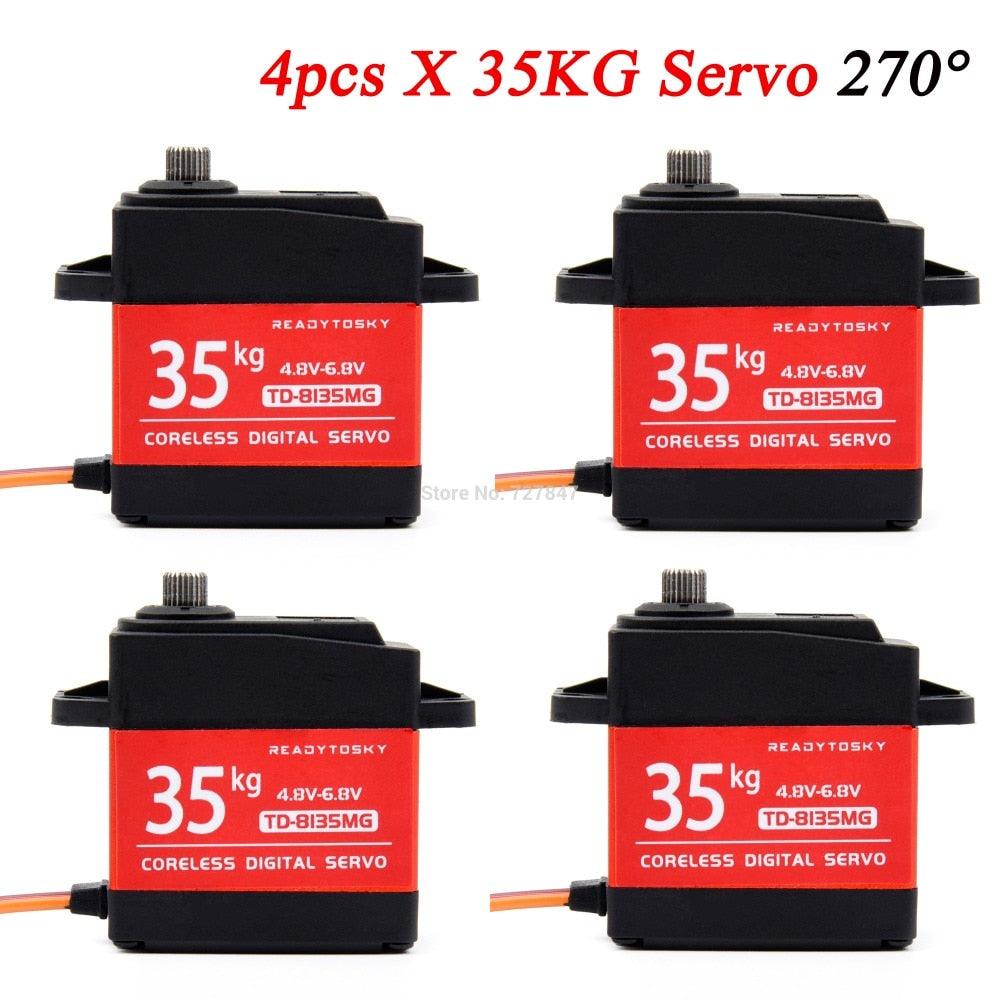

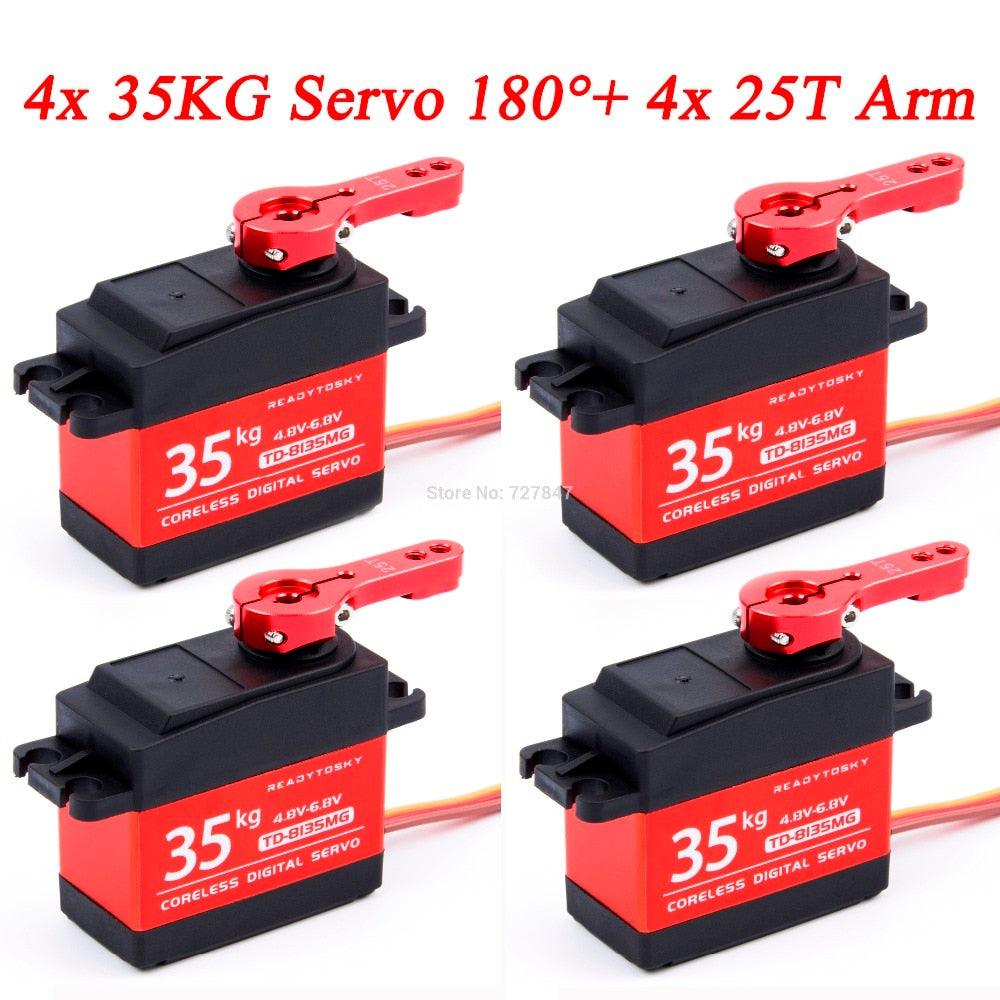

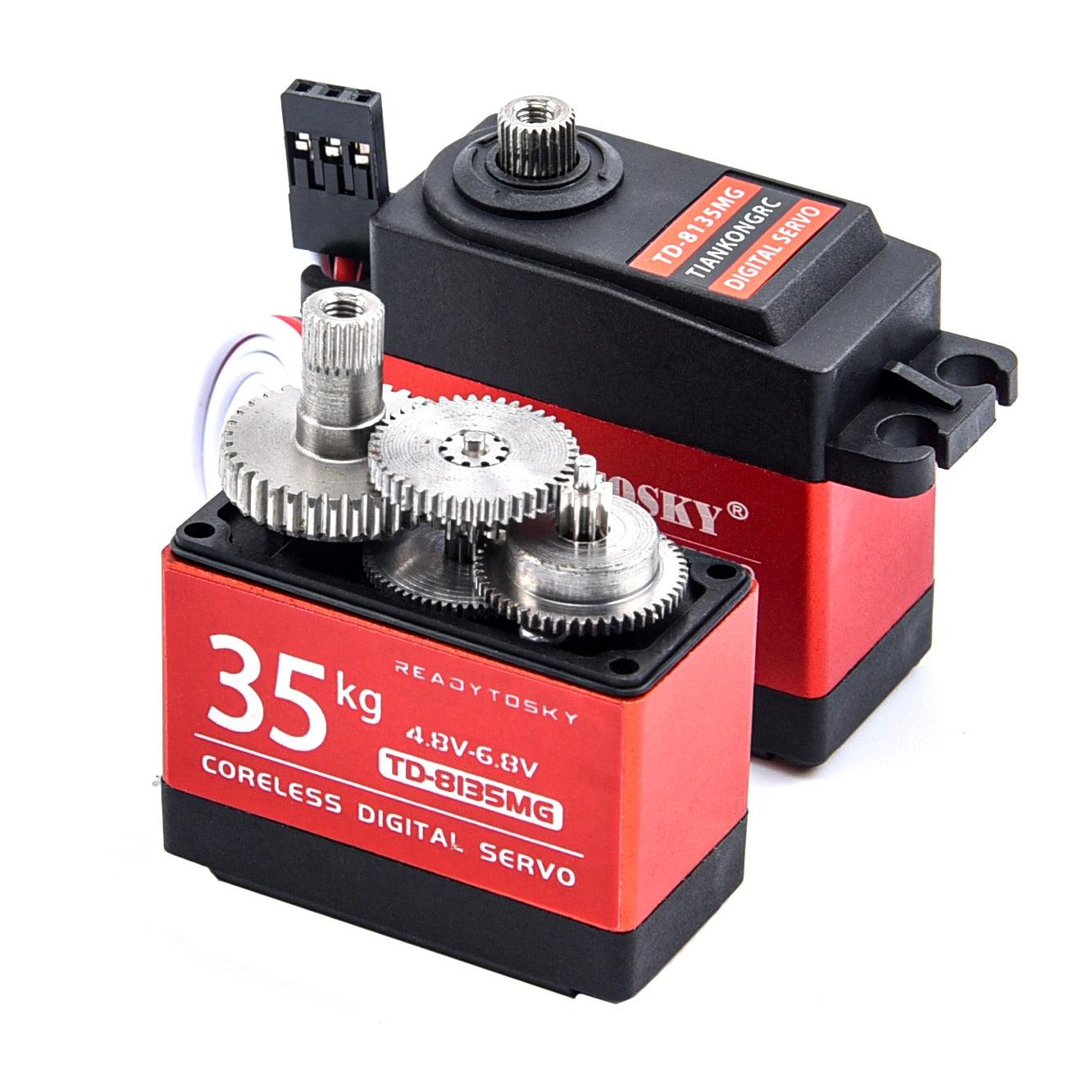

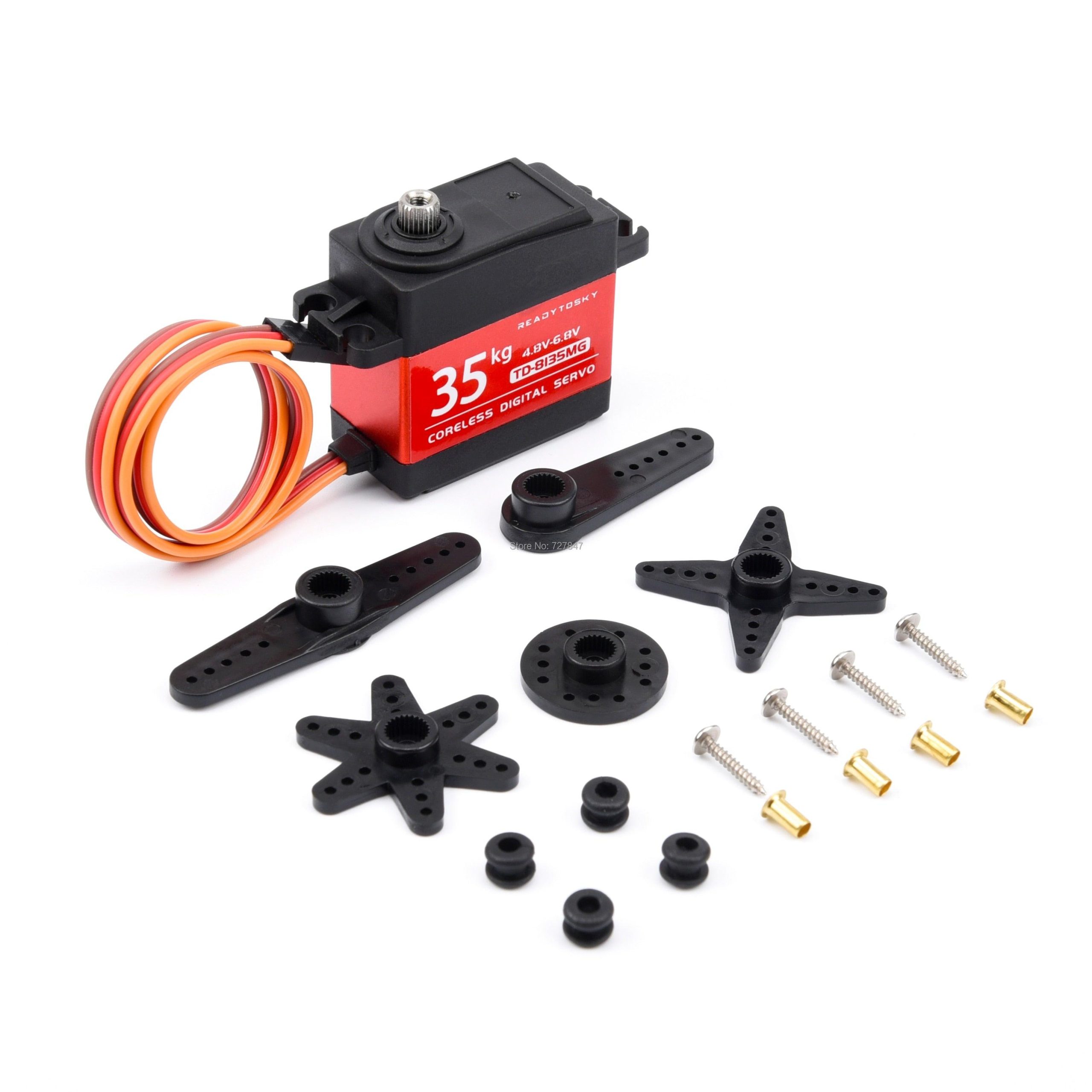

35KG Servo 180/ 270 Degree Products Specifcation:

Apply Environmental Conditon:

1. Storage Temperature Range: -30°C～80°C

2. Operating Temperature Range: -25°C～70°C

Standard Test Environment:

1. Temperature Range: -25°C～70°C

2. Humidity Range: 65%±10%

Mechanical Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type: 5 Metal

4. Limit angle: 360°

5. Bearing: 2BB

6. Horn gear spline: 25T     Diameter :5.9mm

7. Horn type: Plastic, POM

8. Case: Engineering plastics(PBT)+Aluminum alloy

9. Connector wire: 320mm±5mm

10. Motor: Carbon brush motor

Electrical Specification:

1. Operat voltage: 4.8V – 7.2V

2. No load speed: 0.32sec/60° – 0.22sec/60°

3. Runnig current: 140mA – 200mA

4. Peak stall torque: 32.7kg.cm – 35.2kg.cm

5. Stall current: 2600mA±10% – 3400mA±10%

6. Working voltage range: 4.8 – 7.2V

Control Specification:

1. Command signal: Pulse width modification

2. Amplifier type: Digital controller

3. Pulse width range: 500～2500usec

4.Neutral position: 1500usec

5. Running degree: 180°±3°(when 500～2500usec)

6. Dead band width: 5 usec

7. Rotating direction: Counterclockwise (when 1000～2000usec)

Special Notice:

The RC Use-Angle 180/270 marked in selections to be shipped by Angle-180/270 servo, Cuz the below signal match with Angle-180/270 servo support PWM signal width 500-2500us.

Transmitter only can generate 1000-2000us, it is half signal of the servo, thus the feedback angle will be half at 90/135.

The Angle 180/270 which request pwm signal width 500-2500us, if you use a transmitter to control them, the angle will be 90/135.

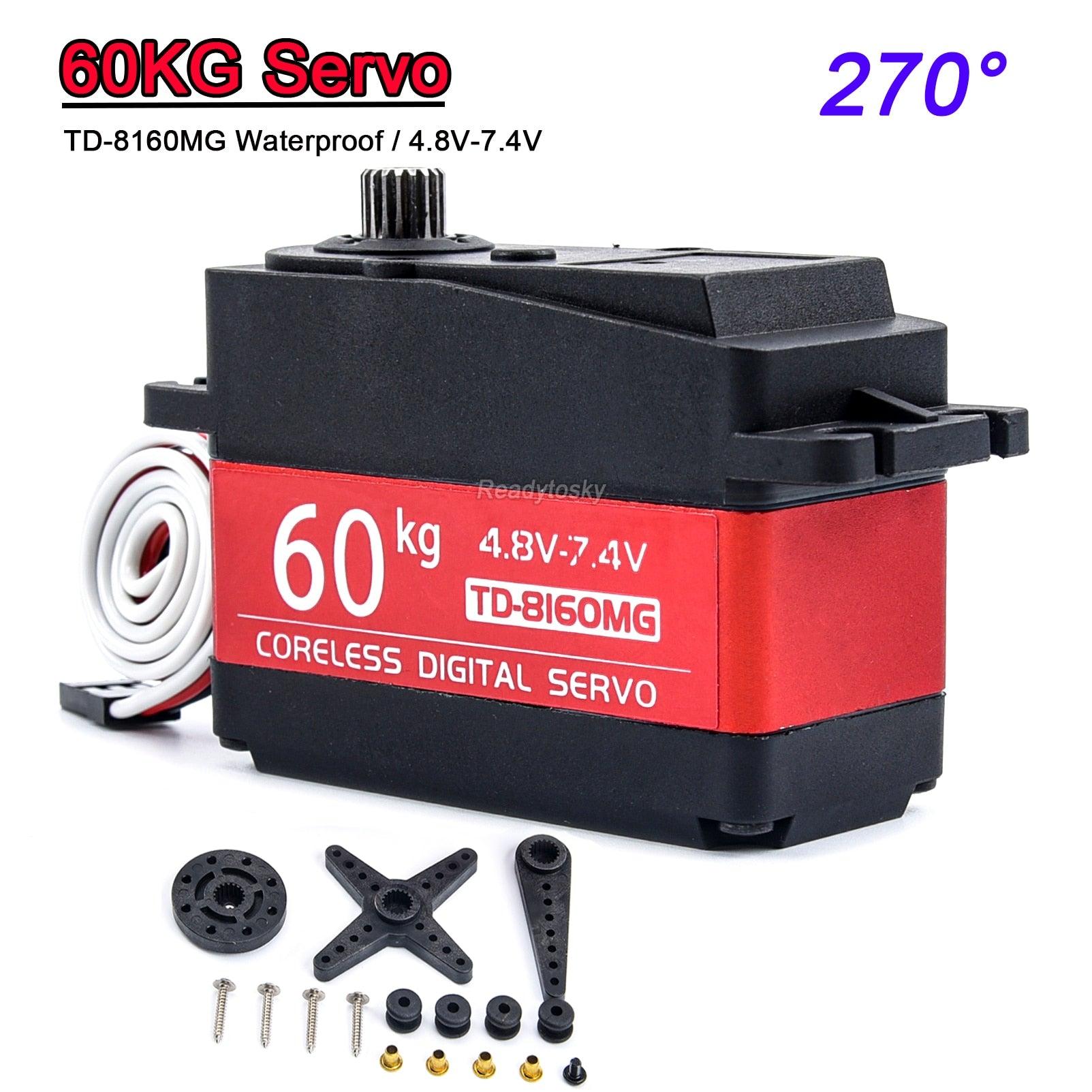

1.Apply Environmental Conditon

No. Item Specifcation

1.1 Storage Temperature Range       -30°C～80°C

1.2 Operating Temperature Range -25°C～70°C

2. Standard Test Environment

2.1 Temperature Range -25°C～70°C

2.2 Humidity Range 65%±10%

3. Mechanical Specification

3.1 Size        65.0*30.0*48.0mm

3.2 Weight 158g±5%

3.3 Gear type “6 Metal”

3.4 Limit angle 360°

3.5   Bearing 2BB

3.6 Horn gear spline 18T diameter:8.1mm

3.7 Horn type Plastic, POM

3.8 Case “Engineering plastics(PBT)+Aluminum alloy”

3.9 Connector wire 320mm±5mm

3.10 Motor Carbon brush motor

3.11 Splash water resistance

4.Electrical Specification

No. Operat voltage 6V 8.4V

4.1 Idle current 5mA 5mA

4.2 No load speed 0.17sec/60° 0.13sec/60°

4.3 Runnig current 400mA 510mA

4.4 Peak stall torque 58.5kg.cm 70kg.cm

4.5 Stall current 8.5A±10% 10.4A±10%

4.6 Working voltage range

” 4.8-8.4V

5.Control Specification

5.1 Command signal Pulse width modification

5.2 Amplifier type Digital controller

5.3 Pulse width range 500～2500usec

5.4 Neutral position 1500usec

5.5 Running degree 180°±3°(when 500～2500usec)

5.6 Dead band width 5usec

5.7 Rotating direction Counterclockwise (when 1000～2000usec)

6.The Drawings: The Wire and plug:
