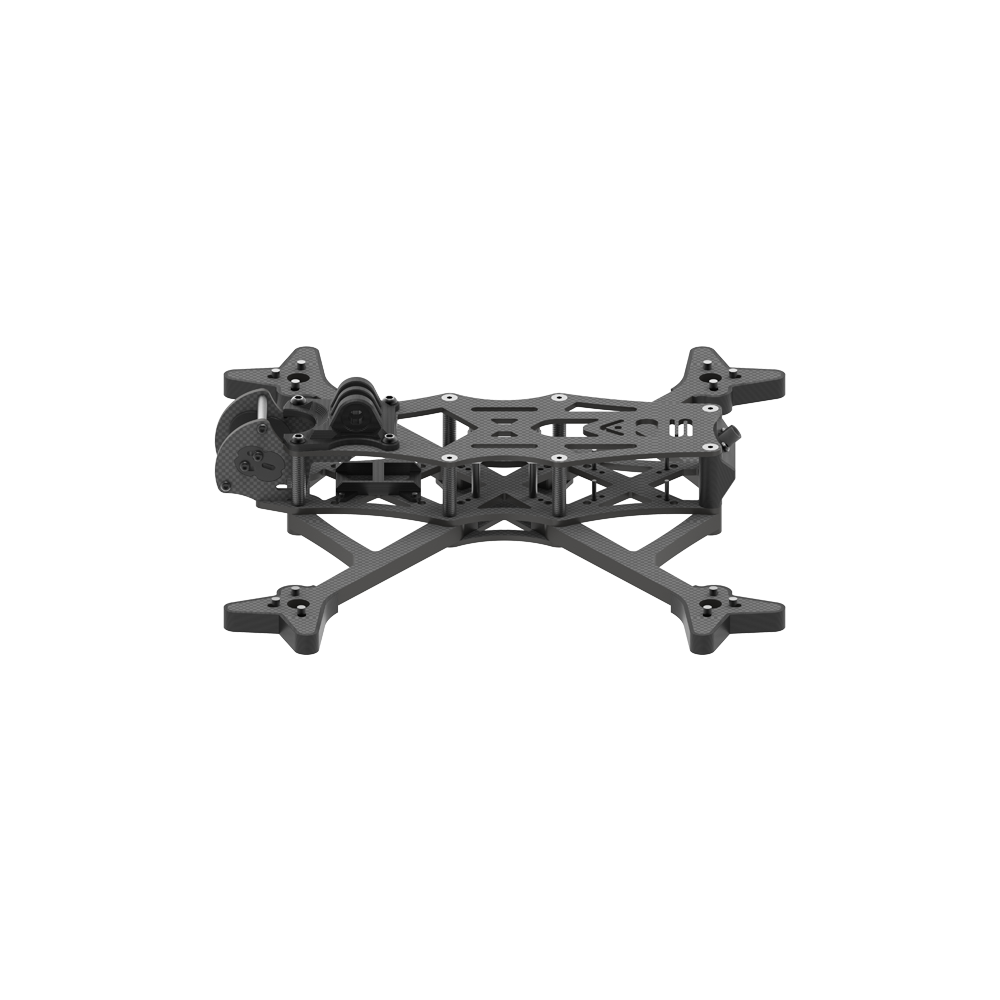

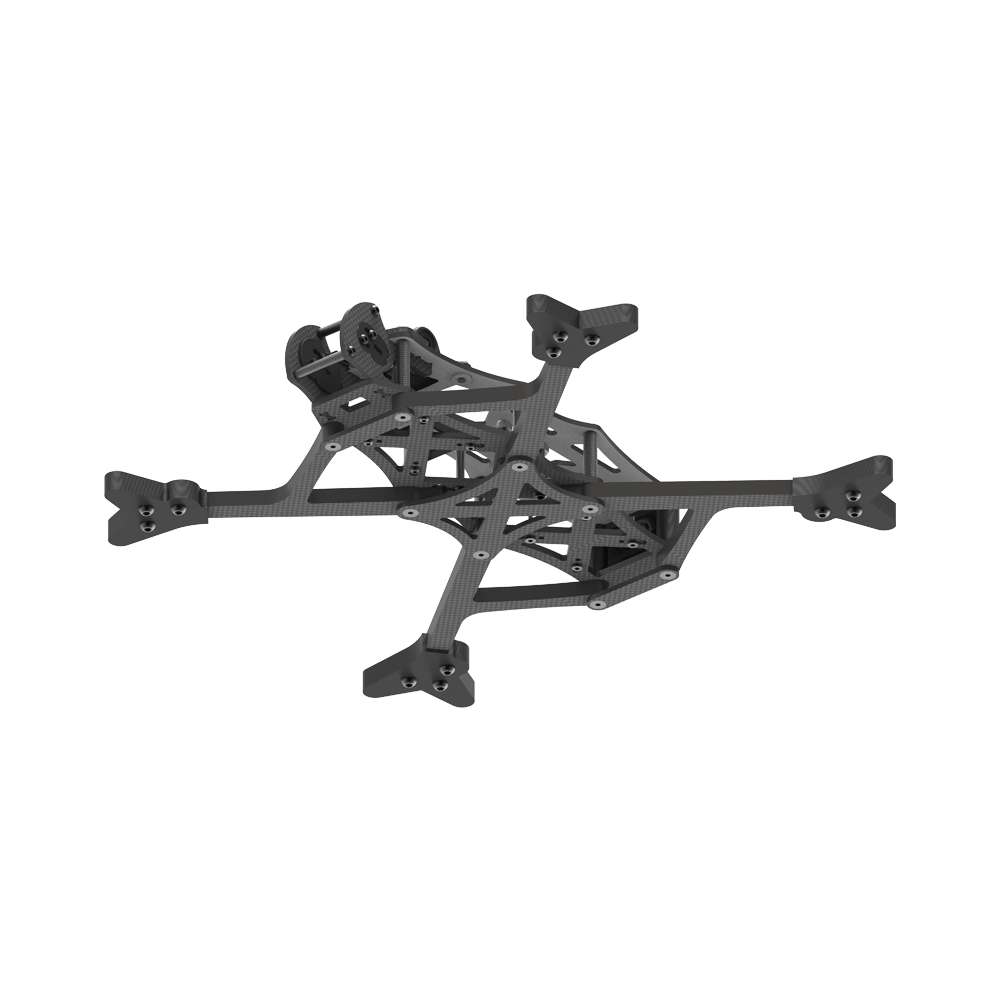

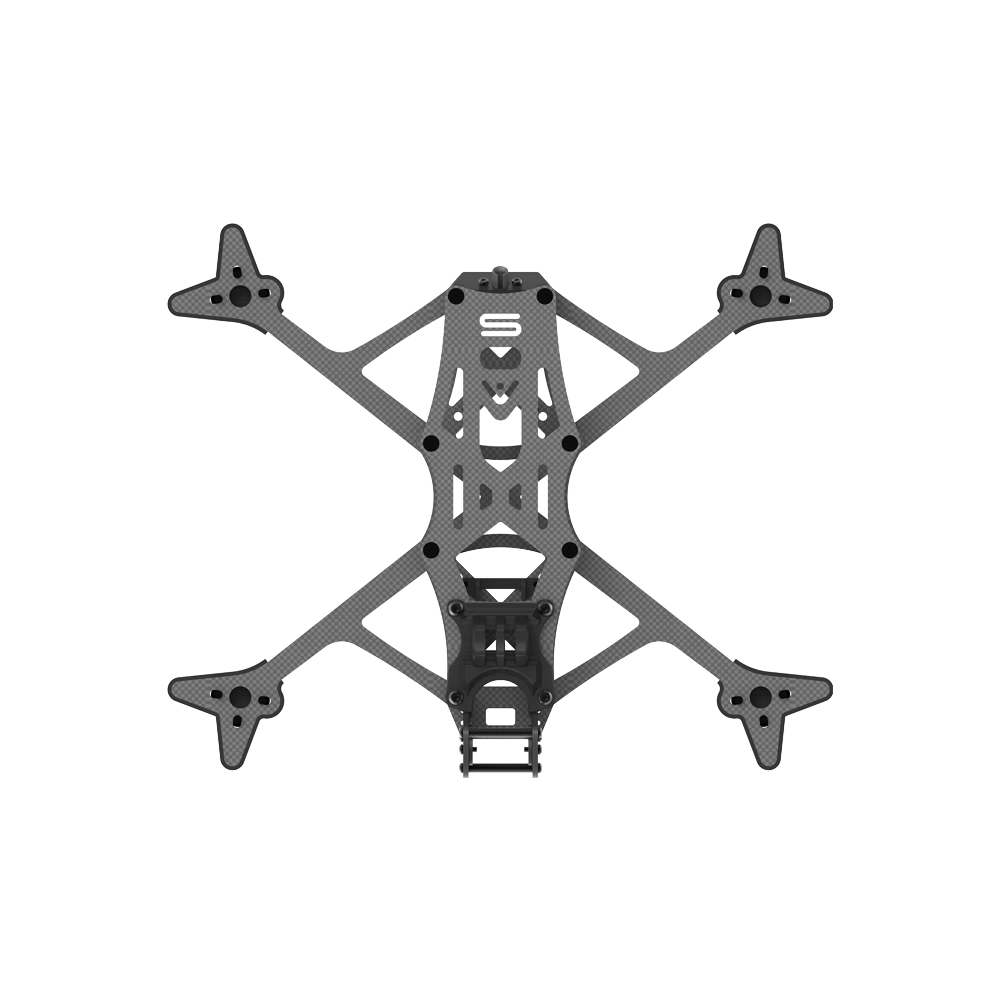

AOS 5 EVO V1.2 FPV Frame Kit с 6 мм кронштейном для FPV

• Built to be the ultimate 5″ freestyle platform. The AOS 5 EVO has been updated to be compatible with the new DJI O3 Air Unit as well as existing 30.5×30.5mm, 25.5×25.5mm and 20x20mm electronics. The camera cage and arms have been reinforced to improve durability. As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilization.

Changelog：

• June 6, 2023: The frames have been updated to support DJI O3 ND filters, a soft mount for the FPV camera and hardpoints for XT30/XT60 mounting.

Характеристики

• Approx. 120g with all hardware
• Designed for up to 5.1 inch props
• 220mm wheelbase
• 6 mm Arms
• 30.5×30.5mm, 25.5×25.5 or 20×20 mm stack mountings in the front, centre and rear.
• Fits the DJI O3 Air Unit, Caddx Vista or HDZero Freestyle VTX perfectly
• Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras
• Motor mounting 16×16 up to 19×19 (2306, 2207 recommended)
• Standoffs, frame and screws included


Технические характеристики:

• Product Name: AOS 5 EVO Frame Kit
• Frame wheelbase: 220mm
• Frame Dimension: L175*W135*H32.5 mm
• Толщина руки: 6 мм
• Толщина верхней пластины: 2 мм
• Bottom Plate Thickness: 2.5mm
• Толщина верхней пластины: 2 мм
• Motor Mounting: 16x16mm
• Крепление VTX: 20*20/Φ2 мм / 25,5*25,5/Φ2 мм


Список упаковки

• 1 x AOS 5 EVO Frame Kit
• 1 x TPU детали
• 4 x Щитовая трубка провода двигателя
• 1 x Сумка для винтов
• 2 x Ремешок для батареи
