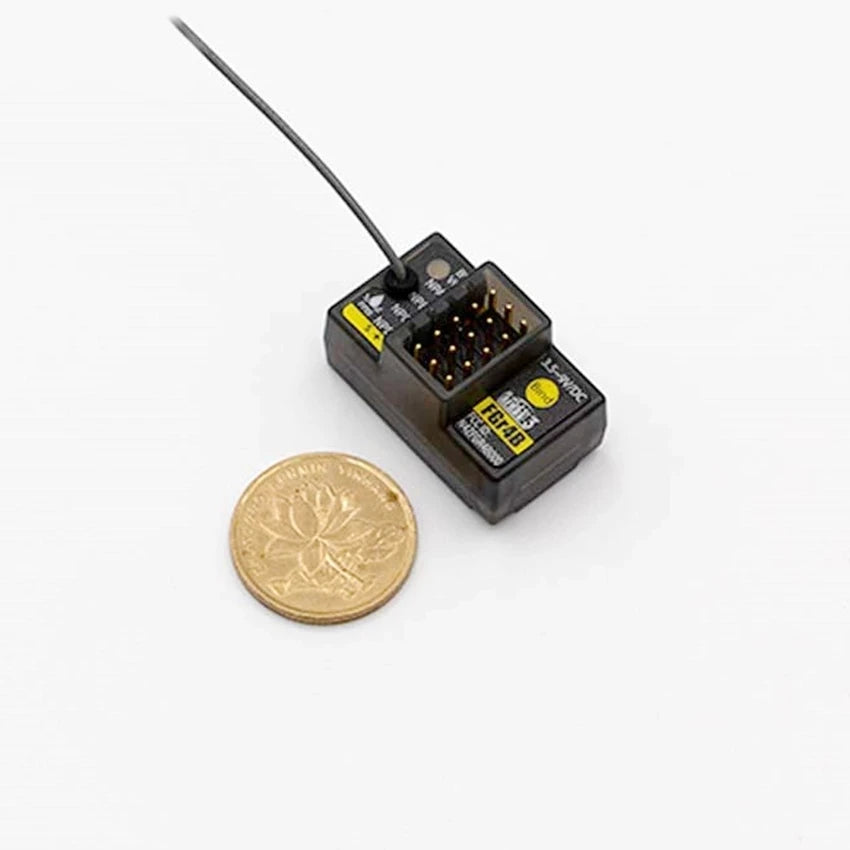

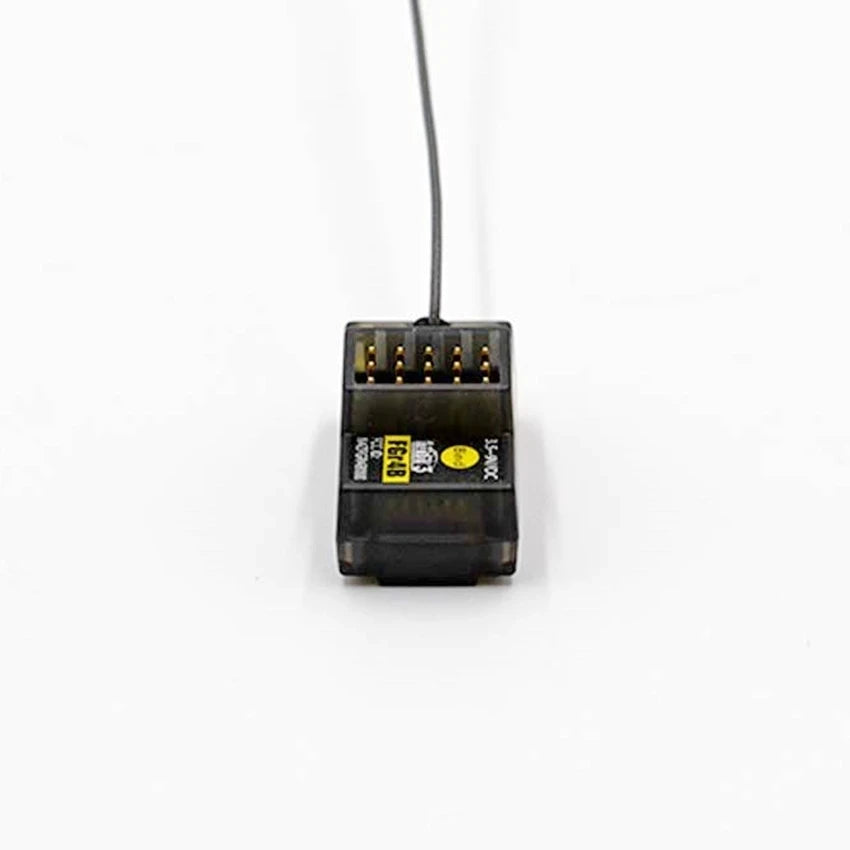

FlySky FGr4B 4-Channels Single Antenna Two-Way receiver Support All AFHDS3 Transmitters For Racing Car / Speed Boat Rc Parts

 parameters:

Product model: FGr4B

Adapted transmitter: all transmitters that support AFHDS3 (PL18, NB4, NB4 Lite, etc.)

Suitable models: remote control car, remote control boat, etc.

PWM channels: 4

Wireless frequency: 2.4GHZ ISM

Wireless protocol: AFHDS 3

Antenna type: single antenna

Input power: 3.5~9V

Data output: PWM/PPM/i-bus/S.BUS/i-bus2

Temperature range: ﹣10℃~﹢60℃

Humidity range: 20~95%

Online update: yes

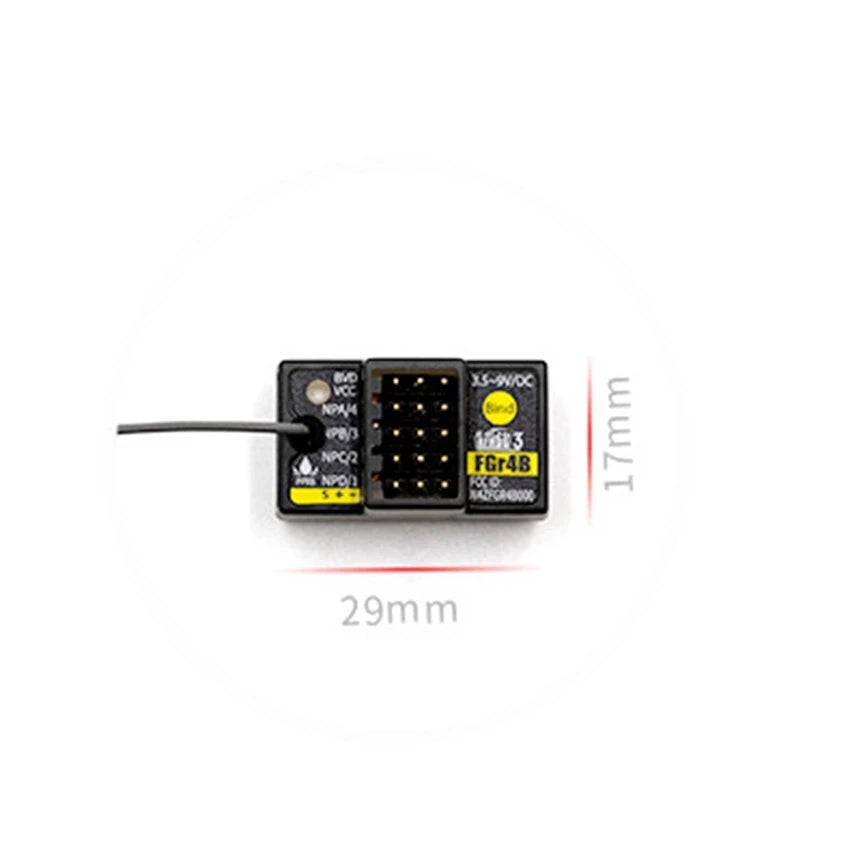

Dimensions: 17*29*16.6mm

Body weight: 6.4g

Certification: CE, FCC ID: N4ZFGR4B

 Описание:

FGr4B adopts AFHDS3 (third generation automatic frequency hopping digital system) external single antenna with return function, small and light design, easy to install, can output PWM/PMM/i-bus/S.BUS/i-bus2 signal, support Newport Switch to support all AFHDS3 transmitter

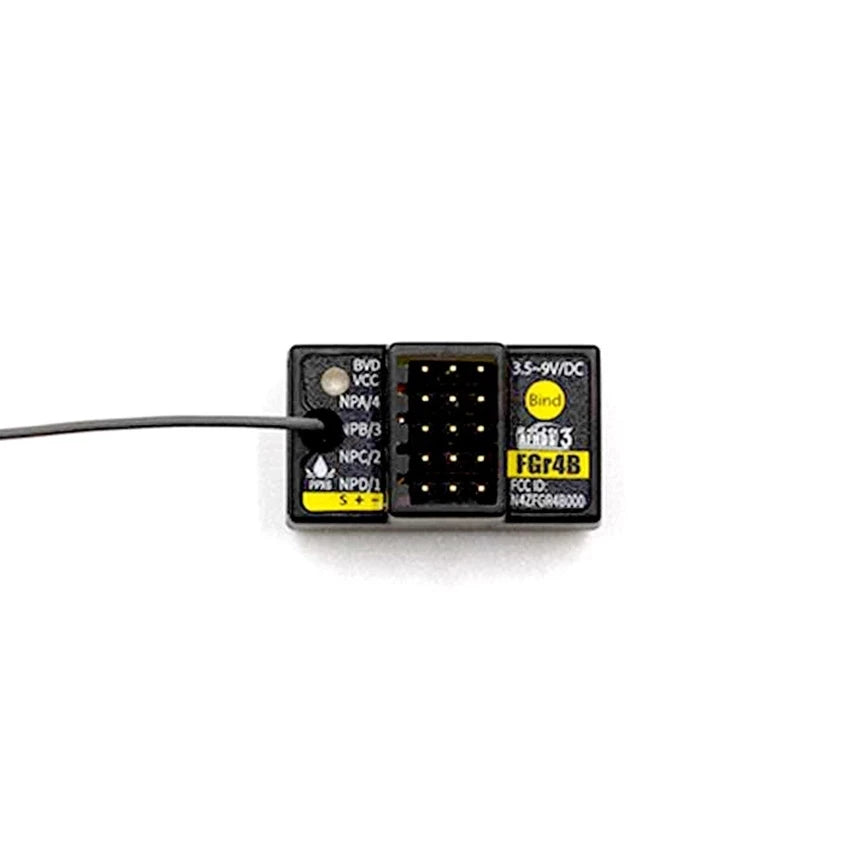

[1] CH1 (NPD) [2] CH2 (NPC) [12] [13] [3] CH3 (NPB) [4] CH4 (NPA) [7] LED lights [8] Antenna [9] Signal pin [10]+ (Positive power supply) [11]-(Power Ground) [14] Connect to the negative pole of the battery key .
