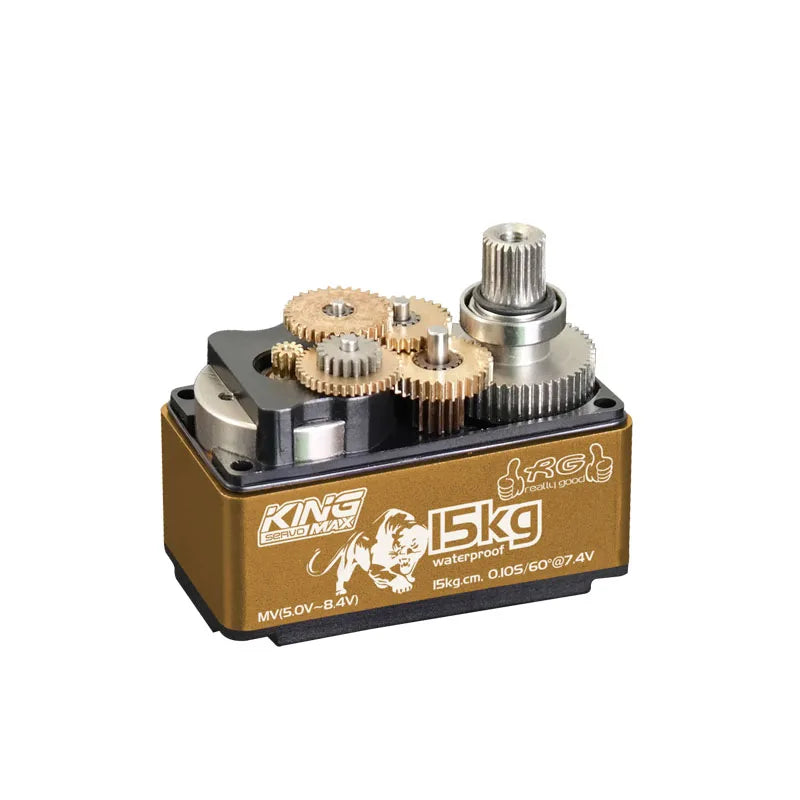

KINGMAX RGD01L 52g 15kg.cm DC 7.4V 0.10sec Full Waterproof digital metal gears low profile servo for flat running drift rc car

— Programmable high performance digital low profile servo

— High precision metal gears

— High quality DC motor

— Middle CNC aluminium case

- Двойные шарикоподшипники

— Waterproof

KINGMAX RGD01L Servo Features: Waterproof Metal Gears Design, Low Profile, 15 kg.cm Torque, 0.10 seconds Response Time, 7.4V Operating Voltage, Weight: 52g, Multivoltage Range: 5.0-8.4V, Dimensions: 40mm x 20mm x 29.6mm, Suitable for 1/8th and 1/10th Touring and Drift RC Cars, Dual Bearing and Half Metal Structure.

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ:

Item：RGD01L

Gear：Full metal

Spline：25T

Motor：DC motor

Bearing：2BB

Dead band：2μs default

Waterproof：Yes

Operating Voltage：DC5.0~8.4V

Rated working voltage：DC 7.4V

Working frequence：1520μs/330hz

Working angle：±58°@900us-2100us

Working temperature：-10℃~+50℃

Storage temperature：-20℃~+60℃

Operating Speed (5.0V):0.14sec/60 degrees

Operating Speed (6.0V):0.12sec/60 degrees

Operating Speed (7.4V):0.10sec/60 degrees

Operating Speed (8.4V):0.09sec/60 degrees

Stall Torque (5.0V):10.3kg.cm (143.06oz/in)

Stall Torque (6.0V):12.0kg.cm (166.68oz/in)

Stall Torque (7.4V):15.0kg.cm (208.35oz/in)

Stall Torque (8.4V):17.0kg.cm (236.13oz/in)

Dimensions:40X20X27.9mm /1.56X0.78X1.08in

Weight:52.5g (1.85oz)

Connector Wire Length:JR300 mm (11.70in)
