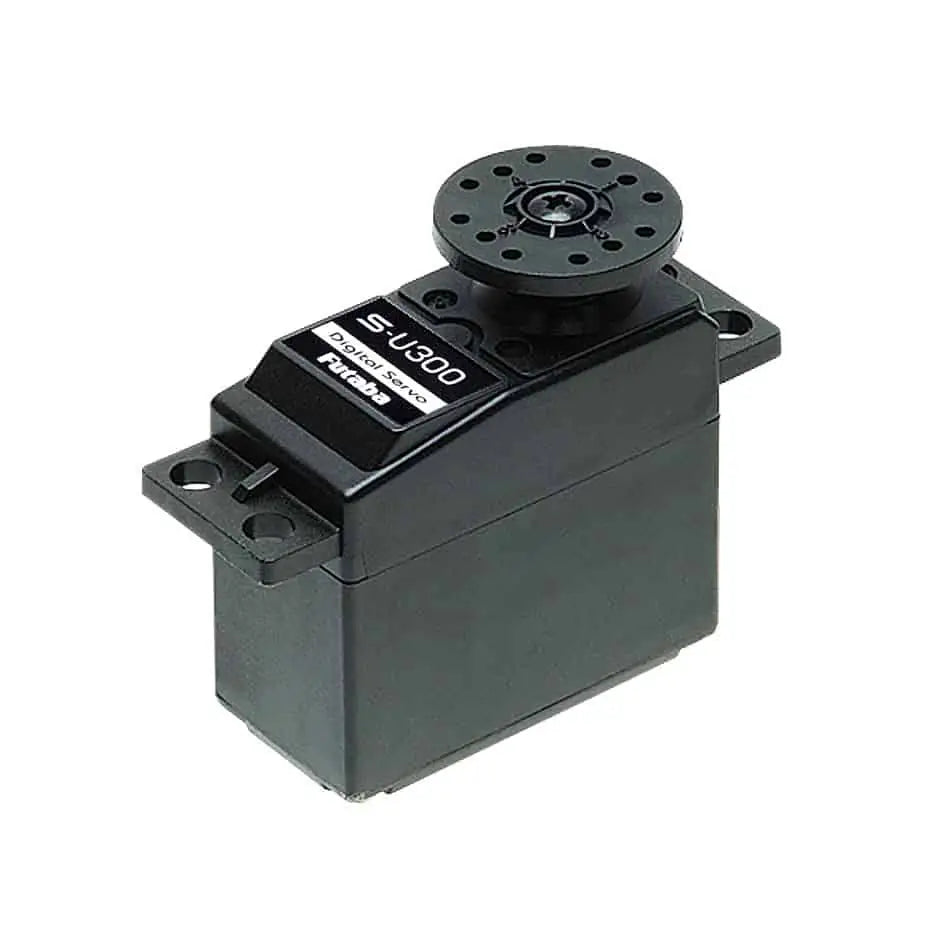

Original Futaba S-u300 Universal Standard Digital Servo Support S.bus2 3003 3001 Upgrad 0.19s / 4.5kg

Futaba standard technical parameters: All resin gear standard digital servo

Speed: 0.23sec / 60  (4.8V 0.19sec / 60  (6.0V)

Torque: 3.5kgf.cm (4.8V4.5kgf.cm (6.0V)

Size: 40.4 * 19.8 * 36.0mm

Weight: 36g

 Note: S-U300 power supply voltage is DC4.8V ~ 6.0V

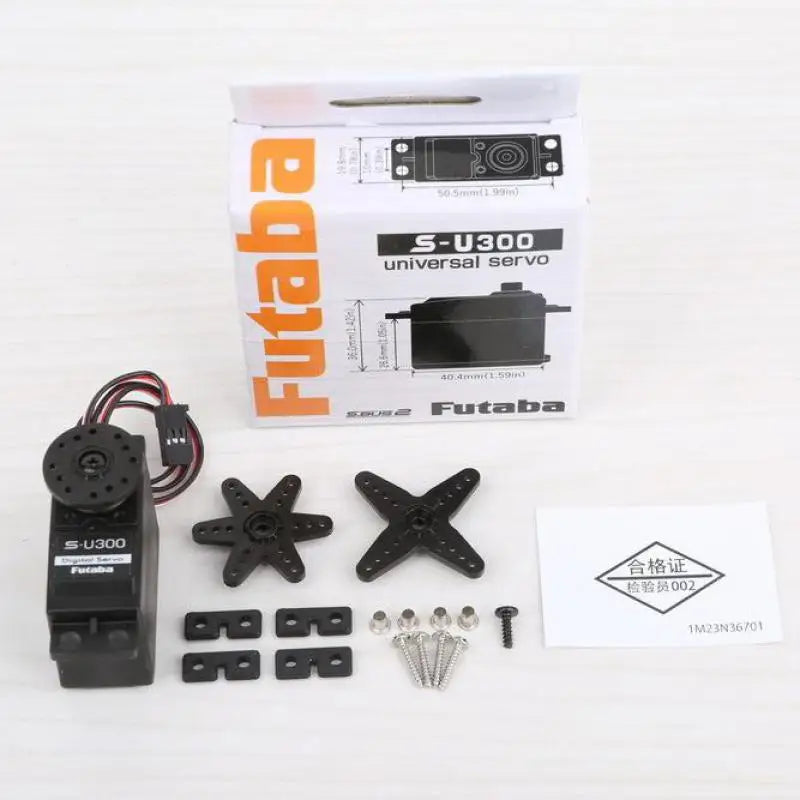

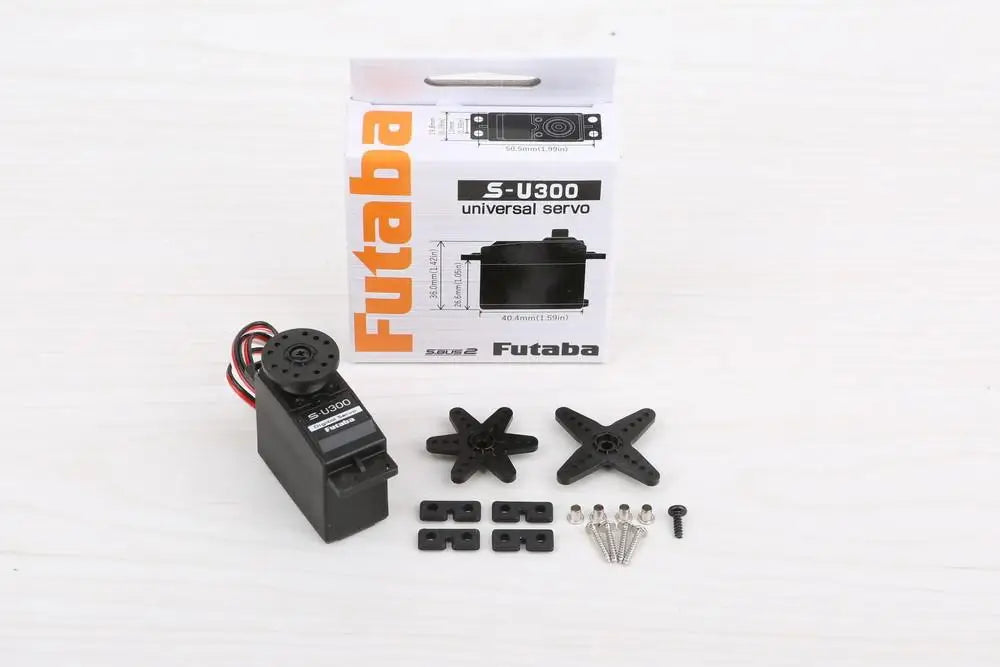

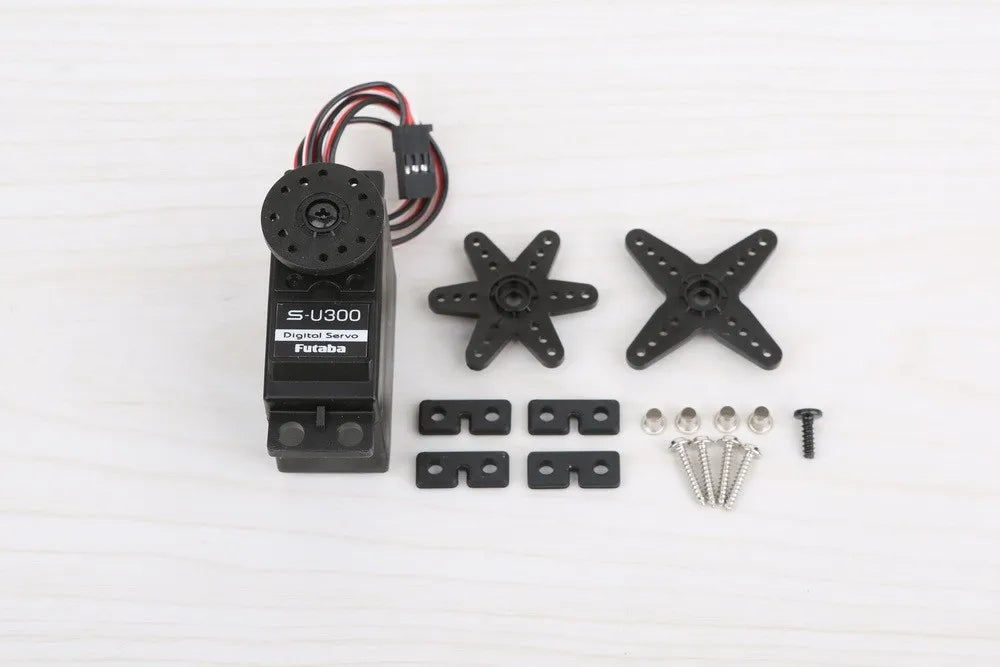

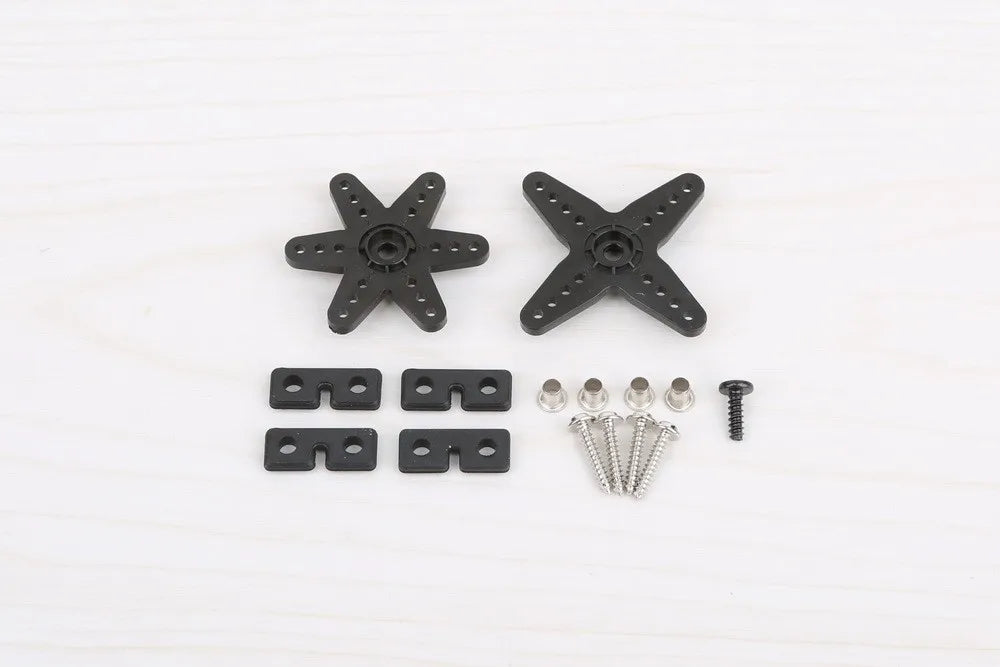

S-U300– Standard Digital and S.Bus2 Capable Airplane Servo with Accessory Pack (01102320-1)

СКОРОСТЬ:
0,23 сек/60° при 4,8 В
0.19 sec/60° at 6.0V

КРУТЯЩИЙ МОМЕНТ:
44.4 oz/in at 4.8V
56.9 oz/in at 6.0V

РАЗМЕР:
1,6 дюйма x 0,8 дюйма x 1,4 дюйма

ВЕС:
1.26oz

Plastic Gearing

6mm/25T Spline

3Pole Cored Motor

‘URDRE lucked sale mav cause amoke #Xemoxnb5’J89 and damage 39o+ (r12 (4irie Never conneci hanen revgrso Reverse connection Max (zjzrt3Ciuri-#kErino)# .

at4.8V at6.0v SIZE 40.4×19.8×36.0 Mm SPEED (s/60″) 0.23 0.19 59×0.78×1.42 [ in] WEIGHT TORQUE (kgf cm) 3.5 4,5 RATED VOLTAGE 4.8-6,0 [ V ] (ozf in) 3.04 3.91 OPERATING VOLAGE 0-6.0 [V 0
