Характеристики

– Control model is PWM

– Control system type: Digital comparator

– Operating angle: 180°

– Pulse width range: 500~2500μsec

– Electronic protection: locked rotor for 3 seconds (after the steering gear is locked, the output torque will exceed the overload torque and continue to protect the torque after 3 seconds, the overload torque and protection time can be modified)

Подробнее о продукте

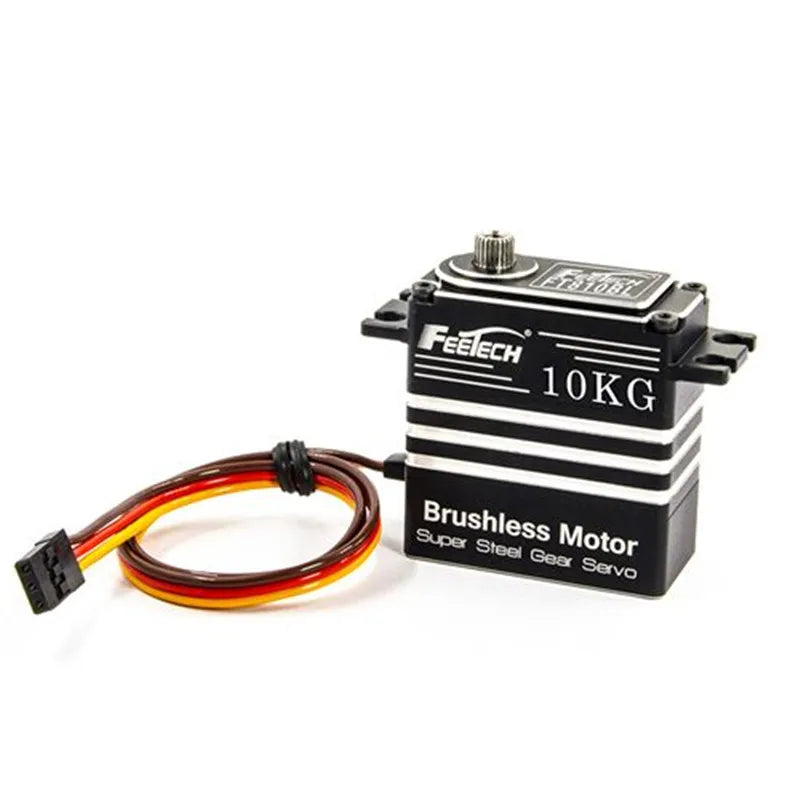

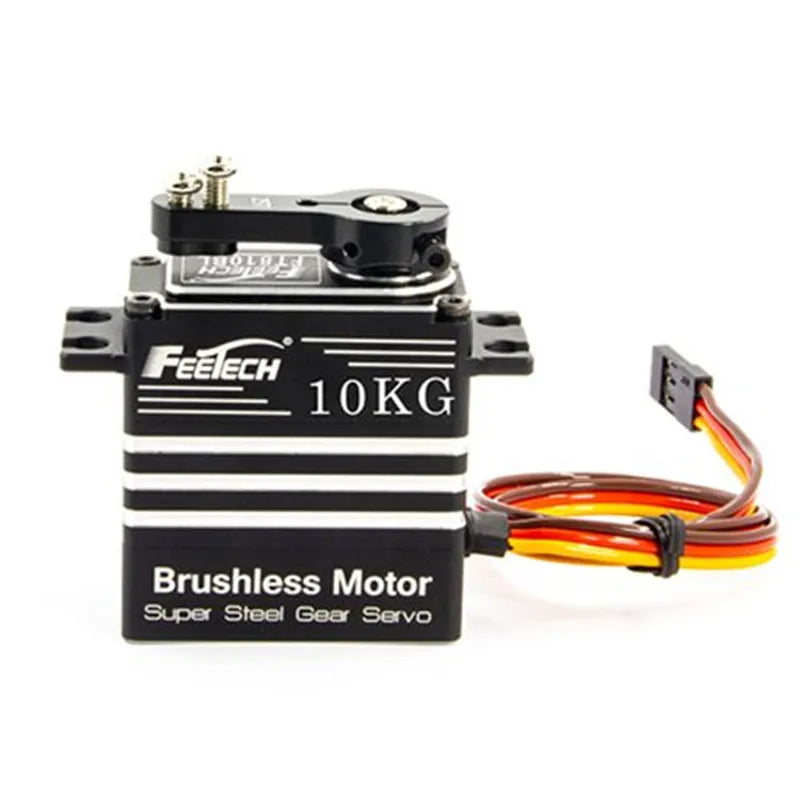

Brand: FEETECH

Model:FT810BL

Storage Temperature Range: -30℃～80℃

Operating Temperature Range: -20℃～60℃

Size: A：54.45mm B：20mm C: 38.95mm

Weight: 84± 1g

Gear type: Steel

Limit angle: NO limit

Bearing: Ball bearings

Horn gear spline: 25T/5.9mm

Gear Ratio: 1/188

Case: Alumi num

Connector wire: 30CM

Двигатель: Бесщеточный двигатель

Operating Voltage Range: 6V-7.4V

Idle current (atstopped): 6MA@7.4V

No load speed: 0.07sec/60°@7.4V

Runnig current(at no load) : 250mA@7.4V

Peak stall torque: 10kg.cm@7.4V

Rated torque: 3.3kg.cm@7.4V

Stall current: 4.2A@7.4V

Command si gnal: Pulse width modification

Amplifier type: Digital comparator

Pulse width range: 500~2500 μ sec

Stop position: 1500 μ sec

Running degree: 180°(at 500→2500μsec)

Dead band width: ≤4 μ sec

Rotating direction: Counterclockwi se (在1500→2000 μ)
