ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Название бренда: Feetech
Происхождение: Материковый Китай
Материал: Металл
Запчасти и принадлежности RC: Сервоприводы
Размер: 40*20*43mm
Для типа автомобиля: Автомобили
Используйте: Транспортные средства и игрушки с дистанционным управлением
Модернизация деталей/аксессуаров: Arm
Периферийные устройства/устройства дистанционного управления: Сервоприводы
Поставки инструментов: Sticker
Технические параметры: Значение 2
Номер модели: FT5835M
Атрибуты полного привода: Моторы
Колесная база: Винты
Gear type: Сталь
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Дело: PA+Aluminum
Operating Voltage Range: 6-7.4V
Idle current (atstopped): 6MA@7.4V
No load speed: 0.192sec/60°@7.4V
Runnig current(at no load): 290mA@7.4V
Характеристики
The main features of high speed servo are fast heat dissipation, large torque, strong compatibility and sensitive response, etc.
Good idear for the remote control toy enthusiasts who want to DIY their RC toy, and also good choice for university professors and students who are interested in developing software for robot parts. It’s also a good choice for some of the industrial device
applications.
Особенности:

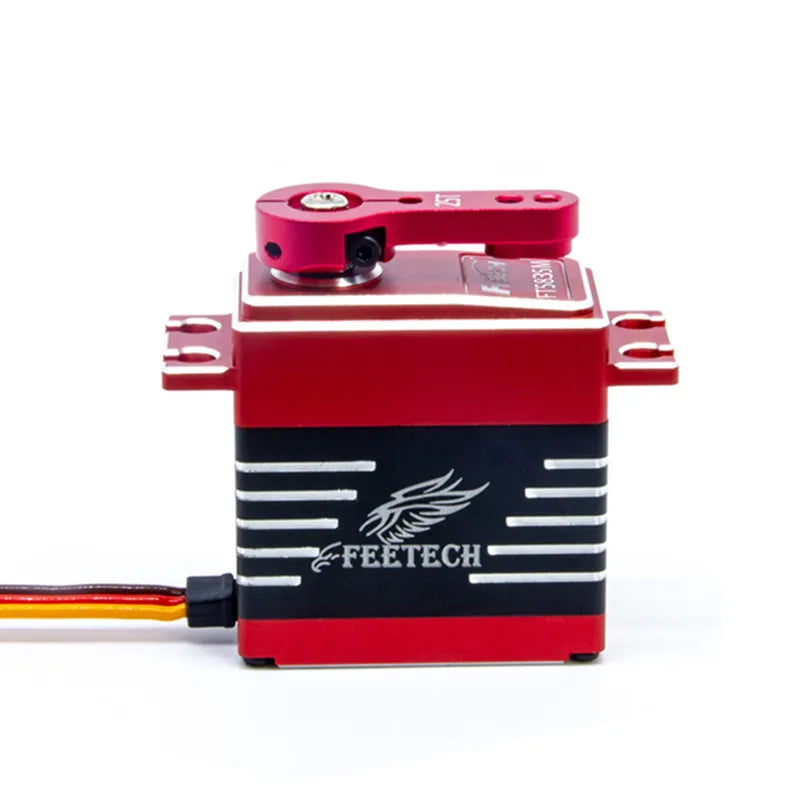

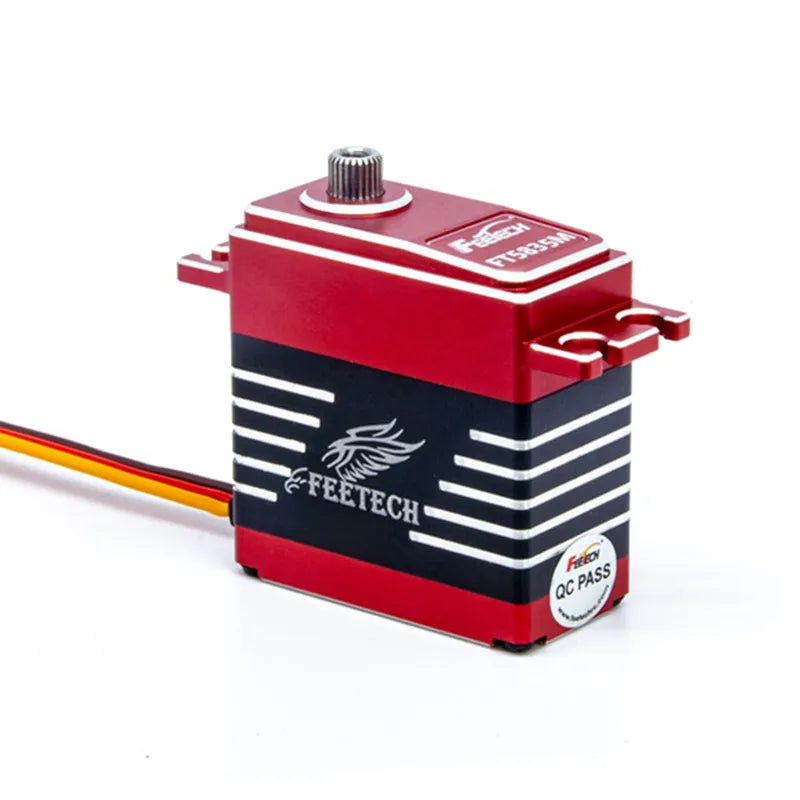

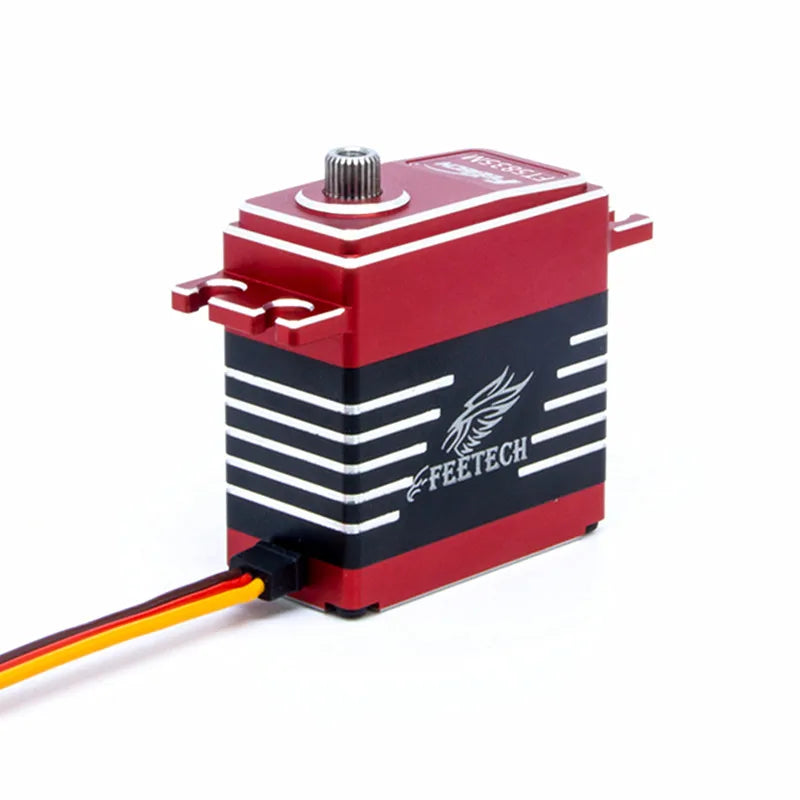

1.FEETECH 7.4V 35kg.cm digital 180 degree Steel gear high torque servo

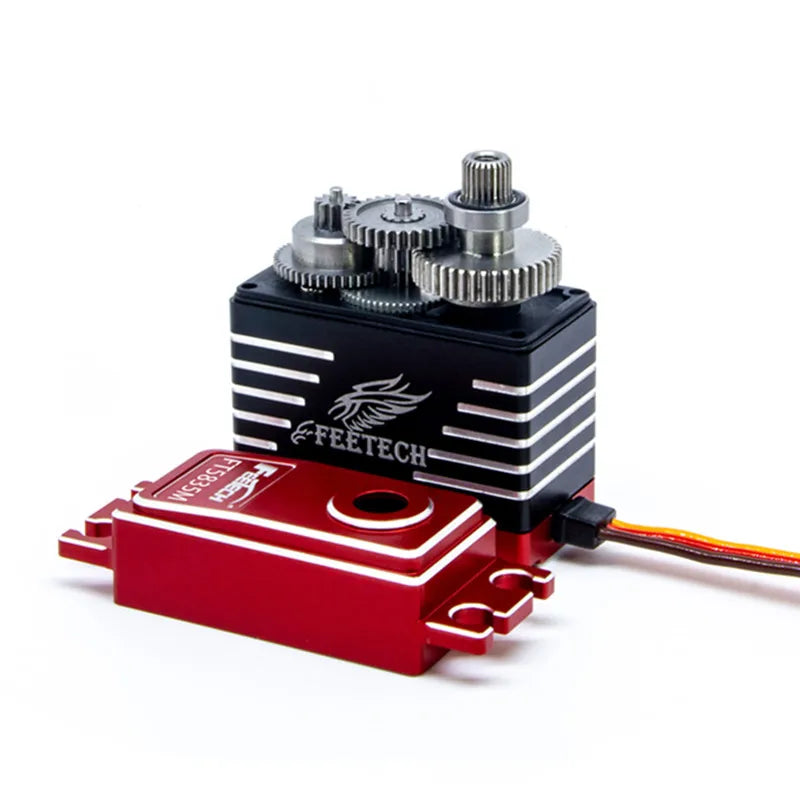

2.The whole case is made of full CNC aluminium, and it adopts FEETECH patented strengthen stainless steel gear.
3.Contactless magnet angle sensor for a longer using life.
4.waterproof design and waterproof rubber seals screws.
Connection
The servo drive requires an external 6 volt power supply and a control board .

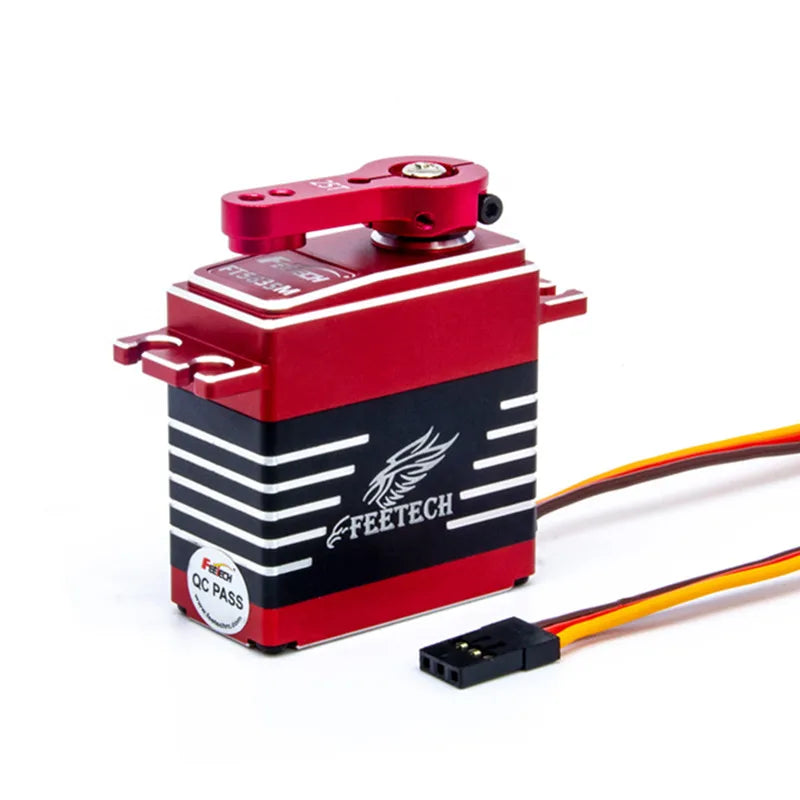

The drive is connected by a three-wire loop:
* Red – drive power supply.
* Brown is earth.
* Yellow – control signal from the microcontroller.
Possible alternatives
If a high torque servo is required, use the FT846BL orFT6560M .
If you need a 360 ° free rotation drive, check out the FT8346M .
Подробнее о продукте
Model：FT5835M
Storage Temperature Range：-30℃～80℃
Operating Temperature Range：-20℃～60℃
Size：A：40mm B：20mm C: 43mm
Weight：74± 1g
Gear type：Steel
Limit angle：NO limit
Bearing：Ball bearings
Horn gear spline：25T/5.9mm
Case：PA+Aluminum
Connector wire：30CM
Motor：Core Motor
Operating Voltage Range：6-7.4V
Idle current (atstopped)：6MA@7.4V
No load speed：0.192sec/60°@7.4V
Runnig current(at no load)：290mA@7.4V
Peak stall torque：35.5kg.cm@7.4V
Rated torque：11.8kg.cm@7.4V
Stall current：3.9A@7.4V
Command si gnal：Pulse width modification
Amplifier type：Digital comparator
Pulse width range：500~2500 μ sec
Stop position：1500 μ sec
Running degree：180°(at 500→2500μsec)
Dead band width：≤4 μ sec
Rotating direction： Counterclockwi se (1500→2000 μ sec)
