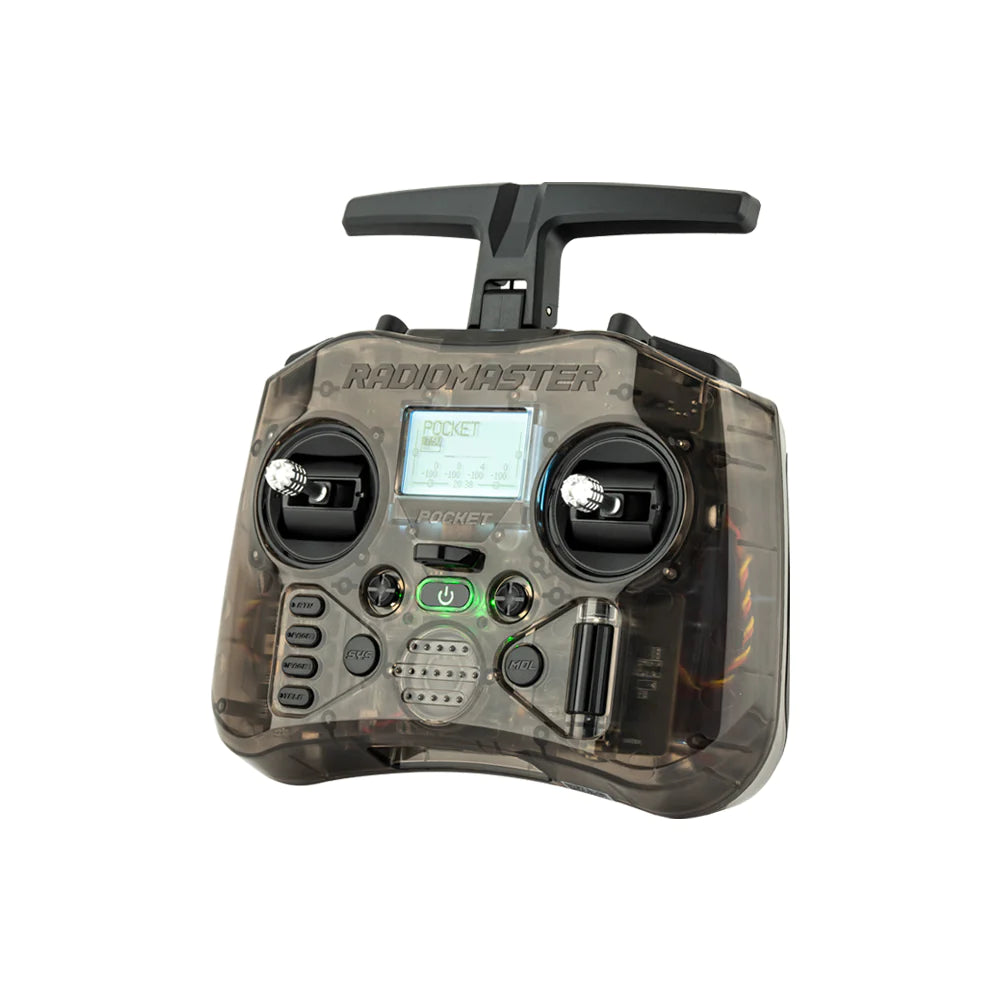

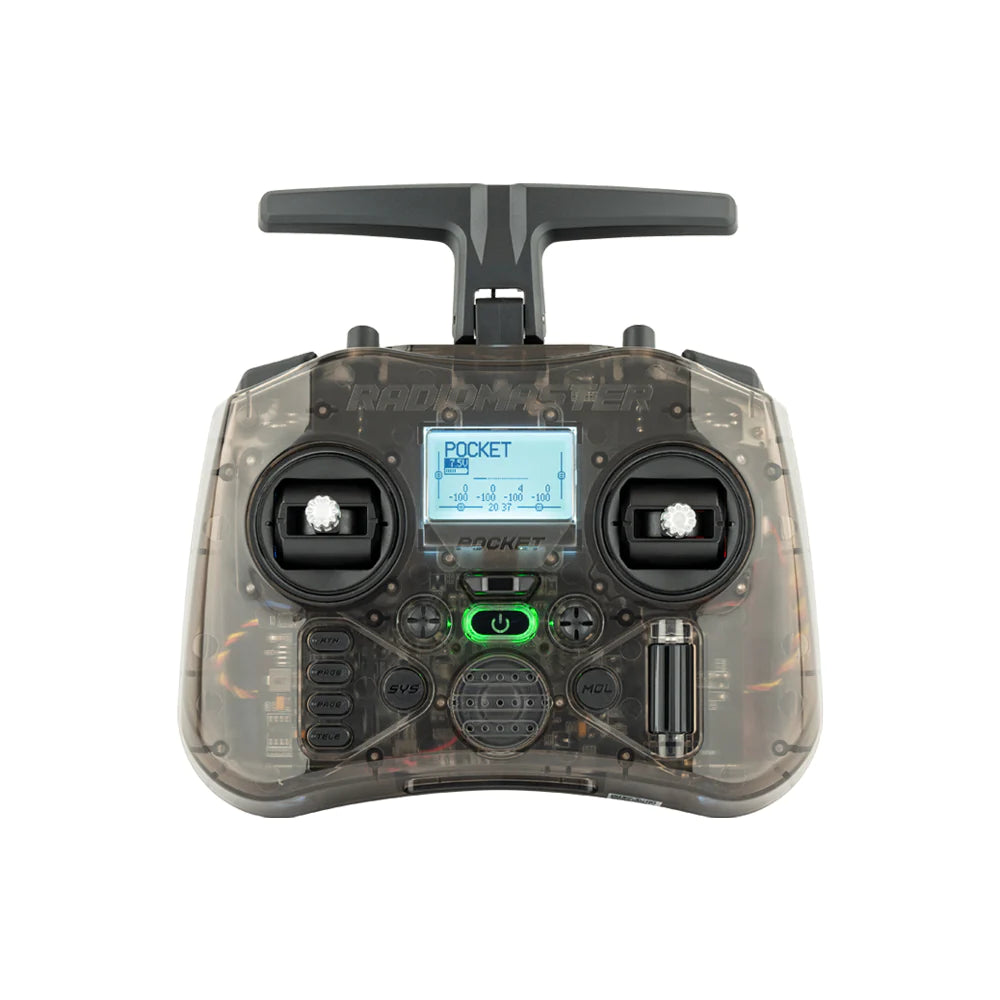

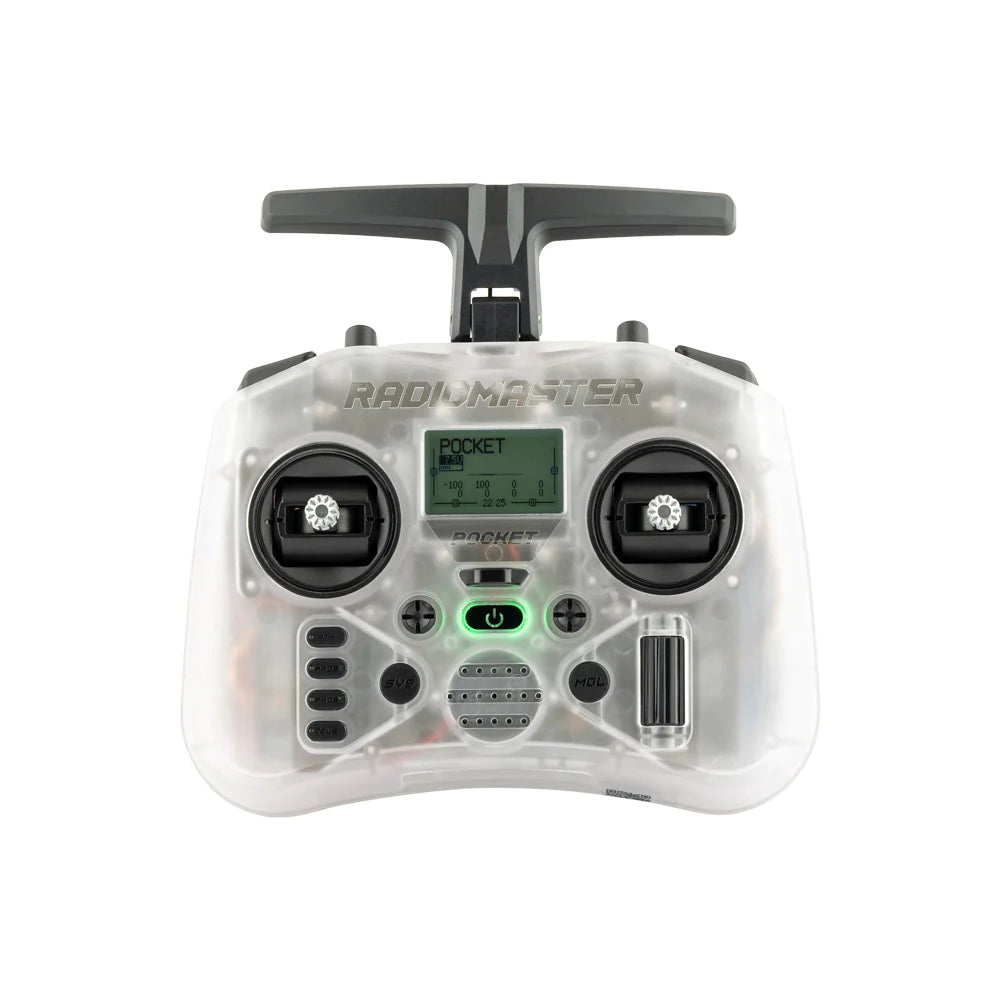

The RadioMaster Pocket is a small, lightweight radio that packs a big punch. It is available in two versions, ExpressLRS and MPM CC2500, and both versions come preinstalled with EdgeTX firmware. The Pocket is also equipped with removable stick ends and a foldable antenna, making it easy to transport and store. It is compatible with 18650 batteries, which provide long battery life for hours of fun.
In addition to the classic charcoal and transparent case colors, we have a range of optional color cases available in a selection of vibrant colors, including blue, pink, green, and orange. This allows you to personalize the radio to match your own unique style.
The RadioMaster Pocket is a great choice for pilots who are looking for a small, lightweight radio with all the powerful features you have come to expect.
Характеристики
- Available in ExpressLRS Backpack and MPM CC2500 versions
- Preinstalled with EdgeTX firmware
- 18650 Batteries, all the power you need for hours of fun (Batteries not included)

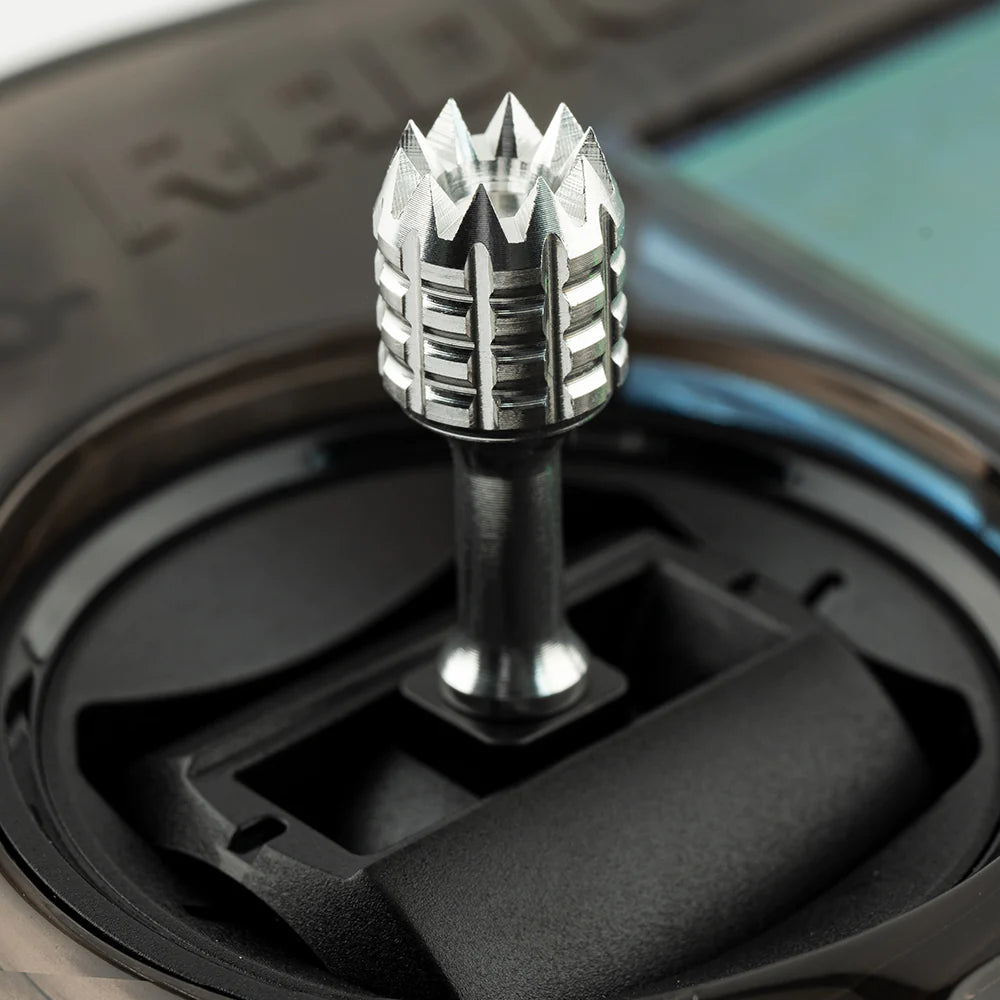

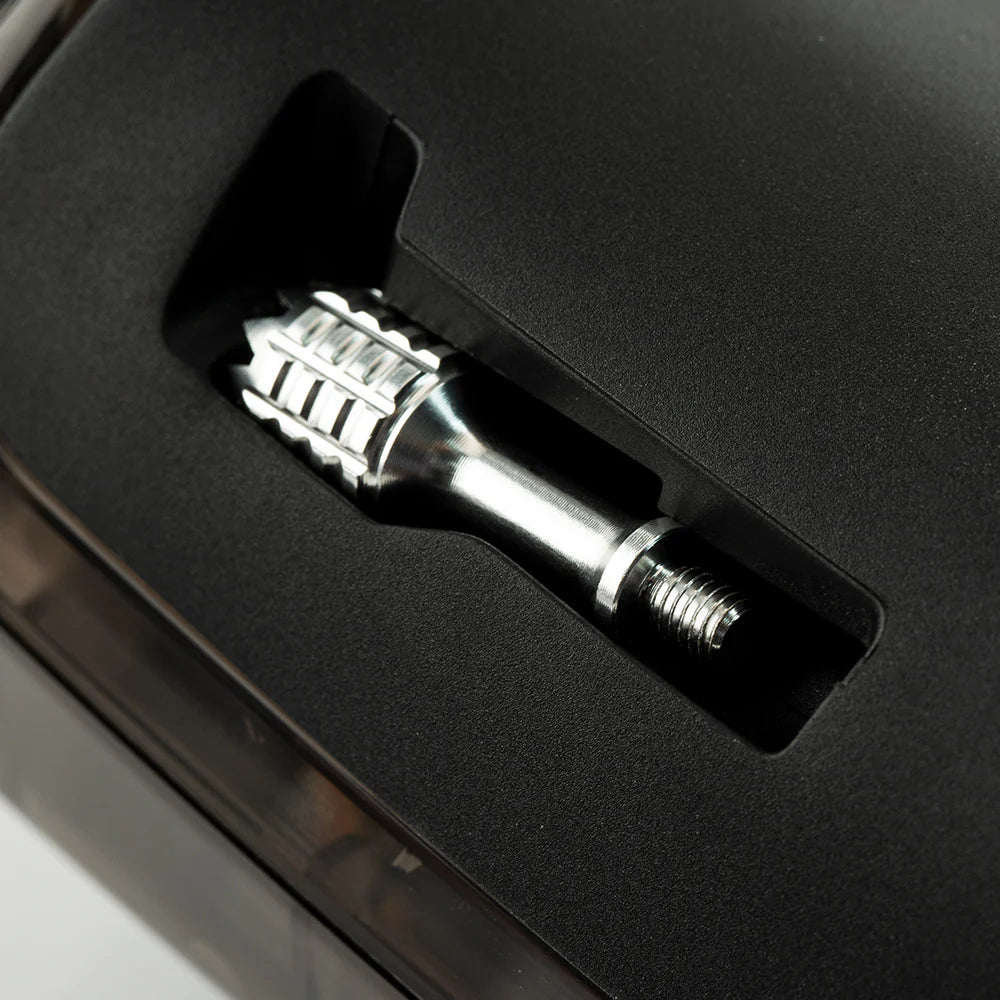

- Portable and lightweight design with removable stick ends and foldable antenna
- Features hall effect gimbals as standard for smooth centering & precise response
- Built-in LED lights help visualize your switch positions (SA & SD)
- Backlit LCD Screen offering a perfect balance of size and functionality
- Trim buttons for easy channel trimming
- External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer
- 2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style
Технические характеристики
- Item: Pocket Radio
- Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）
- Weight: 288 grams
- Рабочая частота: 2,400 ГГц-2,480 ГГц
- Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
- Поддерживаемые протоколы: Зависит от модуля
- Рабочее напряжение: 6,6-8,4 В постоянного тока
- Operating system: EdgeTX
- Control channels: Maximum 16 (Receiver dependent)
- Дисплей: Монохромный ЖК-дисплей 128*64
- Battery: 2pcs 18650 batteries (Not included)
- Charging: Built in USB-C QC3 Charging
- Upgradable Firmware: Via USB or the included SD card
- Карданный шар: эффект Холла
- Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )
Available with ExpressLRS and CC2500 Version
- CC2500 (стандарт) Версия поддерживает все протоколы CC2500
- ELRS (standard) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)
About LBT version
- Версия CC2500 LBT (Европа) ограничена протоколами LBT, совместимыми с FrSKY X/X2 LBT и HoTT LBT.
- Версия ELRS LBT (Европа) предустановлена с ExpressLRS CE EU domain LBT FW (ограничена выходной мощностью 100 мВт)
POWER UP YOUR ADVENTURES WITH (CFC Rols 18650 BATTERIES) Hours of fun and enough power for external modules #Battery
EXTERNAL (€FC RoHs NANO F33a GRF MODULE BAY Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire Nano Tra
OPTIONAL CASE COLORS DIY your style Radion iWin radioMaSTER YELLOW ORANGE CHARCOAL TRANSPARENT PINK BL
Gimbal Adjustment
A L-R
To switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
B T
To adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
C UP-DOWN
Turn clockwise to increase vertical stick tension.
Turn counterclockwise to decrease stick tension.
D LEFT-RIGHT
Turn clockwise to increase horizontal stick tension.
Turn counterclockwise to decrease stick tension.
Размеры
Обзор радиостанций
Optional Accessories
- 18650 Batteries
- Optional cases in Blue, Pink, Green, Orange, Charcoal and Transparent
- Ranger Nano Module
- RM 4in1 Module
Package Including
- 1 * Pocket Radio
- 1 * Custom Carry Pouch
- 1 * Кабель USB-C
- 1 * Screen Protector
- 1 * Sticker
- 4 * Пружины низкого натяжения
- 1 * Руководство
