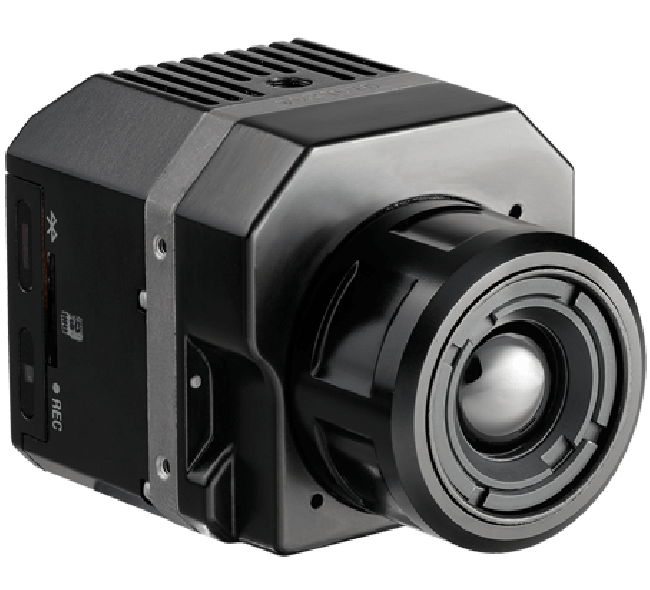

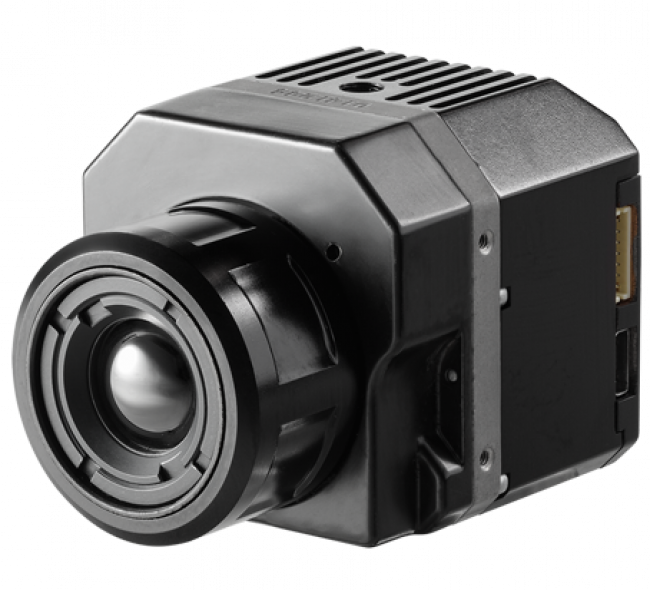

FLIR VUE PRO 336 Thermal Camera For Drone – 336 x 256 Thermal Imaging & Data Recording 6.8mm 9mm 13mm 25° 35° 44° 9HZ 30HZ

Designed for professional use, FLIR Vue Pro is more than a thermal camera, it is a thermal measurement instrument and data recorder that adds tremendous value to your sUAS operations and services.

Drone Thermal Imaging & Data Recording

• ON-BOARD RECORDING

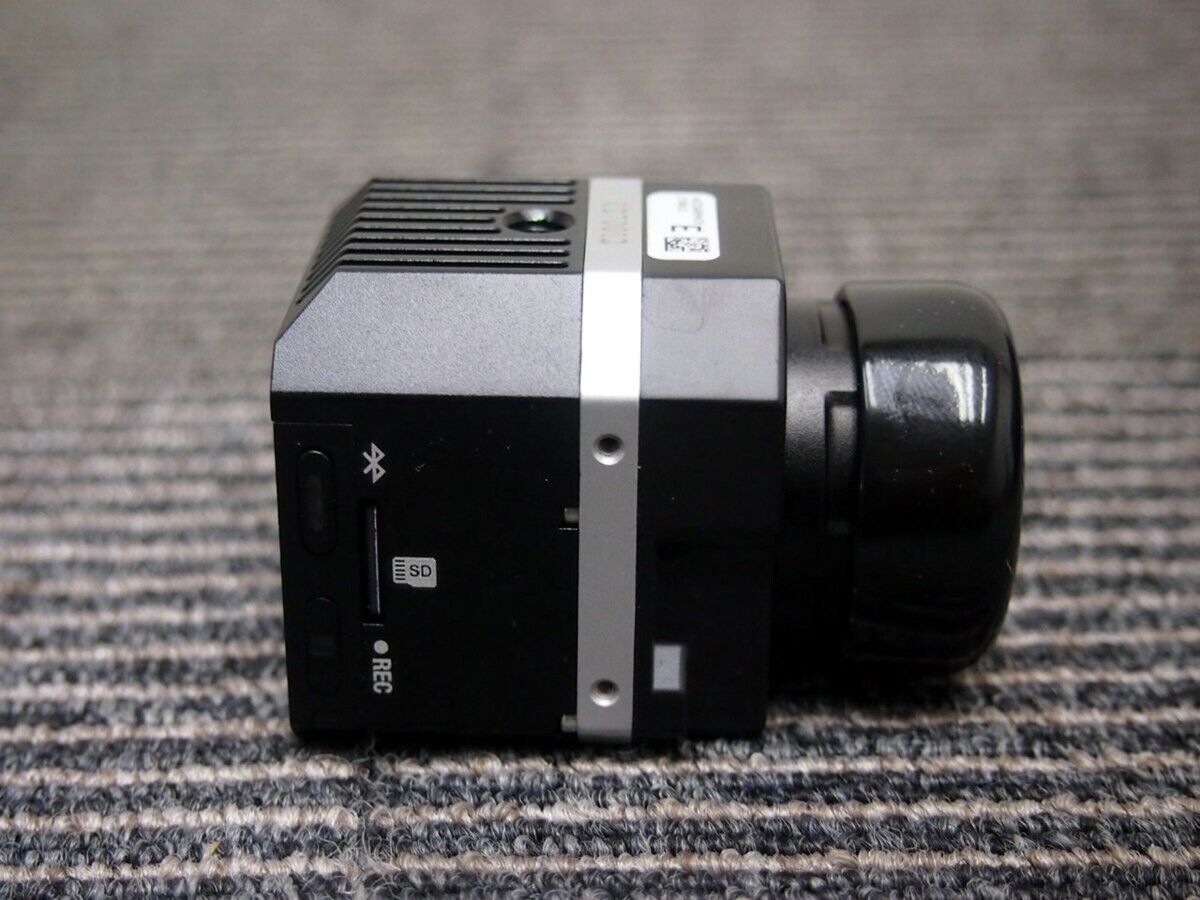

  Vue Pro records digital video and still imagery to a removable micro-SD card so you won’t lose any of your data to transmission loss.

• MAVLINK INTEGRATION & PWM CONTROLS

  In addition to MAVLink compatibility for image geo-tagging, the Accessory Port lets you control camera functions in flight by integrating with your drone’s control system.

• EASY TO CONFIGURE

  Easy configuration with the FLIR UAS app lets pilots set color palettes, image optimization features, configure PWM inputs without lugging a computer to the field.

4 Ways to Make Drone Inspections More Efficient

To successfully capture accurate drone inspection data, you need to fly in the right conditions, with the right aircraft, and in the right relationship to your target. It is just as important to know how to use the right software to optimize image appearance, batch process images to save time, and more!

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

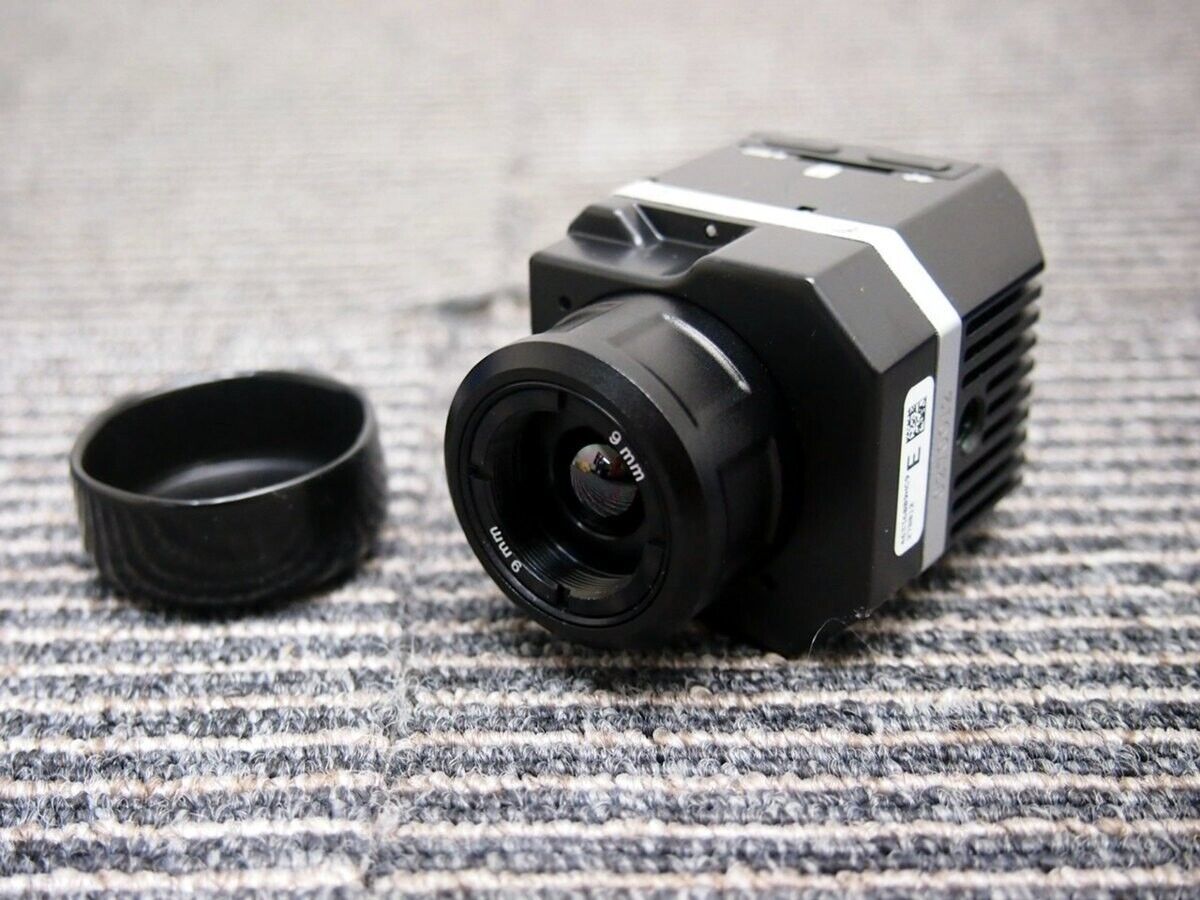

• Model – VUE PRO R 336 9mm 9Hz
• Lens – 9mm with 35° x 27° FOV
• Sensor – Uncooled VOx Microbolometer
• Resolution – 336 x 256
• Full Frame Rate – 7.5 Hz (NTSC); 8.3 Hz (PAL)

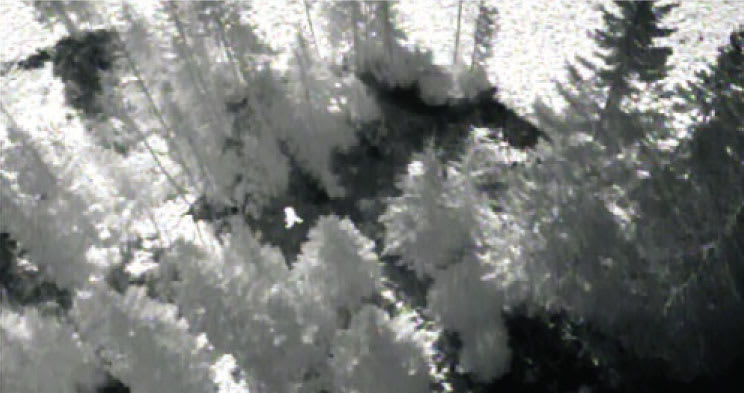

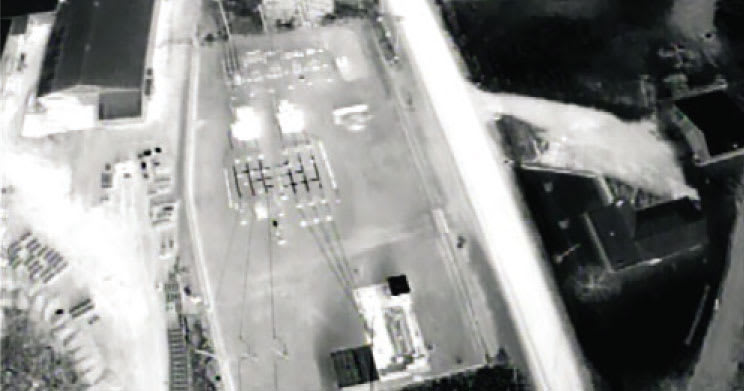

The Vue Pro R gives drone operators and certified thermographers the power to gather accurate, non-contact temperature measurements from an aerial perspective. Every still image the Vue Pro R saves contains accurate, calibrated temperature data embedded in every pixel, adding even more value to your sUAS operations and services than ever. Vue Pro R adds fully radiometric data-gathering to sUAS applications like building and roof inspections, power grid inspections, infrastructure analysis, natural resources management, livestock management, public safety, search and rescue.

Affordable Thermal Imaging and On-board Data Recording

Record digital video and still imagery to a removable micro-SD card, eliminating data transmission loss.

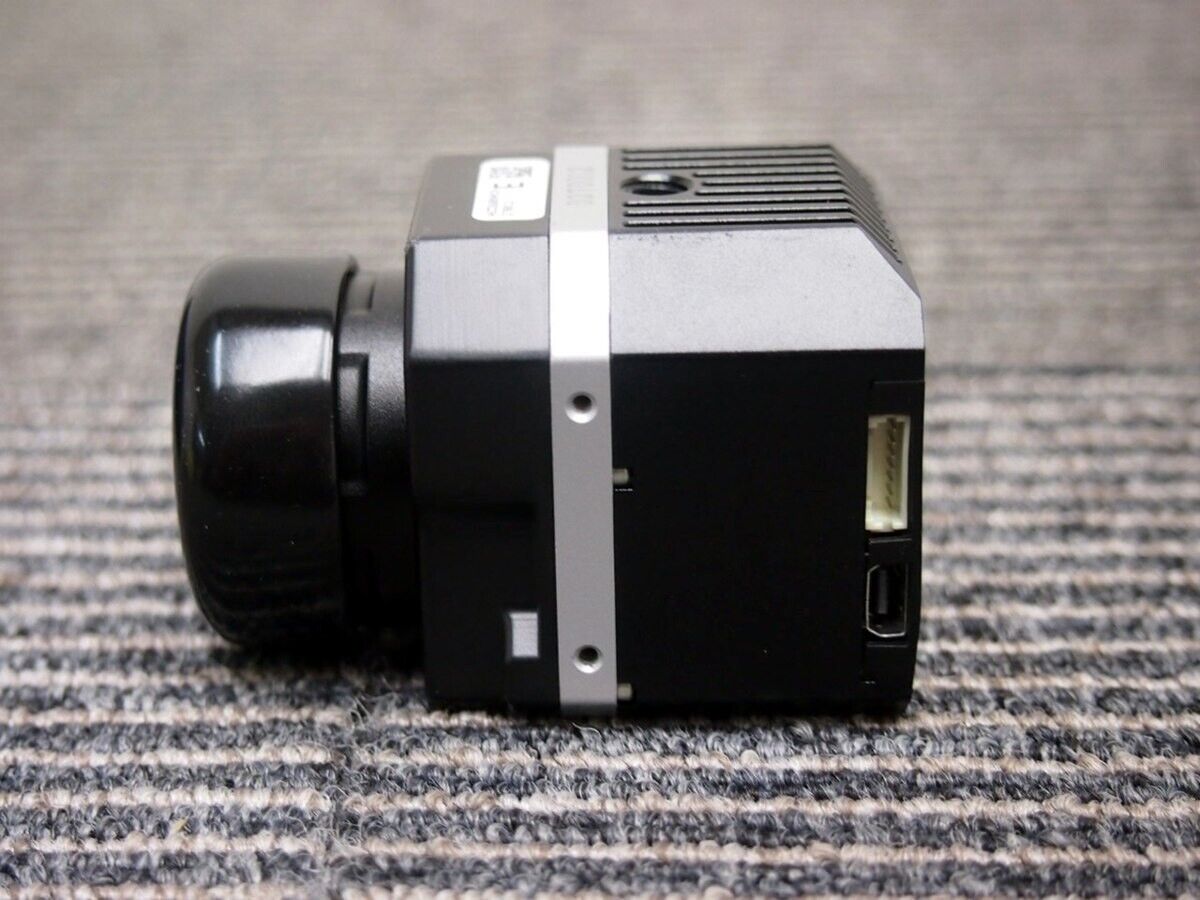

• Simple power-in/video-out interface over 10-pin mini-USB connector
• Image settings optimized for airborne operations
• Record real-time thermal videos in MOV format
• Aircraft flight information is saved in each still image

MAVLink Integration & PWM Controls

In addition to MAVLink compatibility for image geotagging, the accessory port allows remote in-flight camera function control.

• Multiple recording options including flight data in each image
• Mobile app allows for PWM configurations in the field
• MAVLink integration with convenient RS-232 connection

Flexible, Powerful Camera Control and Configurations Options

Easy configuration with the FLIR UAS app lets pilots set color palettes and image optimization features.

• Control selectable camera functions with PWM inputs – imagery controls, recording start/stop, and still image capture
• Vue Pro R saves Radiometric JPEGs with temperature data embedded in every pixel
• Vue Pro R saves still images as Radiometric JPEGs or 14-bit TIFF formats

Optional Power & HDMI Video Module

The Optional Power & HDMI Video Module makes the Vue Pro R easier to integrate than ever.

• 10-pin mini-USB connector accepts a wider input power range, provides reverse polarity protection, still provides analog video output and access to the camera’s on-board storage
• The micro-HDMI connector outputs HDMI video for live digital video downlink systems like DJI Lightbridge and 3DR Solo

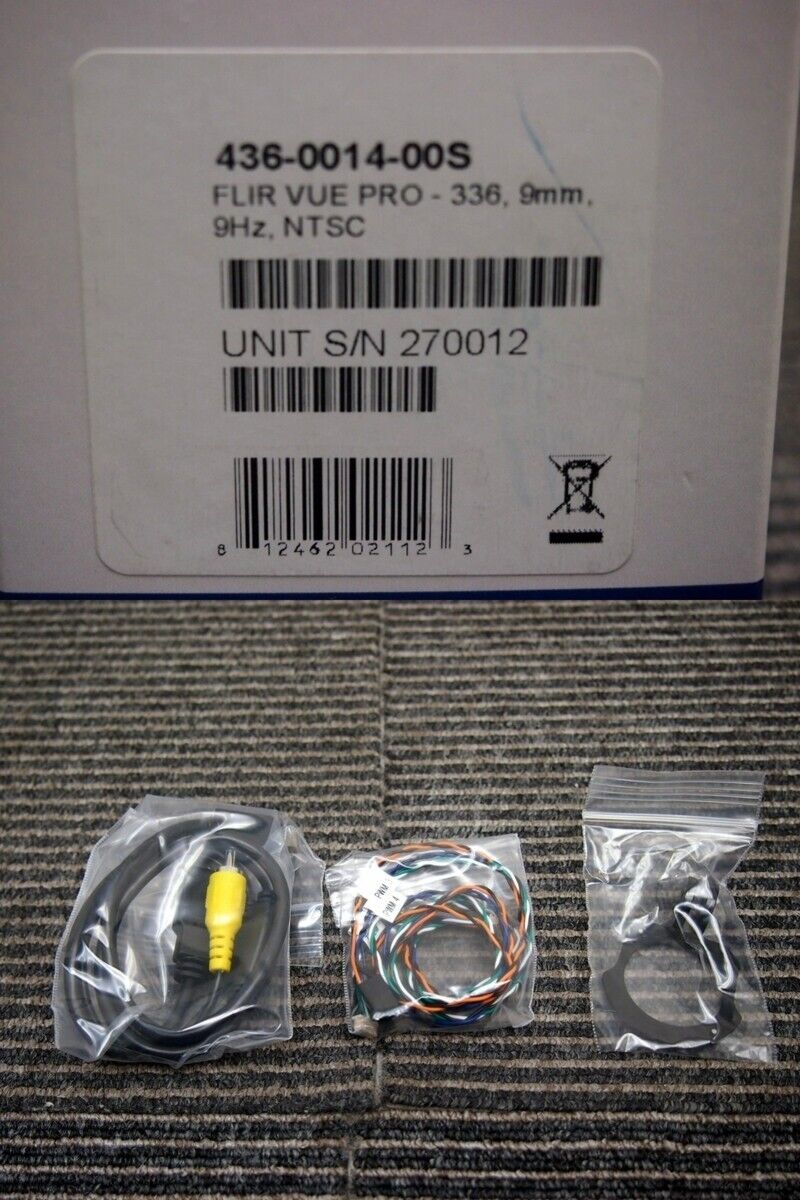

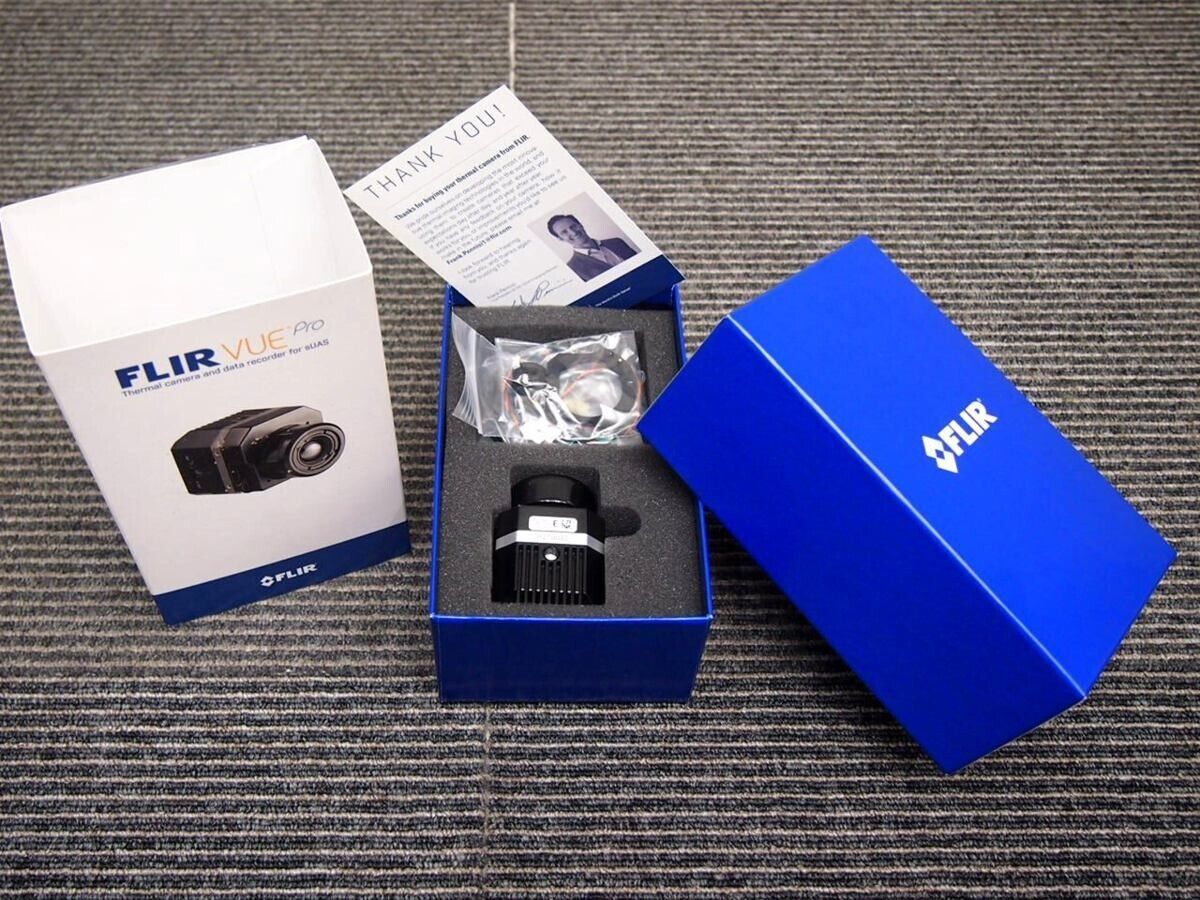

В коробке

• Vue Pro R Camera
• Bench Cable
• Accessory Cable
• MicroSD card
