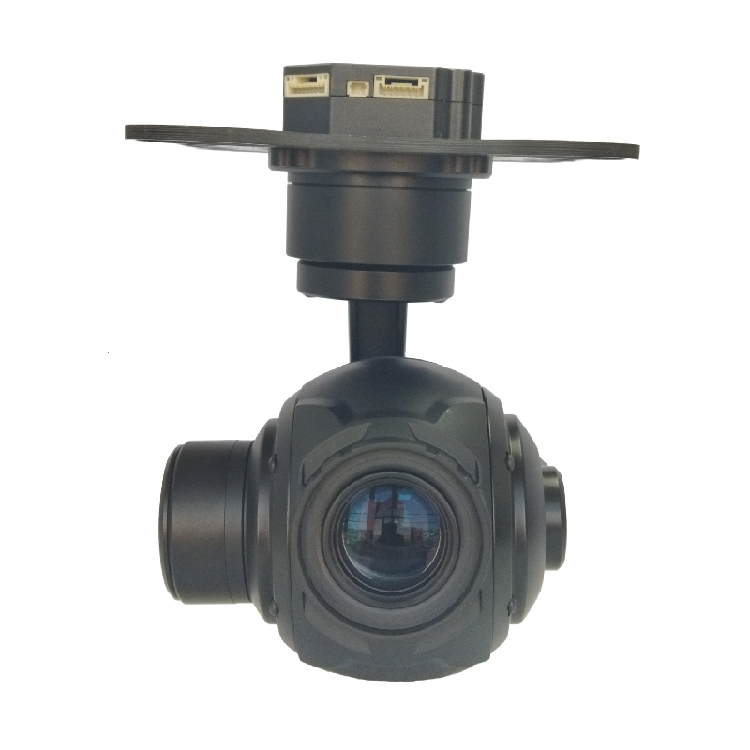

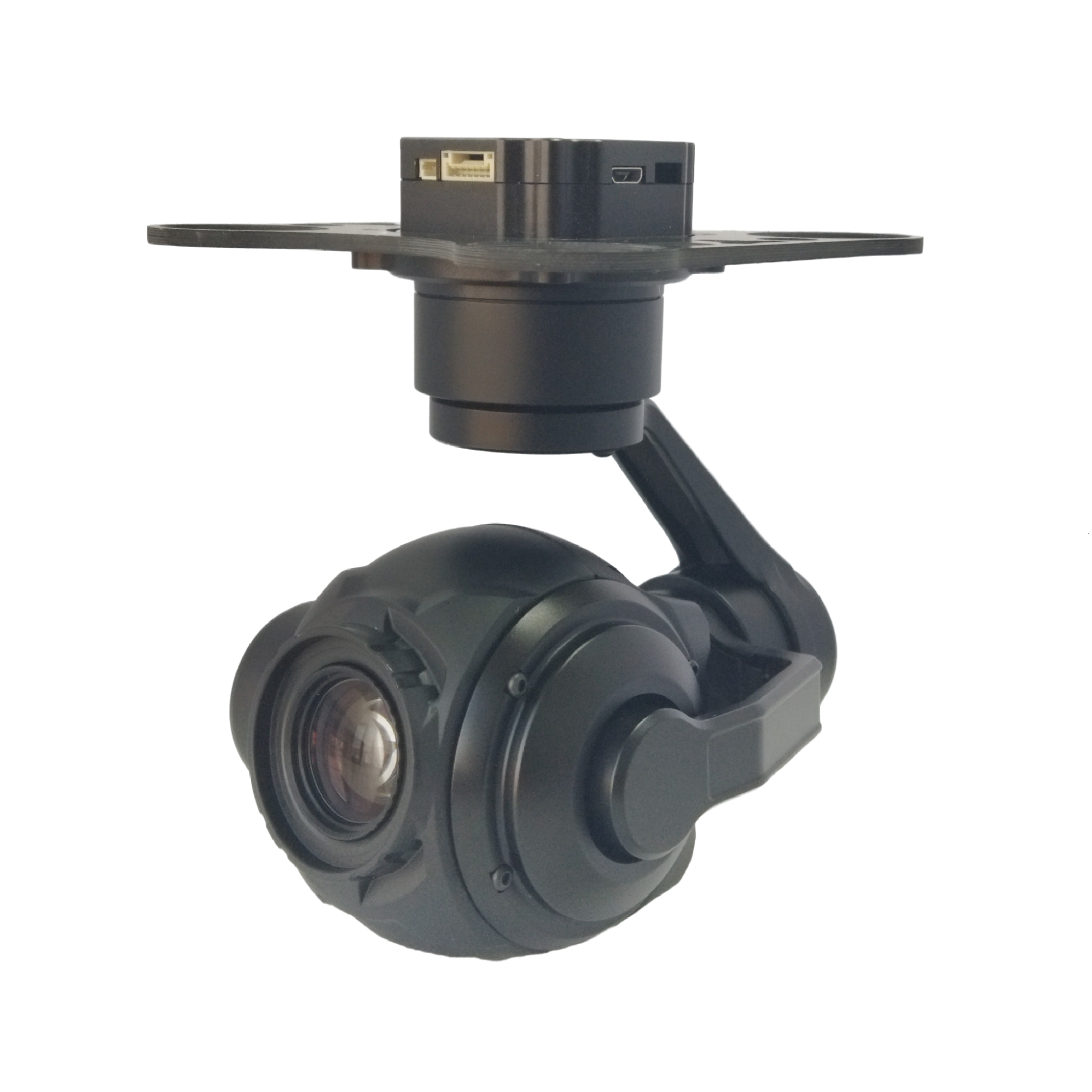

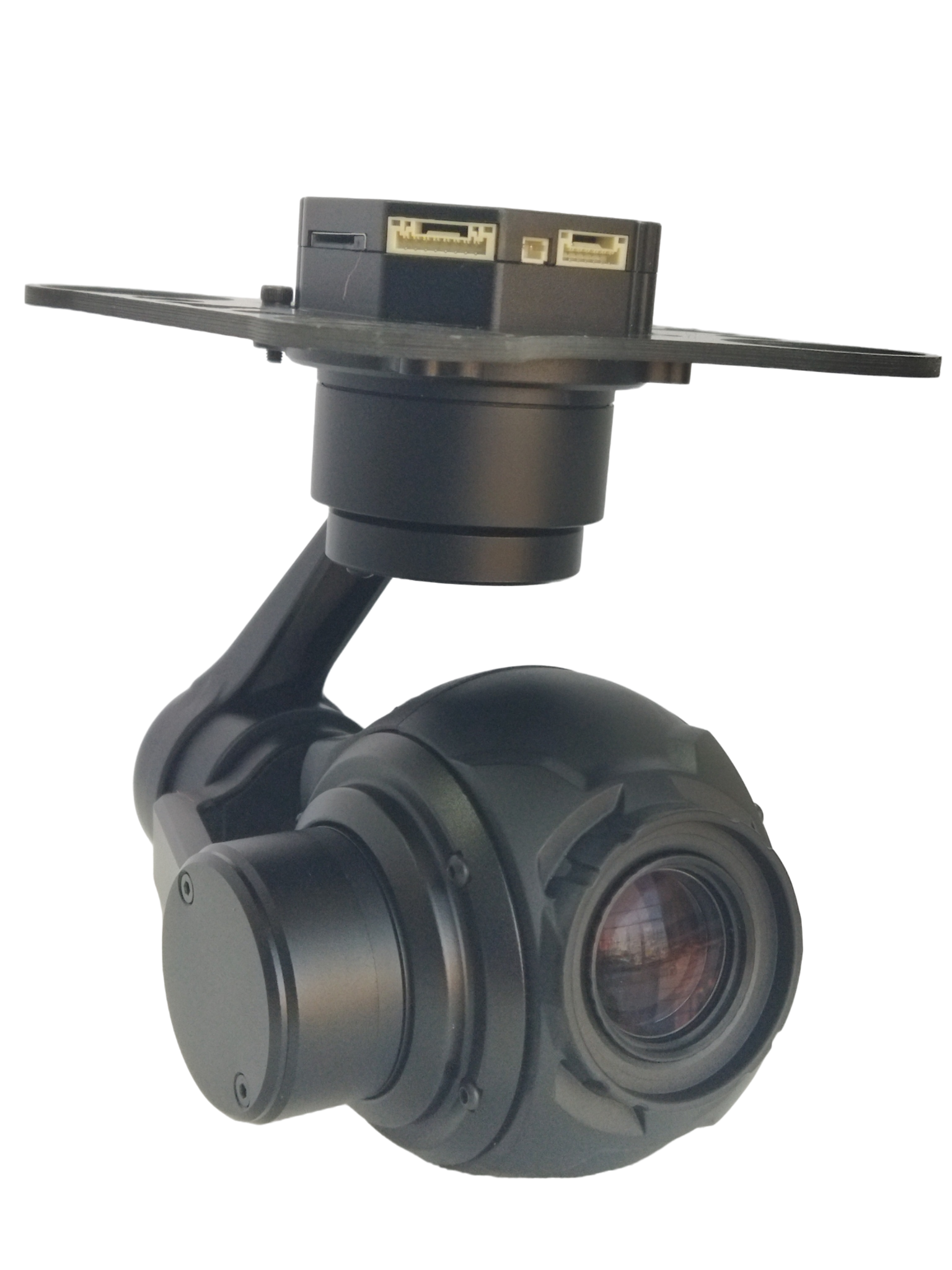

TOPOTEK TGIP10A Drone Camera Gimbal is an advanced UAV load system that seamlessly integrates a 10x optical zoom camera with a 3-axis stabilized gimbal. Designed for both amateur drone enthusiasts and professional aerial photographers, this system offers exceptional stability, precise control, and high-quality imaging capabilities. The gimbal supports both lock and follow modes, allowing for versatile shooting options and effortless switching between dynamic and static shots. One-click return to the initial position ensures that the gimbal quickly resets, saving time and effort during operation.
At the heart of the TGIP10A is a high-precision encoder FOC control scheme, known for its high stability, compact size, lightweight construction, and low power consumption. This makes it an ideal choice for long-duration flights and demanding aerial missions. The camera is equipped with a 1/3-inch 4 million pixels (4M) CMOS sensor, which excels in low-light conditions, ensuring clear and detailed images even in challenging environments. The system supports local TF card storage for both video recording and still photos, providing ample space for your media files.
The MINI HDMI interface delivers 1080P 30FPS high-definition video output, ensuring that every frame is captured with crystal-clear clarity. Additionally, the system supports IP network video output, allowing for real-time streaming and remote viewing. The built-in camera core TOP-3082 further enhances the system’s performance, making it a reliable tool for a variety of applications, from recreational flying to professional videography.
TOPOTEK TGIP10A Specifications
| Напряжение | 3S (DC12V) or 6S |
|---|---|
| Источник питания | Dynamic 4.2W |
| Gimbal Feature | |
| Угол поворота | -45° ~ +45° |
| Угол продольного наклона | -100° ~ +45° |
| Угол рысканья | -240° ~ +240° |
| Gimbal Mode | Support gimbal Lock/Follow mode; One-click return to the initial position |
| Камера видимого света | |
| CMOS Size | 1/3 4M pixels CMOS SENSOR |
| Optical Zoom | 10x HD zoom lens, f=4.9~49±10%mm |
| Видеовыход | IP net 1080P 30fps RTSP Video |
| Field Angle (FOV) | D : WIDE 66.6° ±5% TELE 7.2° ±5% |
| H : WIDE 54° ±5% TELE 4.9° ±5% | |
| V : WIDE 31° ±5% TELE 4° ±5% | |
| Размер | 77mm x 105mm x 147mm |
| Вес | 365 ± 10g |
TOPOTEK TGIP10A Характеристики:
- 10x Optical Zoom and TF Card Recording: The 10x optical zoom lens allows you to capture distant objects with remarkable detail, while the TF card slot supports local storage for both video recording and photo capture.
- 1080P HDMI Output: The MINI HDMI interface provides 1080P 30FPS high-definition video output, ensuring clear and sharp video quality for both live viewing and recorded footage.
- 3-Axis Stabilizer: The 3-axis gimbal ensures stable and smooth footage by compensating for drone movement, providing a professional-grade video recording experience.
- Multiple Control Interfaces: The gimbal supports IP, SBUS, and UART control interfaces, offering flexibility and compatibility with various control systems.
- Ground Software Video Display and Control System: The system includes ground software that allows for real-time video display and comprehensive control over the gimbal and camera settings, enhancing the user experience and operational efficiency.
- High-Precision Encoder FOC Control Scheme: This advanced control scheme ensures high stability, precise control, and efficient power usage, making it ideal for extended aerial missions.
