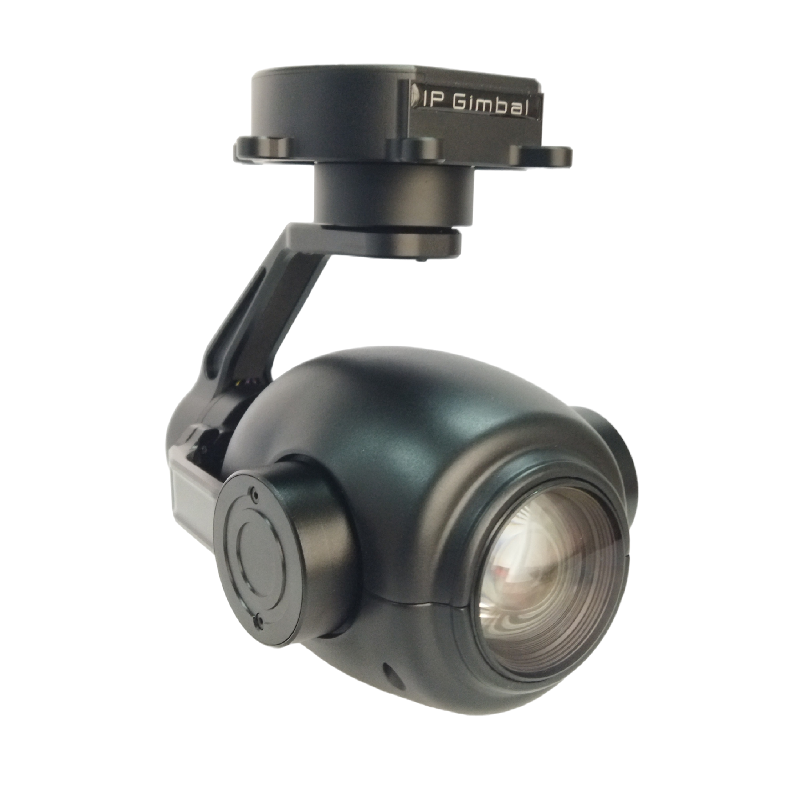

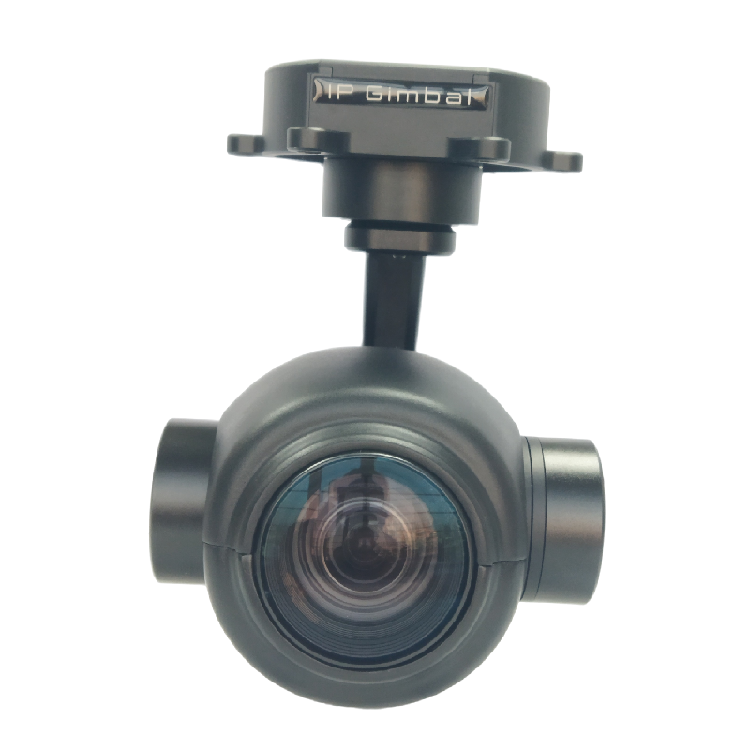

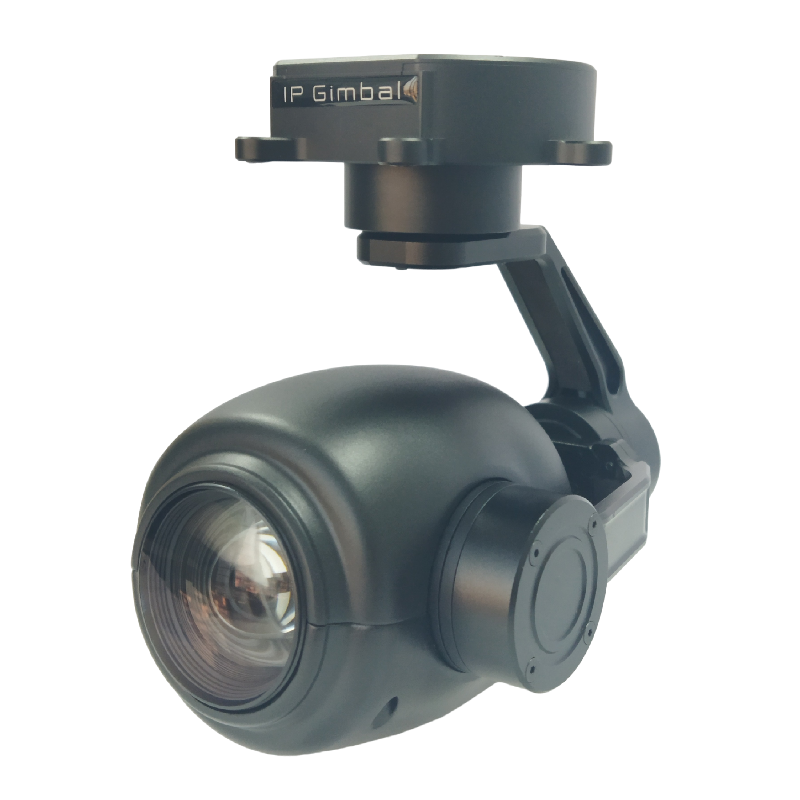

TOPOTEK SIP30S90 is a 30x optical zoom camera with a 3-axis IP gimbal. It outputs RTSP stream video, video display, and camera & gimbal control via the ground software station. It is stable, lightweight, and has low power consumption, featuring 1080p 30fps HD output and a 4M low light solution, local TF card storage, and dual video stream output via wireless transfer, with IP support.
TOPOTEK SIP30S90 Advantages:
- 30x zoom camera with TF card recording
- 1080P IP output & control
- 3-axis stabilizer
- 170ms low delay video
- Video & control same link
- Ground software support
TOPOTEK SIP30S90 Specifications
| Параметр | Технические характеристики |
|---|---|
| Напряжение | 3S or 6S |
| Мощность | 7W |
| Technical Parameters | |
| Угол поворота | -85°~+85° |
| Угол продольного наклона | -40°~+110° |
| Угол рысканья | 360 cycle |
| Угол джиттера | ±0.02° |
| Угол горизонтального джиттера | ±0.03° |
| Восстановление одним кликом | Восстановление исходного положения одним щелчком мыши |
| Регулируемая скорость вращения кардана | Use low speed control at big zoom status for high precision display. Use fast speed control at small zoom status |
| Режим управления | UART or IP NET control mode |
| Daylight Sensor Parameters | |
| CMOS Size | 1/3 2 Mega pixels CMOS sensor |
| Zoom | 30x HD optical zoom lens, f=4.5±10%~135±10%mm |
| Фокус | Focus in real time, less than 2 secs |
| Видеовыход | IP NET RTSP 1080P 480P stream, Local TF 1080P record |
| Поле зрения (FOV) | D: WIDE 67.8°±5% TELE 2.77°±5% <br> H: WIDE 59.8°±5% TELE 2.34°±5% <br> V: WIDE 40.5°±5% TELE 1.48°±5% |
| Режим видео | 1080P 30fps / 480P 30fps |
| Wireless Video & Data (Optional) | |
| Частота работы | 806~826MHz |
| Мощность и расстояние беспроводной связи | 25 дБм 10 Км |
| Command Mode | IP & UART command |
| Размер карданного шарнира | 140mm x 162mm x 144mm |
| Рабочее состояние | -10°C to +50°C / 20% to 80% RH |
| Среда хранения | -20°C до +60°C / 20% до 95% RH |
| Вес | 655g±10g |
Features include a 30x optical zoom camera, TF card recording with 170ms low latency video, and 1080p IP output. Control the video feed and stabilize footage using the same link, with 3-axis stabilizer support and ground software features.
The TOPOTEK SIP30S90 drone camera gimbal features a 30x optical zoom camera with 1080P resolution, integrated with a 3-axis IP gimbal. Key specifications include: voltage range (3S or 6S), power consumption (7W), roll angle (85°+85°), pitch angle (40°+110°), and yaw angle (360°). The device also offers one-click restore to its initial position, with low control at high zoom status for precise display. Additionally, it features adjustable gimbal speed, UART or IP NET control mode, CMOS sensor size (1/3
