TOPOTEK KIP10-G6 Overview

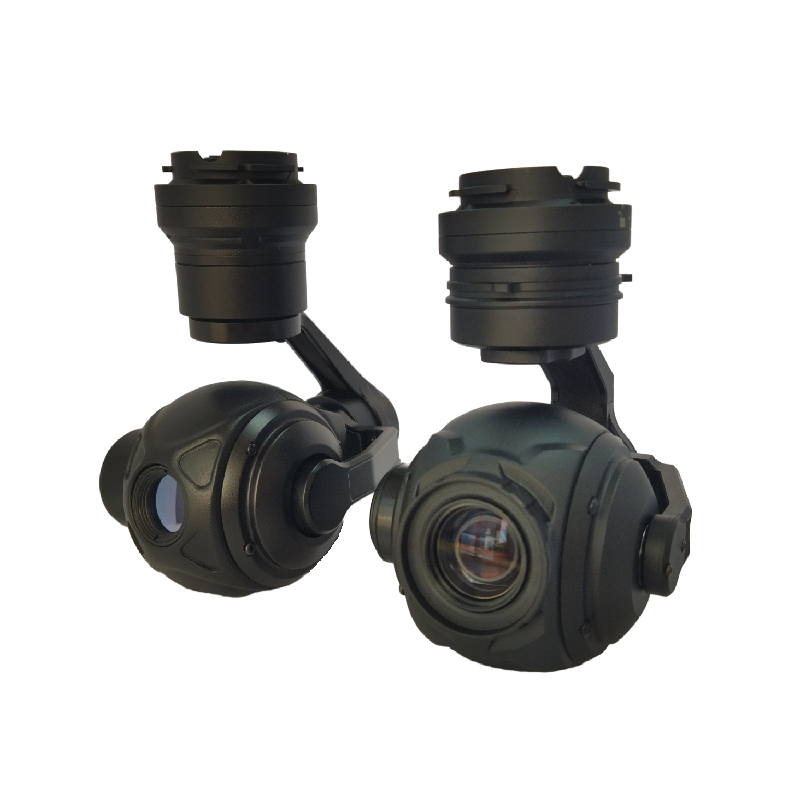

The KIP10-G6 is a versatile drone gimbal system consisting of three main components: a quick-release mechanism, a 3-axis visible light gimbal camera, and a 3-axis thermal imaging gimbal camera. Designed for quick and easy installation on UAVs, the gimbals can be swiftly exchanged. The visible light gimbal features a high-definition sensor with an integrated 10x optical zoom and 4 million effective pixels. The thermal imaging gimbal includes a vanadium oxide detector with a resolution of 640×512 pixels, offering high precision and multiple pseudo color modes. The system supports local TF storage, network file reading and writing, and real-time temperature measurement, making it ideal for various aerial photography and surveillance applications.
TOPOTEK KIP10-G6 Характеристики
- Exchangeable EO Gimbal: Allows for quick swapping with other gimbals.
- Exchangeable IR Gimbal: Enables seamless integration of thermal imaging capabilities.
- Pseudo Color Switching: Offers a variety of pseudo color modes for enhanced thermal imaging.
- 1080P RTSP Stream Output: Provides high-definition video streaming.
- Ground Control App Supported: Facilitates easy control and monitoring via a dedicated app.
- TF Card Storage and Video Record: Supports local storage and recording for data management.
- Lightweight Pod (Approx. 400g): Ensures minimal impact on drone performance.
TOPOTEK KIP10-G6 Specifications
| Параметр | Технические характеристики |
|---|---|
| Источник питания | 3S (DC12V) or 6S |
| The Upper End of Quick Release | |
| Вес | 88g |
| External Interface | Network, UART, Power Interface |
| Visible Light Gimbal | |
| CMOS Size | 1/3 Inch 4MP CMOS SENSOR |
| Optical Zoom | 10x HD Optical zoom lens, f=4.9±10%~49±10%mm |
| Видеовыход | Network RTSP 1080P and 480P Stream output, TF card 1080P local storage |
| Field Angle (FOV) | D: WIDE 66.6°±5% TELE 7.2°±5% H: WIDE 53.2°±5% TELE 5.3°±5% V: WIDE 39.8°±5% TELE 4.2°±5% |
| Working Mode | Quick release, 3-axis stabilizing PTZ |
| Support Mode | RTSP: 1080P 30fps |
| Вес | 320g |
| Thermal Imaging Gimbal | |
| Разрешение | 640*512 pixel |
| Pix Spacing | 12 мкм |
| Тип | Uncooled Micro Bolometer IR FPA Fabrication |
| Wavelength | 8~14μm |
| NETD | ≤50mk@F1.0 |
| Contrast, False Color | Adjustable, multiple pseudo-color modes |
| Field Angle | 13mm Lens, Angle: 32.9°x26.6° |
| Measurement (Optional) | Center point, Highest temperature, Lowest temperature display function; All area temperature measurement |
| Working Mode, Weight | Quick release, 3-axis stabilizing PTZ, 360g |
| Угол продольного наклона | -90°~+135°, Jitter ±0.02° |
| Heading Angle | Finite position 350° rotation, Jitter ±0.03° |
| PTZ Mode | Support one click return, lock/follow mode |
| Control Way | Speed adaptive and controllable, external control of network or serial port |
| Working Environment | -10°C to +50°C / 20% to 80% RH |
| Storage Condition | -20°C до +60°C / 20% до 95% RH |
| Приложение | Аэрофотосъемка |
Features: Interchangeable EO and IR gimbals, compatible with ground control systems. The system supports TF card storage for video recording and pseudo-color switching. Weighing around 400g, it also offers RTSP stream output for seamless monitoring. The composition includes a quick-release thermal imaging gimbal with 10x optical zoom.
Switch between various pseudo color modes through command inputs. The image below illustrates this feature, which allows you to easily switch between different pseudo color modes.
