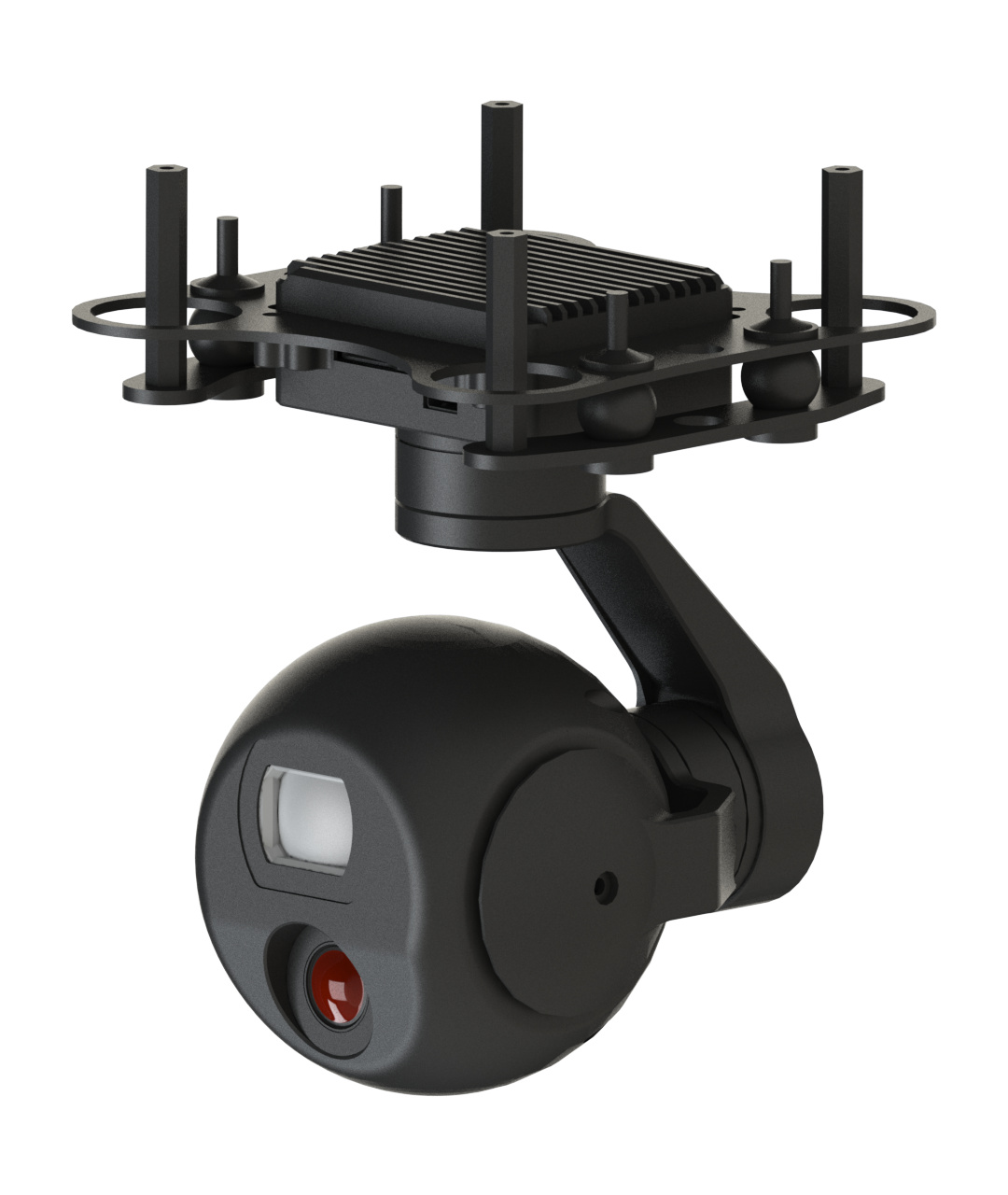

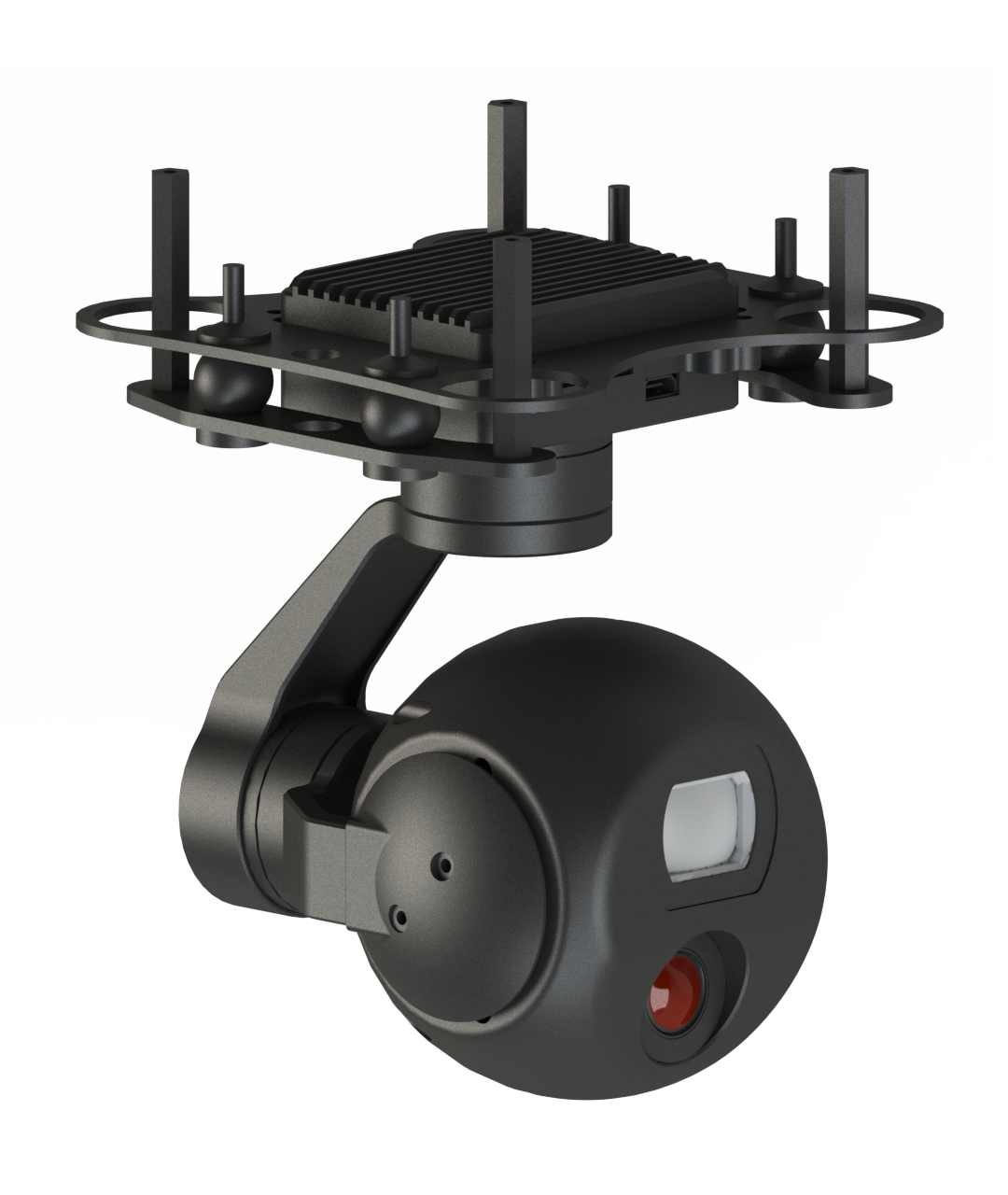

TOPOTEK KHP05M5 Overview
The TOPOTEK KHP05M5 is a dual-light small gimbal that integrates a 45x hybrid zoom camera and a 640×512 thermal camera. It features a high-precision professional 3-axis stabilization PTZ. This device supports IP and HDMI dual output, and IP control, and adopts a high-precision encoder FOC control scheme PTZ. It is characterized by high stability, small size, lightweight, and low power consumption. The visible light camera uses a sensor with an effective pixel size of 4 million. Serial ports, S.BUS, and network can control the camera and PTZ, supporting local TF dual-channel recording and photography.
TOPOTEK KHP05M5 Features
- 5x optical zoom, 9x digital zoom
- 640×512 infrared thermal
- RTSP stream output
- High precision control algorithms
- IP and HDMI dual output
- Integrated ground app
- Lightweight 235g
TOPOTEK KHP05M5 Specifications
| Параметр | Подробности |
|---|---|
| Напряжение | DC 12V-26.2V |
| Потребляемая мощность | Static 5W |
| Working Status | |
| Roll angle action range | -45° to +45° |
| Pitch angle action range | -45° to +100° |
| Yaw angle action range | -145° to +145° |
| Angle jitter in pitch and roll direction | ±0.02° |
| Horizontal angle jitter | ±0.03° |
| One click return function | One click automatic quick return to the initial position |
| PTZ control speed adjustable | When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera. |
| Control mode | Support network IP, S.Bus, and Serial port control (Optional PWM control) |
| Камера видимого света | |
| СЕНСОР | 1/3 inch 4MP CMOS SENSOR |
| Optical Zoom | 5x HD optical zoom lens, f=5±10%~25±10%mm |
| AF Time | Real-time focusing, fast focusing time < 1s |
| Video output | Network RTSP 1080p output, video stream local TF storage |
| Разрешение | 1080P 30fps |
| Field Angle (FOV) | D: WIDE 61.1°, TELE 12.41°<br> H: WIDE 50.12°, TELE 10.81°<br> V: WIDE 38.07°, TELE 8.13° |
| Тепловизионная камера | |
| Разрешение | 640×512 |
| Pix Spacing | 10μm |
| Тип | Uncooled Vanadium Oxide Detector |
| Wavelength | 8~14μm |
| Thermal Sensitivity (NETD) | ≤50mk@F1.0@25°C |
| Field Angle | 8.7mm Lens; FOV: 40° x 32.2° |
| Measurement (Optional) | Global temperature measurement, optional full pixel temperature saving |
| Device Size | 120mm x 113mm |
| Рабочее состояние | -10°C to +45°C / 20% to 80% RH |
| Stored Environment | -20°C до +60°C / 20% до 95% RH |
| Main Application | UAV aerial photography |
| Вес | 235±20g |
| Примечание | Voltage: DC12V-26.2V, please note that the instantaneous voltage of the power supply cannot exceed 27V. |
