Tarot TL68A15 2-axis Brushless Gimbal Camera Mount for MIUI Xiaomi Yi Sports Camera

 В комплект входят:
– 1* 2-axis brushless gimbal
– 1* ZYX22 gyroscope

Технические характеристики:
– Working voltage: DC7.4~14.8V
– Working temperature: 200mA-500mA
– Processor: Dual 32bite high speed ARM code processor
– Sensor: MEMS gyroscope and accelerator
– Max angle speed: 2000 degreec
– Max accelerate speed: 16g
– Control frequency: 2000Hz
– Motor drive frequency: 20KHz
– Control accuracy: 0.1 degree
– Control range: -45~45 degree (Roll); -135~90 degree(Pitch)
– Suitable for Xiaomi Yi sports camera

Особенность:

1. Support MIUI/Xiaomi sports camera video auxiliary output
2. Support power supply voltage reverse connection protection and voltage compensation
3. Support the short circuit protection of the motor drive end
4. Support customization of initial pitch angle
5. Support sensitivity parameter adjustment and software three-dimensional posture display
6. Support joystick speed mode and position mode
7. Support receivers: conventional receivers, S-BUS receivers, DSM2/DSMJ/DSMX receivers
8. Support remote control equipment: PPM/PCM/2.4G

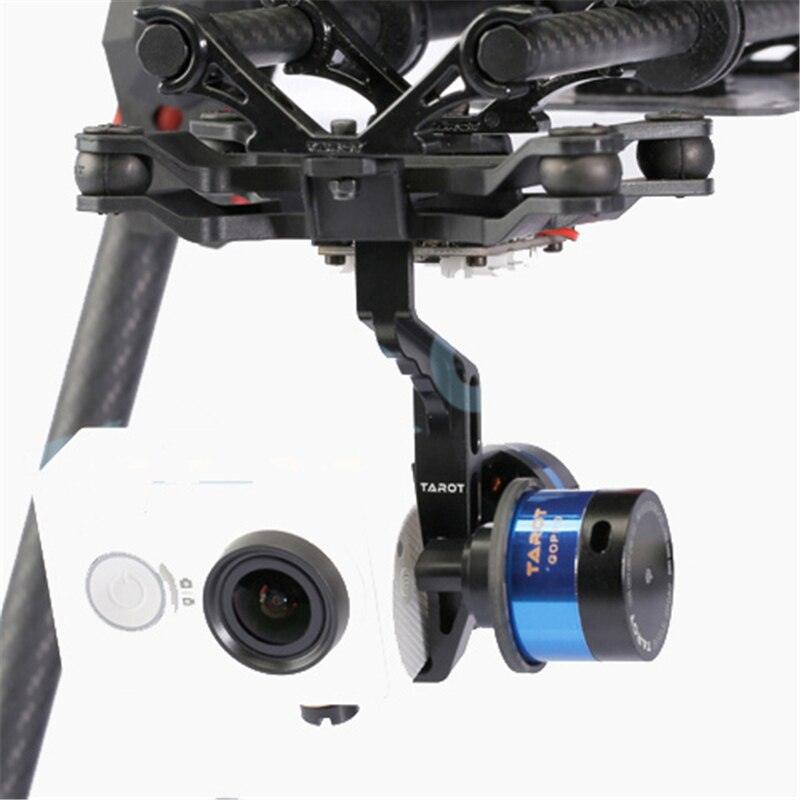

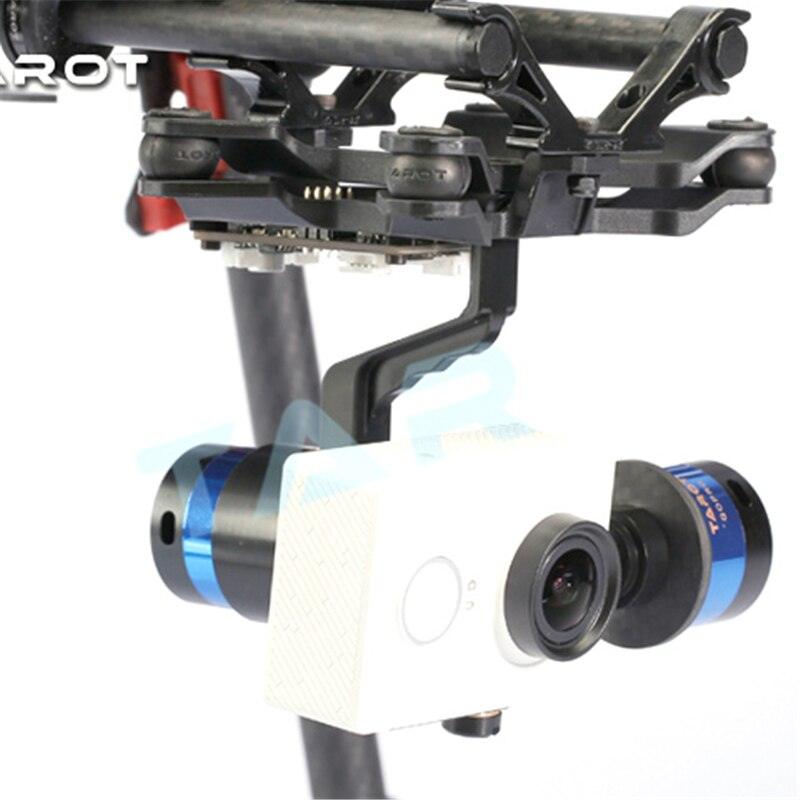

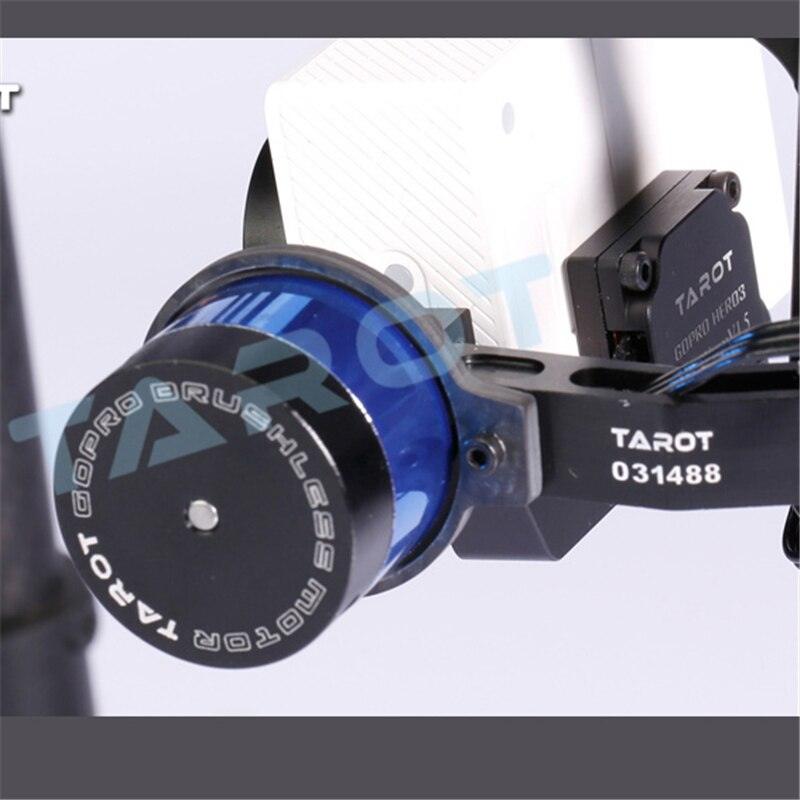

Effect picture only,parcel do not including the camera,only gimbal included:
