CUAV New NEO 3 U-BLOX Module SPECIFICATIONS
Колесная база: Верхняя оболочка
Вес: 55g
Используйте: Транспортные средства и игрушки с дистанционным управлением
Модернизация деталей/аксессуаров: GPS
Инструментальные принадлежности: Собранный класс
Технические параметры: KV1100
Размер: 60*79*15.8mm
Пульт дистанционного управления Периферийные устройства/устройства: GPS
Рекомендуемый возраст: 14+y
RC Parts & Accs: Ресиверы
Количество: 1 шт.
Происхождение: Материковый Китай
Номер модели: NEO GPS
Материал: Металл
Item name: GPS
Полный привод Атрибуты: Сборка
Для типа автомобиля: Самолеты
Сертификация: CE, FCC
Название бренда: CUAV
CUAV New NEO GPS GNSS
CUAV New NEO 3 pro GNSS U-BLOX M9N GPS Module PIX Flight Controller Pixhawk Ardupilot PX4 Open Source GPS
NEO 3 GNSS module:
NEO 3 is a cost-effective M9N navigation and positioning product with a single point positioning accuracy of up to 0.7m. The integrated positioning system, magnetic compass, flight control status light, flight control siren in one, can receive four major satellite navigation and positioning signals at the same time, is an ideal alternative to M8N GPS.

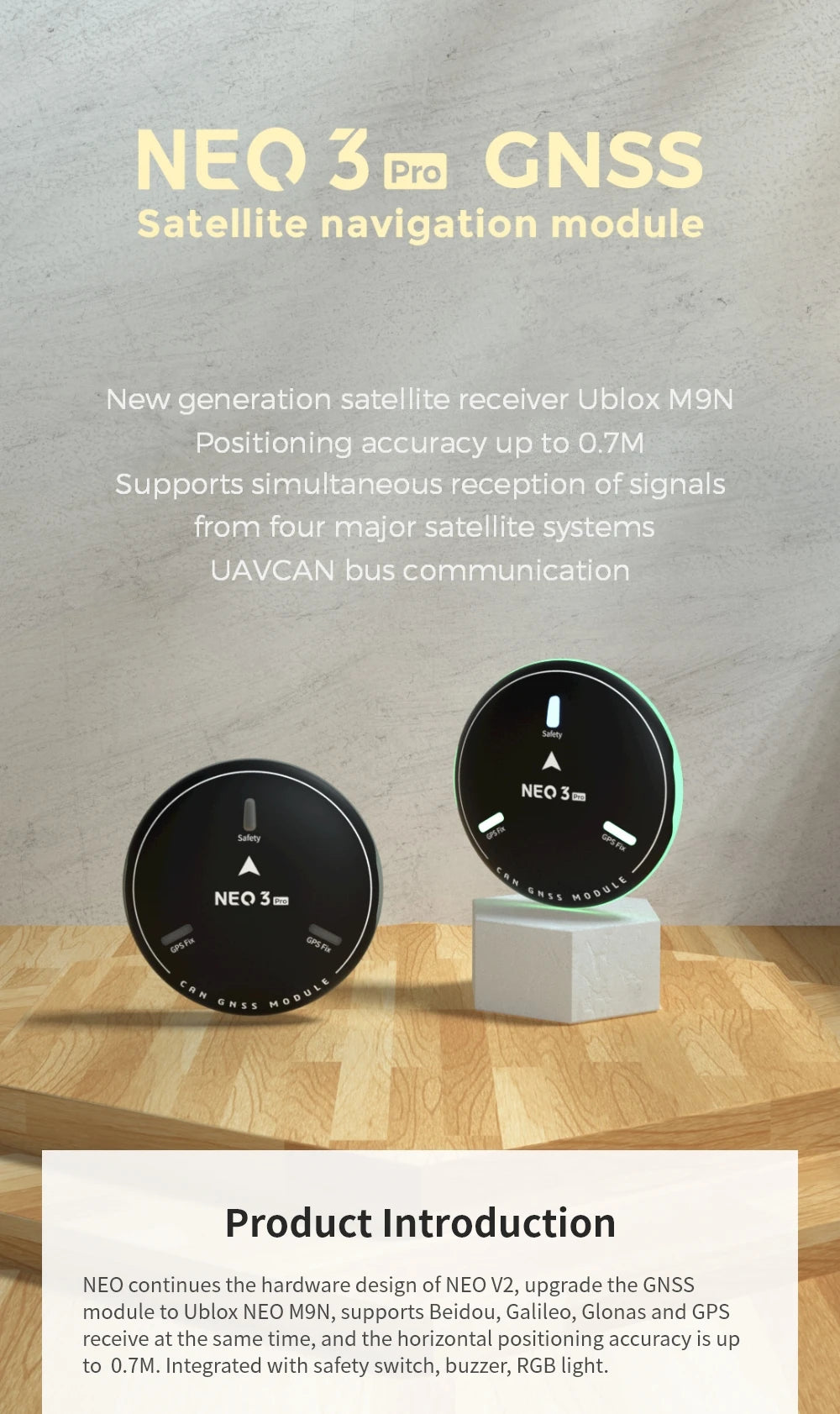

NEO 3 pro GNSS:
NEO 3 Pro is an M9N navigation product using the UAVCAN communication protocol. Integrated positioning system, magnetic compass, flight control status light, flight control siren, barometer in one, industrial grade magnetic compass, can receive four major satellite navigation and positioning signals at the same time.
NEO 3 and NEO 3 pro GPS Features:
NEO 3 and NEO 3 pro GPS Features:
1 –Ublox M9N satellite receiver, accuracy up to 0.7m
2 –Support Beidou, Galileo, Glonas, GPS four satellite systems
3 –Supports simultaneous reception of four
satellite systems
4 –Triple filter design
The CUAV NEO 3 U-Blox GNSS GPS module continues the hardware design of the NEO VZ, upgrading the GNSS module to support Ublox NEO MIN. It simultaneously receives signals from BeiDou, Galileo, CLONAS, and CPS, achieving a horizontal positioning accuracy of up to 0.7 meters.
The CUAV NEO 3 U-Blox GNSS GPS module builds upon the hardware design of NEO V2, upgrading the GNSS module to Ublox NEO MIN. It simultaneously receives signals from BeiDou, Galileo, GLONASS, and GPS. Additionally, it features integrated safety components, including a switch, buzzer, and RGB light.

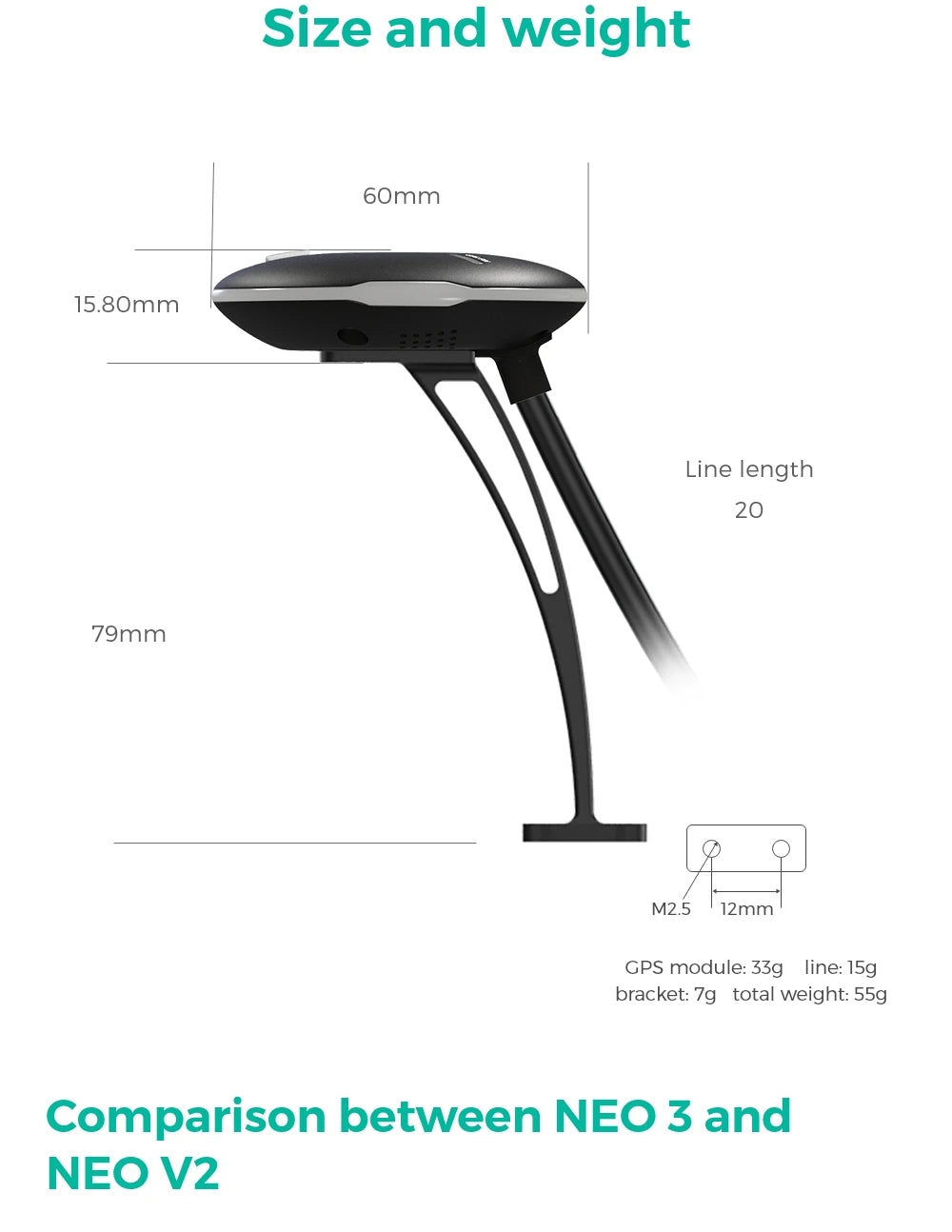

Dimensions: 60mm x 15.8mm; Line length: 2079mm; M2.5 screw size: 12mm. The GPS module weighs approximately 33g, while the line weighs 15g and the bracket weighs 7g, resulting in a total weight of 55g. A comparison between NEO 3 and NEO V is available.

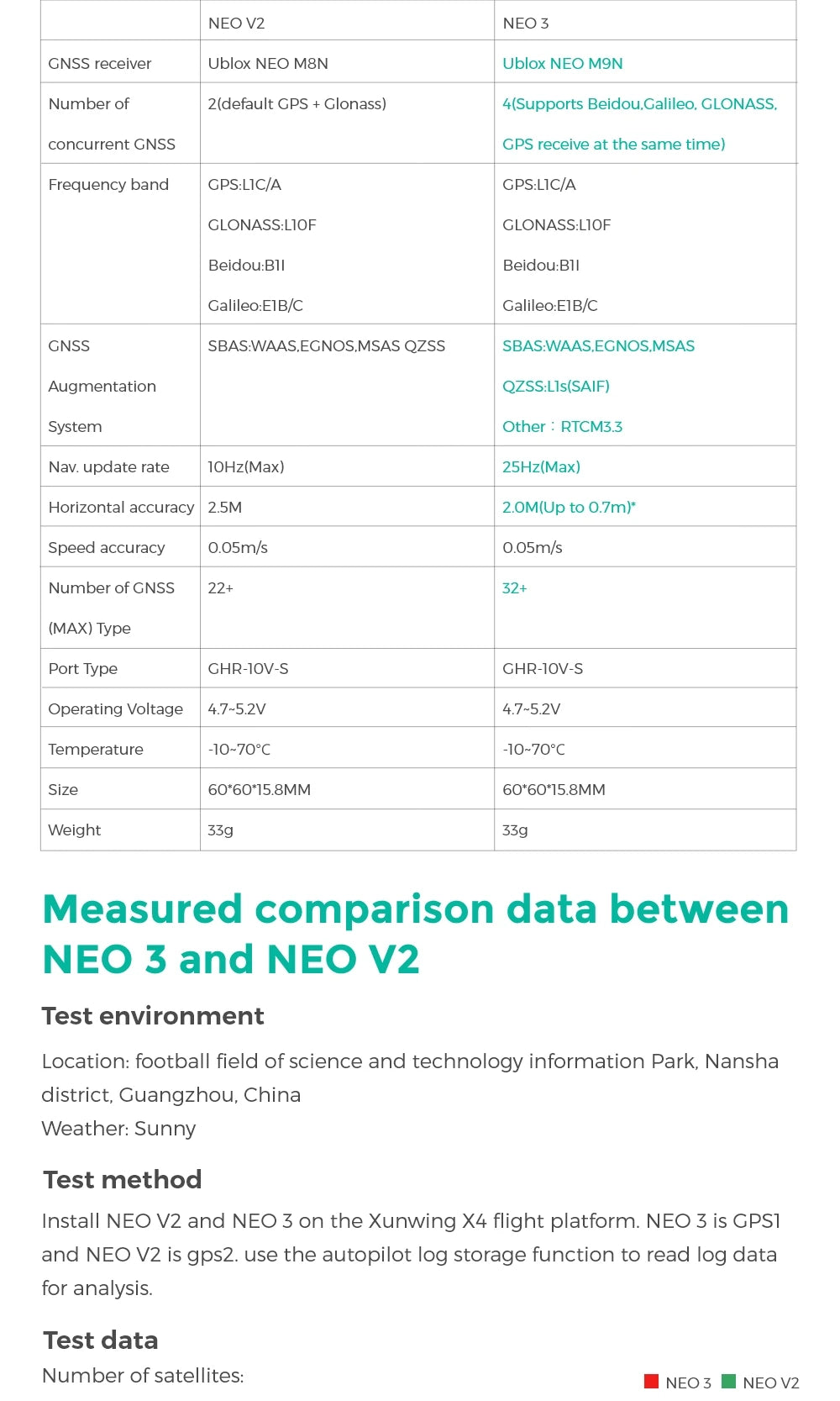

Compare NEO V2 and NEO 3 GNSS receivers, which feature Ublox NEO MIN technology. The NEO 3 supports up to four concurrent satellite systems: BeiDou, Galileo, GLONASS, and GPS (22+ satellites maximum). Frequency bands include C1/C2, L1/L5, SBAS (WAAS, EGNOS, MSAS), and CPS (LICIA). This receiver type uses the GHR-IOV-S port.

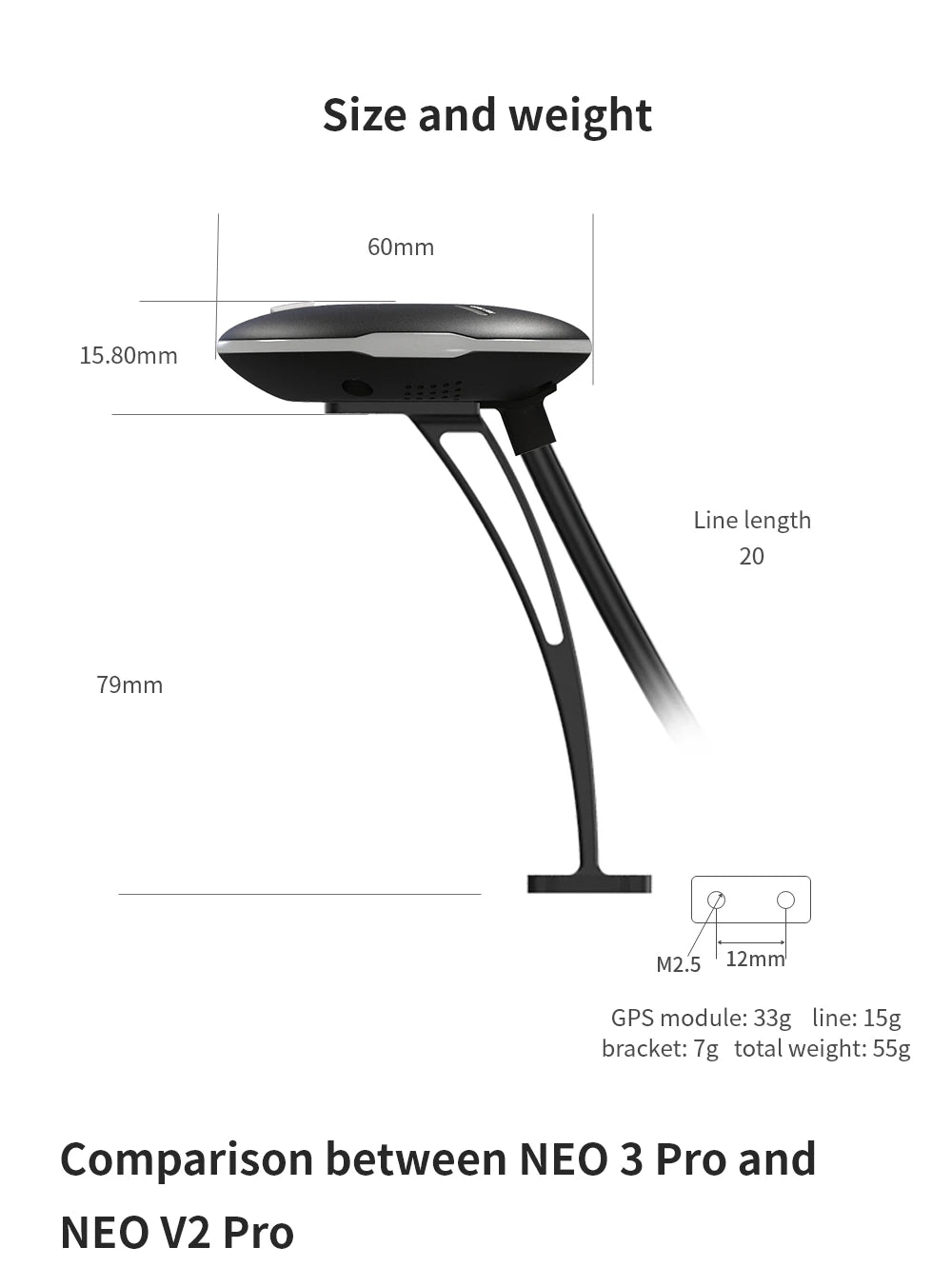

Dimensions: 60mm x 15.8mm; Line length: 2079mm; M2.5 screw size: 12mm. The GPS module weighs approximately 33g, while the line weighs 15g and the bracket weighs 7g, resulting in a total weight of 55g. A comparison between NEO 3 Pro and NEO V2 is available.

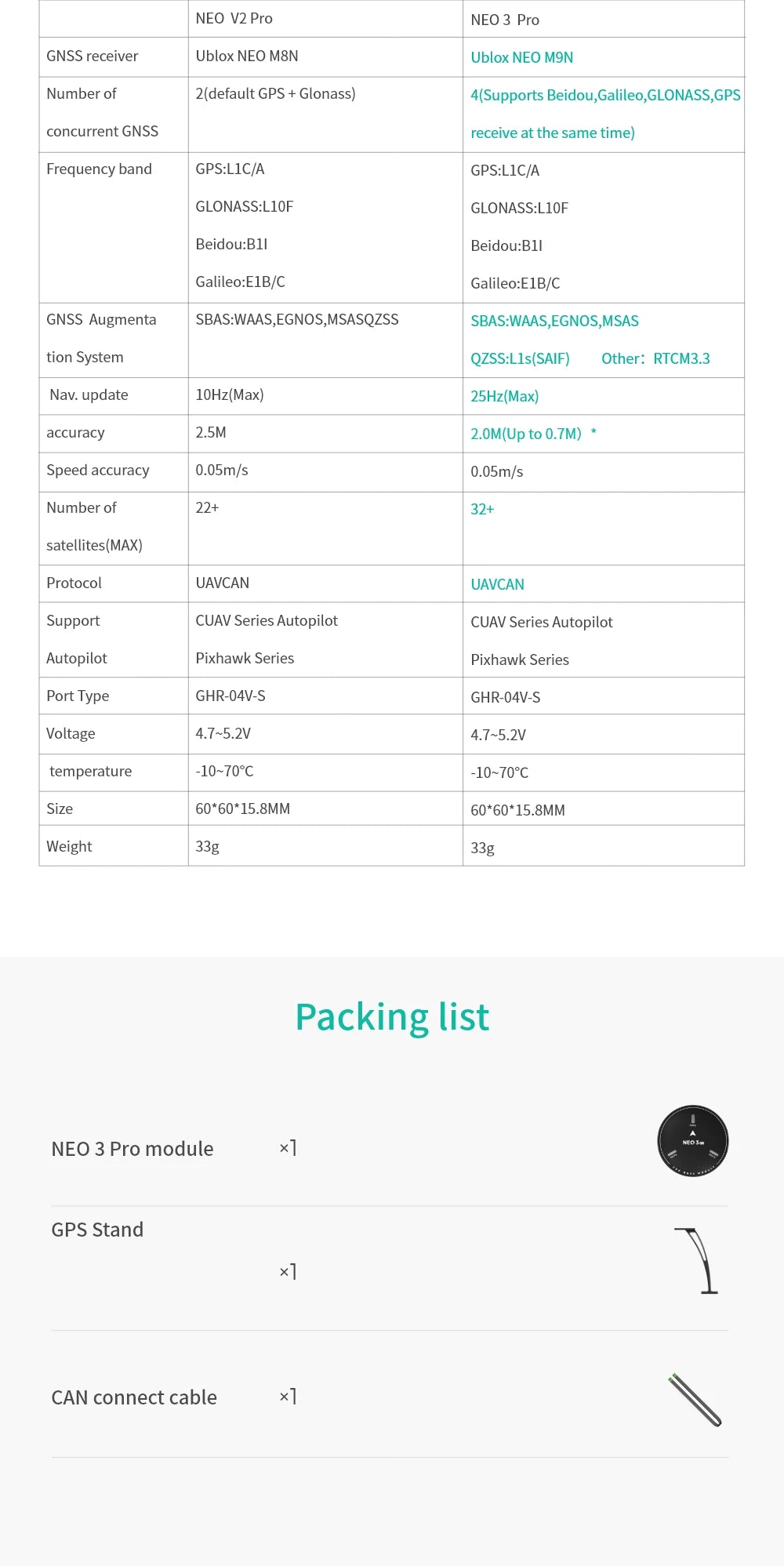

Compare NEO V2 Pro and NEO 3 Pro GNSS receivers, which feature Ublox NEO MIN technology. The NEO 3 Pro supports up to four concurrent satellite systems: BeiDou, Galileo, GLONASS, and GPS, simultaneously receiving signals from all satellites at once.
