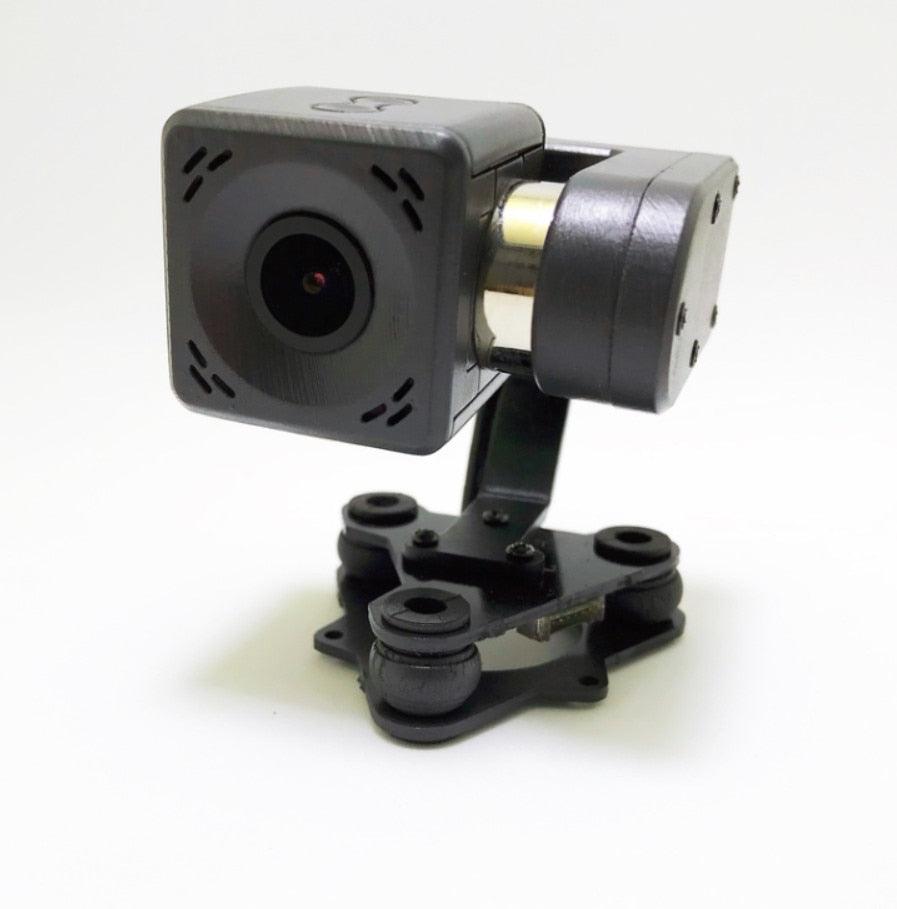

Arkbird 2-Axis Mini Gimbal Camera

New arrival recommend:

    FPVers who have installed gimbals on their planes are familiar with a Gopro gimbal camera. The camera weights around 90g and the gimbal could be approximately 150g, giving a total weight in the neighborhood of 240g. Installing this type of setup on planes of 1.5m wingspan or less, will give as a result a very poor performance and experience.

    Considering this facts, the Arkbird team have designed and optimized this 80g (all included) gimbal camera for fixed wing and multirotors. The Arkbird  Mini Camera Gimbal features a maximum resolution of 2K and servo controlled pitch and camera shooting, giving you flexibility, performance and a better overall experience than traditional systems.

Specs:

Total weight: 80g

Working voltage: 9-12.6V (3S battery). If you’re planning to use a higher voltage, you may need to add an external BEC module, supporting 14v-26.2v (4-6s)

Размеры:

Width:55mm / 2.28 inches

Length:58mm / 2.17 inches

Height:60mm / 2.36 inches

Working Area:  Spherical area. Diameter: 75mm

Camera parameters:

Video: 2K@30fps / 1080p@60fps

Supports PWM control camera shooter

Supports PAL/NTSC output

Lens: 140 degrees

Gimbal function:

Supports PWM (pitch) control

Supports PWM shooter control

Pitch angle: -180 degrees to 90 degrees

Roll angle: -90 degrees to 90 degrees

Shooting effective as following pictures:

‘

‘
