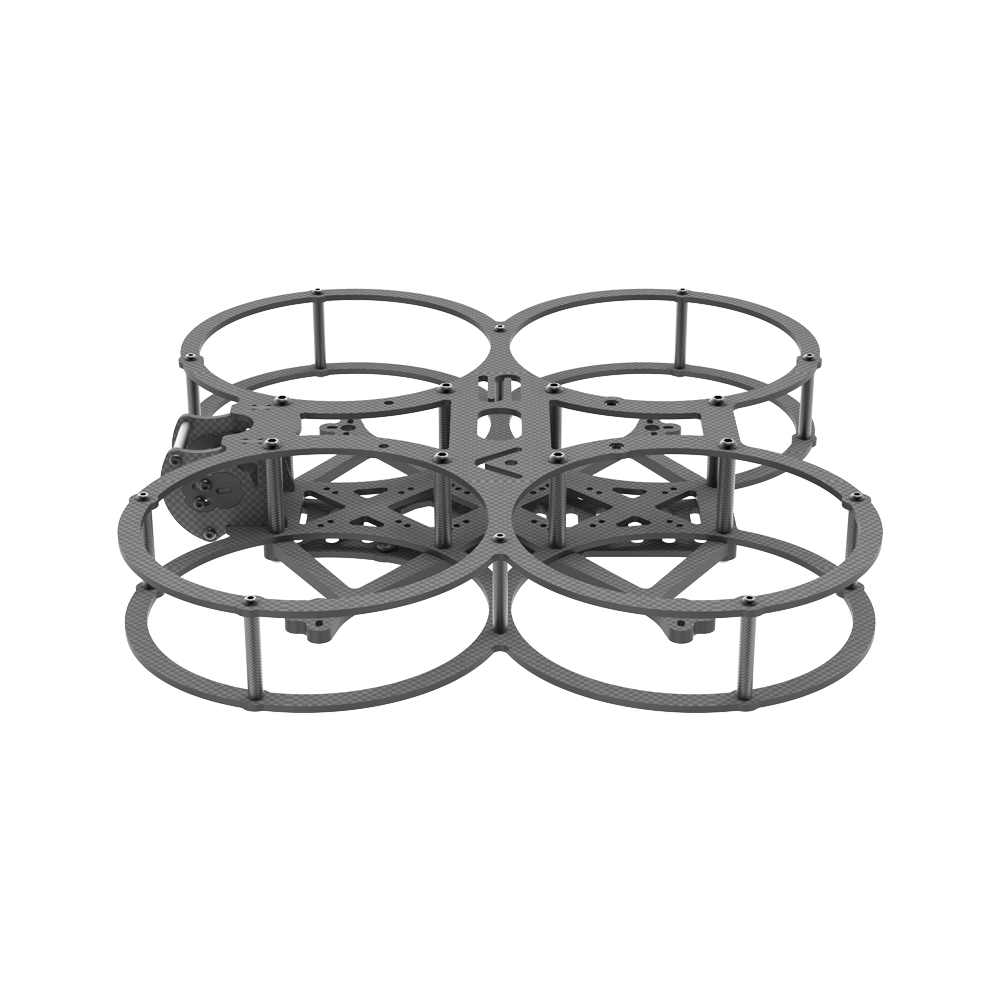

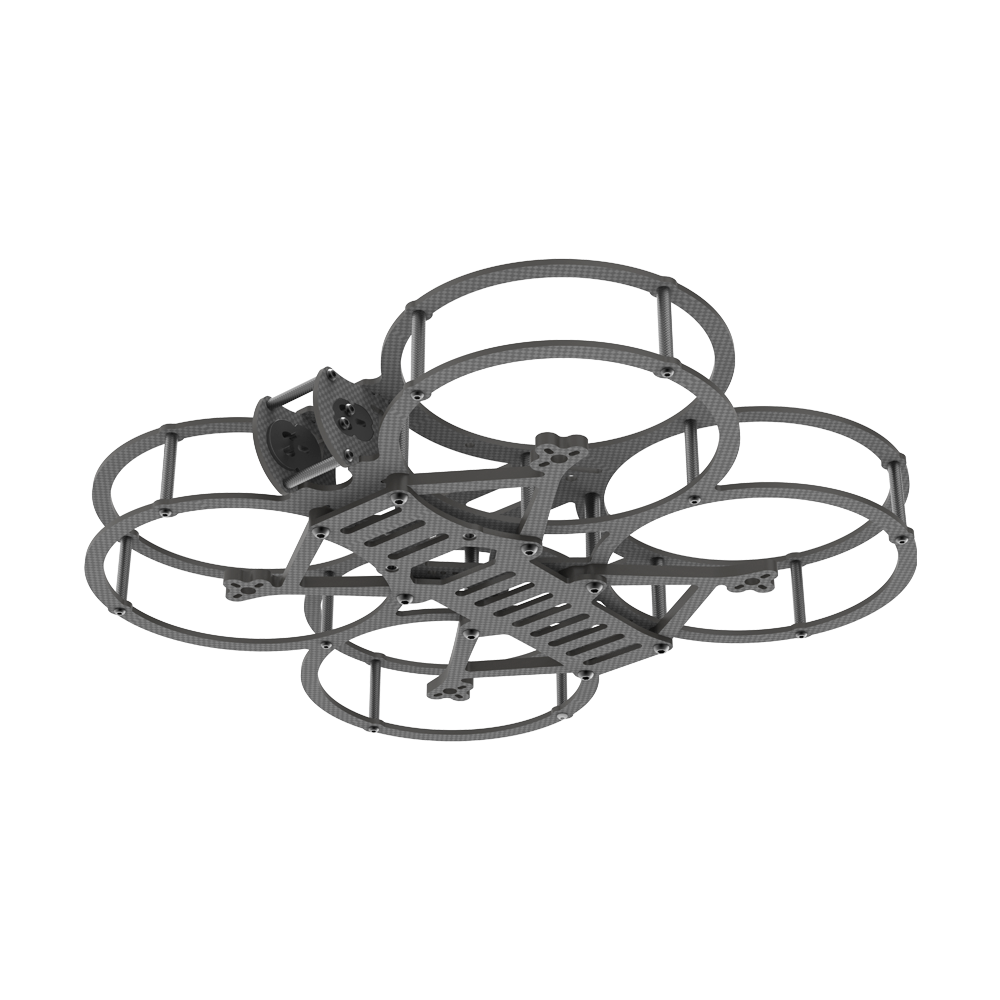

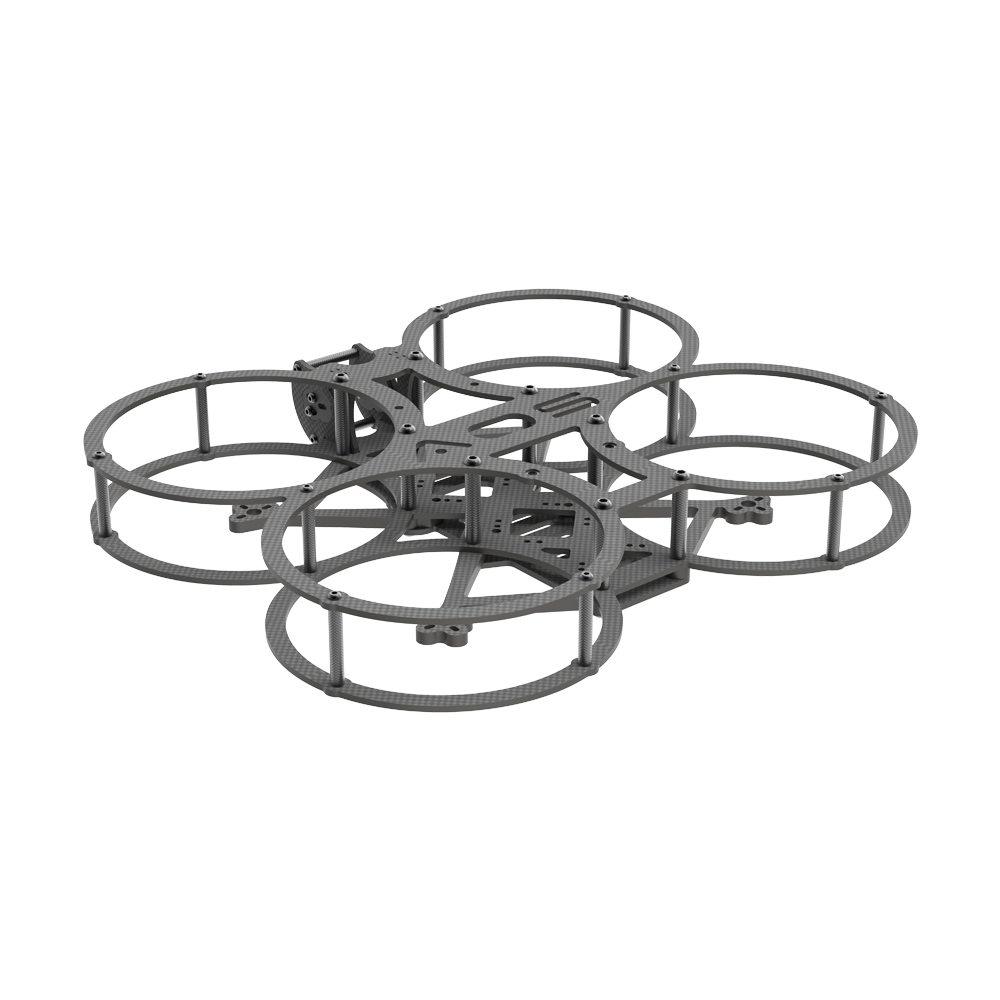

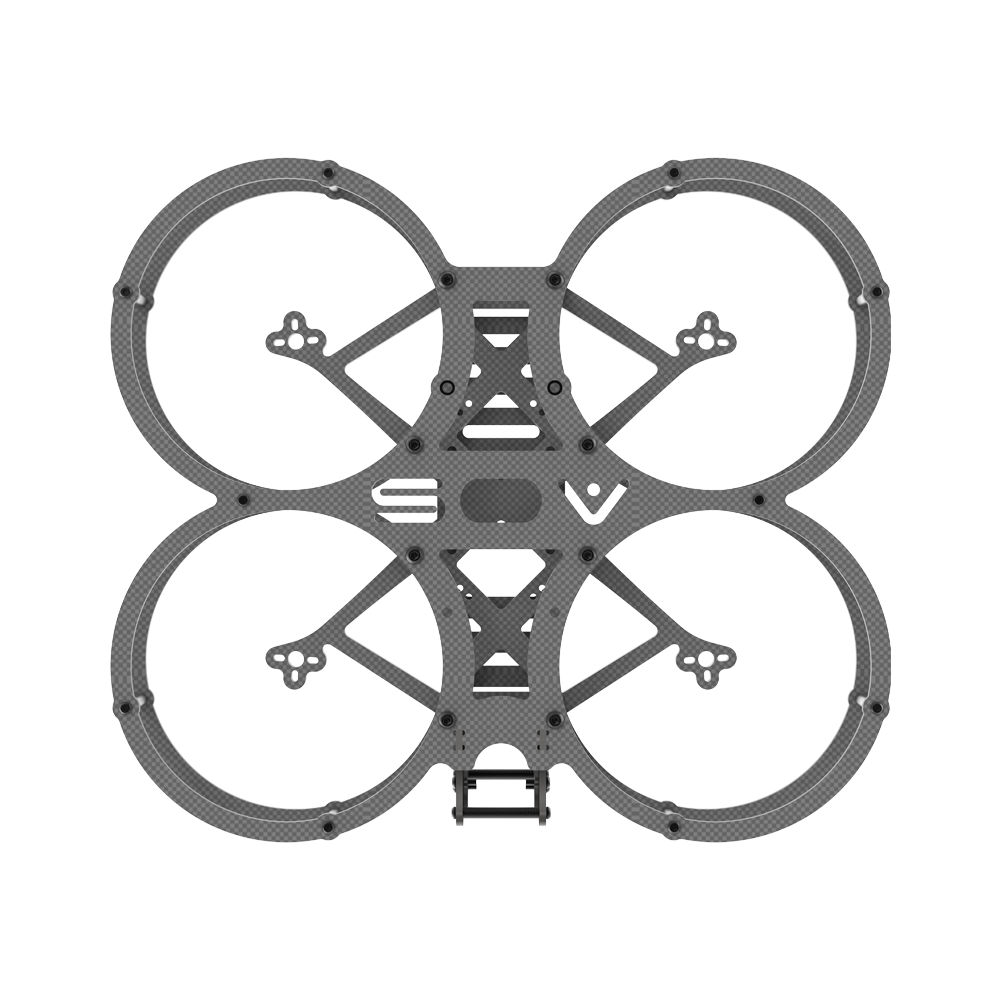

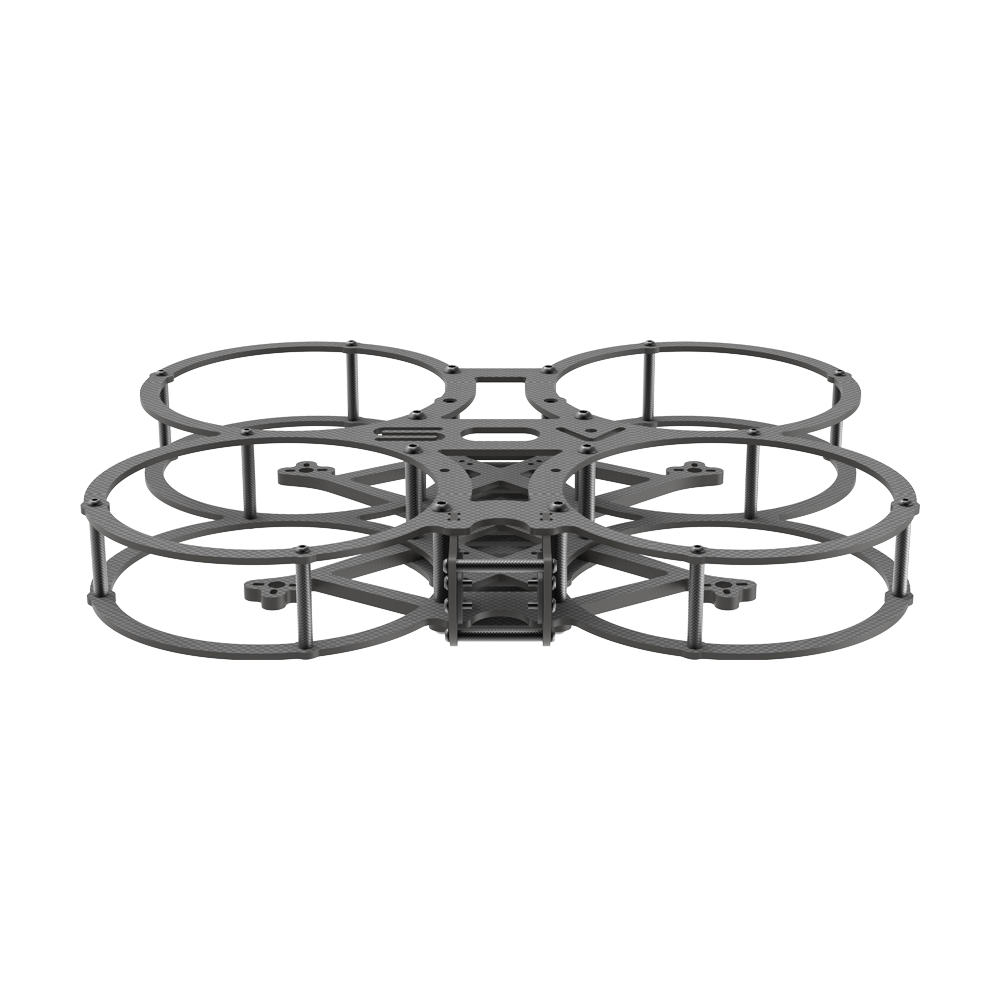

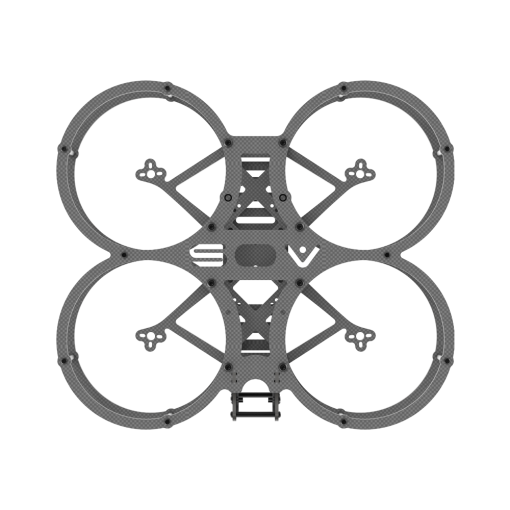

AOS Cine35 EVO FPV Frame Kit for FPV

Описание：

• The latest version of this frame is the AOS Cine35 EVO. It has updated camera plates to support the DJI O3 Air Unit as well as all other 19-20mm FPV cameras.


Характеристики

• Designed for 3.5 inch props, no props in view.
• 4 mm Truss Arms
• Up to three 25.5 or 20 mm stacks (front, center and rear)
• One 30.5mm stack (center)
• 32x32mm GoPro mounting holes in top plate with installed press-nuts
• XT60 pass through top plate
• Captive battery strap slots for lengthwise or toilet tank mounting
• Fits 19-20mm FPV cameras including DJI O3
• Recommended motor size 2004
• 9×9 up to 12x12mm motor mounting
• Standoffs, carbon and hardware included


Технические характеристики:

• Product Name: AOS Cine35 EVO Frame Kit
• Frame wheelbase: 161.5mm
• Frame Dimension: L128*W99*H35 mm  / L233*W204*H35 mm (with propguard)
• Толщина руки: 4 мм
• Толщина верхней пластины: 2 мм
• Толщина нижней пластины: 2 мм
• Толщина верхней пластины: 2 мм
• Motor Mounting: 9x9mm / 12*12mm
• VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm


Список упаковки

• 1 x AOS Cine35 EVO Frame Kit
• 1 x Сумка для винтов
• 1 x Battery Strap
