Сельскохозяйственный дрон H120 - система распыления воды из бака объемом 52 л / система распределения полезной нагрузки 60 кг

H120 Agriculture Drone Specfications

Основные параметры

Параметры полета

Двигательная система

Система распыления

Водяной насос

Система спредов

GNSS и радарная система

Система камер

Пульт дистанционного управления

Энергетическая система

Список пакетов

Стандартный комплект

Расширенный набор

H120 Agriculture Drone Details

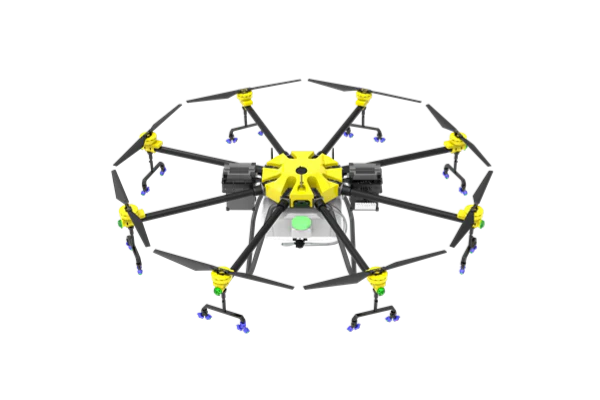

Hercules H12O Dual 28000mAh intelligent batteries . symmetric 8-axis design features a large wingspan with high-pressure spraying . offers high-precision positioning with GPS, Beidou; and GLONASS support .

Intelligent flight control system integrates advanced features to optimize performance and enhance operational efficiency for users . features include: 1 3 Stability and Maneuvering Obstacle Avoidance HD FPV Camera Navigation and Positioning Terrain Following Night Flight Mode Intelligent Route Planning Breakpoint Resumption Data Cloud Storage Fully Automatic Flight Low Battery Alarm HD Video Transmission AB Point Flight Empty Tank Warning Real-Time Data Transmission Manual Flight One-Key Return to Home RTK Base Station Support PUMPINOZ CAN_ BUP_POW CH5

Max. Flow Rate Droplet Size Range Spray Width Operate Efficiency 20 Llmin 60-90 um 6-12m 23 hal

the H120 model boasts a versatile dual system for both liquid spraying and solid spreading . the spread system features a robust 60 kg tank, ideal for 1-10 mm granules and covers a spread width of 4-10 meters .

powerful spray penetration essential for treating fruit trees and crops . powerful downdraft wind field facilitates deep liquid deposition to lower plant sections . transports goods across farmlands, enabling short-distance deliveries and material supply in challenging terrains .

Operating Modes Three operating modes: Fully automatic, AB point, Manual . Fully Automatic AB Point Manual MA m

Night Flight Mode ensures safe; effective night-time operations, enhancing visibility and navigation: Night Navigation Flight Mode Share:

Power System Equipped with two 14S 2800OmAh intelligent lithium batteries and an intelligent dual-channel charger; the drone is designed for rapid charging and continuous operation .

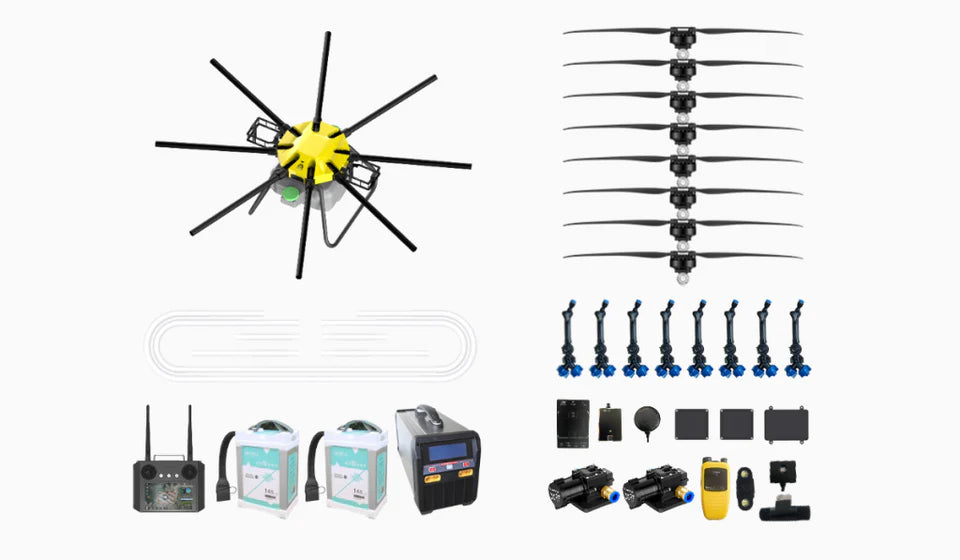

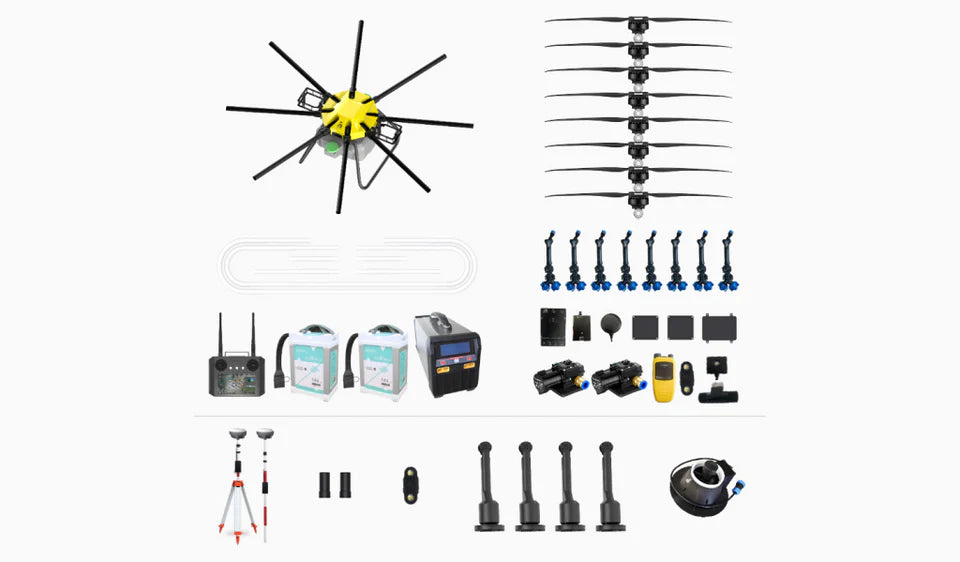

Standard Kit for essential spraying needs, or upgrade to the Enhanced Kit for additional advanced features: Standard Kit Advanced Kit . Standard Kit X1 Spray Nozzles X8 GNSS (GPS/Beidou/GLONASS)
