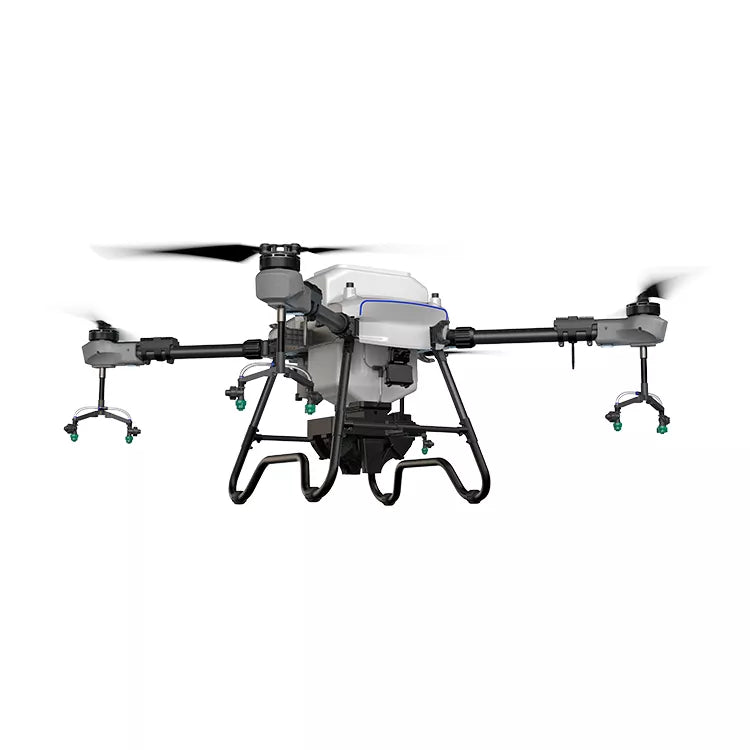

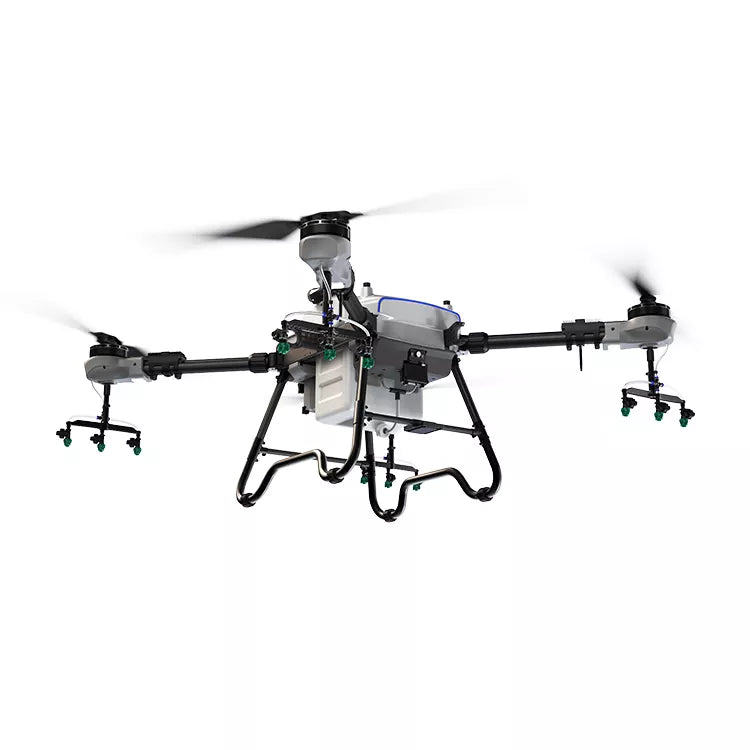

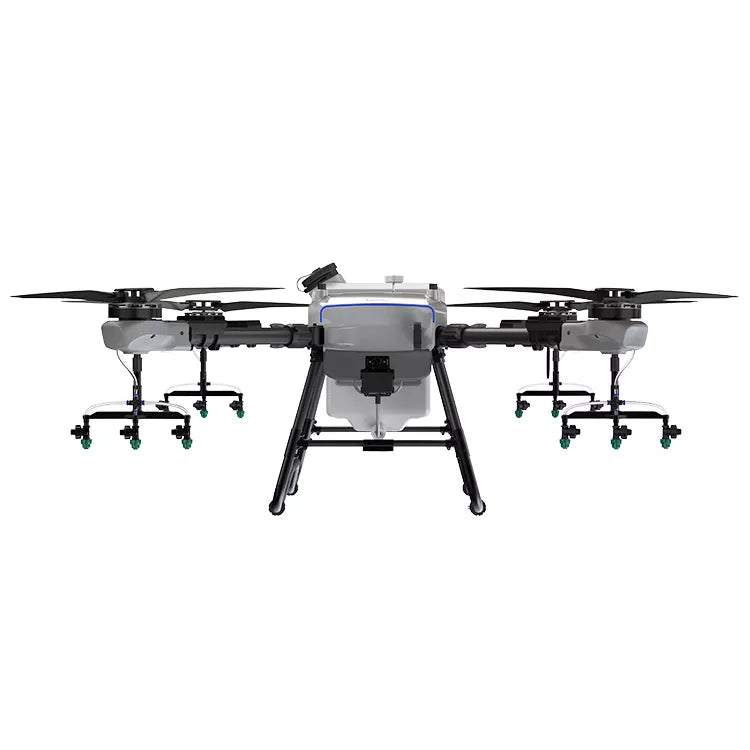

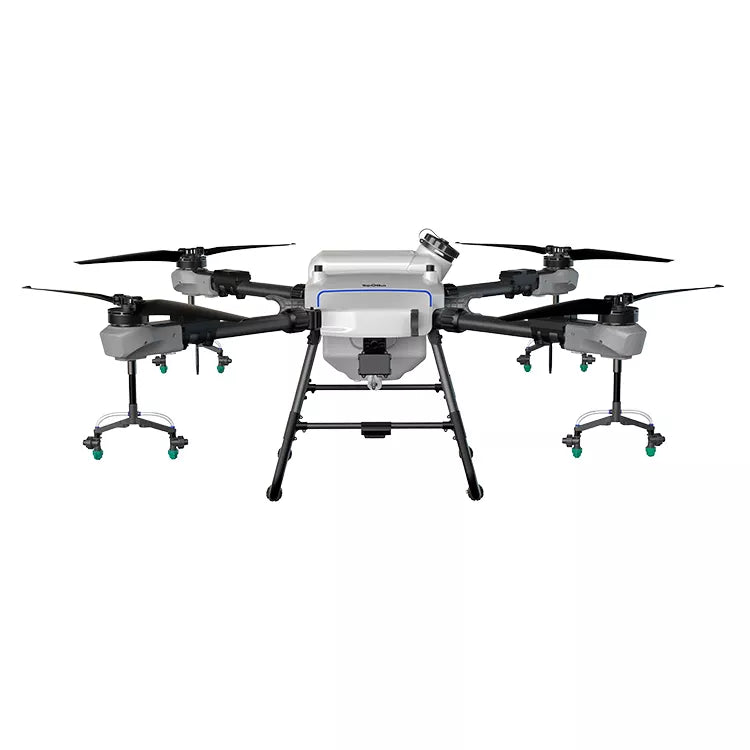

YUEQUN FP200 Agriculture Drone Paramters
- Место происхождения: Jiangsu, China
- Название бренда: YUEQUN
- Номер модели: FP200
- Материал: Металл
- Тип: agriculture use
- Функция: One Key Takeoff / Landing, With Camera, APP Control, With Remote Control, With LED lights
- Частный молд: Да
- Capacity: 20000 ml, 20L
- Model: FP200
- Аккумулятор: 30Ah,51.8V
- Container: 30L
- Spray Nozzle: 8
- Max flow rate: 5.4L/min
- Spreading speed: 50L/min
- Spraying Width: 5-8m
- Spreading width: 1-7m
- Drone weight: 38.4kg
YUEQUN FP200 Agriculture Drone Details
Описание товара
Модель | FP300 | FP200 |
Основные параметры | ||
Колесная база | 1970mm | 1945mm |
Expanded size | 2515*1650*788mm | 2340*1650*785mm |
Размер в сложенном виде | 1040*1010*788mm | 1115*1070*785mm |
Net weight(with battery) | 40.6kg | 37.2kg |
Maximum effective takeoff weight | 77.8kg | 63.6kg |
Аккумулятор | 30000mAh,51.8V | 30Ah,51.8V |
Параметры полета | ||
Hover | ＞20min(no load) | 25min |
＞8min(full load) | 12min | |
Maximum flight speed | 8m/s(GPS Mode) | GPS Mode |
Work height | 1.5-3m | 1.5-2.5m |
Obstacle avoidance perception range | 1-40m | 1-20m |
Autonomous obstacle avoidance | ДА | ДА |
Spray Parameters | ||
Pesticide tank | 30L | 20L |
Nozzle type & No | 12 high pressure fan nozzle, support switching centrifugal nozzle | 8 high pressure fan nozzle, support switching centrifugal nozzle |
Maximum flow rate | 8.1L/min | 5.4L/min |
Ширина распыления | 6-8m | 5-8m |
Spread Parameters | ||
Емкость резервуара | 45L | 35L |
Feeding method | Roller quantitative | Roller quantitative |
Spread method | High pressure air delivery | High pressure air delivery |
Feeding speed | 50L/min | 50L/min |
Spread width | 5-7m | 5-7m |

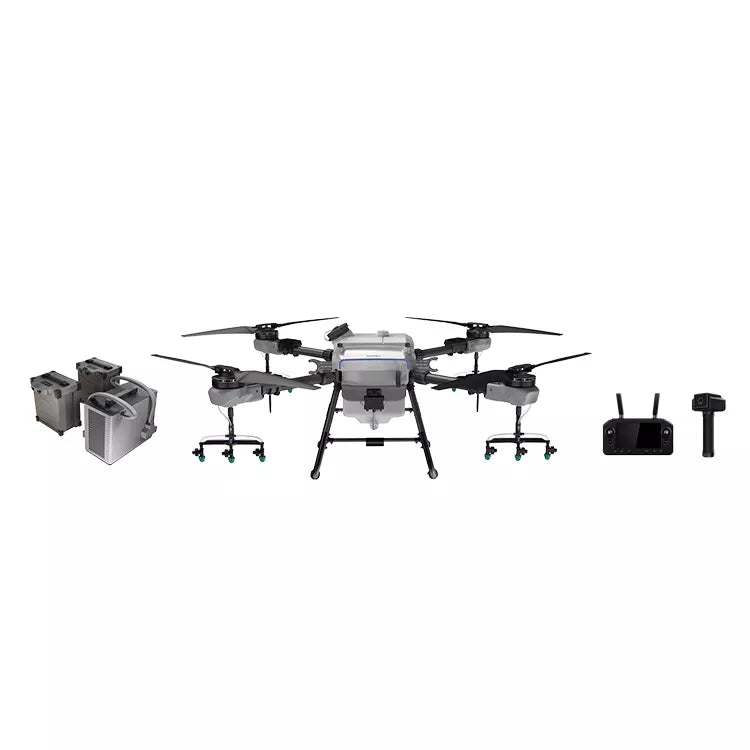

Full set include: Drone*1 Remote Control*1 Charger*1 Battery*2 Inker*1
Наши преимущества
1.Equipped with a 30L super large medicine box, the operation efficiency is increased to 220 mu/hour. 2.Equipped with hands-free pressure relief valve, automatic exhaust. 3.Equipped with a pressure nozzle, the liquid will not drift, and it can support centrifugal nozzles, and the powder will not be blocked. 4.A full-scale continuous level gauge displays the true liquid level.
1.45L barrel, super large load, sowing width up to 7m 2.Sow evenly, air blowing, do not hurt seeds or buds 3.Full anti-corrosion, no damage to the machine, washable, no clogging 4.Measure material weight, report in real time, prevent overweight, and be safer
Meet your expectations for the durability of a drone sprayer
1. All aviation aluminum main frame, which reduces the dead weight and has high strength and impact resistance 2. The core components are closed to prevent dust from entering and corrosion of chemical-resistant fertilizers 3. The battery can be cycled 1000 times, one battery is fully charged in 10 minutes, and 2 batteries can be cycled
1. Provide a variety of modes of operation, including fully autonomous, AB point, manual, etc. 2. A variety of enclosure methods: RTK hand-held inkers, planes, and maps 3. The bright screen remote control can be seen clearly under the hot sun, and has a long battery life of 6-8 hours 4. Automatically generate edge sweeping routes to prevent edge leakage 5. Equipped with searchlights and landing lights for safe operation at night 6. 10 minutes to fully charge a battery, 2 batteries can be cycled
Smart assist features keep you flying safely
1.Ultra-far 40m automatic identification of obstacles, autonomous obstacle avoidance 2.Five beams imitate the ground, accurately follow the terrain 3.Front and rear 720P HD FPV, rear FPV can be flipped down to observe the ground
Профиль компании
Our team was firstly established in 2009 and formally registered in 2015. With more than 10 years of experience in flight control development and manufacture, has expanding our technologies to produce UAV and peripherals including sensors, pods, apps, software and cloud service system. Our products are widely used for agricultural purposes, power line inspection, logistics, etc.
R&D takes up more than 60% of the 200 employees in our company. We boast a team of talents graduated from world-known aeronautics and astronautic universities, who have rich knowledge and experience in designing UAV,military aircrafts, and large aircrafts.YUEQUN has applied for 300+ intellectual properties and 200+ patents being filed. Now we have served 100+ overseas clients, which include Japan, Korea, Thailand, Australia and other countries in East Asia and North America.
Production Line
Pre-assemble material parts, weld and assemble electronics, perform flight testing, and await qualification based on test parameters.
Packing & Delivery
OUR CUSTOMERS We would ove to cooperate with friends from all over the world t0 create more splendid future together.
ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ
Q1. Are you sprayer drone factory?
A1: Yes, we are a professional manufacturer for agricultural sprayer drone, products including: agricultural sprayer drones, spreader drones. thermal fogger drones, Biocontrol control drone.
Q2. Is uav sprayer drone ready to fly?
A2: Yes.Before dispatch, we assembled all the parts and set all the parameters. Every drone is 100% flight tested and strict quality control.Q3. What’s your MOQ of agricultural drone?
A3: MOQ ≥1. More than 100 units order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more.
A1: Yes, we are a professional manufacturer for agricultural sprayer drone, products including: agricultural sprayer drones, spreader drones. thermal fogger drones, Biocontrol control drone.
Q2. Is uav sprayer drone ready to fly?
A2: Yes.Before dispatch, we assembled all the parts and set all the parameters. Every drone is 100% flight tested and strict quality control.Q3. What’s your MOQ of agricultural drone?
A3: MOQ ≥1. More than 100 units order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more.
Q4. What’s the delivery time of sprayer drone?
A4: 2-3 days for one, please contact us for mass order.
