AGFRC A11CLS V3 Upgrade Programmable Reliable 0.05S Super Speed 1.4KG Micro Digital Coreless Servo For DRZ V2 BMR-X DriftArt WLtoys K989/969 Mini-Q 1/24 1/18 Mini Z Cars

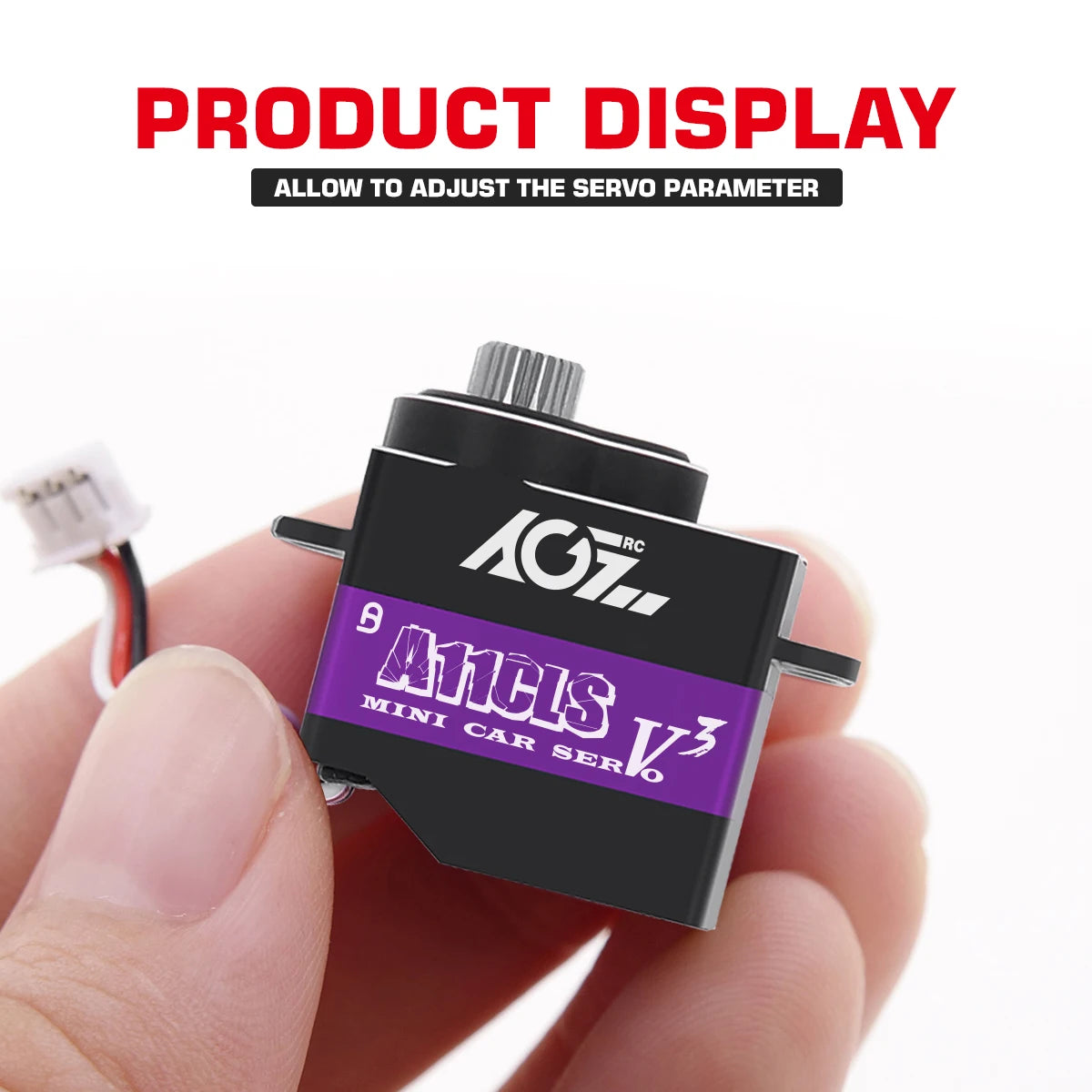

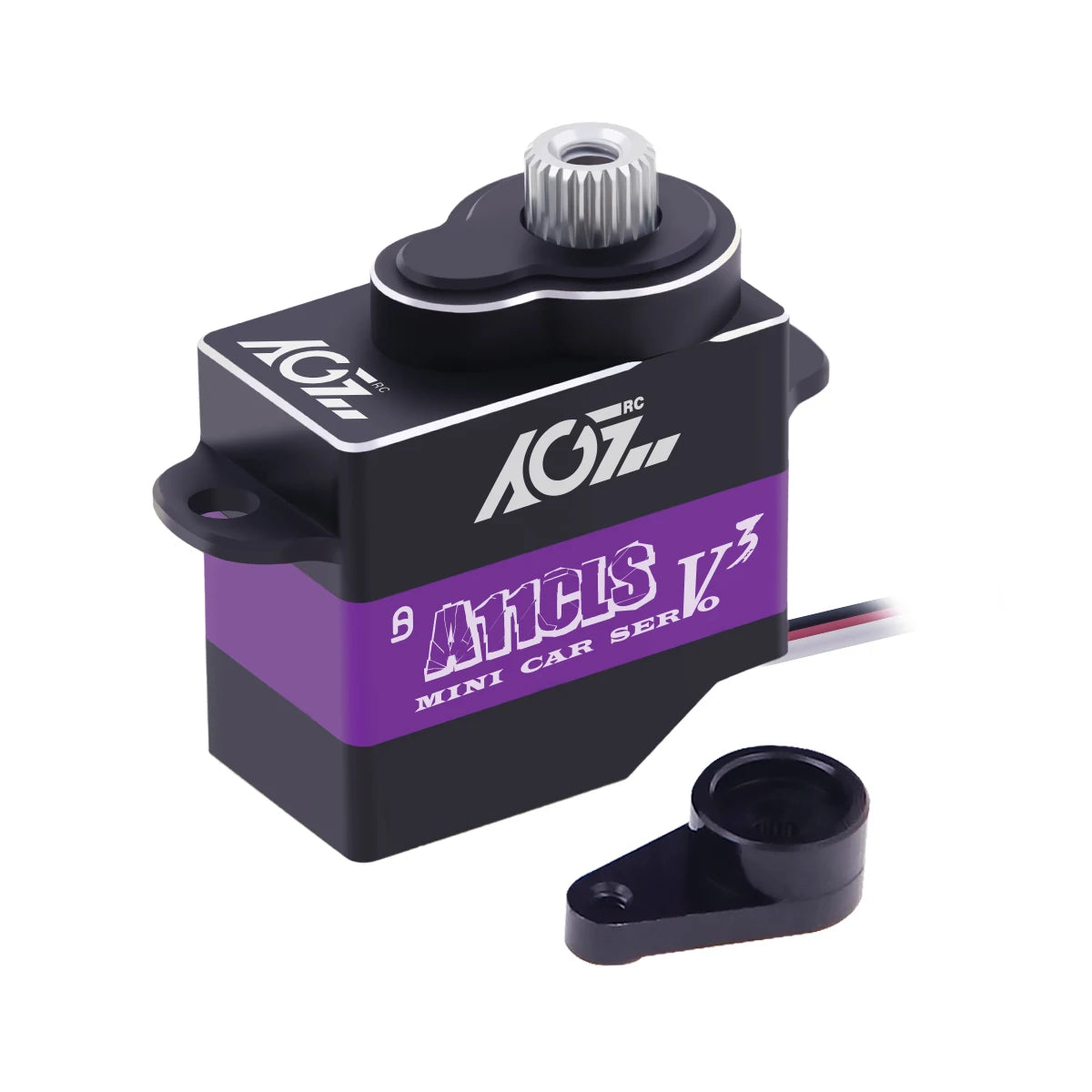

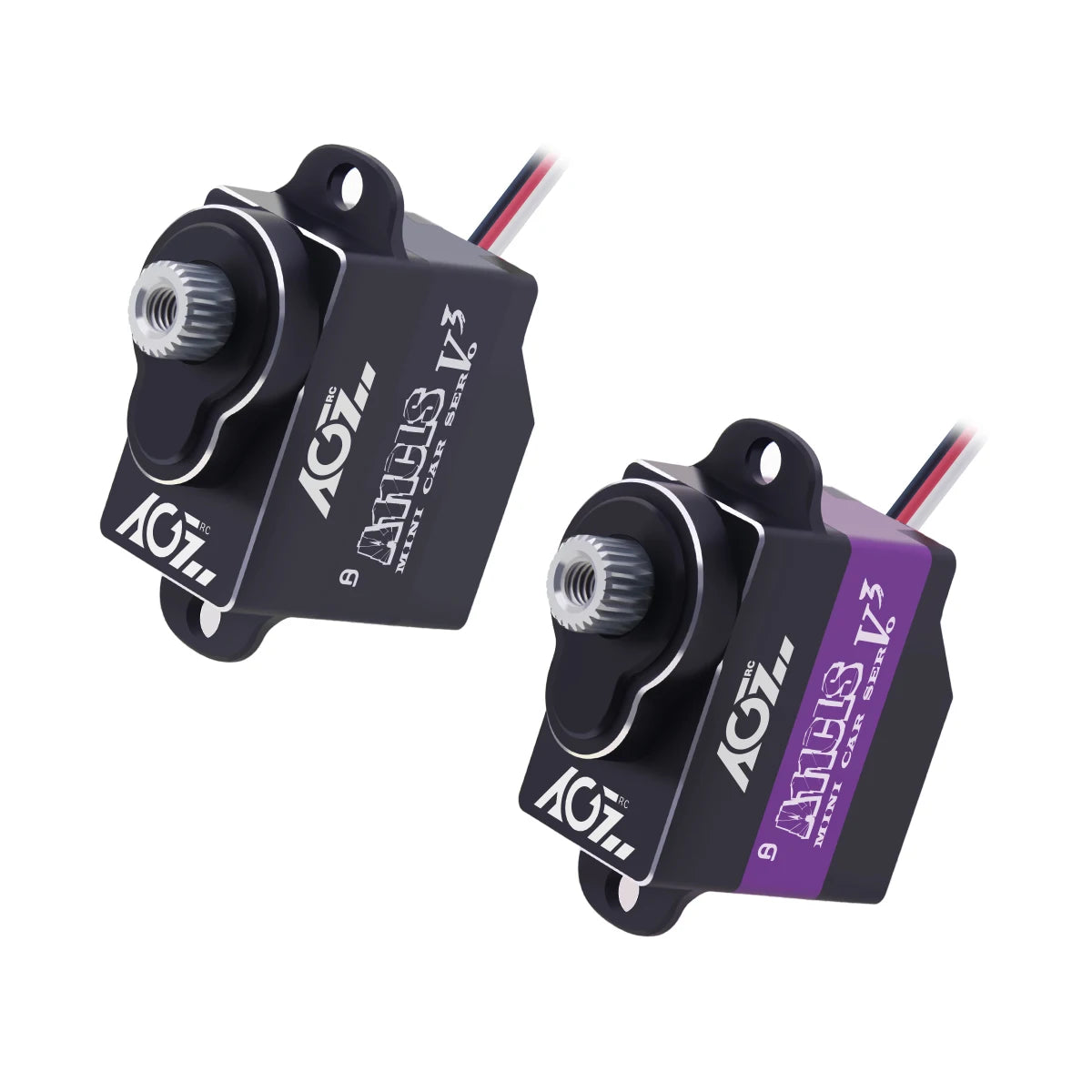

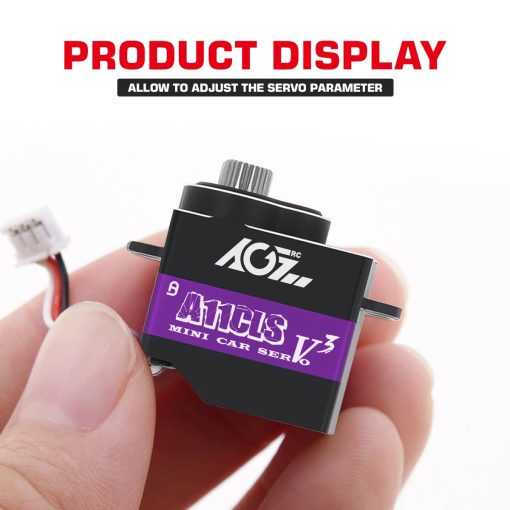

AGFrc A11CLS V3 Mini Z Scale Digital Programmable Servo. The use of high quality coreless motor, high accuracy titanium gear and 2 ball bearings, so that it working stable and smooth. It has programmable function which support to adjust the servo parameter as required. It is a great choice for 1/24, 1/28 scale mini Z cars who demand 0.065sec fast speed and 1.4 kg-cm high torque in an ultra-small size and light weight body.

9g Upgrade Metal Case 0.05sec Programmable High Speed High Torque Digital 1.4KG Servo JST/JR Plug For Mini Z RC Track Car

Характеристика

Характеристика

High Performance Mini-Z Digital Servo

High Precision Titanium Gear

High Quality Coreless Motor

Алюминиевый корпус с быстрым охлаждением

Programmable Digital Circuit For Parameter Adjustment

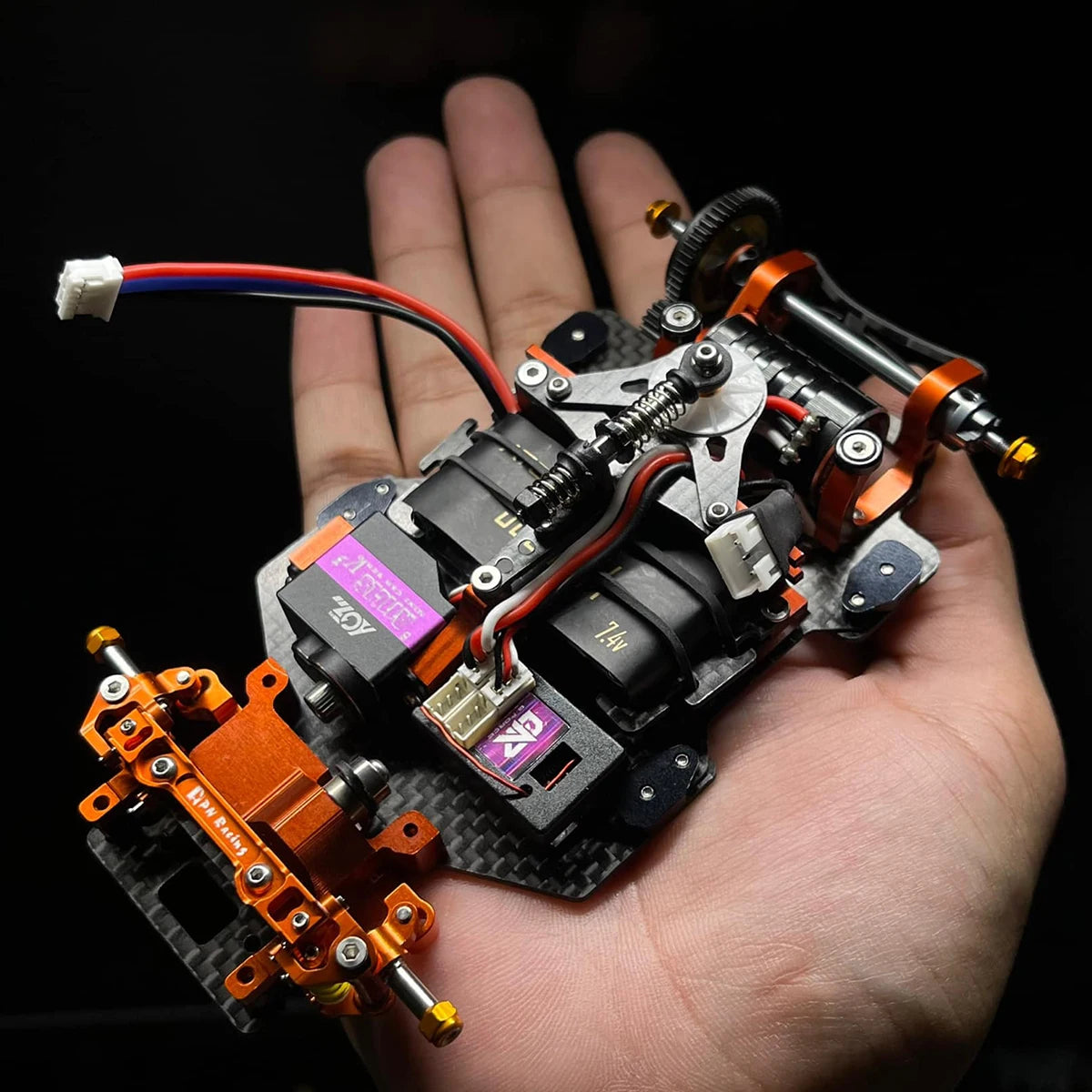

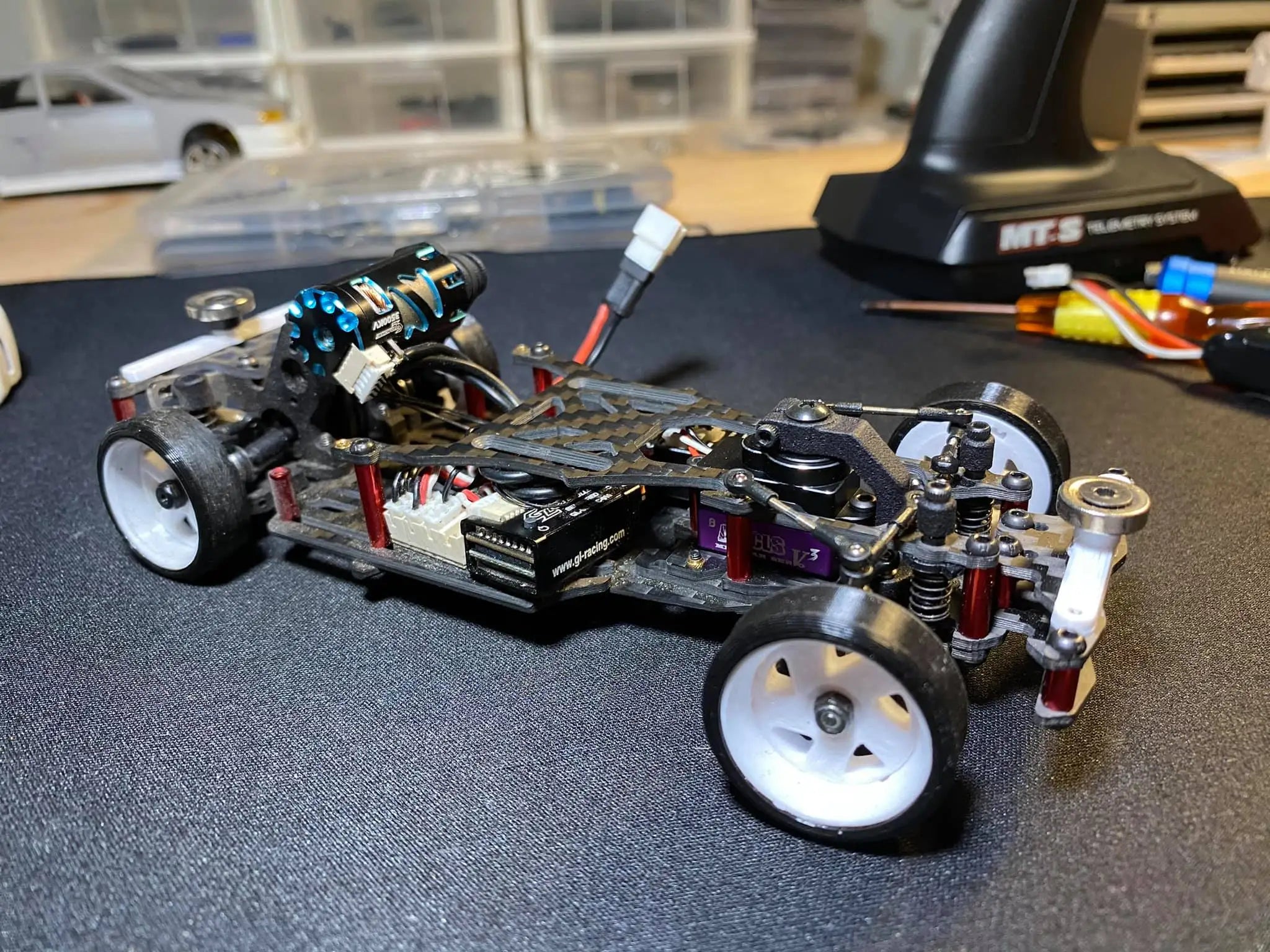

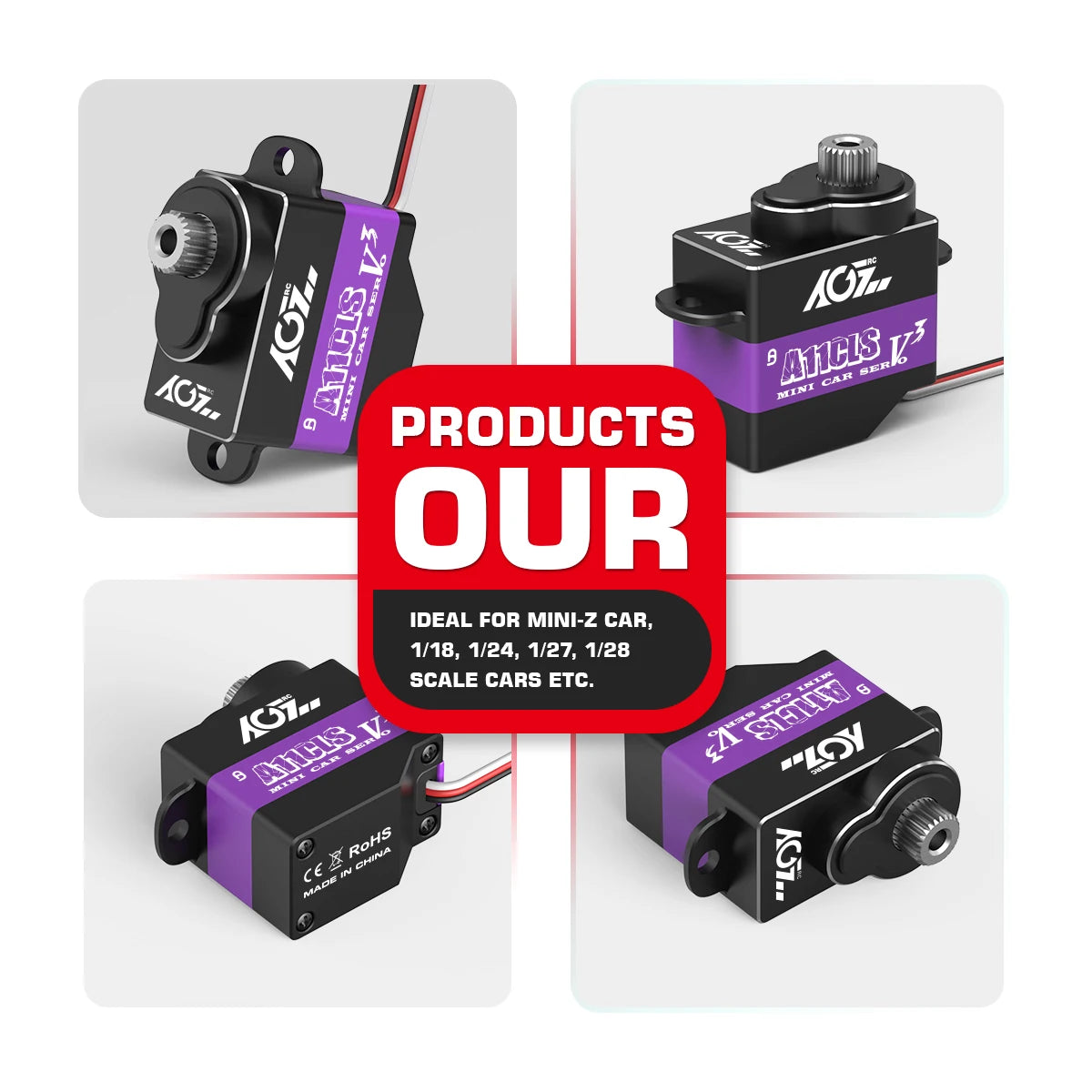

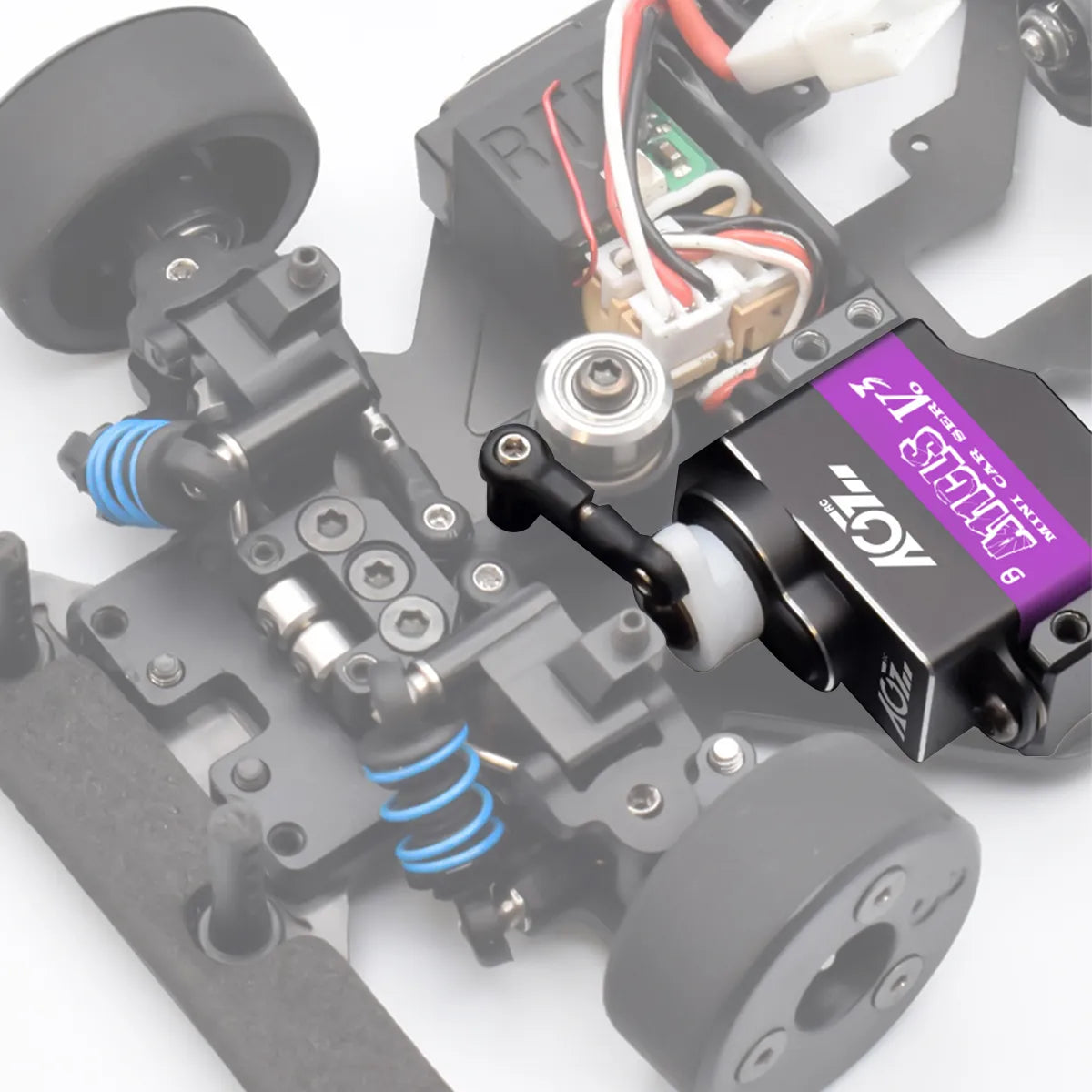

Ideal for Mini-Z Car, 1/18, 1/24, 1/27, 1/28 Scale Cars etc.( Such as DRZ V2, BMR-X, DriftArt 2 ,WLtoys K989/969, Mini-Q, etc.)

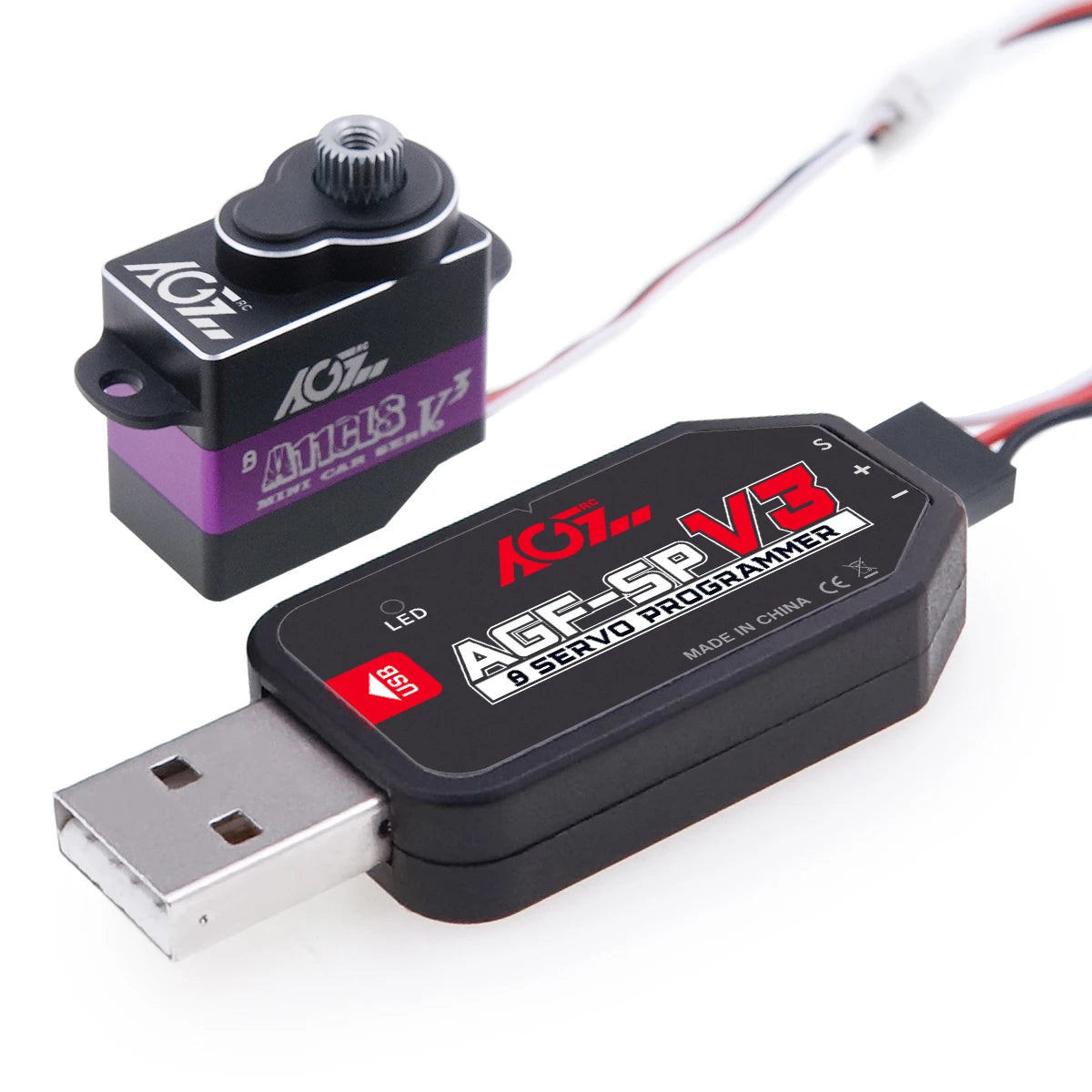

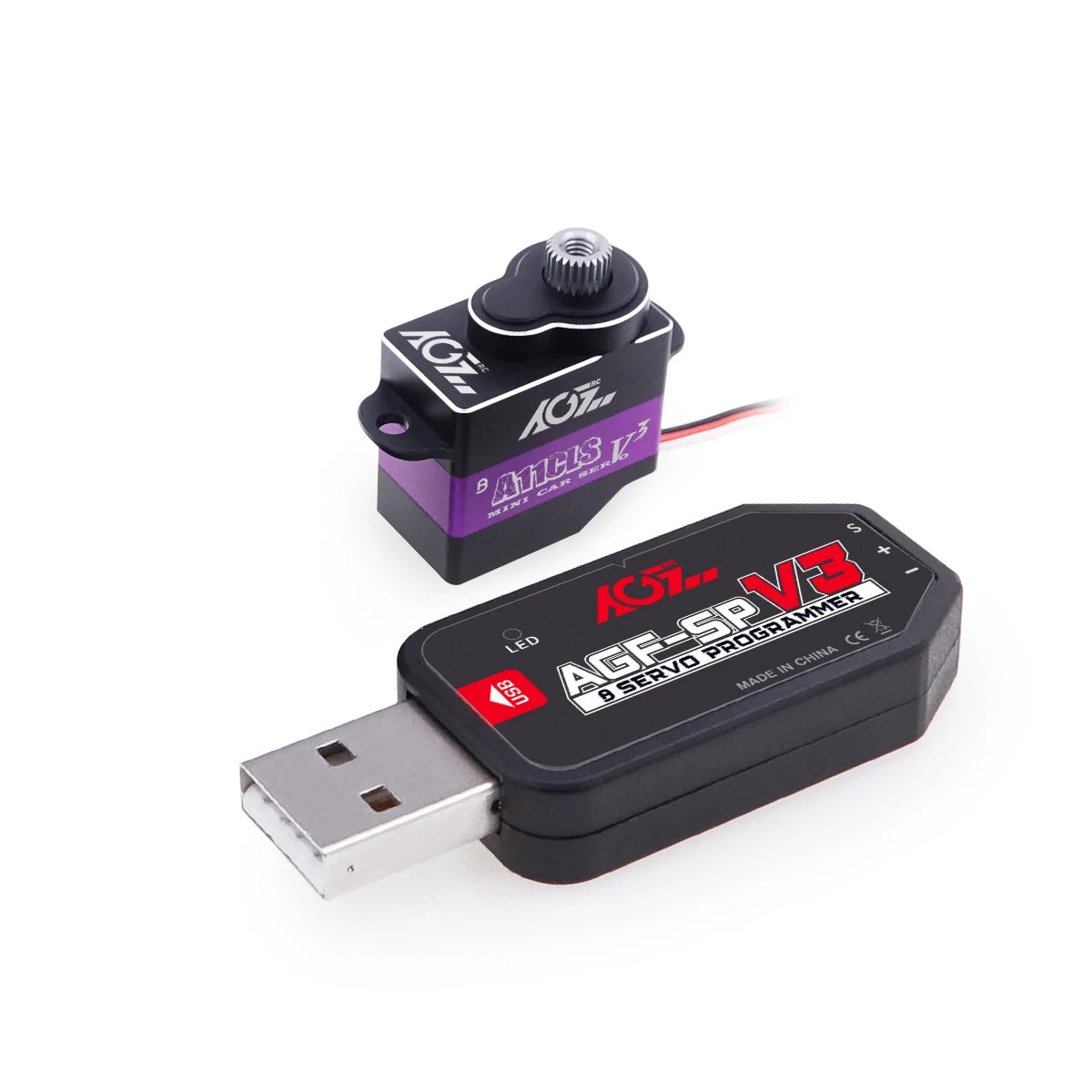

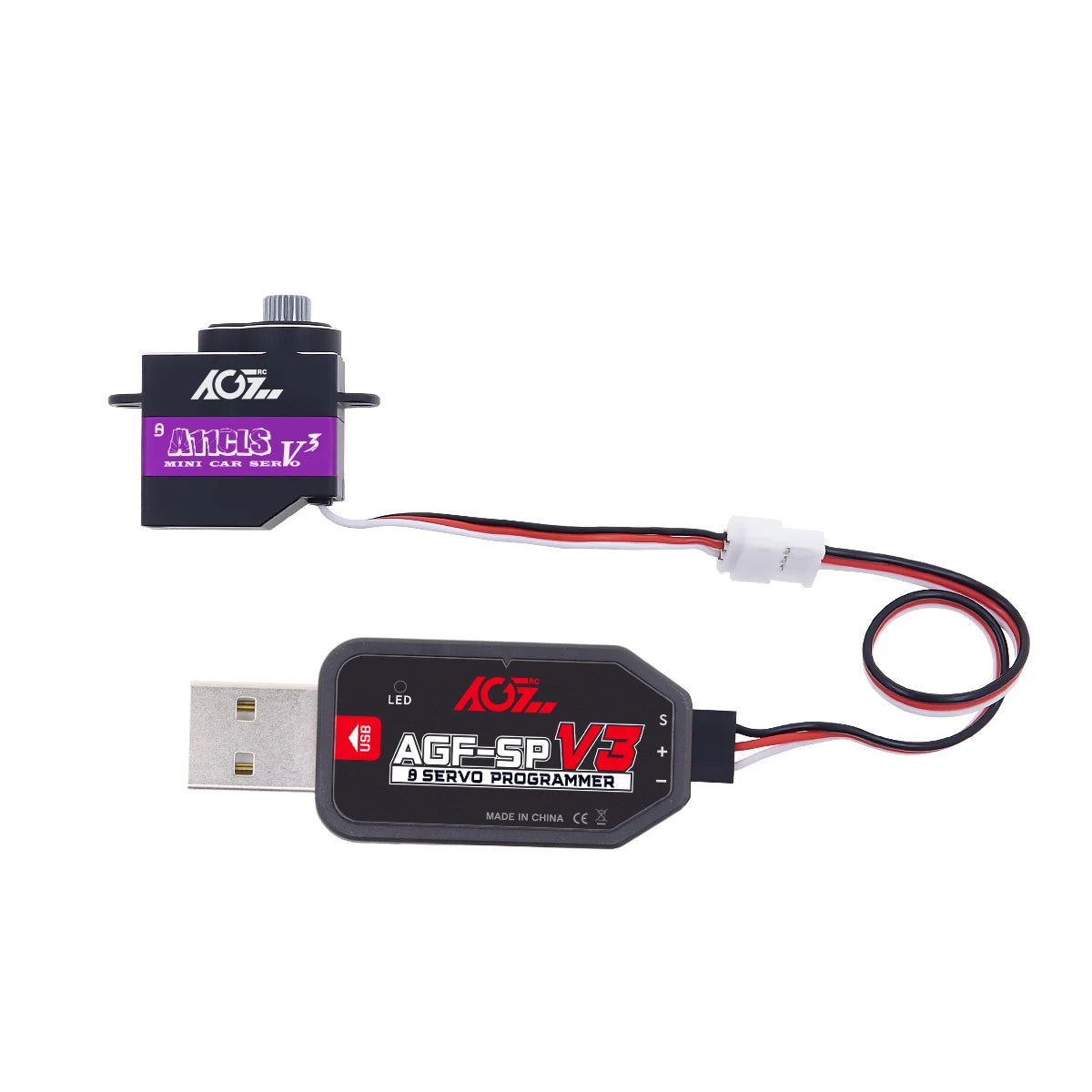

Note: Currently, USB programming cards are only applicable to Windows system.

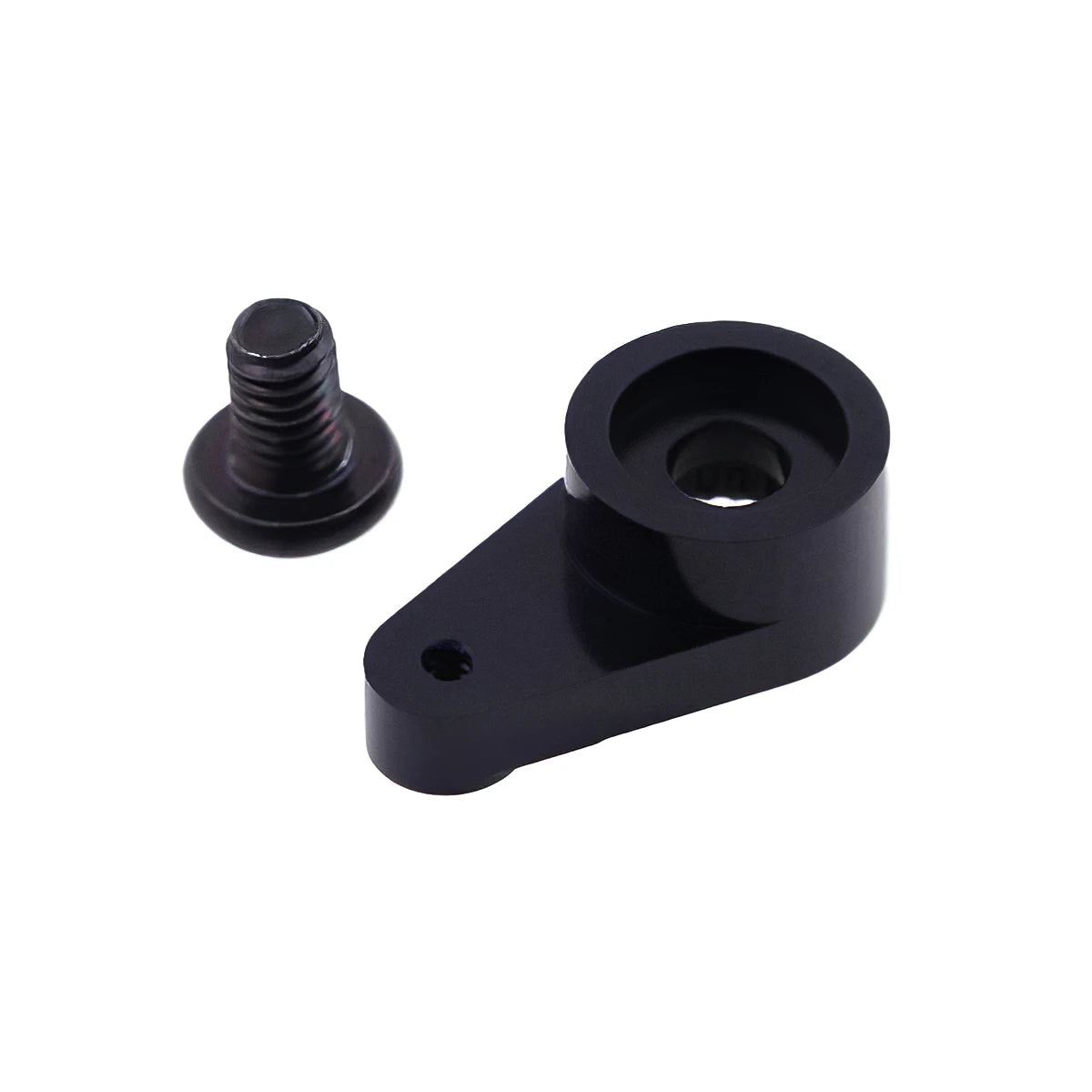

Kind Reminder: USB servo programmer and Horn is not included.

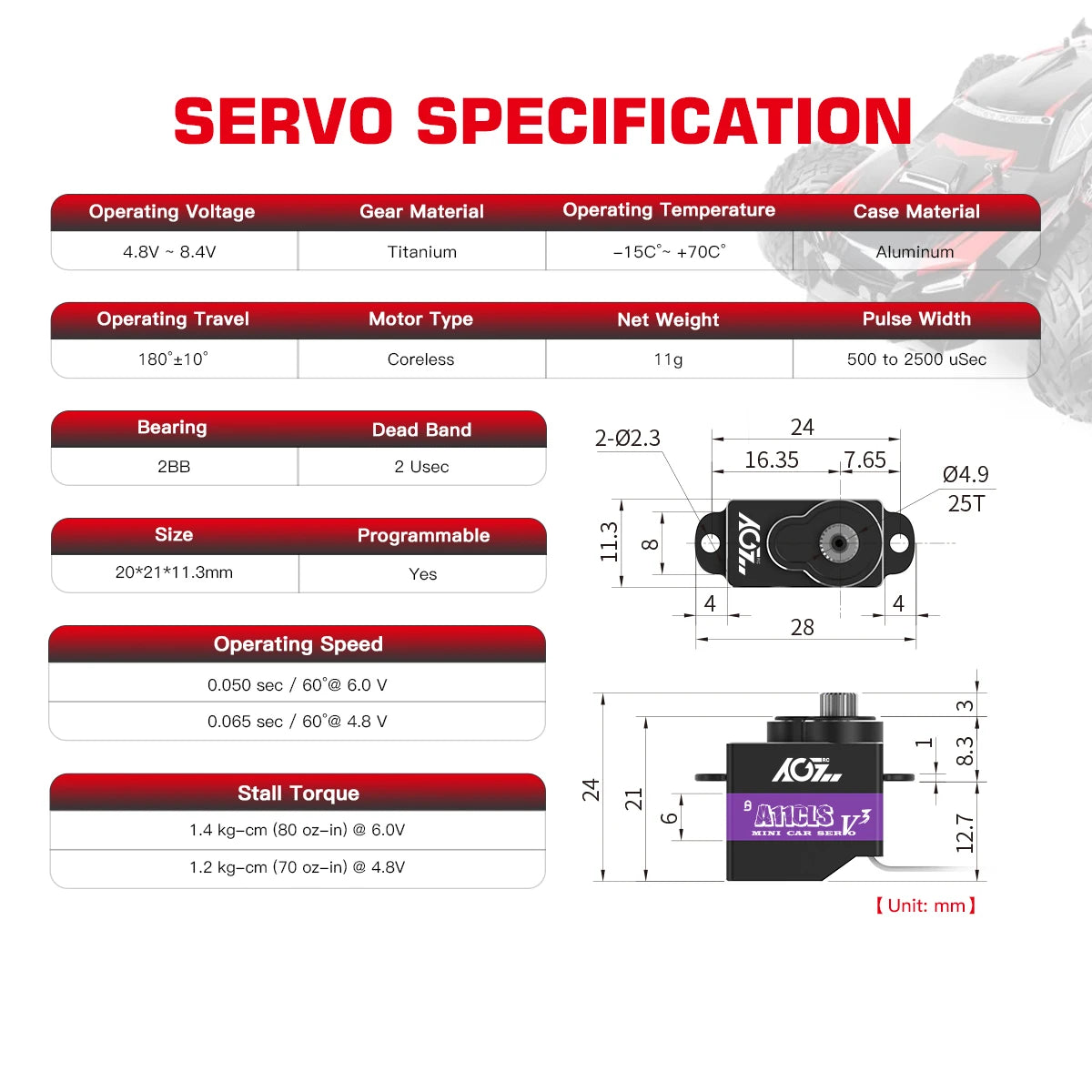

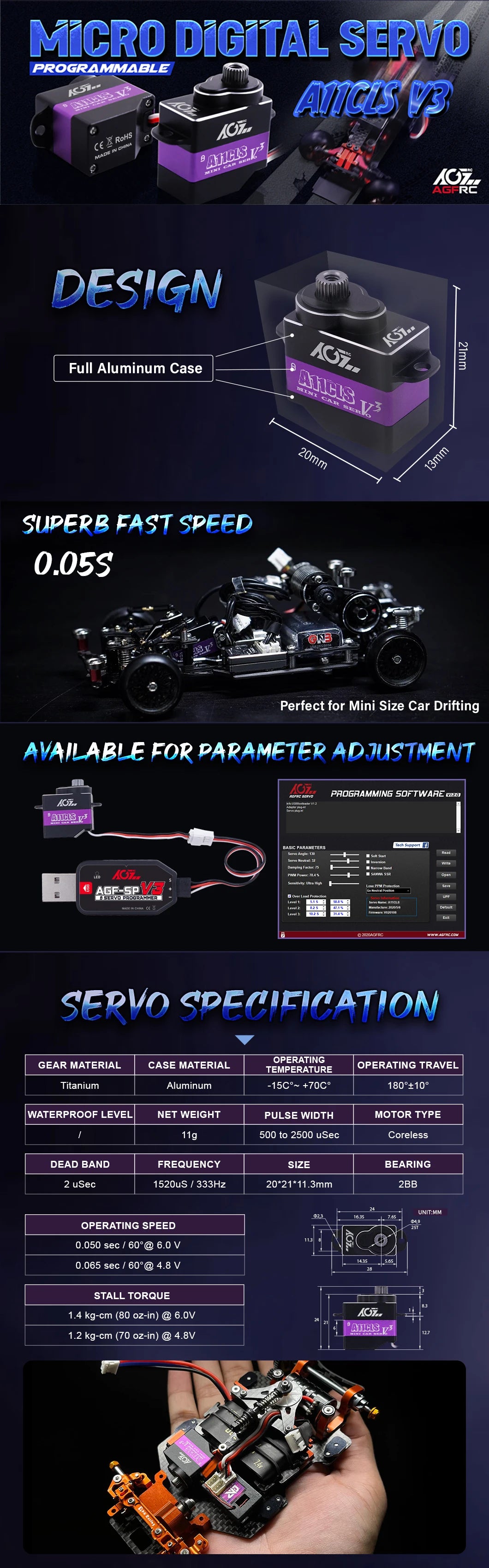

Технические характеристики

A11CLS V3

Operating Voltage: 4.8-6.0V

Operating speed: 0.065sec/60°@4.8V

Operating speed: 0.050sec/60°@6.0V

Stall Torque: 1.2 kg-cm (17 oz-in) @4.8V

Stall Torque: 1.4 kg-cm (19 oz-in) @6.0V

Gear: Titanium

Motor: Coreless

Size: 20*21*11.3mm (0.78 x 0.82 x 0.44 in)

Вес: 11 г

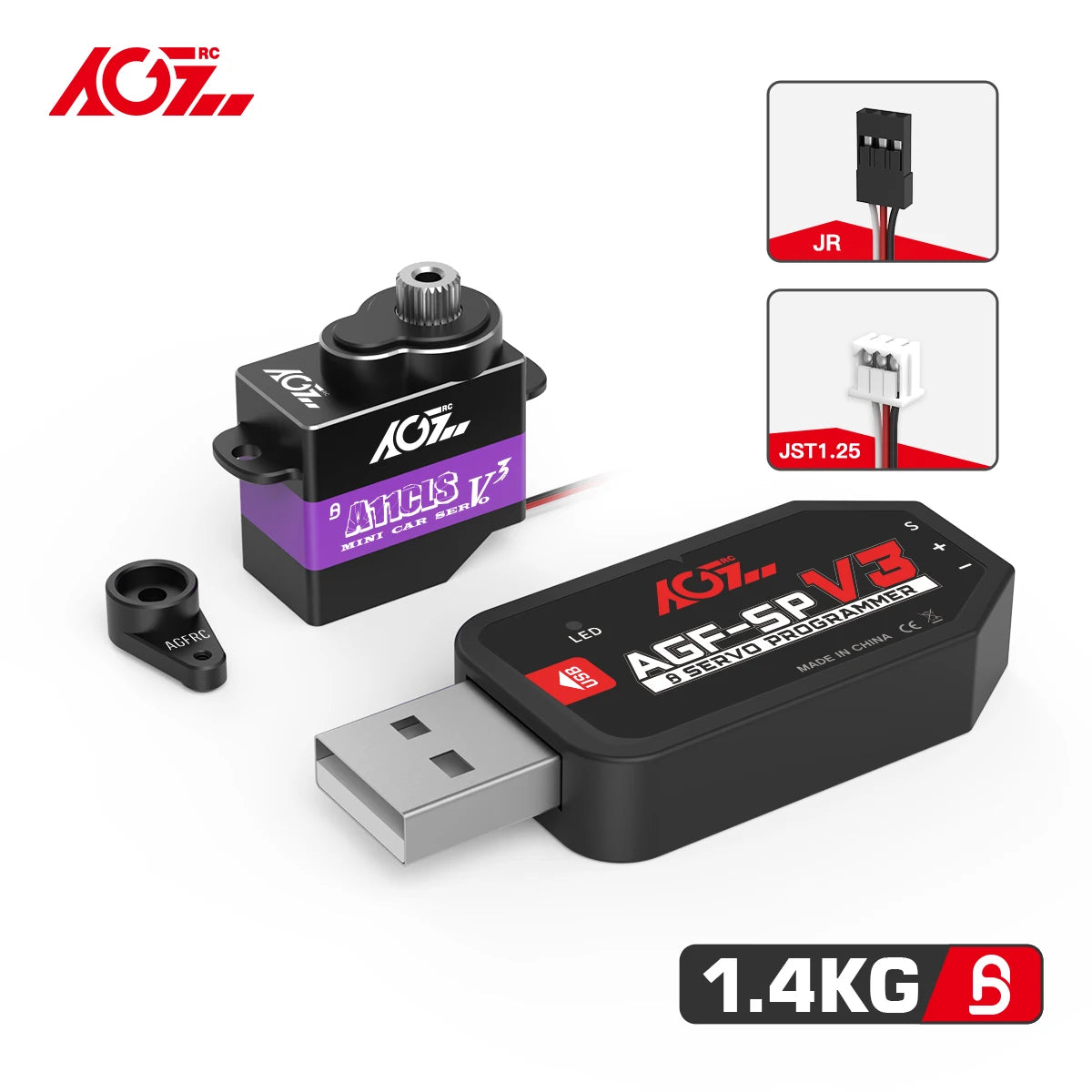

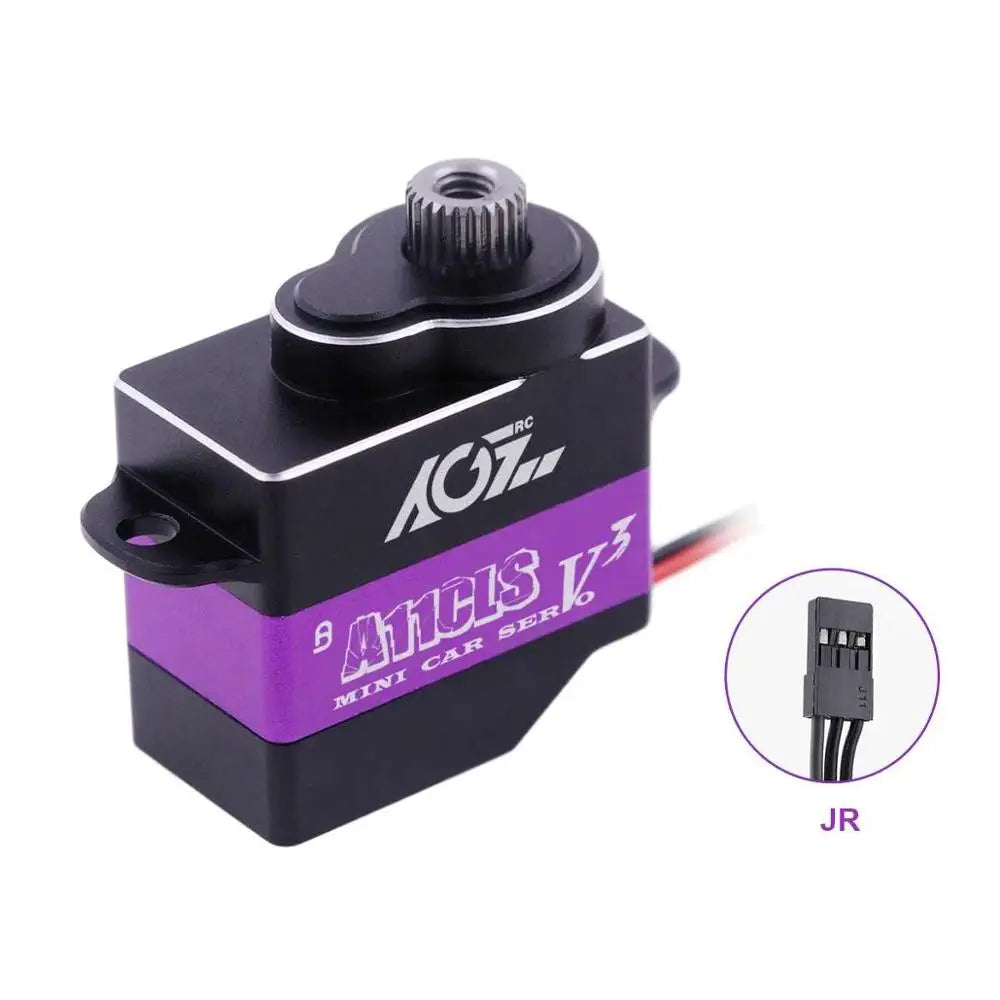

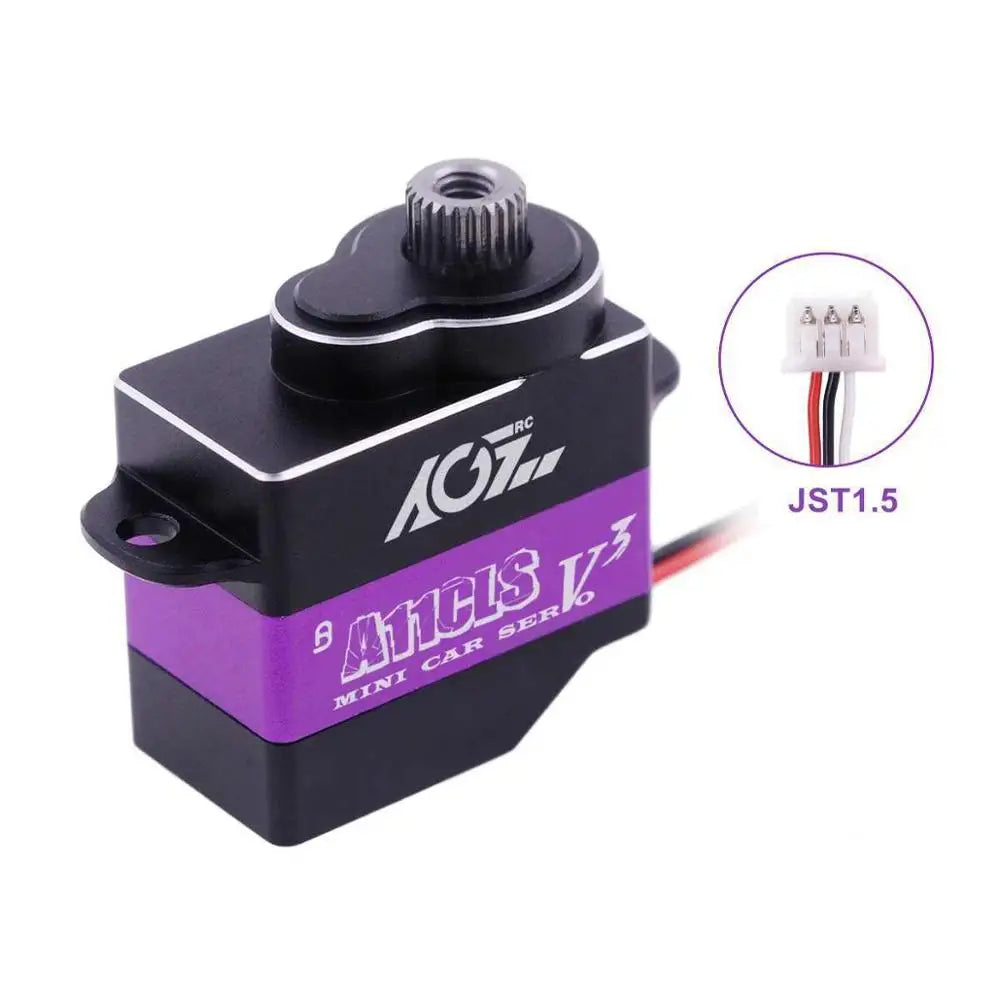

Connector Wire: JR or JST1.5 80mm for selection

This micro digital servo, programmable via V-KoK’s AGF design, features a full aluminum case and a superb fast speed of 0.05 seconds, making it perfect for mini-sized car drifting applications.

AGFRC A11CLS V3 Control System: Pulse Width Modulation (PWM) control with a refresh rate of 333 Hz, operating frequency range of 2-22.35 kHz, and neutral position of 1,520 microseconds. Signal mode is digital with a deadband of 3 microseconds at 1435/5165 duty cycle. The operating voltage range is 4.8V to 6.0V, temperature range is -15°C to +70°C, and the bearing type is double ball bearings with no mechanical angle limit. Dimensions: 20mm x 11.3mm x 21mm (Net weight: 11g), wire: JRI/JST 1.5mm x 8mm x 30AWG, operating travel: 180°.

AGF-RC Electronic Technology Co., Ltd., located in Huizhou, is a high-tech enterprise that operates over 1,200 square meters of dust-free electronic manufacturing workshops since 2009. With a focus on developing all series of RC servos, speed controllers (ESC), receiver modules, and car gyros, AGFRC has earned certifications from CE, ROHS, and FCC.
